Broker's comments

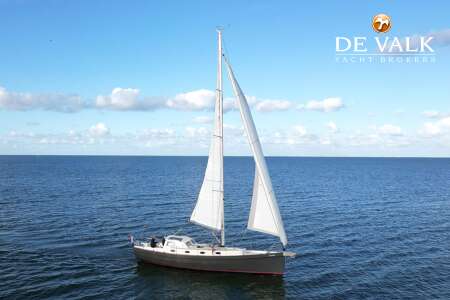

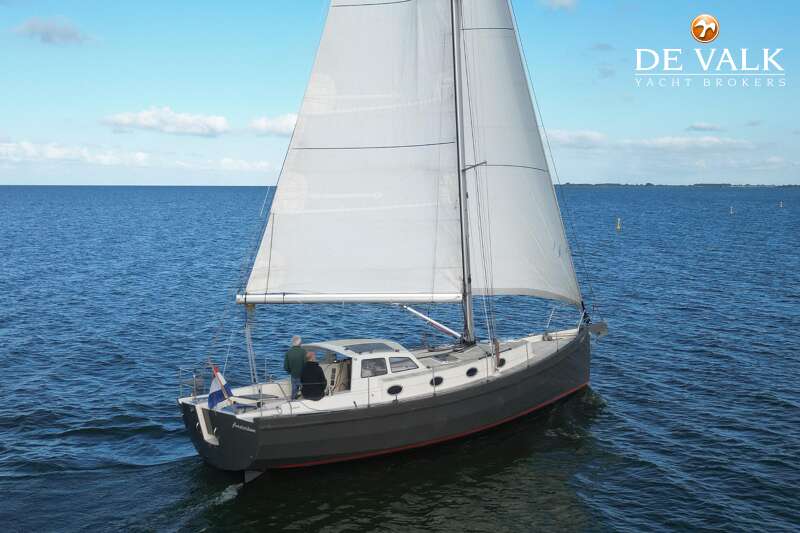

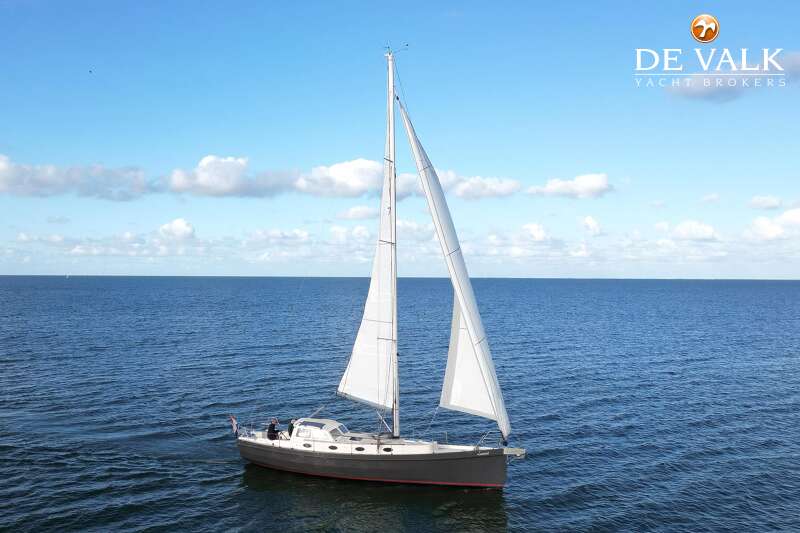

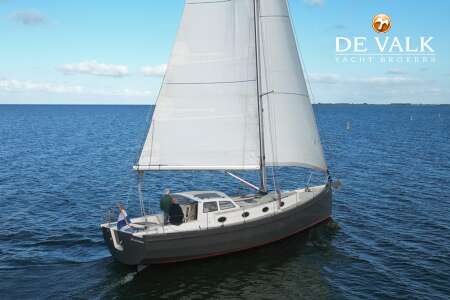

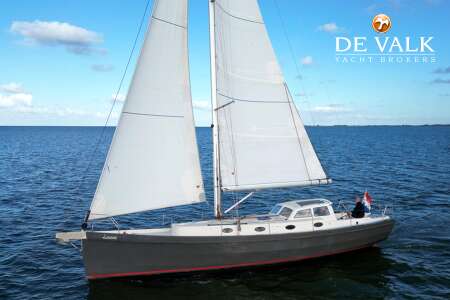

The owner is a yacht designer and it shows. He designed this light displacement, fast cruisingyacht and used his skills and experience to create this shallow draft "Lift keel" (centerboard) sailing yacht to enjoy performance sailing in comfort, security and to go anywhere he likes as draft is no longer an issue. The layout has 3 separate cabins for family and friends. So if you are looking for something exceptional, the Svalbard 41 may be for you to enjoy. Built in strong grp foam composite she is well insulated to.

Ger Bayens
Yacht Broker

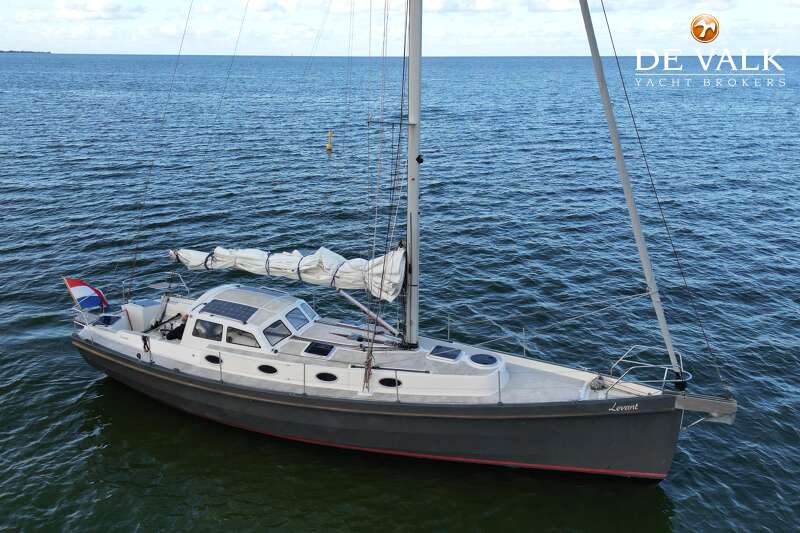

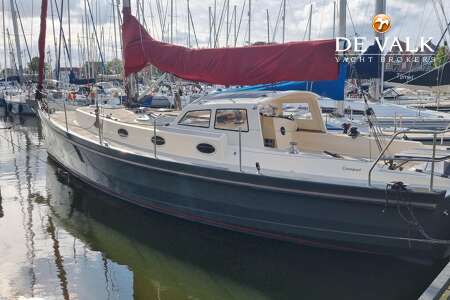

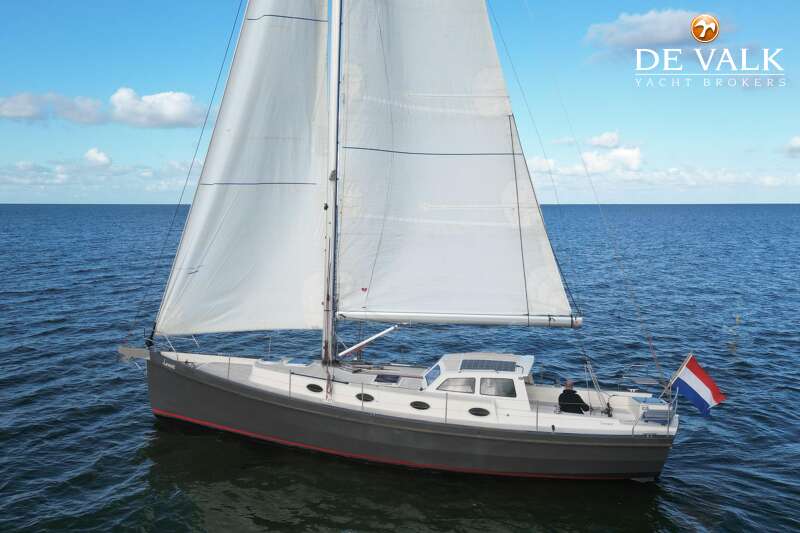

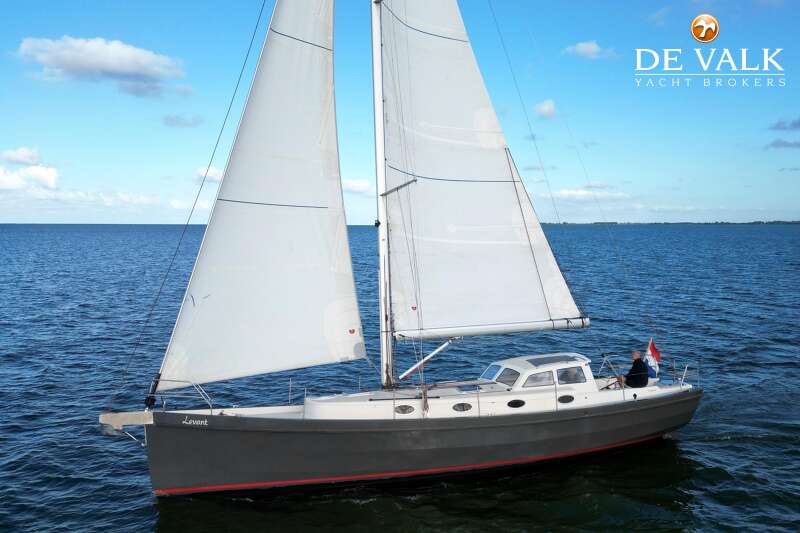

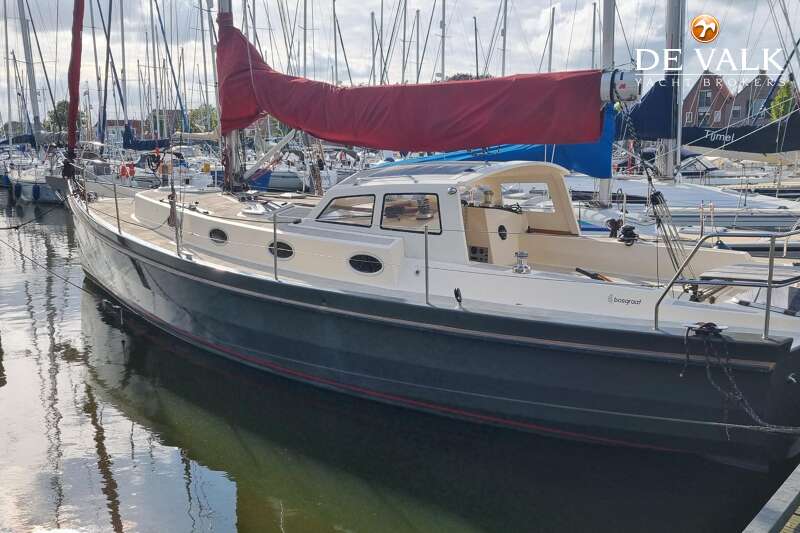

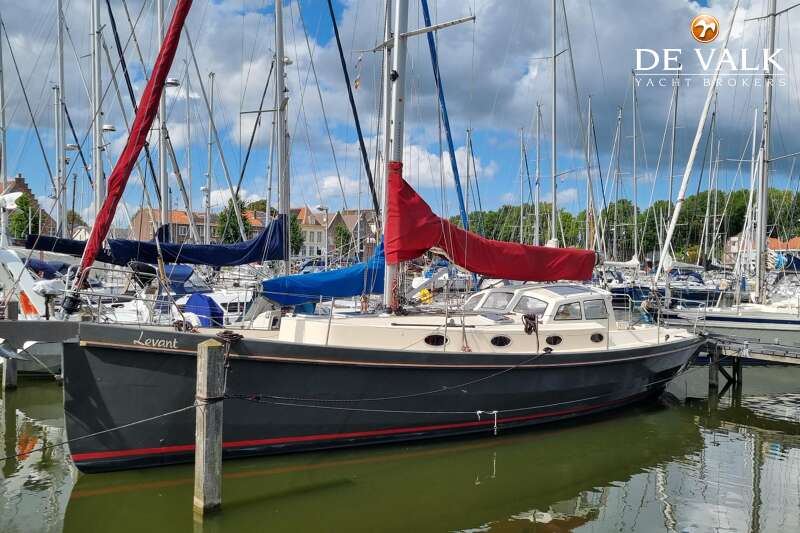

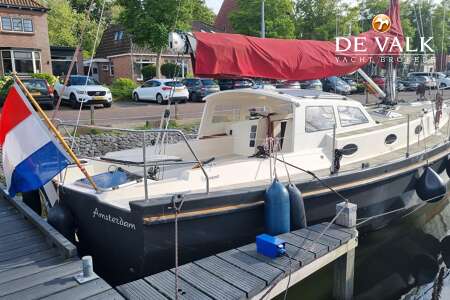

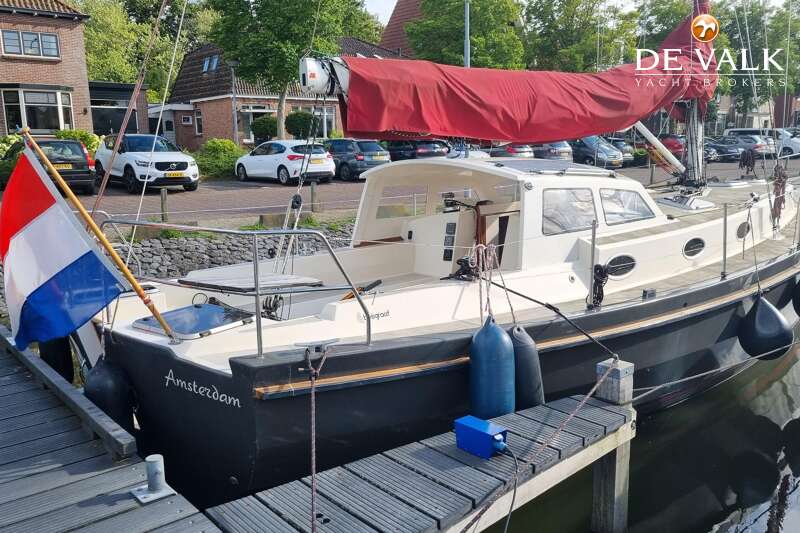

SVALBARD 41 LIFT KEEL

Dimensions   12,50 x 3,95 x 2,40 / 0,95 (m)
Material   grp
Built   2016
Engine(s)   1 x Mitsubishi S3L diesel
HP/Kw   27 (hp), 19,87 (kw)
Lying   The Netherlands
Sales information   De Valk Thuishaven
Status   for sale
Vat   paid
Asking price   € 175.000

General - SVALBARD 41 LIFT KEEL

Model   SVALBARD 41 LIFT KEEL
Type   sailing yacht
LOA (m)   12,50
LWL (m)   11,56
Beam (m)   3,95
Draft (m)   0,95
Draft min (m)   2,40
Air draft (m)   19,00
Headroom (m)   1,94
Year built   2016
Launched   2016
Builder   Bosgraaf-Feis, owner built
Country   The Netherlands

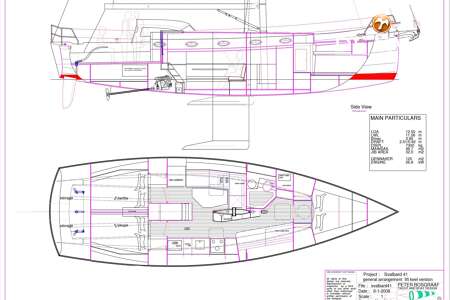

Designer   Peter Bosgraaf
Displacement (t)   8,5
Ballast (tonnes)   lead in steel  2,7
Hull material   GRP
Hull colour   antracite gray

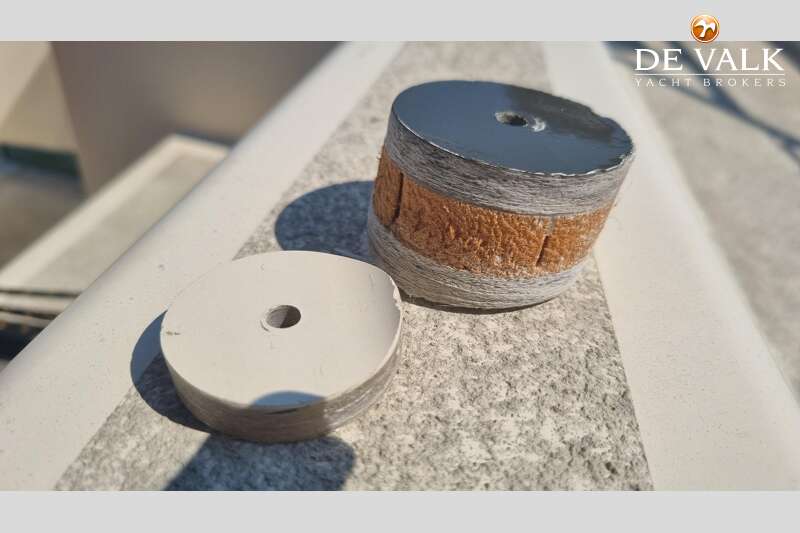

Hull thickness (mm)   GRP/H80 foam composite, 30mm
Hull shape   multi hard chine
Keel type   lifting keel
Superstructure material   GRP/H80 foam composite
Rubbing strake   yes

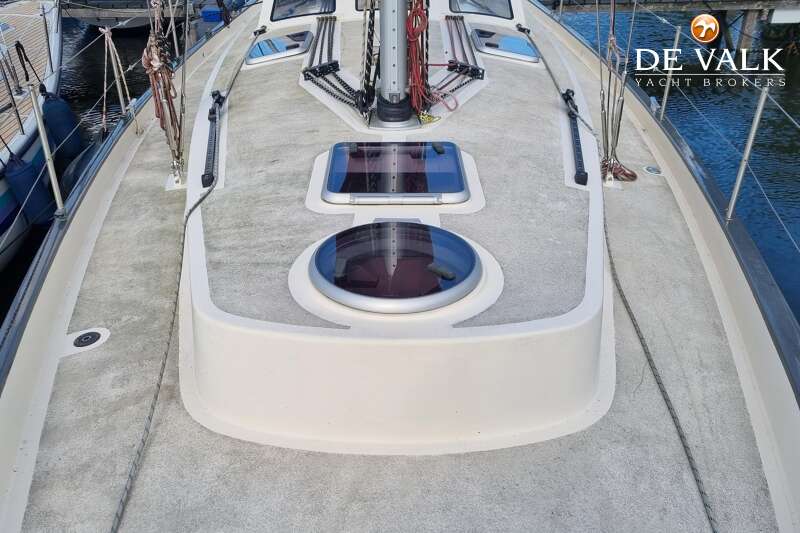

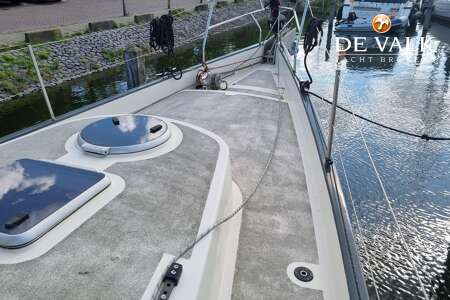

Deck material   GRP/H80 foam composite
Deck finish   non-skid paint
Superstructure deck finish   yes
Cockpit deck finish   non-skid paint
Antifouling (year)   2023

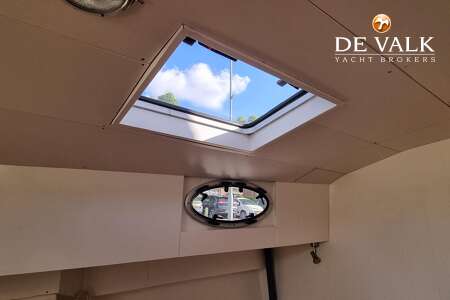

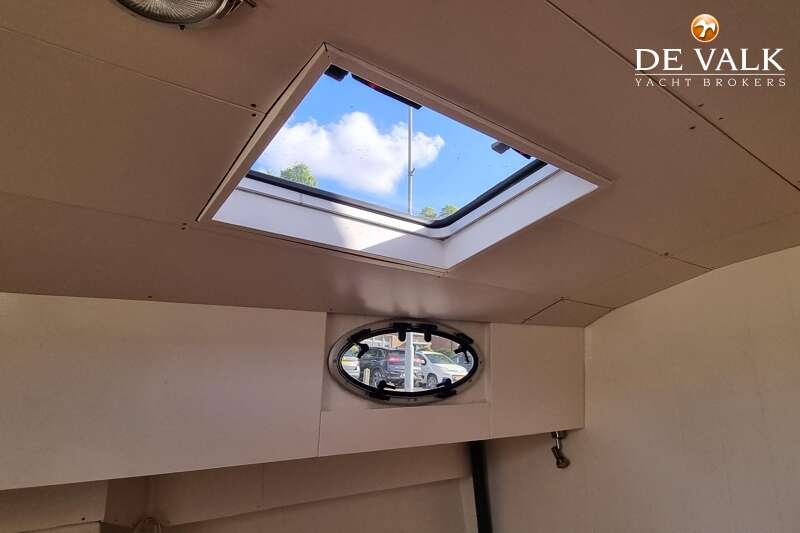

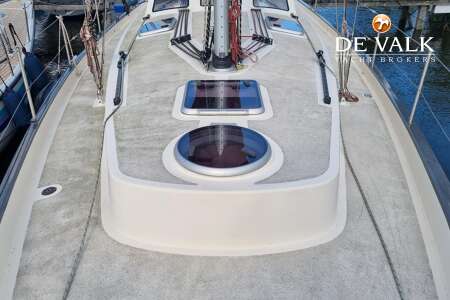

Deckhatch   Moonlight
Portholes   Moonlight
Insulation   H80 foamcore composite
Fuel tank (litre)   polyethylene  95
Freshwater tank (litre)   135 + 100
Blackwater tank (litre)   polyethylene  60
Blackwater tank extraction   uw-line
Tiller   yes
Emergency tiller   with extention
Extra info   There is an onboard 750 ltr/kg water-ballast system to get the best performance out of this fast light displacement, shorthanded cruising yacht. Not mandatory to use but easy to operate when you want to.
Extra info   The liftkeel is operated with an electric/hydraulic pump. The keel can be fixed with a pin in down and up position.

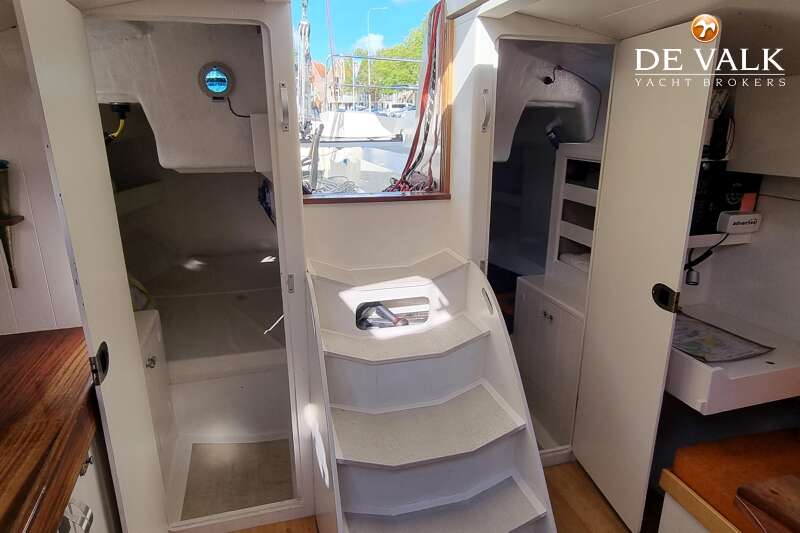

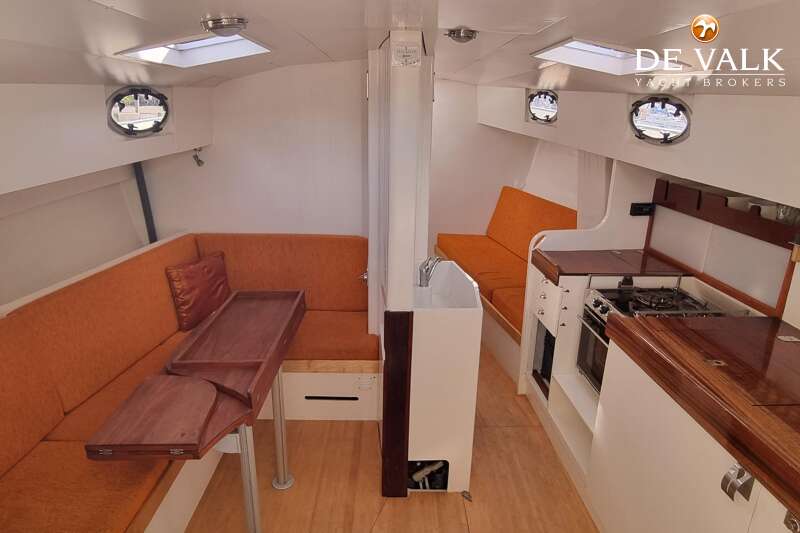

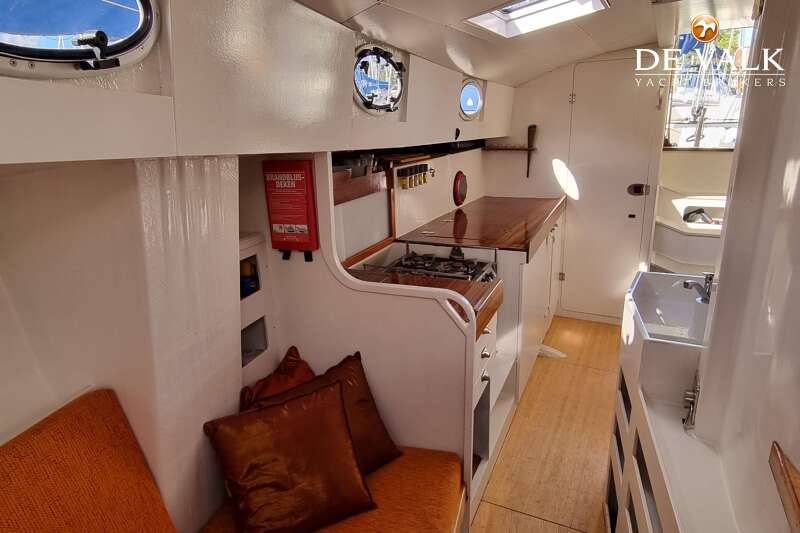

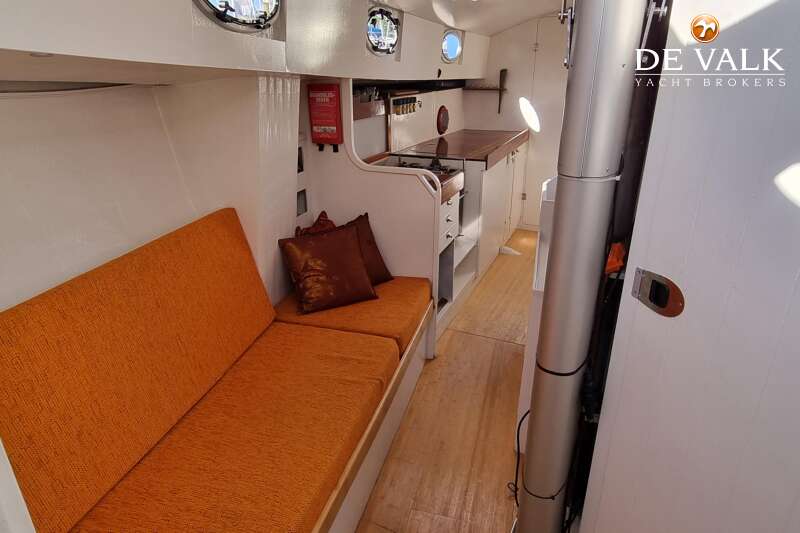

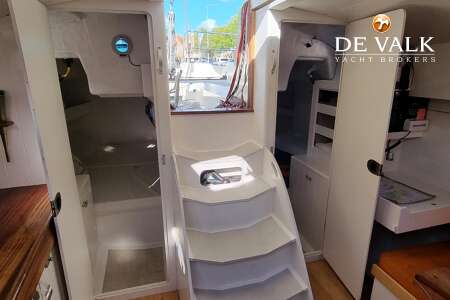

Accommodation

Cabins   3
Berths   7
Interior   simple-modern
Floor   wood
Headroom saloon (m)   1,94
Heating   diesel ducted hot air

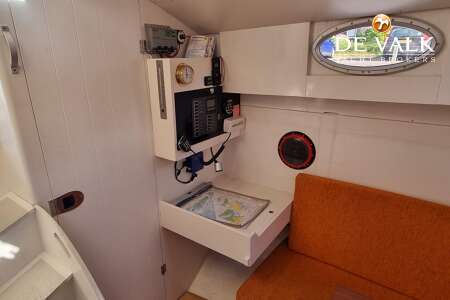

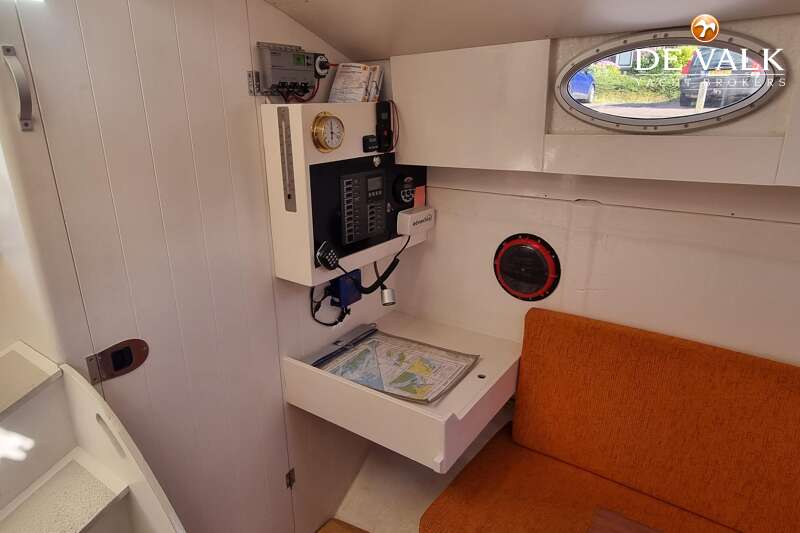

Chart table   yes
Aft Cabin   2 x

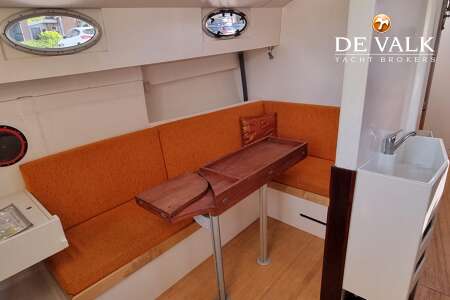

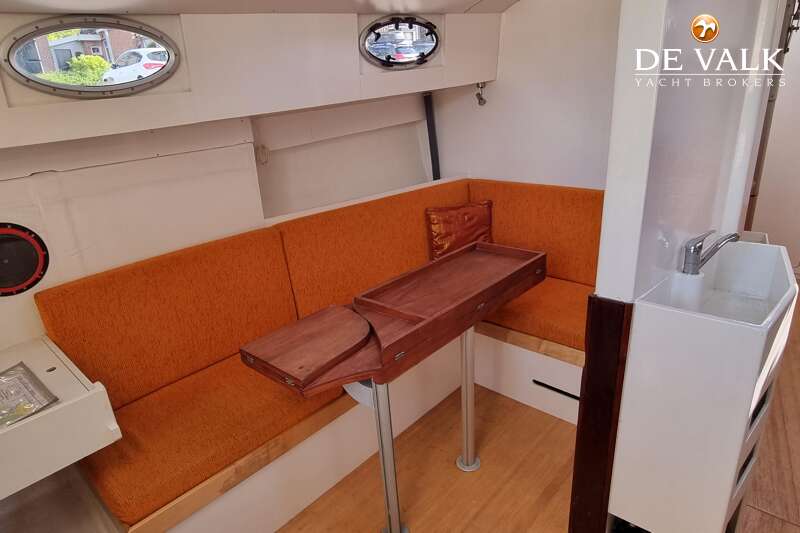

Dinette   yes

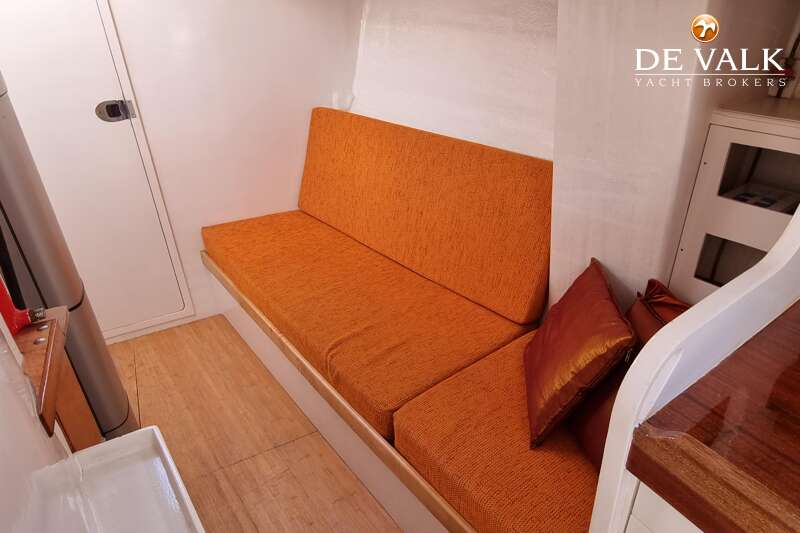

Convertible berth   in salon starboard; 2,08 x 0,60 mtr

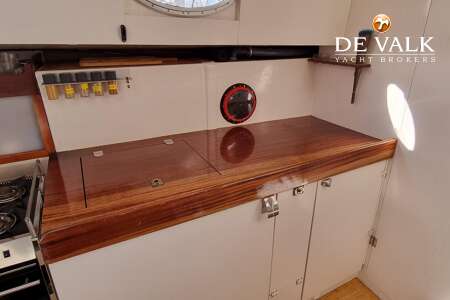

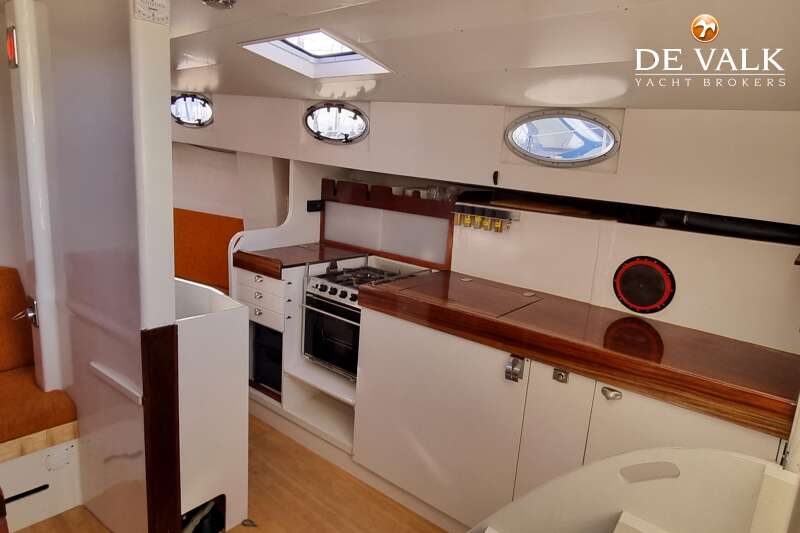

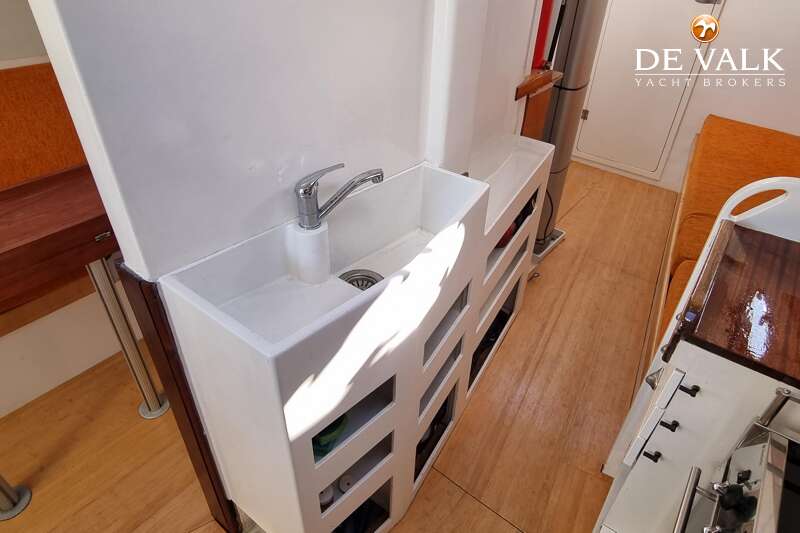

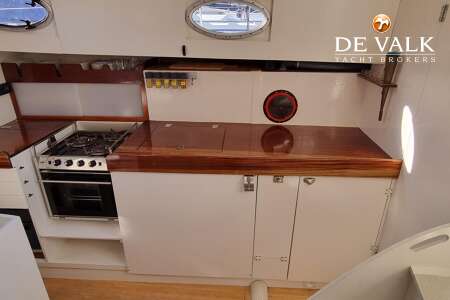

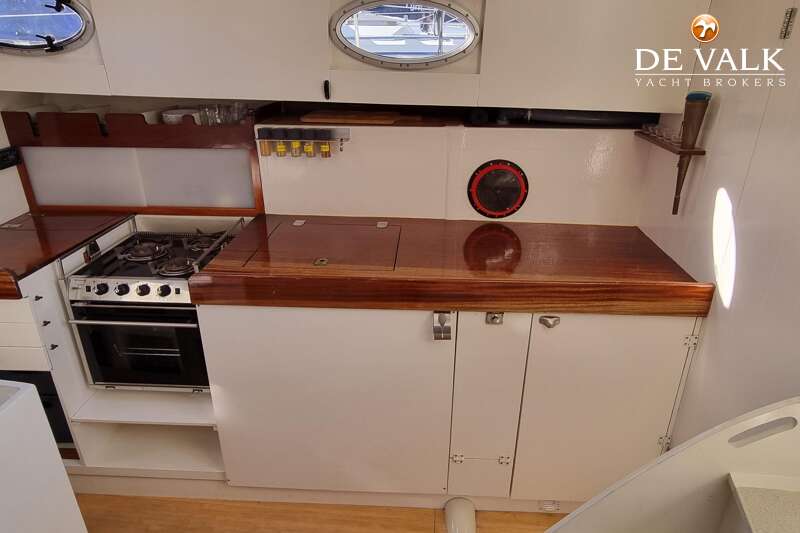

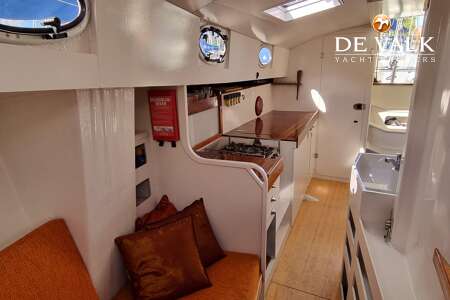

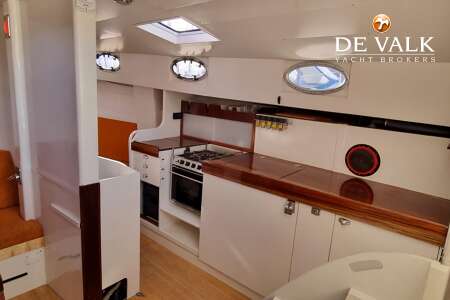

Galley   yes

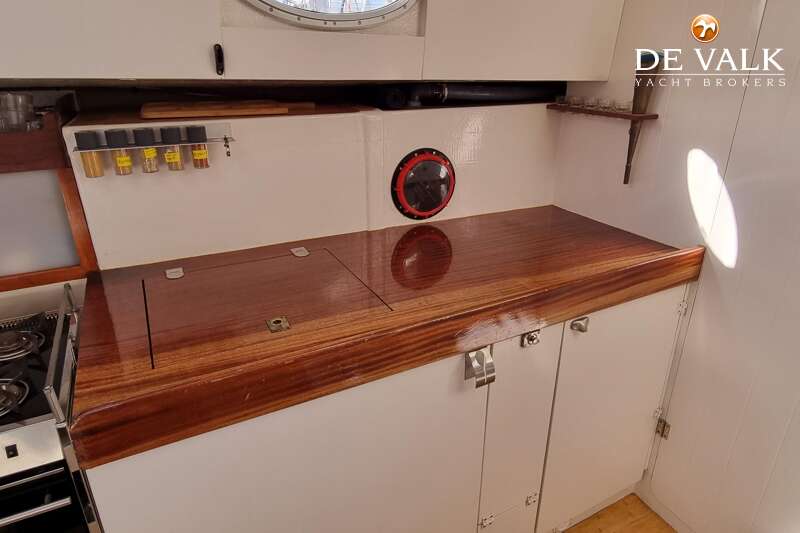

Countertop   wood
Sink   1 x

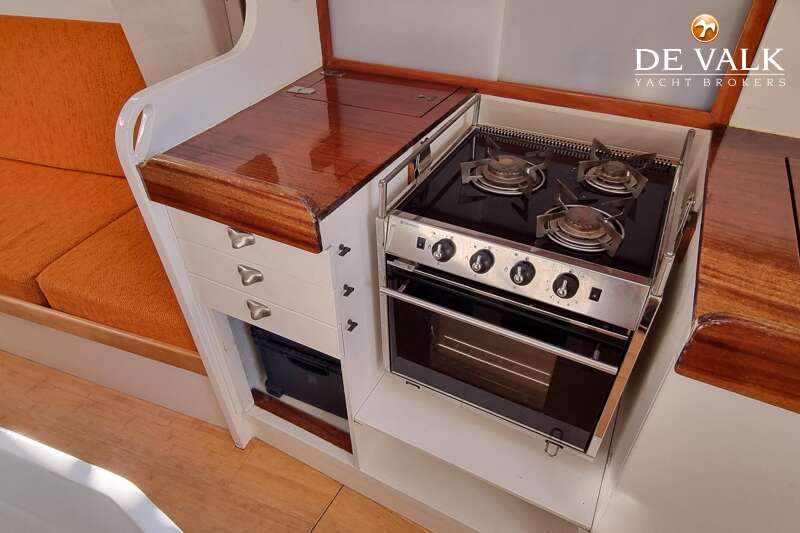

Cooker   calor gas  Dometic 3 burner
Oven   oven and grill
Fridge   toploading  Isotherm 12v
Hot water system   220V + engine
Water pressure system   electrical

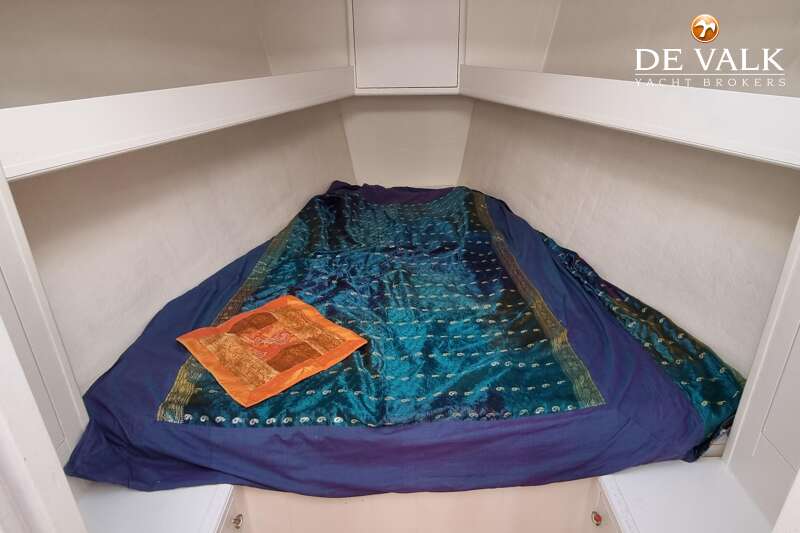

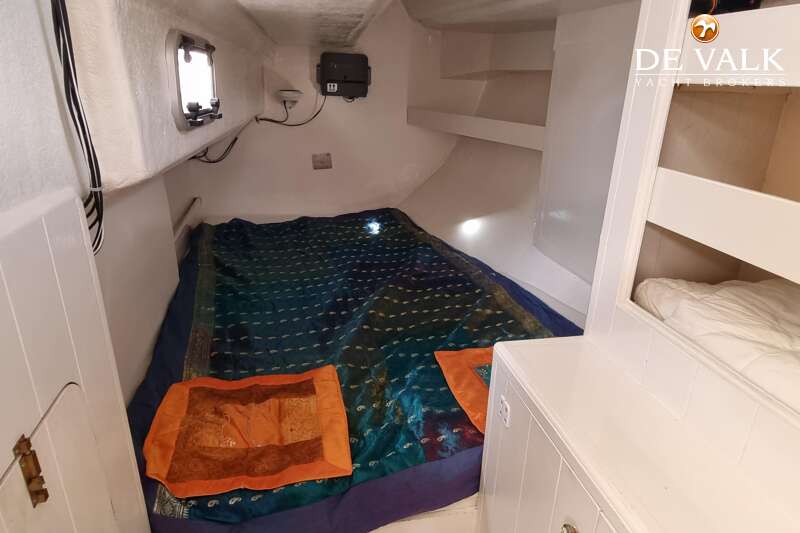

Owners cabin   v-bed
Bed length (m)   2,05 x 1,80 mtr, headroom 1,94 mtr
Wardrobe   hanging and shelves

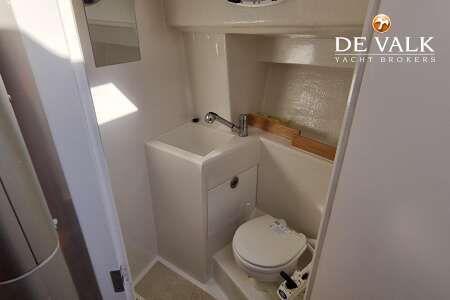

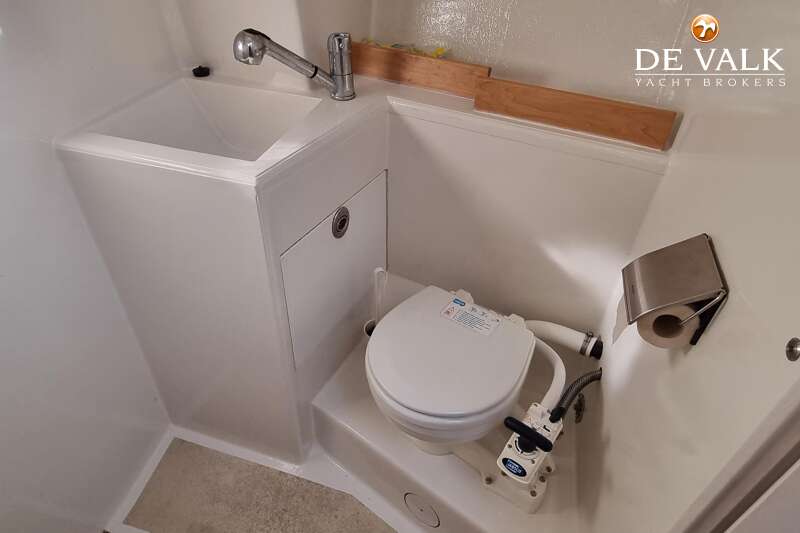

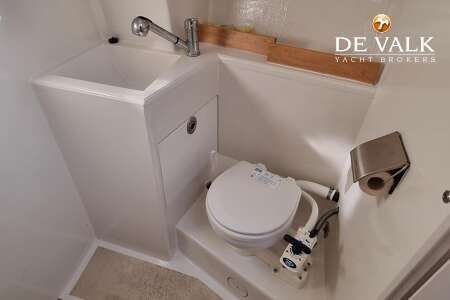

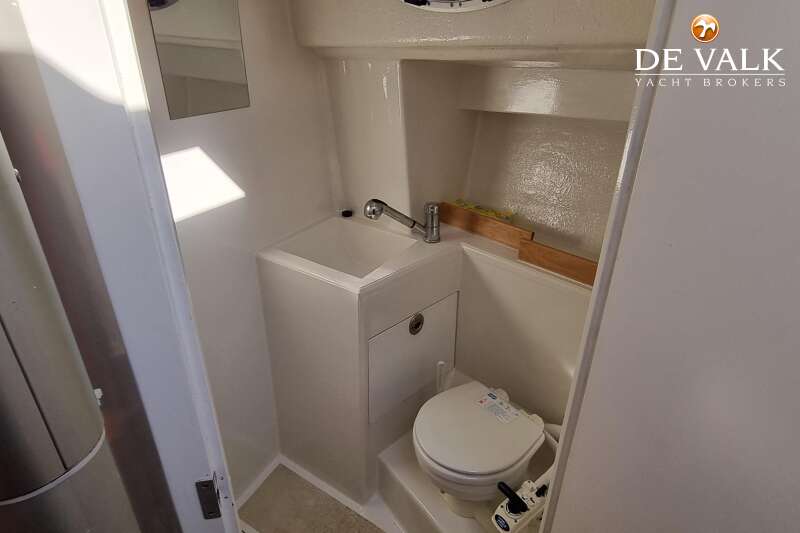

Bathroom   shared
Toilet   shared
Toilet system   manual
Wash basin   in the bathroom
Shower   shared
Extra info   bathroom headroom 1,90 mtr

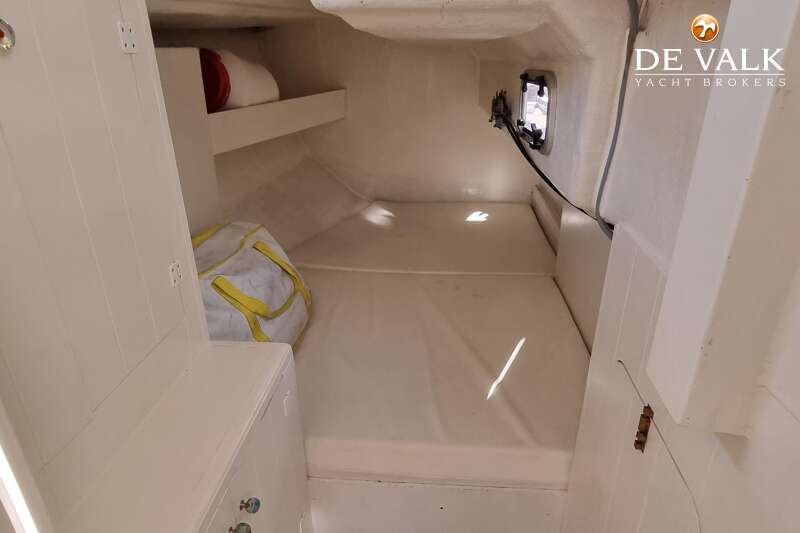

Guest cabin 1   double bed
Bed length (m)   2,00 x 1,30 mtr, headroom 1,90 mtr
Wardrobe   hanging and shelves
Guest cabin 2   double bed
Bed length (m)   2,00 x 1,30 mtr, headroom 1,90 mtr
Wardrobe   hanging and shelves

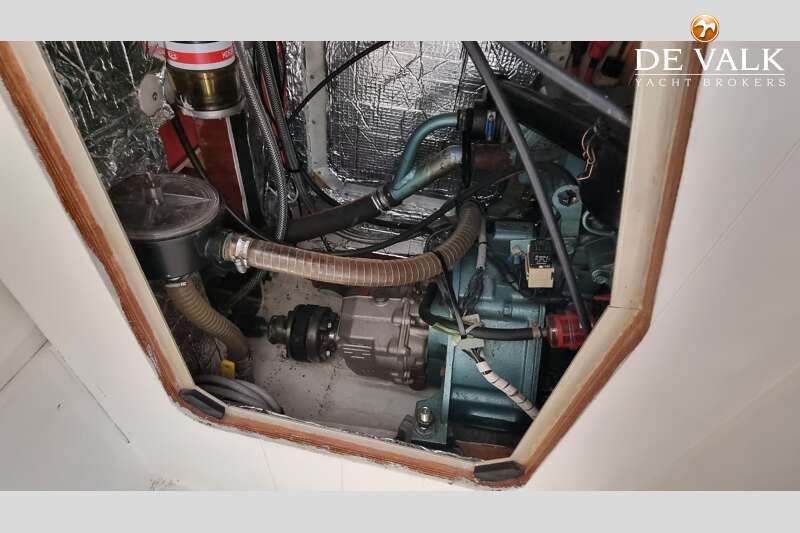

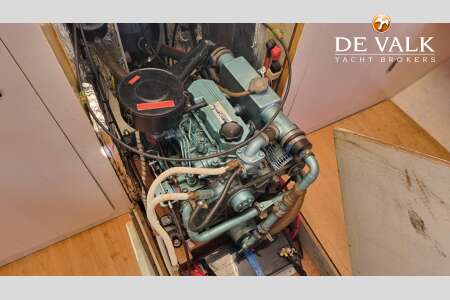

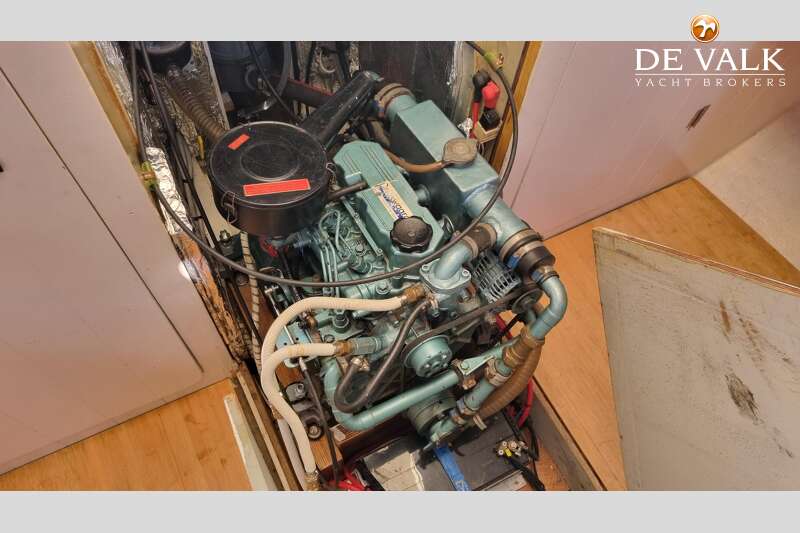

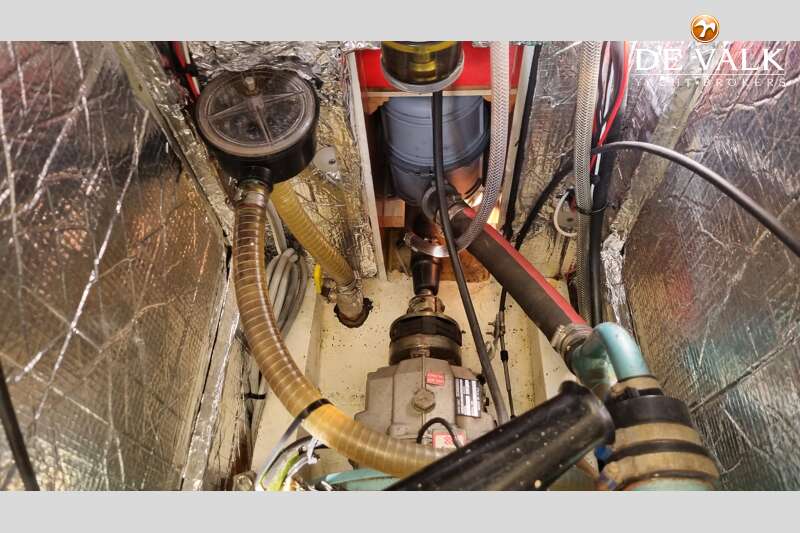

Machinery

No of engines   1
Make   Mitsubishi
Type   S3L
HP   27
kW   19.87
Fuel   diesel
Maximum speed (kn)   7
Cruising speed (kn)   6
Consumption (l/hr)   2
Engine cooling system   freshwater heat exchanger
Drive   shaft
Engine controls   bowden cable
Gearbox   mechanical  TMC60
Bowthruster   electric  Vetus proportional (76kgf)
Exhaust   watercooled
Propeller type   folding  Flex-o-fold
Propeller blades   2
Propeller shaft material   stainless steel
Shaft lubrication   water
Electric bilge pump   yes
Electrical installation   12/220v
Start battery   1 x (2016)
Service battery   2 x 120ah (2016)
Battery charger   yes
Inverter   yes
Solar panel   2 x 90 watt
Shorepower   with cable

Navigation

Compass   Plastimo
Electric compass   via the autopilot
Depth sounder/log   Autohelm ST60 Tridata
Windset   Autohelm ST60
VHF   Advansea
Autopilot   Raymarine P70S
AIS transceiver   AmTrac Class B transceiver
Navigation lights   yes

Equipment

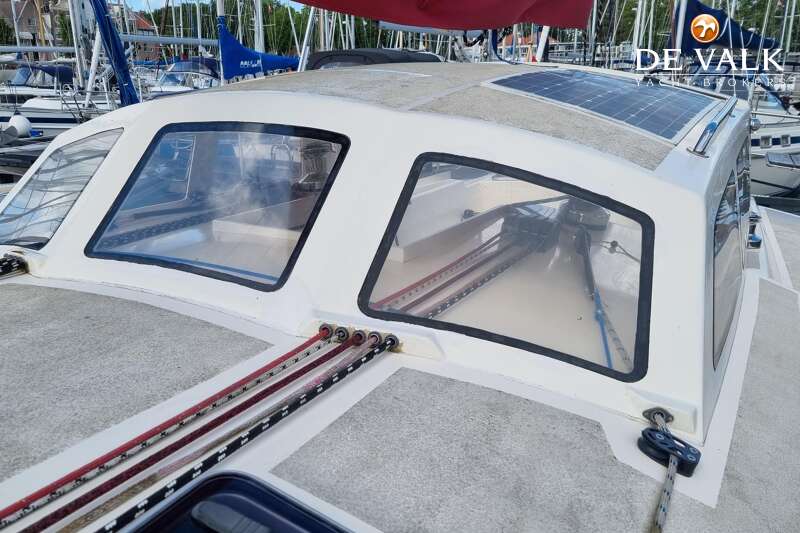

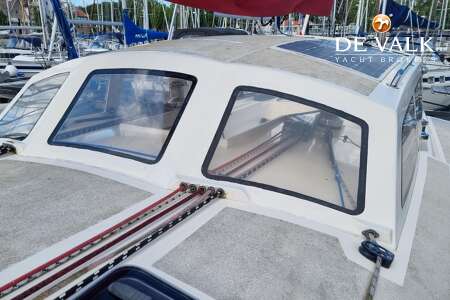

Fixed windscreen   Fixed dodger for ample protection
Boarding ladder   yes

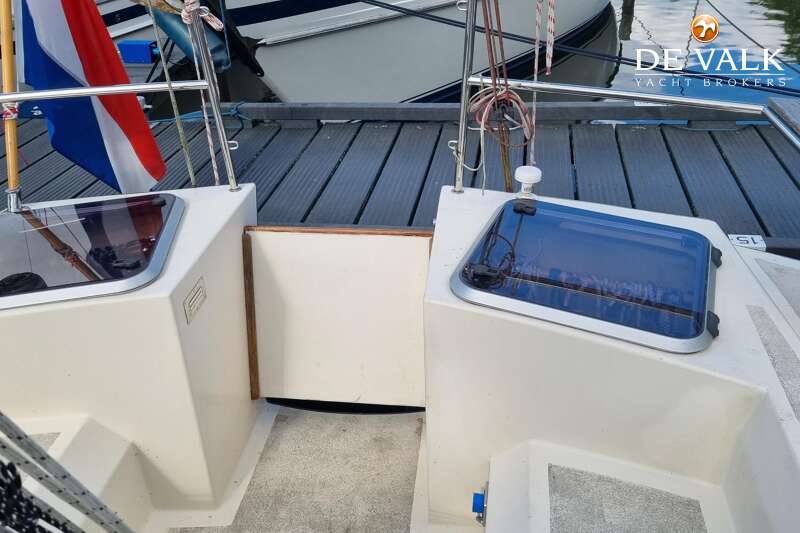

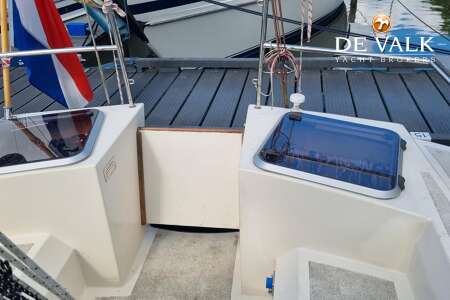

Transom door   yes
Anchor   Bruce
Anchor chain   35 mtr
Anchor 2   Fortress FX23 + line
Windlass   manual
Sea railing   wire
Grab rail (superstructure)   yes
Railing side opening gates   2 x
Pushpit   yes
Pulpit   yes
Lifebuoy   yes
Fenders   yes
Mooring lines   yes

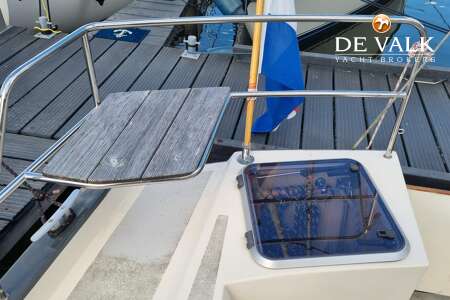

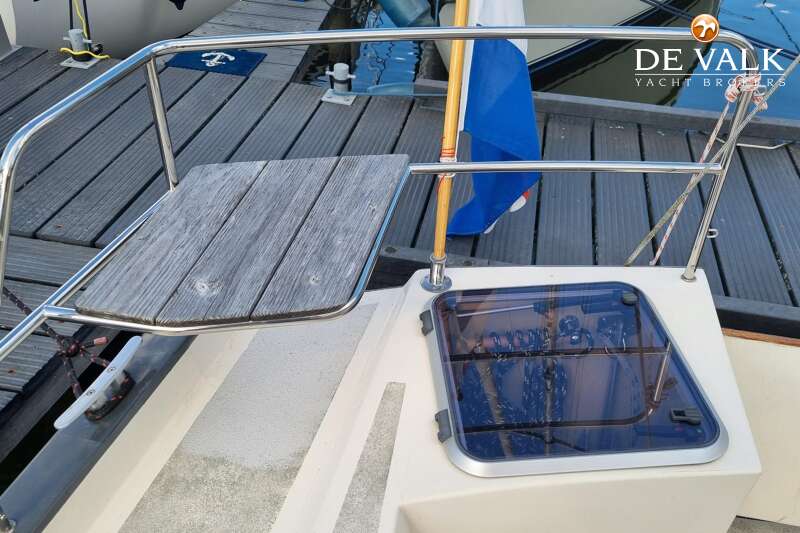

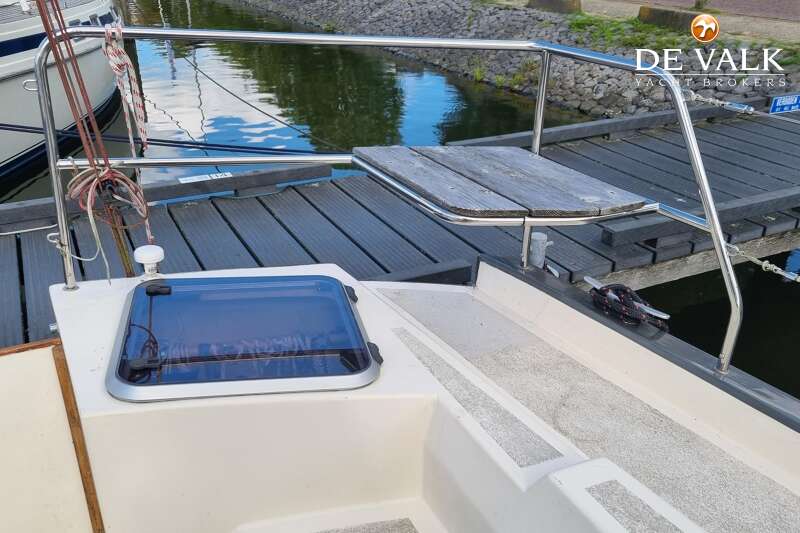

Extra info   pensionado seats on pushpit

Rigging

Rigging   sloop
Standing rigging   Rod
Brand mast   John mast
Material mast   aluminium
Keel stepped mast   yes
Mainsail   partially full battened
Mainsail cover   yes
Battcars   with track
High aspect   yes
Genoa cover   yes
Code Zero   with roller  North Sails
Gennaker   with squeezer
Staysail   yes
Removable innerforestay   yes
Reefing System   slabreefing
Backstay adjuster   tackle
Boomvang   yes

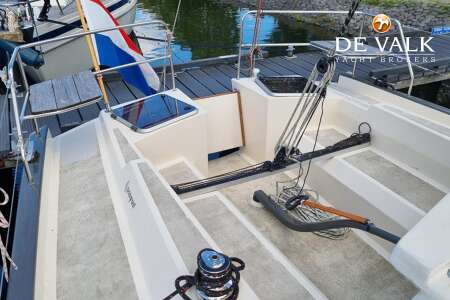

Genoa sheetwinches   2 x Anderssen 46ST
Halyard winches   2 x Anderssen 40ST
Gennaker pole   yes

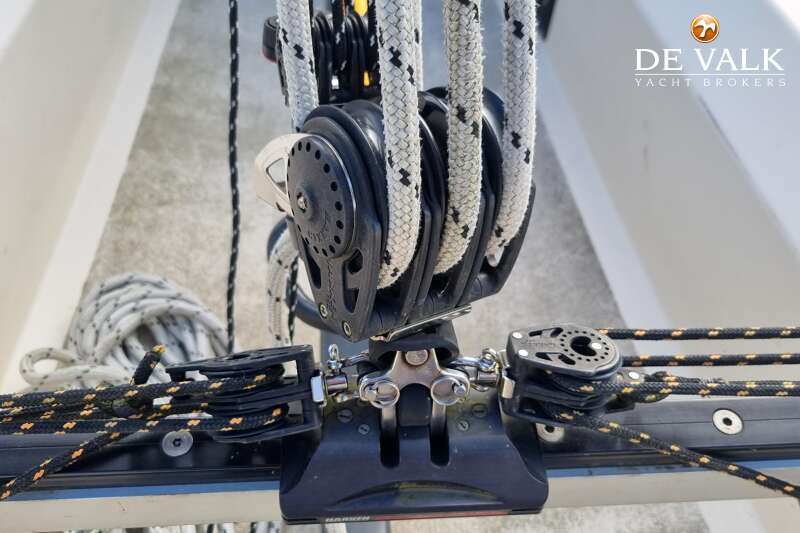

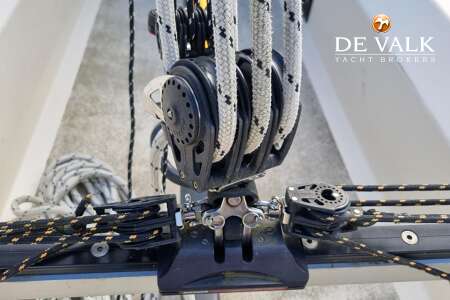

Extra info   Dyneema backstay, Harken deck hardware

Disclaimer

These particulars are given in good faith as supplied but cannot be guaranteed and cannot be used for contracts.
