Broker's comments

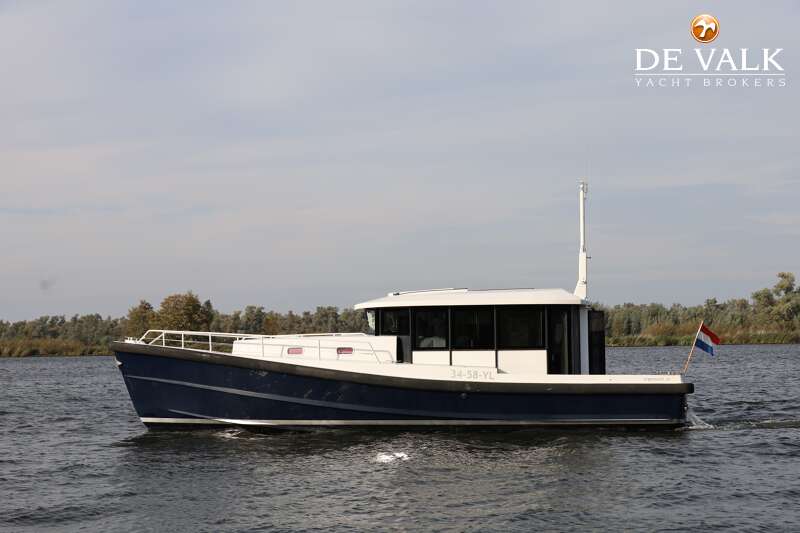

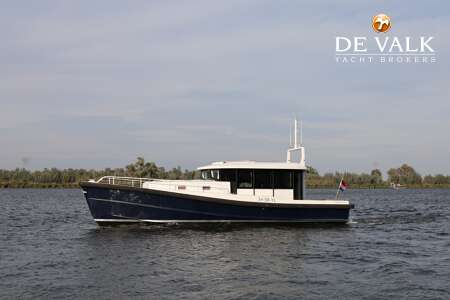

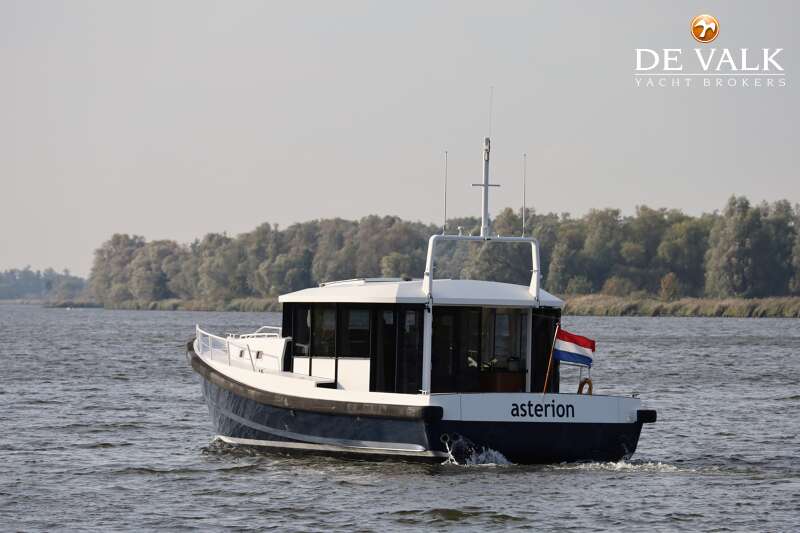

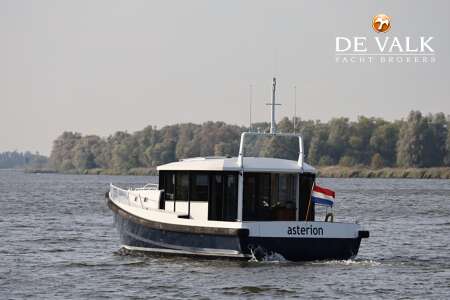

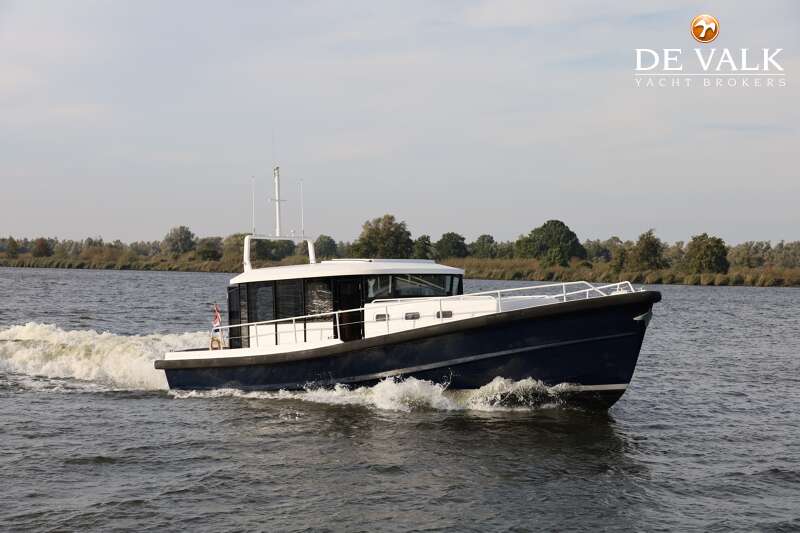

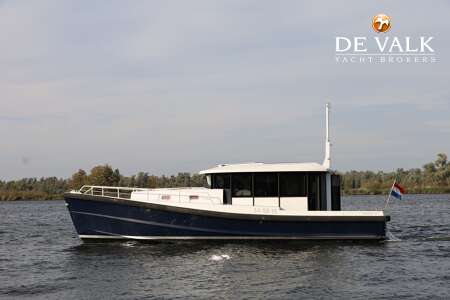

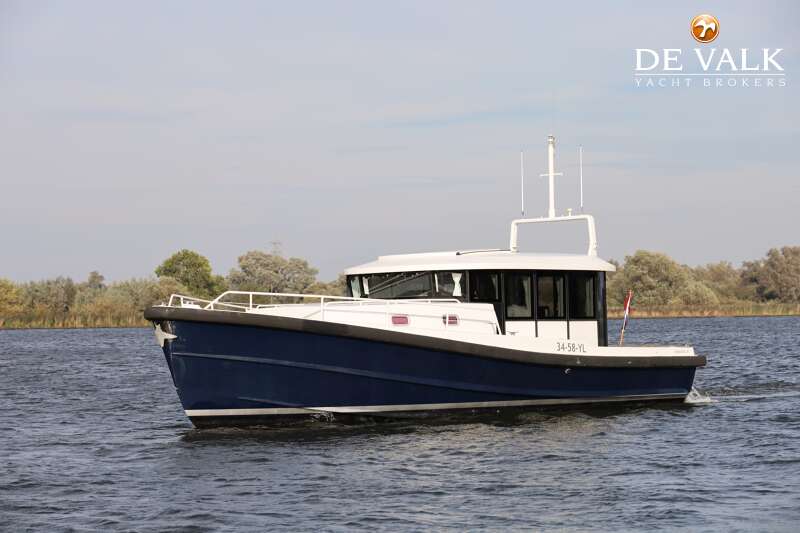

The Argonautic 40 Aluminium Offshore Pilot is a unique design & very robustly built, according to Lloyds ‘Special Service Craft Scantling Rules’. The boat is equipped with Iveco engines driven waterjets (with only 140 hours). The waterjets & the Vector Stick control are an integrated Rolls-Royce Kamewa Steering System. Please contact our office in Sint Annaland to arrange an appointment to visit this unique & fast motorboat in Noord-Brabant, in the south-west of the Netherlands.

Jan-Ward van Dantzig
Yacht Broker

ARGONAUTIC 40 ALUMINIUM OFFSHORE PILOT

Dimensions   11,98 x 4,47 x 0,76 (m)
Material   aluminium
Built   2006
Engine(s)   2 x Iveco NEF N60 ENT M40.10 diesel
HP/Kw   2 x 400 (hp), 294,4 (kw)
Lying   not at sales office
Sales information   De Valk Sint Annaland
Status   for sale
Vat   paid
Asking price   € 189.000

General - ARGONAUTIC 40 ALUMINIUM OFFSHORE PILOT

Model   ARGONAUTIC 40 ALUMINIUM OFFSHORE PILOT
Type   motor yacht
LOA (m)   11,98
LWL (m)   11,20
Beam (m)   4,47
Draft (m)   0,76
Air draft (m)   5,60
Air draft min (m)   3,20
Headroom (m)   2,00
Year built   2006
Builder   Alumarine BV
Country   The Netherlands
Designer   Argonautic
Displacement (t)   11
CE norm   B

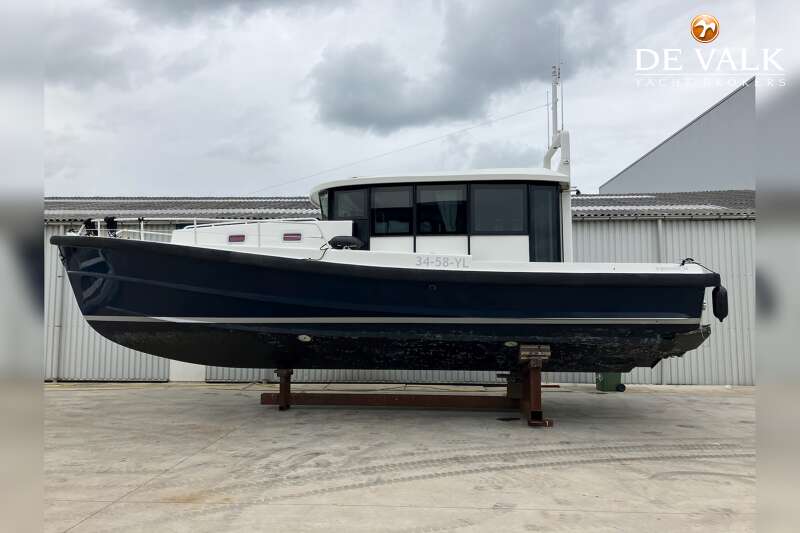

Hull material   aluminium
Hull colour   blue  Royal Blue (ALW Grip)
Hull thickness (mm)   6 (hull) - 8 (arround the welded in waterjets) - 10 (stern)
Hull shape   deep-V
Superstructure material   aluminium
Superstructure (mm)   6 (and Alucore plates arround the Pilothouse)
Deck plate thickness (mm)   6
Rubbing strake   Closed cell PE Foam, covered with hot-sprayed Polyurea
Deck material   aluminium
Deck finish   non-skid paint  (White)
Superstructure deck finish   paint  (White - AWL Grip)

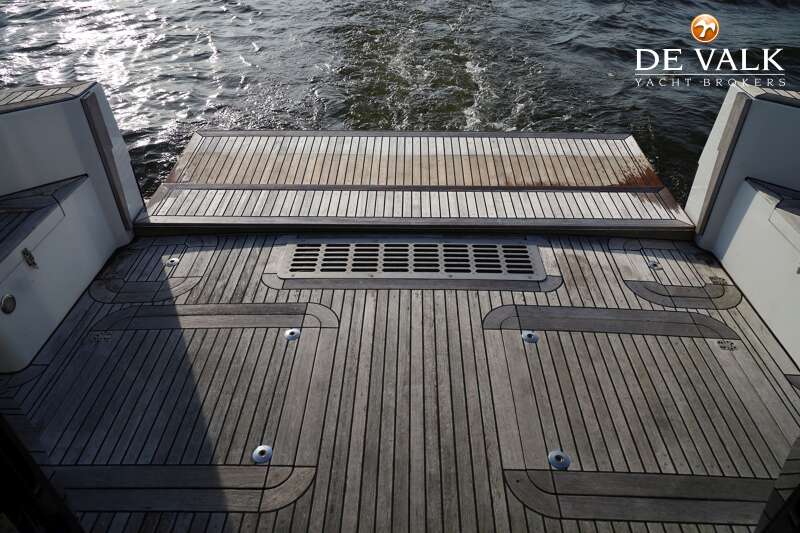

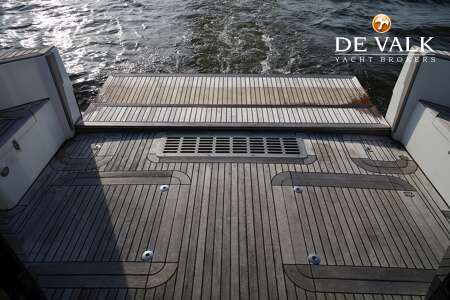

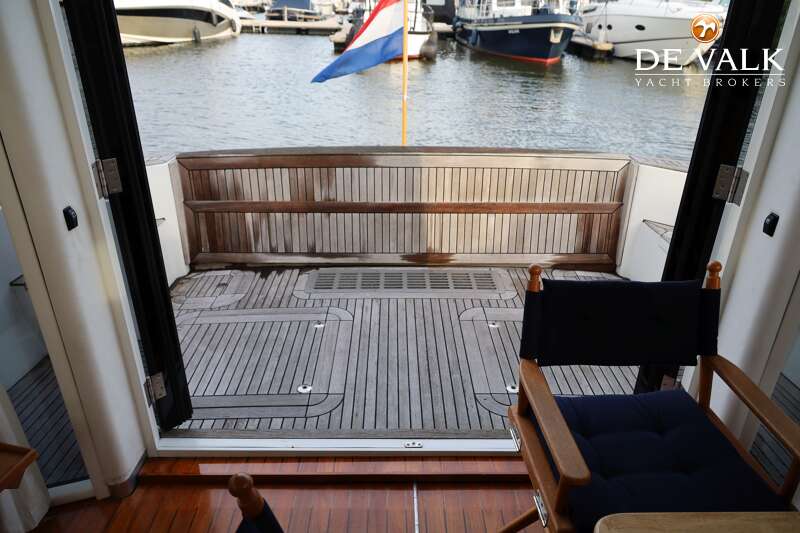

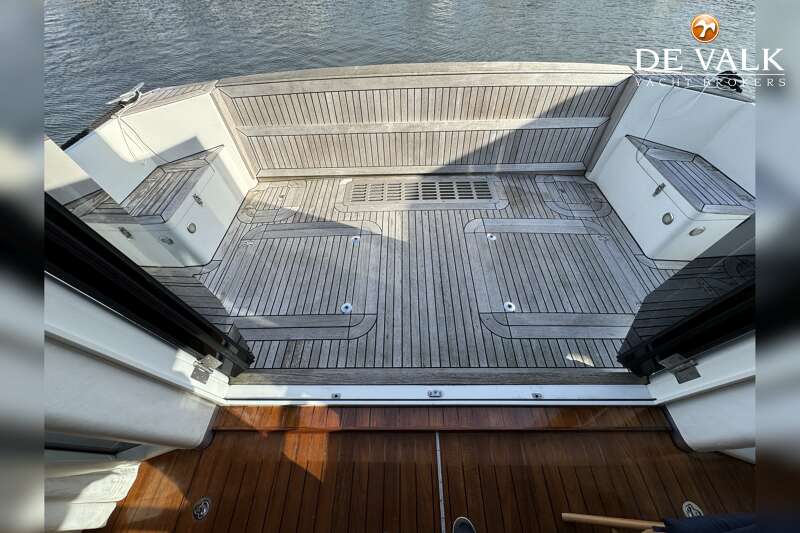

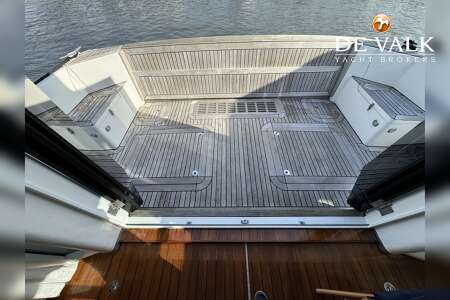

Cockpit deck finish   teak  (12 mm)
Antifouling (year)   Partly in 2023. Old layers antifouling should be removed
Dorades   1 x

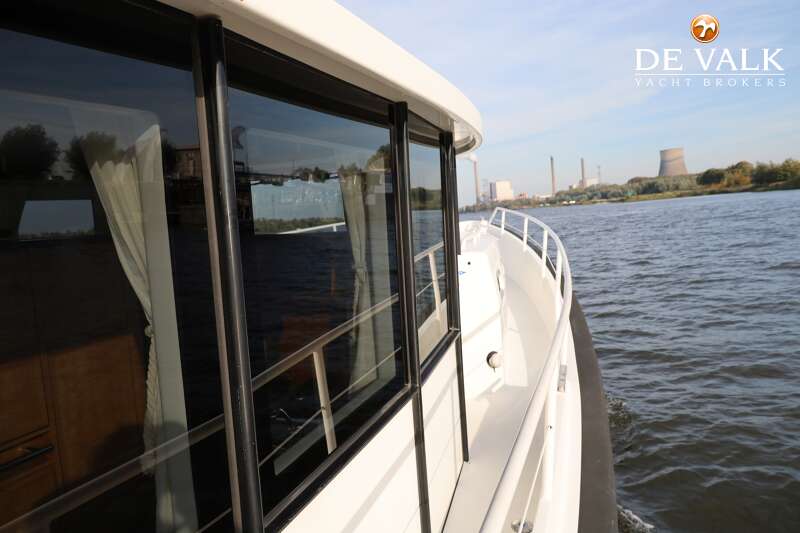

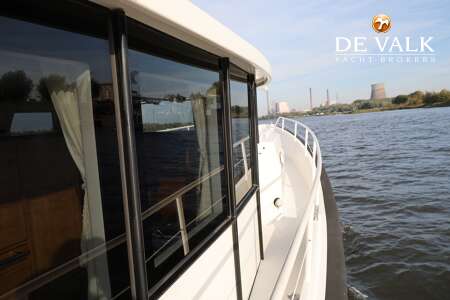

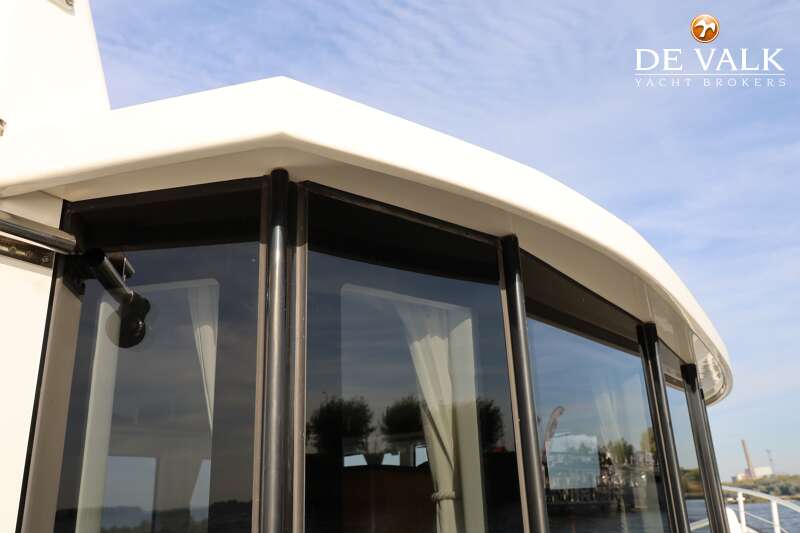

Window frame   Custom glassfiber reinforced pultrusion sections, painted black
Window material   double glazing  Rafa : 3 x harded glass - ISO Tested Light - tinted glass
Deckhatch   Lewmar
Insulation   foam  (Sprayed)
Mast can be lowered   hydraulic  (Aluminium white spray painted antenna mast)
Fuel tank (litre)   aluminium  900 (in centre of boat)
Level indicator (fuel tank)   yes
Fuel daytank (litre)   aluminium  700 (under front cabin)
Level indicator (daytank)   yes
Freshwater tank (litre)   polyethylene  250
Level indicator (freshwater)   yes
Blackwater tank (litre)   polyethylene  50
Level indicator (blackwater)   yes
Blackwater tank extraction   deck extraction + pump  (Electric pump)
Wheel steering   electric  & hydraulic - Rolls-Royce Kamewa system

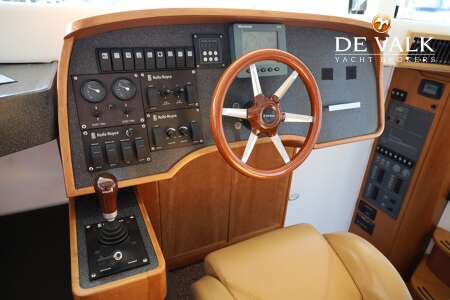

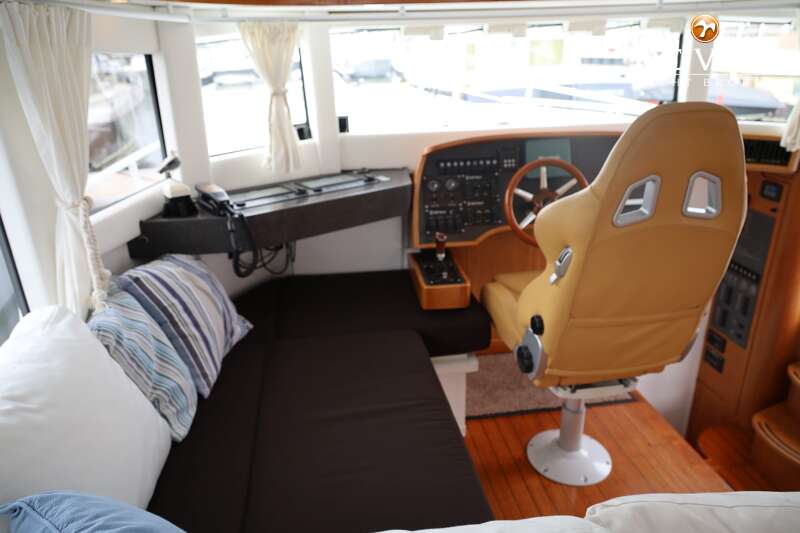

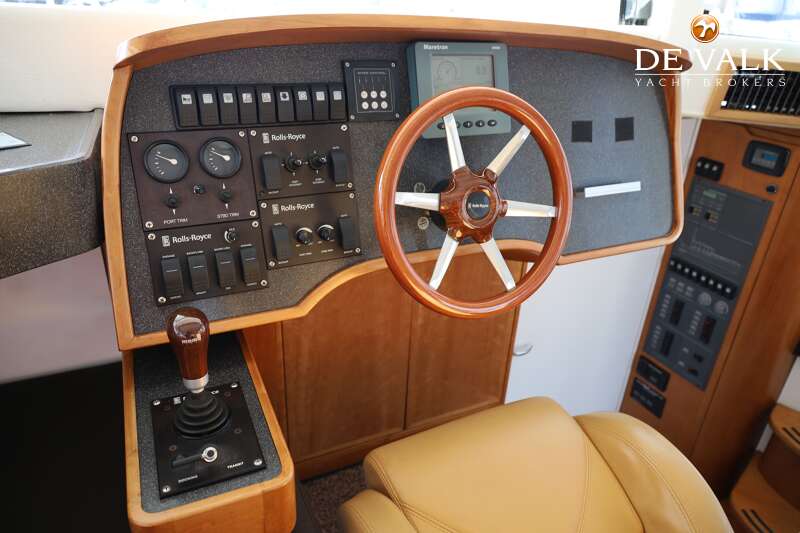

Inside helm position   Varnished teak Rolls-Royce steering wheel
Emergency tiller   Emergency differential steering with waterjets via backup panel
More info on hull   Only plastic sea cocks & through hull connectors mounted
More info on paintwork   The exterior paintwork needs attention
Extra info   The boat is built with 5083 seawater resistant aluminum

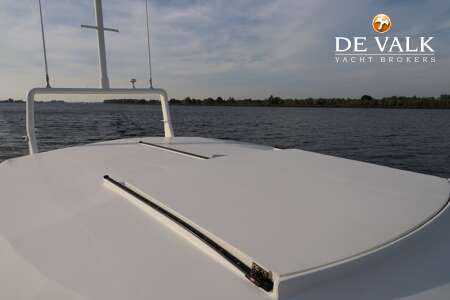

Extra info   Acrosoma 5 cm thick pilothouse roof with PU Isolation
Extra info   Glass in starboad door needs to be replaced with double glazing

Accommodation

Cabins   2
Berths   6
Interior   cherry  With white vinyl and white panels (spray painted with Alex Seal)
Floor   wood  (Teak with black strips)
Open cockpit   (When bathing platform is down)
Aft deck   yes

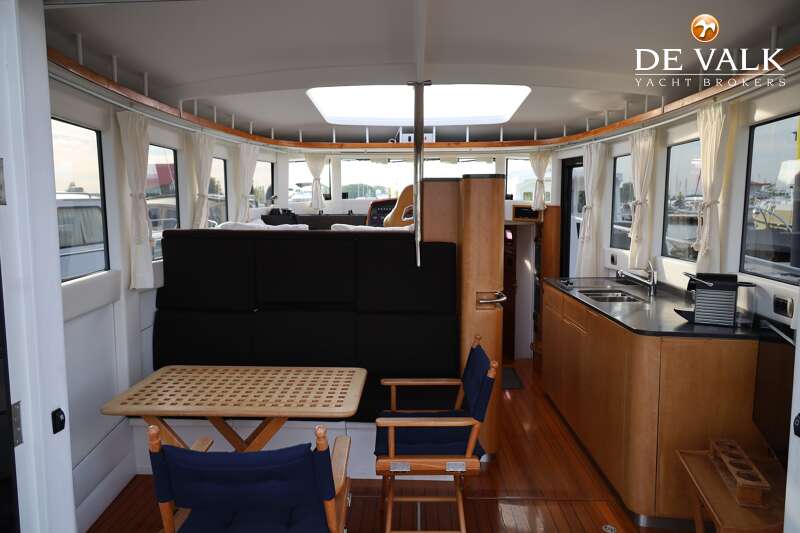

Pilot house/deck saloon   yes
Saloon   yes
Headroom saloon (m)   2,30

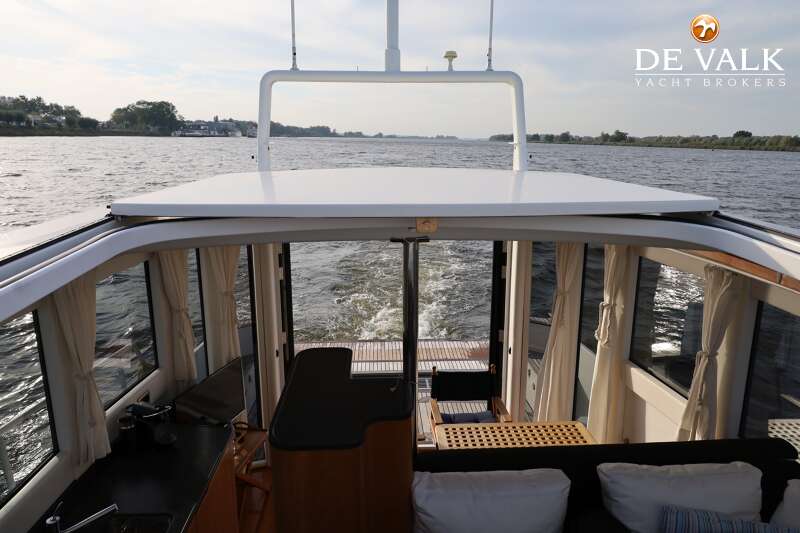

Sliding roof   manual
Heating   central heating  2 x Webasto Madera 4 (each connected to one engine)
Heating 2   central heating  Webasto CPAC160 16.000BTU (heat-pump needs attention)
Air-conditioning   reverse cycle airco  Webasto CPAC160 16.000BTU heat-pump(to check) with seawater pump
Dining room   yes
Convertible berth   In steering area (2,00 x 1,20 m) - Headroom 1,85 m

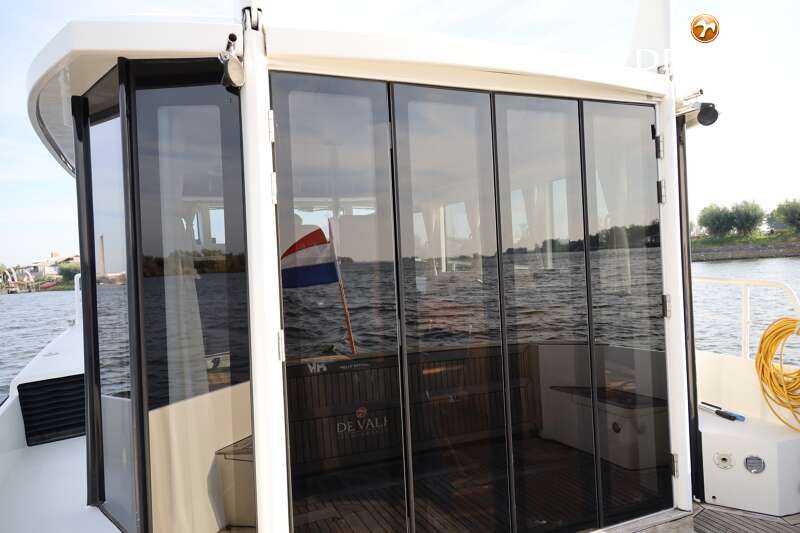

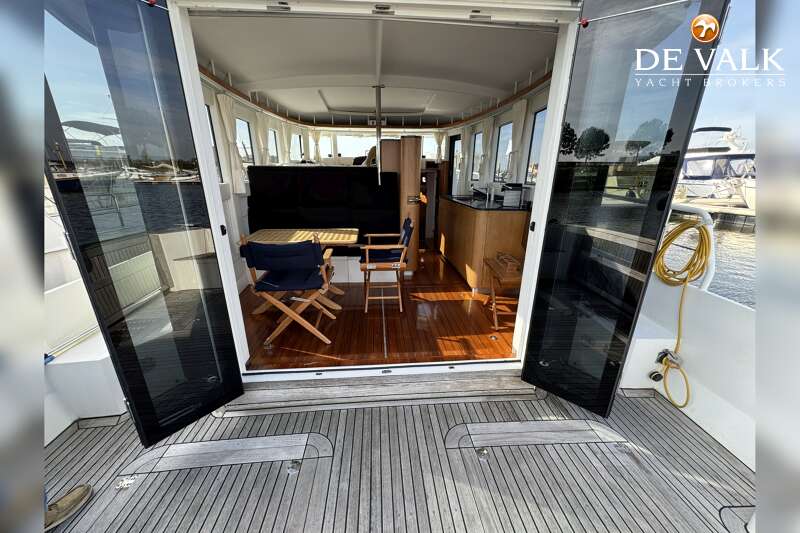

Opening door to aft deck   2 x Folding doors

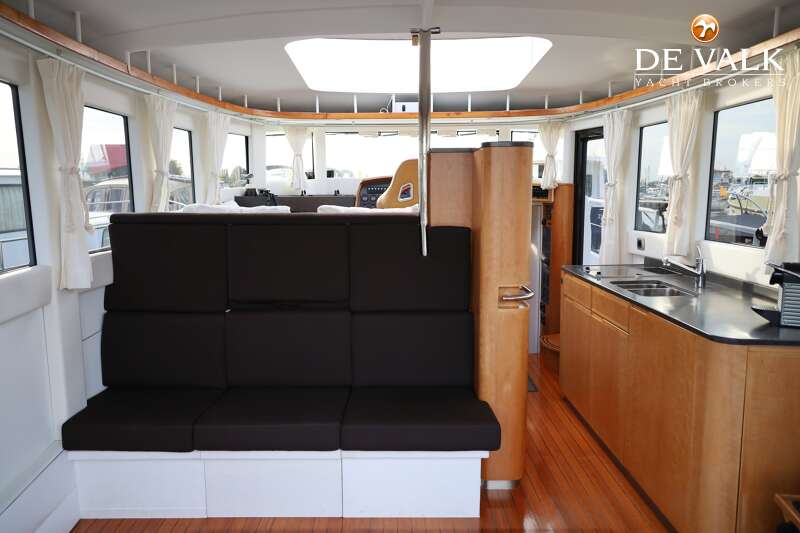

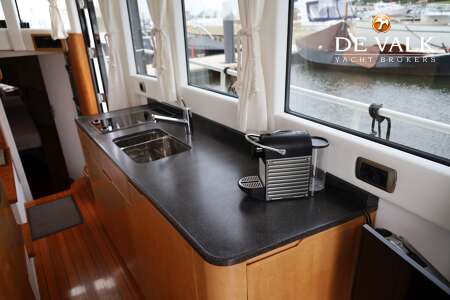

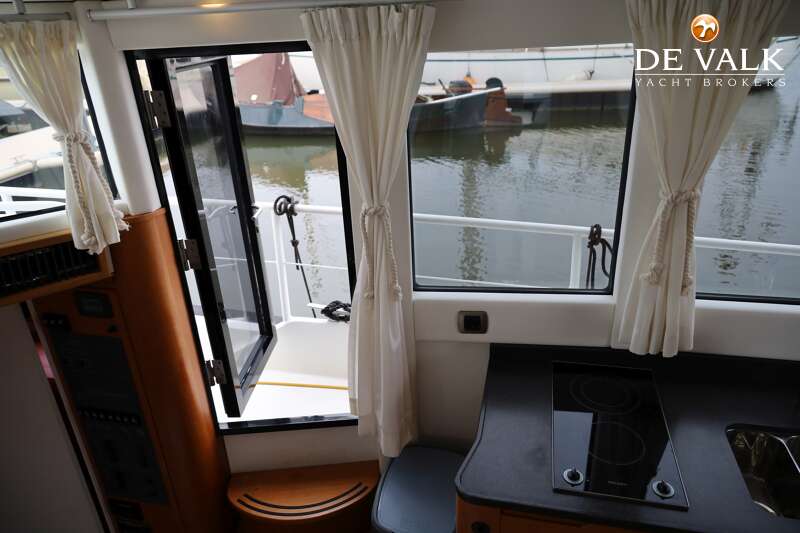

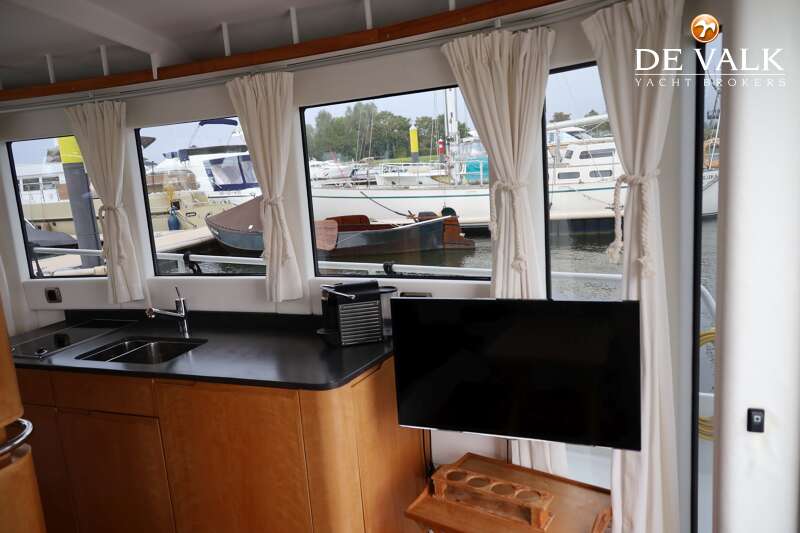

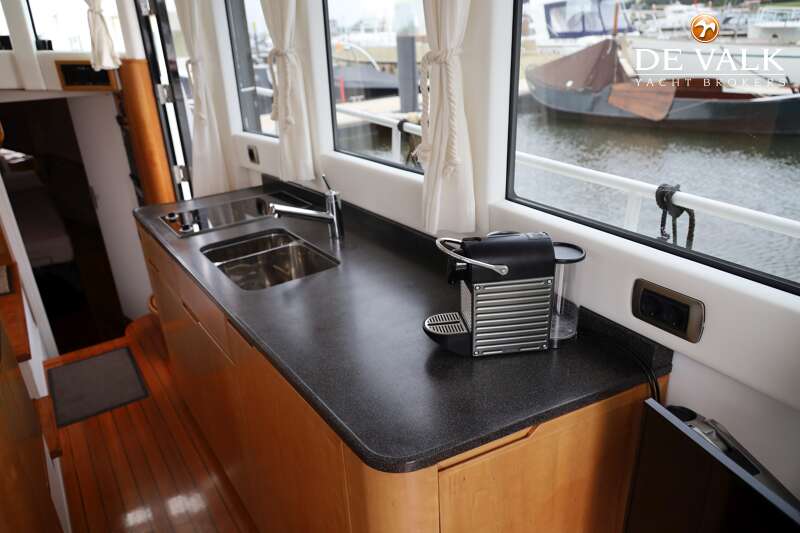

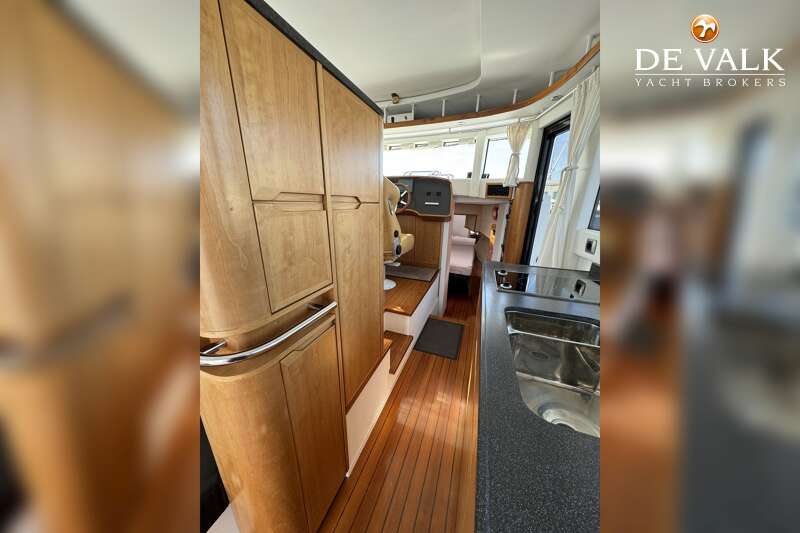

Galley   On starboard side in the pilothouse - Headroom 2,30 m
Countertop   corian  (Black with white dots)
Sink   stainless steel  2 x
Cooker   ceramic  Miele - 2 x burner
Fridge   Front opening fridge with Vrigomatic compressor (24 Volt)
Freezer   Small freezer compartment in the fridge
Hot water system   220V + engine  40 liter boiler (heats via starboard engine)
Water pressure system   electrical
Coffee maker   Nespresso

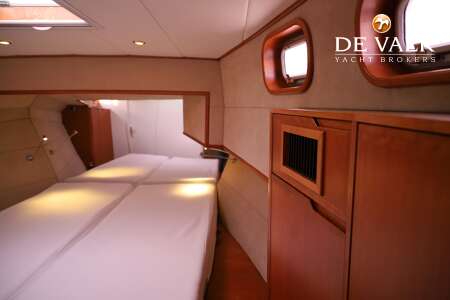

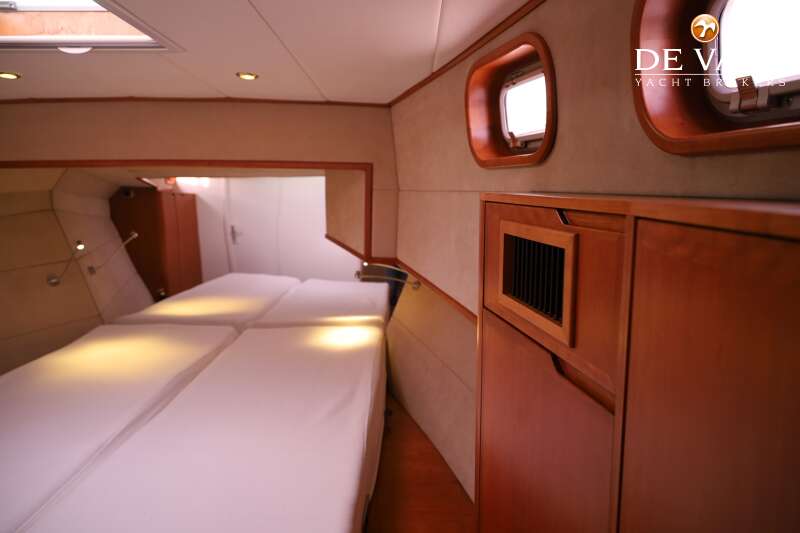

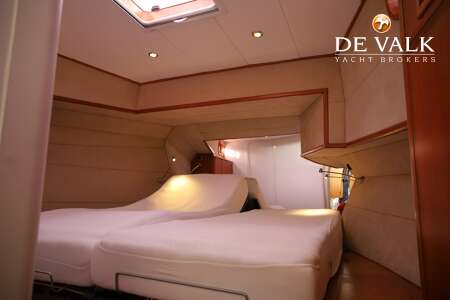

Owners cabin   double bed  In front cabin (headroom 1,90 m) with double Swissflex SF500 bed
Bed length (m)   1,95 x 1,60
Wardrobe   hanging and shelves

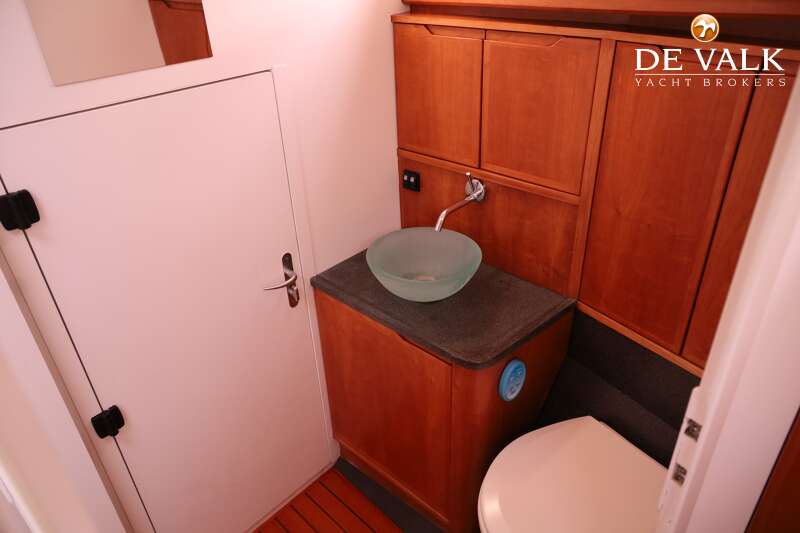

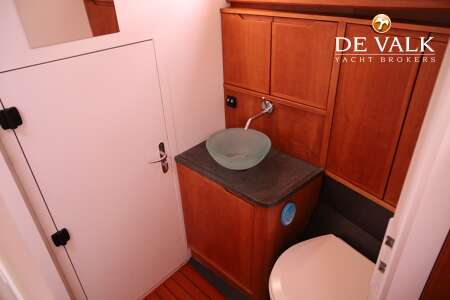

Bathroom   en suite  (and shared) - Headroom 1,92 m
Toilet   shared
Toilet system   electric  Jabsco
Wash basin   in the bathroom

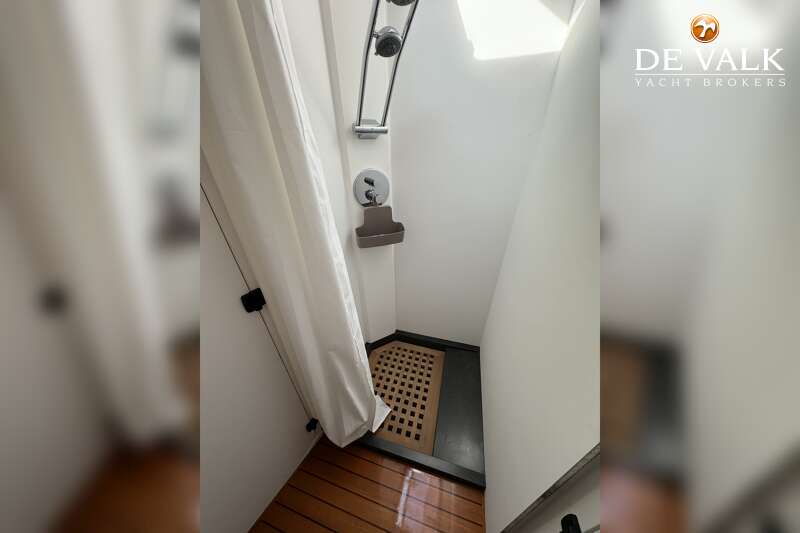

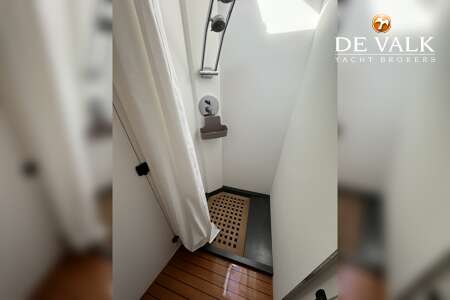

Shower   en suite  With double shower head & automatic drain pump - Headroom 1,95 m
Extra info   Swissflex SF500 beds with manual control and slatts

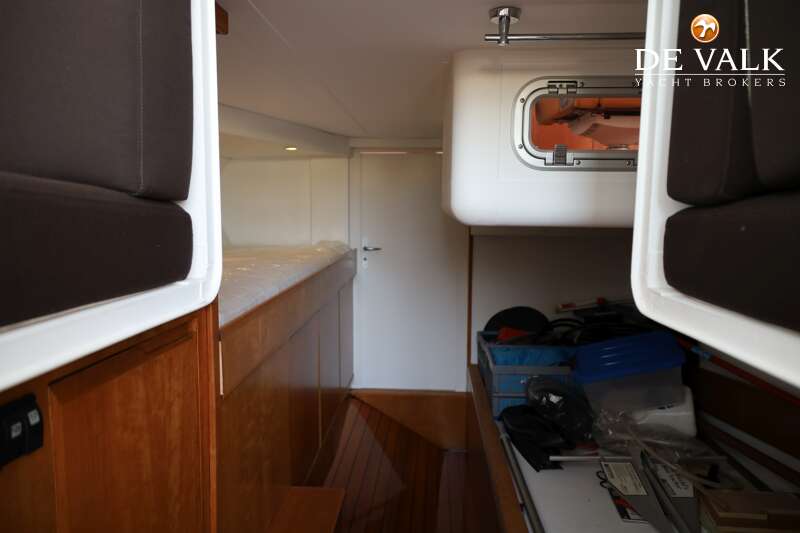

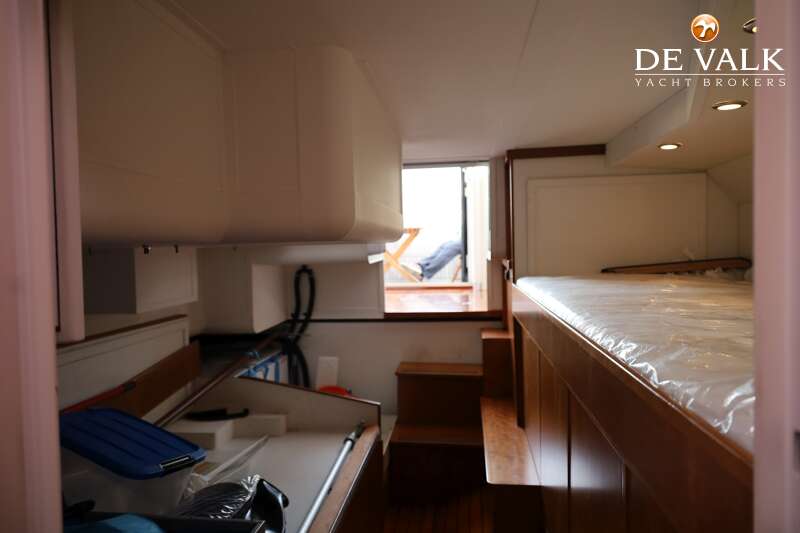

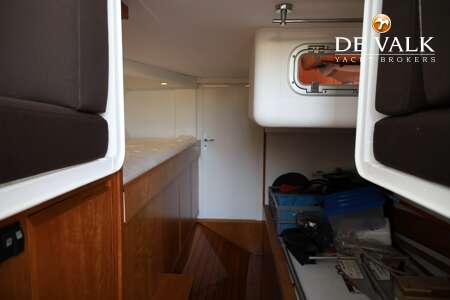

Guest cabin 1   twin single  Under steering position - Headroom 1,65 m
Bed length (m)   2,00 x 0,85 & 2,00 x 0,80
Wardrobe   shelves
Extra info   Port side mattress is new. Starboard side bed without mattress
Washing machine   ONLY prepared for washing machine (in cabin under steering area)

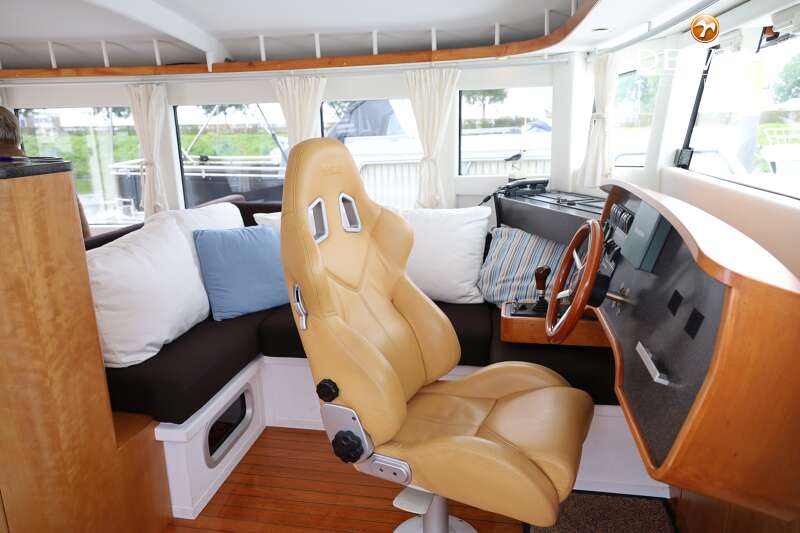

Extra info   Leather swiveling and height-adjustable Sparco helmsman's seat
Extra info   Honeycomb sandwich alu plates used for floor & structual walls

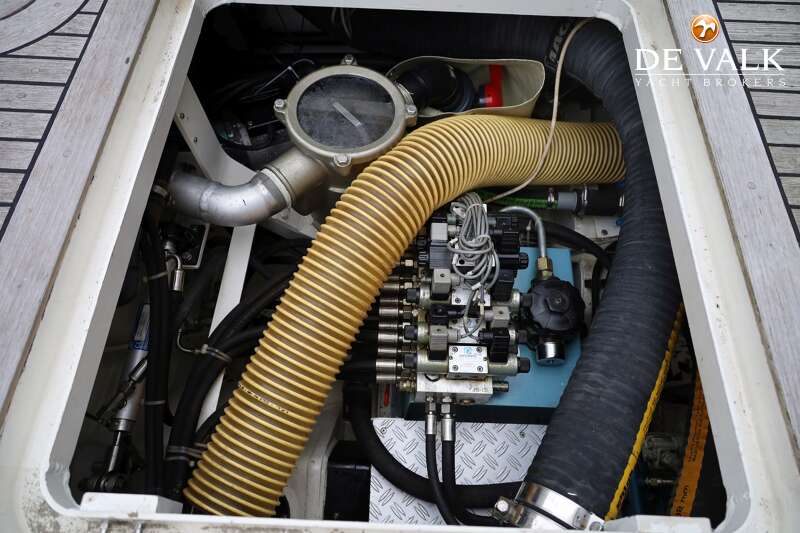

Machinery

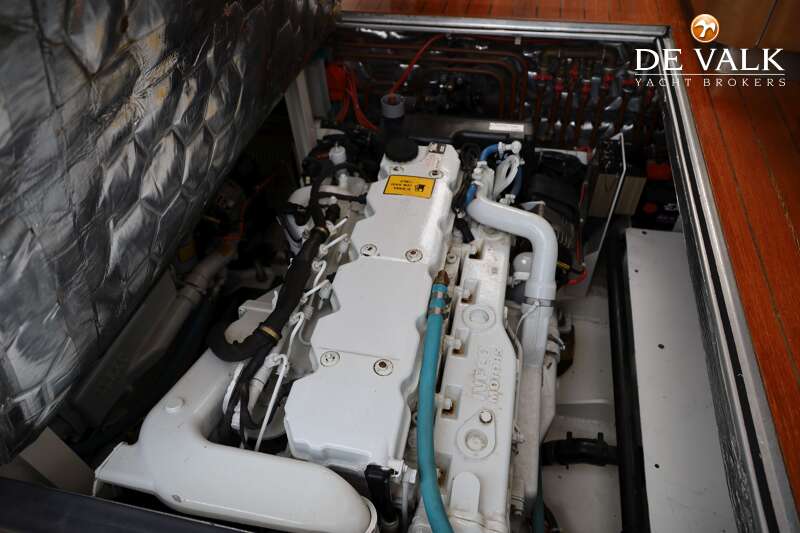

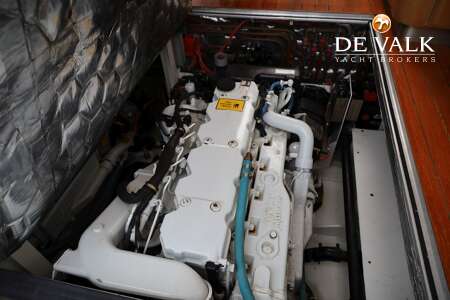

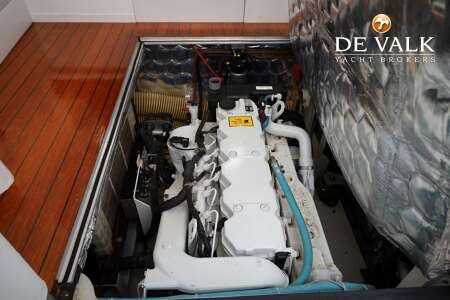

No of engines   2

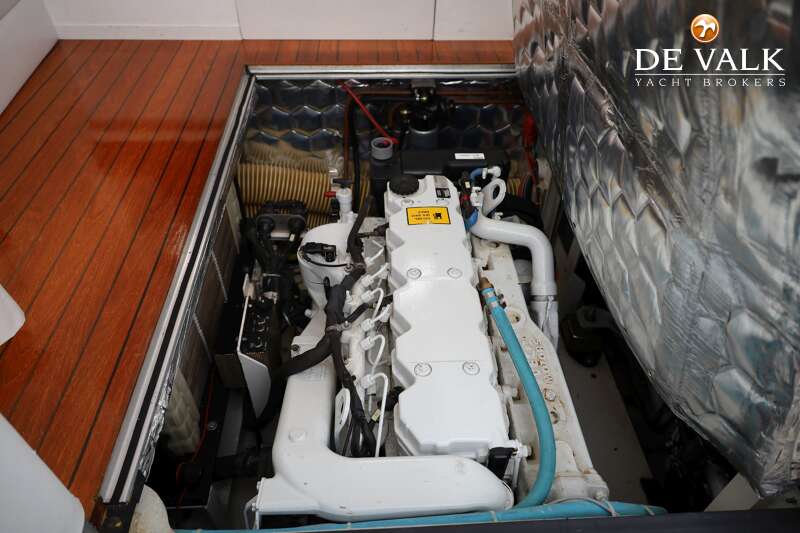

Make   Iveco NEF
Type   N60 ENT M40.10
HP   400
kW   294.40
Fuel   diesel
Year installed   2006
Maximum speed (kn)   22,5
Cruising speed (kn)   7
Consumption (l/hr)   40
Engine hours   135 & 142

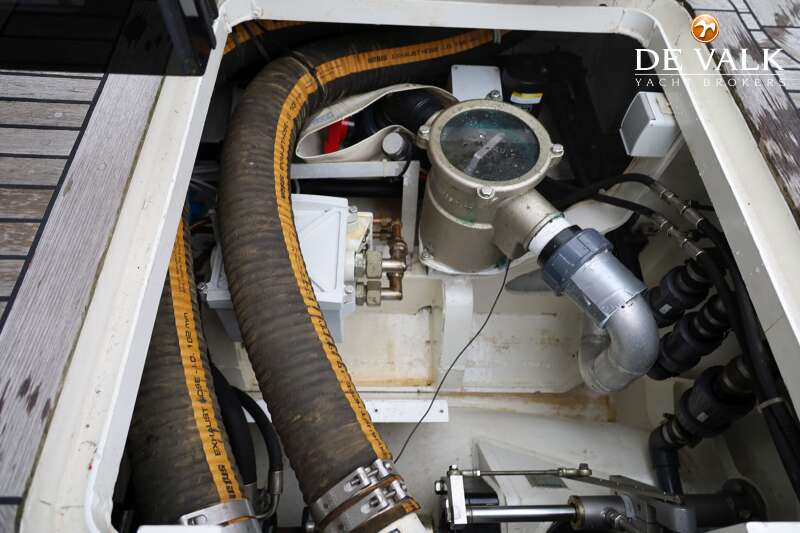

Engine cooling system   freshwater heat exchanger  (Very large cooling water filters can be linked to supply both)

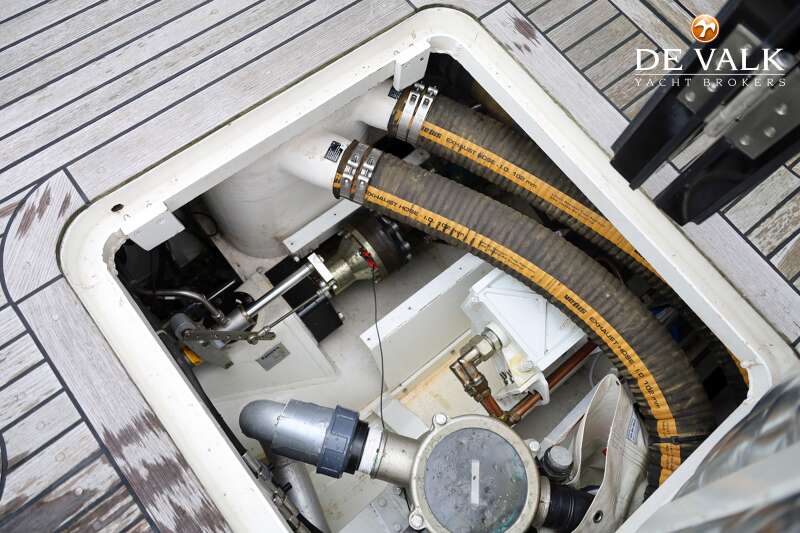

Drive   jet-drive
Engine controls   electrical  Rolls-Royce (Kamewa) Vector Stick (with transit & docking mode)
Gearbox   hydraulic  ZF280
Exhaust   watercooled
Manual bilge pump   1 x
Electric bilge pump   2 x automatic and 1 x electric (switchable for 4 areas)
Electrical installation   12 & 24 & 230 Volt

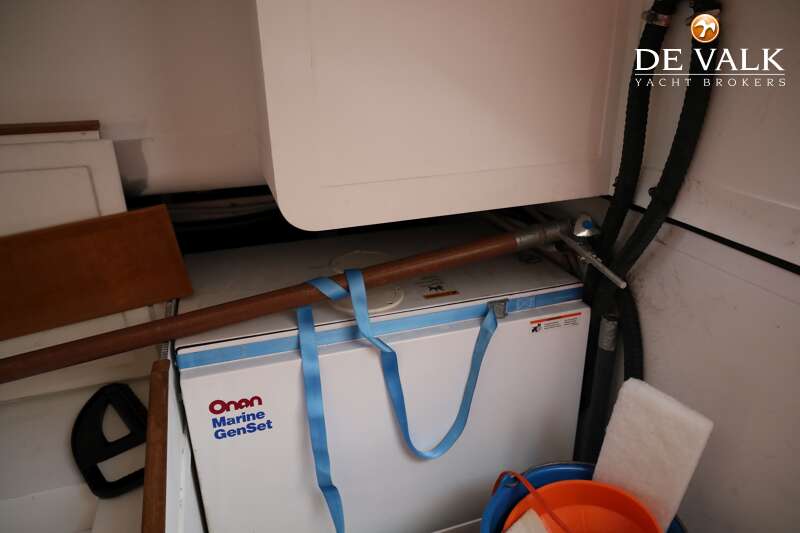

Generator   silent separator  Onan 5kW, condition unknown, needs service. Halyard exhaust
Running hours generator   7
Start battery   2 x 85 Ah Exide - 24 Volt (new in 2022)
Service battery   2 x 240 Ah - 24 Volt gel Mastervolt (new in 2023)
Generator battery   1 x 12 Volt - Needs to be renewed
Battery monitor   Mastervolt Mass Inverter Charger Controller
Battery charger   Mastervolt 12V/25A
Battery charger/inverter   Mastervolt 24V/100A/2.000W
Diode battery combiners   Emergency switch to connect start & domestic batteries
Shorepower   with cable
Insulation transformer   Mastervolt MASS G1 3.5
Auto positioning system   yes
Trimtabs   Intersepters on waterjet system - hydraulic controlled

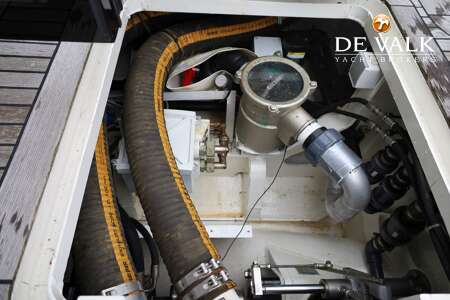

Extra info   Steering via 2 x Rolls-Royce (Kamewa) FF310 waterjet system & via backup & via backup buckets
Extra info   Diesel Polishing system (Separ SWK 2000/40 MK Filter)
Extra info   The stringers supporting the engine mounts and waterjet loads are extended to spread the loads in the hull structure

Navigation

Electric compass   Maretron (NMEA 2000 connected)
Depth sounder   Maretron (NMEA 2000 connected)
Log   Maretron (NMEA 2000 connected)
VHF   Sailor A1 (needs a new back-up battery)
Navigation lights   yes
Extra info   LED lights in the cockpit

Equipment

Sun awning   Blue Performance (over the cockpit)

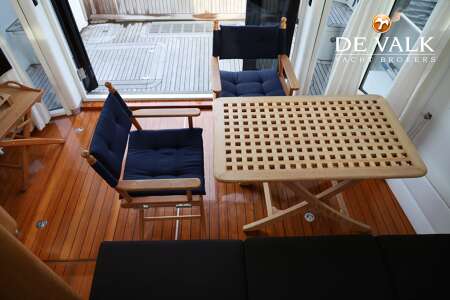

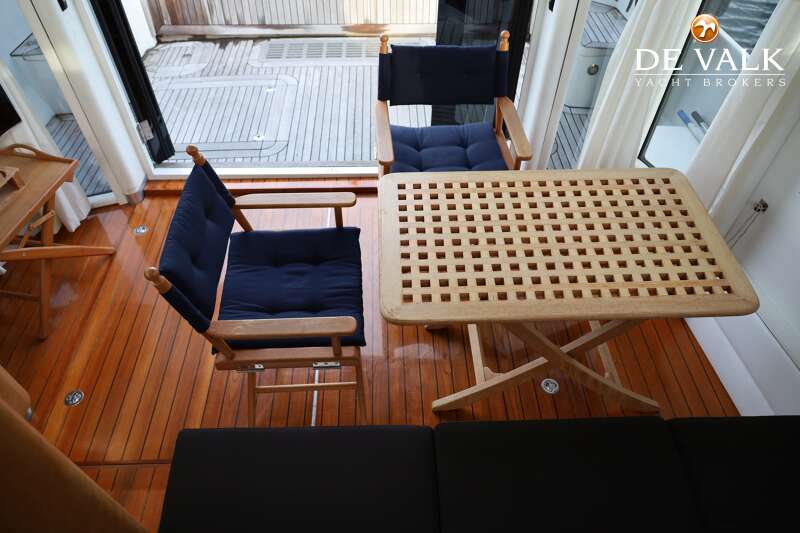

Cockpit table   Teak (foldable)
Cockpit chairs   2 x Foldable teak directors chair with blue cloth
Bathing platform   Hydraulic controlled & covered with teak (Aluminium = 5mm thick)
Boarding ladder   aluminum  Removable & floating white spray painted (never used)
Deck shower   (In the cockpit - hot & cold water)
Anchor   Bruce  With a manual folding anchor fitting
Anchor chain   20 meter galvanised (in a PE anchor chain locker with a drain)
Anchor 2   Danforth  Aluminium - without a rope (never used)
Windlass   electrical  Quick 24 Volt (New buttons on the bow and a new solenoid relais)
Deck wash   Connection on bow and stern (needs to be tested, never used)

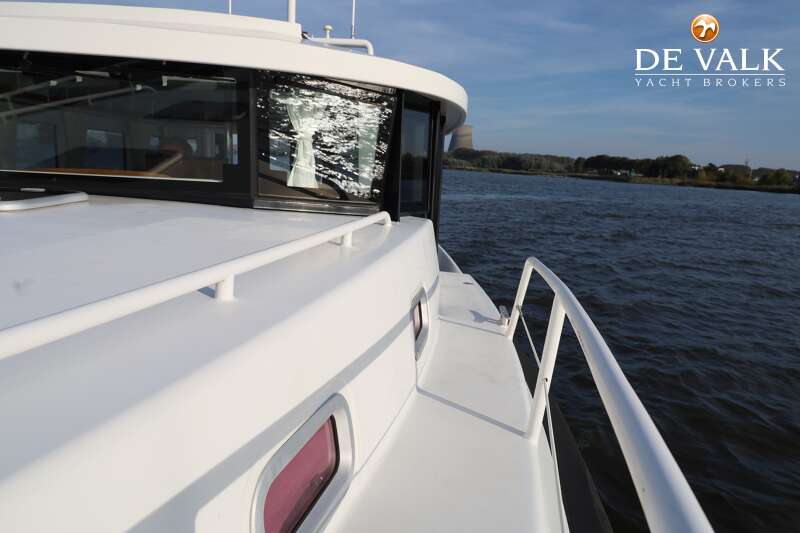

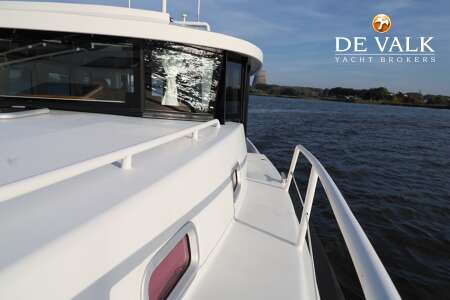

Sea railing   aluminum  (White spray painted)
Grab rail (superstructure)   aluminium  (White spray painted)
Pushpit   Aluminium (white spray painted)
Wiper   6 x Speich with spray position
Horn   (Manual)
Fenders   yes
Mooring lines   yes
Spare parts   yes
TV   yes
TV receiver   yes
Fire extinguisher   1 x (new in 2023)
Extinguisher in engine room   Surveyed in 2023 in Port Side engine room
Auto extinguisher system   Mabo in Starboard engine room (new in 2023)

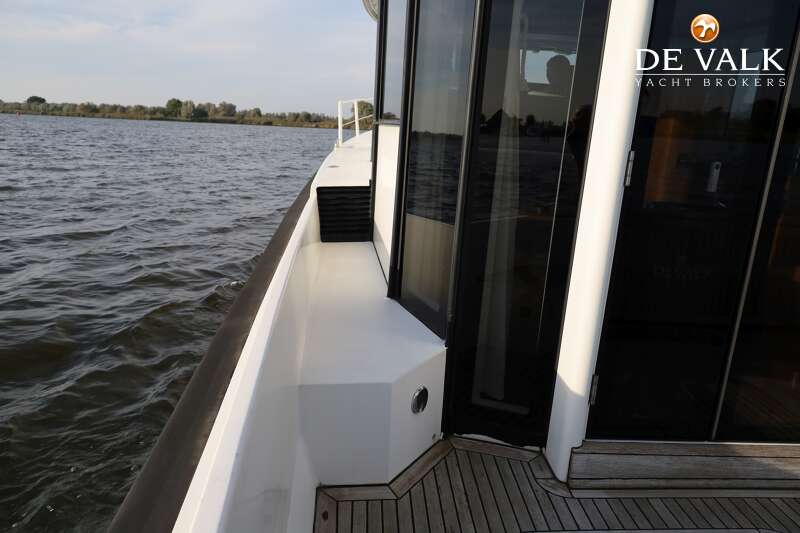

Extra info   The boat has an A-Symmetric deck layout
Extra info   Manuals engines, jets, Rolls-Royce available, no design-drawings
Extra info   The boat is CE Certified - Category B - in November 2023, with the following WIN Code : NL-DMEDE341J323

Disclaimer

These particulars are given in good faith as supplied but cannot be guaranteed and cannot be used for contracts.
