FARR 50 PILOTHOUSE

  • Dimensions
  • 15.38 x 4.70 x 2.30 (m)
  • Material
  • GRP
  • Built
  • 2001
  • Engine(s)
  • 1x Yanmar 4l-hte Diesel
  • HP/ KW
  • 1x 110.00(hp), 80.85(kw)
  • Lying
  • at sales office
  • Sales office
  • De Valk Hindeloopen
  • Status
  • Sold

Broker's comments

The Farr 50 Pilothouse is large enough for a couple to live onboard in shoreside style and comfort with ample guest accommodation. When you go blue water cruising, you shouldn´t have to drop your living standards. Quality of life is very important and we believe yacht design should emulate shoreside lifestyle, whilst being practical, safe and comfortable for offshore use.

De Valk Hindeloopen +31 514 52 40 00
  • e-mail the broker
  • office details

Specifications: FARR 50 PILOTHOUSE

General

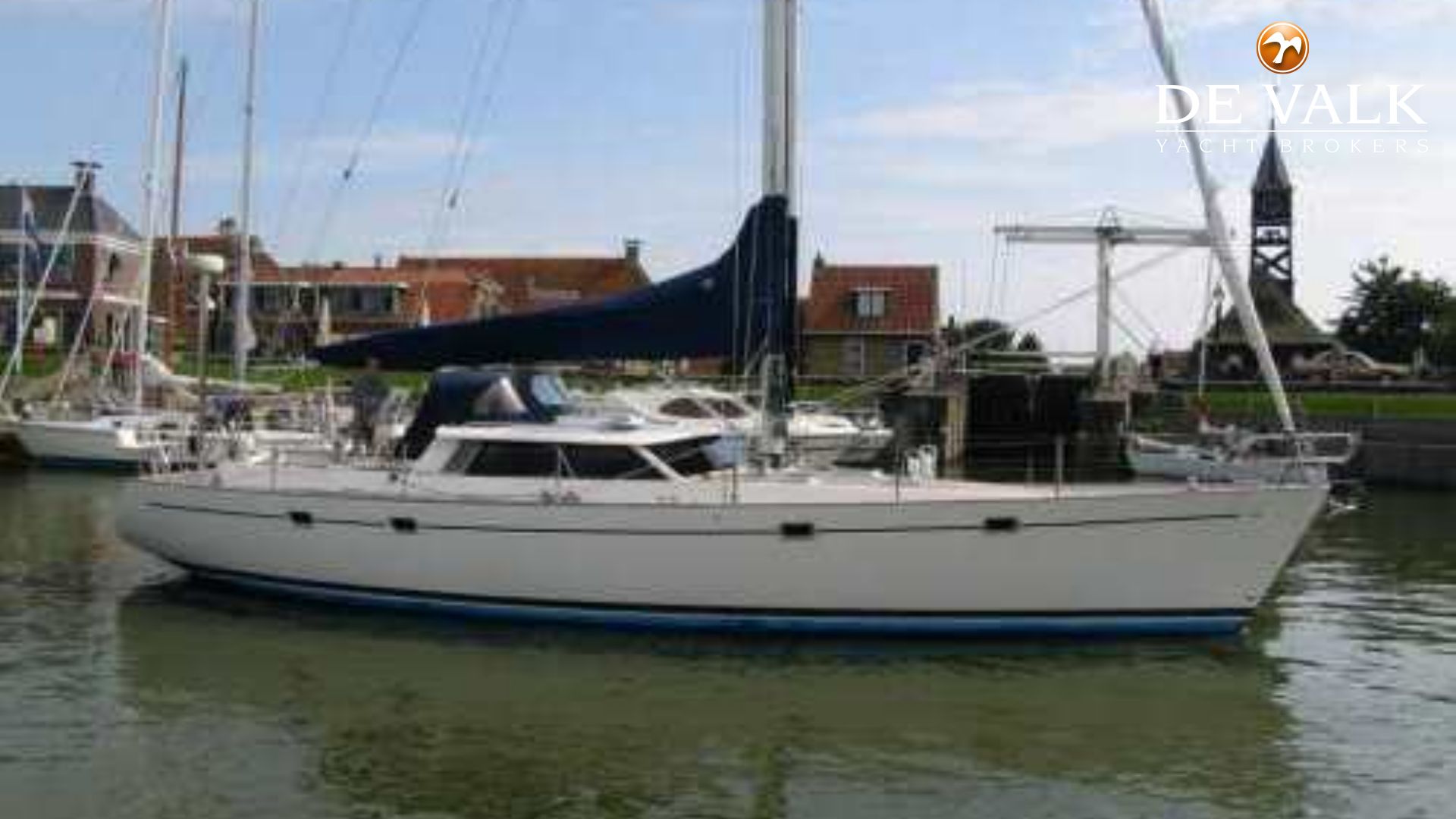

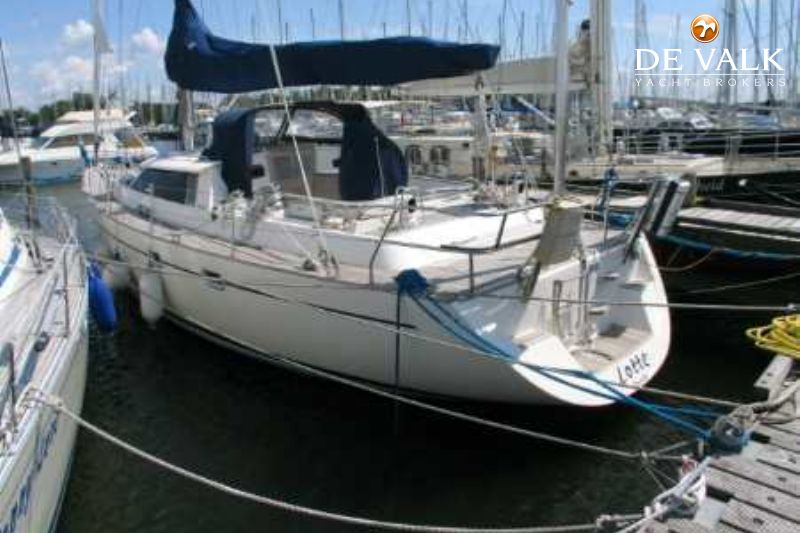

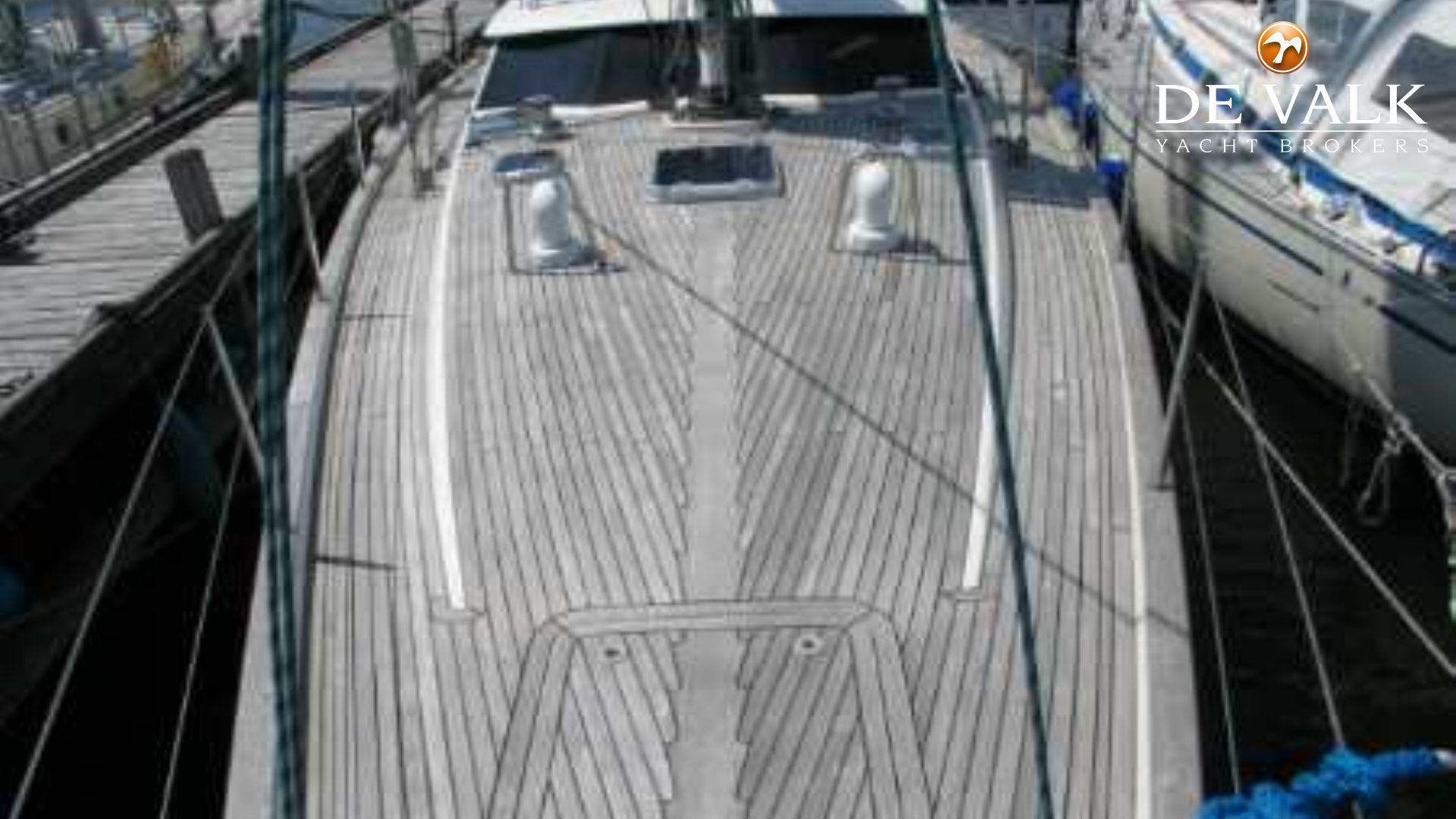

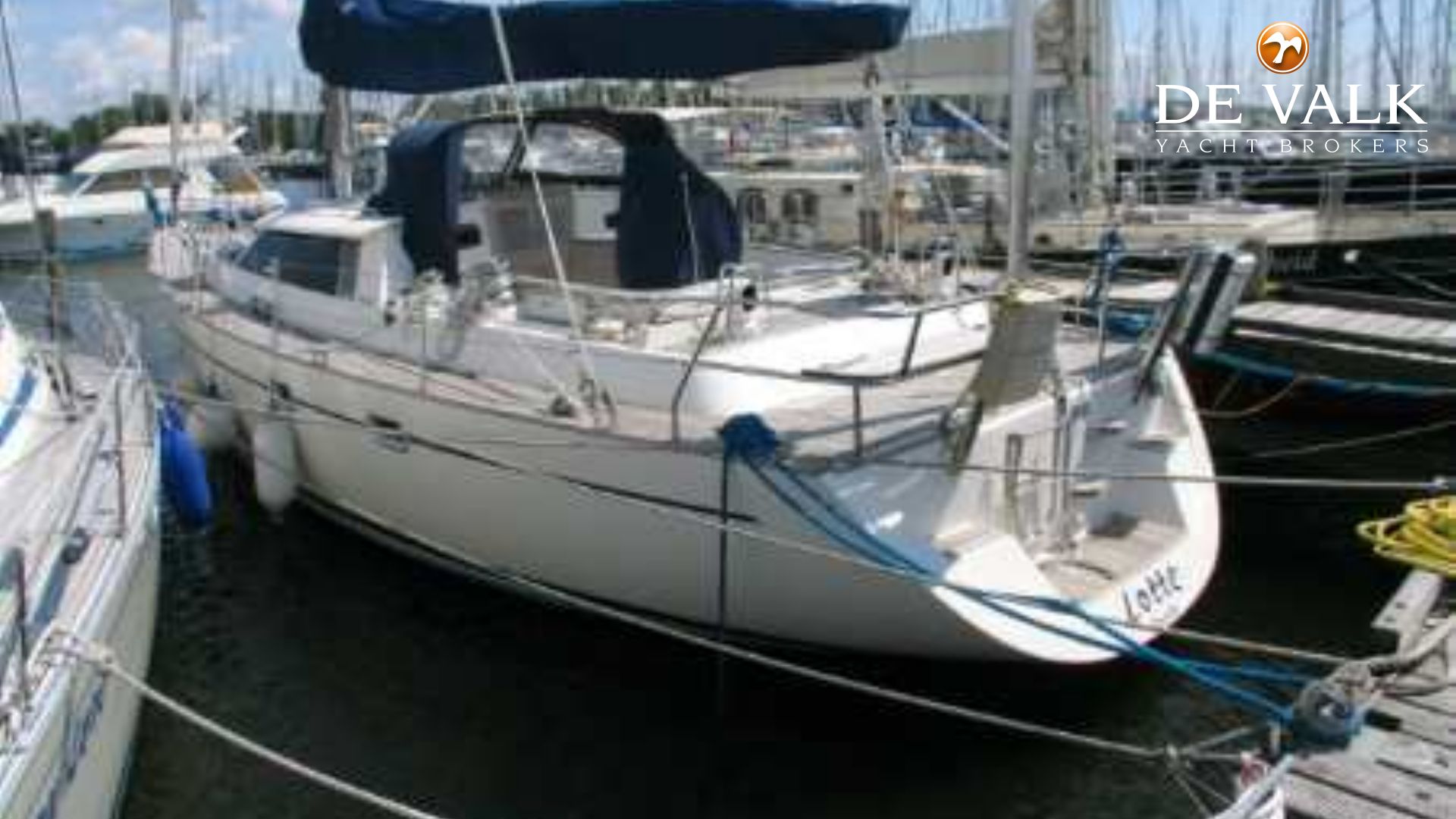

GRP sailing yacht Farr 50 pilothouse, "Lotte", built in 2002 by B.S.I. in Sweden, designed by Bruce Farr, dim.: 15.38 m (lwl 12.95 m) x 4.70 m x 2.30 m, headway approx 23,75 meter, GRP white hull, displacement approx. 17,000 kg, fin keel, two extra low's expoxy beneath the water line, teak deck and teak in cockpit, cockpit 15 cm extended, the roof of the pilot house has been shortened on the rear end, fuel capacity approx. 600 litres and an additional 300 liter dieseltank, water capacity approx. 780 litres, holding tank approx. 420 litres, water and fuel tank meters. So many designs compromise their suitability for offshore cruising by using all the available space for accommodation. Not so with the Farr 50. She has large storage lockers in the bow and stern providing large amounts of space accessible from the deck only. So you do not need to go through the living accommodation with dinghies, sails and the multitude of gear that, in other yachts, are trailed through the saloon and stowed in the forecabin. For security and safety the forward sail locker is totally watertight and separate from the forward cabin. Unquestionably, the defining feature of any of the Farr 50's is the pilothouse which provides panoramic views whilst seated or standing throughout the saloon. This provides the perfect combination of cosy "living-room" comfort with airy spaciousness. As well as featuring an interior steering position and a comprehensive navigation area, the saloon´s seating areas will easily accommodate your guests by keeping the accommodation close to the centre of the yacht, the motion at sea is minimised.

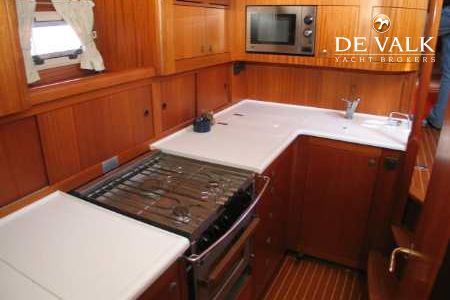

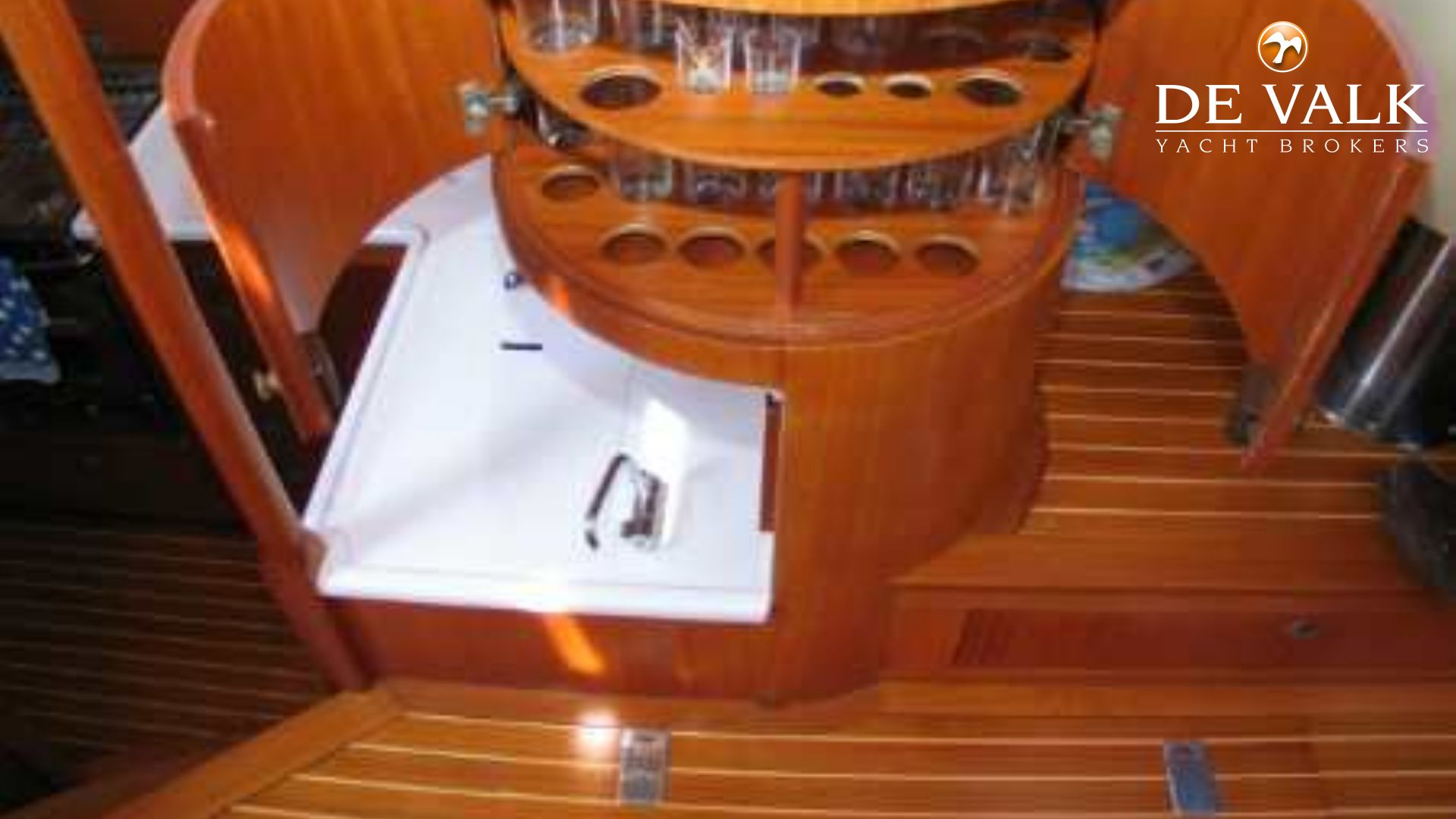

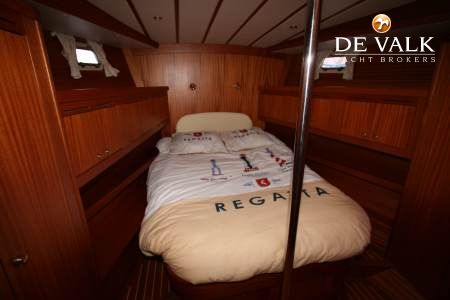

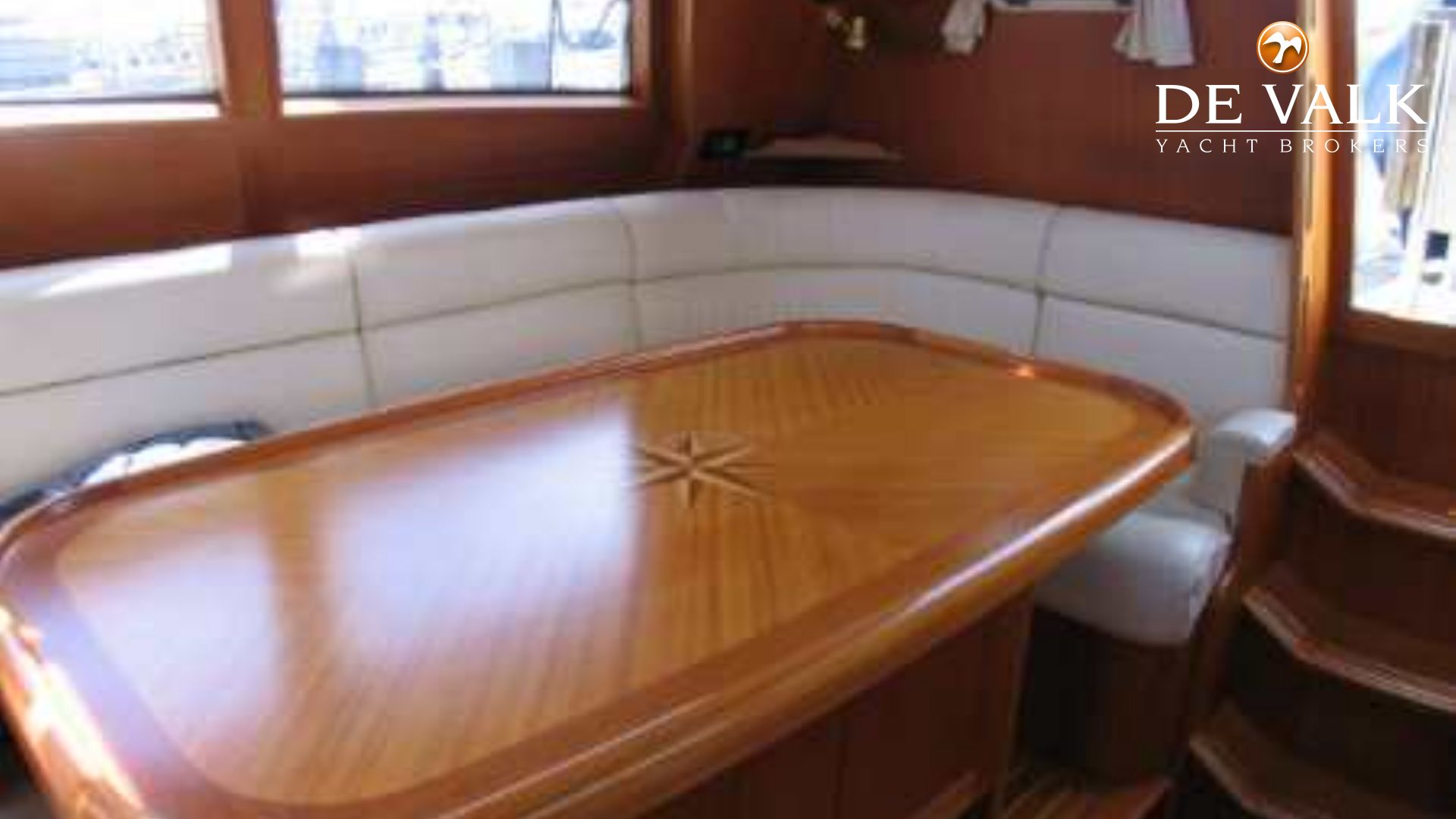

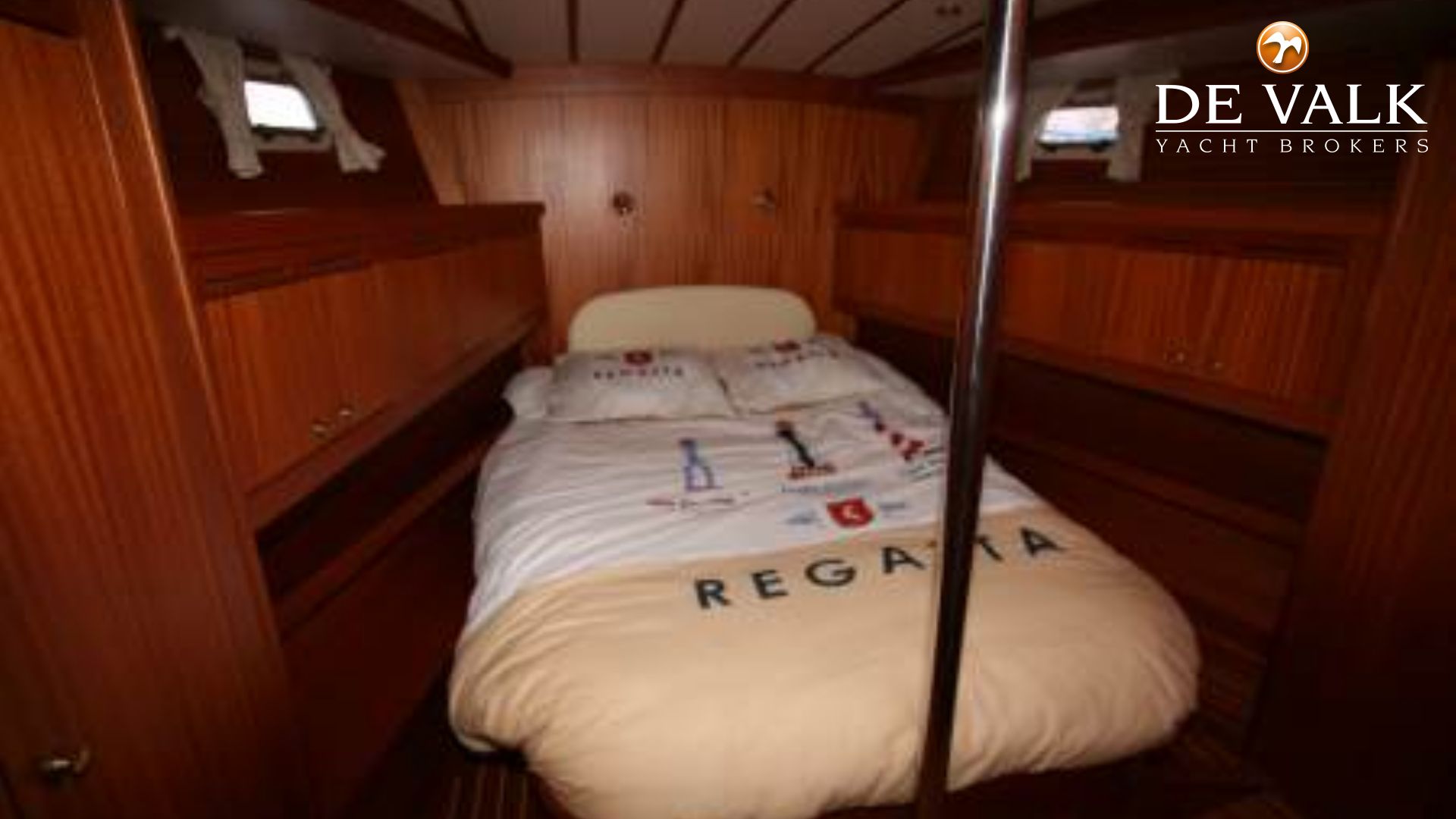

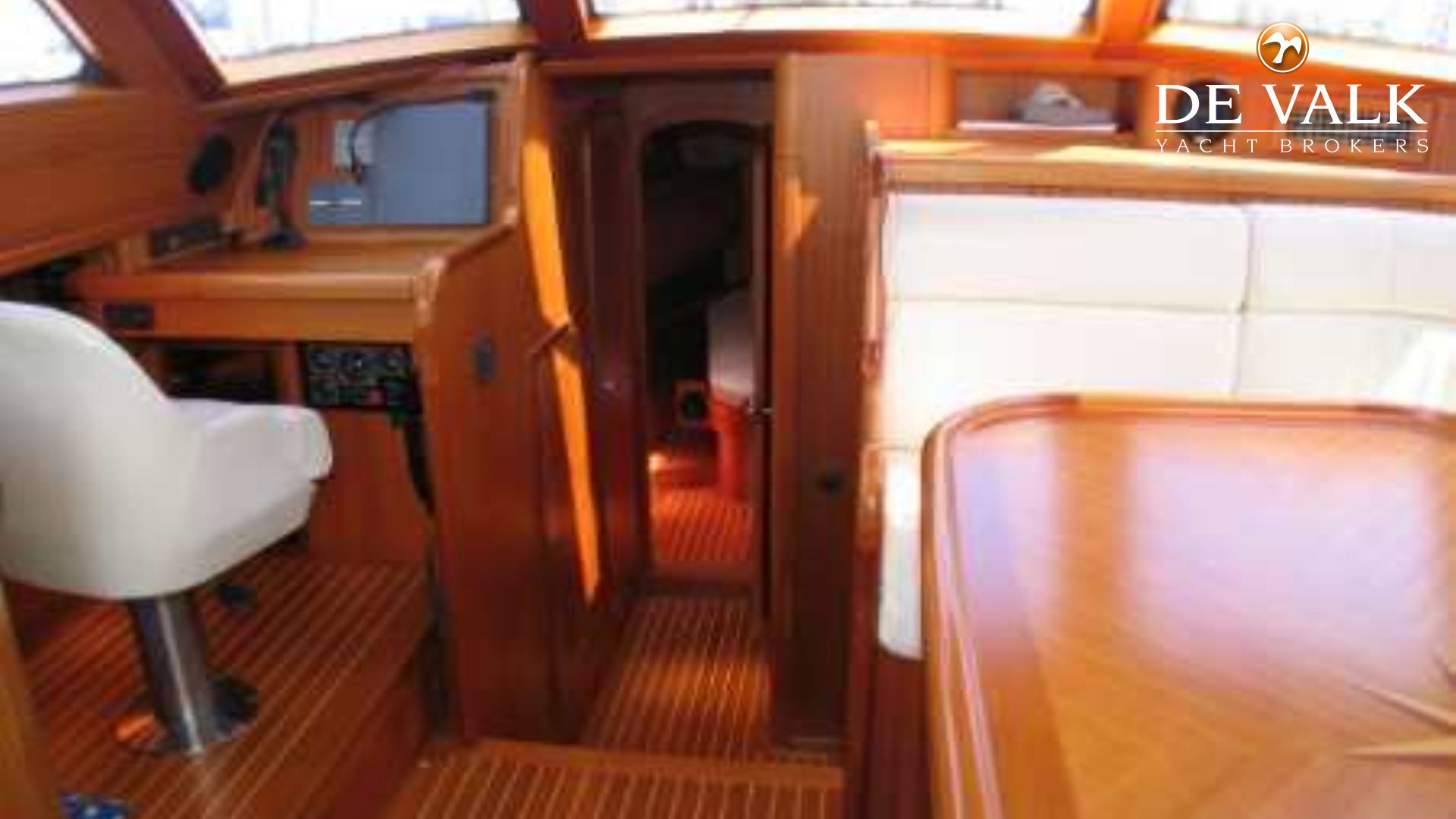

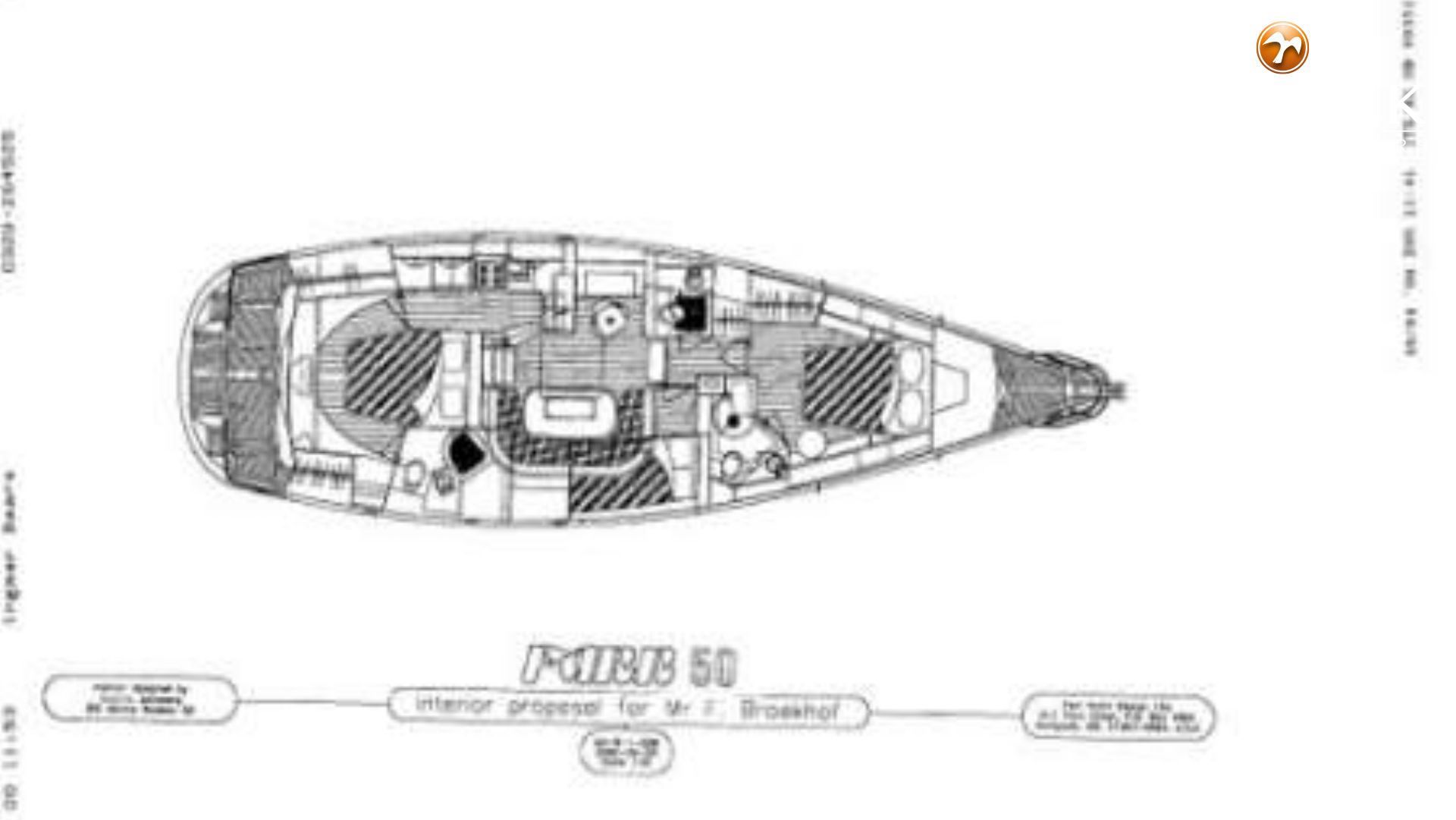

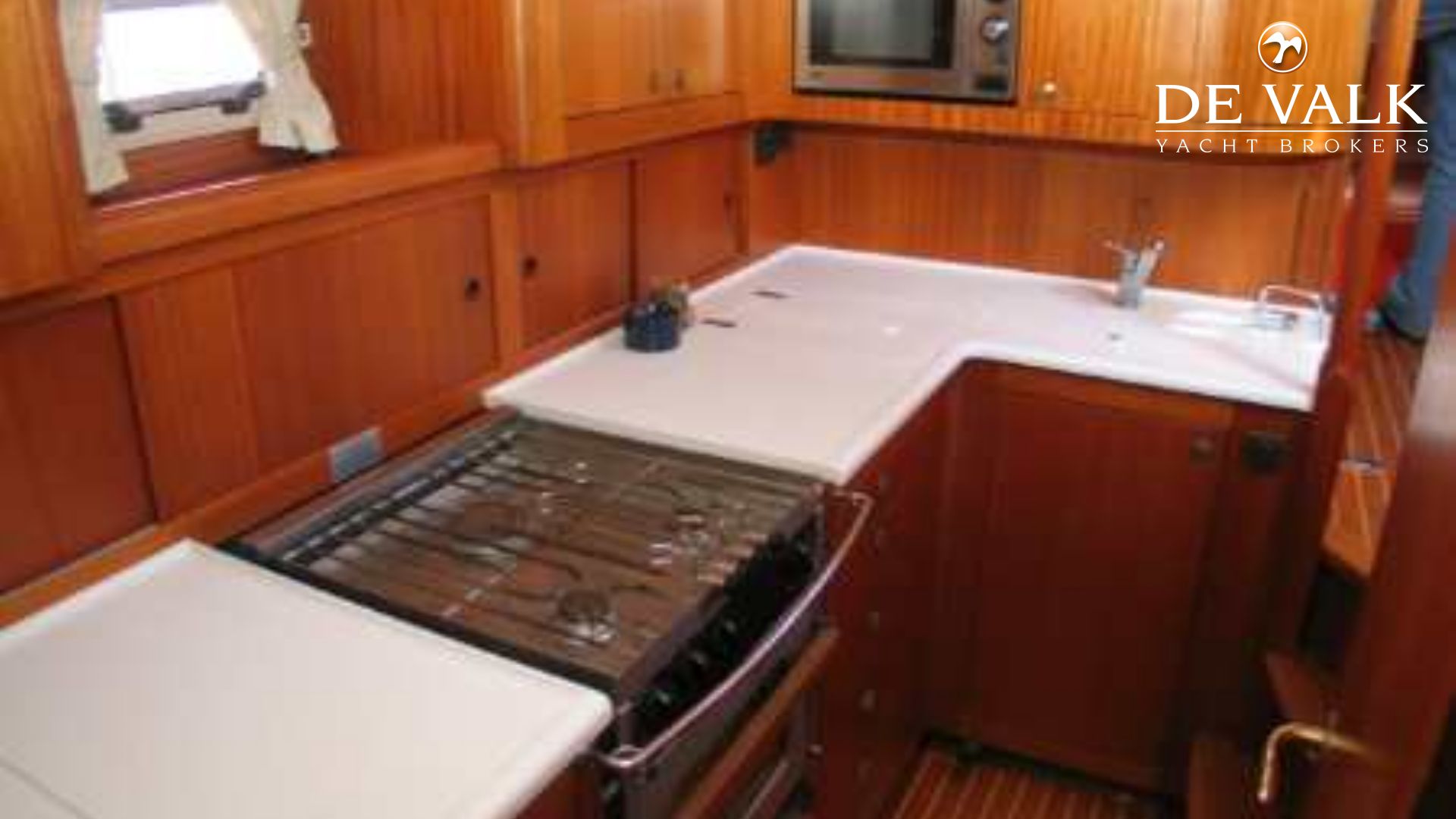

Mahogany interior with elmosoft leather upholstery, all toppings in corian, upholstery in ownerscabin in alcantara, swing partition on each berth, door handle and iron work made from copper, Cantalupi lights, Oceanair wire netting / darkening for all blinds, vacuum toilets, stainless steel inlay at all steps, arm-rest on both sides of the bench in the saloon, a extra berth in the side cabin all special matresses with cover ,matrasses. This three cabin version is ideal for long distance cruising with a family or an owner with his guests. Both the large double bedded cabins have an ensuite bathroom with shower, toilet and head. The side cabin is fitted with a double bed, and can easily access the dayhead opposite the cabin entrance. The galley is fitted with a double stainless steel sink, creme colour corian worktops, Force 10 stainless steel three burner gas stove with oven, stainless steel built in microwave, 1x fridge and 3x freezers (can be used as fridge), the storagelockers in the kitchen are special made to keep the crockery on place. Washing machine in bath room.

Yanmar 4-LH-TE, 110 hp (80.85 kw) diesel, Dual manual morse controls for main engine, mechanical gearbox, Mastervolt whisper generator 8 kw / 220V, cruising speed approx. 8 knots, rope cutter on proppelar, Oilbath propellorseal, Lewmar 10 hp retractable bowthruster, Spectra watermaker, 60 ltrs boiler heated by engine/Generator/220V AC, Climma aircon (2 units) through the whole ship and separately control on each cabin, 2 x Webasto hot air heating separately controlable in each room, each cabin has a 12V and 220V connection, Mastervolt 600 A gel batteries, Mastervolt 75Ah 24V charger, Mastervolt 2000W invertor, 3 x Mastervolt 24/ 12 V convertor, 55Ah Optima startingbattery, electric roll up 20 m. shorepower cable.

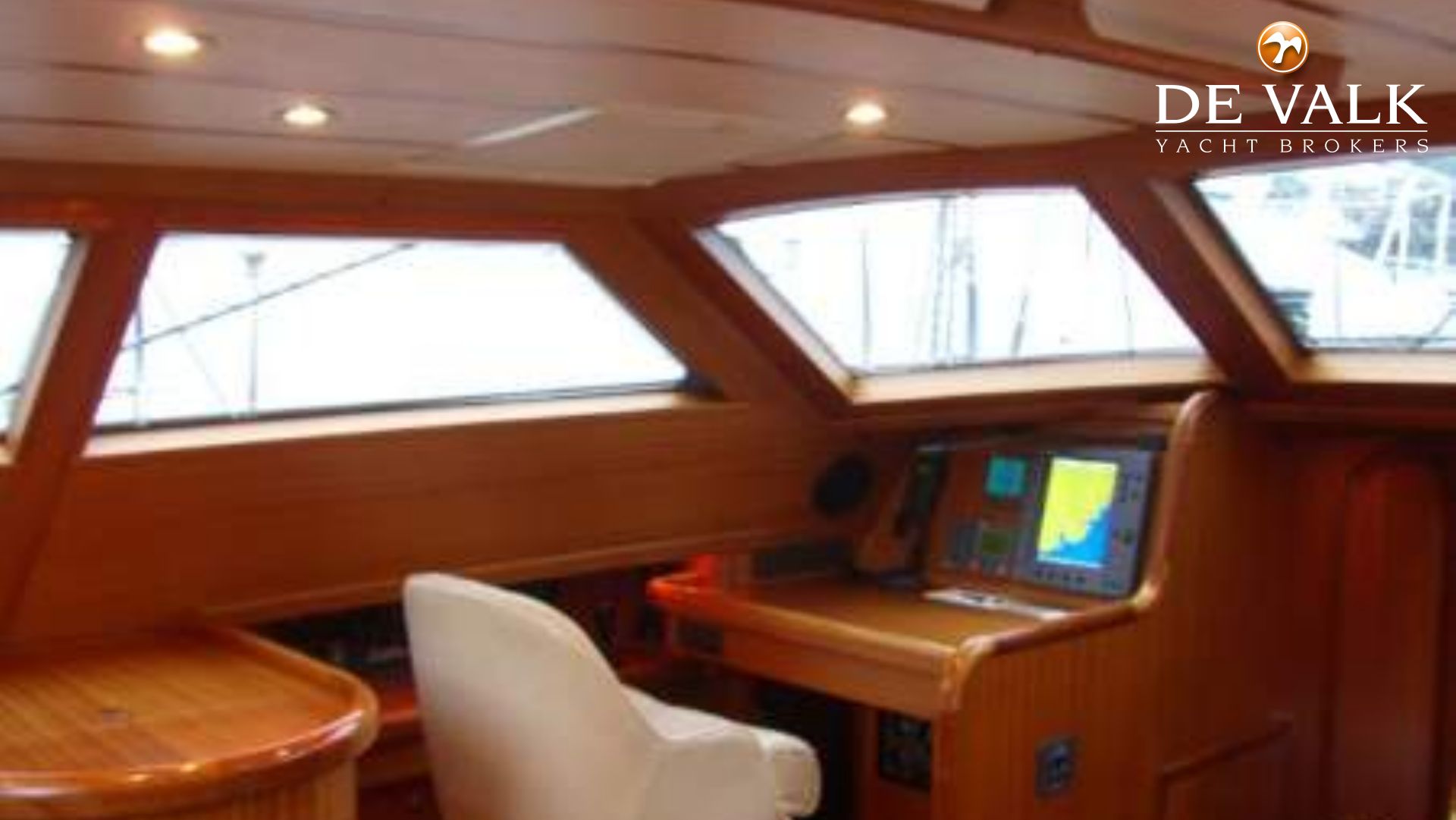

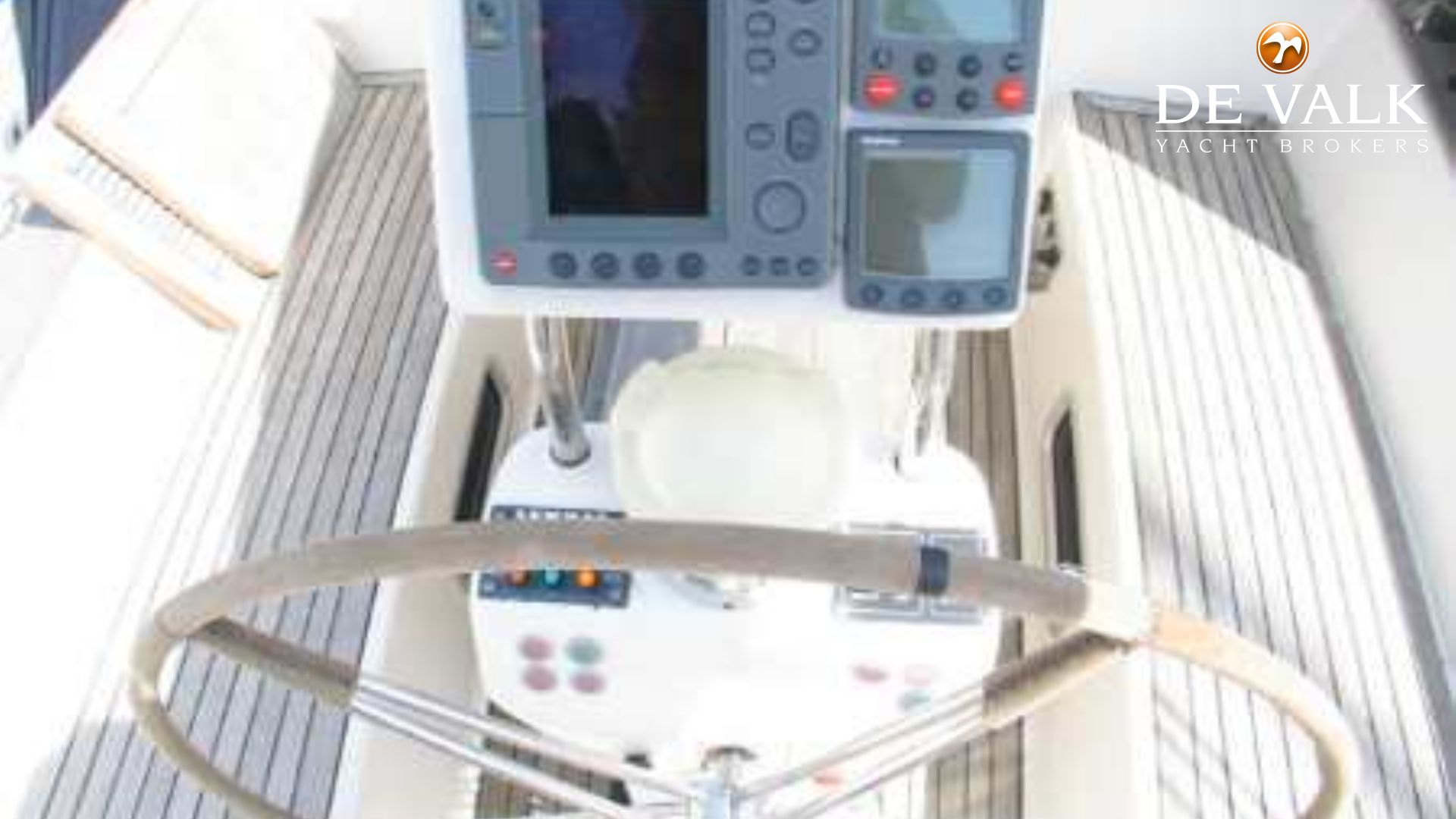

Danfoss magnetic pedestal compass, RL 70C Raymarine chartplotter/radar at the pedestal, Raymarine ST80 master and ST80 Pilot installed at the pedestal, Raymarine ST80 windinstrument with carbon topunit, raymarine ST80 echosounder, Raymarine course computer with withlock power drive, Mamba royal, Raymarine ST6001 autopilot operated from the pedestal, at the entrance and at the nav table, inside: Raymarine RL80crc radar/chart plotter, navigator keypad, Raymarine ST80 master, ICS4 Navtex, Vetus electric barograph, Nokia carphonme, Sailor VHF DSC, At the entrance: 2 x Raymarine ST80 analog windinstruments, 3 x ST80 Multi, 21 "TFT television system with dolby surround set, each cabin has a kenwood radio CD player, burglary alert.

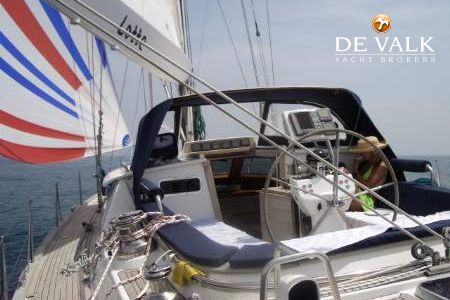

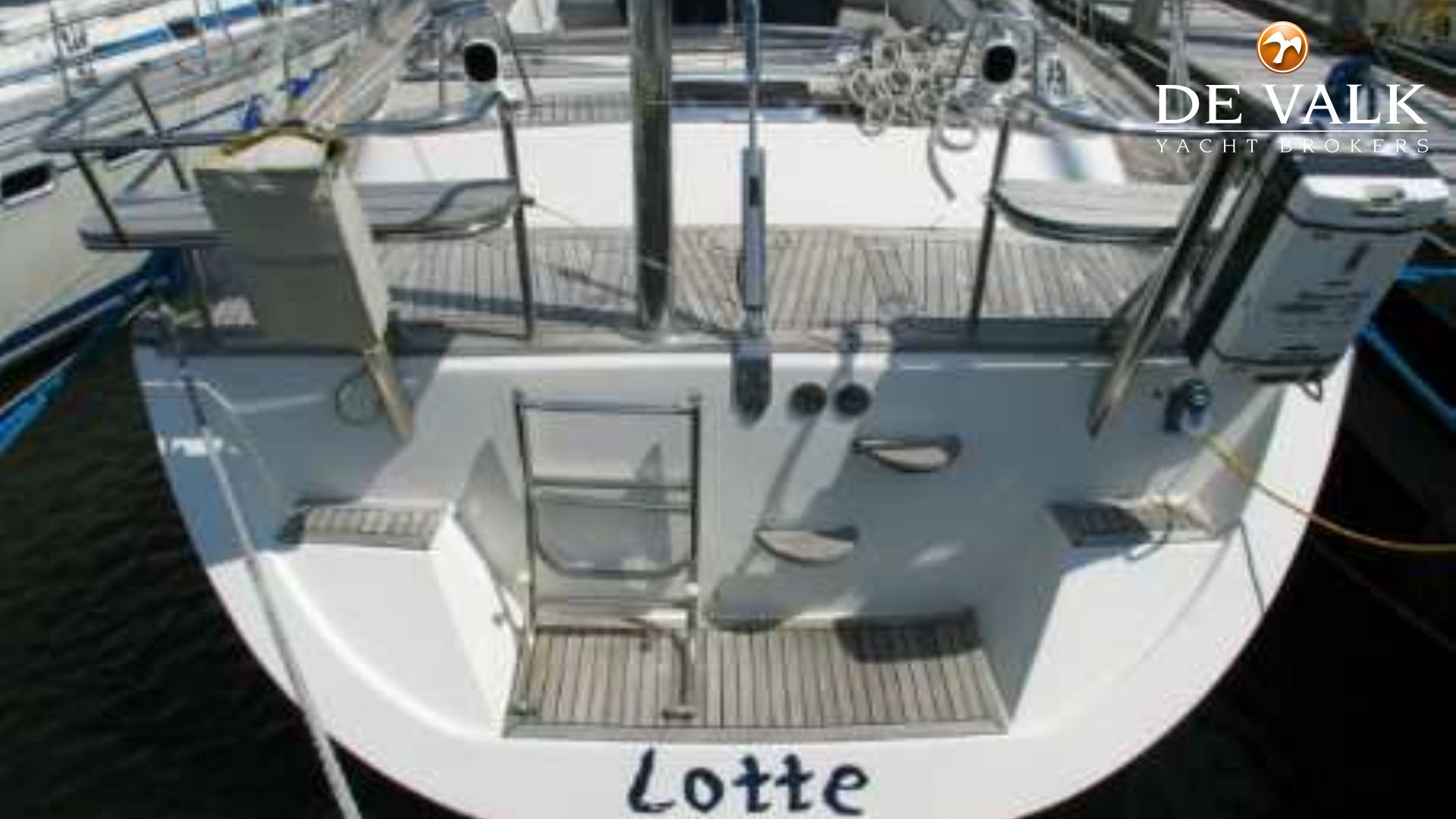

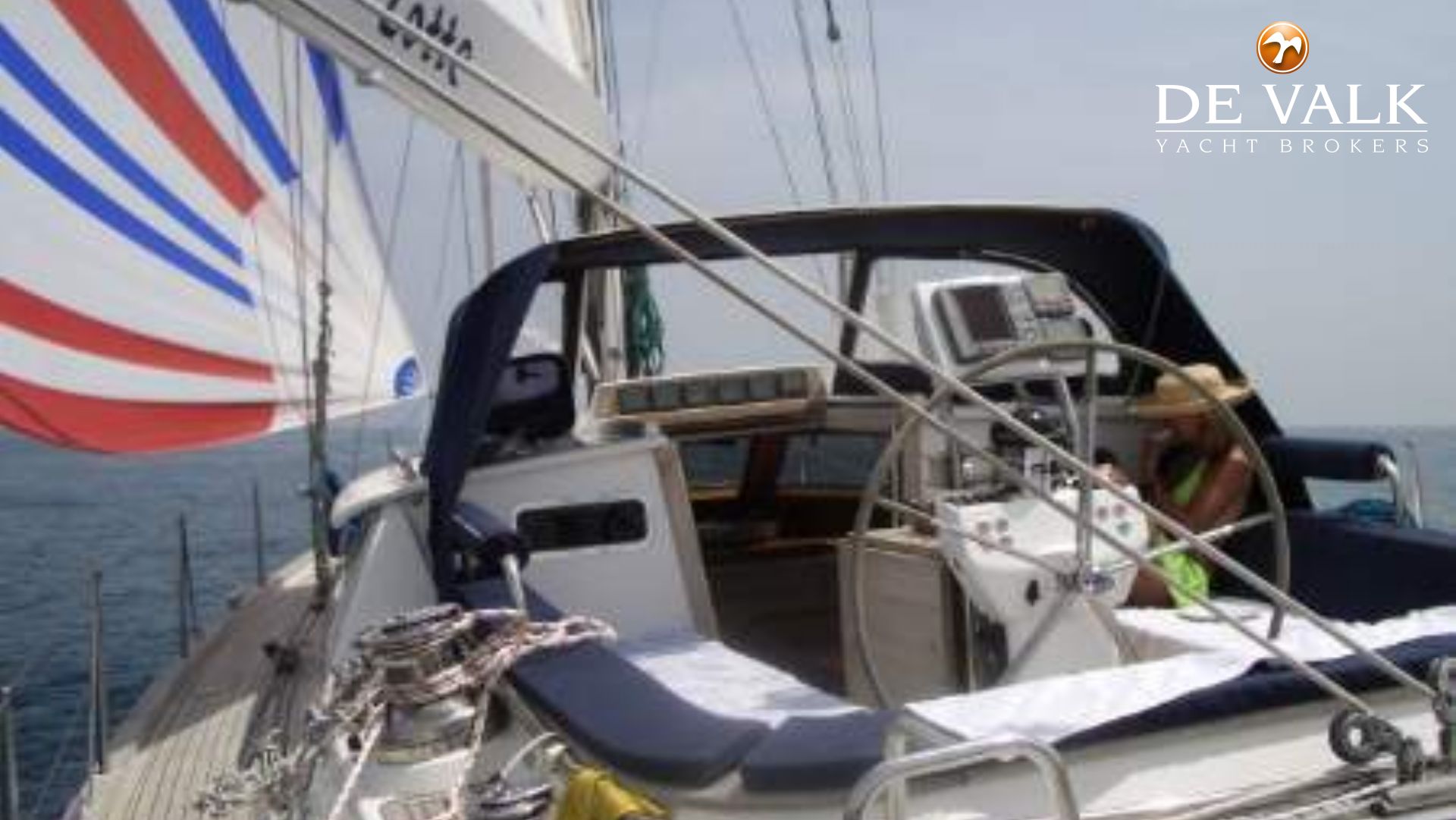

40 meter stainless steel anchor chain, Stainless steel Bruce Anchor approx 50 kg, Bimini, Sprayhood, cockpit cover, sunscreen covers for pilothouse windows, stainless steel with teak cockpittable with storage room integrated possible convertable to refrigerator, Mamba Royal Pedestal with twin spalk stanless steel leather covered steering wheel, All winches can be operated from the pedestal ore at the winch, cockpit cushions, bathing platform, stainless steel bording ladder, aluminium emergency tiller, deckwash, deckshower with H/C water

Proctor keel stepped Carbon mast with 3 sets of swept back carbon spreaders, Carbon fibre Park Avenue Boom, rod rigging, Dacron staysail approx 90 m2 (2001), removable cutterstay, North sails easymidi gennacker with sniffer, 135% , stainless steel manual navtec hydraulic boomvang, stainless steel Navtec manual hydraulic boom vang, Navtec manual hydraulic authoul in the boom, stainlesssteel Navtec powerpackpump and operating plate, Lewmar Powerpack for Furlex hydraulic headsailfurler, All winches double speed full stainless steel Andersen winches o.w 6 x electric, All running Rigging in Spectra, Lewmar Ocean 3 anchor winch operated bij 24 Volt ore manual, Blipper, Radarreflector, RR antenasystem for integrated reception of TV, cellphone, VHF, navtex, FM. second VHF antenmna on Stainlesssteel radarpole.

Important disclaimer:These particulars are given in good faith as supplied but cannot be guaranteed and cannot be used for contracts.
