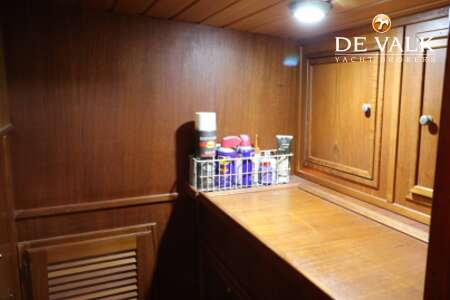

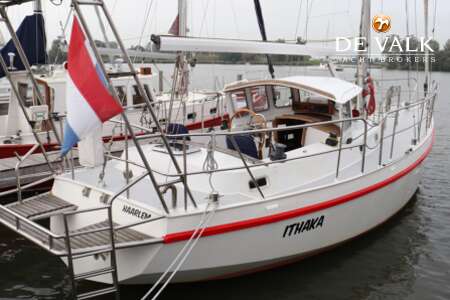

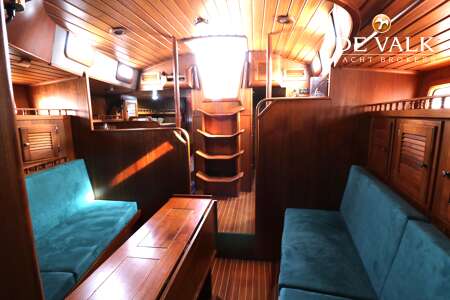

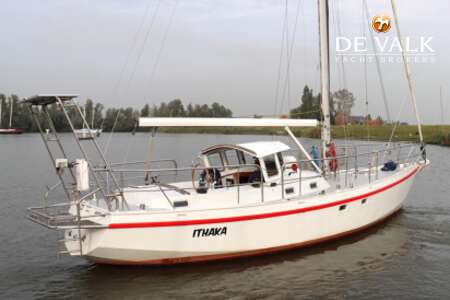

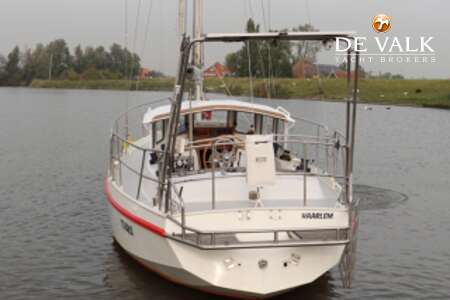

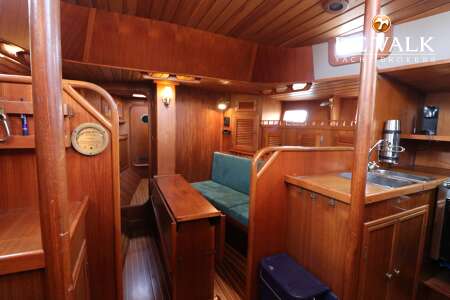

As with all designs by Koopmans, this model has an excellent proven sea keeping characteristics. She has a cutter-rig with hydraulic forestay and in-mast furling system. In 2017/'18 she was equipped with a bow thruster and new engine for easy handling under all conditions. Below deck a cozy, comfortable and warm mahogany interior with ample storage space. She offers a double bed in the after and two singles in the saloon. The foam plate insulation contributes to optimal comfort for longer stays. "Ithaka" is located in our sales marina and you are welcome to step aboard 7 days a week.
Dimensions | 12,50 x 3,55 x 1,70 (m) | |
Material | steel | |
Built | 1988 | |
Engine(s) | 1 x Sole Diesel Mini - 62 diesel | |
HP/Kw | 62 (hp), 45,63 (kw) |
Lying | at sales office | |
Sales information | De Valk Monnickendam | |
Status | sold | |
Model | KOOPMANS 1150 VANGUARD |
Type | sailing yacht |
LOA (m) | 12,50 |
LWL (m) | 10,00 |
Beam (m) | 3,55 |
Draft (m) | 1,70 |
Air draft (m) | 16,50 |
Year built | 1988 |
Builder | Scheepswerf B. Escher/Klein, Hoogezand |
Country | The Netherlands |
Designer | D. Koopmans Sr. |
Displacement (t) | 9,5 |

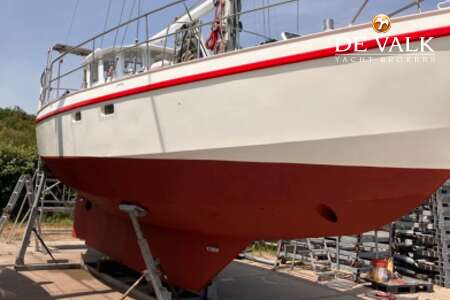

Hull material | steel |
Hull colour | white - with red striping - met rode striping - mit Rotte striping |
Hull shape | hard chine |
Keel type | long keel |
Superstructure material | steel |
Rubbing strake | steel |

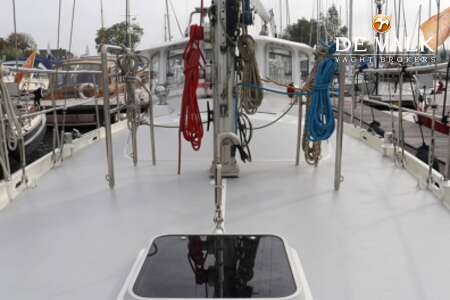

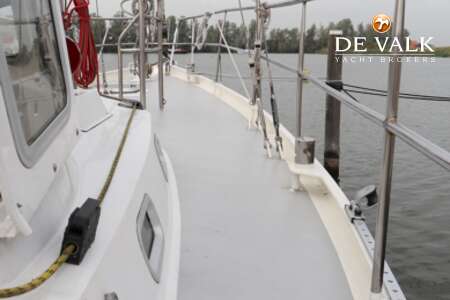

Deck material | steel |
Deck finish | non-skid paint |
Superstructure deck finish | paint |
Cockpit deck finish | teak |
Antifouling (year) | 2023 |
Dorades | 2x |
Window frame | aluminium |
Window material | tempered glass |

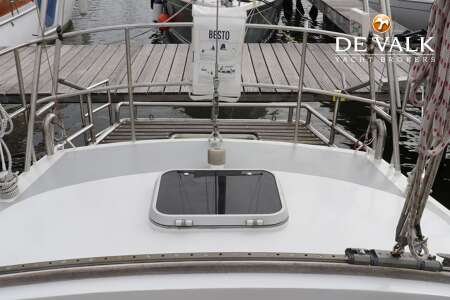

Deckhatch | 2x Bjerg |
Insulation | foam |
Radar arch | non collapsible |
Fuel tank (litre) | steel - 450 L |
Level indicator (fuel tank) | yes |
Freshwater tank (litre) | steel - 800 L |
Level indicator (freshwater) | yes |

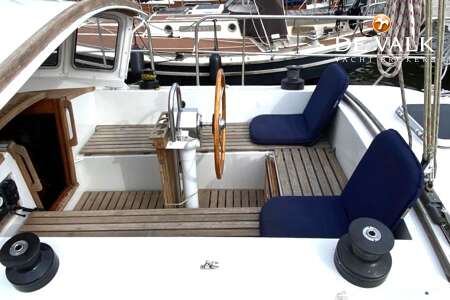

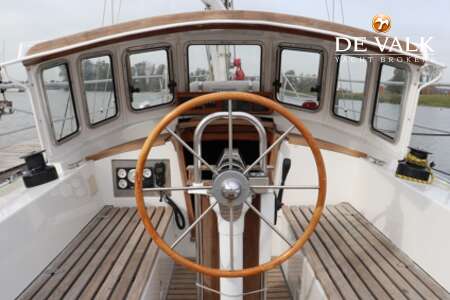

Wheel steering | hydraulic |
Outside helm position | hydraulic |
Emergency tiller | yes |
More info on paintwork | 2-component paint - De IJssel |
Cabins | 1 |
Berths | 4 |

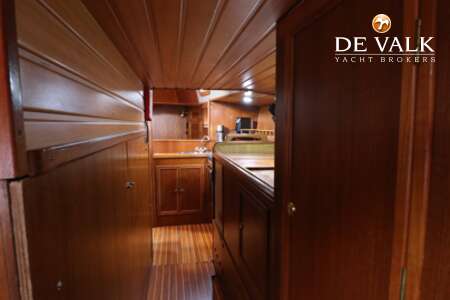

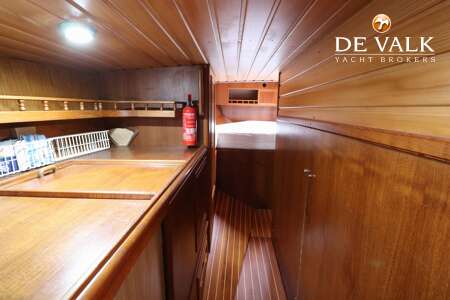

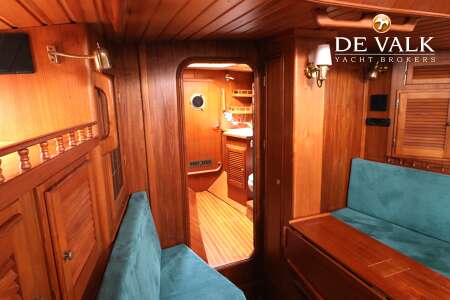

Interior | mahogany |
Aft deck | yes |
Headroom saloon (m) | 2 m |
Chart table | yes |
Aft Cabin | Passage height to aft cabin: 1.38-1.40m. |

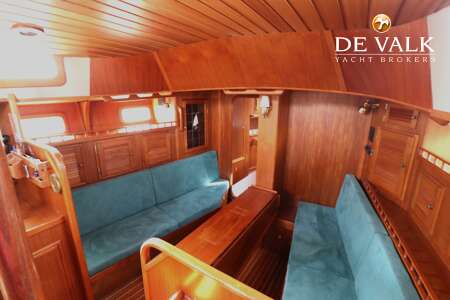

Dinette | yes |

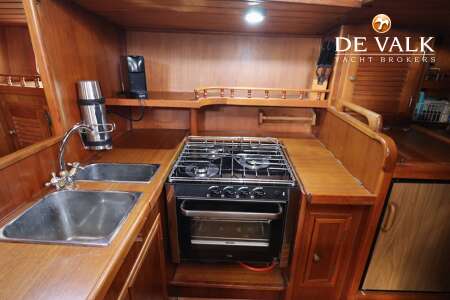

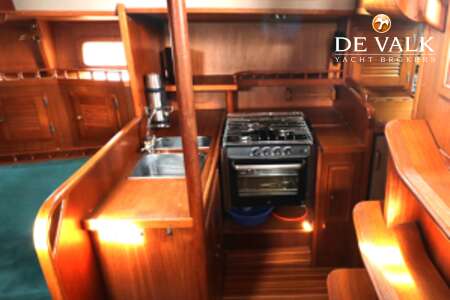

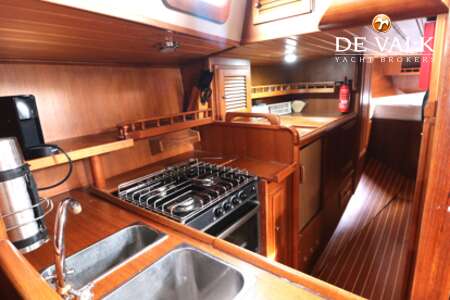

Galley | yes |
Countertop | wood |
Sink | stainless steel |
Cooker | calor gas -Alpa new 2017 / nieuw 2017 / Neu 2017 |
Oven | yes |
Fridge | Weaco |
Freezer | Weaco |
Hot water system | 220V + engine |
Water pressure system | electrical |
Coffee maker | yes |

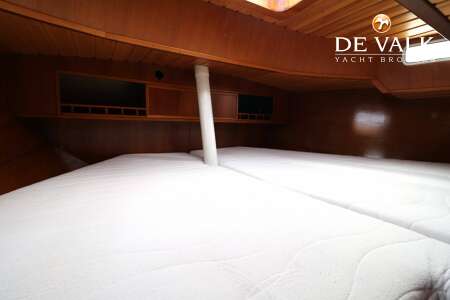

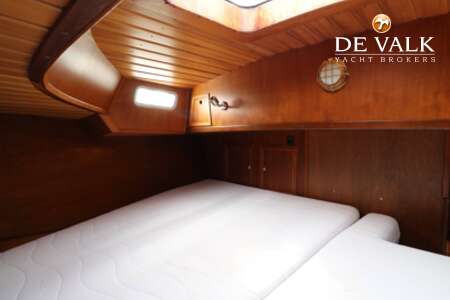

Owners cabin | double bed |
Bed length (m) | 2 m |
Wardrobe | hanging and shelves |

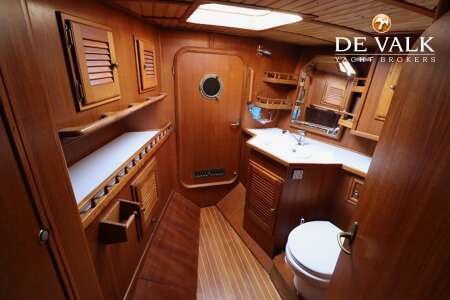

Bathroom | separate - height/hoogte/Höhe: 1.66-1.75m. |
Toilet | separate |
Toilet system | electric - Vetus new 2017 / nieuw 2017 / Neu 2017 |
Wash basin | in the bathroom |
Extra info | Two berths (2.02m.) on each side of the salon. |
Extra info | Gas installation does not meet current requirements. |
Extra info | yes |

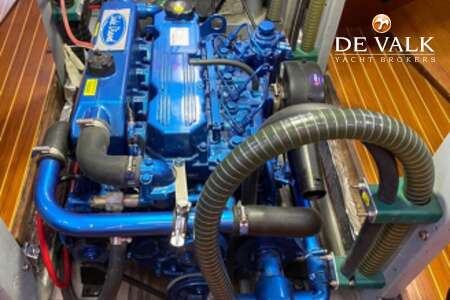

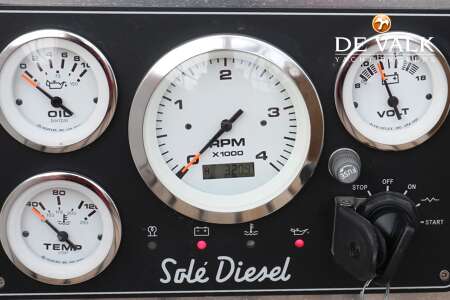

No of engines | 1 |
Make | Sole Diesel |
Type | Mini - 62 |
HP | 62 |
kW | 45.63 |
Fuel | diesel |
Year installed | 2018 |
Engine hours | 320 |
Engine cooling system | freshwater heat exchanger |
Drive | shaft |
Shaft seal | yes |
Engine controls | bowden cable |
Gearbox | mechanical |
Bowthruster | electric - Side power EB 75-1855 new2017 / nieuw 2017/ Neu 2017 |
Gearbox | mechanical new 2017 / nieuw 2017 / Neu 2017 |
Exhaust | watercooled |
Thrust bearing | yes |
Propeller type | fixed |
Propeller shaft material | stainless steel |
Shaft lubrication | water |
Electric bilge pump | yes |
Bilge alarm | yes |
Start battery | 1x Optima Yellow top 55 ah |
Service battery | 2x Victron RV 220 ah |
Bowthruster battery | 2x Optima Yellow top 75 ah |
Battery charger | Mastervolt mass 12-25 |
Inverter | yes |
Solar panel | 1x Victron spm 041751200 175 W |
Shorepower | with cable |

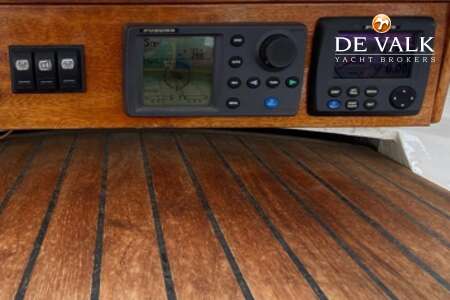

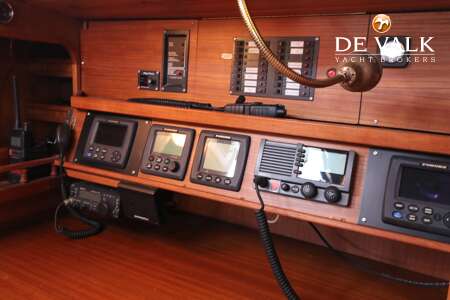

Electric compass | Simrad Precision -9 |
Depth sounder | Furuno RD 33 / Airmar DS0800 |
VHF | Sailor 6215 with 6205 outdoor controls |
Autopilot | Furuno FAP 500 |
Wind vane steering install. | monitor windvane |
Rudder angle indicator | Furuno RD 33 |
GPS | Furuno GP 33 |
AIS transponder | True heading CTRX Carbon |
Navigation lights | yes |

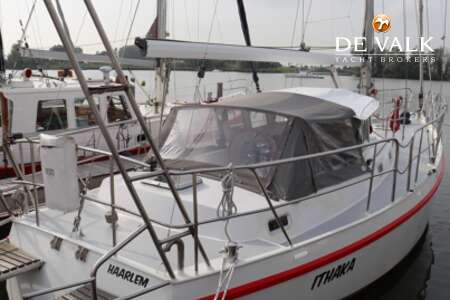

Fixed hardtop | aluminium |
Cockpit cover | yes |

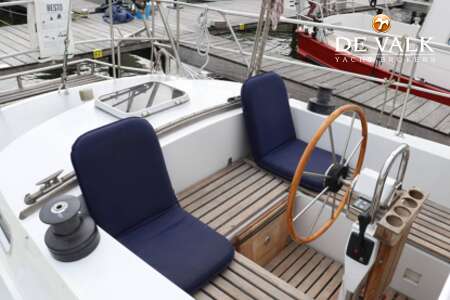

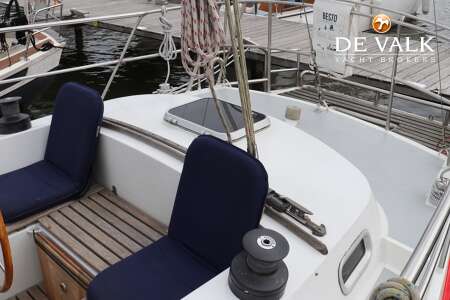

Cockpit cushions | yes |
Cockpit table | yes |
Bathing platform | yes |
Boarding ladder | steel |

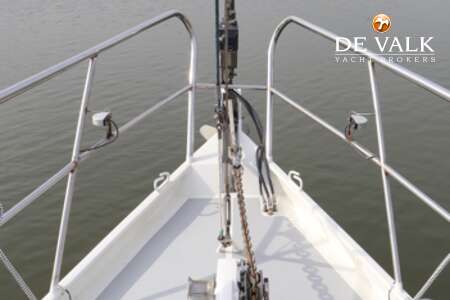

Anchor | CQR Plough |
Anchor chain | 50 m |
Windlass | manual - Needs to be overhauled |
Sea railing | stainless steel |
Railing side opening gates | Both sides |
Life raft | container |
Last life raft survey | Not inspected recently |
Lifejackets | 2x |
Tools | yes |
Radio-cd player | Blaupunkt |
Speakers in salon | 4x |
Fire extinguisher | yes |
Latest extinguisher survey | Not inspected recently |

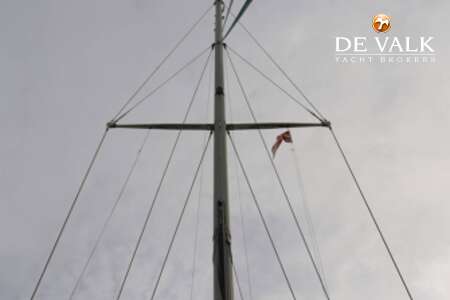

Rigging | cutter |
Standing rigging | wire |
Brand mast | Reckmann |
Material mast | aluminium |
Spreaders | 1x |
Mainsail | yes |
Stoway mast | Hydraulic |
Cutterstay | yes |
Genoa | yes |
Genoa furler | Hydraulic |
Reefing System | main in-mast furling |
Boomvang | mechanical |

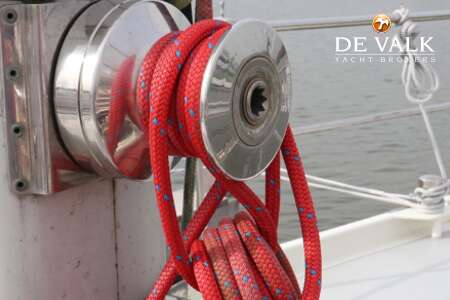

Primary sheet winch | Barient 28 |
Genoa sheetwinches | Barient 27 |
Spi-pole | aluminium |
