Broker's comments

Dutch build traditional sea going motor yacht. All comfort on board for long distance cruising and living on board. Hydraulic 35 hp bow- and stern thruster, stabilizers, twin generators, watermaker. Central heating, airco. Tastefull finished interior. Perfect lay out with 3 cabins, spacious wheelhouse and saloon.

ALM TRAWLER DELFINO 65

Dimensions   21,55 x 6,20 x 1,70 (m)
Material   steel
Built   2008
Engine(s)   2 x Caterpillar C 7 Diesel
HP/Kw   319,73 (hp), 235 (kw)
Lying   at sales office
Sales office   De Valk Loosdrecht
Status   sold
Vat   paid


General - ALM TRAWLER DELFINO 65

steel Dutch built twin screw ALM TRAWLER DELFINO 65, built in 2008 by De Alm Shipyard - The Netherlands to a Werner Design in combination wit Azza, CE-A, dim.: 22,55 (19,95 hull lenght) x 6,20 x 1,70m, air draft with mast down 4,85m and with mast up 7,50m, steel hull 8-6mm, steel deks with teak, AWL Gripp paint system, multi chine hull (semi round bilged), displacement 80 tonnes, fuel capacity 8.900 litres in 4 tanks, water capacity 2.500 litres plus water maker, waste tank 1.400 litres, servo hydraulic steering by Hydrosta plus electric steering, fly bridge with 2nd steering position, emergency steering.

Accommodation

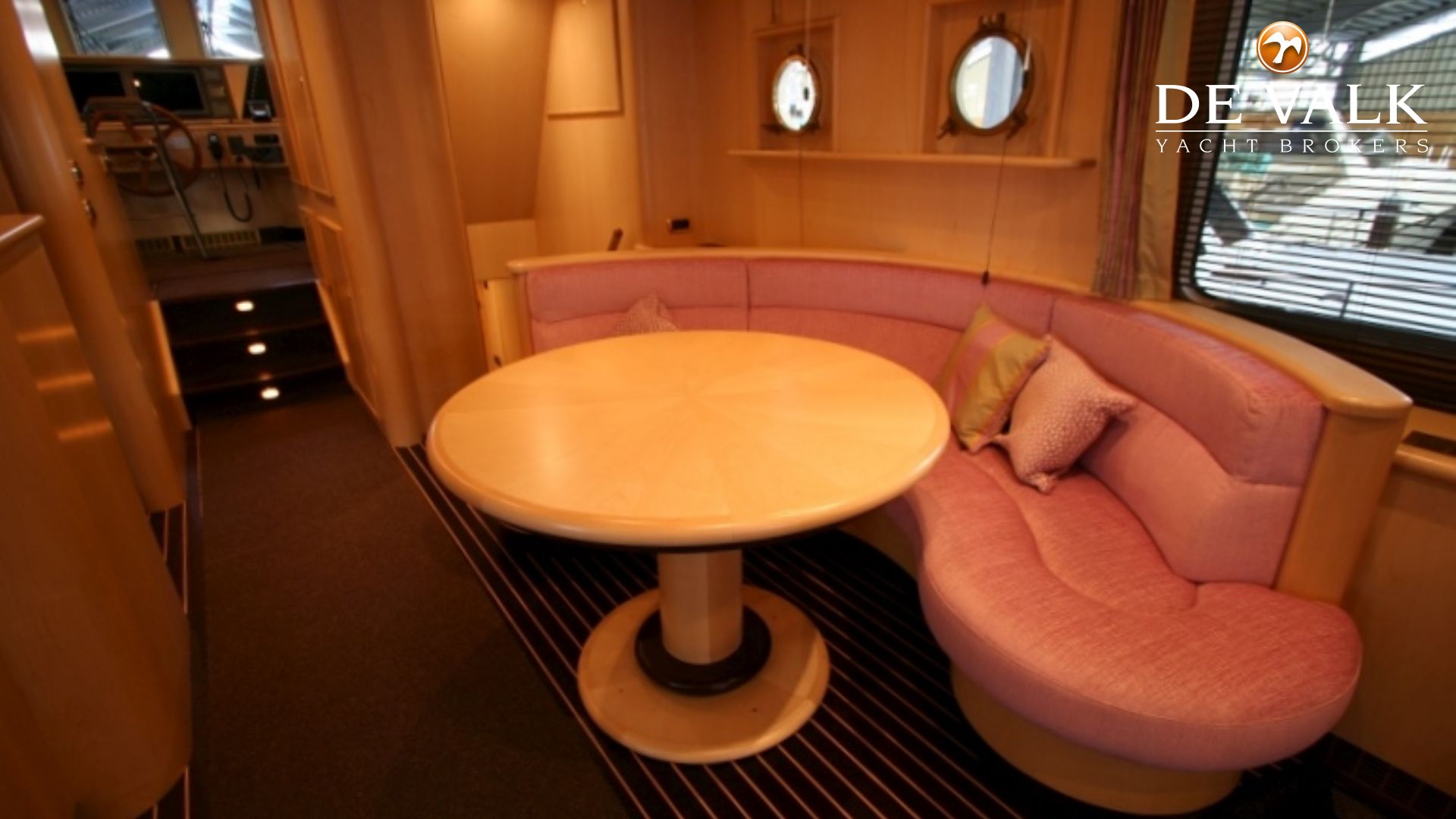

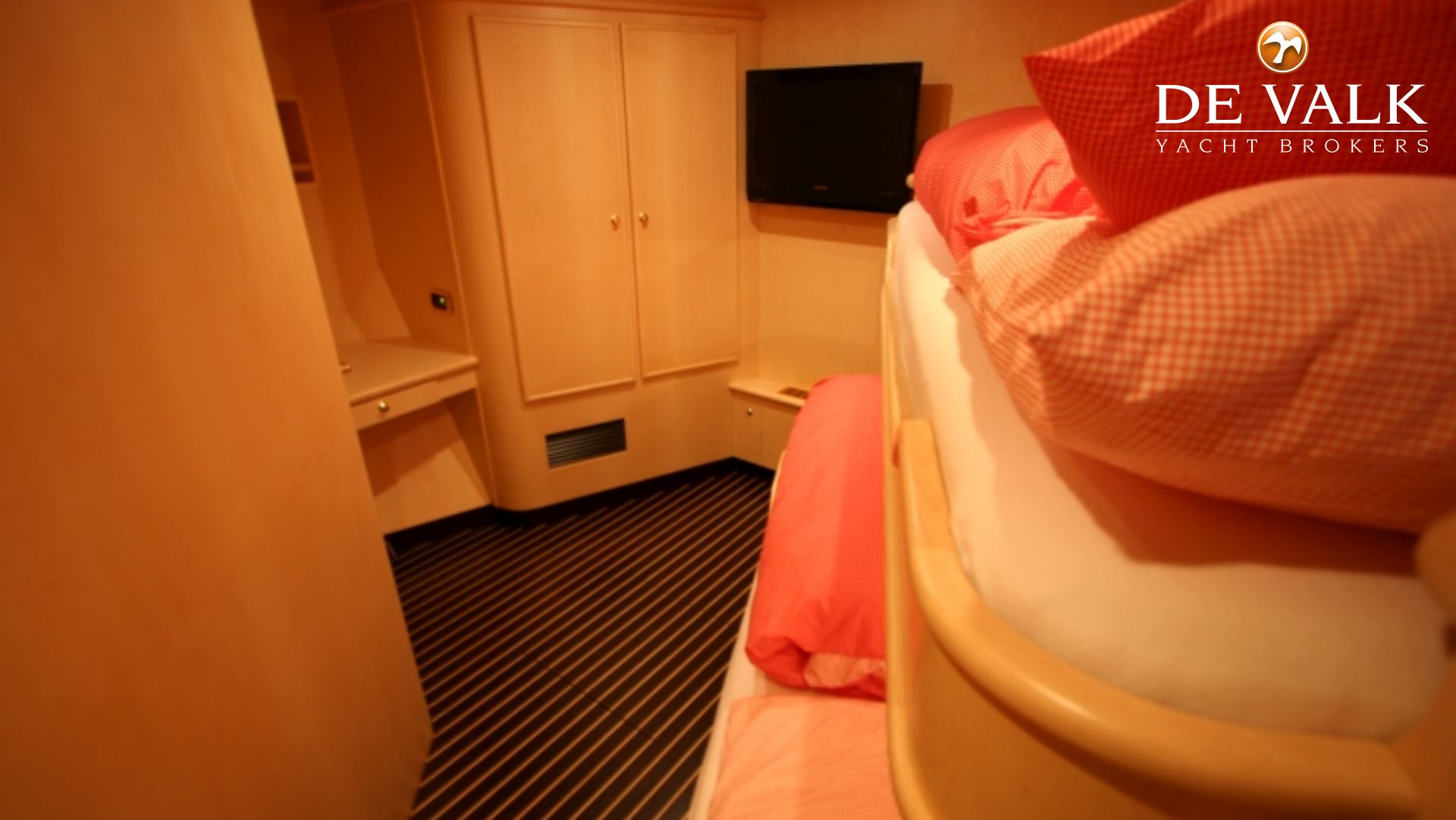

Beauiful finished interior in light paneling and dark wooden floors, spacious saloon, spacious wheelhouse, owners cabin with double bed and toilet/shower. guest cabin with double bed and toilet/shower, crew or extra guest cabin with toilet/shower (separated from owners living accomodation, toilets waterflush by Altens, Kabola B25 Tap central heating with convectors, hot water by Kabola, airconditioning, Pelgrim electric cooker, Miele combi microwave, Liebherr fridge, Frigoboat large deep freezers/fridges, washer and dryer, Technicoma watermaker.

Machinery

Twin Caterpillar C7 320 hp diesel engines, 6 cilinder in line, 7,2 litre, 2.400 RPM heavy duty engines with high torque, engine hours approx. 550, PRM 1500SC 2,25:1 gear boxes + Aqua Drive CVB42-30, PRM electronic propulsion system, intercooling, range 1200 SM, speed cruising 10 knots, max speed approx 12 knots, 4 blade propellers 28" x 22,5", prop shafts 50mm, Fixipack props seals by Amartech, Stripper propellor protection, Hydrosta Sider 22 hydraulic bow- and sternthruster 35 hp each, Hydrosta stabilzers, 24/230/12 volt ships voltage, 2x Mastervolt Wispher Ultra generator 10 KW and 25 KW, Mastervolt Alpha alternators, Mastervolt battery chargers Mas 12/60 and Mass 12/30, Mastervolt Sinus invertors 12/2000 + 24/2500, Mass Sinus 24/10000, Mac 24/12/20 invertor, Mastervolt Mass GI 3.5 isolation transformator, Mastervolt Gel Cells and AGM batteries, double shore power. Most of the systems are from professional cargo boats suppliers.

Navigation

Raymarine instruments: compass ST60, log and echo sounder ST60, wind speed and indicator ST60, Ray 240E VHF, rudder indicator ST60, G-serie radar, autopilot ST 8002, Raystar 125 GPS, Raymarine G-serie chartplotter, Navtex 6, computer system.

Equipment

JVC cinema system, Philips TV, KVH Trackvision sat receiver, Raymarine 430 loudhailer, search light, deck crane Besenzoni G328, gang way PI382, 2x hydraulic windlass Lofrans Titan B, 2x anchor, 4 hydraulic mooring winches, boarding ladder, swim platform, bimini top at fly bridge 2x Plastimo 6 men life raft, Murdo Smartfind, Den Haan navigation lights.

Rigging

Mast with hydraulic mast lowering system (air draft 4.85 m with mast down).

Disclaimer

These particulars are given in good faith as supplied but cannot be guaranteed and cannot be used for contracts.
