LINSSEN GS 500 WHEELHOUSE CUSTOM
LINSSEN GS 500 WHEELHOUSE CUSTOM
LINSSEN GS 500 WHEELHOUSE CUSTOM
LINSSEN GS 500 WHEELHOUSE CUSTOM
(127)
LINSSEN GS 500 WHEELHOUSE CUSTOM
LINSSEN GS 500 WHEELHOUSE CUSTOM
LINSSEN GS 500 WHEELHOUSE CUSTOM
LINSSEN GS 500 WHEELHOUSE CUSTOM
Show all (127)

LINSSEN GS 500 WHEELHOUSE CUSTOM

  • Dimensions
  • 16.60 x 4.88 x 1.35 (m)
  • Material
  • Steel
  • Built
  • 2015
  • Engine(s)
  • 2x Vetus Deutz DT66 E diesel
  • HP/ KW
  • 2x 170.00(hp), 124.95(kw)
  • Lying
  • at sales office
  • Sales office
  • De Valk Loosdrecht
  • Status
  • For Sale
  • VAT
  • Paid
  • Asking price
  • € 1.100.000

Broker's comments

This Linssen GS 500 Wheelhouse Custom is more comprehensive in every respect than any 500 series ever built. In addition to the custom wheelhouse and interior, there is a list of endless options designed especially for this boat. The sound insulation of this boat has been put together by a special bureau to raise the already silent 500 to a level of sound that is only known in superyachts. This boat is equipped with Rotoswing Zero Speed stabilisers, hydraulic bow and stern thrusters, reversible air conditioning, 12KVA generator and no less than 7 fixed berths.

Mark Hesselmans
De Valk Loosdrecht
Mark Hesselmans
+31 35 582 90 30
  • e-mail the broker
  • office details
Photos (127)
Video
360° virtual tour
Download brochure
Share this yacht

Specifications: LINSSEN GS 500 WHEELHOUSE CUSTOM

General
  • Model LINSSEN GS 500 WHEELHOUSE CUSTOM
  • Type motor yacht
  • LOA (m) 16,60
  • LWL (m) 14,90
  • Beam (m) 4,88
  • Draft (m) 1,35
  • Air draft (m) 3,89
  • Year built 2015
  • Launched 2015
  • Builder Linssen yachts
  • Country The Netherlands
  • Designer Linssen Yachts
  • Displacement (t) 36
  • CE norm A
  • Hull material steel
  • Hull colour antracite gray  Stone Gray metallic F1270/E1006
  • Hull thickness (mm) 6 and 5 mm
  • Hull shape multi hard chine
  • Keel type box keel
  • Superstructure material steel
  • Superstructure (mm) 4 and 5
  • Deck plate thickness (mm) 4 and 5
  • Rubbing strake fender rope
  • Deck material steel
  • Deck finish teak
  • Superstructure deck finish paint
  • Cockpit deck finish teak
  • Antifouling (year) 2022
  • Window frame aluminium
  • Window material double glazing  Sun covers for salon and pilothouse windows
  • Deckhatch 3 with blinds and Fly screens
  • Portholes aluminium  14 all opening
  • Insulation foam
  • Mast can be lowered hydraulic
  • Fuel tank (litre) 2800
  • Level indicator (fuel tank) yes
  • Freshwater tank (litre) 960
  • Level indicator (freshwater) yes
  • Blackwater tank (litre) 400
  • Blackwater tank extraction deck extraction + pump
  • Wheel steering yes
  • Inside helm position yes
  • Emergency tiller yes
  • Extra info Magnesium Anodes
  • Extra info Full width aft deck hard top

  • Cabins 3
  • Berths 8
  • Interior cherry
  • Layout Custom owner
  • Floor parquet  Inota Twin 9504
  • Aft deck yes

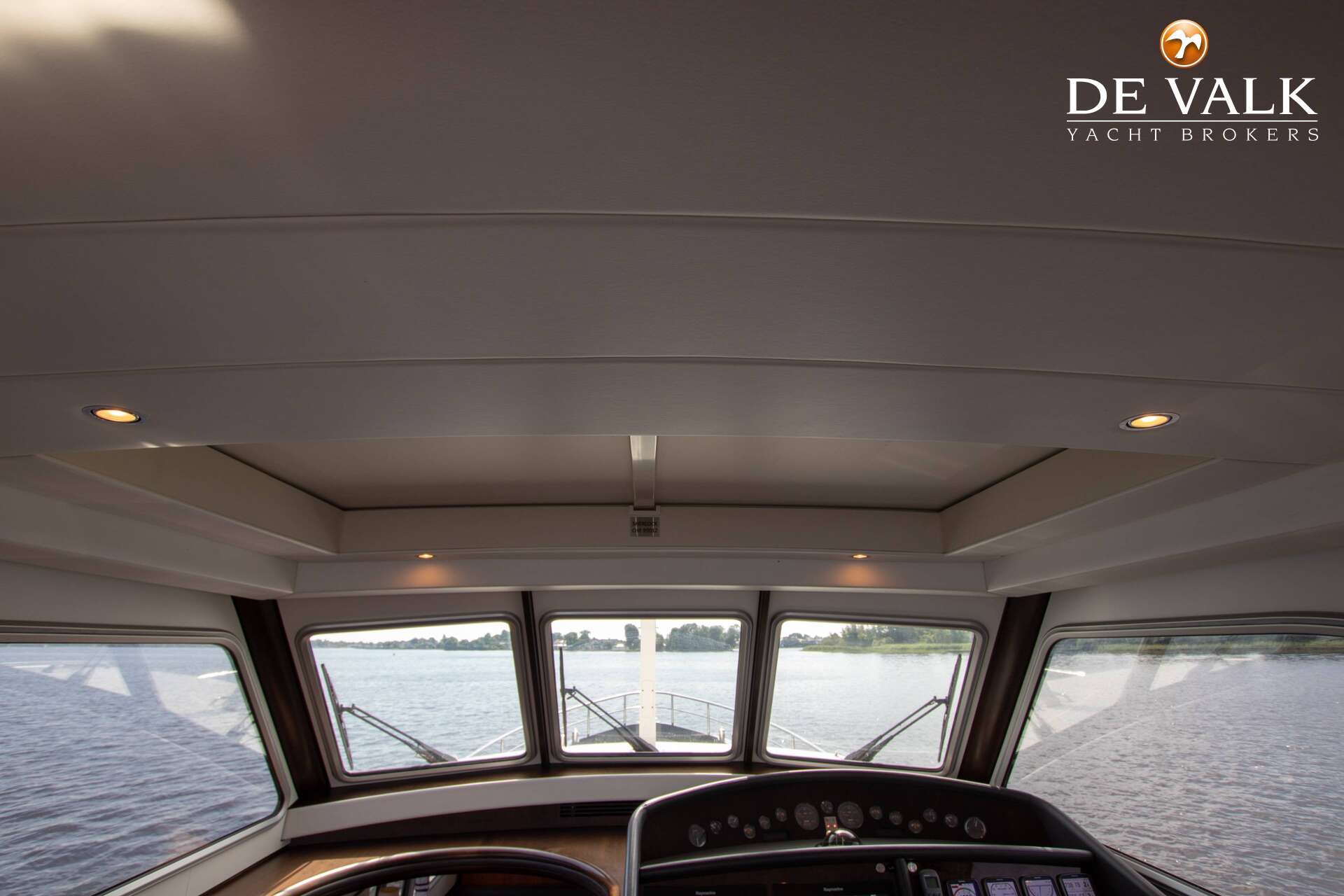

  • Pilot house yes
  • Saloon yes
  • Headroom saloon (m) 2,05
  • Sliding roof Webasto custom electric
  • Heating yes
  • Air-conditioning single cycle airco  Marvair softstart split units 48.000 BTU controls in each cabin
  • Navigation center yes
  • Aft Cabin yes
  • Dining room yes
  • Opening door to aft deck In 4 parts high gloss Teak varnished
  • Galley U shaped
  • Countertop corian
  • Sink stainless steel
  • Cooker induction  2 zone Atag H13271M 2 x 3 Kw
  • Microwave/oven combi Stainless steel
  • Fridge Liebherr IKB2860 140 L.with seperate inverter
  • Freezer Liebherr IG966 77 L with seperate 500 W inverter
  • Hot water system 220V + engine  Boiler 80 L oversized
  • Water pressure system With city water inlet and 5 and 10 Micron filters & SYS-POU250
  • Owners cabin French bed  With removable kids bed
  • Bed length (m) 2,05 x 1,50
  • Wardrobe hanging/drawers/shelves
  • Bathroom en suite
  • Toilet en suite
  • Toilet system electric
  • Wash basin in the bathroom
  • Shower en suite
  • Extra info High tech medical anti bacterial finish
  • Guest cabin 1 v-bed  With 3rd bed
  • Bed length (m) 2,00 x 0,70
  • Wardrobe hanging and shelves
  • Bathroom en suite
  • Toilet en suite
  • Toilet system electric
  • Wash basin in the bathroom
  • Shower en suite
  • Extra info This bathroom is shared with the second guest cabin
  • Guest cabin 2 bunk bed
  • Bed length (m) 2,00 x 0,70
  • Wardrobe hanging and shelves
  • Bathroom shared
  • Toilet shared
  • Shower shared
  • Washing machine Miele marine W5876 WPS
  • Dryer Miele Marine T8860 WP ecocomfort

  • No of engines 2
  • Make Vetus Deutz
  • Type DT66 E
  • HP 170
  • kW 124.95
  • Fuel diesel
  • Year installed 2014
  • Engine cooling system freshwater heat exchanger
  • Drive shaft
  • Shaft seal Volvo
  • Engine controls electrical  With position warning lights
  • Gearbox hydraulic  ZF45H 2,5:1
  • Bowthruster hydraulic  160 kgf (13 hp)
  • Sternthruster hydraulic  160 kgf (13 hp)
  • Thrust bearing Aquadrive
  • Propeller type fixed
  • Propeller blades 5 for lower noise, vibration and cavitation
  • Propeller shaft material stainless steel
  • Shaft lubrication water
  • Manual bilge pump yes
  • Electric bilge pump yes
  • Bilge alarm yes
  • Electrical installation 12 & 24 V DC and 220 V AC
  • Generator silent separator  12 kW Whisper in sound box
  • Batteries All Exide, all replaced 2022
  • Start battery yes
  • Service battery 6 x 120 AH for 360 AH 24 V
  • Generator battery yes
  • Bowthruster battery yes
  • Sternthruster battery yes
  • Battery monitor Mastervolt easy view 5
  • Battery charger Mastervolt 24 V 100 AH
  • Inverter Mastervolt 2500 W 24V
  • Battery charger/inverter 5000W 24 V dedicated for for Rotoswing
  • Diode battery combiners yes
  • Shorepower with cable  Second shorepower inlet both 32 Amp
  • Insulation transformer One for each shore connection
  • Stabilizers 0-speed  Rotoswing
  • Extra info Double fuel filters

  • Compass yes
  • Electric compass Raymarine
  • Multi control display 3 X Raymarine I70
  • Depth sounder Raymarine
  • Log Raymarine
  • Repeater Raymarine
  • Fish finder Raymarine CP450C with CHIRP R109LM transducer
  • VHF Raymarine
  • Autopilot Raymarine smart controller
  • Rudder angle indicator Raymarine
  • Radar Raymarine HD24 4 KVA
  • GPS Raymarine
  • Plotter Raymarine
  • Radar/GPS/plotter 2 x raymarine GS165 with remote
  • Weather receiver NWF MRD80 and airmax pb200
  • PC connection yes
  • Wifi antenna Globe surfer III with router
  • Electronis chart(s) Navionics platinum+ large / Europe
  • AIS transceiver Raymarine
  • EPIRB yes
  • Personal MOB transmitter For 7 persons
  • Camera Exalto MXN Port, starboard, wheelhouse and platform
  • Navigation lights yes
  • Searchlight Automatic double beam 225 SL remote controled
  • Loudhailer yes

  • Cockpit cover yes
  • Dodger yes
  • Winter cover yes
  • Cockpit cushions yes
  • Cockpit table yes
  • Cockpit chairs Fixed U sofa
  • Bathing platform yes
  • Boarding ladder yes
  • Transom door yes
  • Gangway Hydraulic model 8999/34
  • Deck shower yes
  • Anchor Bruce  Stainless 40 KG
  • Anchor chain 80 M 12 mm Stainless with washdown
  • Capstan Electric
  • Windlass aft electrical  2 x mooring winch
  • Deck wash yes
  • Dinghy Zodiac 210
  • Outboard Torqueedo 1003
  • Outboard support yes
  • Sea railing stainless steel  Heavy duty Oval High gloss Polish
  • Grab rail (superstructure) yes
  • Railing side opening gates yes
  • Pushpit yes
  • Pulpit yes
  • Life raft container  Viking Rescue Pro 8
  • Life raft (pers) 8
  • Last life raft survey 2022
  • Lifejackets yes
  • Lifebuoy yes
  • Danbuoy yes
  • Rope cutter yes
  • Wiper 3 x
  • Horn yes
  • Radar reflector yes
  • Fenders yes
  • Mooring lines yes
  • Spare parts yes
  • Tools yes
  • Alarm system Navprofs E marine, low temp, bilge water, movement incl GPS/GSM
  • Satellite Iridium Extreme 9575
  • Radio-cd player Fusion KEF160 Ci
  • DVD player yes
  • iPod connection MS-BT200 & USB AV700I modules
  • Sub-woofer Tweeters and bass seperated
  • Cockpit speakers yes
  • Speakers in salon yes
  • Clock - barometer yes
  • Fire extinguisher yes
  • Extinguisher in engine room yes

Important disclaimer:These particulars are given in good faith as supplied but cannot be guaranteed and cannot be used for contracts.
