Broker's comments

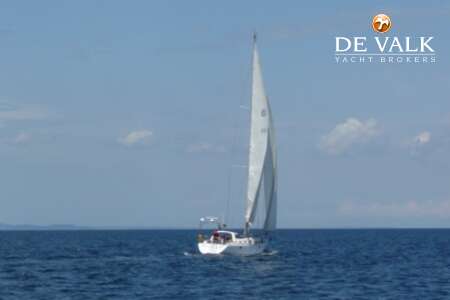

The very successful design from Van de Stadt, the Samoa 47/48 model was introduced in the early nineties. A fast and very seaworthy passage maker with excellent handling, performance, safety and reliability. Features that are still sought after today for those who want to do some serious long distance cruising. This Van de Stadt 47 Samoa was built by the owner from 1995 until 2006 when she was launched. With her three cabin layout she is very much suited for family cruising.

Reinoud Bicker Caarten
Yacht Broker

VAN DE STADT SAMOA 47

Dimensions   14,54 x 4,56 x 2,40 (m)
Material   aluminium
Built   2006
Engine(s)   1 x Volvo Penta TMD 22P diesel
HP/Kw   78 (hp), 57,33 (kw)
Lying   at sales office
Sales information   De Valk Portugal
Status   under offer
Vat   paid
Asking price   € 215.000

General - VAN DE STADT SAMOA 47

Model   VAN DE STADT SAMOA 47
Type   sailing yacht
LOA (m)   14,54
Beam (m)   4,56
Draft (m)   2,40
Air draft (m)   23,30
Headroom (m)   1,95
Year built   2006
Launched   2006
Builder   self made
Country   Sweden

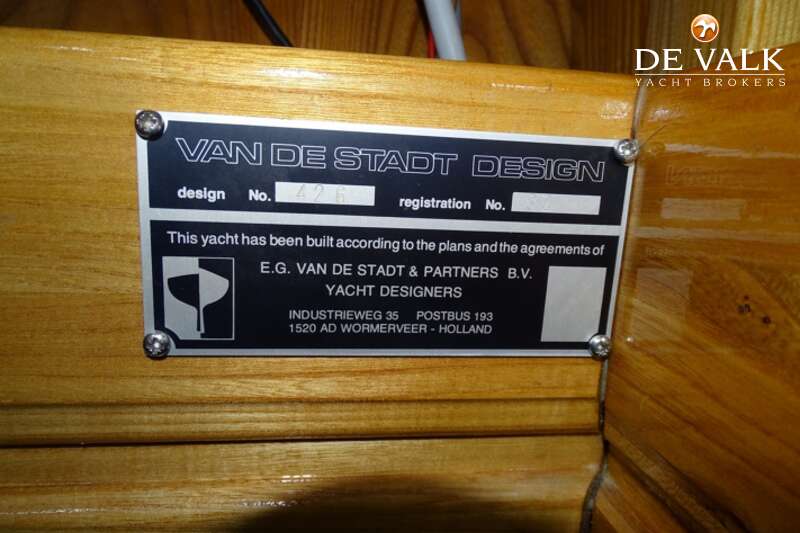

Designer   van de Stadt
Displacement (t)   14,5
Ballast (tonnes)   lead in aluminum  6.1
Gross tonnage   18
CE norm   A
Hull material   aluminium
Hull colour   off-white
Hull thickness (mm)   6mm

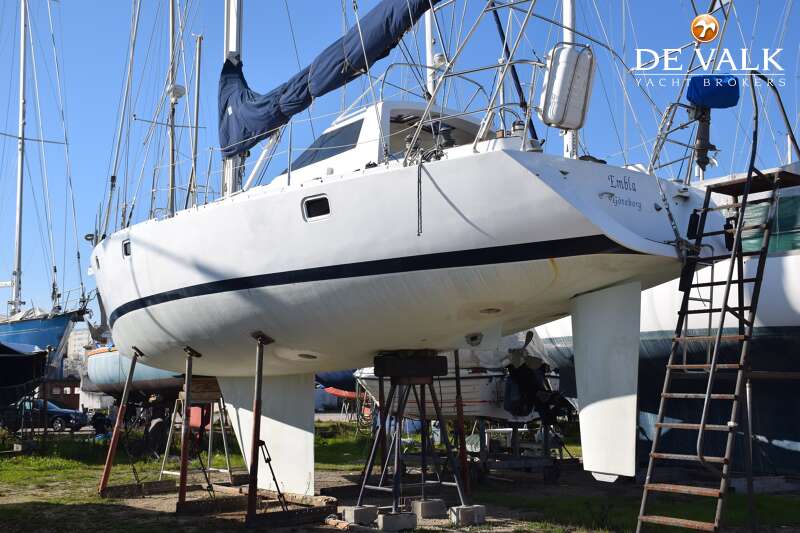

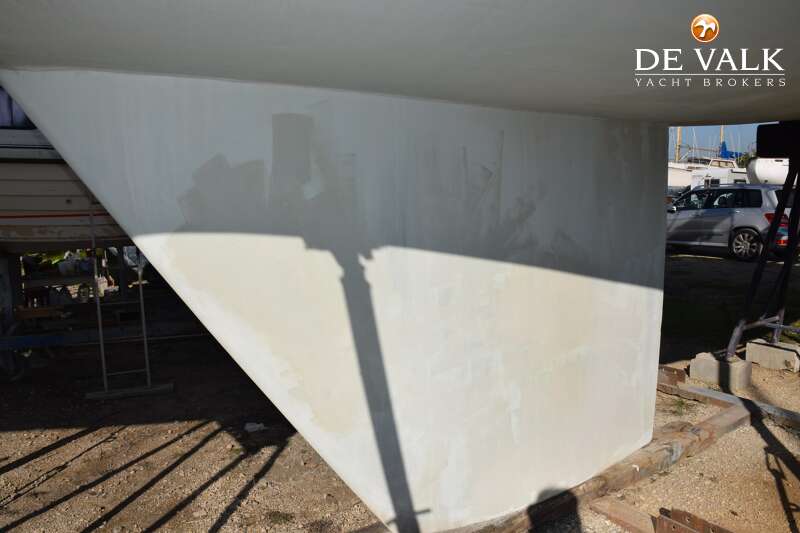

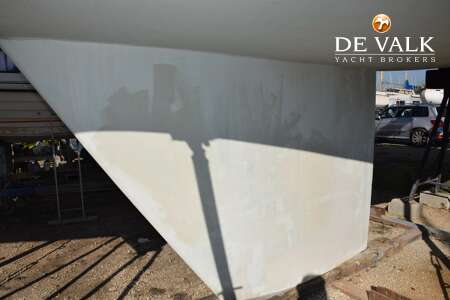

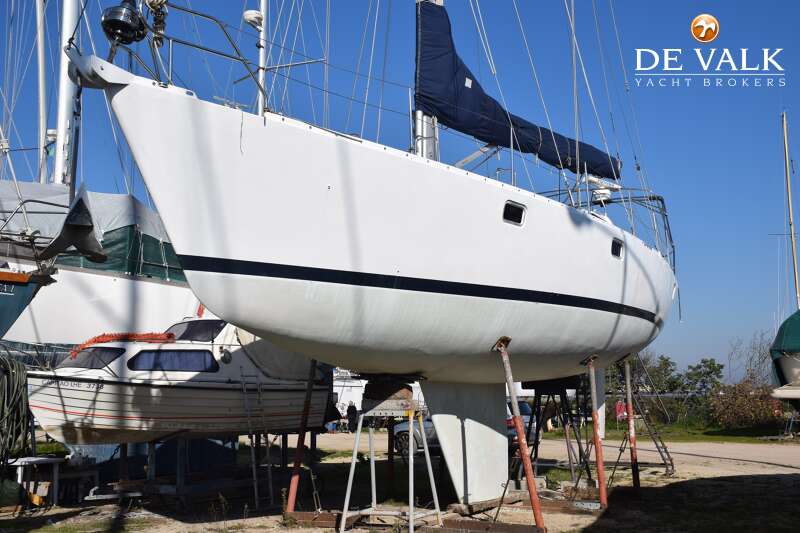

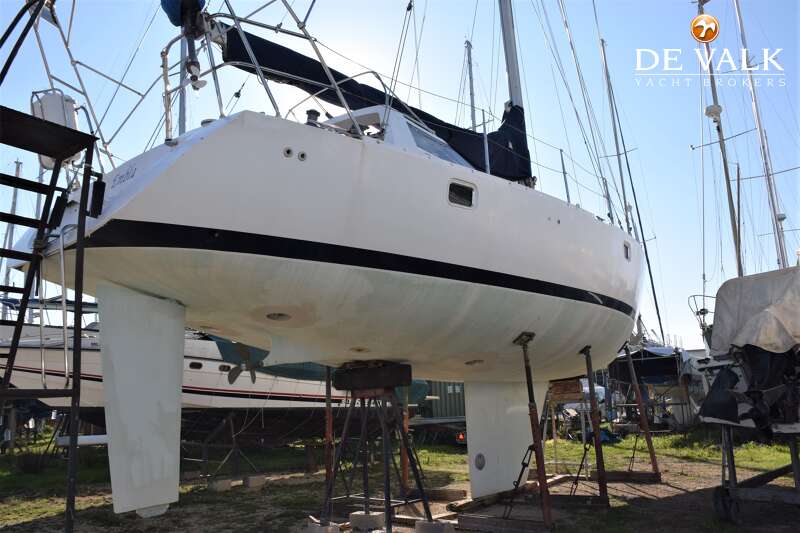

Keel type   fin keel
Superstructure material   aluminium
Deck plate thickness (mm)   5mm

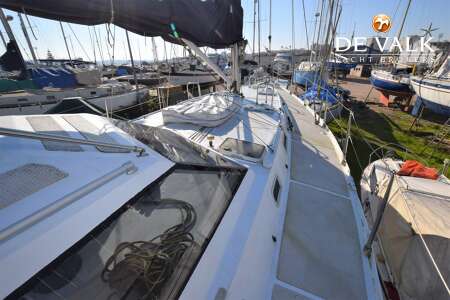

Deck material   aluminium
Deck finish   Treadmaster
Superstructure deck finish   non-skid paint
Cockpit deck finish   cork
Antifouling (year)   2021
Dorades   Vetus  5
Window frame   aluminium
Window material   tempered glass

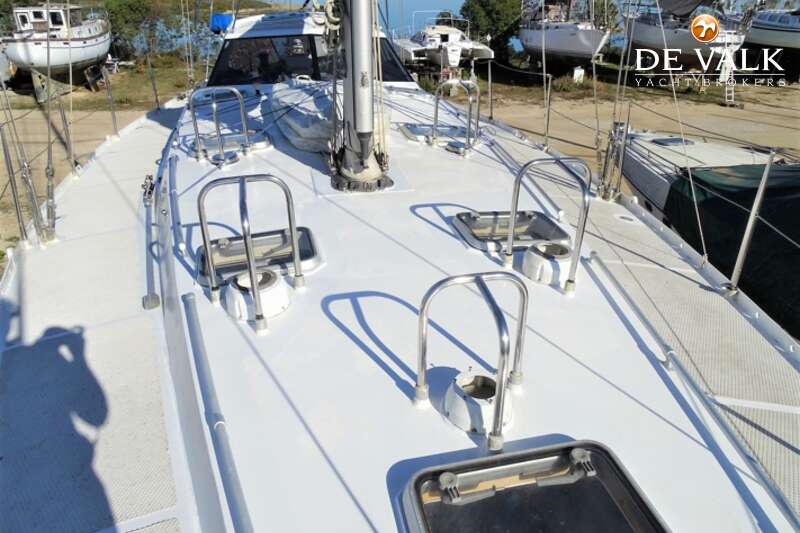

Deckhatch   7
Portholes   stainless steel  6
Insulation   Foamed PE
Fuel tank (litre)   aluminium  2x300L
Level indicator (fuel tank)   yes
Fuel daytank (litre)   aluminium  20L automatic fill with manual backup
Freshwater tank (litre)   aluminium  2x500L
Level indicator (freshwater)   yes
Blackwater tank (litre)   aluminium  100L
Blackwater tank extraction   deck extraction + pump
Greywater tank (litre)   aluminium  100L

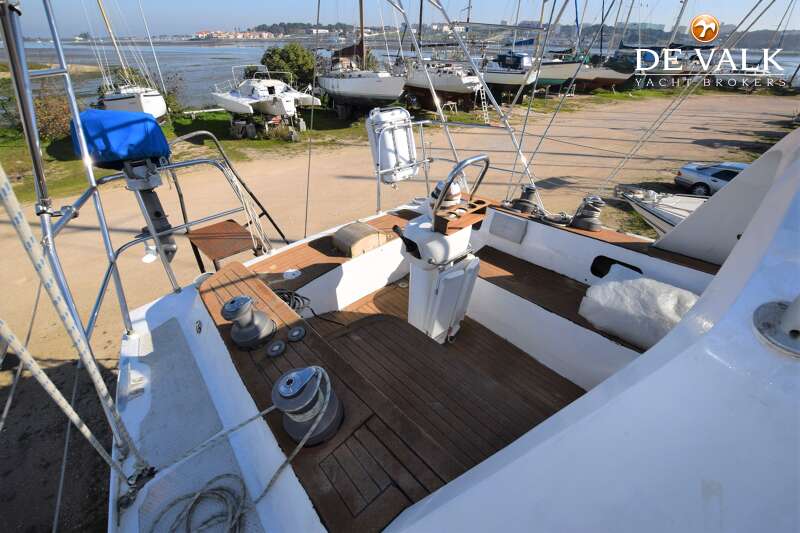

Wheel steering   cable steering  Whitlock/PMCWO-300
Emergency tiller   yes

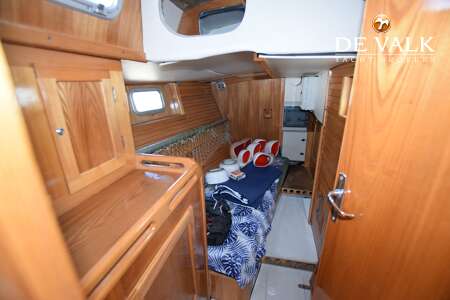

Accommodation

Cabins   3
Berths   6
Interior   elmtree
Floor   teak

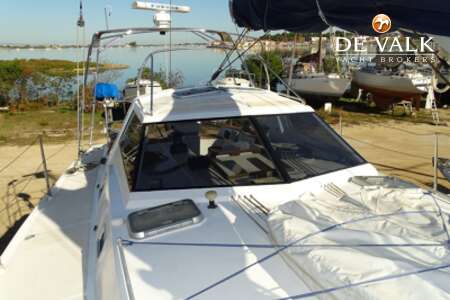

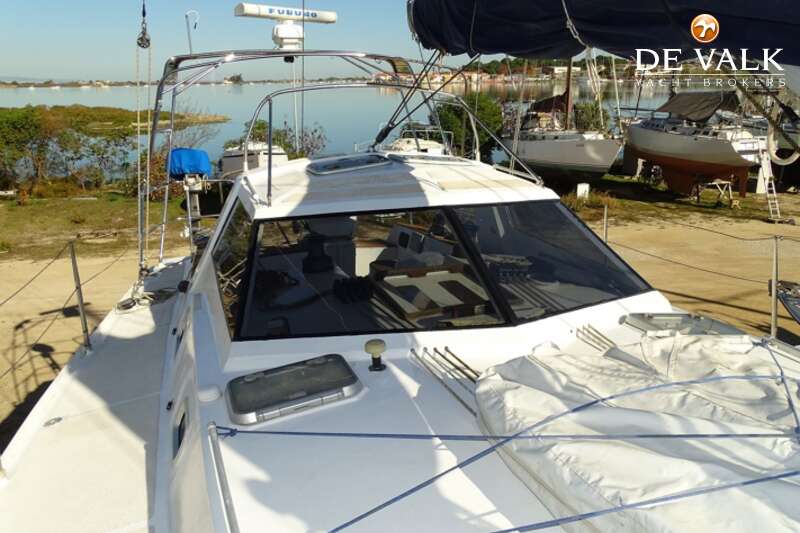

Doghouse   Fixed aluminium hardtop with tempered glass

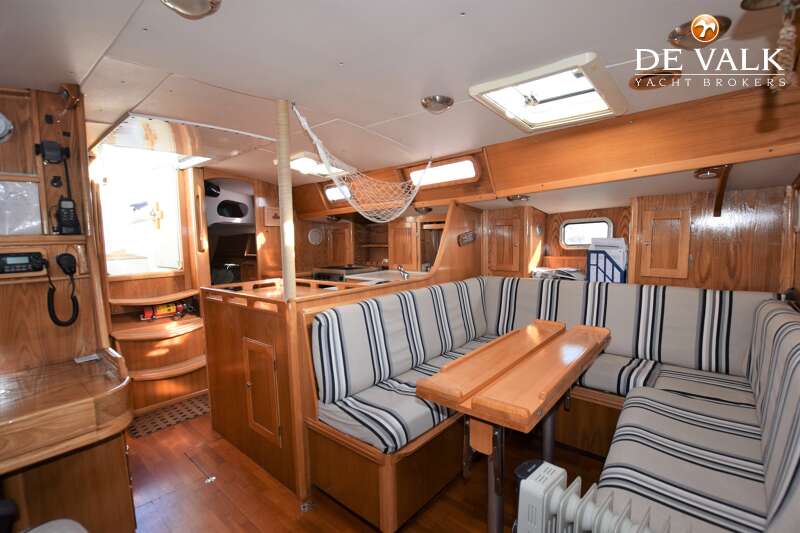

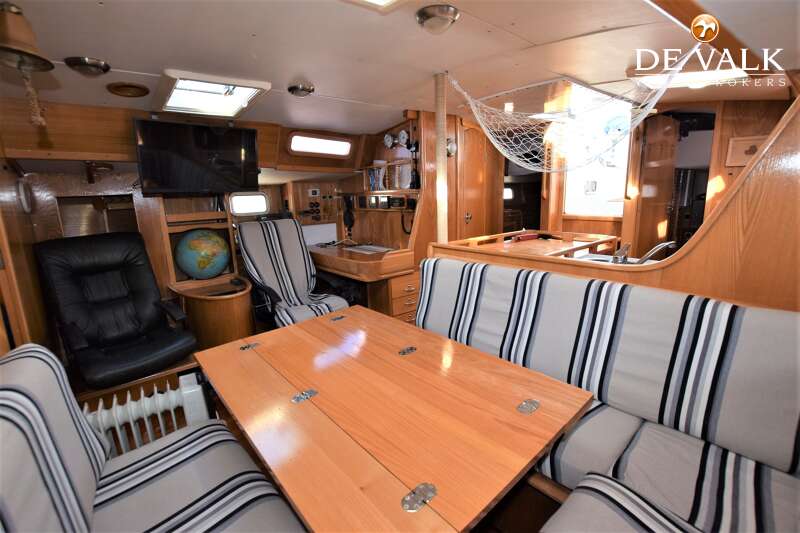

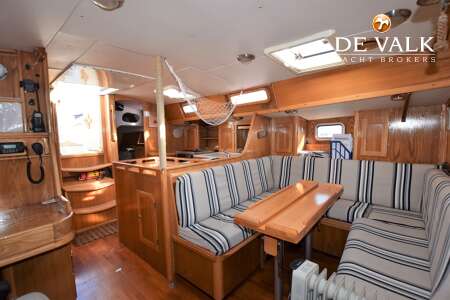

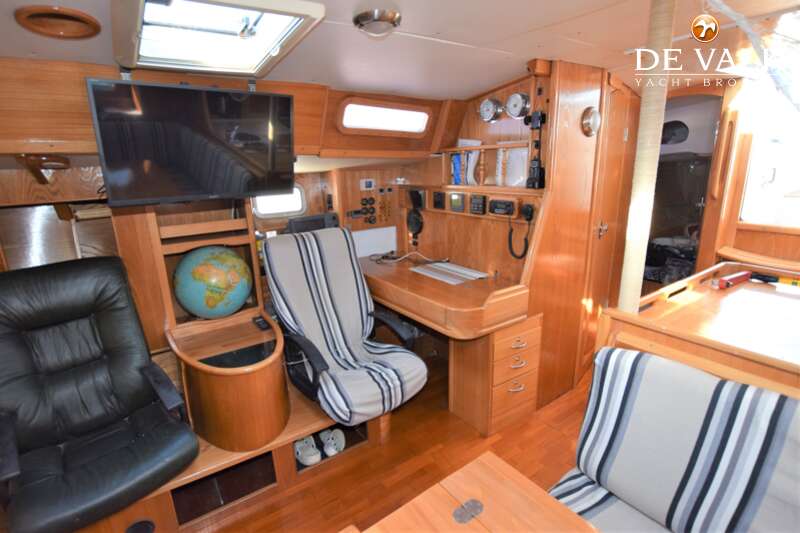

Saloon   yes
Headroom saloon (m)   1.95
Heating   Eberspacher D5W with 4 heat exchangers for water

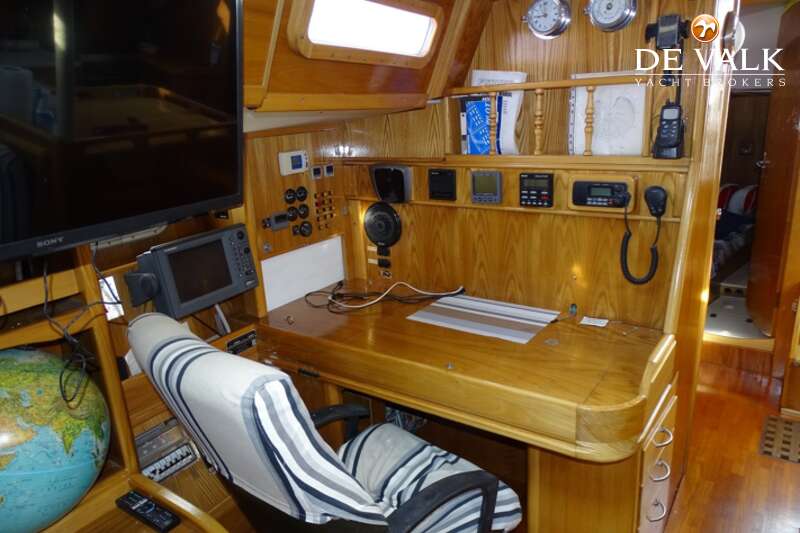

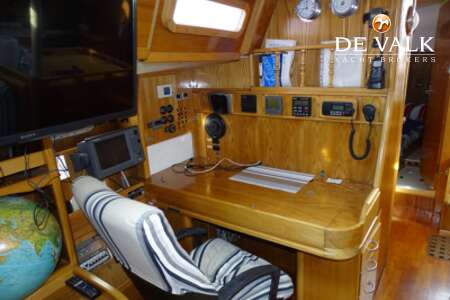

Chart table   yes

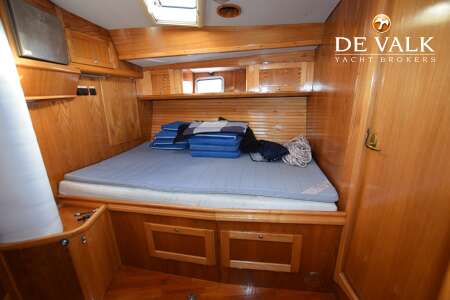

Aft Cabin   2x
Dinette   U shaped in saloon

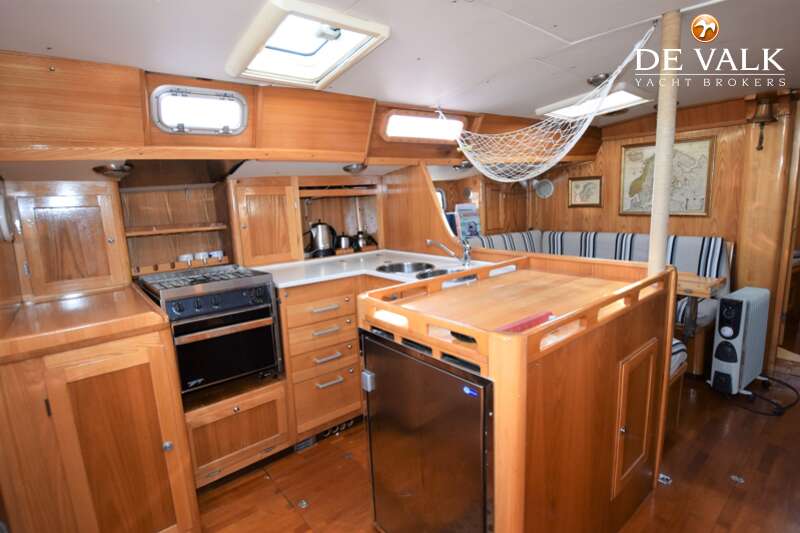

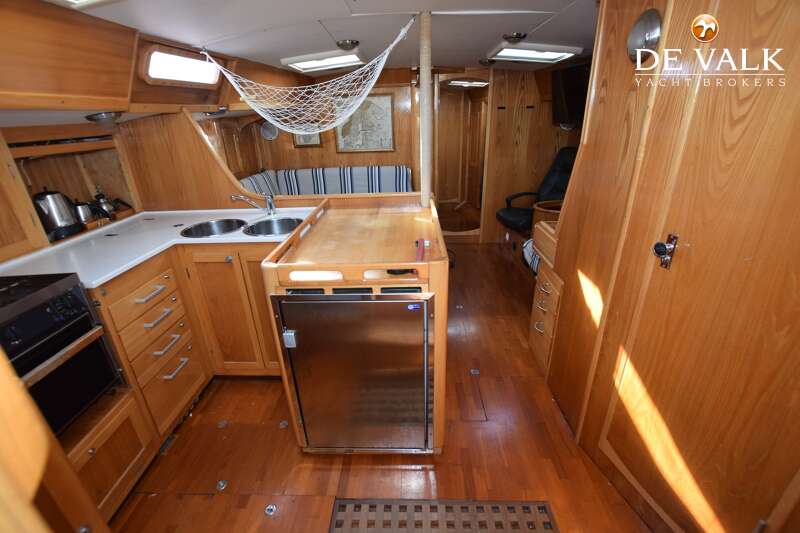

Galley   yes
Countertop   corian
Sink   stainless steel
Cooker   calor gas  Force 10 3 burners
Oven   Force 10
Gas alarm   yes
Fridge   108L + 10L  Waeco Coolmatic CR
Freezer   100L  Waeco Coolmatic CU 94
Hot water system   220V + engine
Water pressure system   electrical
Hot water tap   yes
Crockery   yes

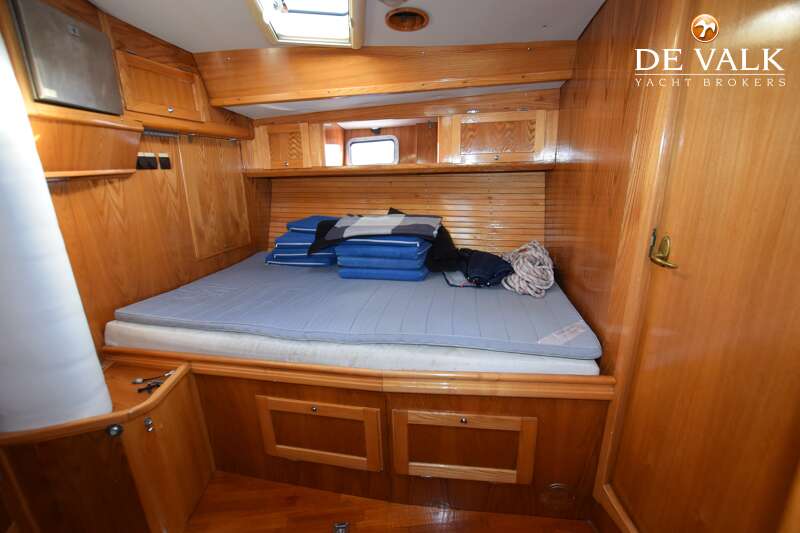

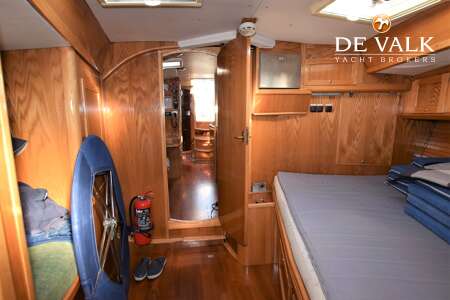

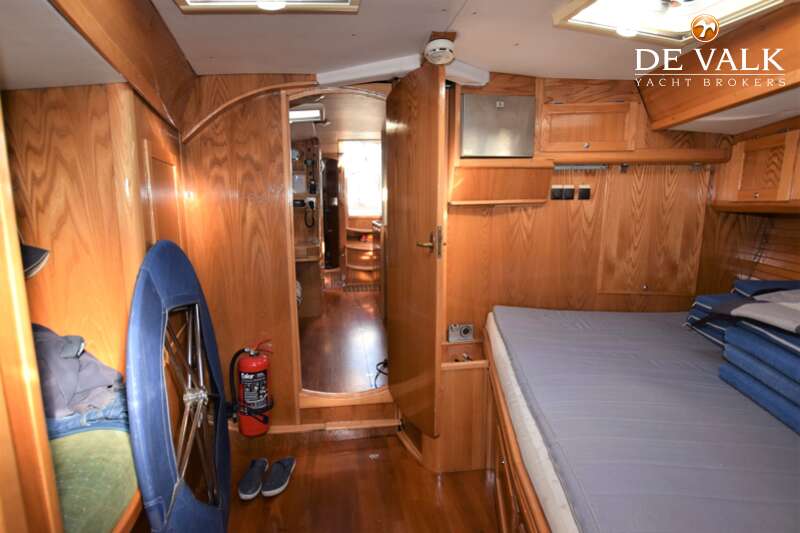

Owners cabin   double bed
Wardrobe   hanging/drawers/shelves

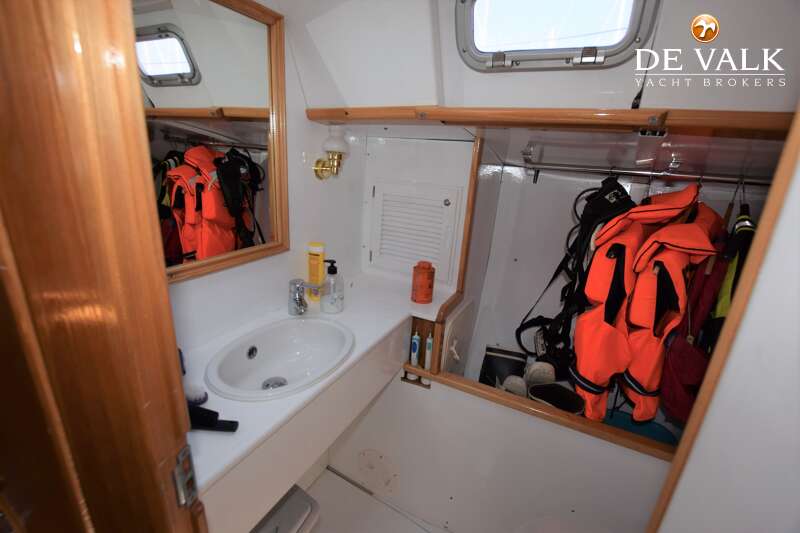

Bathroom   en suite
Toilet   en suite
Toilet system   electric  Vetus WCL 24v

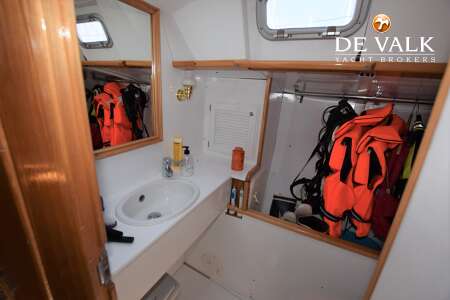

Wash basin   in the bathroom

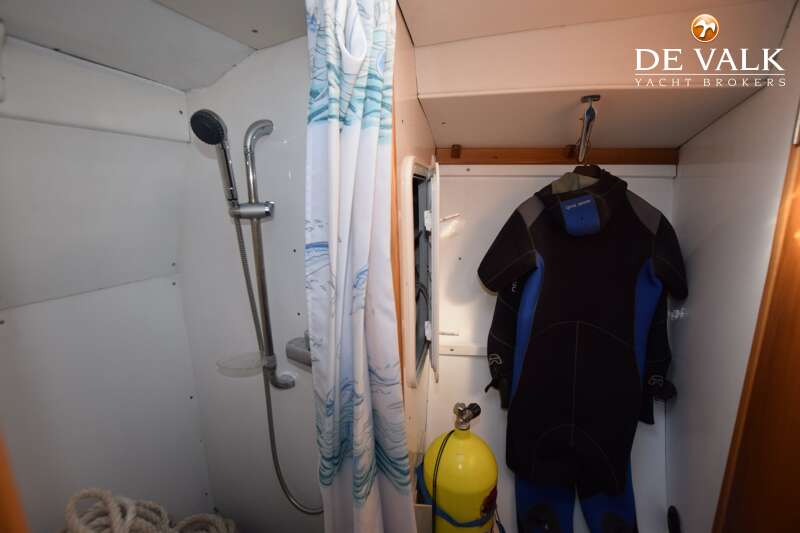

Shower   en suite

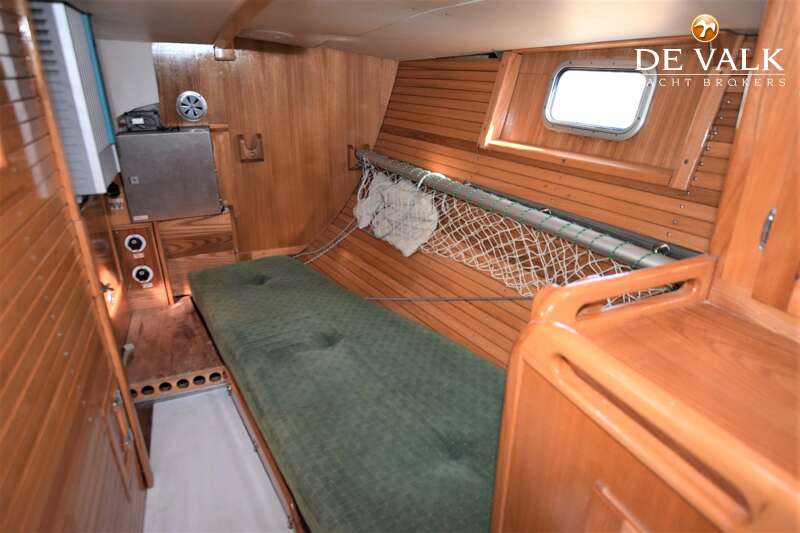

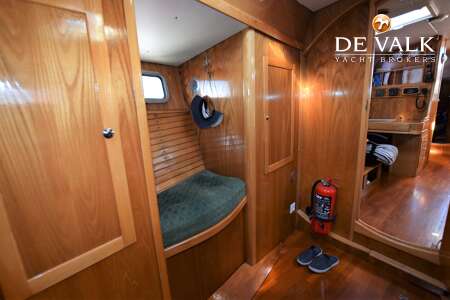

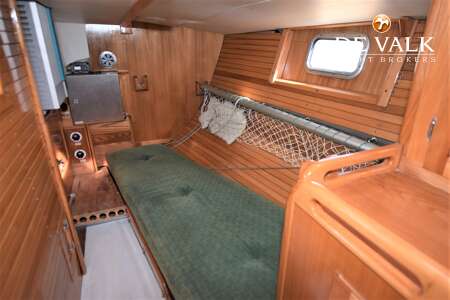

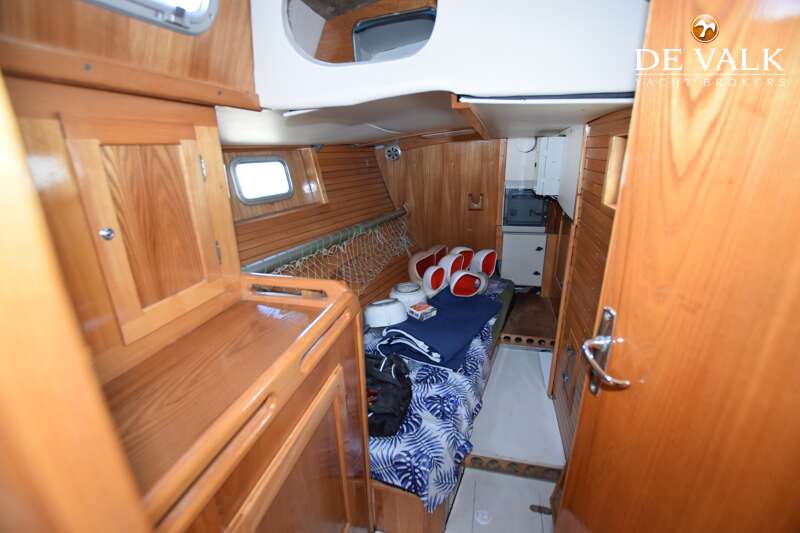

Guest cabin 1   bunk bed
Wardrobe   hanging and shelves
Bathroom   shared
Toilet   shared
Wash basin   at the toilet
Shower   shared
Guest cabin 2   bunk bed
Wardrobe   hanging and shelves
Bathroom   shared
Toilet   shared
Wash basin   at the toilet
Shower   shared

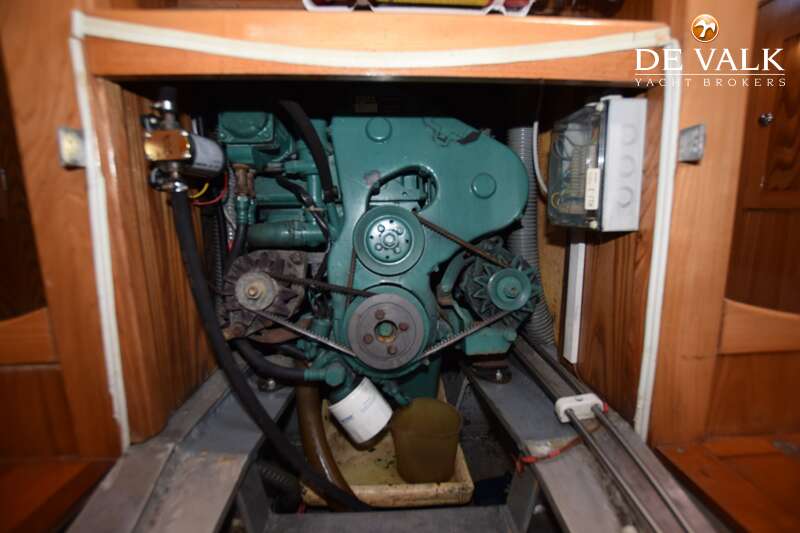

Machinery

No of engines   1
Make   Volvo Penta
Type   TMD 22P
HP   78
kW   57,33
Fuel   diesel
Year installed   2005
Maximum speed (kn)   9
Cruising speed (kn)   8
Consumption (l/hr)   8
Engine hours   1400
Engine cooling system   freshwater heat exchanger
Drive   shaft
Engine controls   bowden cable
Gearbox   Volvo Penta MS25L-A
Engine controls   bowden cable
Exhaust   watercooled

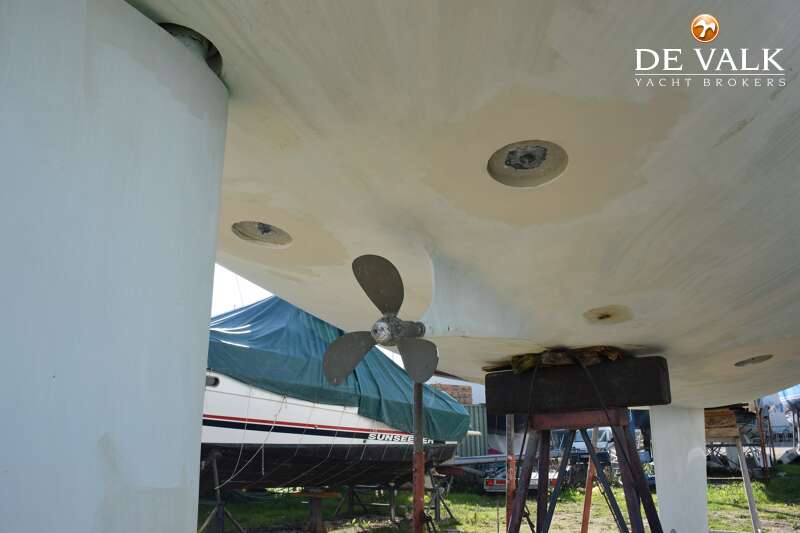

Propeller type   Flex-o-fold 20x13-3R
Propeller blades   bronze
Propeller shaft material   stainless steel
Shaft lubrication   water
Manual bilge pump   2x
Electric bilge pump   1x
Electrical installation   12/24/220v 40A & 60A alternators
Generator   Fischer Panda 4500ND
Batteries   all from 2018
Start battery   Optima RT R4,2 12V 50Ah
Service battery   VARTA AGM LAD85 24V, 255Ah +85Ah

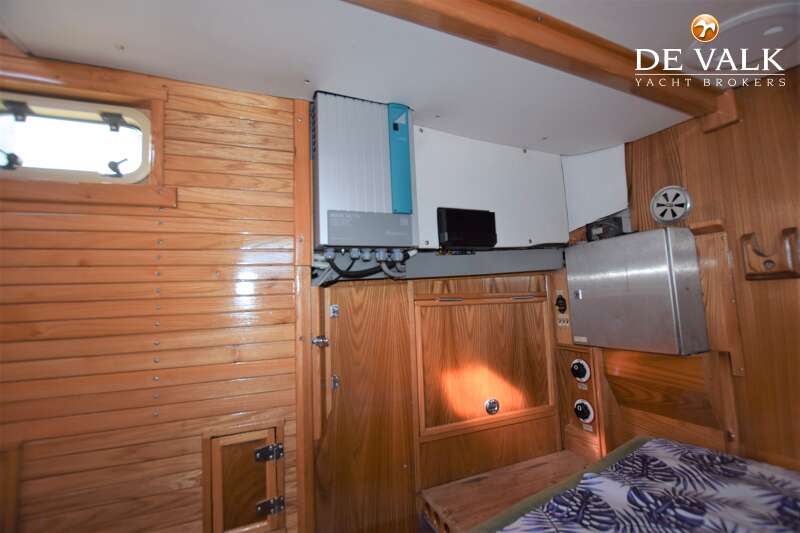

Battery charger/inverter   Atlas 24/600
Shorepower   Odelco IT 3,6-MT transformer
Insulation transformer   Odelco IT (115/230V)
Extra info   portable reference electrode - Galavnic, Silvion Ag/AgCI

Navigation

Compass   Silva 125T
Electric compass   Furuno C-500 (auto pilot) + B&G ACP remote compass
Forw. looking depth sounder   Echopilot FLS 2D
Log   Garmin GPSMAP 4008
Windset   Garmin wind wired, Silva NX2, Garmin GND10
Repeater   Silva NX2
VHF   ICOM IC-M421 with cockpit speaker, ICom M1 Euro V
Autopilot   B&G ACP2
Rudder angle indicator   via Autopilot display
Radar   Furuno 1943C
GPS   Garmin GPS60 + GPS 17HVS
Plotter/GPS   NMEA 2000 display Maretron DSM410
AIS transceiver   Vespermarine XB-8000
EPIRB   Mcmurdo Smartfind S20
Navigation lights   yes

Equipment

Fixed windscreen   yes
Fixed hardtop   yes
Cockpit cover   yes
Bimini   yes

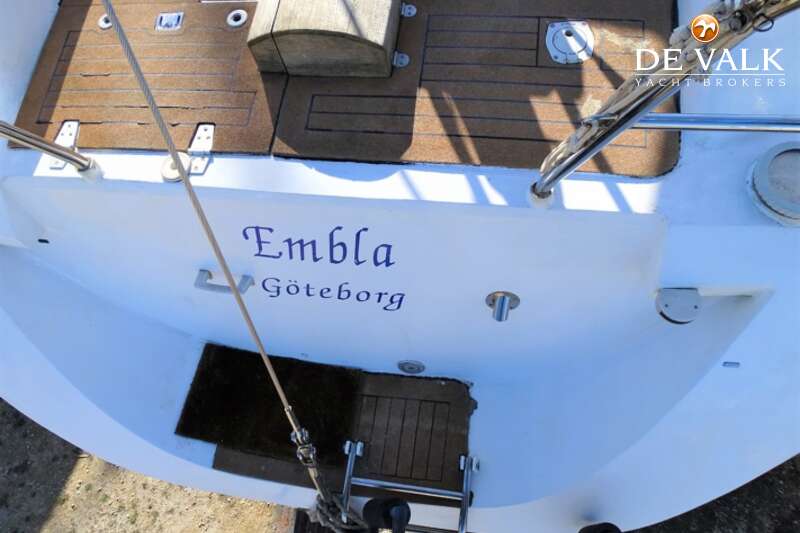

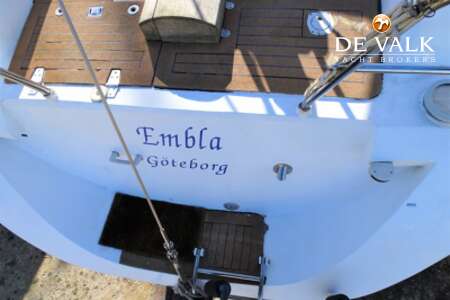

Bathing platform   yes
Boarding ladder   stainless steel
Gangway   GS composite carbon 2,2m 6,2kg
Deck shower   waterhose in chainlocker
Anchor   40kg Delta
Anchor chain   10mm galvanized steel  70m
Anchor 2   14kg Fortress FX 55
Anchor chain   30m chain 10mm +30m line 16mm

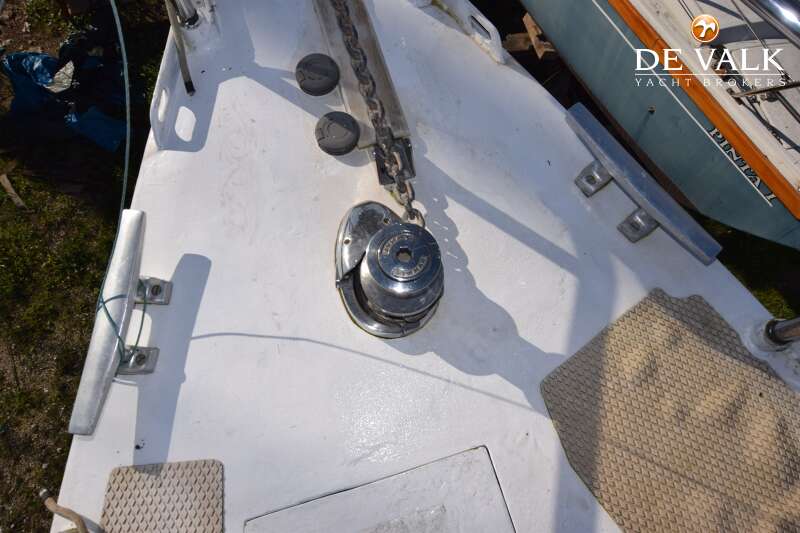

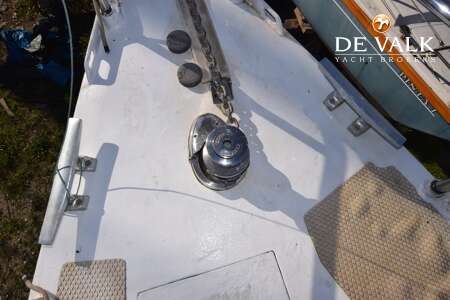

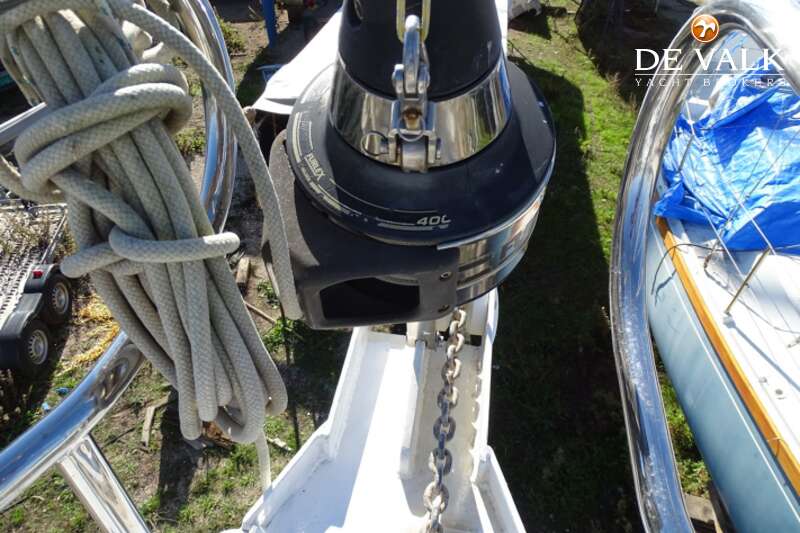

Windlass   Lewmar V3
Dinghy   Avon rover 260
Outboard   Tohatsu M4C 3F9
Outboard support   yes
Sea railing   wire
Grab rail (superstructure)   teak
Railing side opening gates   yes
Pushpit   yes
Pulpit   yes
Life raft   container  Seago
Life raft (pers)   4
Last life raft survey   expired
Lifejackets   automatic + standard
Lifebuoy   1x
Safety lines on deck   2x
Radar reflector   yes
Fenders   yes
Mooring lines   yes
Spare parts   yes
Tools   yes
TV   yes
Radio-cd player   yes
Speakers in salon   yes

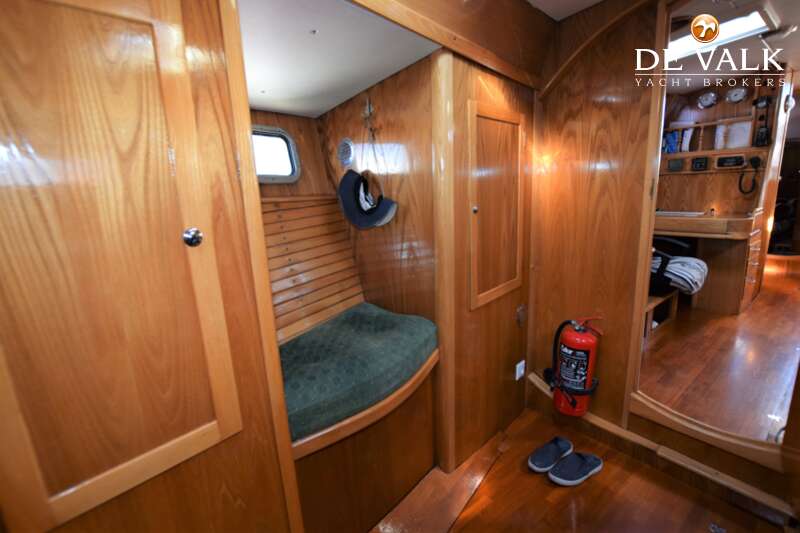

Fire extinguisher   yes

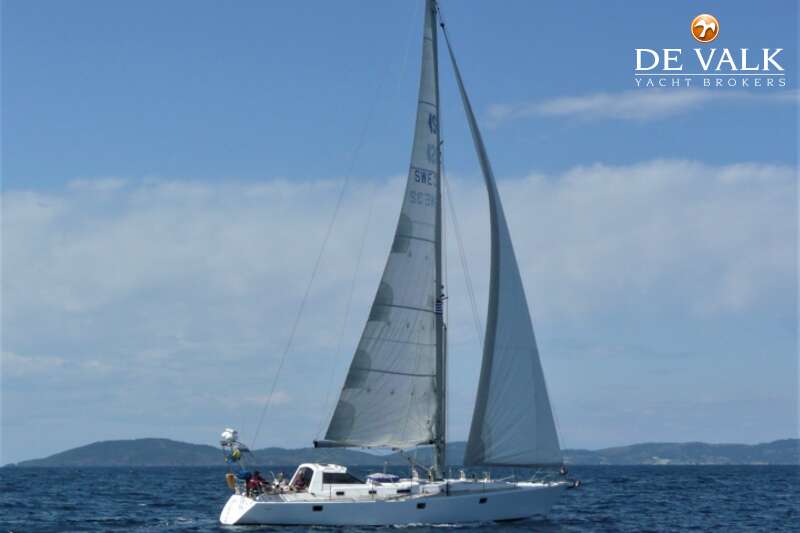

Rigging

Rigging   fractional  7/8

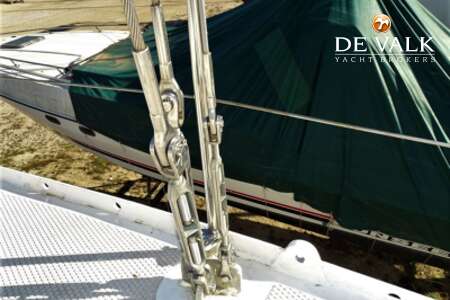

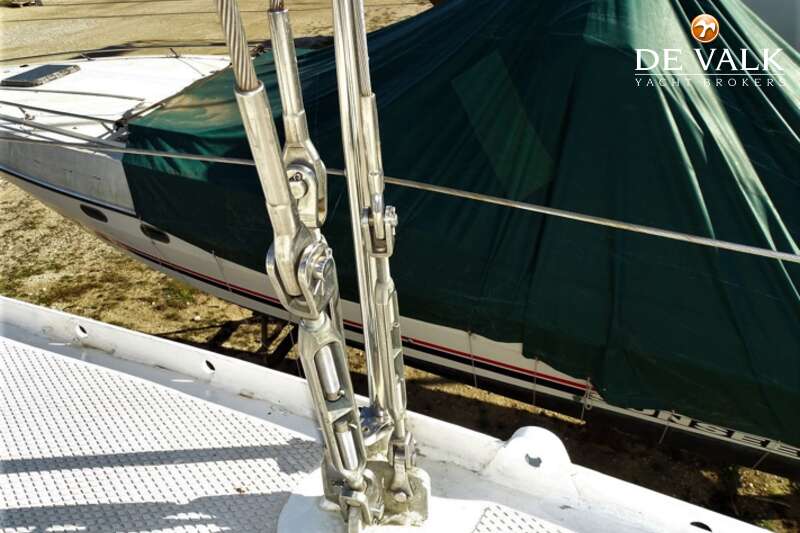

Standing rigging   wire

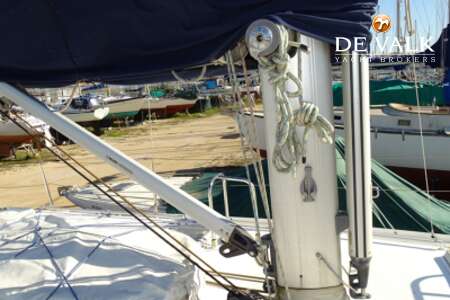

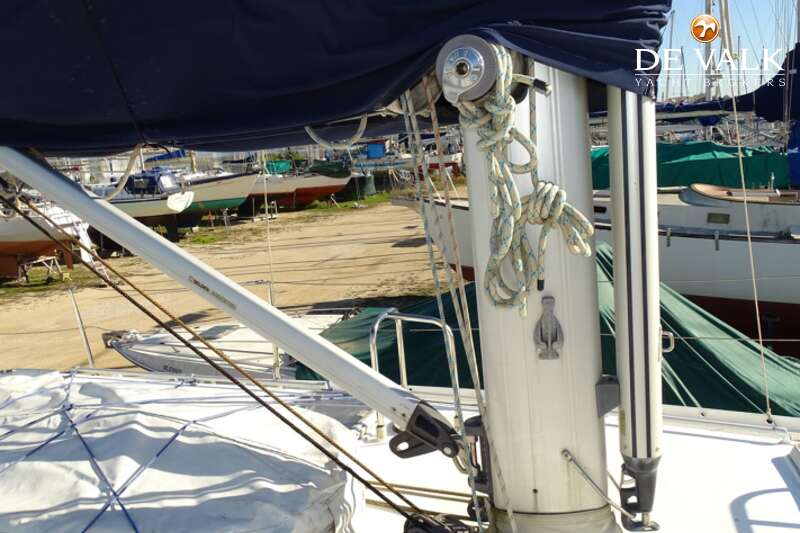

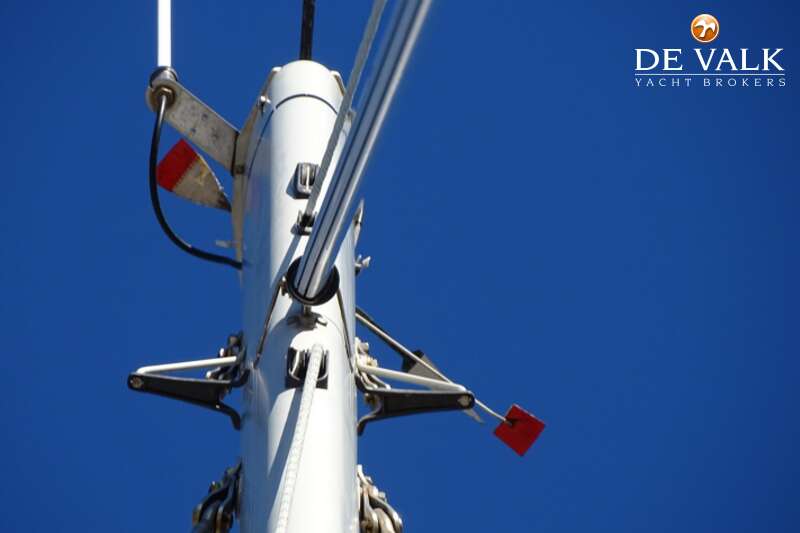

Brand mast   Seldén
Material mast   aluminium coated

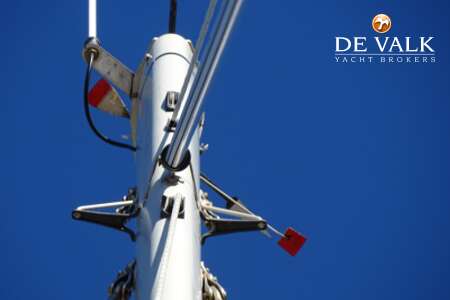

Spreaders   2xswept
Keel stepped mast   yes
Mainsail   66m2 Hydra Net radial 433, serviced 2018  UK sailmakers
Mainsail cover   yes
Battcars   Frederiksen
Fully battened mainsail   6 full battens
Genoa   56m2 Hydra-Net Radiaal 433
Genoa furler   Selden Furlex 412S
Genoa cover   yes
Stormjib   17m2
Reefing System   quick-one-line-reefing  3 reefs
Boomvang   Selden

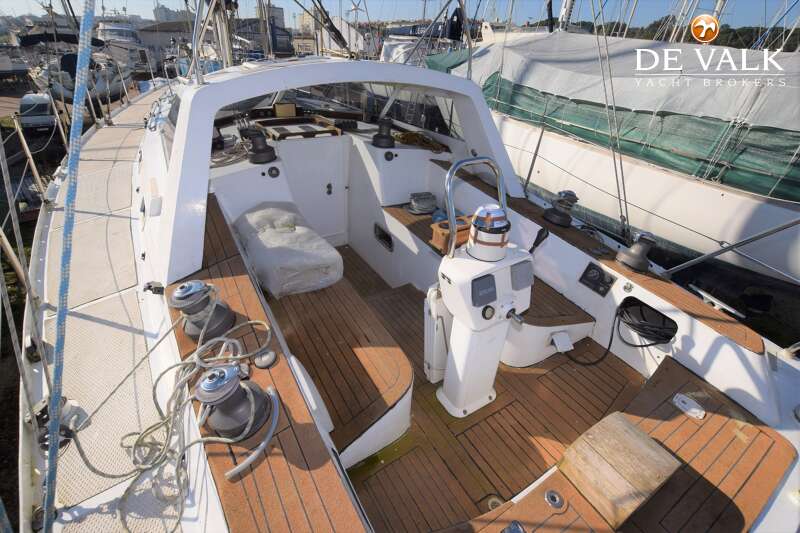

Primary sheet winch   manual  2x Lewmar 50 AST
Secondary sheet winch   electric  2xLewmar 48 AEST
Halyard winches   mounted on mast  1x Lewmar 44 AST
Reefing winch   electric in doghouse
Multifunctional winches   2x Lewmar 50 AEST electric in doghouse
Spi-pole   6m

Disclaimer

These particulars are given in good faith as supplied but cannot be guaranteed and cannot be used for contracts.
