Broker's comments

Dick Koopmans, the most acknowledged yacht designer from the Netherlands designed all his designs from first hand experience.
Spacious, shallow draft, "Old Jem" combines it all with her hydraulic centerboard keel (1,35/2,20 m) and cutter rig, providing lots of cruising possibilities. Very well thought interior-layout what makes her perfect for longer sailing passages.


Afmetingen   13,00 x 3,60 x 1,35 (m)
Materiaal   aluminium
Bouwjaar   1987
Motor(en)   1 x Ford 2722E diesel
PK/Kw   85 (pk), 62,48 (kw)
Ligplaats   bij verkoopkantoor
Verkoopkantoor   De Valk Monnickendam
Status   verkocht
Btw   betaald

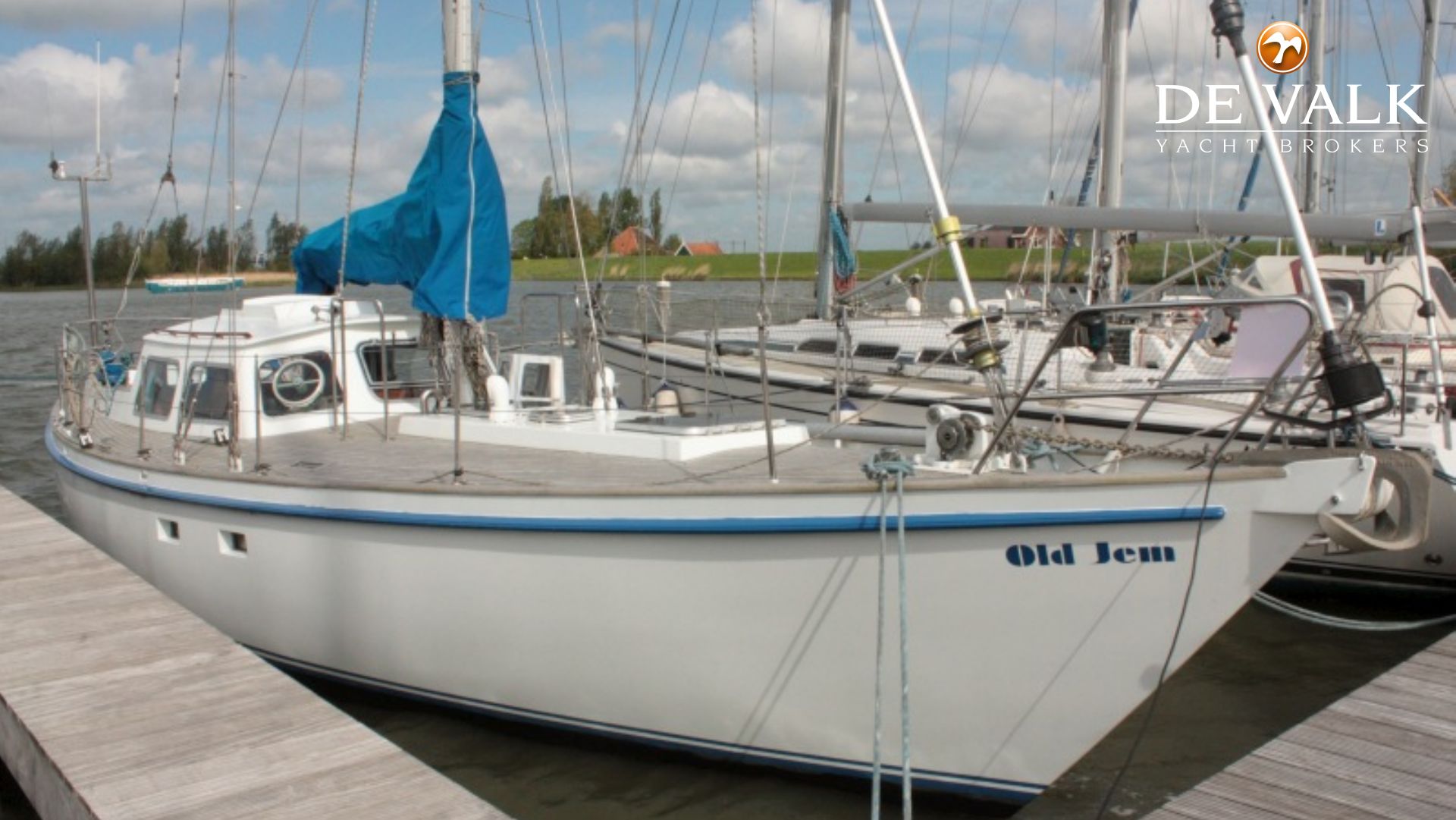

Aluminium sailing yacht Koopmans 43 Pilothouse "Old Jem".
Built in 1987 by Jachtbouw P. Valk in Franeker - Holland, design by Dick Koopmans.
Dim.: 13,00 m x 3,60 m x 1,35/2,20m, headway: approx. 17,00 m.
Aluminium hull, superstructure and deck, teak deck.
Windows in aluminium framing, two dorades on superstructure, two prismas on deck.
Round bilged hull, centerboard keel - hydraulic.

Fuel tank capacity: approx. 500 litres - Wema fuel level indicator.
Fresh water capacity: approx. 500 litres - Wema fresh water level indicator.

Displacement: approx. 11 tonnes.
Ballast: approx. 5 tonnes.

Mechanical wheel steering outside, hydraulic wheel steering inside.
Cover over wheel and pedestal outside.


Classic teak interior, pilothouse, saloon, two cabins, 4 (+2) berths.
Headroom: between 1,85/1,90 m.
Pressurized water system.
Ebersp├Ącher hot air heating.

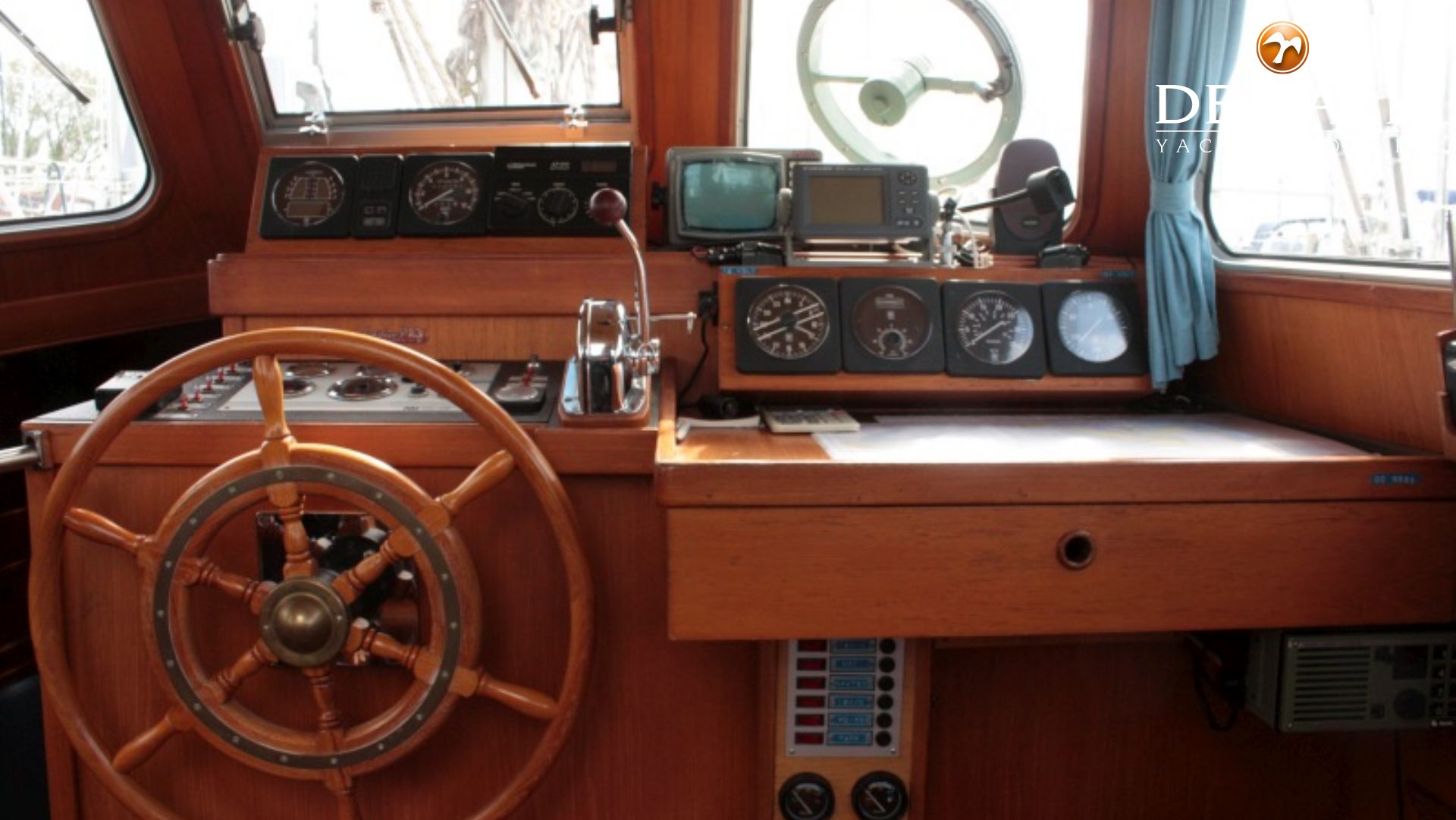

Pilothouse with the inside steering position and settee.

Galley in pilothouse with double stainless steel sink, Danfoss refrigerator and an Eno two burner gas stove with oven.

Saloon with a bench on port side and a L-shaped settee on starboard side, a large saloon table in between, lots of storage space.

Forward cabin with V-berth and Neptune mattresses, storage space.

Marine head with wash bowl and a manual pump toilet.

Very large aft cabin with a berth over de complete width of the boat with Neptune mattresses.

Stereo with cassette.


Ford 2722 E - 4 cylinder 85 hp diesel engine of 1987, 4.340 engine hours.
Indirect cooling system, Hurth HBW 36V hydraulic gearbox.
Cruising speed: approx. 6 knots, consumption approx, 4 litres per hour.
Propeller shaft of stainless steel - water lubricated, three bladed fixed propeller.
Extra filter system.

Gauges for: Rev, oil pressure, temperature, Volt and engine hours.

Max Power 125 duo bow thruster of 10,7 hp (2004).

Electric circuit: 12V/24V/220V
Shore power with earth leakage breaker.
Batteries: 2x 150 Ah. + 2x 74 Ah. + 2x 50 Ah. (bow thruster).
Mastervolt 24/25-2 battery charger.

Electric and manual bilge pump.


C Plath compass on pedestal, VDO electric compass, VDO Sumlog SL, VDO echo sounder.
VDO wind set, Robertson AP 100 autopilot, Furuno GP-32 GPS, Sailor Compact RT2048 VHF with Atis, Nasa World Navtex, Navtex emergency antenna.

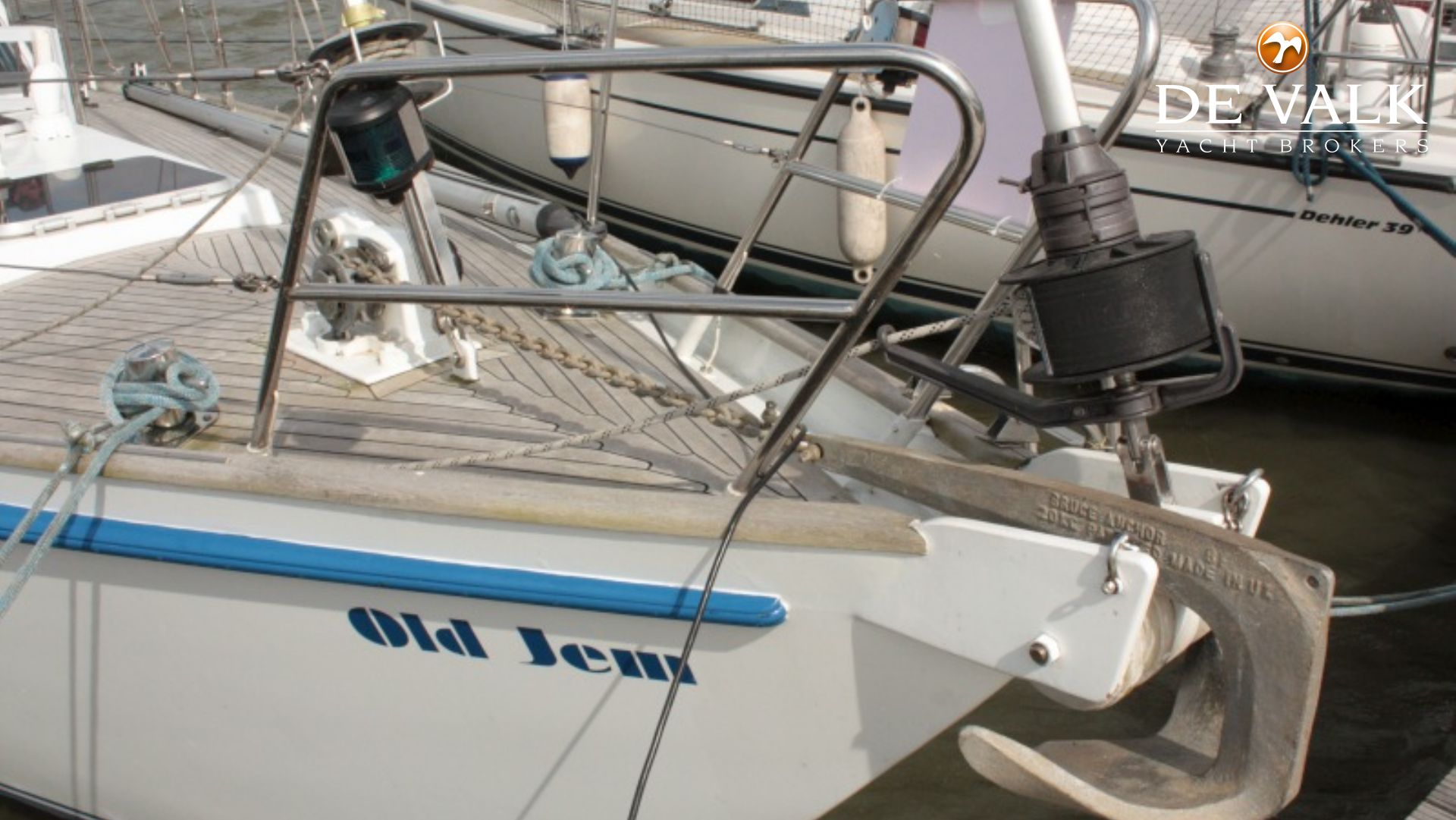

Mechanical windlass, Bruce anchor of 30 kg, chain (10 m-8mm).
Two wired stainless sea railing, pull and push pit of stainless steel.
Boarding ladder of stainless steel aft, small boarding ladder on pull pit.
Cockpit table.
Horn, clear view window, two wipers.


Sloop - cutter rigged, aluminium mast, standing rig 8/10 mm of stainless steel.
Furlex head sail furling system (genoa), Profurl P40 head sail furling system (cutter).

mains sail with 3 reefs (38 m2 of 1999), main sail cover,
genoa (44 m2 of 1999),
cutter jib (19m2),
storm jib,

Barbarossa winches:
in cockpit: 2x 54-2 + 3x 40,
on mast: 2x 44-2 + 1x 40.

Hasselfort backstay adjuster (2x).
Boom vang.
Spi pole.


Hoewel er uiterste zorg besteed is aan de correctheid, volledigheid en actualiteit van onze informatie kunnen hieraan geen rechten worden ontleend.
