The LINSSEN GRAND STURDY 380 SEDAN shown below has been sold:

LINSSEN GRAND STURDY 380 SEDAN

 Sale pending

Sales information

e-mail the broker

Tell a friend

Take time onboard with a live video tour

Seen a boat that piques your interest but can't make a visit in person?
One of our brokers will be your eyes and ears as they take you on a video tour with their phone. You can also ask them questions about anything that isn't visually obvious.

Make the call and be welcomed aboard...

Broker's comments

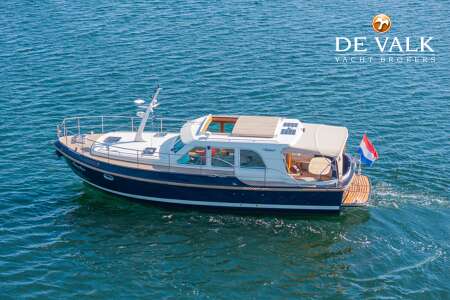

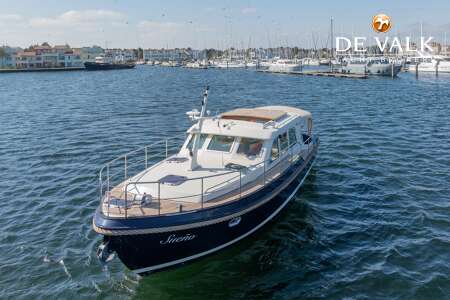

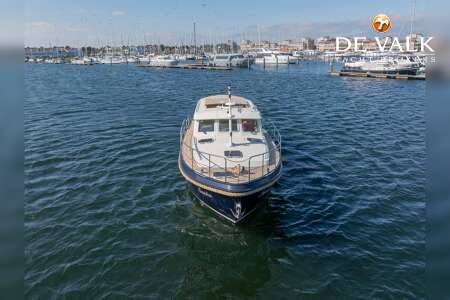

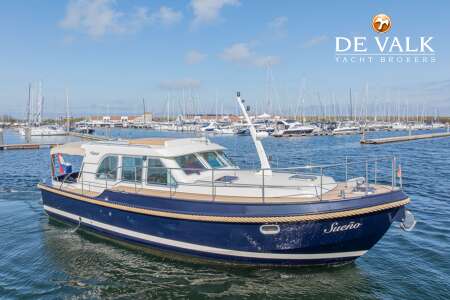

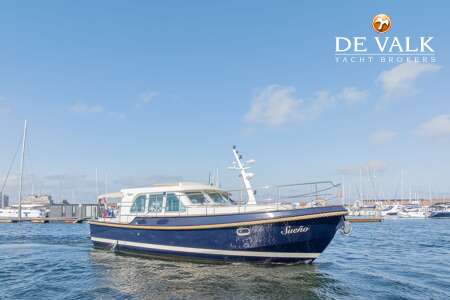

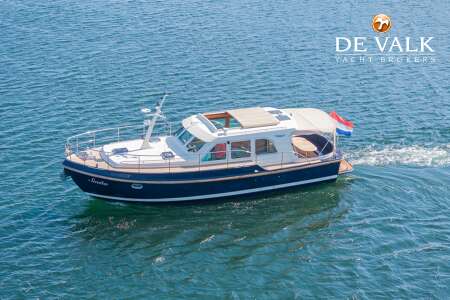

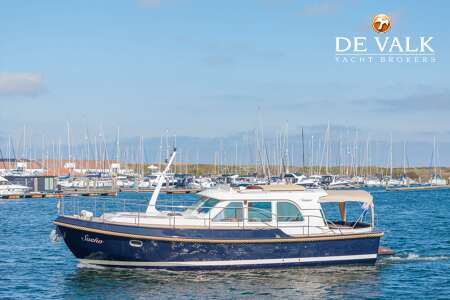

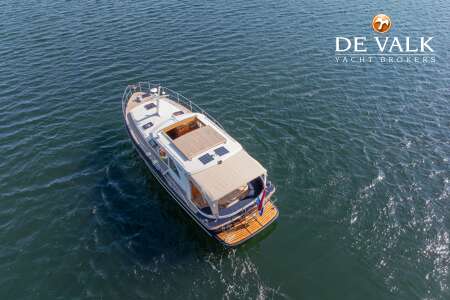

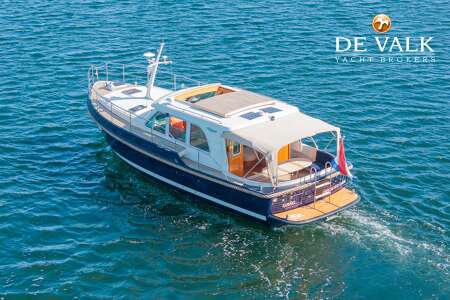

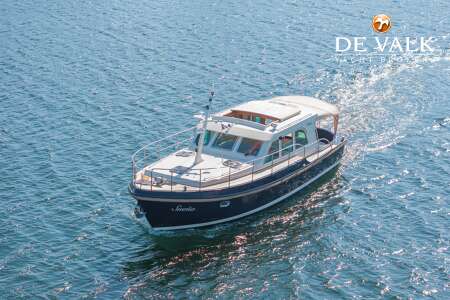

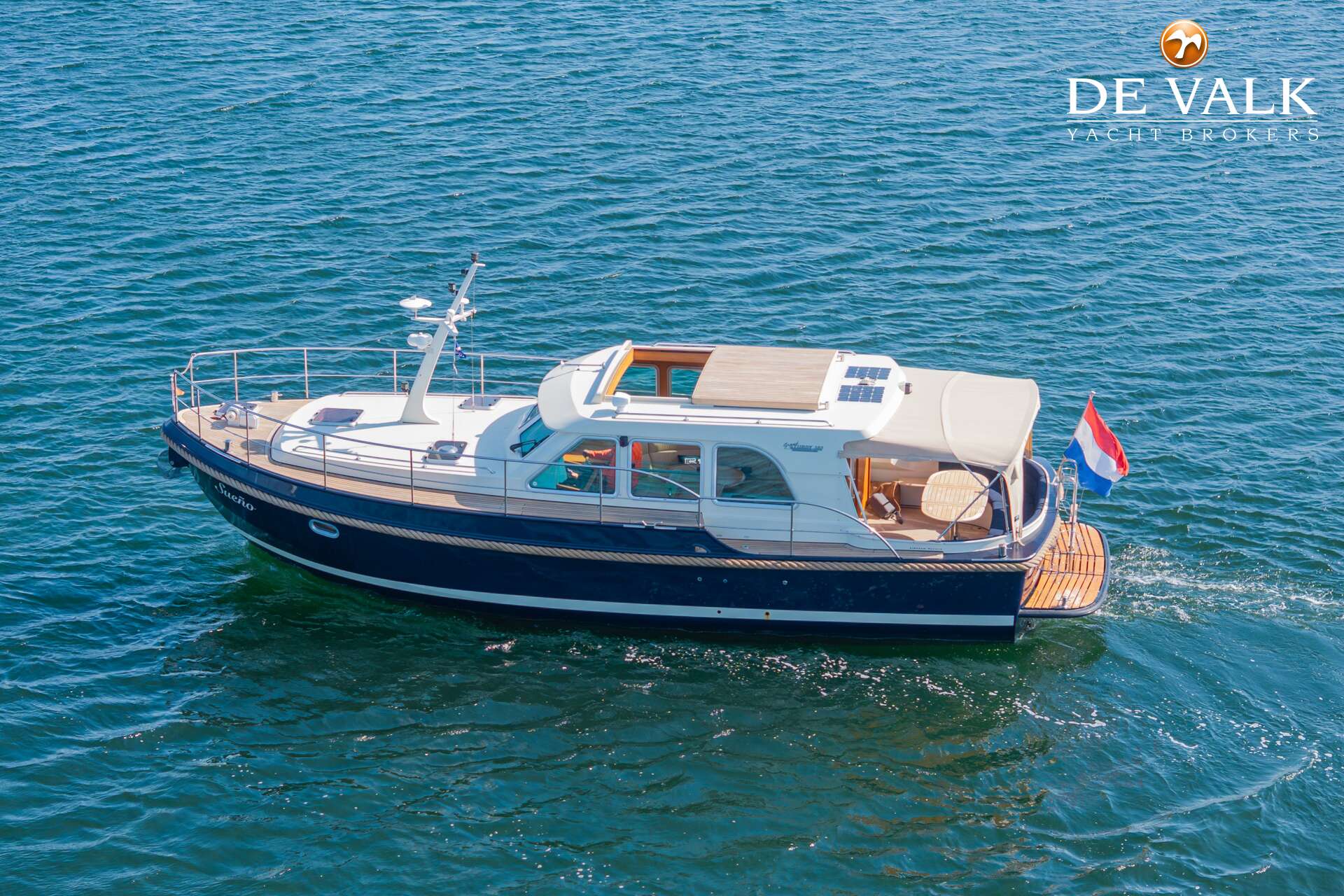

Neat, solid, and seaworthy Linssen Grand Sturdy 380 Sedan. Very easy to handle thanks to the bow and stern thrusters. Extremely comfortable with a spacious single-level living area (helm – galley – saloon – patio doors – open cockpit), central heating, double glazing, generator, air conditioning and an open roof. This motor yacht is moored on the Grevelingenmeer in Zeeland. If you would like to view this beautiful motorboat, please contact De Valk Sint Annaland to schedule an appointment.

Jan-Ward van Dantzig
Yacht Broker

LINSSEN GRAND STURDY 380 SEDAN

Dimensions   11,60 x 3,85 x 1,15 (m)
Material   steel
Built   2006
Engine(s)   1 x Vetus DT-44425A diesel
HP/Kw   114 (hp), 83,9 (kw)
Lying   not at sales office
Sales information   De Valk Sint Annaland
Status   under offer


General - LINSSEN GRAND STURDY 380 SEDAN

Model   LINSSEN GRAND STURDY 380 SEDAN
Type   motor yacht
LOA (m)   11,60
LWL (m)   9,55
Beam (m)   3,85
Draft (m)   1,15
Air draft (m)   4,00
Air draft min (m)   2,85
Headroom (m)   1,95
Year built   2006
Launched   2007
Builder   Linssen Yachts B.V. - Maasbracht
Country   The Netherlands
Designer   Linssen Yachts B.V.
Displacement (t)   16,3
CE norm   B
Hull material   steel
Hull colour   blue  Painted dark blue by Linssen Yachts in 2018
Hull thickness (mm)   6/5
Hull shape   hard chine
Superstructure material   steel
Superstructure (mm)   4
Deck plate thickness (mm)   4
Rubbing strake   fender rope  & hard rubber around bathing platform
Deck material   steel
Deck finish   teak  Refurbished in 2018 (including new caulking)
Superstructure deck finish   non-skid paint
Cockpit deck finish   teak  Refurbished in 2018 (including new caulking)
Antifouling (year)   New layer was applied in 2024
Dorades   1 x Stainless steel shell on the deck hatch of the bathroom
Window frame   aluminium

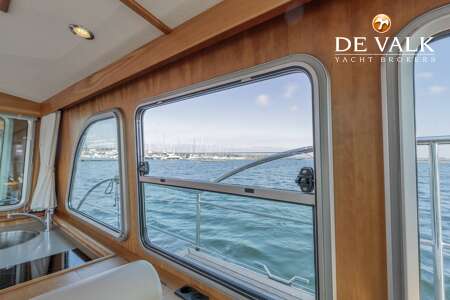

Window material   double glazing  With a cover over the 5 front windows (New in 2021)
Deckhatch   Gebo with shades & mosquito screens
Portholes   aluminium  With mosquito screens
Insulation   glasswool

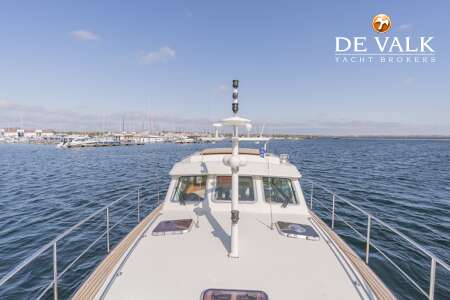

Mast can be lowered   manual  (with a teak support)
Fuel tank (litre)   steel  2 x 450
Level indicator (fuel tank)   yes
Freshwater tank (litre)   polyethylene  2 x 220
Level indicator (freshwater)   yes
Blackwater tank (litre)   polyethylene  220
Level indicator (blackwater)   Gobius 4
Blackwater tank extraction   deck extraction + pump  (electric Exalto vacuum pump)
Wheel steering   hydraulic  Teak Stado steering wheel

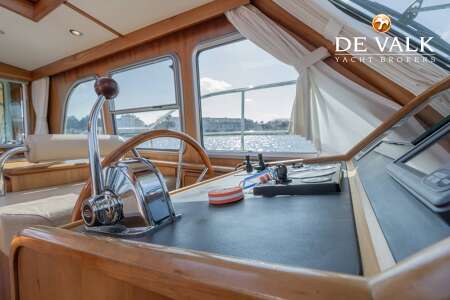

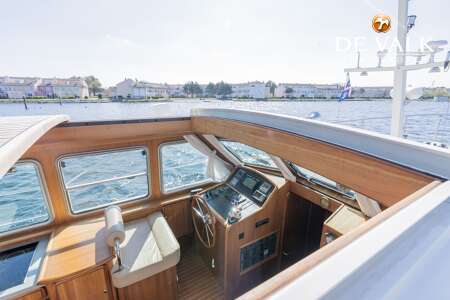

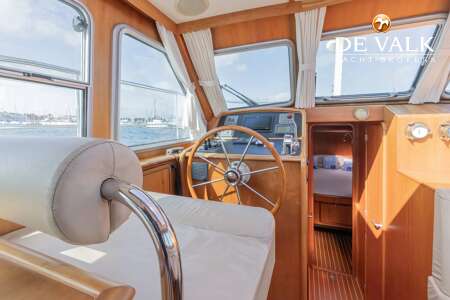

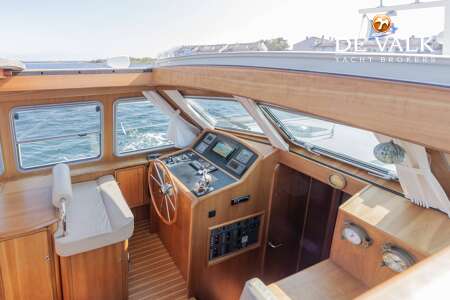

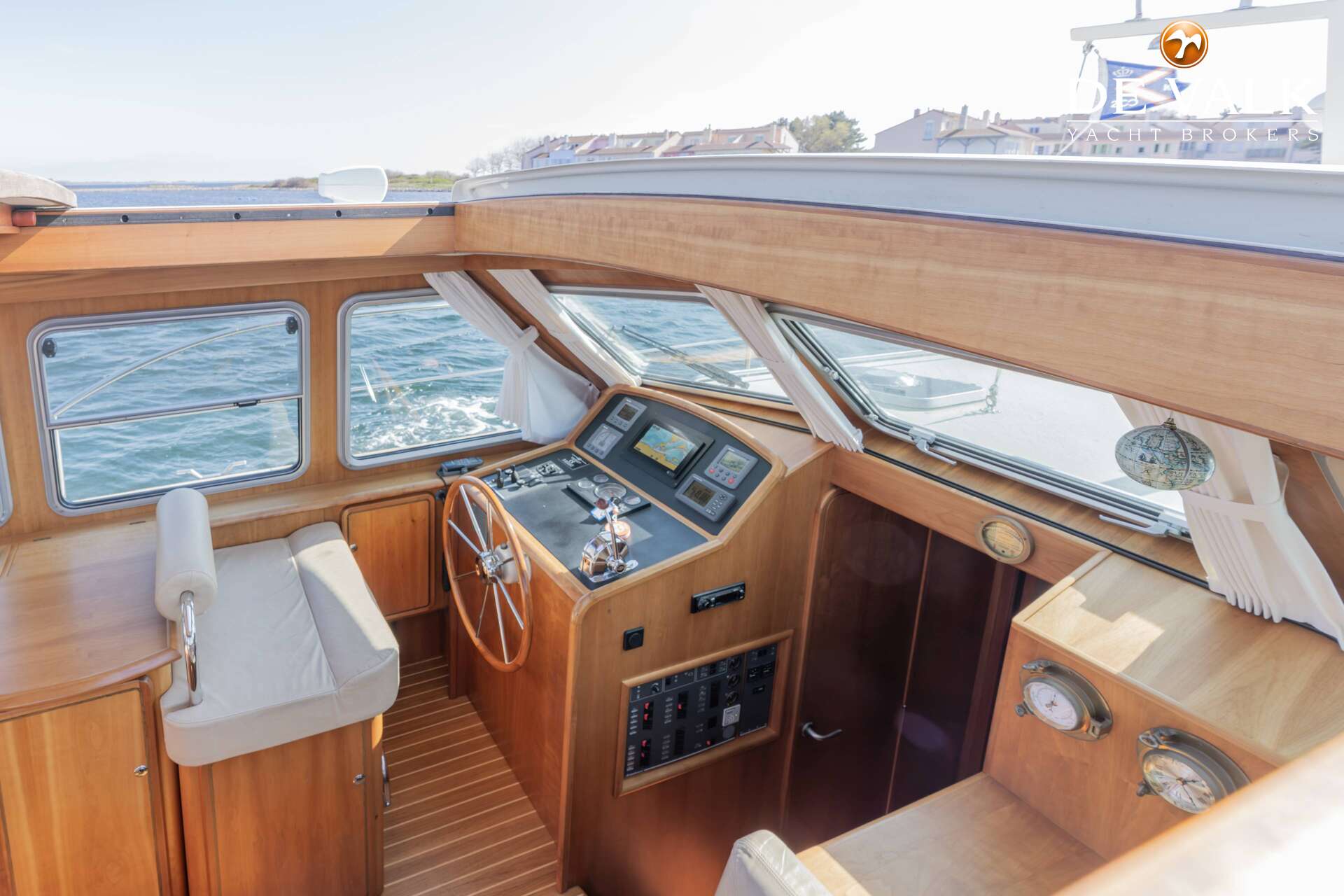

Inside helm position   Vetus MTC 72 - MT130 hydraulic system
Emergency tiller   yes
More info on hull   Hull above & below waterline was sandblasted by Linssen in 2018
More info on paintwork   New paint systems applied on hull by Linssen in 2018
Extra info   New antifouling system on underwater hull by Linssen in 2018
Extra info   Middle window can be opened and is supported with a gas spring
Extra info   PS Middle steering house window slides up/down & mosquito screen

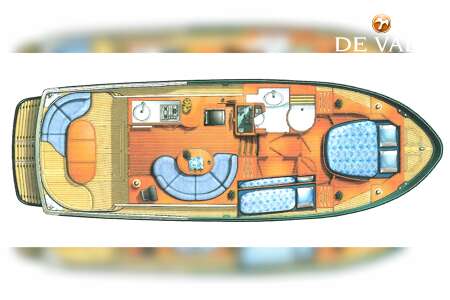

Accommodation

Cabins   2
Berths   4
Interior   cherry  Finished with unique wenge frames
Floor   teak and holly  (teak with ash)
Open cockpit   yes
Pilot house/deck saloon   Headroom : 1,95 - 2,10 m

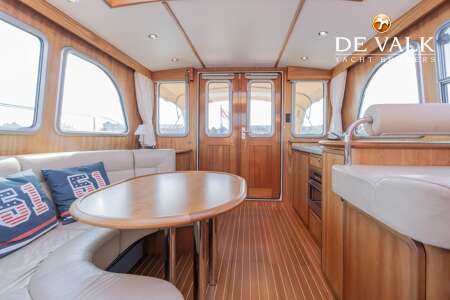

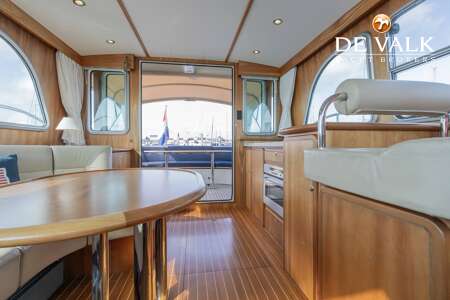

Saloon   yes
Headroom saloon (m)   1,95 - 2,10
Sliding roof   manual
Heating   central heating  Eberspacher Hydronic M D5W5
Air-conditioning   single cycle airco  1 x Dometic Cruisair 10.000 BTU (in the owners cabin)
Dinette   Half round saloon sofa on starboard side (2 x drawer underneath)

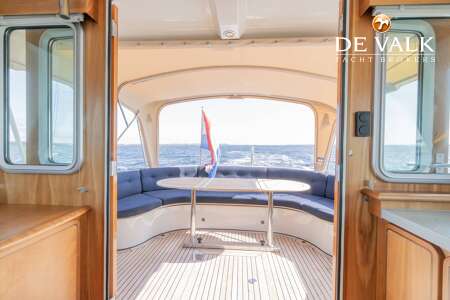

Opening door to cockpit   2 x Opening door to aft deck / cockpit

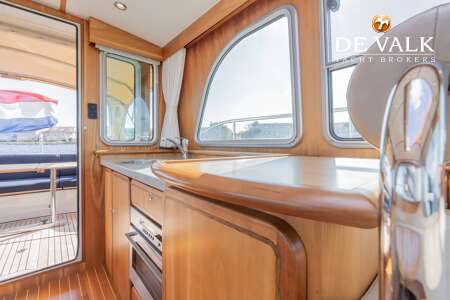

Galley   On Port Side with a pull-out waste bin - Headroom: 1,95 m
Countertop   corian  Grey
Sink   stainless steel  1 x
Cooker   ceramic  2 x Burner - Siemens

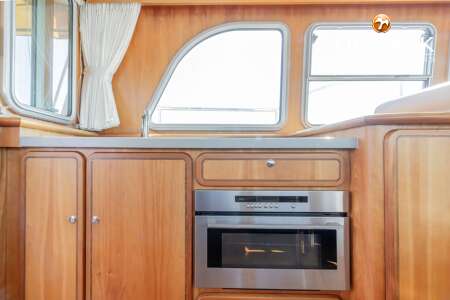

Microwave/oven combi   & Grill - ATAG - Electric (220V)

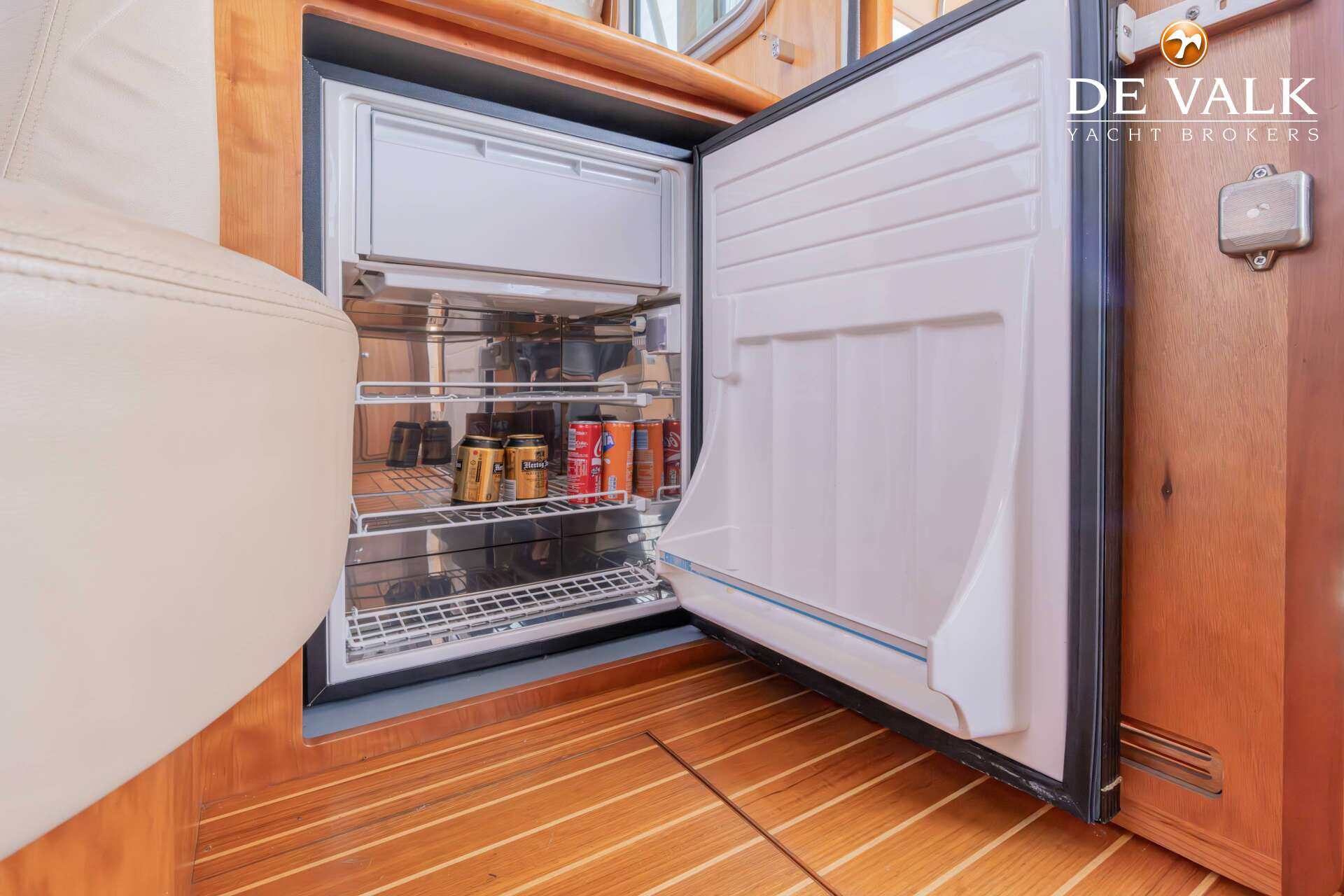

Fridge   Coolmatic front loader with a compressor
Freezer   Small freezing compartment in the Coolmatic fridge
Hot water system   220V + engine  45 Liter AquaH Marine Water Heater (Renewed in 2018)
Water pressure system   electrical  With a Jabsco waterpump
Crockery   (for 4 persons) & glasses (glasses with Linssen logo)

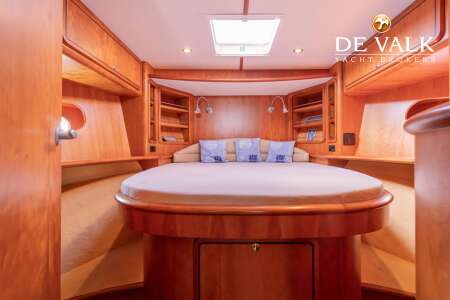

Owners cabin   French bed  Front cabin - Headroom : 1,94 m
Bed length (m)   2,05 x 1,60
Wardrobe   hanging/drawers/shelves
Bathroom   shared  The bathroom features a modern towel radiator. Headroom : 1,88 m
Toilet   shared
Toilet system   electric  Jabsco Quiet Flush
Wash basin   in the bathroom

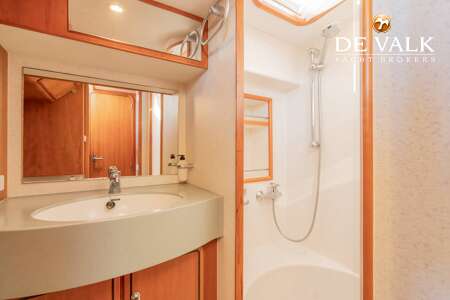

Shower   shared  With a sliding door & automatic drain pump - Headroom : 1,98 m
Extra info   Slatted base under mattress in owner's cabin

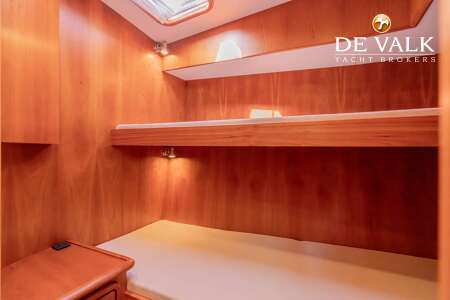

Guest cabin 1   bunk bed  On starboard side - Headroom : 1,95 m
Bed length (m)   2 x 2,05 x 0,70
Wardrobe   shelves
Extra info   Headroom in hallway from steering house to front cabin : 1,96 m
Extra info   White curtains & white Luxaflex for windows in steering house
Extra info   Ceiling finished in Novolux with LED interior lights

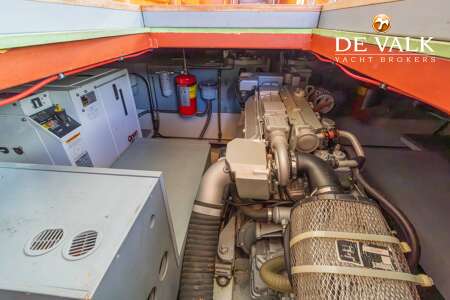

Machinery

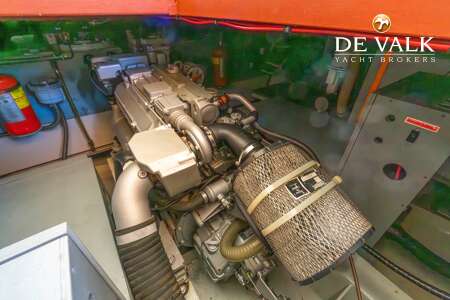

No of engines   1
Make   Vetus
Type   DT-44425A
HP   114
kW   83.90
Fuel   diesel
Year installed   2006
Maximum speed (kn)   8,5
Cruising speed (kn)   7
Engine hours   955
Engine cooling system   freshwater heat exchanger
Drive   shaft
Engine controls   bowden cable
Gearbox   hydraulic  ZF Hurth ZF45 / 25:1
Bowthruster   electric  Vetus 95kgf - with remote controle
Sternthruster   electric  Vetus 95kgf - with remote controle
Exhaust   watercooled
Thrust bearing   Python P80 S40
Propeller type   fixed
Propeller blades   4
Propeller shaft material   stainless steel
Shaft lubrication   water
Electric bilge pump   Jabsco & a loose Johnson pump with longer hose
Bilge alarm   yes

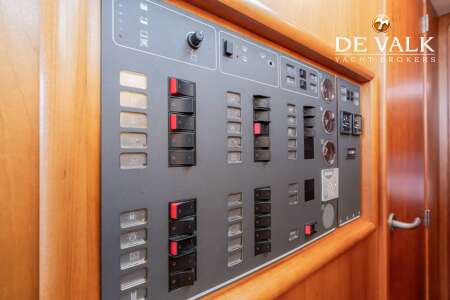

Electrical installation   12 & 220 Volt

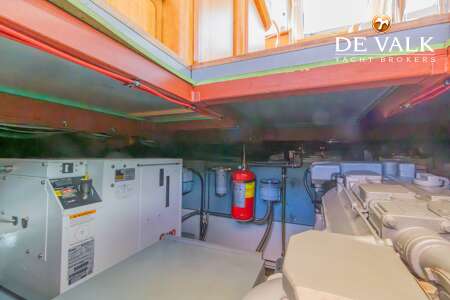

Generator   silent separator  Onan MDKAU 4.0 (Halyard HMI water separator)
Running hours generator   140
Start battery   4 x 90 Ah (2018), also connected to the bow- & stern thruster
Service battery   4 x 90 Ah AGM Mastervolt (2018)
Battery charger   Mastervolt Mass 12V/60A
Inverter   Mastervolt Mass Sine 12V/2000W
Solar panel   2 x (New in 2020 - connected to the engine batteries)
Diode battery combiners   yes
Shorepower   with cable
Extra info   Separ Diesel filter with water separator
Extra info   Engine & generator have been maintained annually
Extra info   Several 12 Volt & 220 Volt sockets throughout the interior

Navigation

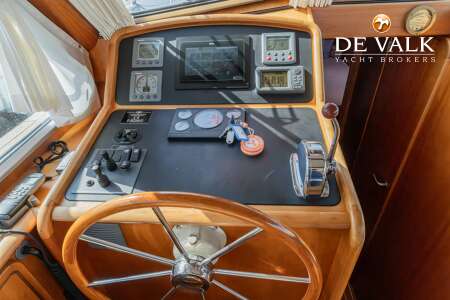

Electric compass   Raymarine ST60 Compass
Depth sounder/log   Raymarine ST60+ Tridata
VHF   Raymarine Ray 240
Autopilot   Raymarine ST6002 & Raymarine S100 (wire-less remote) Controller
Rudder angle indicator   In the autopilot display
Plotter/GPS   Raymarine Axiom+ 9' (New in 2022)
Electronis chart(s)   1 x Navionix
Navigation lights   Complete + 2x decklight + dimmable cockpit light
Searchlight   Jabsco Ray-Line 135 SL with remote at the steering wheel
Extra info   Custom made steering seat with extra cupboard space underneath
Extra info   Nice bar with extendable glass racks between galley & helm seat

Equipment

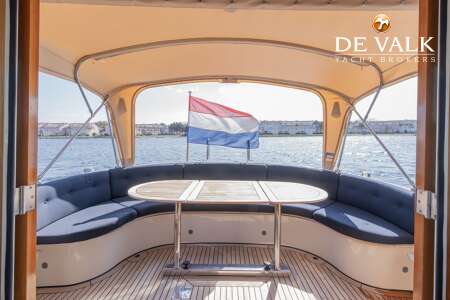

Cockpit cover   Beige - New in April 2024 - Headroom : 1,95 m
Bimini   By rolling up/unzipping all rear & side panels of cockpit cover
Winter cover   Only over the cockpit
Cockpit cushions   Dark Blue (New in 2023)
Cockpit table   Teak - with a (folding) passage in the middle
Bathing platform   With teak
Boarding ladder   stainless steel  With teak steps
Deck shower   On the bathing platform (hot & cold pressured water)
Anchor   1 x
Anchor chain   yes

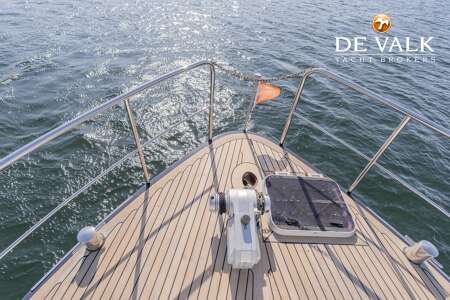

Windlass   electrical  Vetus Alexander III, control on bow & remote at steering wheel
Deck wash   yes

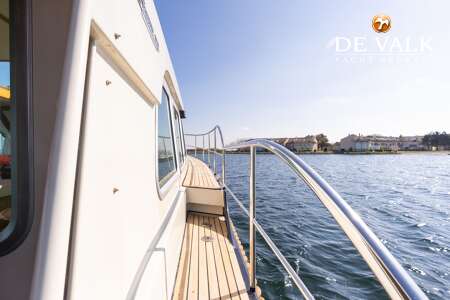

Sea railing   stainless steel  (double)
Grab rail (superstructure)   stainless steel
Pushpit   Stainless steel
Lifebuoy   Round white/red buoy
Wiper   2 x Exato, with fresh water spray
Horn   electric
Radar reflector   Tri-lens
Fenders   8 x With stainless steel fender storage baskets (2x2 fenders)
Mooring lines   yes
TV   Sharp (on a rails - electric up/down) with Strong Dolby Audio
Radio-cd player   Sony Drive - S radio/cd-player / MP3 / WMA
Cockpit speakers   2 x Sony
Speakers in salon   2 x Sony
Clock - barometer   yes
Fire extinguisher   2 x 4 KG Saval
Latest extinguisher survey   Need to be surveyed / renewed
Auto extinguisher system   In Engine room (need to be surveyed / renewed)
Extra info   The cockpit table is completely removable
Extra info   Plenty of storage space under cockpit floor, across full width
Extra info   3 x Storage under the cockpit sofa

Disclaimer

These particulars are given in good faith as supplied but cannot be guaranteed and cannot be used for contracts.
