The VAN DE STADT 49 shown below has been sold:

e-mail the broker

Tell a friend

Broker's comments

This beautiful Van de Stadt 49 is a One-Off and she is being sold by het second owner. The 'Trinity' is a perfect combination of living comfortably on board and fast offshore-cruising in all conditions; single-handedly manageable due to hydraulic sails and winches. The 'Trinity' has been refitted from 2012 till 2016. She is fully equipped for bluewater cruising and ready to go!

VAN DE STADT 49

Dimensions   15,70 x 4,50 x 2,00 (m)
Material   aluminium
Built   1995
Engine(s)   1 x Ford New Holland GEN450S diesel
HP/Kw   100 (hp), 73,5 (kw)
Lying   at sales office
Sales office   De Valk Monnickendam
Status   sold
Vat   paid


General - VAN DE STADT 49

Model   VAN DE STADT 49
Type   sailing yacht
LOA (m)   15,70
LWL (m)   14,90
Beam (m)   4,50
Draft (m)   2,00
Air draft (m)   21,00
Headroom (m)   2,10
Year built   1995
Builder   Bloemsma, Makkum - Holland
Country   The Netherlands
Designer   Van de Stadt
Displacement (t)   21
Ballast (tonnes)   lead in steel
Hull material   aluminium
Hull colour   white
Hull thickness (mm)   thicker around bow   approx. 6-8 mm.
Keel type   fin keel
Superstructure material   aluminium
Superstructure (mm)   approx. 6,5 mm.
Rubbing strake   aluminum
Deck material   aluminium
Deck finish   teak
Superstructure deck finish   teak
Cockpit deck finish   teak
Antifouling (year)   November 2015
Dorades   4 Vetus ventilators
Window frame   aluminium
Window material   Safety glass (decksalon)
Deckhatch   With polycarbonate
Portholes   polycarbonate windows with aluminum frames
Insulation   foam
Radar arch   non collapsible
Fuel tank (litre)   aluminium  2x 500 L.
Level indicator (fuel tank)   Electric
Freshwater tank (litre)   aluminium  2x 300 L.
Level indicator (freshwater)   Electric
Blackwater tank (litre)   2x 200 L. (aluminium) / 1x 90 + 1x 80L. (polyethylene)
Blackwater tank extraction   After: deck extraction. Forward: deck extraction + pump
Greywater tank (litre)   70 L.
Wheel steering   hydraulic
Inside helm position   joystick
Outside helm position   hydraulic  2x
Emergency tiller   yes
More info on hull   More frames than suggested by Van de Stadt for more sturdiness.

Accommodation

Cabins   3
Berths   6 (up to 10 with 4 more in upper and lower salon)
Interior   teak

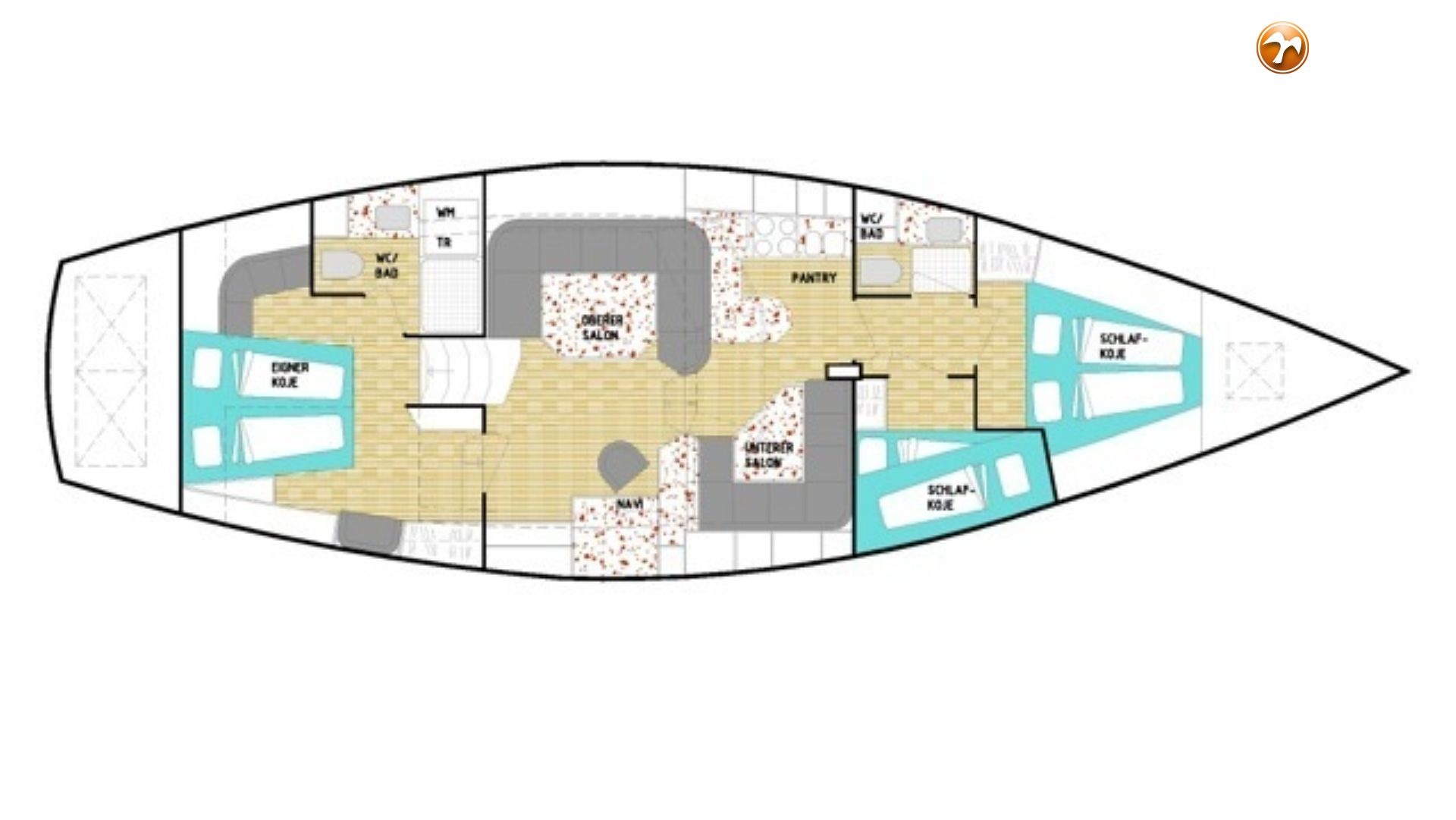

Layout   Deck Salon with surround view, master cabin aft, guest cabin in front, bunk bed cabin in front, 2 heads
Floor   teak
Open cockpit   Spacious, with table, seats 6 comfortably + space for 2 more
Aft deck   Huge lazarette
Pilot house   Inside helmstand with all instruments, steering, gearbox
Deck saloon   Seating area and table with room for 6
Saloon   Lounge sofa with TV/DVD
Headroom saloon (m)   2,10 M.
Heating   diesel ducted hot air  Eberspaecher D5LC.
Heating 2   electric 220V  220V/air condition can be reversed, works on shorepower.
Air-conditioning   reverse cycle airco  Frigoboat Classic 16, works on shore power
Chart table   Spacious charttable in nav station, inbuilt laptop
Aft Cabin   Large double bed with slatted frame and latex matresses, seat
Dinette   Seating area and table with room for 6
Dinette to convert into berth   yes
Sliding door to cockpit   yes
Galley   U-shape, 3-burner stove, oven, microwave 24V
Countertop   yes
Sink   stainless steel
Cooker   calor gas  Eno, 3-burner
Oven   Eno
Microwave   Eno 24V
Fridge   Vitrifigo C115 with freezer compartment (2015) + Toploader fridge
Freezer   Compartment in fridge
Hot water system   220V + engine
Water pressure system   electrical
Manual and/or foot pump   Foot pump in galley
Kettle   Yes, two (220V + 12V)
Coffee maker   Manual espresso maker
Crockery   yes
Owners cabin   double bed
Bed length (m)   2 M.
Wardrobe   hanging and shelves  cabinets +
Bathroom   en suite
Toilet   en suite
Toilet system   electric
Wash basin   in the bathroom
Shower   en suite
Guest cabin 1   v-bed  mattresses 2015
Bed length (m)   2,10 M.
Wardrobe   hanging  cabinets +
Bathroom   en suite
Toilet   en suite
Toilet system   electric
Wash basin   in the bathroom
Shower   en suite
Guest cabin 2   bunk bed
Bed length (m)   2 M.
Wardrobe   hanging  cabinets +
Toilet   shared
Toilet system   electric
Wash basin   in the bathroom
Shower   shared
Washing machine   CANDY Aquamatic 3,5 kg (2013)
Ironing facilities   yes
Extra info   Broad companionway with full stairs

Machinery

No of engines   1
Make   Ford New Holland
Type   GEN450S
HP   100,00
kW   73,50
Fuel   diesel
Year installed   1995
Maximum speed (kn)   9
Cruising speed (kn)   6-7
Consumption (l/hr)   5,5
Engine cooling system   seawater
Drive   shaft
Engine controls   bowden cable
Gearbox   hydraulic
Bowthruster   hydraulic
Exhaust   watercooled
Propeller type   feathering 23" + fixed prop 22" as spare
Propeller blades   3
Propeller shaft material   stainless steel
Shaft lubrication   grease
Manual bilge pump   Gusher Whale
Electric bilge pump   3 (2x 24V, 1x 220V)
Bilge alarm   yes
Electrical installation   mainly 24V + 12V + 220V (inverter)
Generator   portable generator Honda 2000i
Batteries   12x 6V Hoppecke AGM in series (2013), total 660 AmH (24V)
Start battery   2x Intimidator AGM 110 AmH (late 2015)
Battery monitor   Mastervolt EasyView (2013) + main panel
Battery charger   Mastervolt Chargemaster 24/100 for 24V (2013) + VICTRON 7A for 12V, Installed back-up: 2x 24V 15A, 1x 12A 25A
Inverter   Mastervolt Sine Wave Inverter Mass 24/2500 (2013)
Wind generator   Silentwind 400W 24V (2013)
Solar panel   600W in total: 240W on radar arch (2013) + 360W rail-mounted on both sides (2015)
Shorepower   with cable  bow + stern plugs
Watermaker   Echotec DL-2601 (2013)
Extra info   Air compressor 220V with long hose to reach anywhere on the boat, Wempe clock+barometer+weather predictor, separate solar panel battery monitor.
Extra info   new injectors in 2015, new engine room insulation + LED lights 2015, fuel injection pump overhauled+refurbished 2016, diesel tanks completely cleaned 2016

Navigation

Compass   2x Silva 125T
Electric compass   2x
Depth sounder   Raymarine i60 (2015)
Log   Autohelm
Windset   Raymarine i50 (2013)
Repeater   2x Raymarine i70 (2012)
Fish finder   Garmin GPS Map 235
VHF   Raymarine Ray 55E (2012)
VHF handheld   Raymarine Ray101E (2012)
Autopilot   Raymarine SPX30 w/ p70 (2012) + Autohelm ST6000
Rudder angle indicator   on both autopilots
Radar   Raymarine digital radar (2012)
GPS   2x RaymarineE (2012)
Plotter   2x Raymarine E90W (2012)
Radar/GPS/plotter   Raymarine
Weather receiver   SSB ICOM IC-M801E (2012) + Pactor Dragon IV modem + ICOM SP24 loudspeaker (all 2012)
Navtex   Fastnet FMD20 GMDSS Marine Decoder (no antenna connected)
Personal computer   HP laptop (2012)
Electronis chart(s)   Navionics Western Europe, Mediterranean + Black Sea, USA, South America, Pacific + Australia + New Zealand
AIS receiver   Raymarine AIS650 (2012)
EPIRB   GSM 406Mhz (2012)
Extra info   Instruments doubled for use at both outside and inside helmstands.

Equipment

Fixed windscreen   yes
Sprayhood   yes
Cockpit cover   sun shades (netting 90% UV proof), rain shades
Bimini   yes
Cockpit cushions   yes
Cockpit table   yes
Bathing platform   Teak
Boarding ladder   stainless steel
Bow ladder   yes
Gangway   yes
Deck shower   yes
Anchor   Spade 35kg (2013)
Anchor chain   Galvanized DIN 10mm 67m
Anchor 2   CQR Plough  Danforth
Anchor chain   lead line
Windlass   hydraulic  Lewmar 2000
Capstan   yes
Deck wash   yes
Dinghy   rigid inflatable  HIGHFIELD Aluminum w/ bow locker (2013)
Outboard   Tohatsu 3.5HP
Davits   stainless steel
Davits controls   manual
Sea railing   stainless steel
Grab rail (superstructure)   stainless steel
Railing side opening gates   yes
Life raft   container  Plastimo Transocean 6 (2012)
Life raft (pers)   6
Last life raft survey   2012
Lifejackets   yes
Safety harness   yes
Lifebuoy   Plastimo Inflatable Marker Buoy (2012)
Safety lines on deck   yes
Wiper   yes
Horn   electric
Binocular   yes
Radar reflector   yes
Fenders   yes
Mooring lines   yes
Spare parts   yes
Tools   yes
TV   24" (2015)
TV receiver   yes
Radio-cd player   Pioneer RPS WMA/MP3
DVD player   yes
iPod connection   yes
Speakers in salon   yes
Clock - barometer   digital barograph Meteoman (2012)
Fire extinguisher   4x
Extra info   Wifi booster antenna DIGITALYACHT WL510 (2012), all lighting is LED. Life Sling (2012)

Rigging

Rigging   sloop-cutter
Standing rigging   wire
Brand mast   Bamar
Material mast   aluminium coated
Spreaders   2
Mainsail   58 qm (in-mast furler)
Genoa   56,5 qm
Genoa furler   hydraulic
Staysail   29,5 qm
Staysail furler   manual
Reefing System   main in-mast furling
Backstay adjuster   mechanical
Boomvang   tackle
Primary sheet winch   Lewmar 46 (hydraulic)  1X
Genoa sheetwinches   Lewmar 55 (hydraulic)  2X
Halyard winches   Lewmar 44 at mast (manual)  1x
Spinnaker winch   Antal 60W (manual)  2X
Spi-pole   aluminium
Isolated backstay   yes

Disclaimer

These particulars are given in good faith as supplied but cannot be guaranteed and cannot be used for contracts.
