Broker's comments

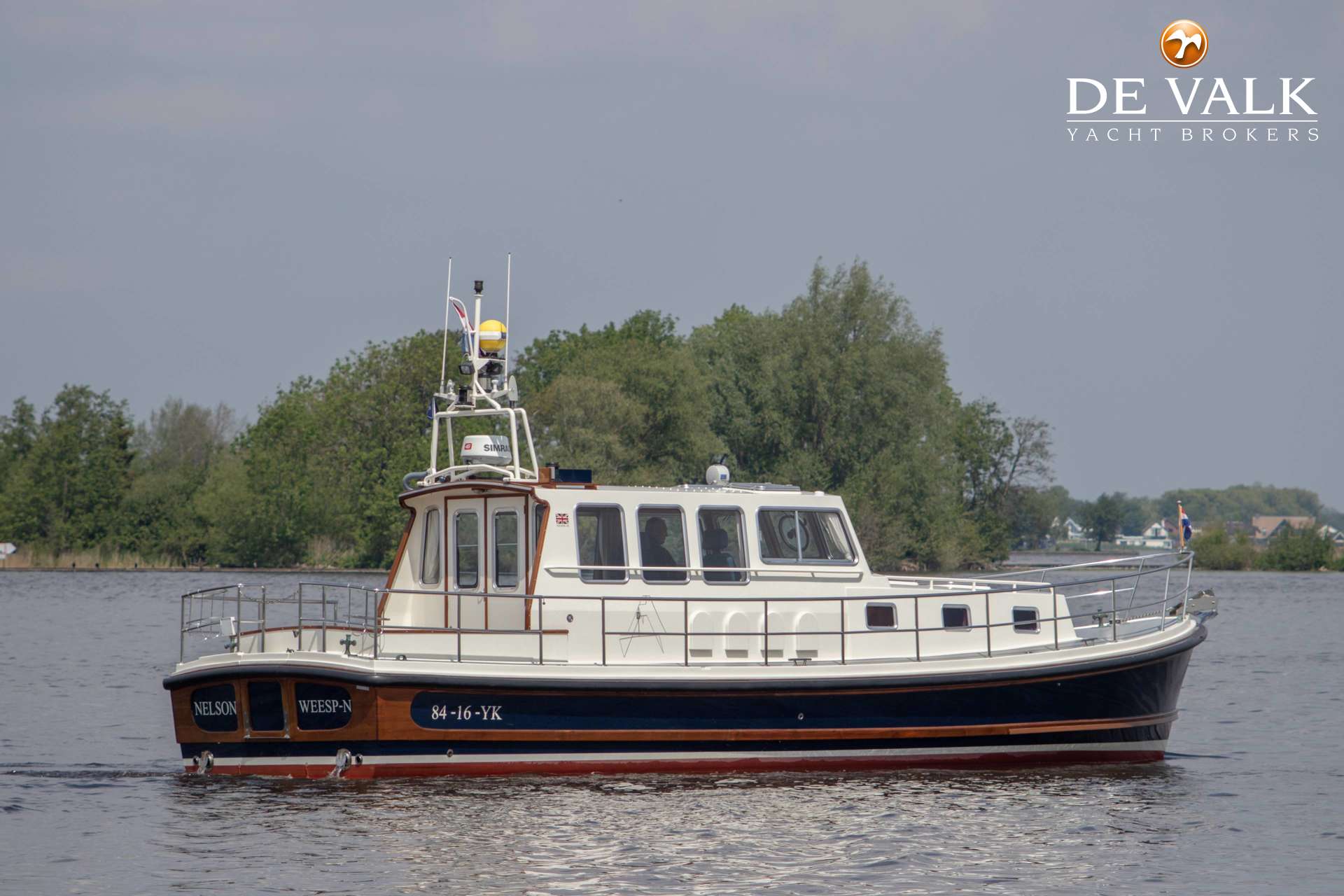

The Nelson 40 Pilot is one of the most iconic pilot boats ever designed and built. Used as an actual pilot boat by the Belgium customs, the Nelson retired and was fully stripped and rebuilt (superstructure, interior, generator, engines, equipment) in 2005. After being purchased by the current caring owner she got all the loving care; repaint the exterior and woodwork in 2015 and reconstructing the hull below the waterline in 2016 with 5 layers of fiberglass/epoxy (3 years guaranty left). This Nelson 40 Pilot is probably the best kept Nelson on the marked and must be seen!

NELSON 40 PILOT

Dimensions   12,00 x 3,66 x 1,05 (m)
Material   grp
Built   1973
Engine(s)   2 x Vetus Deutz DT 66 A diesel
HP/Kw   210 (hp), 154 (kw)
Lying   at sales office
Sales office   De Valk Loosdrecht
Status   sold
Vat   exempt


General - NELSON 40 PILOT

Model   NELSON 40 PILOT
Type   motor yacht
LOA (m)   12,00
Beam (m)   3,66
Draft (m)   1,05
Headroom (m)   1,95
Year built   1973
Builder   Halmatic UK
Country   Great Britain
Designer   Arthur Mursell
Displacement (t)   16
CE norm   A
Hull material   GRP
Hull colour   blue
Hull shape   deep-V
Superstructure material   aluminium  Rebuilt in 2005
Rubbing strake   rubber
Deck material   GRP  Refitted in 2015
Deck finish   non-skid paint
Superstructure deck finish   paint
Cockpit deck finish   teak
Antifouling (year)   2019
Window frame   aluminium
Window material   glass
Portholes   aluminium
Mast can be lowered   manual
Fuel tank (litre)   polyethylene  4 tanks, 1800 L in total
Level indicator (fuel tank)   Vetus
Freshwater tank (litre)   GRP  400
Level indicator (freshwater)   Vetus
Blackwater tank (litre)   GRP  120
Level indicator (blackwater)   Vetus
Blackwater tank extraction   yes
Wheel steering   hydraulic  Vetus
Inside helm position   yes
More info on paintwork   Repainted in 2015

Accommodation

Cabins   1
Berths   2
Interior   teak  Rebuilt in 2005
Floor   teak and holly
Open cockpit   yes
Pilot house   yes

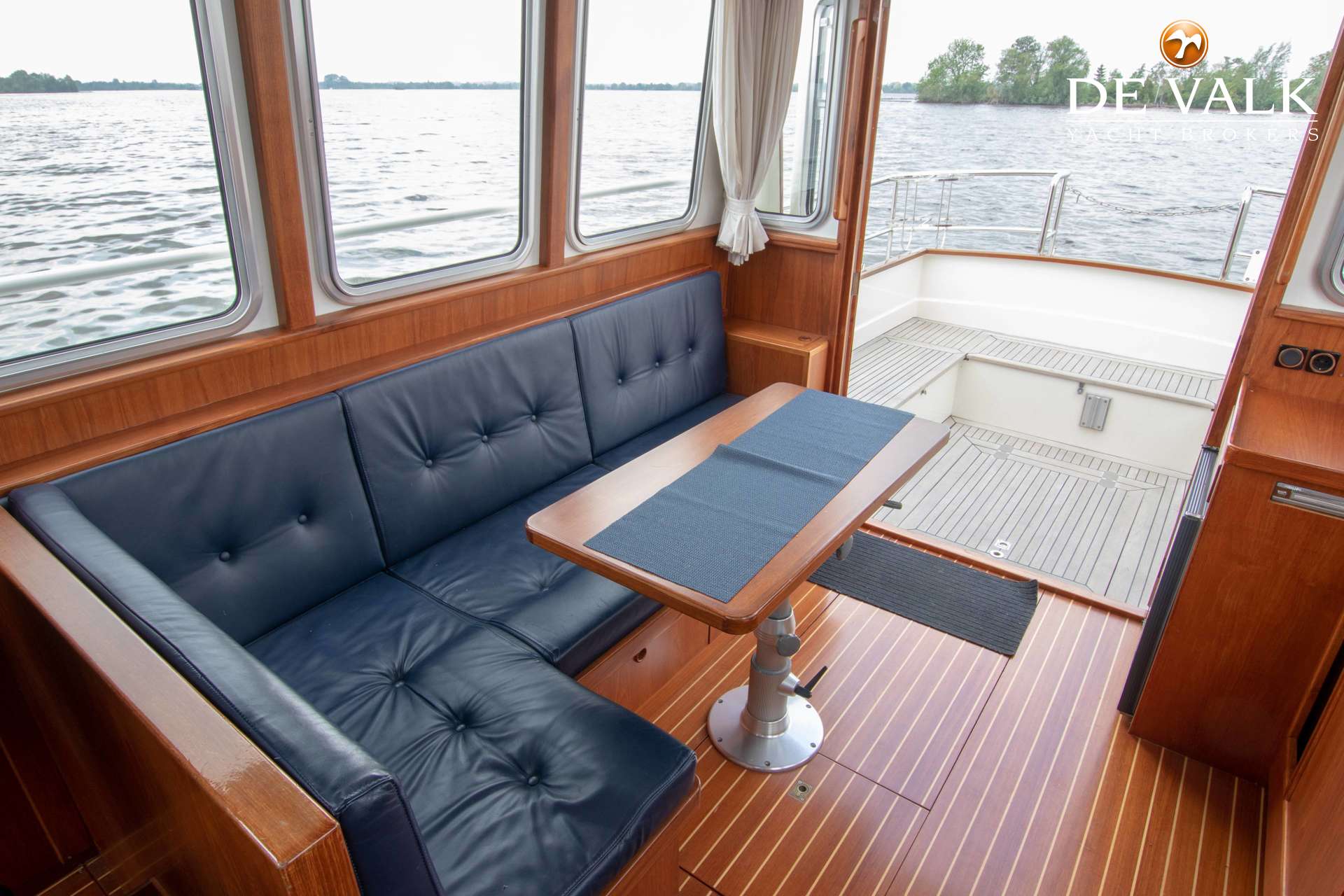

Saloon   yes
Headroom saloon (m)   1,95
Heating   diesel ducted hot air  Eberspacher
Opening door to cockpit   yes
Galley   yes
Countertop   Duropal
Sink   stainless steel

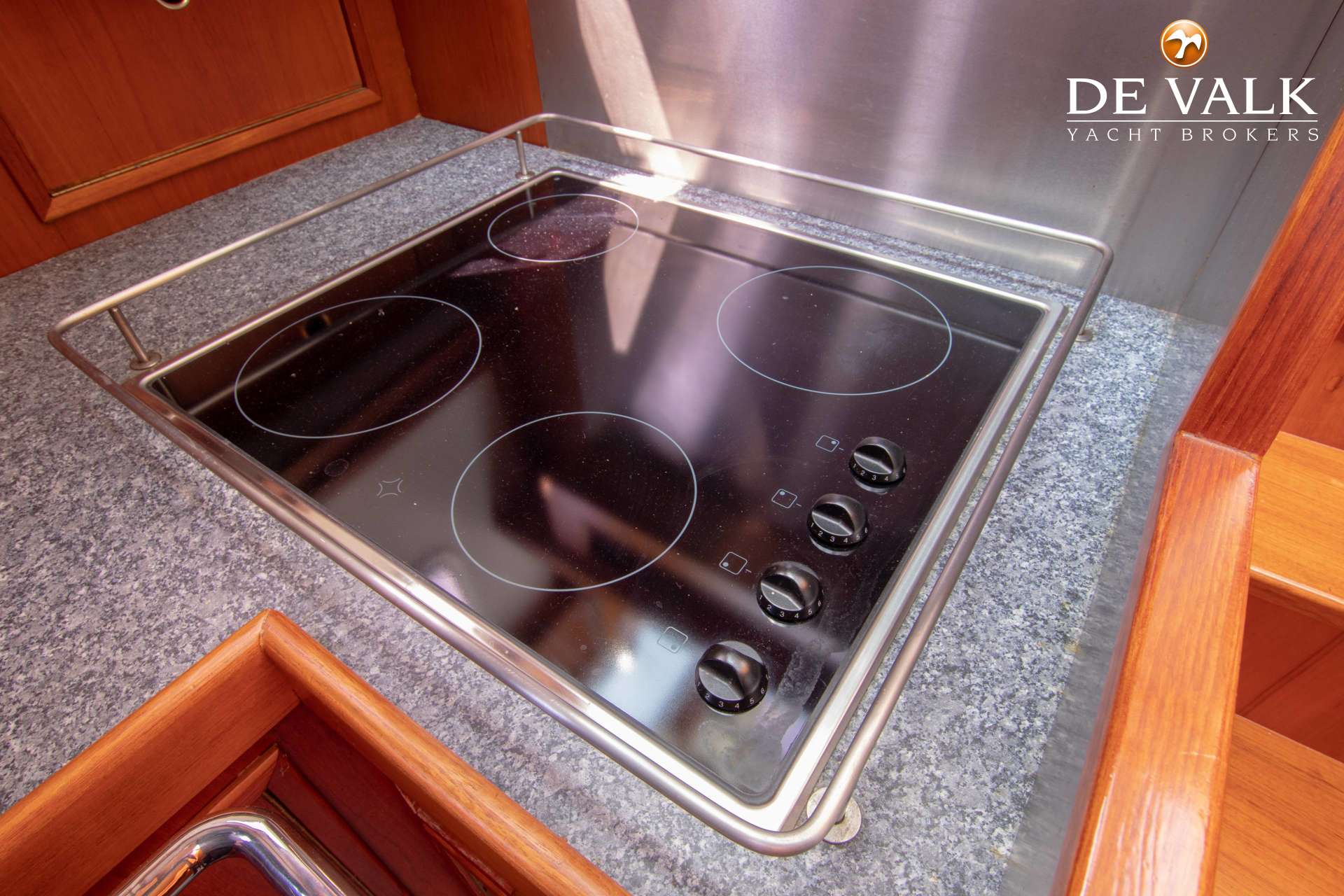

Cooker   ceramic  Atag
Extractor   Vetus
Microwave/oven combi   Sharp
Fridge   2x Isotherm
Freezer   In fridge
Hot water system   220V + engine  60L Isotherm boiler
Water pressure system   electrical
Kettle   yes
Coffee maker   Philips
Owners cabin   v-bed
Bed length (m)   2
Wardrobe   hanging/drawers/shelves
Bathroom   separate
Toilet   separate
Toilet system   electric
Wash basin   in the bathroom

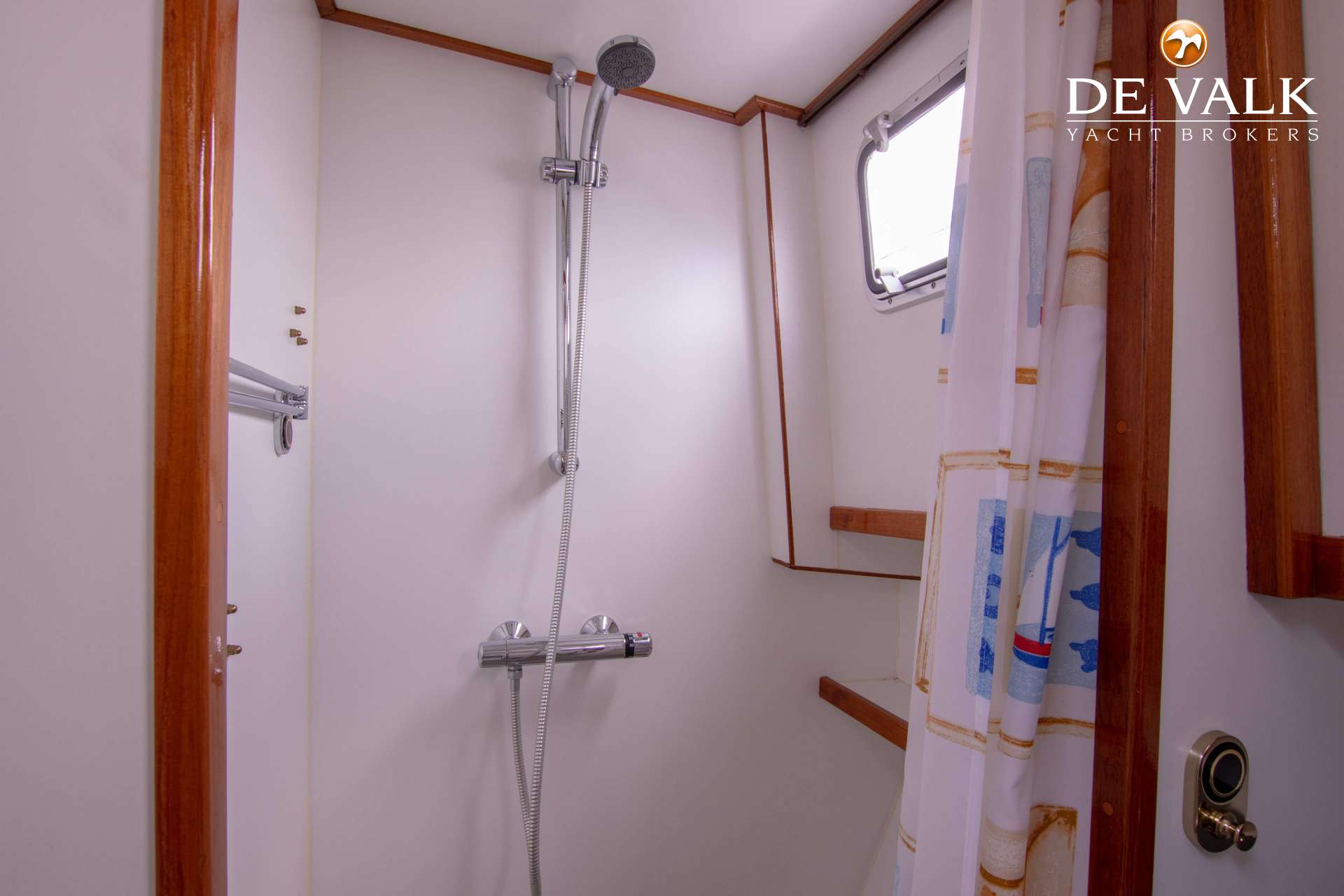

Shower   separate

Machinery

No of engines   2
Make   Vetus Deutz
Type   DT 66 A
HP   210,00
kW   154,00
Fuel   diesel
Year installed   2005
Maximum speed (kn)   22,00
Cruising speed (kn)   12,00
Consumption (l/hr)   6,00
Engine hours   SB: 1892 / BB: 1604
Engine cooling system   freshwater heat exchanger
Drive   shaft
Engine controls   electrical & bowden cable  Morse
Gearbox   mechanical  ZF
Bowthruster   electric
Exhaust   watercooled
Propeller type   fixed
Propeller blades   4
Propeller shaft material   stainless steel
Shaft lubrication   water
Electric bilge pump   yes
Bilge alarm   yes
Electrical installation   24/220
Generator   wet exhaust  Vetus 6KVA
Running hours generator   225
Start battery   2x Vetus 12V/125Ah
Service battery   4x
Battery monitor   Victron BMV-501
Battery charger/inverter   Victron Quattro 24/3000/70
Shorepower   with cable
Trimtabs   Lectrotab control panal

Navigation

Compass   Cassens & Plath
Electric compass   B&G H1000 autopilot
Depth sounder/log   B&G H1000
VHF   Sailor / Uniden Oceanus DSC
Autopilot   B&G H1000
Rudder angle indicator   Vetus
GPS   2x Funuro WAAS GP 32
Plotter/GPS   Simrad
Navigation lights   yes
Searchlight   yes
Extra info   2x Furuno GPD GP-32

Equipment

Fixed windscreen   yes
Cockpit cover   yes
Bimini   yes
Cockpit table   yes
Transom door   Intergrated
Anchor   15 KG
Anchor chain   yes
Windlass   electrical  Vetus Ajax
Dinghy   inflatable
Outboard   2.5 HP Mariner
Sea railing   stainless steel
Grab rail (superstructure)   yes
Wiper   Vetus
Clearview window   Speich
Window heating   yes
Horn   yes
Fenders   yes
Mooring lines   yes
TV   Sharp
TV receiver   Strong 5000T
DVD player   Philips LX3600D
Surround Sound System   yes
Speakers in salon   Pioneer
Clock - barometer   Weems & Plath

Disclaimer

These particulars are given in good faith as supplied but cannot be guaranteed and cannot be used for contracts.
