The CARENA 47 PILOTHOUSE shown below has been sold:

e-mail the broker

Tell a friend

Take time onboard with a live video tour

Seen a boat that piques your interest but can't make a visit in person?
One of our brokers will be your eyes and ears as they take you on a video tour with their phone. You can also ask them questions about anything that isn't visually obvious.

Make the call and be welcomed aboard...

Broker's comments

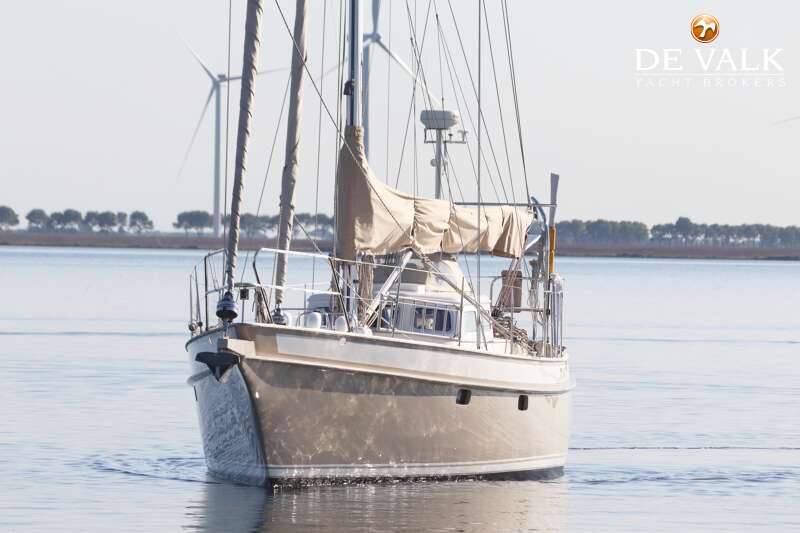

Beautiful Custom Built Yacht for a Lifetime ! The current (first) owner has recently carried out a complete professional refit on the Carena 47 and no expense has been spared. The boat is very suitable for long sea voyages and also for permanent residence. The boat is easily operated by a small crew. The hull is Corten steel, the deck is steel and the superstructure is aluminum.

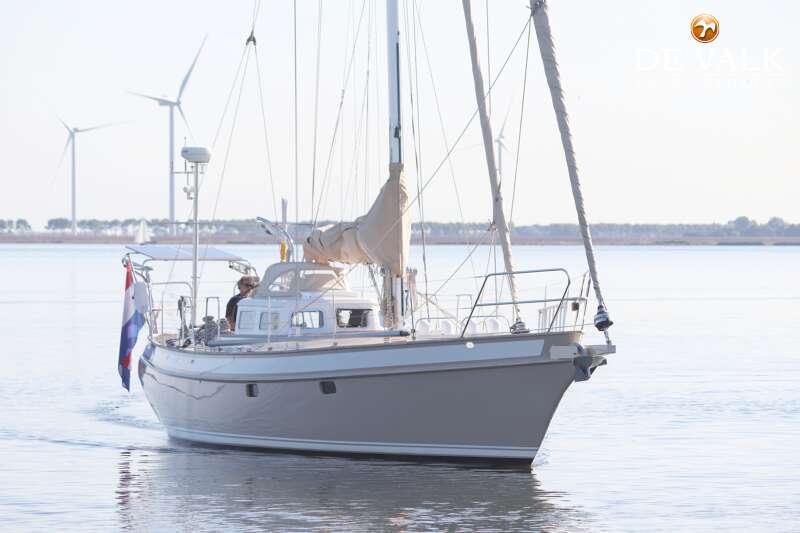

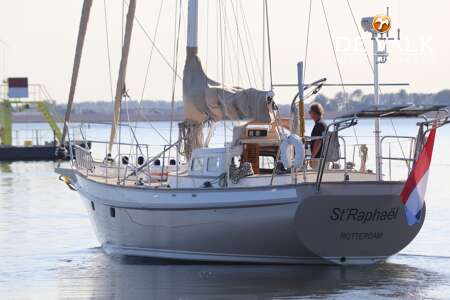

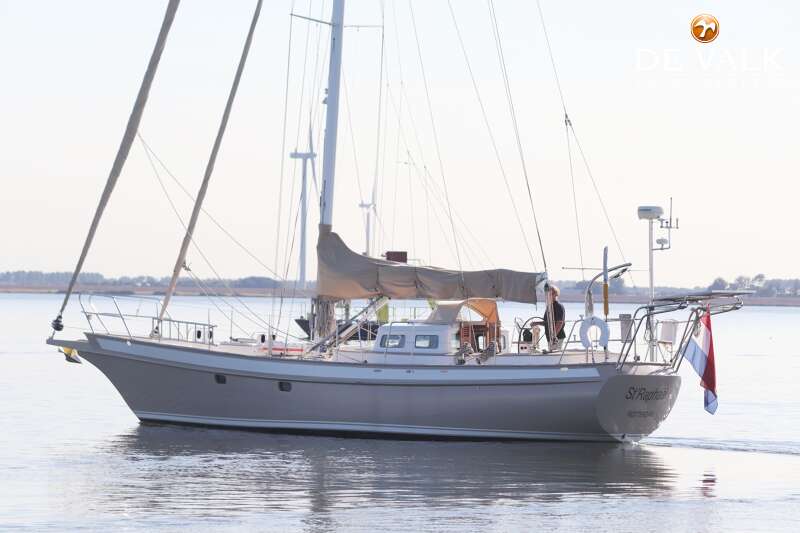

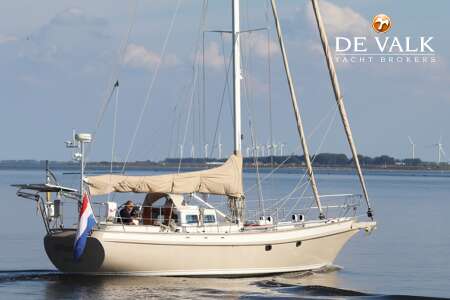

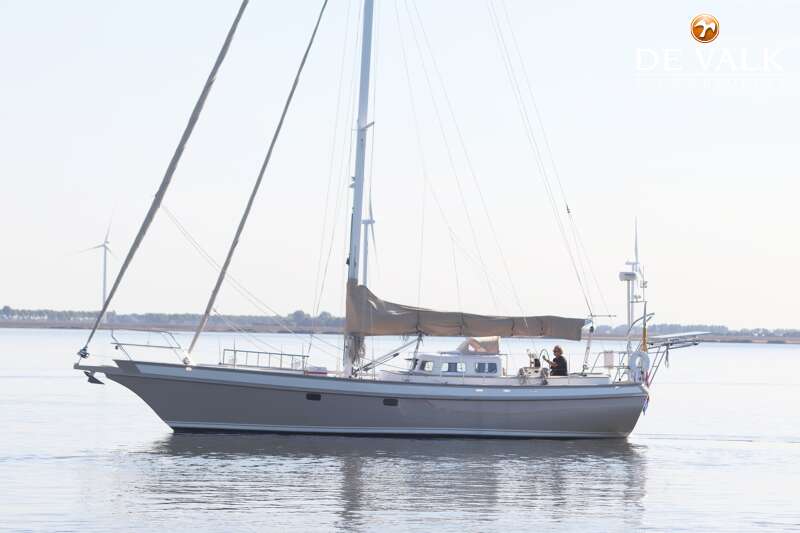

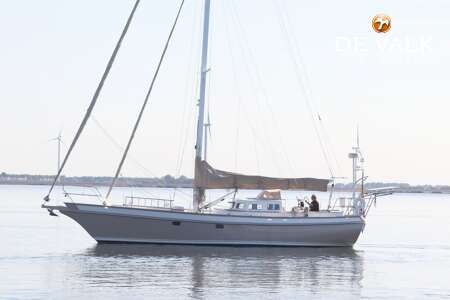

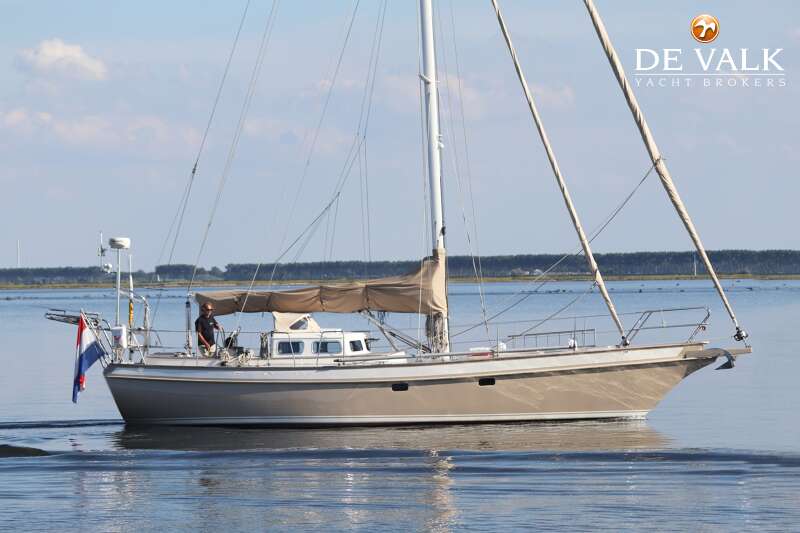

CARENA 47 PILOTHOUSE

Dimensions   14,04 x 4,00 x 1,90 (m)
Material   steel
Built   1996
Engine(s)   1 x Yanmar 4JH4-TE diesel
HP/Kw   75 (hp), 55,2 (kw)
Lying   not at sales office
Sales information   De Valk Sint Annaland
Status   sold


General - CARENA 47 PILOTHOUSE

Model   CARENA 47 PILOTHOUSE
Type   sailing yacht
LOA (m)   14,04
LWL (m)   12,45
Beam (m)   4,00
Draft (m)   1,90
Air draft (m)   20,30
Headroom (m)   2,00
Year built   1996
Launched   1998, 2000 and 2022
Builder   G.M. Yachting - Stellendam
Country   The Netherlands
Designer   Hull design based on Carena 36 (Lemstra)
Displacement (t)   14,5
Ballast (tonnes)   lead in steel  4
CE norm   NA
Hull material   steel
Hull colour   beige  re-painted in 2022
Hull thickness (mm)   5 mm corten steel (1996)
Hull shape   S-bilged  corten steel hull sandblasted to SA 2.5 (before first painting)
Keel type   long keel  Semi - Long keel
Superstructure material   aluminium  (1996)
Deck plate thickness (mm)   5 mm (1996)
Rubbing strake   stainless steel

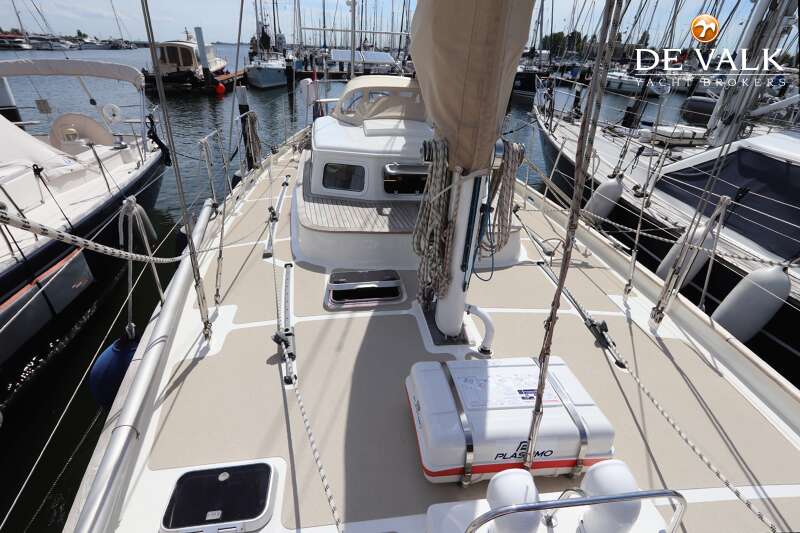

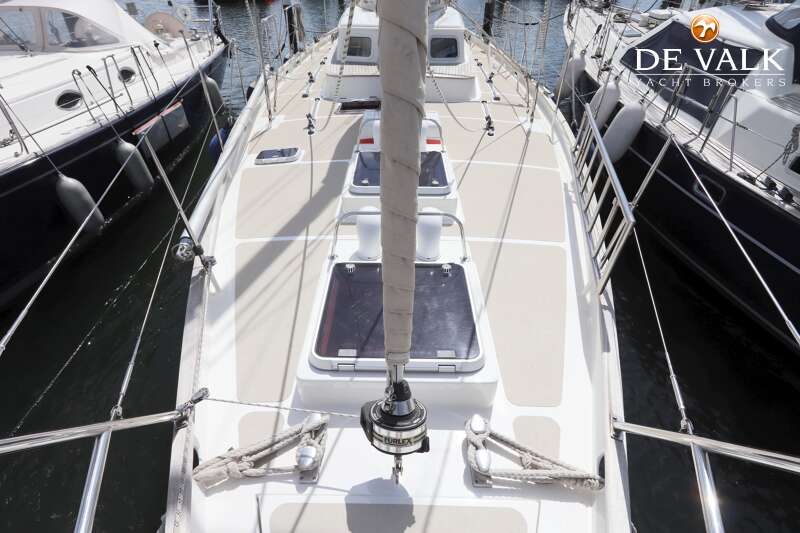

Deck material   steel

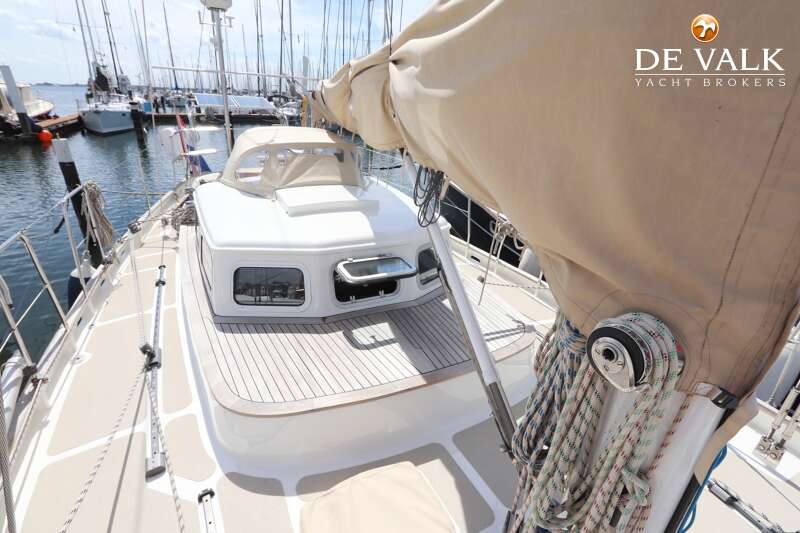

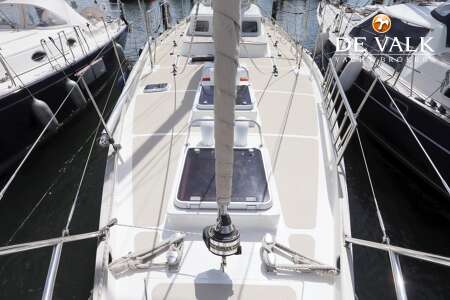

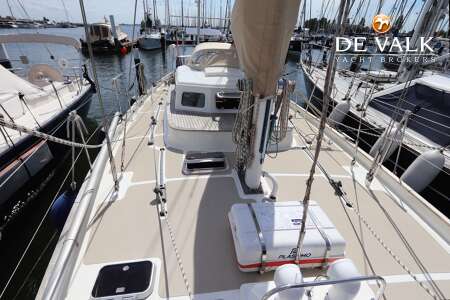

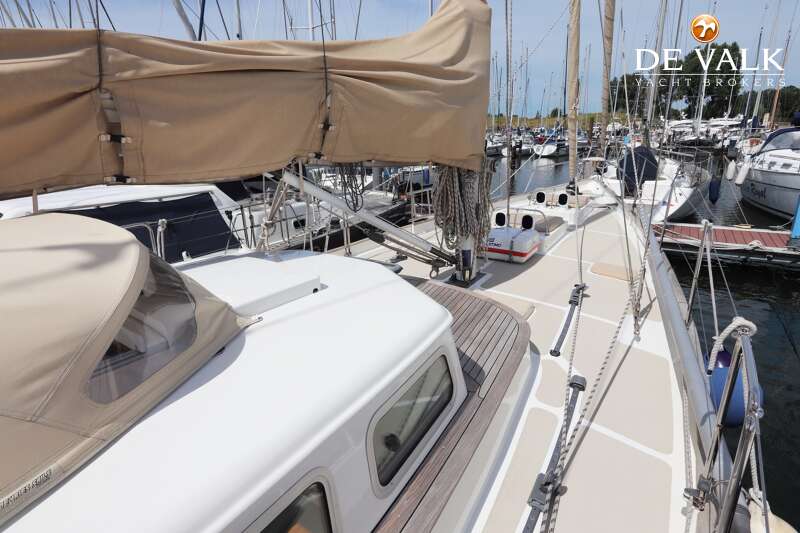

Deck finish   TBS non-skid profile mats  (New in 2021/2022). White painted deck (2021/2022)

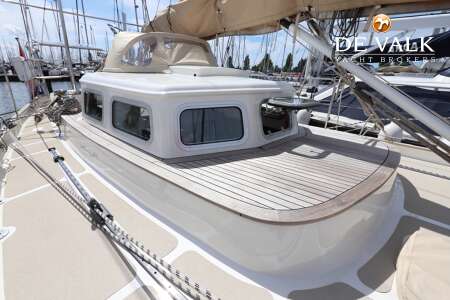

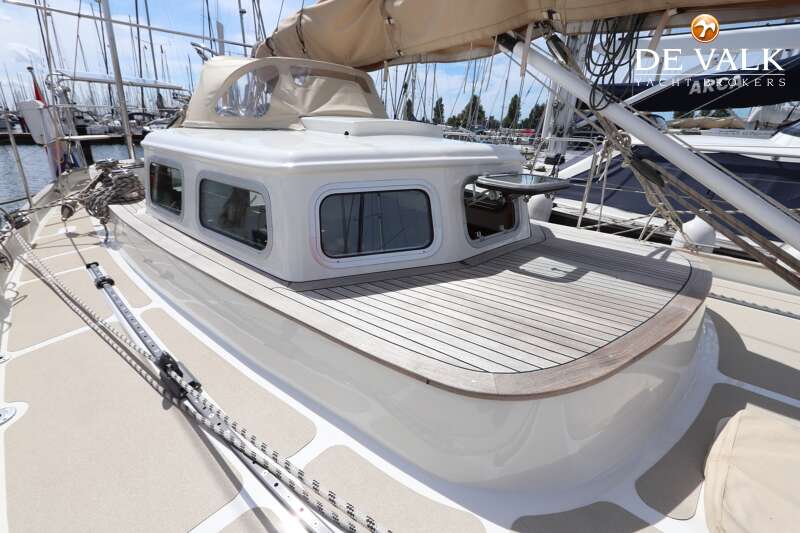

Superstructure deck finish   teak  (New 2012+refit 2021). White painted superstructure (2021/2022)

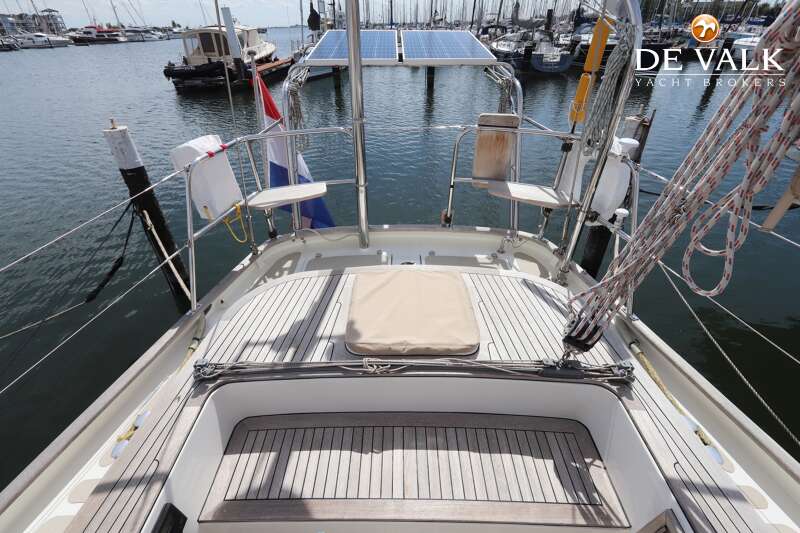

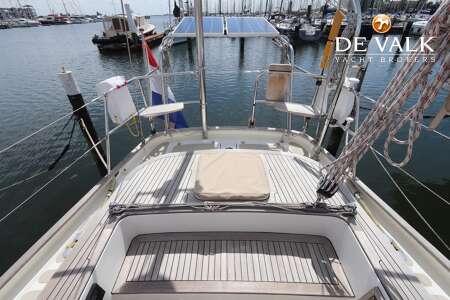

Cockpit deck finish   teak  (New in 2012 + refit in 2021). White painted cockpit (2021/2022)
Antifouling (year)   2022
Dorades   aluminium with plastic air-vents (4 x air-vent : New in 2022)
Window frame   aluminium
Window material   double glazing  Hora tempered and harded glass (10 mm and 6 mm - 1998)
Deckhatch   Lewmar (1998) with beige covers (2020)
Portholes   stainless steel
Insulation   foam  (40 - 50 mm) (2000)
Fuel tank (litre)   steel  450 L (in the keel - 1996)
Fuel daytank (litre)   aluminium  90 L (2000)
Level indicator (daytank)   yes
Freshwater tank (litre)   steel  1000 L (cemented steel - 2000)
Blackwater tank (litre)   steel  350 L (not connected at this moment - 1996)

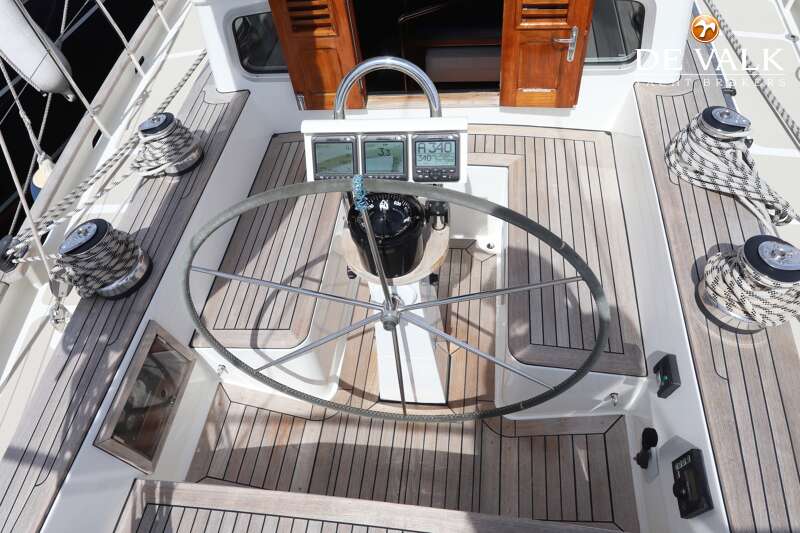

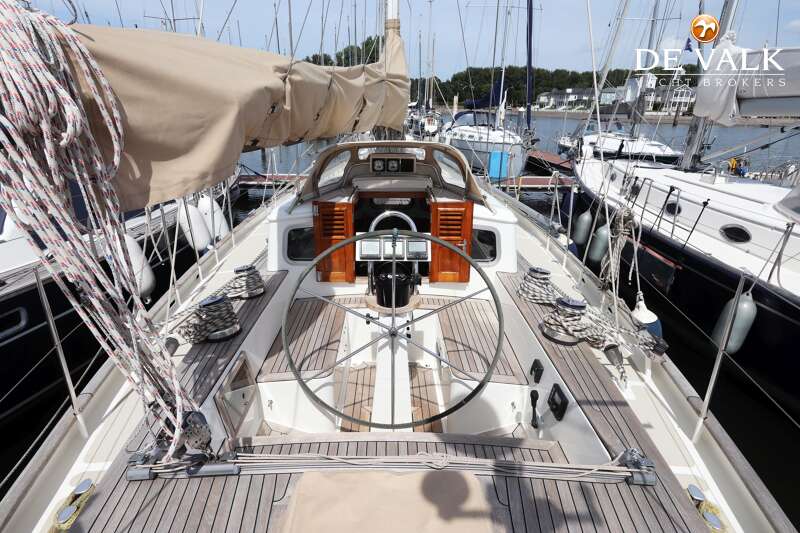

Wheel steering   stainless steel covered with leather (1996)
Inside helm position   via the autopilot (2000)
Outside helm position   cable steering  connected on to the quadrant (1996)
More info on hull   Epoxy on underwater hull before first layor antifouling applied
Extra info   Stainless steel hawse-holes, gunwales, stanchion bases, bowsprit

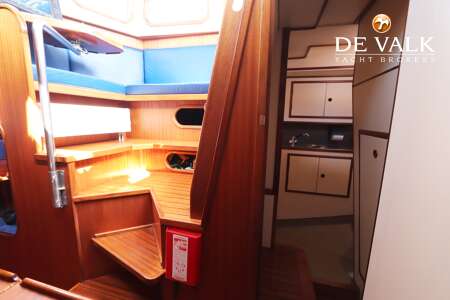

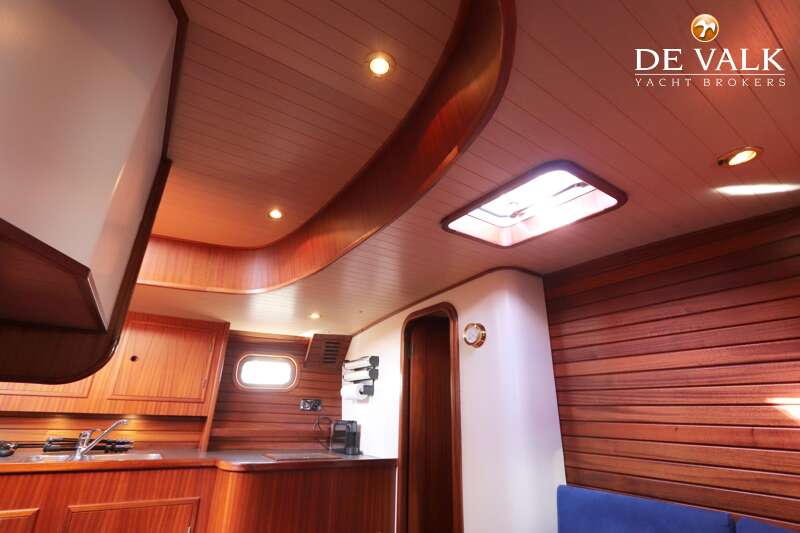

Accommodation

Cabins   2
Berths   5

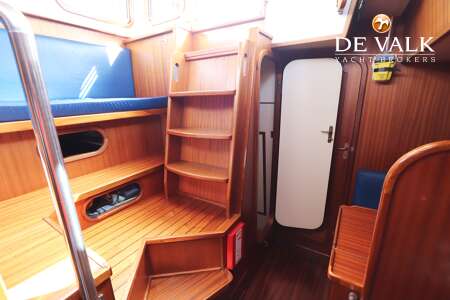

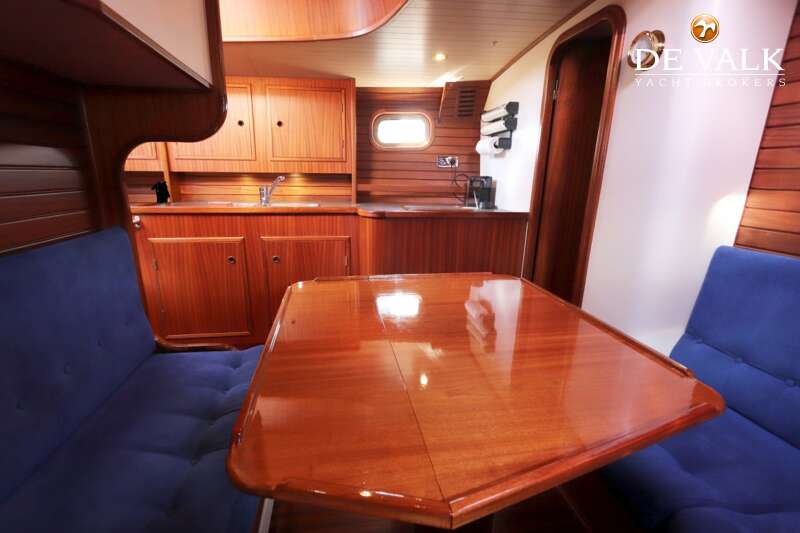

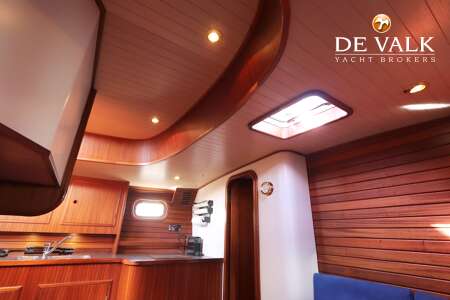

Interior   mahogany  (2000)
Floor   wood  mahogany
Aft deck   yes

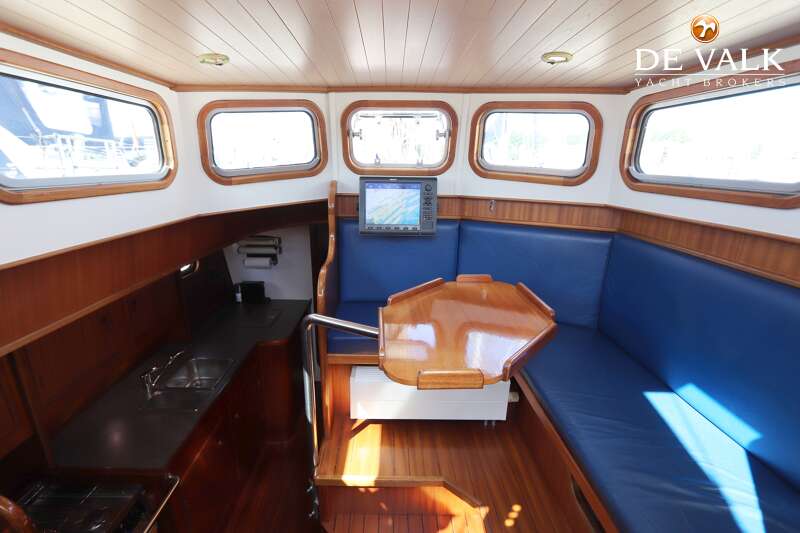

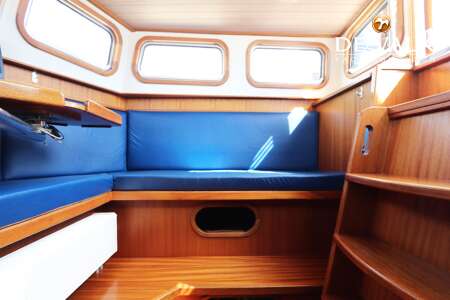

Pilot house/deck saloon   yes

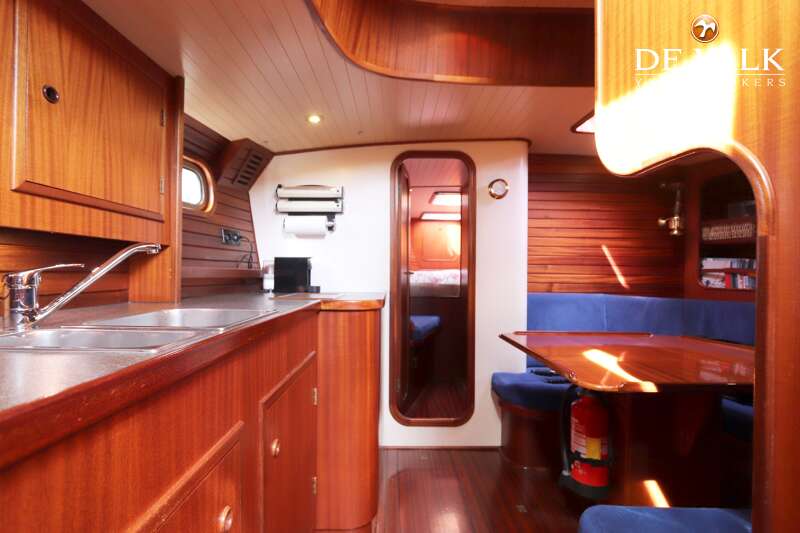

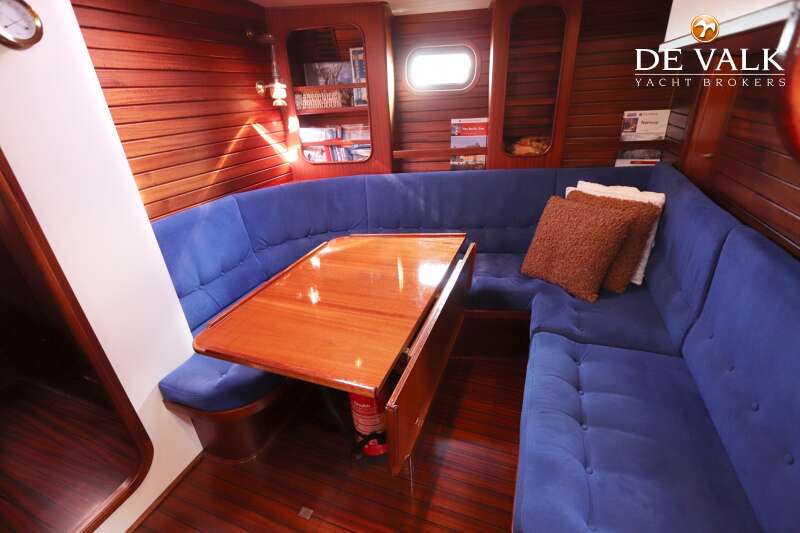

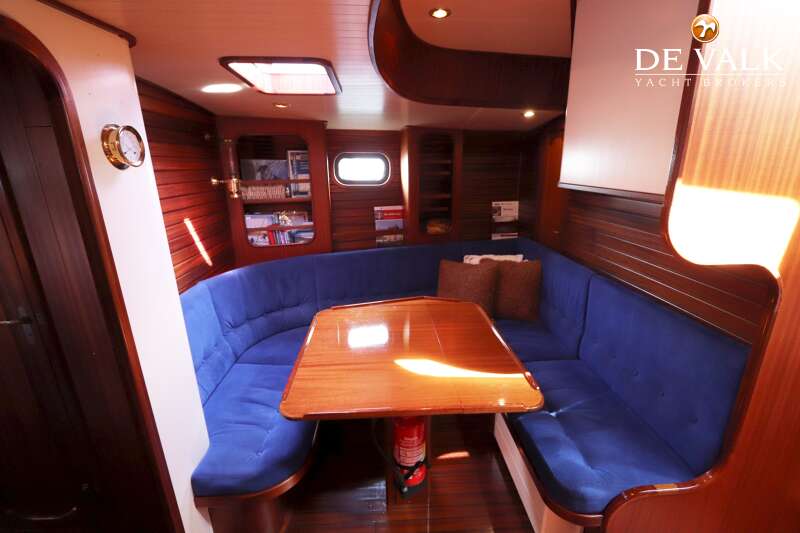

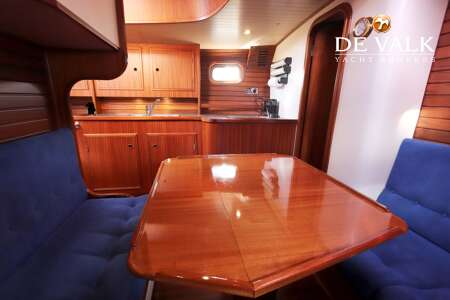

Saloon   yes
Headroom saloon (m)   1,90 - 2,10 - 2,60

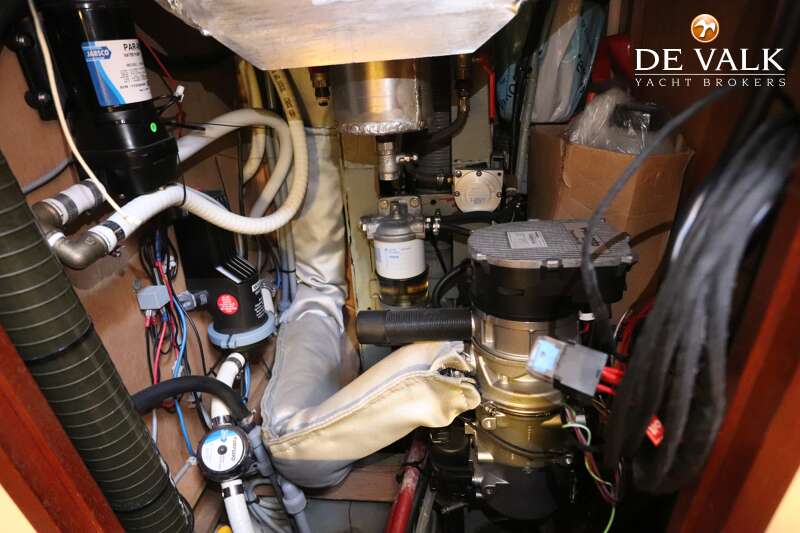

Heating   central heating  Webasto 90 Pro (New in 2020)

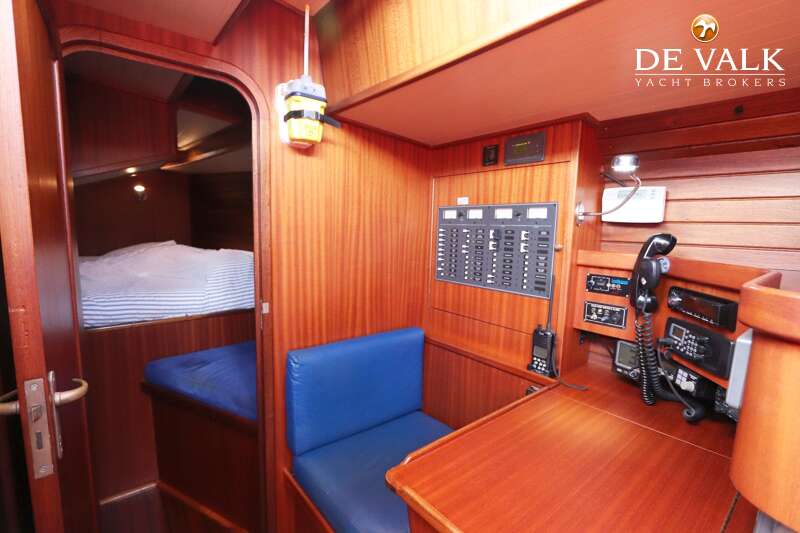

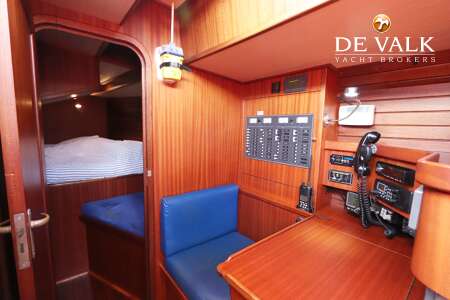

Chart table   on port side

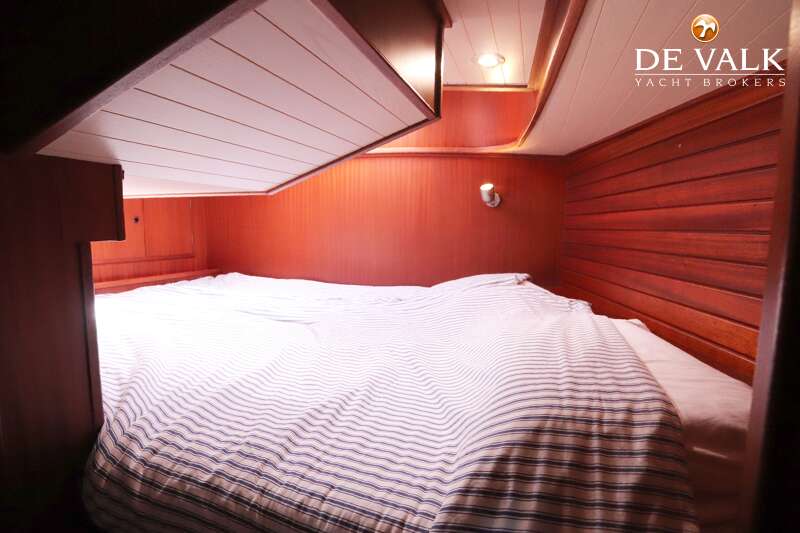

Aft Cabin   with two persons bed (across)

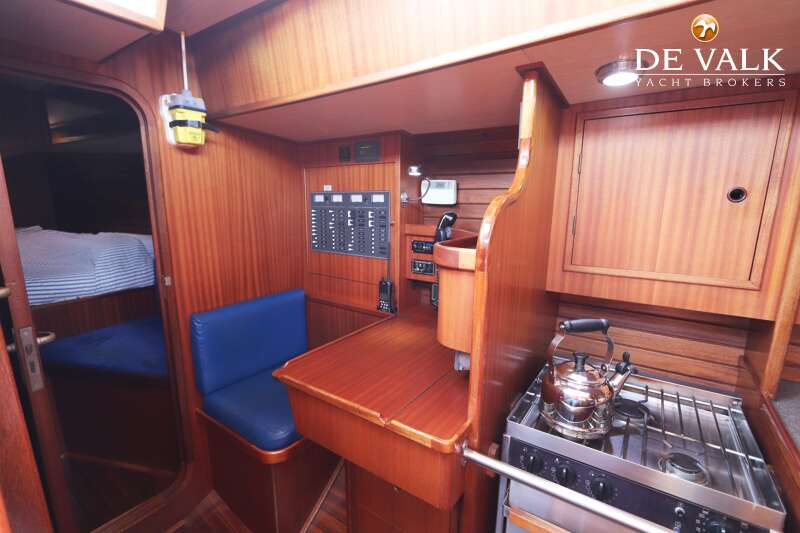

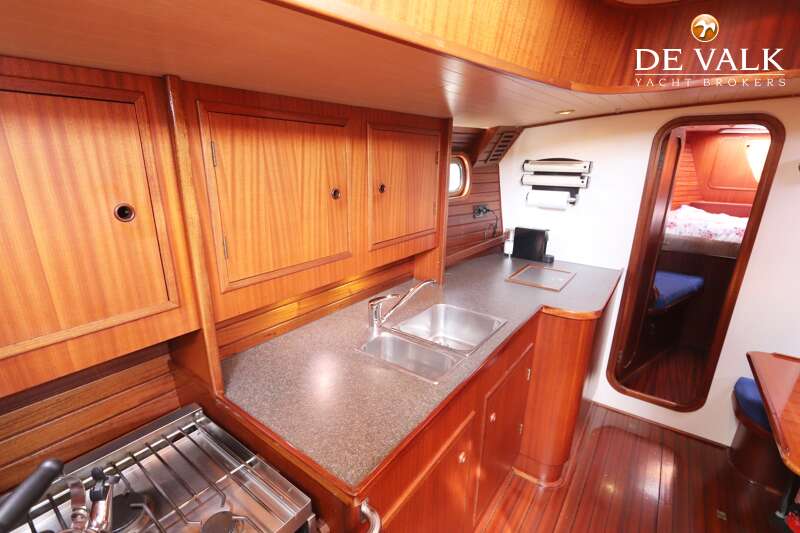

Galley   on port side
Countertop   Duropal
Sink   stainless steel
Cooker   calor gas  stainless steel Force 10 with 3 burners (2000)
Oven   stainless steel Force 10 (2000)
Gas alarm   New (not mounted yet)
Fridge   Top-loader with a cold battery (Isotherm watercooled compressor)
Hot water system   220V + engine  Isotherm boiler (2014)
Water pressure system   electrical  (2000)
Crockery   yes

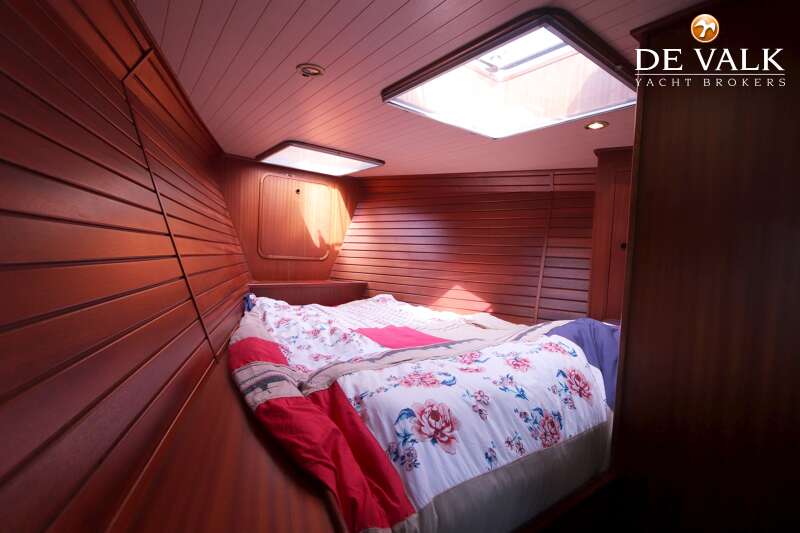

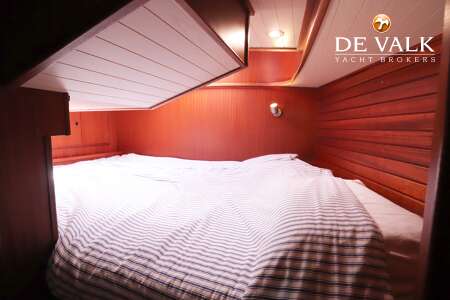

Owners cabin   double bed
Bed length (m)   2,00 - 2,30 x 1,70
Wardrobe   hanging/drawers/shelves

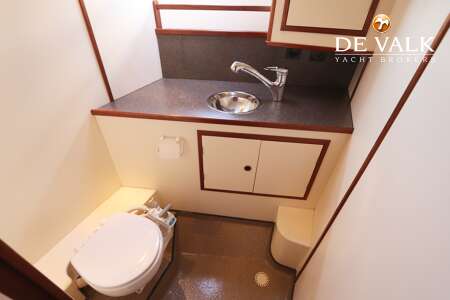

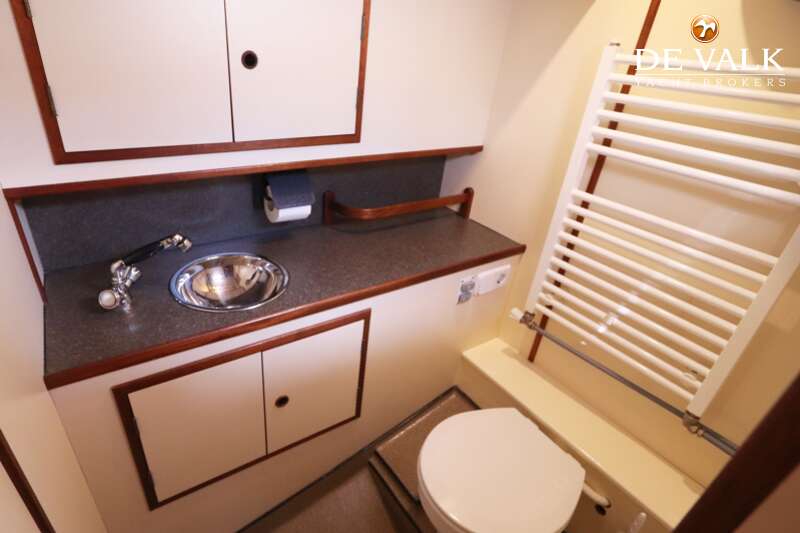

Bathroom   en suite

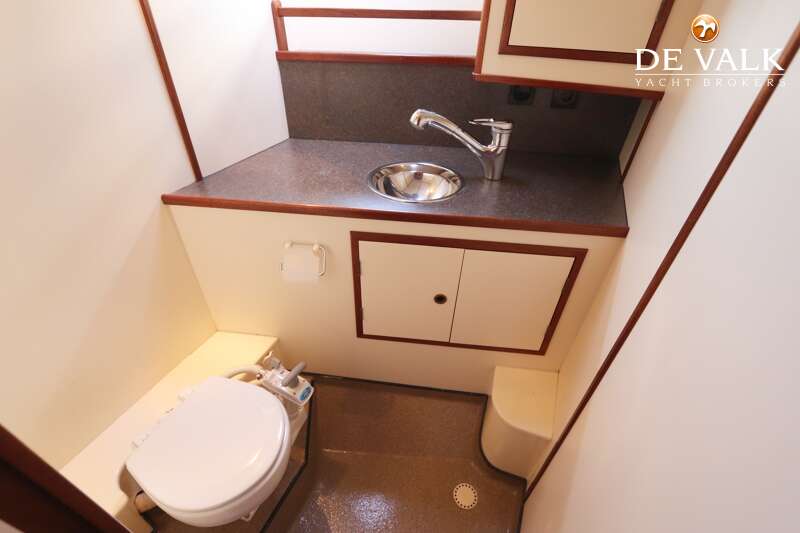

Toilet   en suite
Toilet system   electric  Jabsco (New in 2020)
Wash basin   in the bathroom
Shower   en suite
Guest cabin 1   v-bed
Bed length (m)   2,00 x 1,70
Wardrobe   hanging/drawers/shelves
Bathroom   en suite
Toilet   en suite
Toilet system   manual  Jabsco
Wash basin   in the bathroom
Shower   en suite

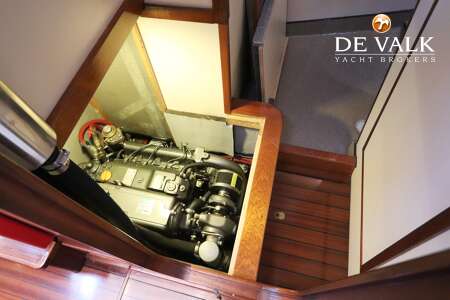

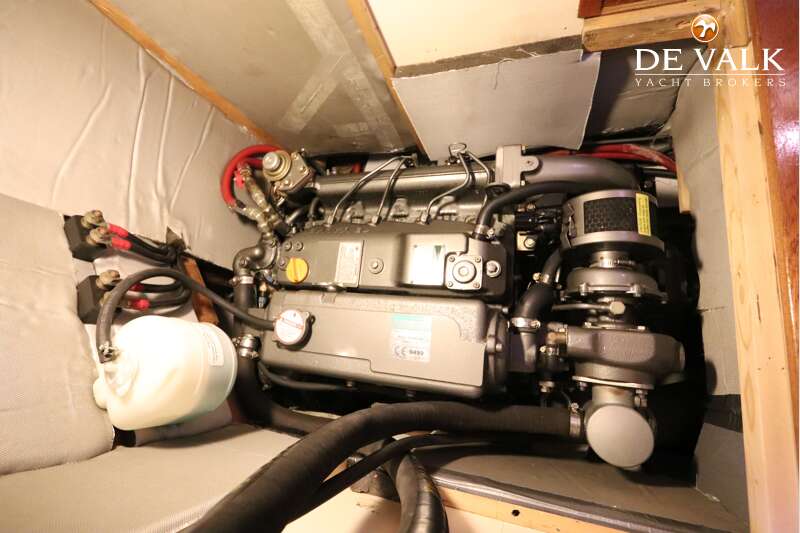

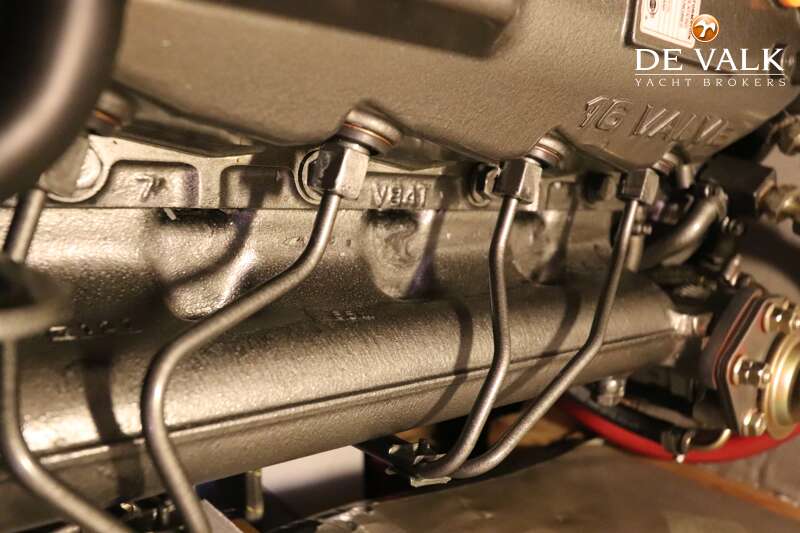

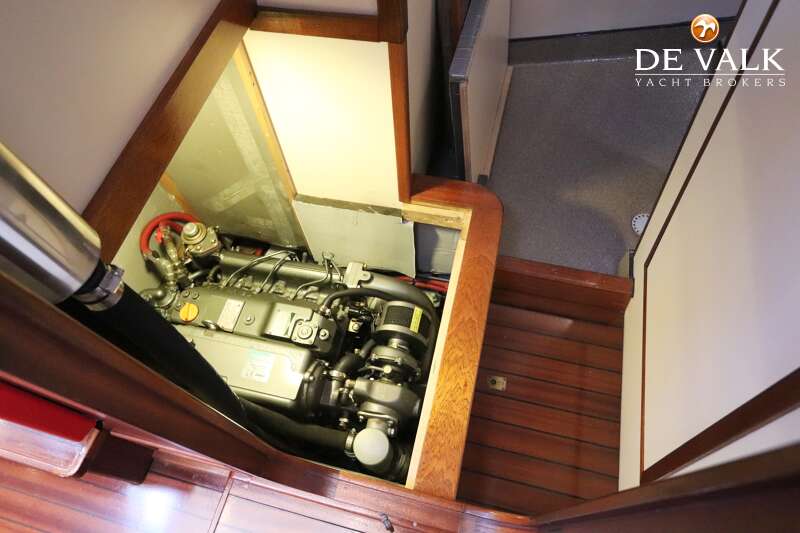

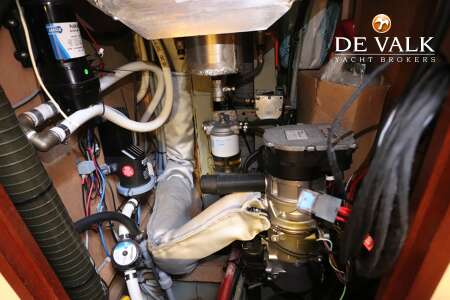

Machinery

No of engines   1

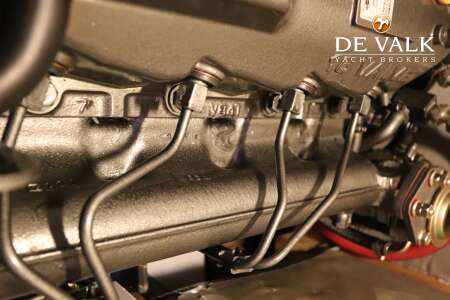

Make   Yanmar
Type   4JH4-TE
HP   75
kW   55.20
Fuel   diesel
Year installed   2007
Maximum speed (kn)   9
Cruising speed (kn)   7,5
Consumption (l/hr)   3,6
Engine hours   1810
Engine cooling system   freshwater heat exchanger  (New in 2007)
Drive   shaft
Engine controls   bowden cable  (New in 2007)
Gearbox   mechanical  (New in 2007)
Bowthruster   electric  Cram - twinprop (installed in 2000)
Exhaust   watercooled
Thrust bearing   Aqua Drive and CV (Constant Velocity) Joint (both from 2000)
Propeller type   fixed  (New in 2007)
Propeller blades   3
Propeller shaft material   stainless steel  (New in 2007)
Shaft lubrication   water  Volvo Seal (New in 2017)
Manual bilge pump   (1997)
Electric bilge pump   (2000)
Bilge alarm   (2000)
Electrical installation   12 and 220 Volt

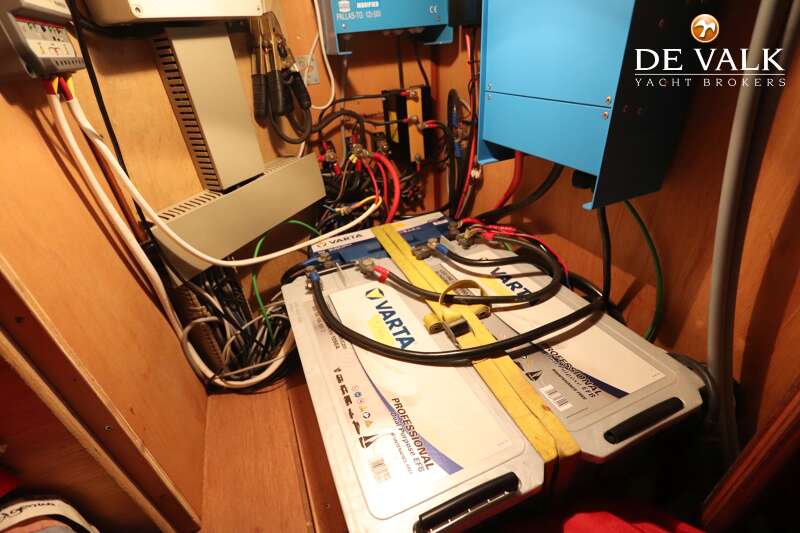

Batteries   4 x
Start battery   1 x Varta 95 Ah (New in 2022)
Service battery   2 x Varta 190 Ah (New in 2022)
Bowthruster battery   1 x Varta (New in 2019)
Battery monitor   Mastervolt Battery Monitor BTM-1 (2000)
Battery charger   Victron Pallas-TG 12V-50A (2000)
Inverter   Victron Phoenix Inverter Compact 12V / 230V - 2000W (2012)
Solar panel   2x 140W with ProStar-30 SolarChargeController (All new in 2021)
Diode battery combiners   yes
Shorepower   with cable

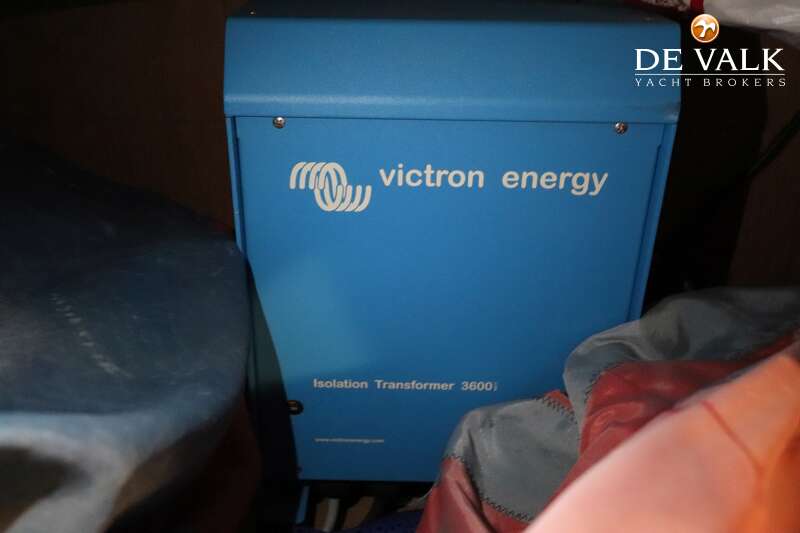

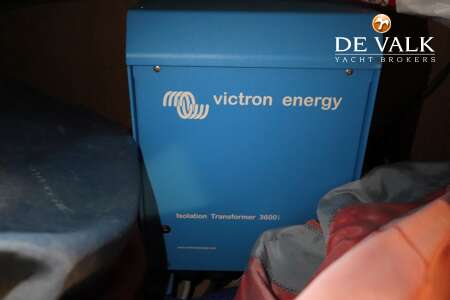

Insulation transformer   Victron Isolation Transformer 3600 Watt (2007)
Extra info   80 A Alternator on the engine (2007)
Extra info   Original engines replaced in 2000 and replaced again in 2007

Navigation

Compass   Plath (2000)
Electric compass   for the autopilot (2000)
Depth sounder   Simrad IS50 (New in 2014)
Log   Simrad IS50 (New in 2014)
Windset   Simrad IS50 (New in 2014)
Repeater   1x Simrad IS12 Mega (New in 2014) at the chart table
VHF   1x Simrad RD68 (New in 2014) and 1x Furuno FM-2510 (2000)
VHF handheld   Icom IC-M21 Water Resist (2000)
Autopilot   Simrad (hydraulic drive) with remote inside and outside (2000)
Rudder angle indicator   in the autopilot (2000)
Radar   Raymarine (2000) in Pilothouse (New dome in 2010)
GPS   1x Furuno GP-32 (2000) and 1x Simrad

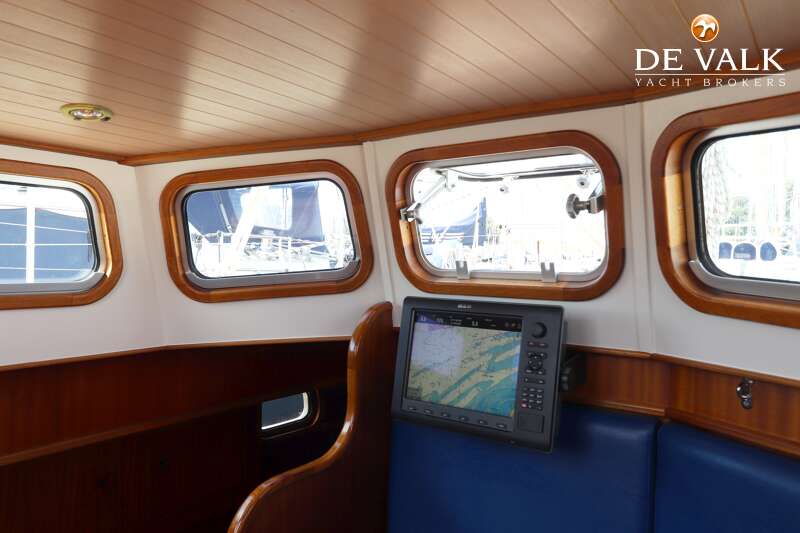

Plotter/GPS   B&G Z12 in Pilothouse (New in 2017)
Navtex   Furuno NX-300 (2000)
Electronis chart(s)   Navionics Platina (updated in 2020)
AIS transceiver   Simrad AI50 Class B (New in 2017)
Transmitter   Icom 706MKIIG - Spit with Icom PactorModem III Transmitter(2000)
EPIRB   Satellite 2 - 406 (2000)
Navigation lights   LED (New from 2022)
Extra info   Stainless steel antenna pole on stern (2000)

Equipment

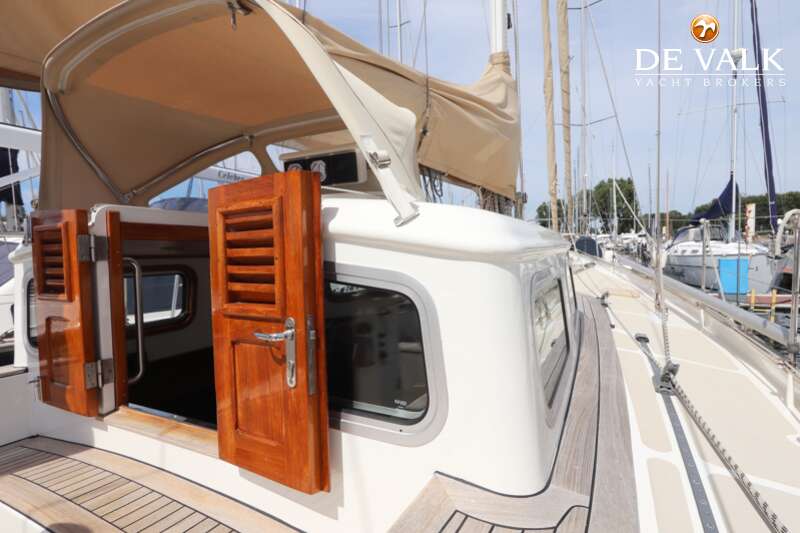

Sprayhood   Beige (New in 2020)
Sun awning   1 x smal (with side flaps) and 1 x large (2003)
Winter cover   cover over the teak in the cockpit (2001)
Cockpit table   teak (2000)
Boarding ladder   stainless steel  , can be mounted at the opening gates on both sides (2000)
Deck shower   via window

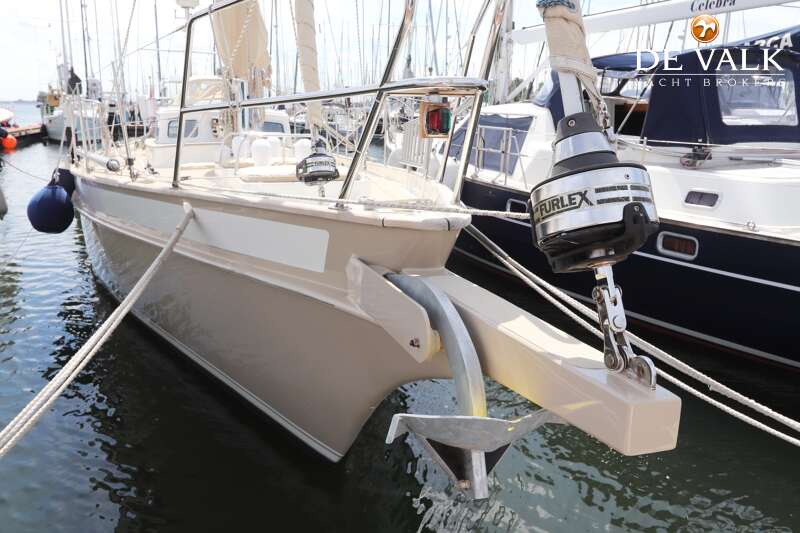

Anchor   Spade Anchor (New in 2022)
Anchor chain   10 mm 60 meter galvanised (2012)
Anchor 2   Fortress  with 10 meter lead weighted anchor line and 60 meter anchor line
Windlass   electrical  MUIR VFF 1650 (mounted below deck in 2000)
Outboard support   teak (2007)
Davits   stainless steel  (2007)
Davits controls   manual
Deck crane   manual  Simpson in stainless steel (2007)
Sea railing   stainless steel - double wired (New from 2022)
Railing side opening gates   stainless steel - on port and starboard side (2000)
Pushpit   stainless steel (2000)
Pulpit   stainless steel (2000)
Life raft (pers)   container  4 persons Plastimo Transocean Type 1 Groupe A (New from 2022)
Lifejackets   3 x
Safety harness   3 x
Lifebuoy   yes
Danbuoy   yes
Safety lines on deck   Belt on deck
Horn   manual
Radar reflector   Tri-Lens (2000)
Fenders   yes
Mooring lines   yes
Radio-cd player   Pioneer MixTrax
iPod connection   yes
Speakers in salon   2 x
Fire extinguisher   2 x
Latest extinguisher survey   Need to be surveyed / replaced
Extra info   Fire-Blanket

Rigging

Rigging   sloop-cutter
Standing rigging   Main rigging in Dyform and the rest of the rigging in 10 mm wire
Brand mast   Holland Spar  (1998)
Material mast   aluminium  white painted in 2021/2022
Spreaders   2 x 2 spreaders - white painted in 2021/2022
Mainsail cover   Beige (2015)
Battcars   3 x (2000)
Fully battened mainsail   De Vries Sails Semi-Fully battened (2000)
Jib   De Vries Sails Cutter Jib (2007) with UV protection strip
Genoa   De Vries Sails (2000) with reef tape and UV protection strip
Genoa furler   manual Furlex 300S (2000)
Cutter furler   manual Furlex 200S (2007)
Reefing System   slabreefing  3 x reef
Boomvang   gasspring  (New in 2020) - Holland Spar - white painted in 2021/2022
Secondary sheet winch   stainless steel Andersen 2 x 46 ST (1998)
Genoa sheetwinches   stainless steel Andersen 2 x 52 ST (1998)
Halyard winches   stainless steel Andersen 2 x 40 ST (on the mast in 1998)
Reefing winch   1 x (1998)
Spi-pole   aluminium  (2000)
Extra info   Lazy-Jacks, Backstays, Babystay. Lewmar Genoa tracks on deck
Extra info   Standing rigging checked by Holland Spar in 2022

Disclaimer

These particulars are given in good faith as supplied but cannot be guaranteed and cannot be used for contracts.
