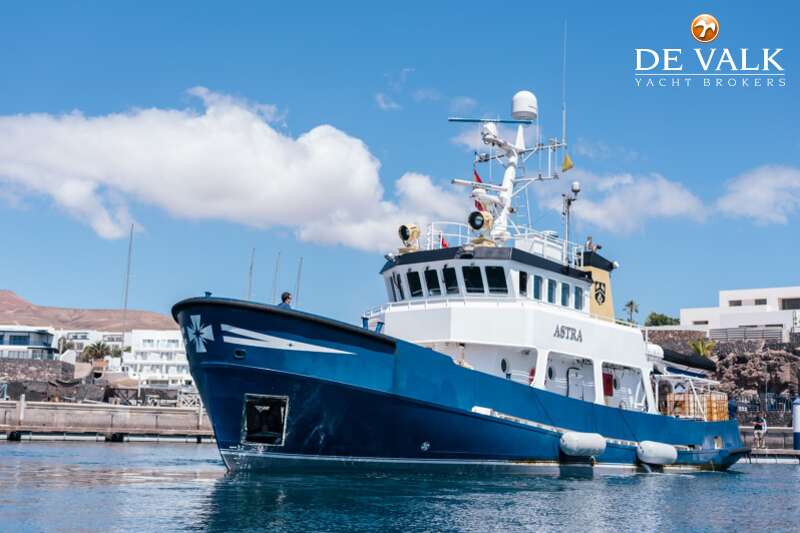

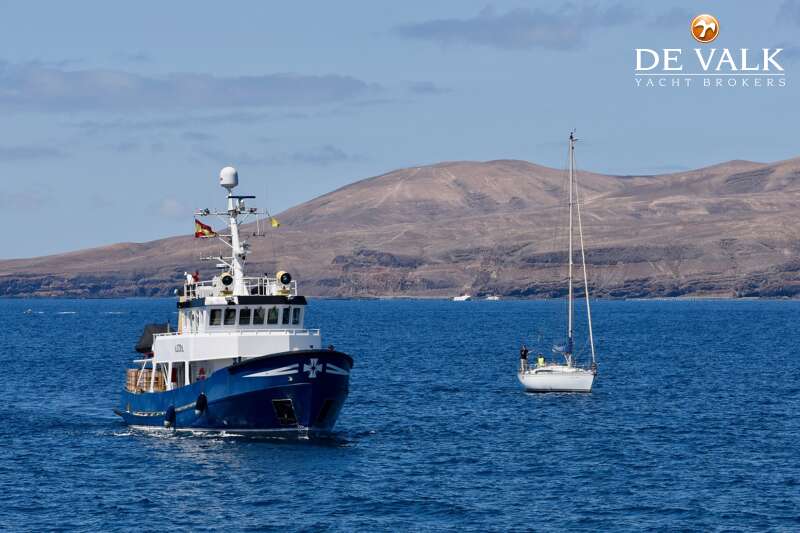

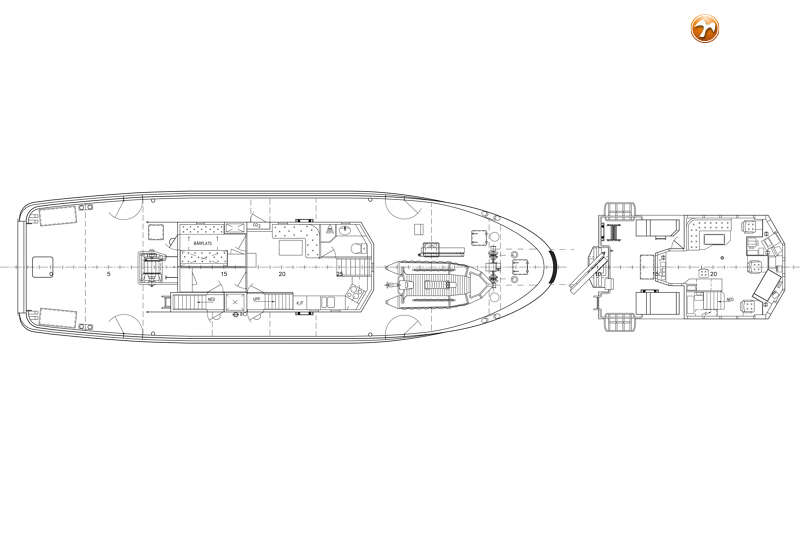

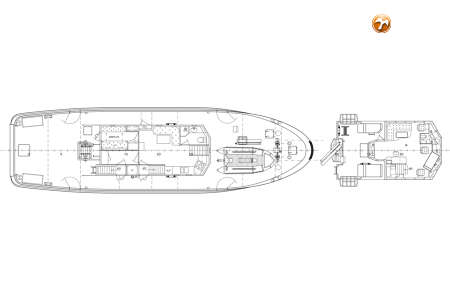

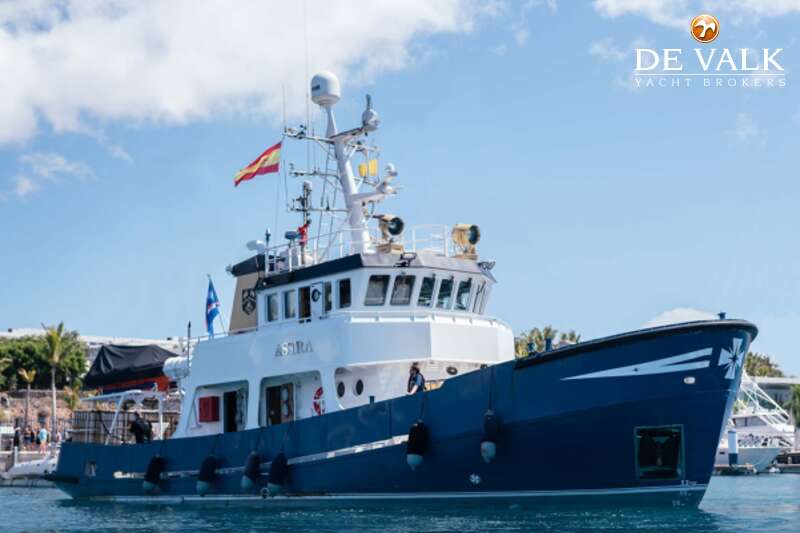

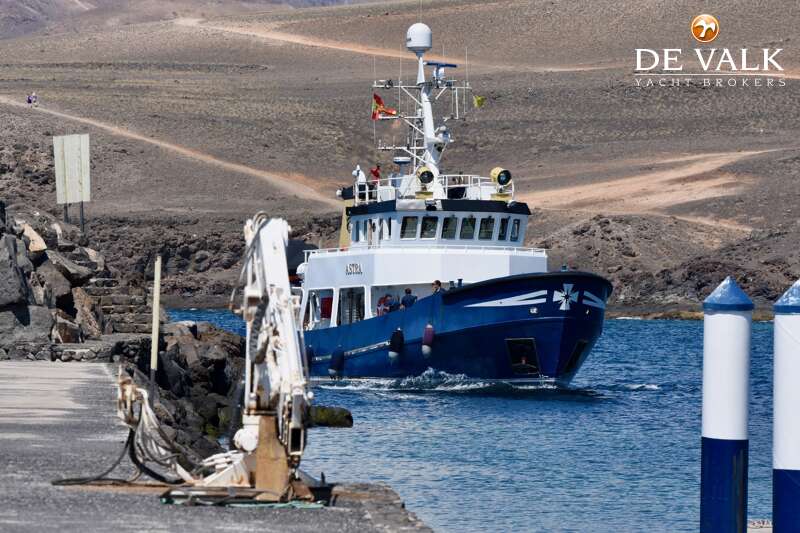

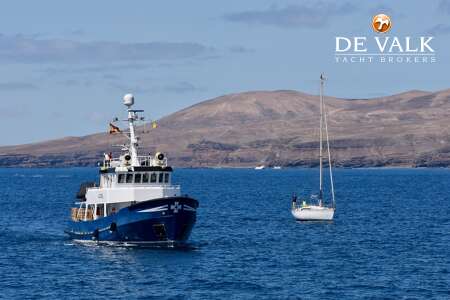

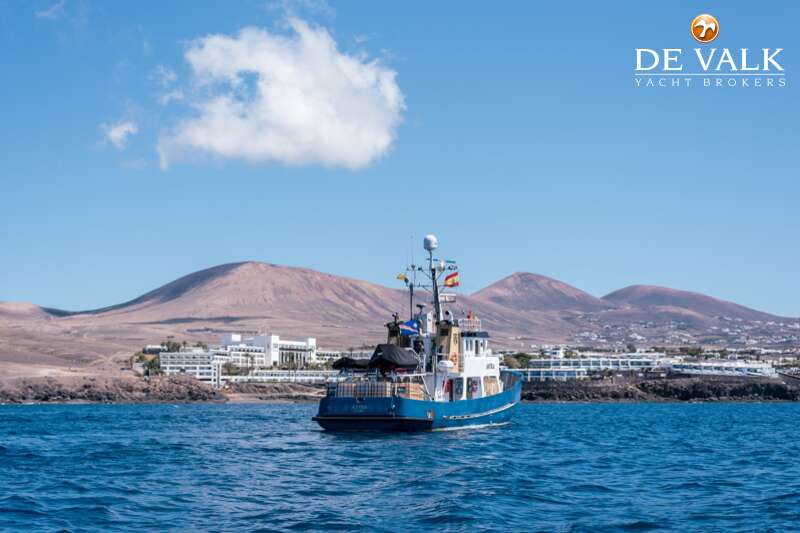

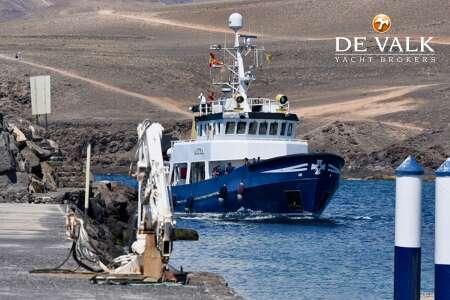

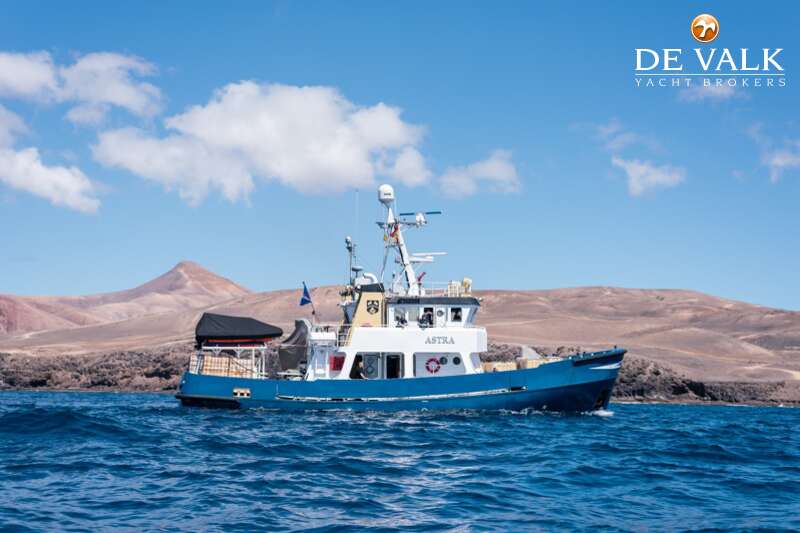

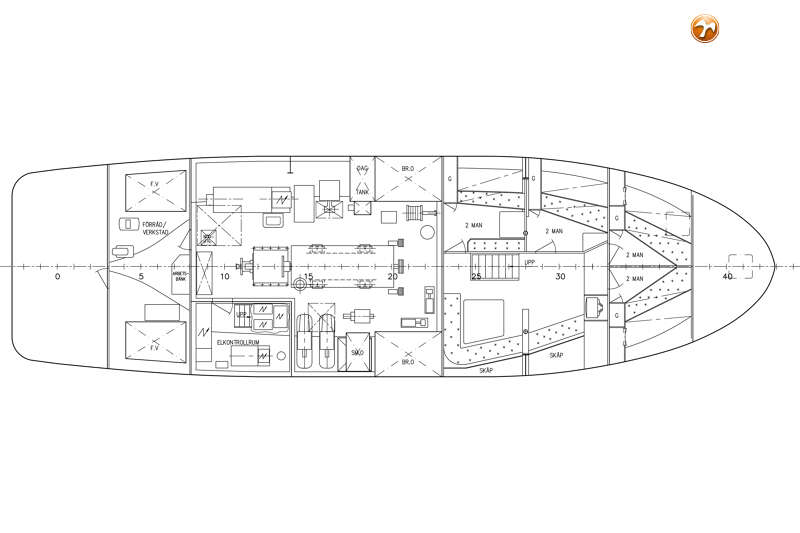

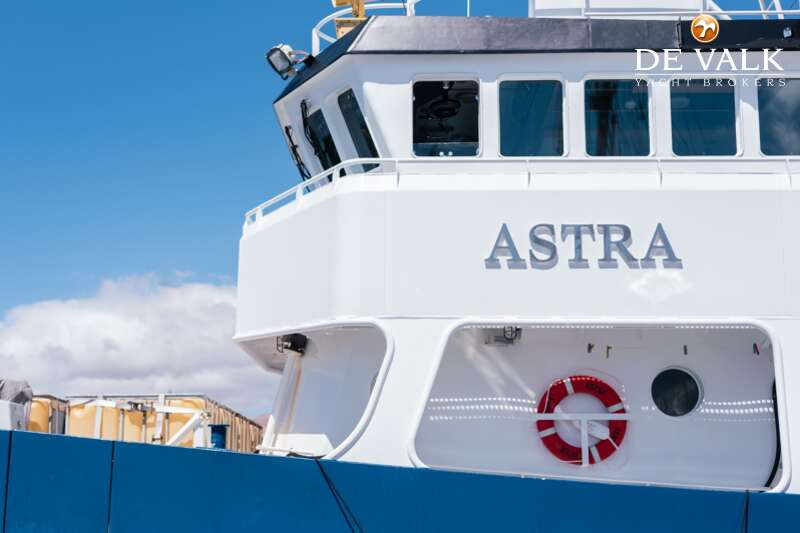

ASTRA is a super strong expedition vessel that can go anywhere in the world, regardless of the weather. Astra was originally built in class with DNV, rated Ice Class Super 1A and was later upgraded significantly(E+1 mio.)in 2021 to exceed performance. She completed the circumnavigation in the southern hemisphere from 2021-2022. Please see: www.mv-astra.com The layout of Astra is both very practical and comfortable and provide an easy access between all areas and decks.Big ship technology compactly presented. Whistle clean and turn key ready.
Tue Simon Fasting
Yacht Broker
Dimensions | 23,35 x 6,63 x 2,50 / 3,20 (m) | |
Material | steel | |
Built | 1995 | |
Engine(s) | 1 x Mitsubishi S6U-MPTK diesel | |
HP/Kw | 1350 (hp), 993,6 (kw) |
Lying | Spain | |
Sales information | De Valk Barcelona | |
Status | for sale | |
Vat | not paid | |
Asking price | € 2.000.000 |
Model | EXPLORER MOTOR YACHT ASTRA |
Type | motor yacht |
LOA (m) | 23,35 |
LWL (m) | 21,21 |
Beam (m) | 6,63 |
Draft (m) | 3,20 |
Draft min (m) | 2,50 |
Air draft (m) | 12,50 |
Headroom (m) | 2,10 |
Year built | 1995 |
Launched | 1995 |
Builder | Smogens Plat & Svetsindustri AB |
Country | Sweden |

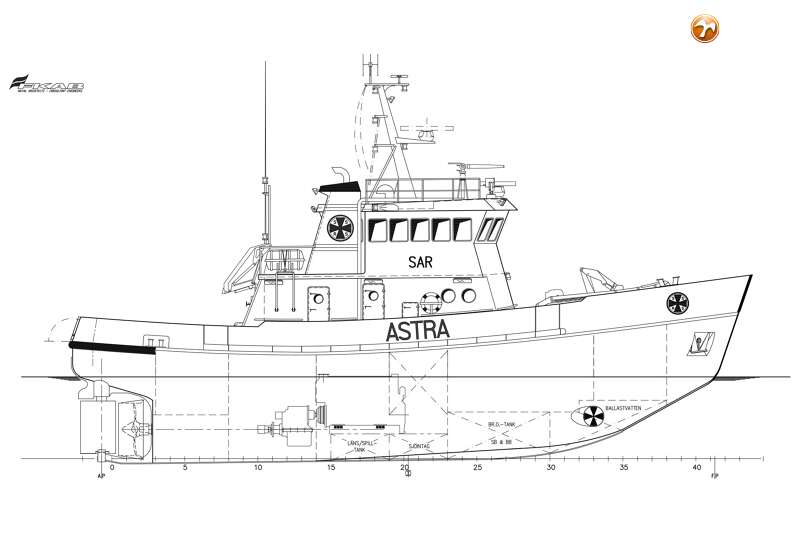

Designer | FKAB Marine Design |
Displacement (t) | 175 |
Gross tonnage | 156 |
Net tonnage | 96 |
CE norm | A |
Hull material | steel |
Hull colour | blue Jotun two-part paint |
Hull thickness (mm) | 16 - protected with zink anodes |
Hull shape | built in Class with DNV and rated as Ice Class Super 1A |
Superstructure material | aluminium triclad bi-metallic strip joints the hull to the superstructure. |
Rubbing strake | thick rubber rubbing rails on the stern |
Deck material | steel |
Deck finish | non-skid paint |
Superstructure deck finish | nos-skid paint and teak imitation |
Antifouling (year) | NRG SH-2 Sonihull Ultrasonic antifouling (3 transducers) (2022) |
Window material | tempered glass |
Portholes | aluminium tempered glass |
Insulation | fiberglass |
Flybridge | Portuguese bridge - built in 2017 |
Radar arch | non collapsible |

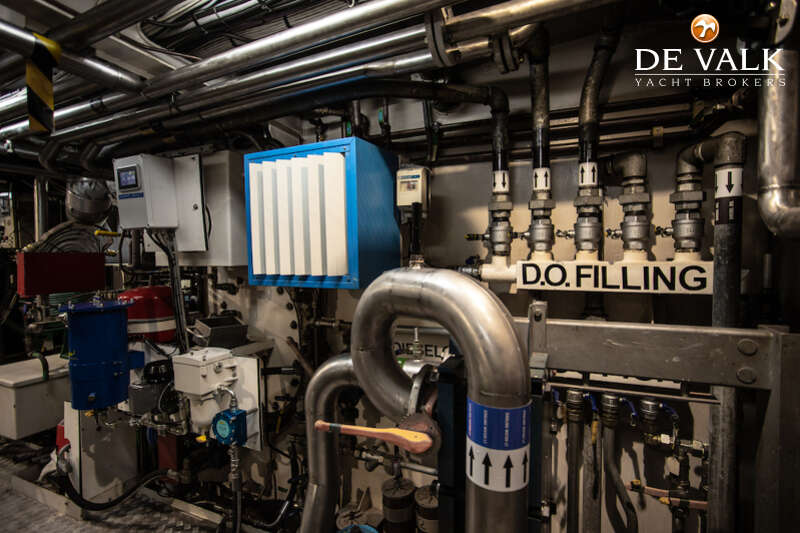

Fuel tank (litre) | steel 6 tanks expandable to 44000. Cleaned 2022 |
Fuel tank 2 (litre) | yes |
Level indicator (fuel tank) | yes |
Level indicator (daytank) | yes |
Freshwater tank (litre) | stainless steel 1730 |
Level indicator (freshwater) | yes |
Blackwater tank (litre) | stainless steel 1000 |
Level indicator (blackwater) | yes |
Blackwater tank extraction | deck extraction + pump |
Greywater tank (litre) | stainless steel together with black water |
Wheel steering | hydraulic Electro Hydraulic Tenfjord SR562L |
More info on hull | taken out of Class in 2017 and certified as EU Design Category A |
More info on paintwork | new hull and superstructure Jotun 2 comp. paint in 2022 |

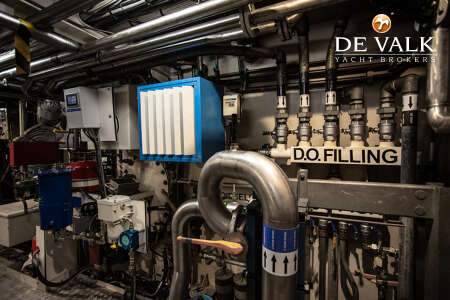

Extra info | fuel purifier / separator |
Cabins | 5 |
Berths | 9 |
Floor | wood |

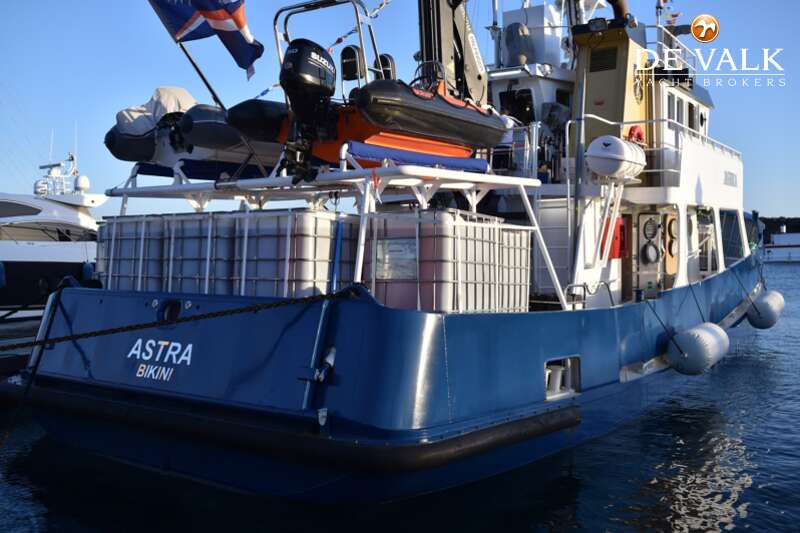

Aft deck | large discharge aft deck with 2 ribs+fittings for aux fuel tanks |
Heating | central hot water |
Heating 2 | the boiler can run on diesel or electricity |
Air-conditioning | single cycle airco |

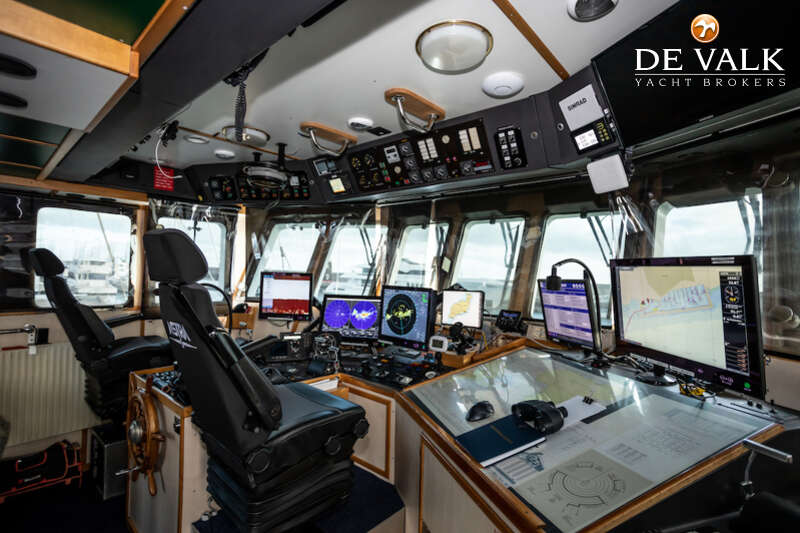

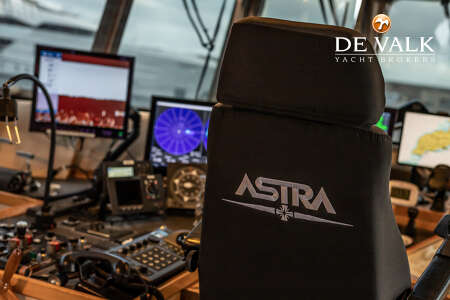

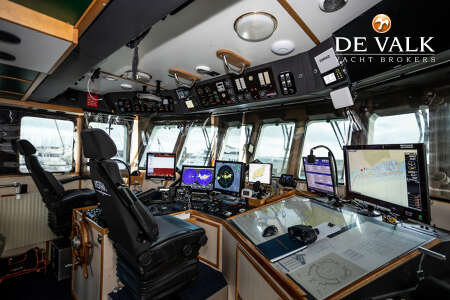

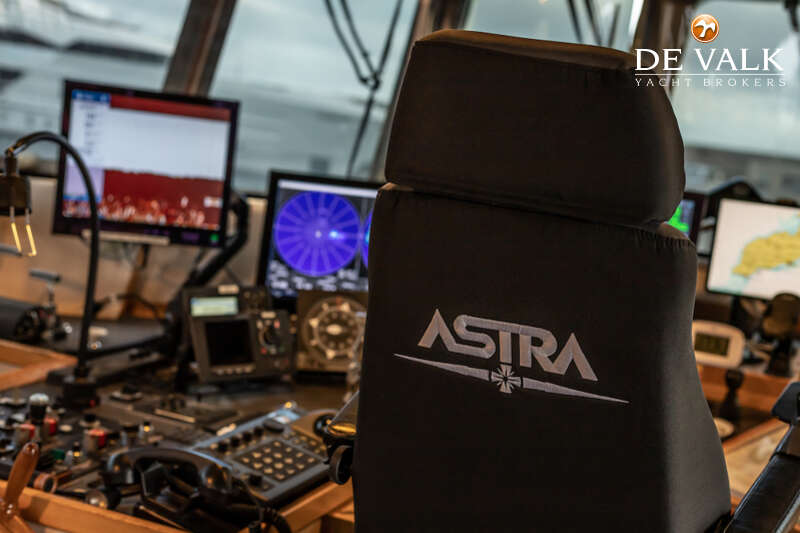

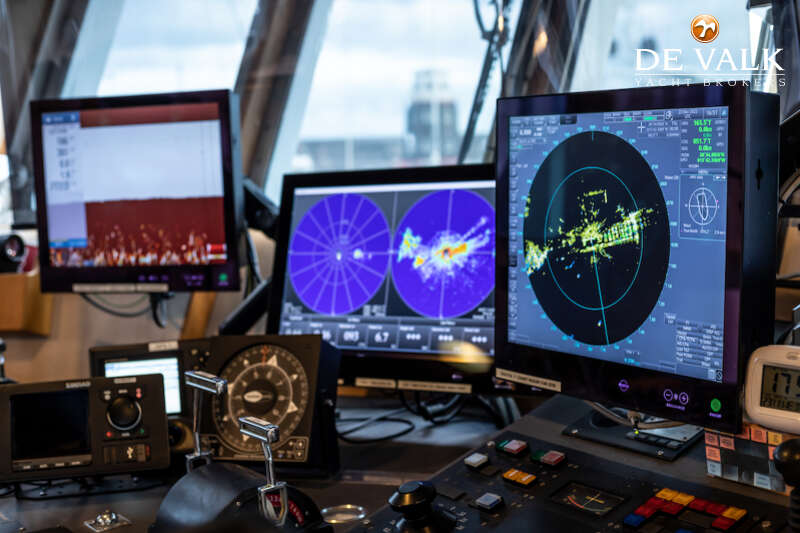

Navigation center | fully upgraded in 2021 with the latest Vector Chart Radar system |
Chart table | on bridge, books upgraded in 2021 |

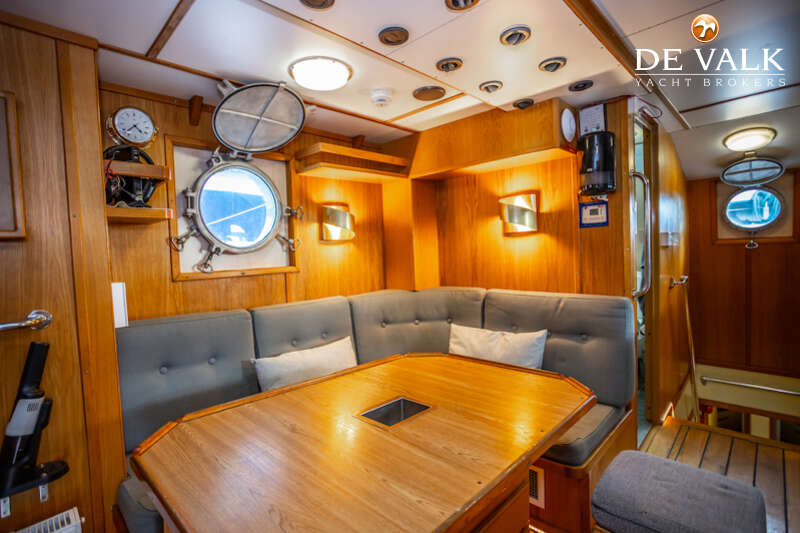

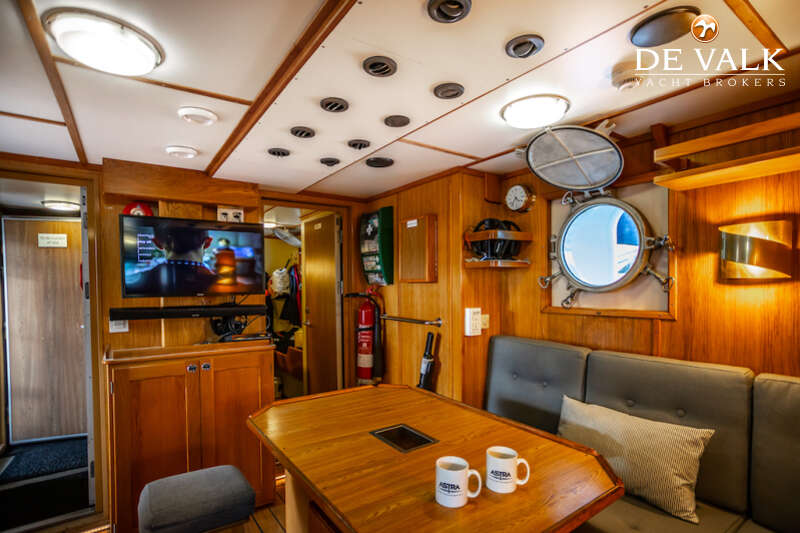

Dining room | yes |

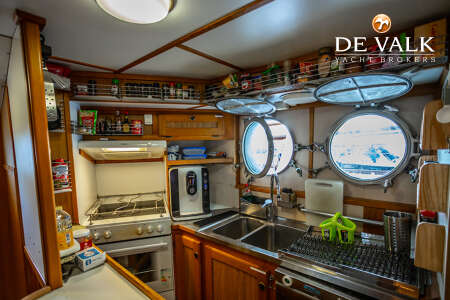

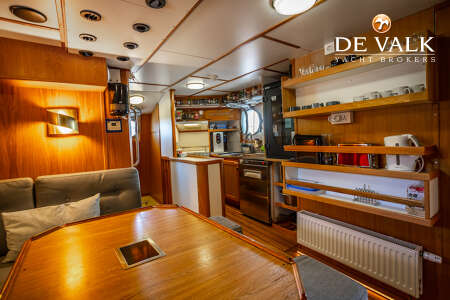

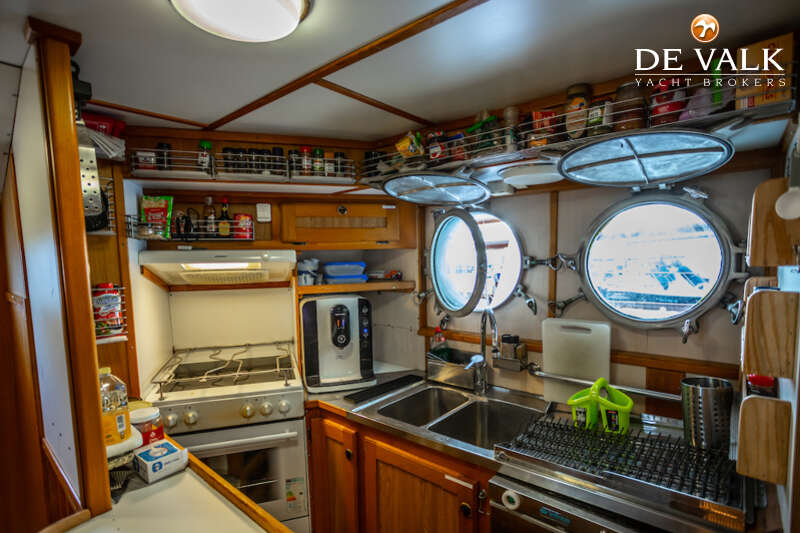

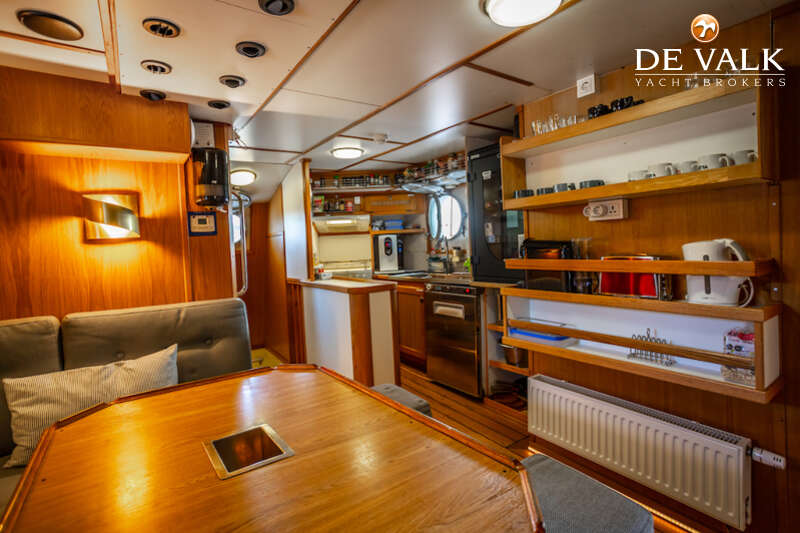

Galley | open to salon |
Sink | 2 x stainless steel |
Cooker | electric |
Oven | electric |
Extractor | Bosch |
Gas alarm | heat and smoke detectors Consilium C303 |
Microwave | yes |
Fridge | 2 X 120 L |
Freezer | 1500 L |
Hot water system | 220V/engine/heating |
Water pressure system | electrical |
Dishwasher | yes |
Kettle | yes |
Coffee maker | yes |
Crockery | yes |
Owners cabin | single bed |
Wardrobe | hanging/drawers/shelves |

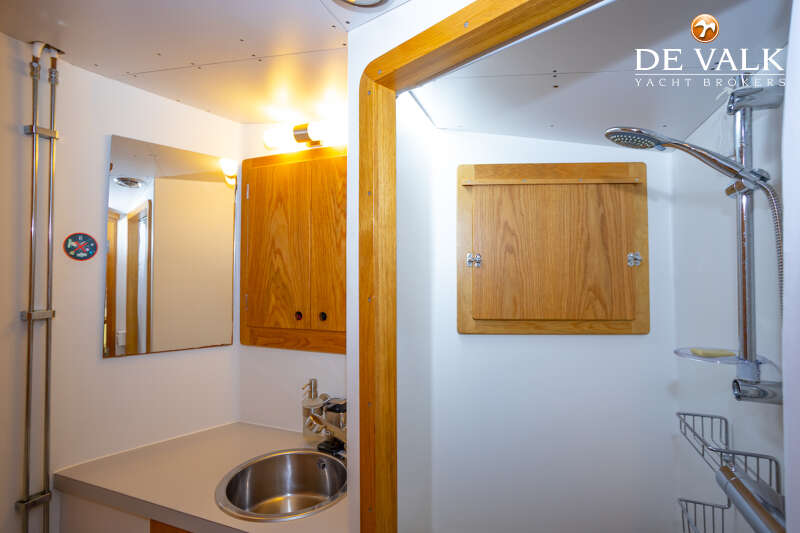

Bathroom | separate |

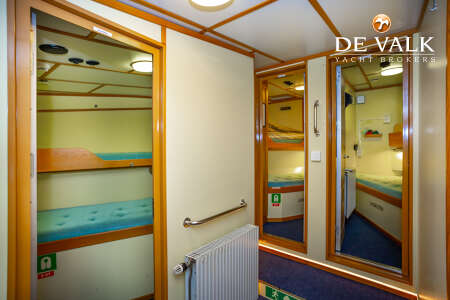

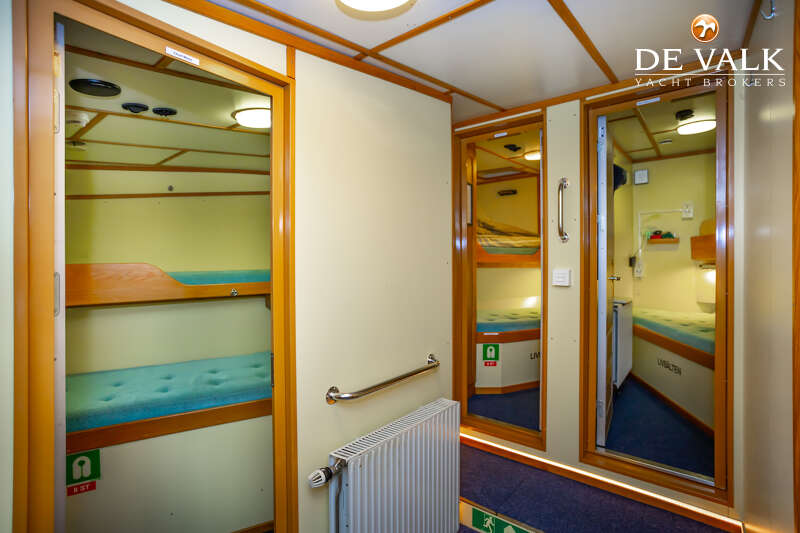

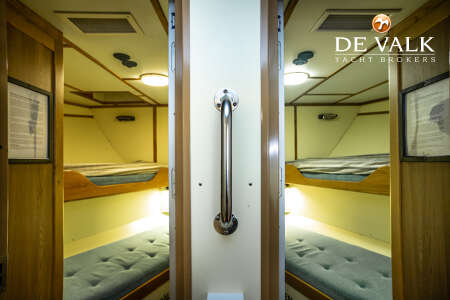

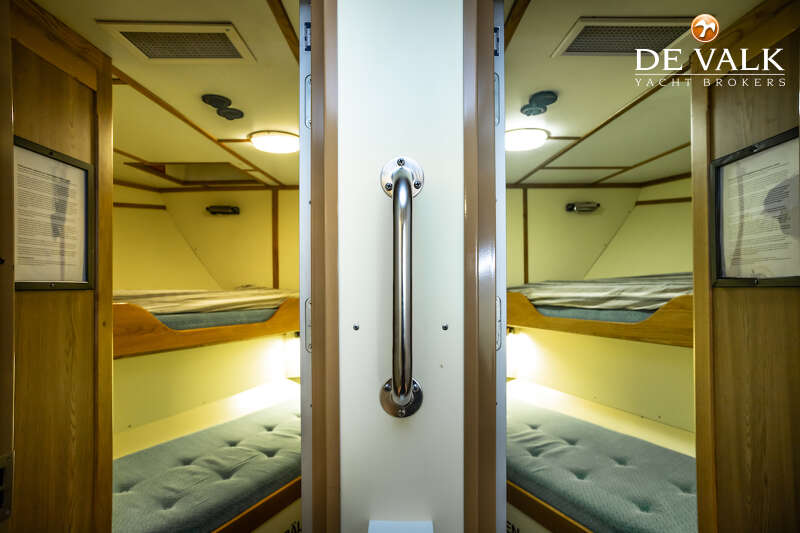

Guest cabin 1 | twin single |
Wardrobe | hanging/drawers/shelves |
Bathroom | shared |
Guest cabin 2 | twin single |
Bathroom | shared |

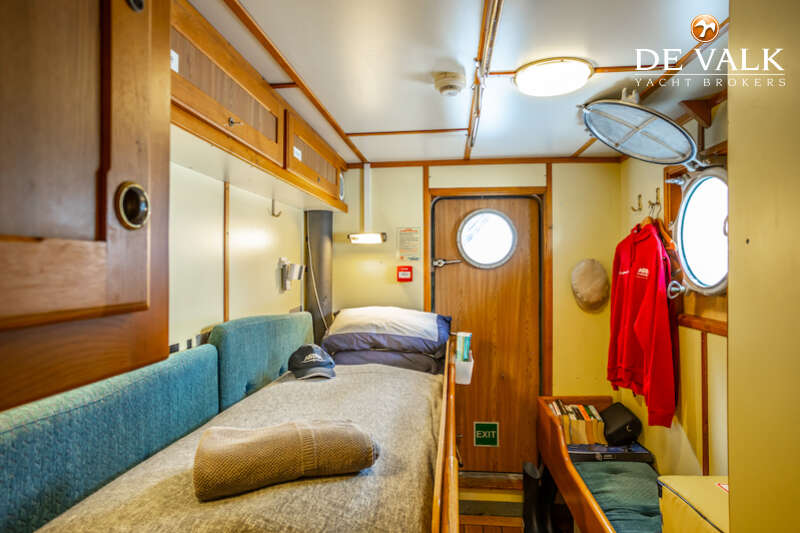

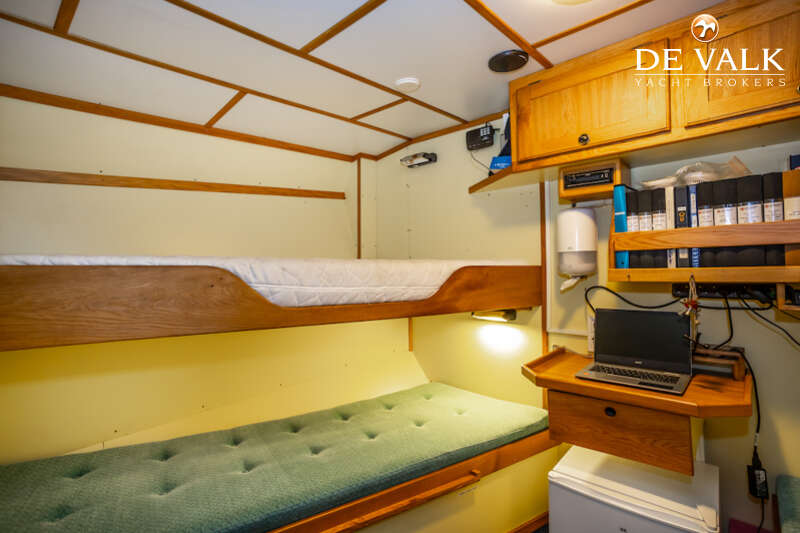

Guest cabin 3 | bunk bed |
Wardrobe | hanging/drawers/shelves |
Bathroom | shared |
Guest cabin 4 | twin single |
Bathroom | en suite |
Washing machine | Miele |

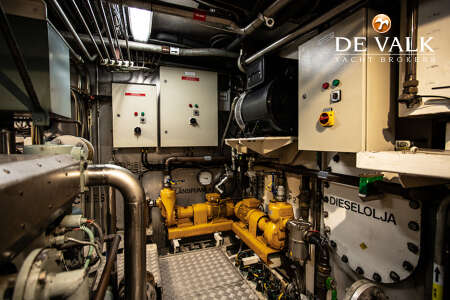

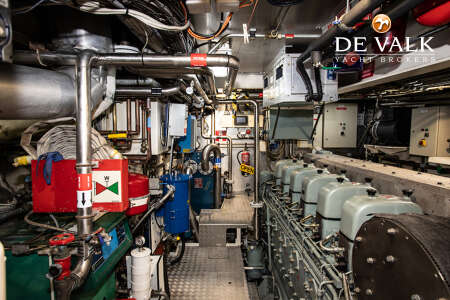

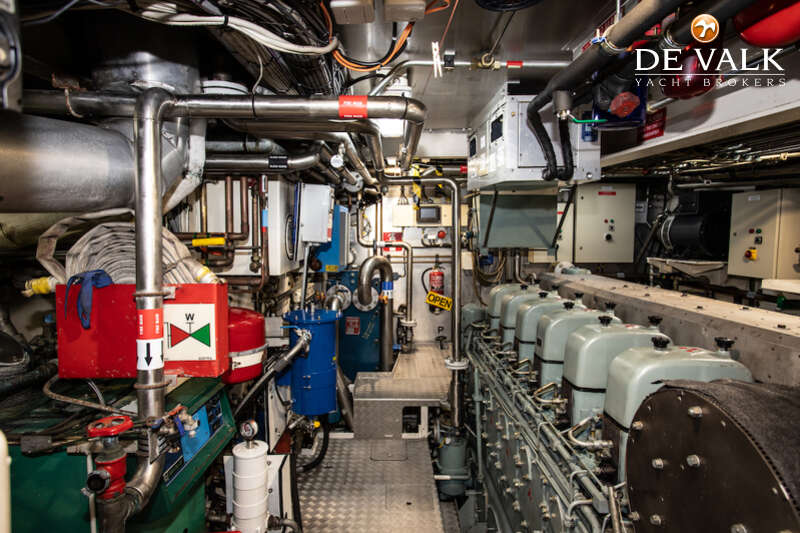

No of engines | 1 |
Make | Mitsubishi |
Type | S6U-MPTK |
HP | 1350 |
kW | 993.60 |
Fuel | diesel |
Year installed | 1994 |
Year of overhaul | 2021 - full service report available |
Maximum speed (kn) | 11 |
Cruising speed (kn) | 8,4 |
Consumption (l/hr) | 48 |
Range (nm) | 9000 |
Engine hours | 13300 |
Engine cooling system | freshwater heat exchanger |
Drive | shaft |
Engine controls | electrical |
Gearbox | Finn0y G50 FK, reduction 2.95:1 |

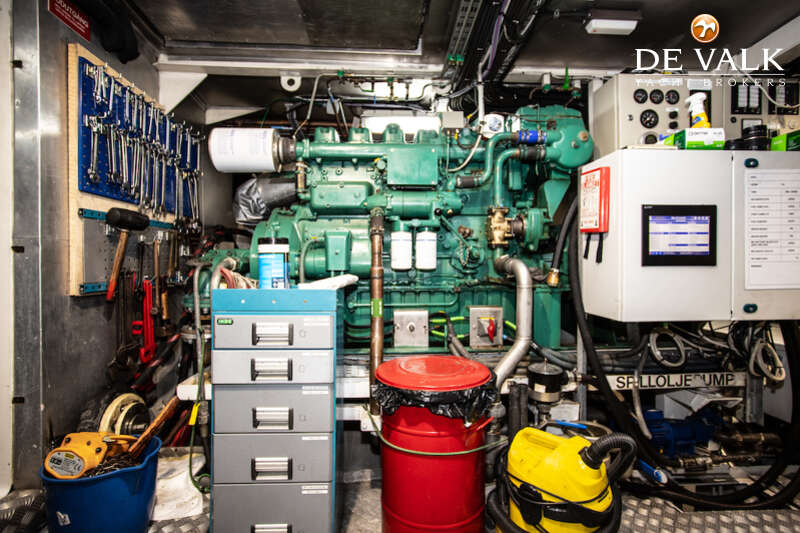

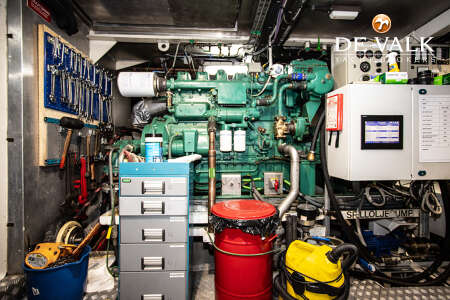

Secondary engine | diesel Volvo MD 120, 46 kVA, 230/400 V |
Engine controls | electrical |
Bowthruster | hydraulic Berg 100 KW |
Gearbox | Finn0y G50 FK, reduction 2.95:1 |
Exhaust | dry |

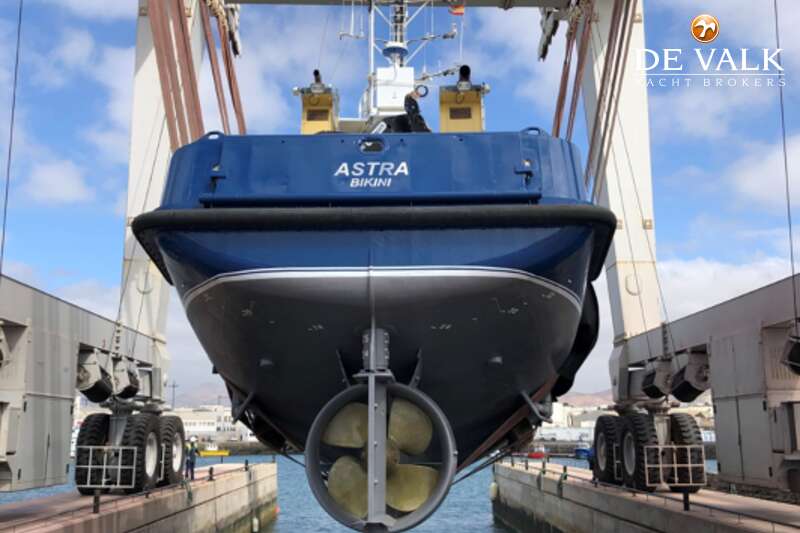

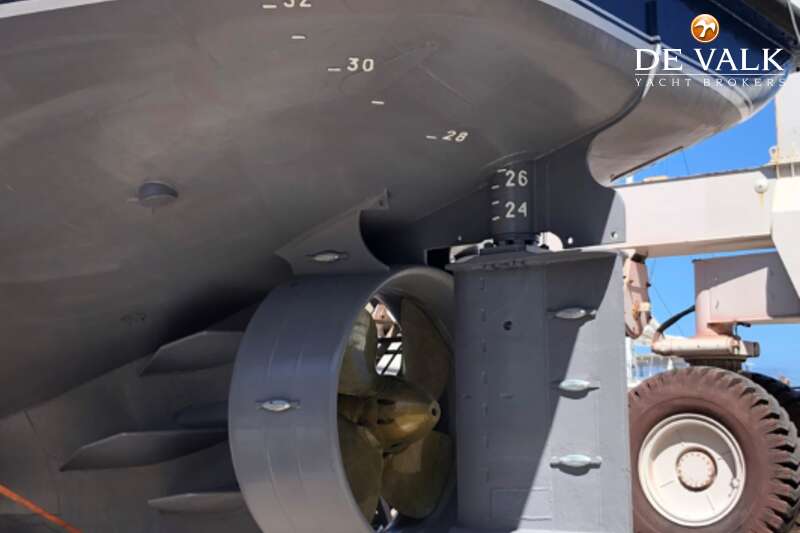

Propeller blades | Berg 4 blade, controllable pitch propeller, 1718 mm |
Propeller shaft material | stainless steel |
Manual bilge pump | yes |
Electric bilge pump | yes |
Bilge alarm | 5 |
Electrical installation | overhaul 2021 by Emenasa - full report available |
Generator | wet exhaust Onan Marine GenSet,23 kVA (2021) |
Running hours generator | 1400 |
Batteries | 2 start batteries 12V / 170Ah for Volvo Penta |
Service battery | 2 X 24V / 180Ah service |
Generator battery | 1 start battery 12 V / 120 Ah for Onan |
Battery charger | Victron Skylla 24V /50A battery charger. |
Inverter | 12 X 2V / 1000Ah batteries 2 X 12V / 42Ah radio batteries |
Battery charger/inverter | 440 V 60Hz to 400 V 50 Hz |
Shorepower | with cable shore connection for American standards. |
Watermaker | Enwa MT 6000 SRT, 250 I/ h, 400 V, 2017. |
Stabilizers | 4 rotor ship stabilizers |
Extra info | Furuno BlackBox, TimeZero 120 GB SSD i5. NMEA2000 network. Hatte |
Extra info | air start pressure tanks: 2 x Atlas Copco, 31 .5 bar |
Extra info | shaft generator:Mecc Alte Spa ECS31-LB/4,50 kVA, 230/400V(2021) |
Compass | 2 X Furuno GP39 satelite compass+magnetic Observator Type A, 175 |
Electric compass | Observator Type A, 175 mm |
Depth sounder | Furuno Double frequency |
Windset | Furuno |
VHF | Sailor 6222 + 2 x Sailor RT 6222 DSC + 2 x Sailor RT 2048 |
VHF handheld | UHF RETEVIS RT27 x 8 (2020) 2 X GMDSS:Entel HT 649+lcom IC-M71 |
Autopilot | 2 X Simrad AP 70. The backup system with independant connection |
Rudder angle indicator | Tenfjord |
Radar | FAR 1513, FAR 3220 and NXT solid state radar |
GPS | Furuno 2 X GP-150 GNSS |
Plotter/GPS | BlackBox, TimeZero 120 GB SSD i5. NMEA2000 network |
Navtex | Newcom NC-400 |
Electronis chart(s) | MaxSea, Time Zero 4 system with a complete worldwide portfolio |
AIS receiver | Furuno FA-170 - FA-150 as backup |
Radio receiver | upgraded in 2021 to GMDSS area A3 (between 70°N and 70°S). |
EPIRB | Ocean Signal Ltd (SafeSea E100G) (2020) |
Camera | 4 cameras (2017) |
Navigation lights | EmpirBus system |

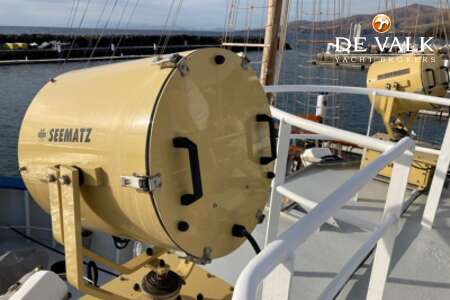

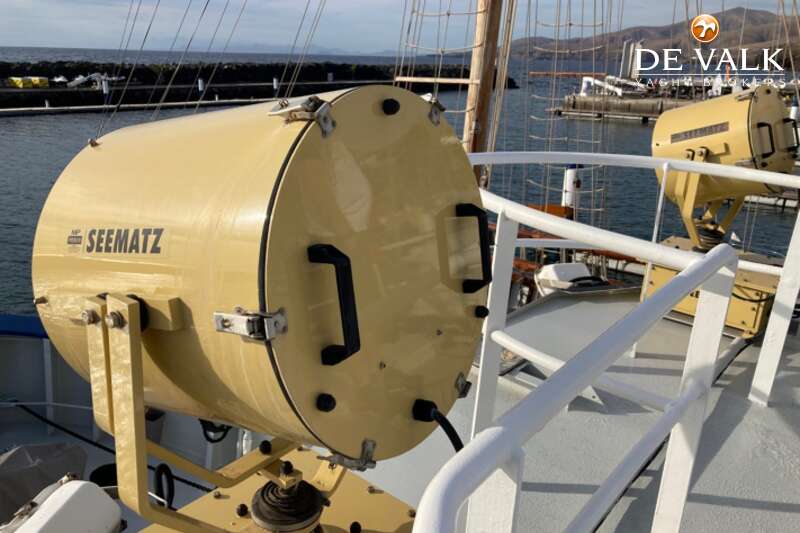

Searchlight | 2 x SEEMATZ, 1 x Norselight |
Extra info | Intercom Amplidan Commander 1500 Furuno wave analyzer WV100 |
Extra info | Sound signalling equipment Kockum Sonics Signal Tl-56 |
Cockpit chairs | 3 air pressure chairs - new 2021 |
Anchor | 2 x Pool Anchor 184 kg with winch Skarhamns AB |
Anchor chain | 2 x 110 m, 16mm studless anchor chain |
Chain counter | yes |
Windlass | fwd windlass: Dinamic Oil S.p.A. P9, 15 Tonnes bollard pull |
Windlass aft | Dinamic Oil S.p.A. P9, 15 Tonnes bollard pull |

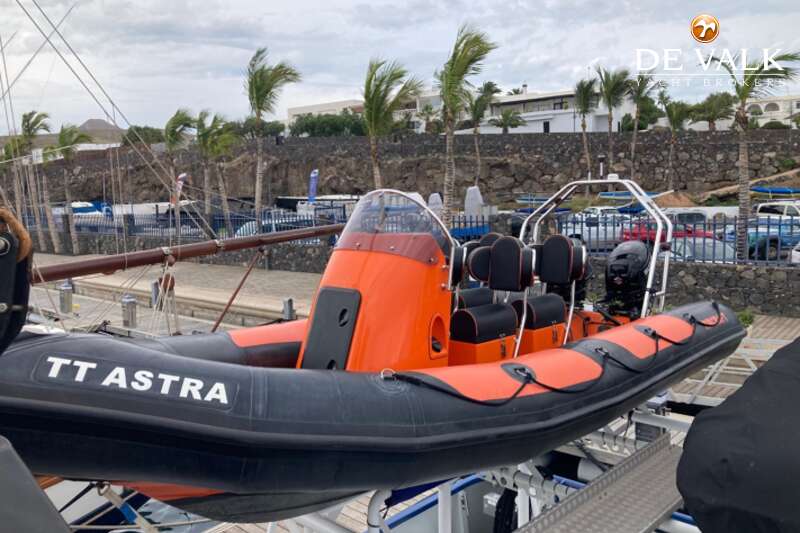

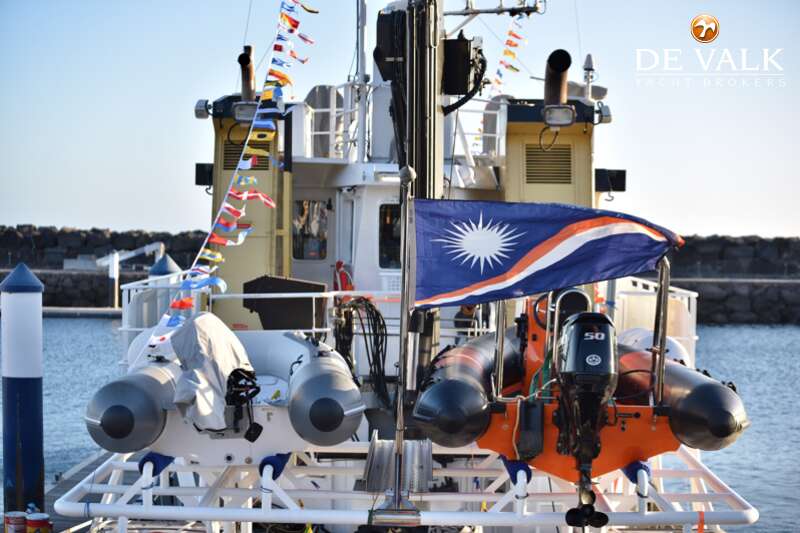

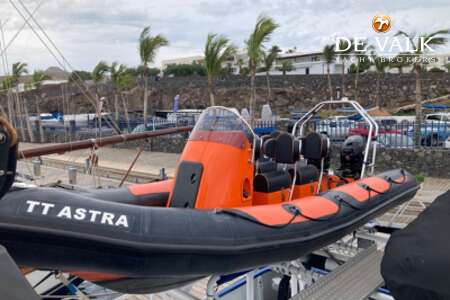

Dinghy | rigid inflatable 1 X 5.3m + 1 X 4.2m Ribcrafts commercial deep V rigid inflatable |
Deck crane | forward Crane:1T Heila HLM, 3.5 Aft Crane: 6T Palfinger PK |
Sea railing | aluminum |
Grab rail (superstructure) | aluminium located on all critical spots around the vessel |
Railing side opening gates | starboard and port |
Life raft | container 2 X Viking 12 persons (New 2016) |
Lifejackets | 12 |
Safety harness | yes |
Horn | air pressure |
Fenders | new 2021 |
Mooring lines | new 2021 |
Spare parts | full storage of spares for engines and equipment + euro 120,000 |
Tools | complete tool sets for full operational capacity |
TV | yes |
TV receiver | yes |
Satellite | InmarSat C, Vsat, Fleetbroad band |
Radio | VHF/ MF/HF radio |
Clock - barometer | yes |
Fire extinguisher | ABC extinguishers and fire blankets located in designated areas |
Latest extinguisher survey | 2022 |
Extinguisher in engine room | CO2 - 2 x 45 KG - 10 years revision completed in 2021. |
Extra info | towing hook: Mampaey MXX015, 30/15 t |
Extra info | SART McMurdo SMARTFIND (2020) |
Extra info | complete metal work bench with drilling a grinding machines |
