This CUSTOMS PATROL VESSEL 20 METER is sold. you may also like:
(47)
CUSTOMS PATROL VESSEL 20 METER
- Dimensions
- 19.80 x 4.25 x 1.40 (m)
- Material
- Steel
- Built
- 1978
- Engine(s)
- 1x MTU 6V396 diesel
- HP/ KW
- 1x 540.00(hp), 397.44(kw)
- Lying
- at sales office
- Sales office
- De Valk Monnickendam
- Status
- Sold
Broker's comments

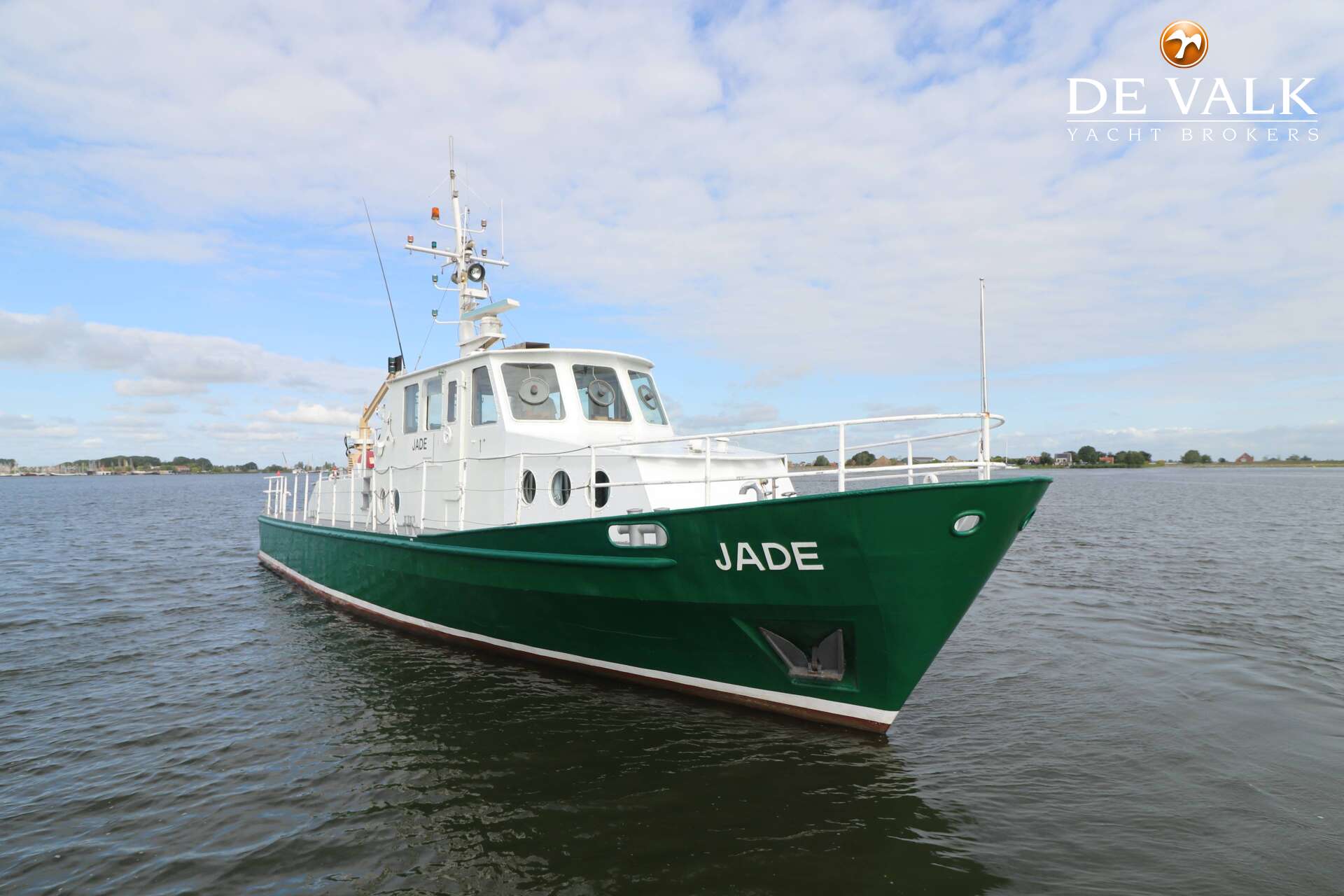

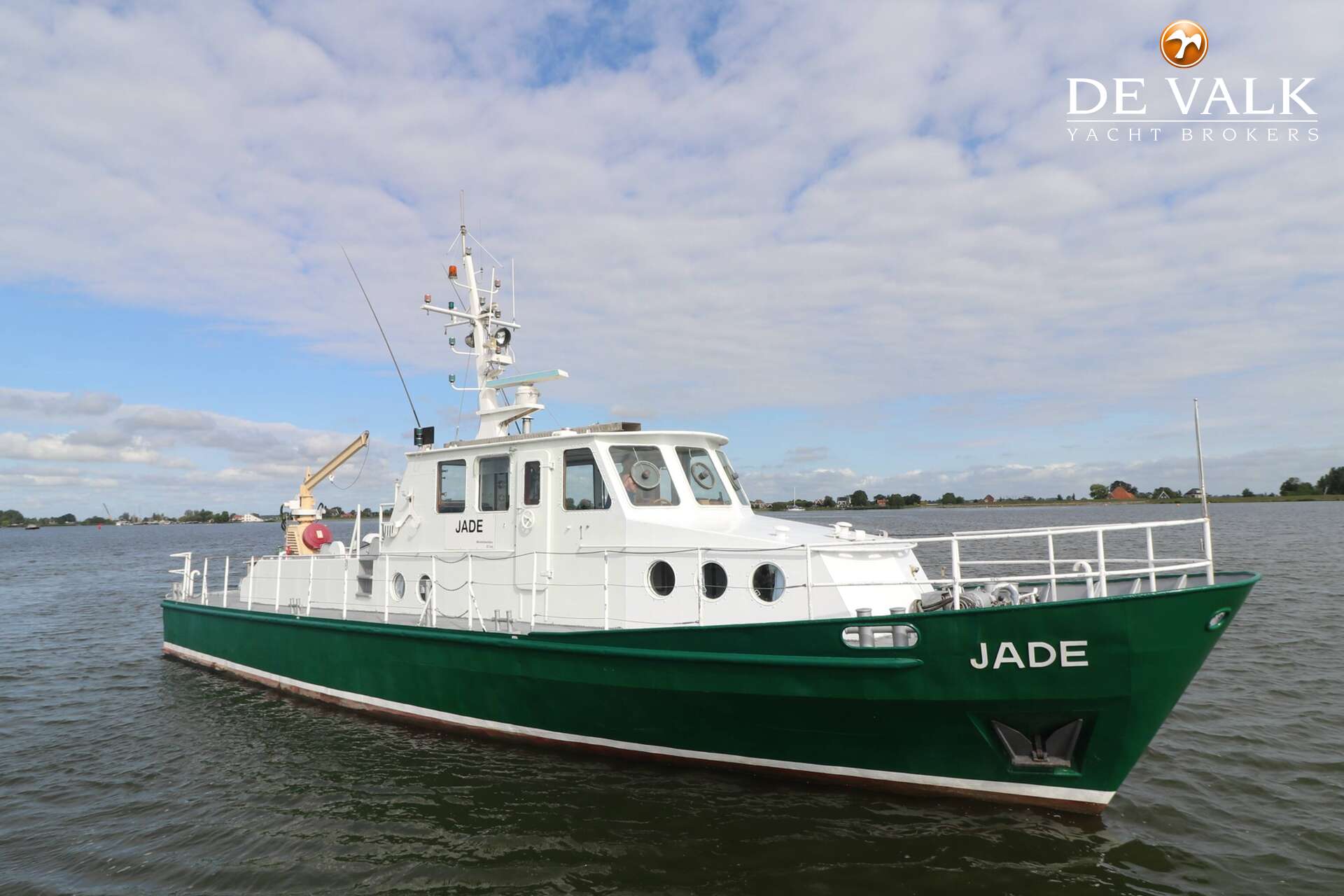

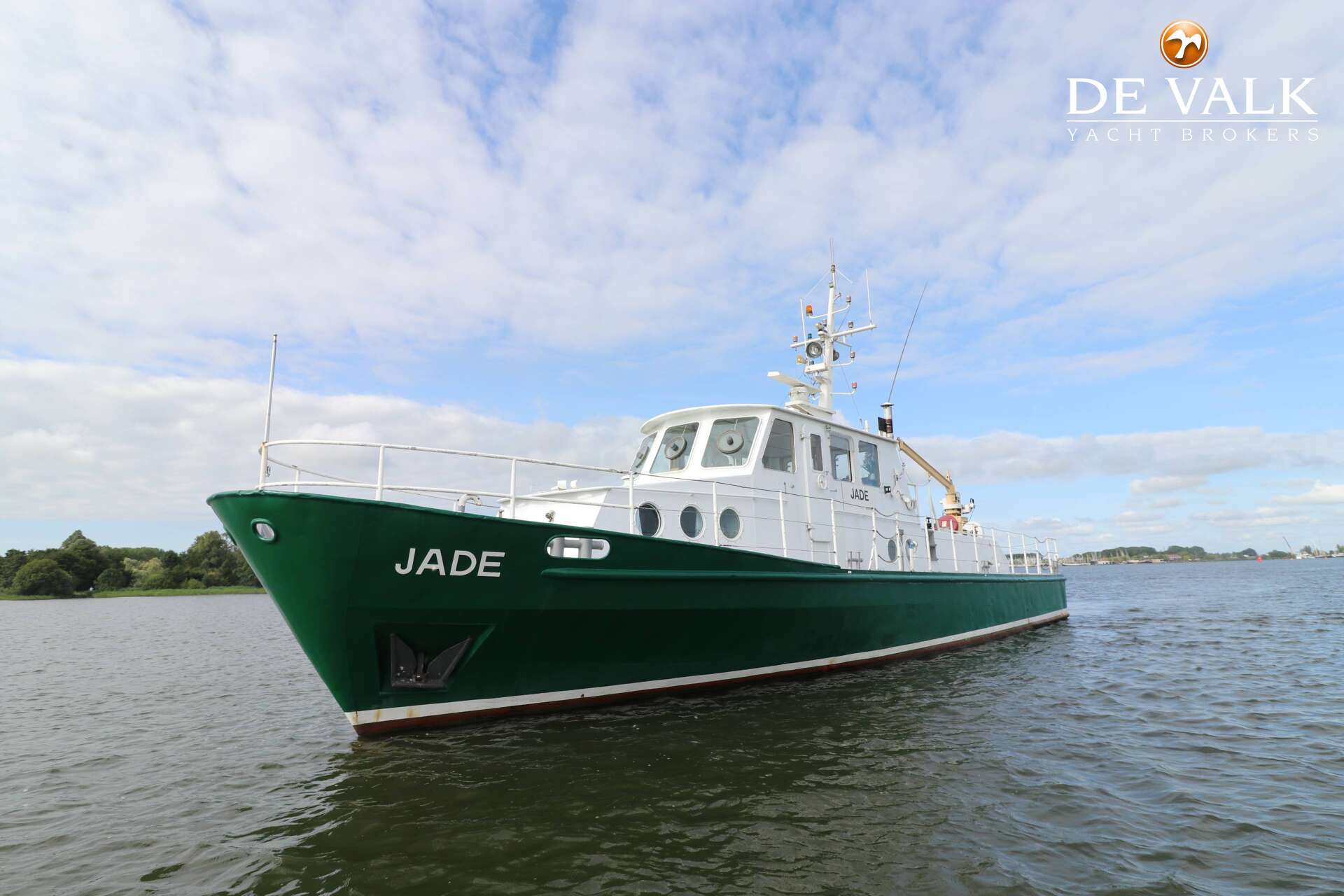

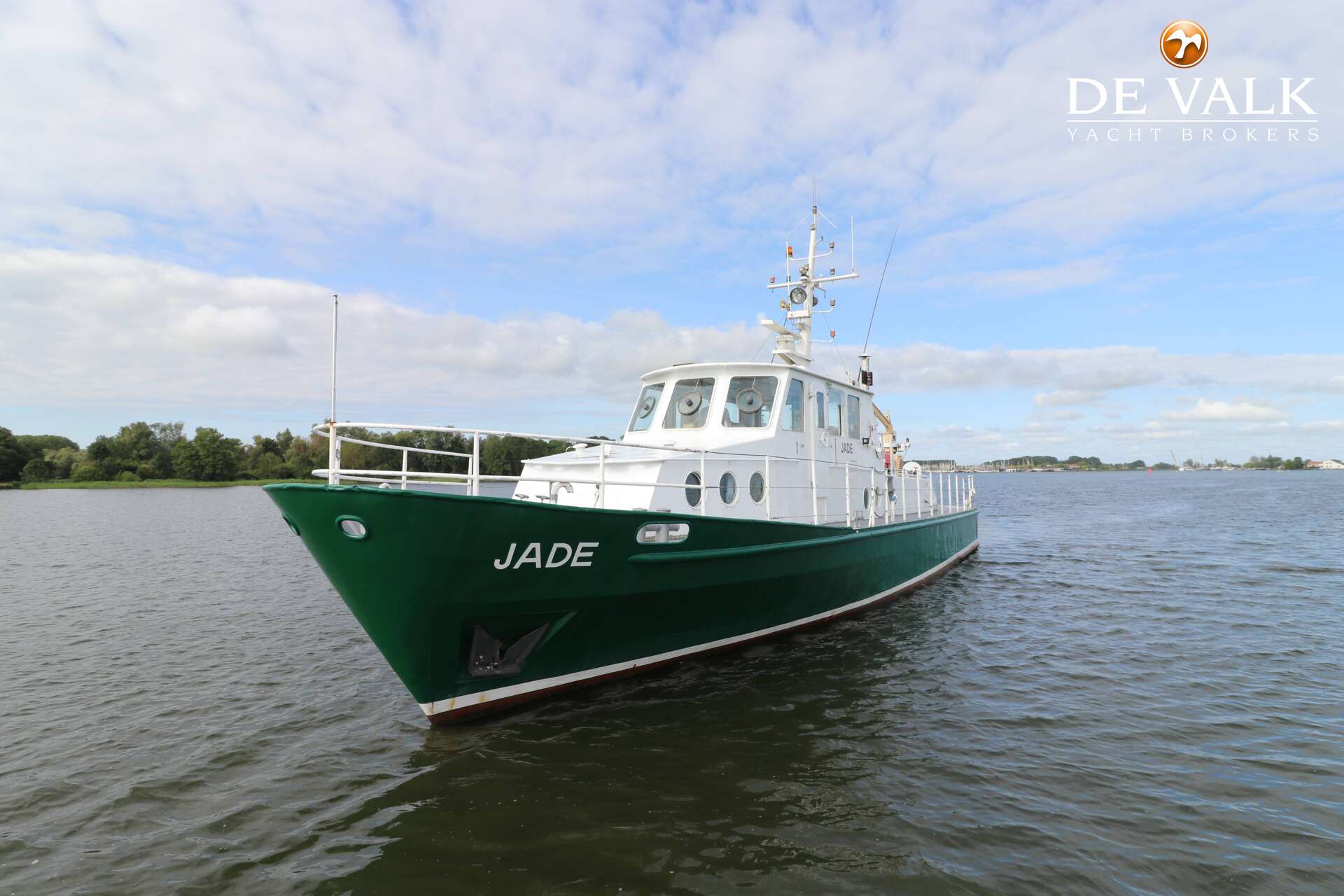

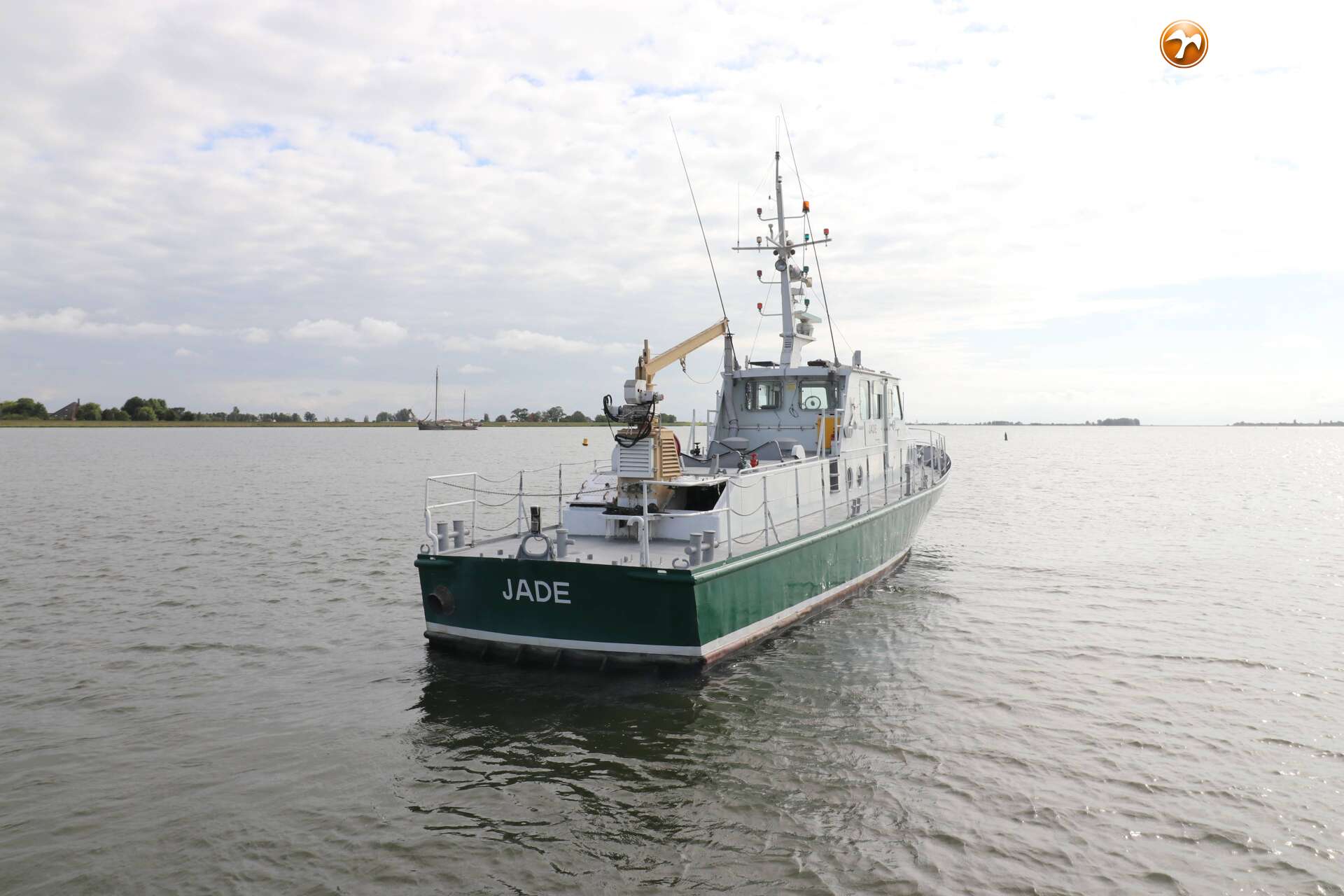

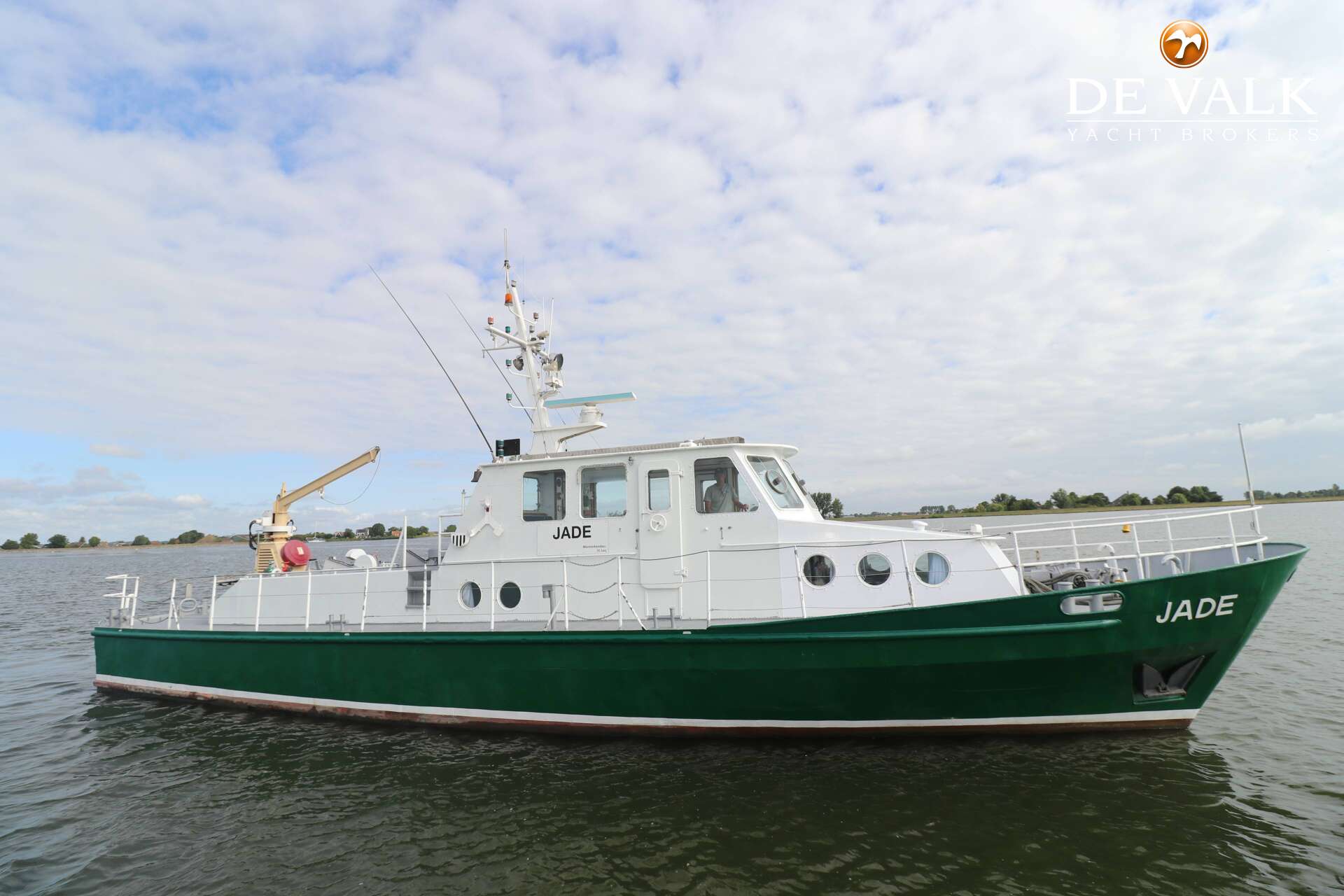

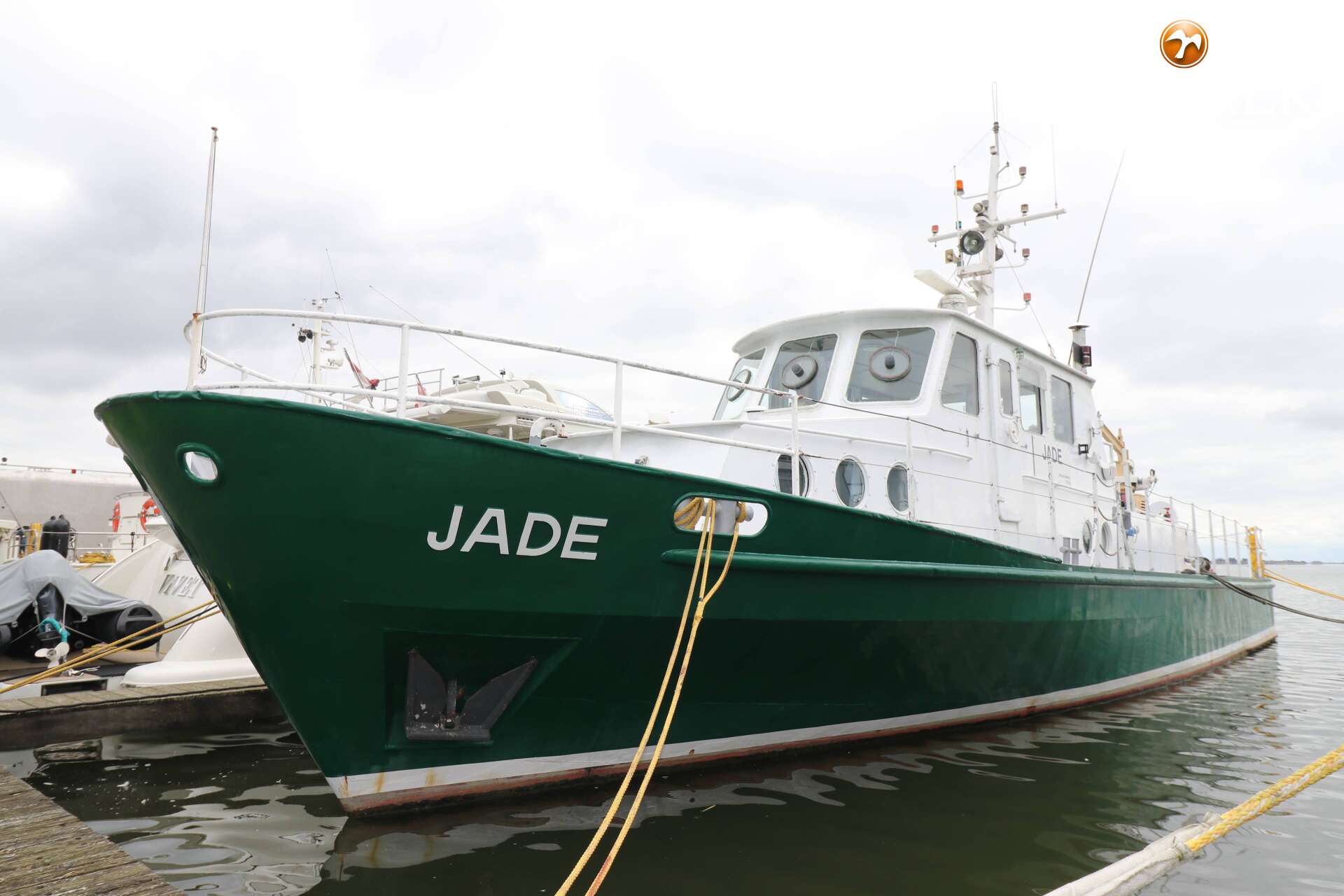

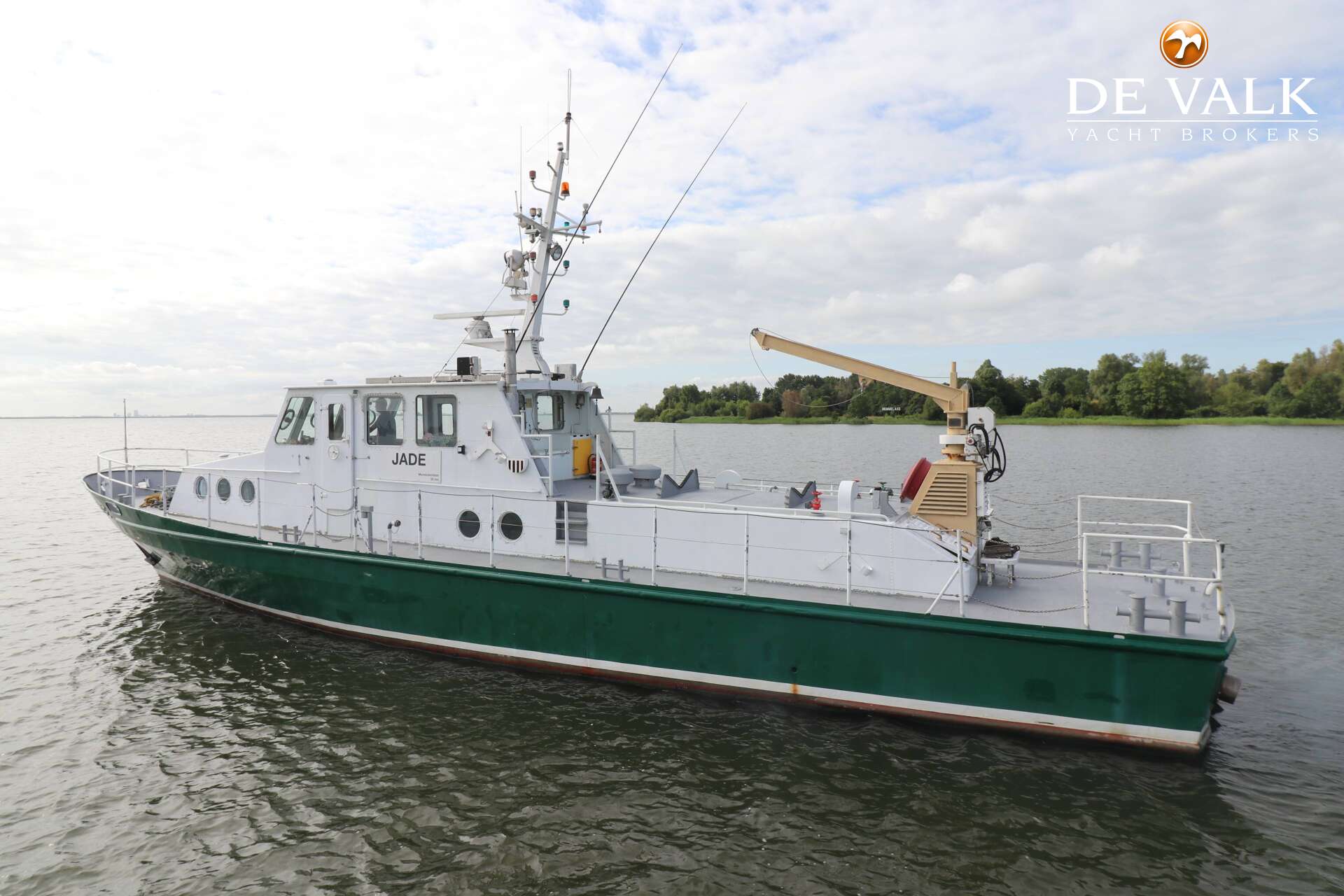

Customs Patrol Vessel "Jade" built in 1978 by Fr. Schweers Schiffs- und Bootwerft in Bardenfleth, Germany. Steel hull and aluminium superstructure. 560 HP MTU diesel engine, generator and Victron Battery charger and inverter. Comfortable to stay for a longer time on board due her insulation and central heating system. Viewing of this motor yacht is possible in our sales marina in Katwoude, The Netherlands.
De Valk Monnickendam
+31 (0)299 65 63 50
Photos (47)
Download brochure
Share this yacht
Specifications: Customs Patrol Vessel 20 Meter
General
- Model CUSTOMS PATROL VESSEL 20 METER
- Type motor yacht
- LOA (m) 19,80
- Beam (m) 4,25
- Draft (m) 1,40
- Year built 1978

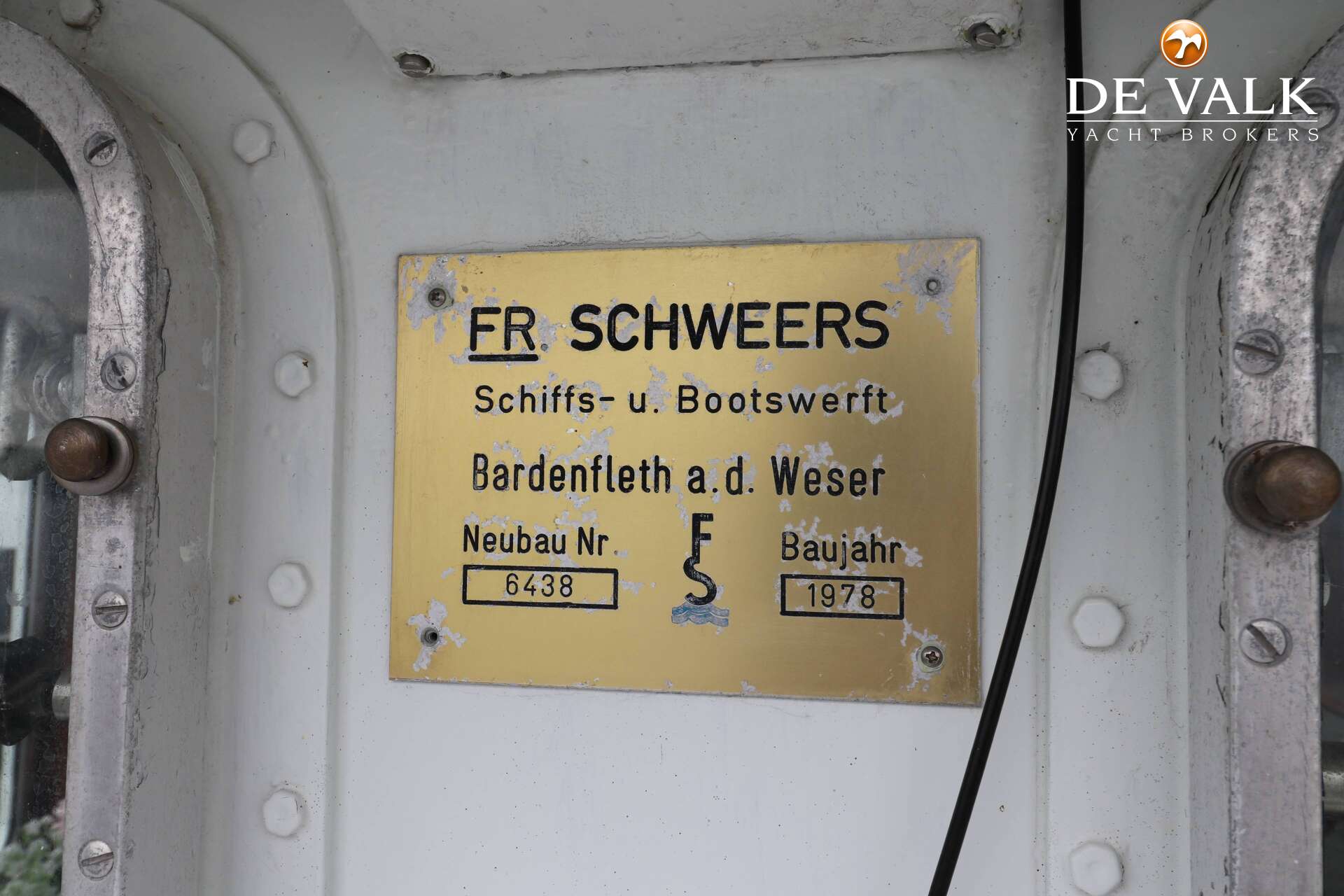

- Builder FR Schweers Schiffs- u. Bootswerft
- Country Germany
- Displacement (t) 35
- CE norm NA
- Hull material steel
- Hull colour green
- Hull shape deep-V
- Keel type long keel
- Superstructure material aluminium
- Rubbing strake steel
- Deck material steel
- Deck finish paint
- Superstructure deck finish paint
- Window frame aluminium
- Window material tempered glass
- Portholes yes
- Insulation rockwool

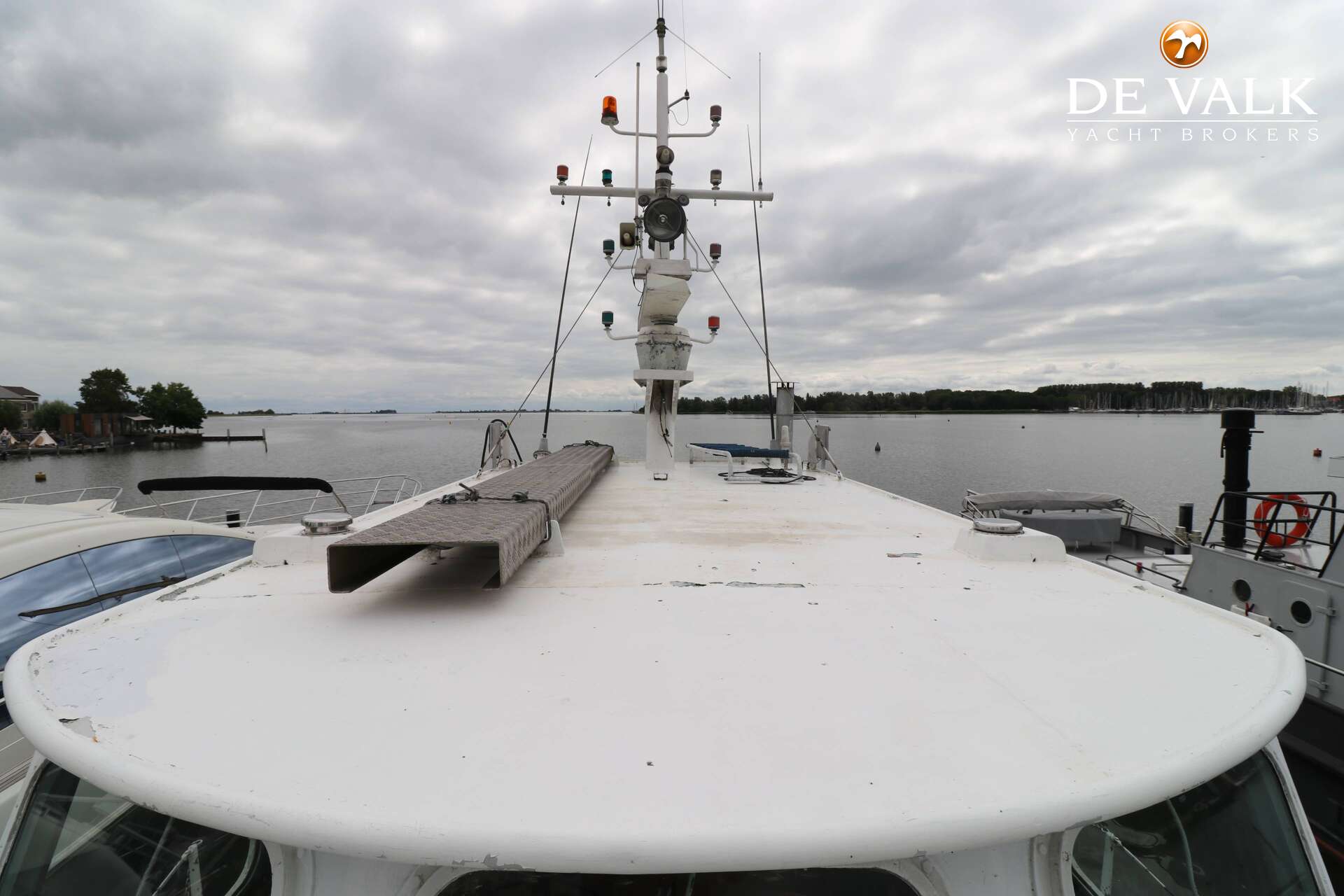

- Radar arch yes
- Fuel tank (litre) Approx. 3300 litre
- Level indicator (fuel tank) yes
- Freshwater tank (litre) Approx. 500 litre
- Level indicator (freshwater) | C. Will Stein sohn
- Blackwater tank (litre) Approx. 1500 litre
- Wheel steering hydraulic | and: Wagner and Autohelm electric steering

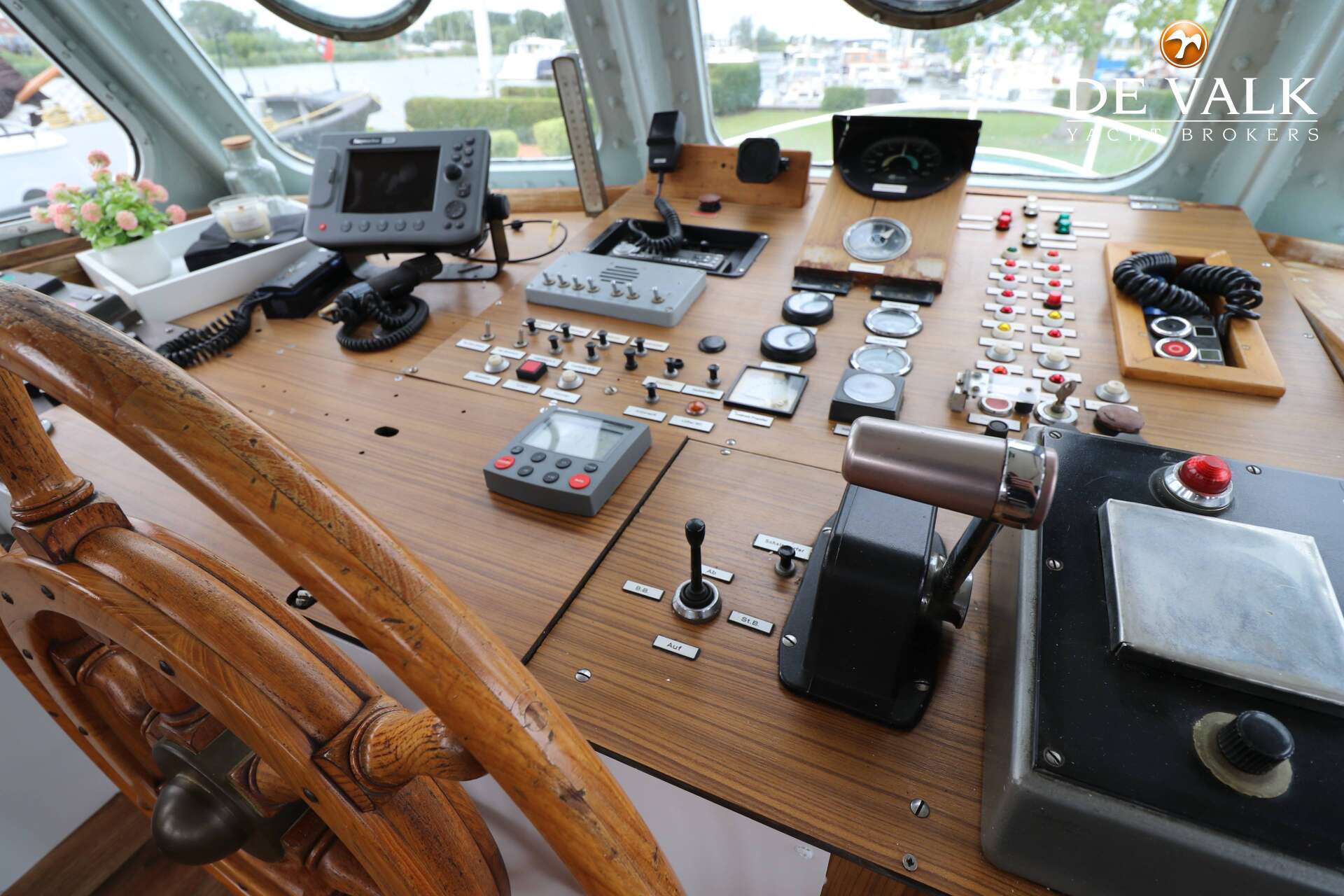

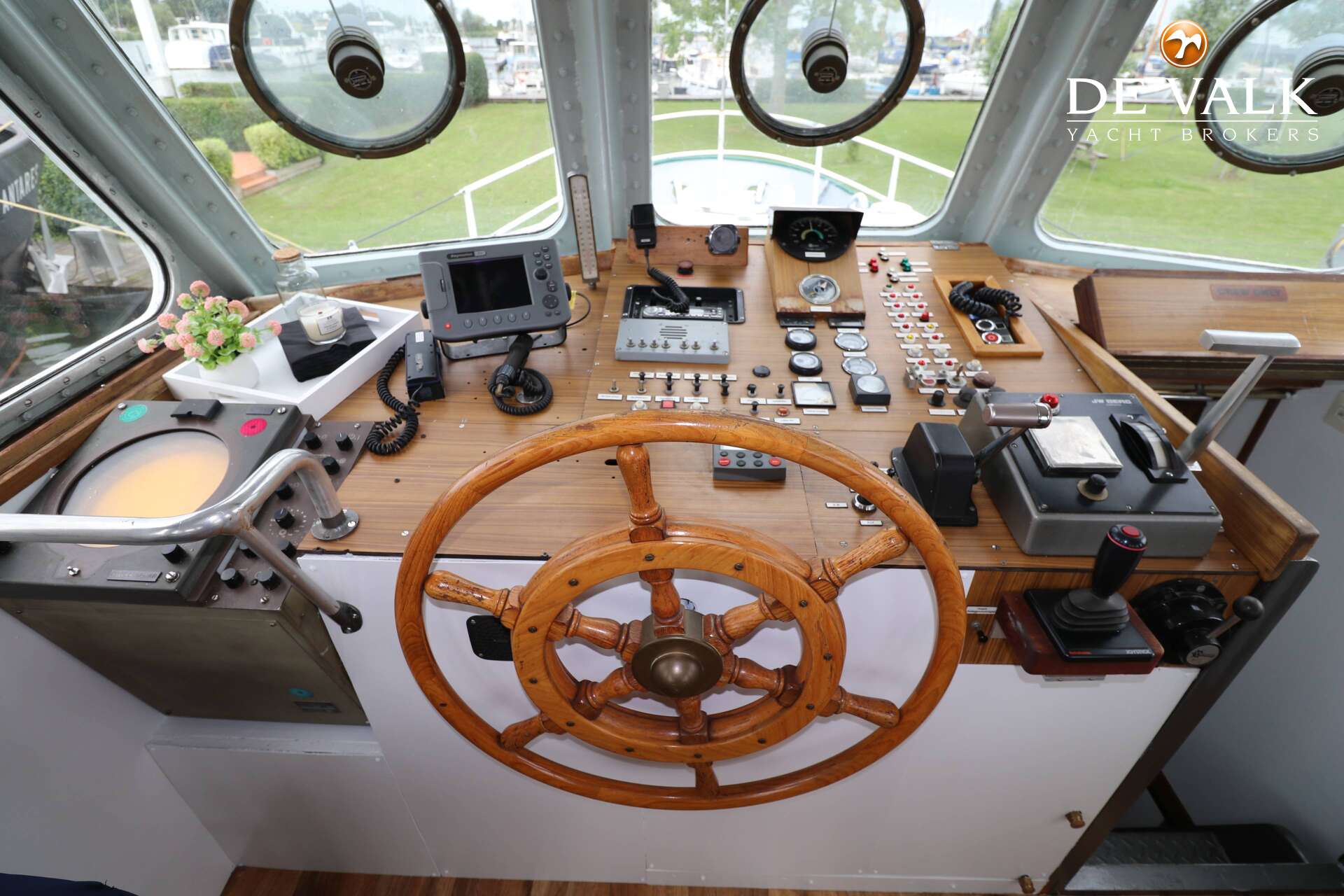

- Inside helm position yes
- Emergency tiller yes
- Cabins 2
- Berths 6

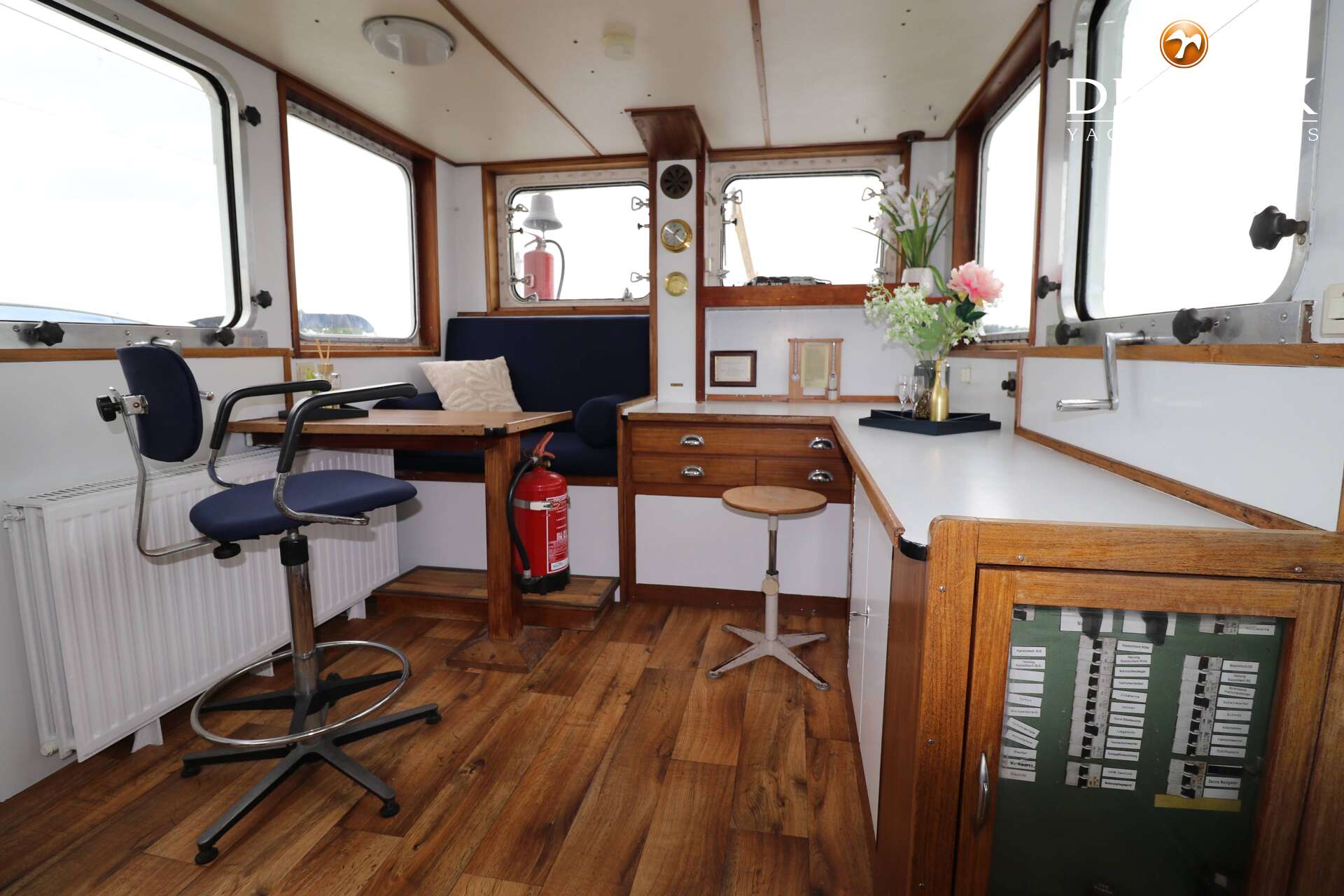

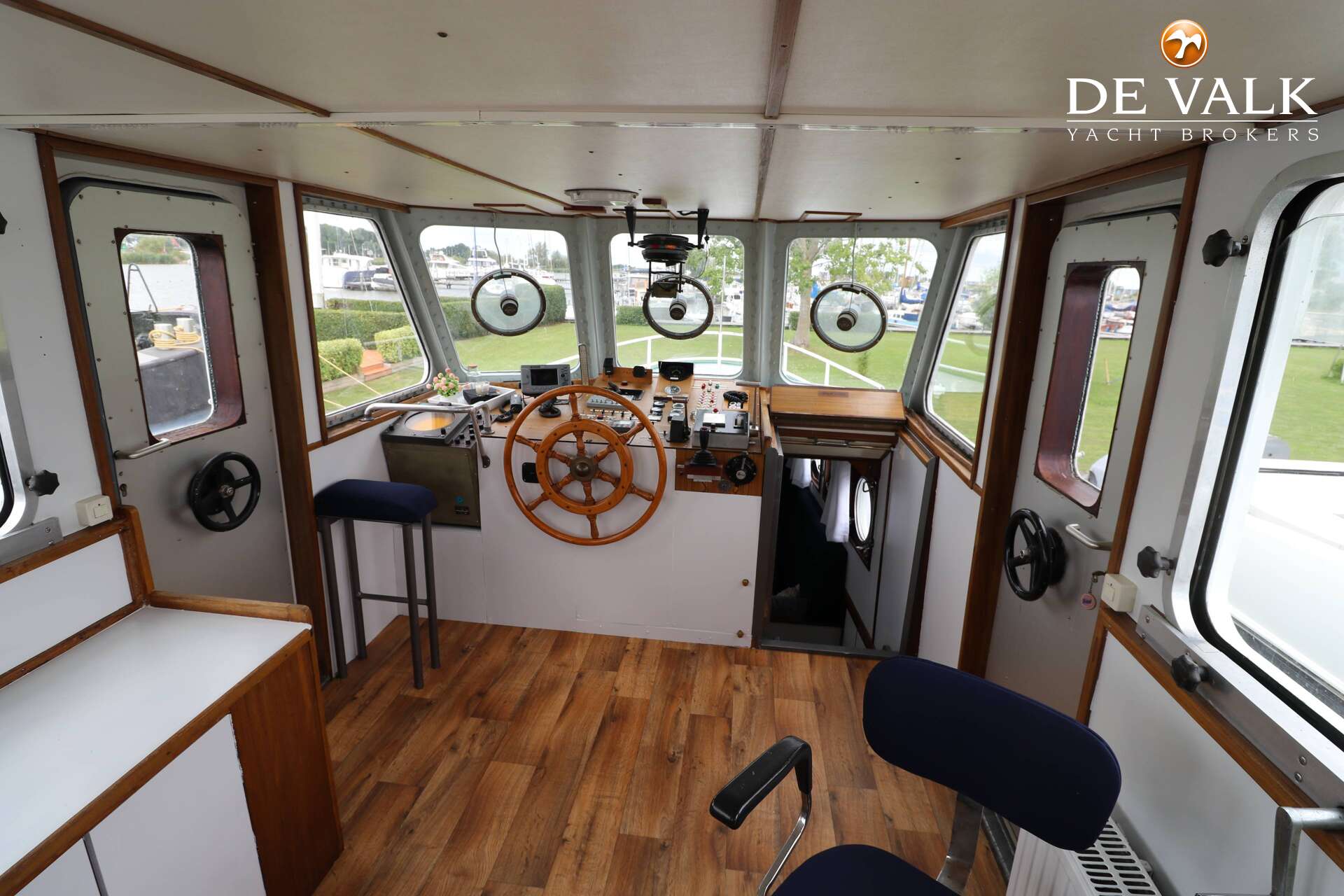

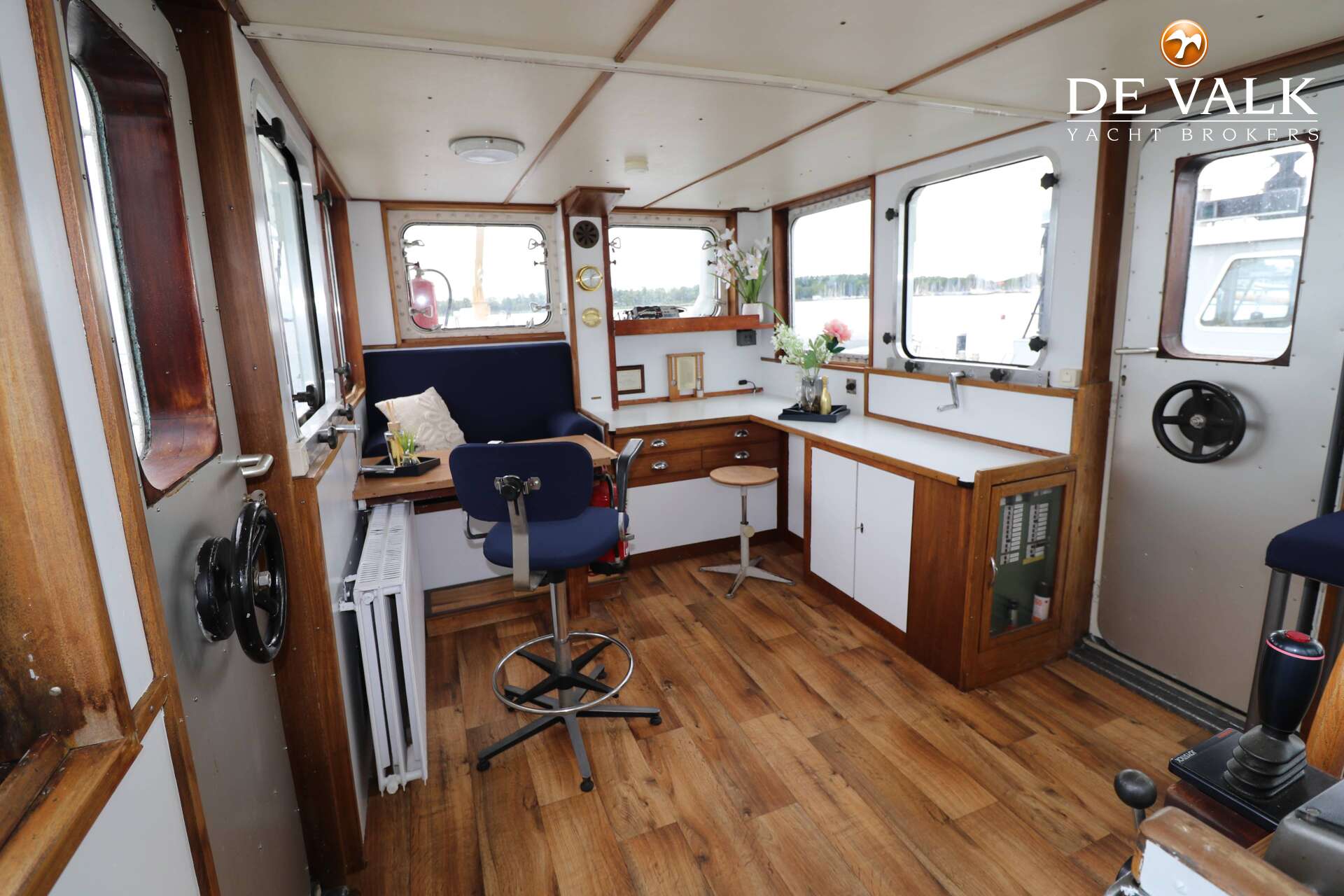

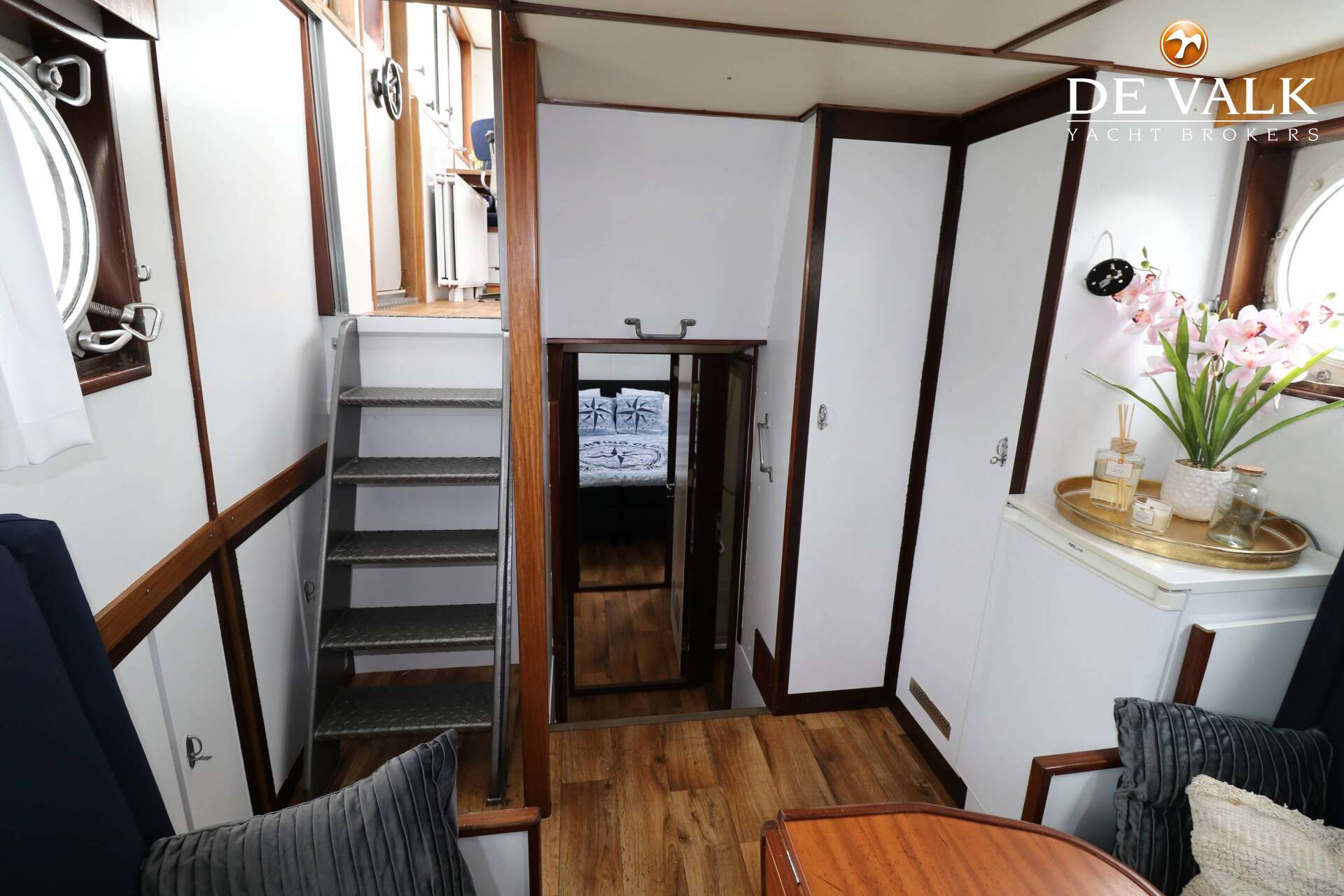

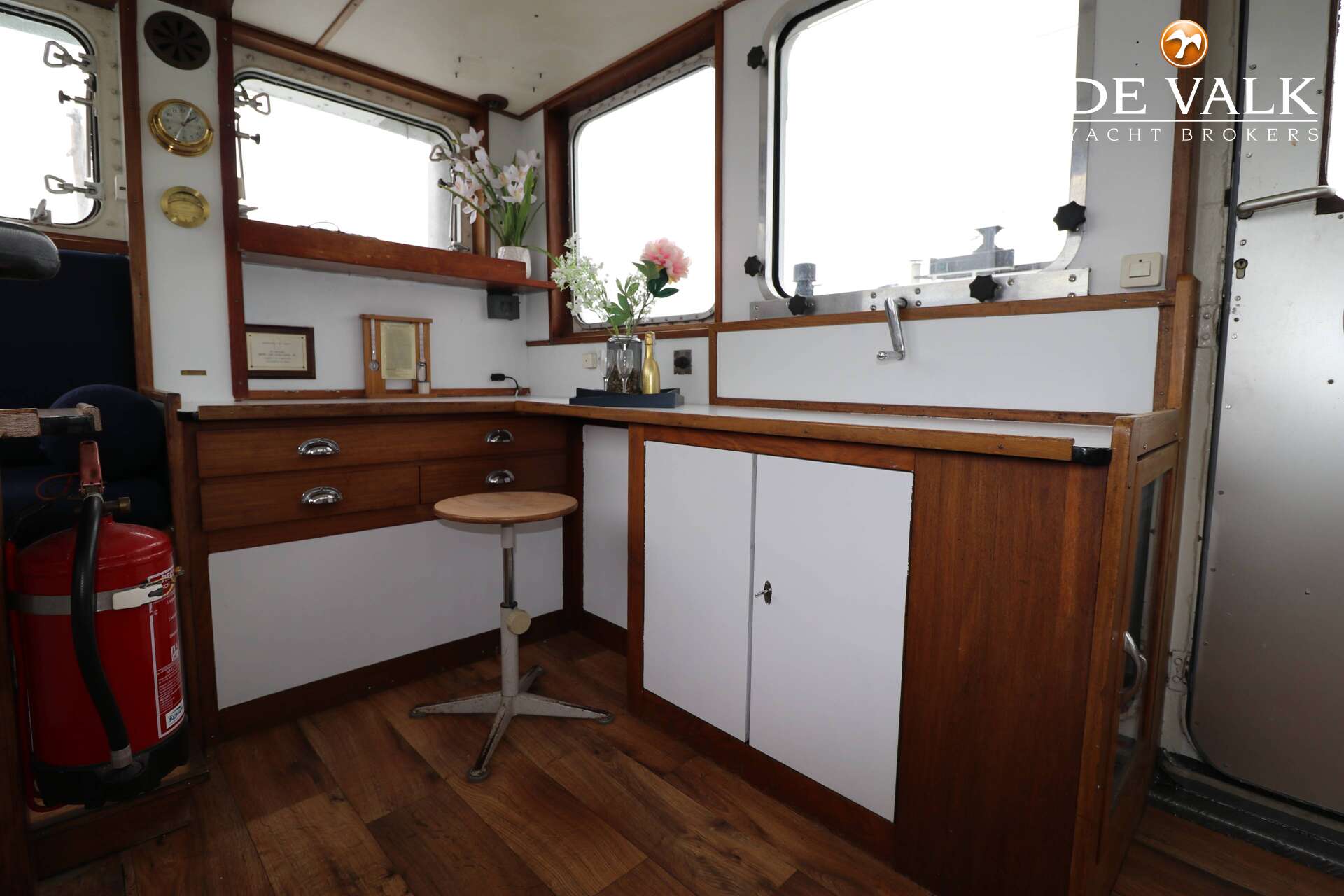

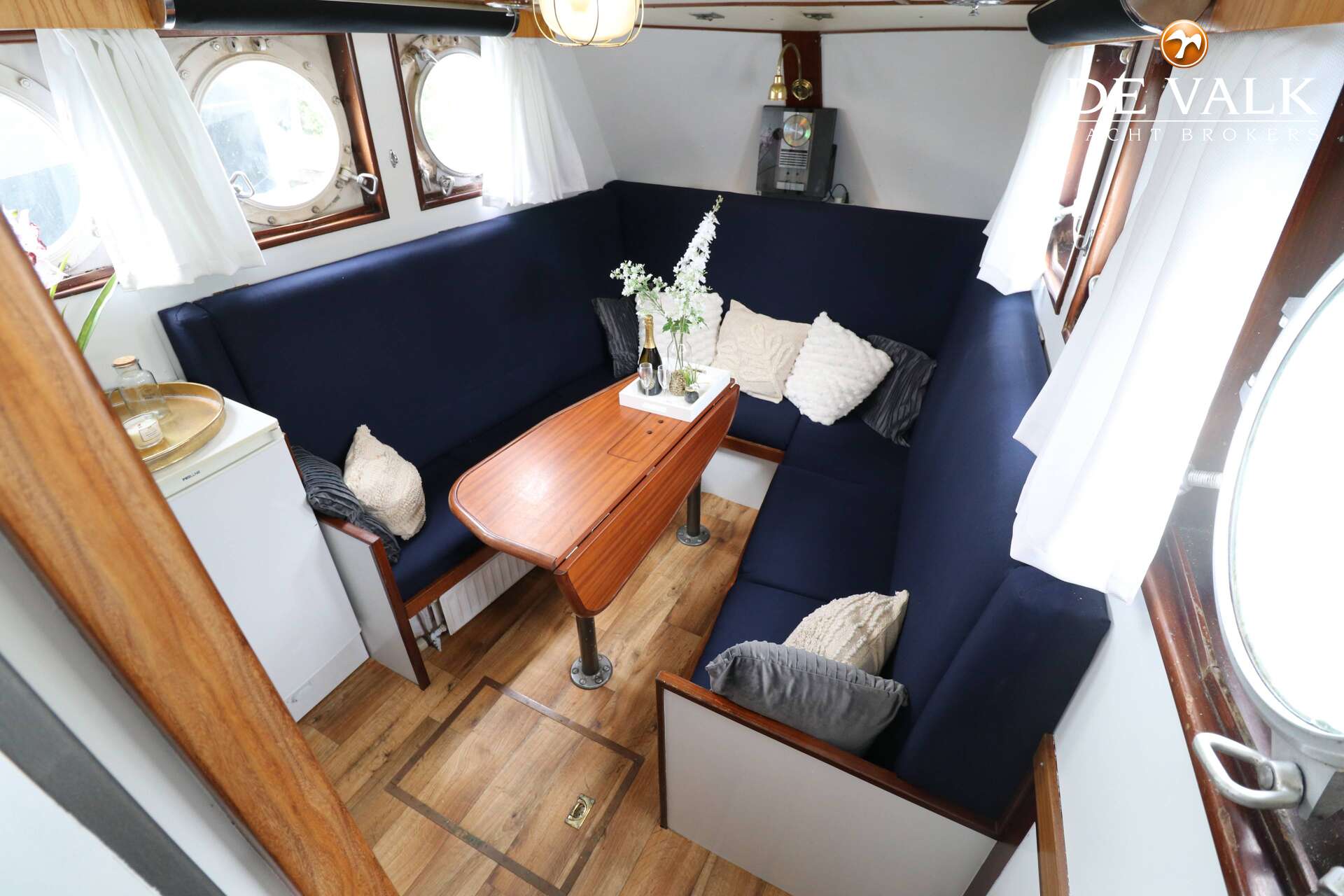

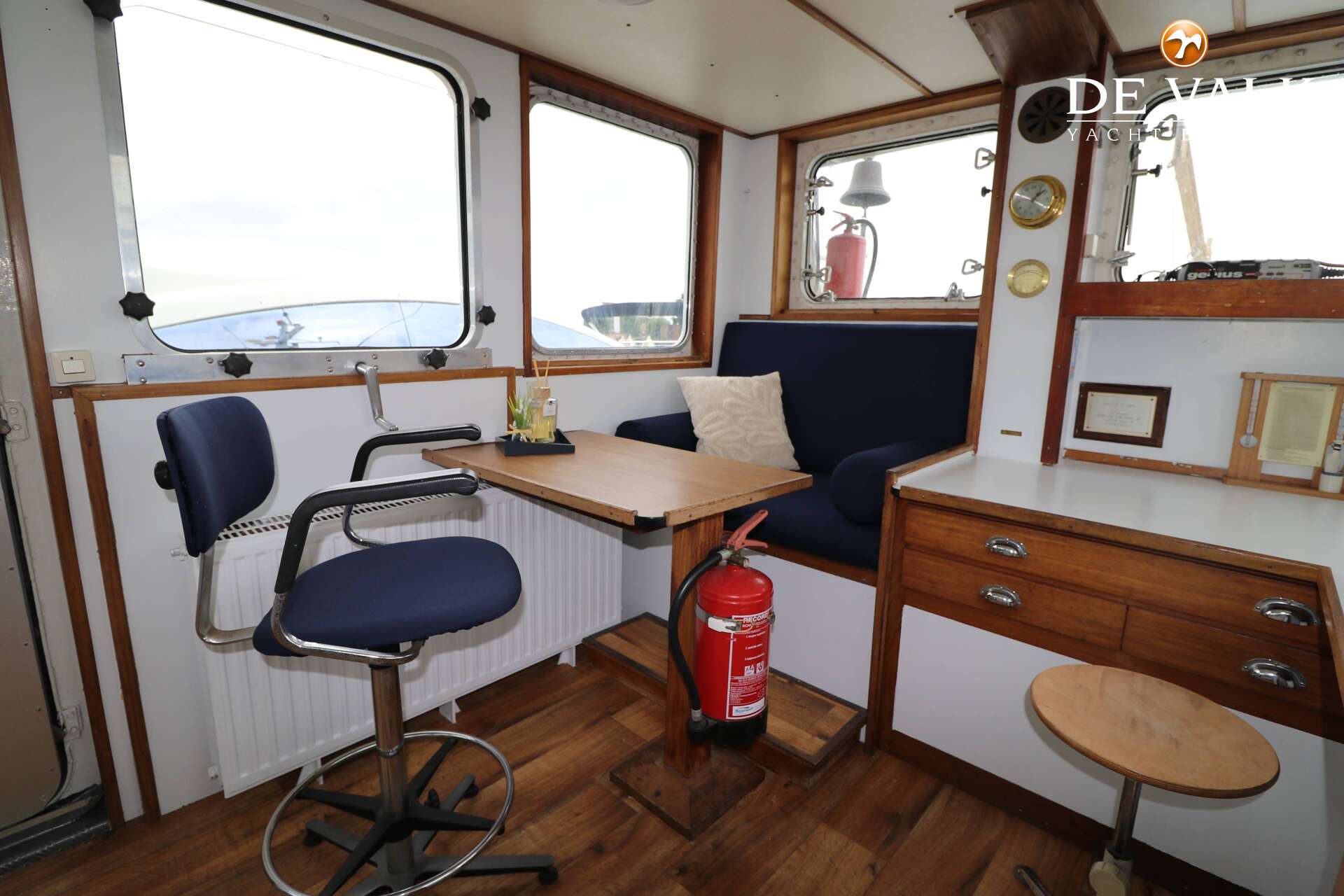

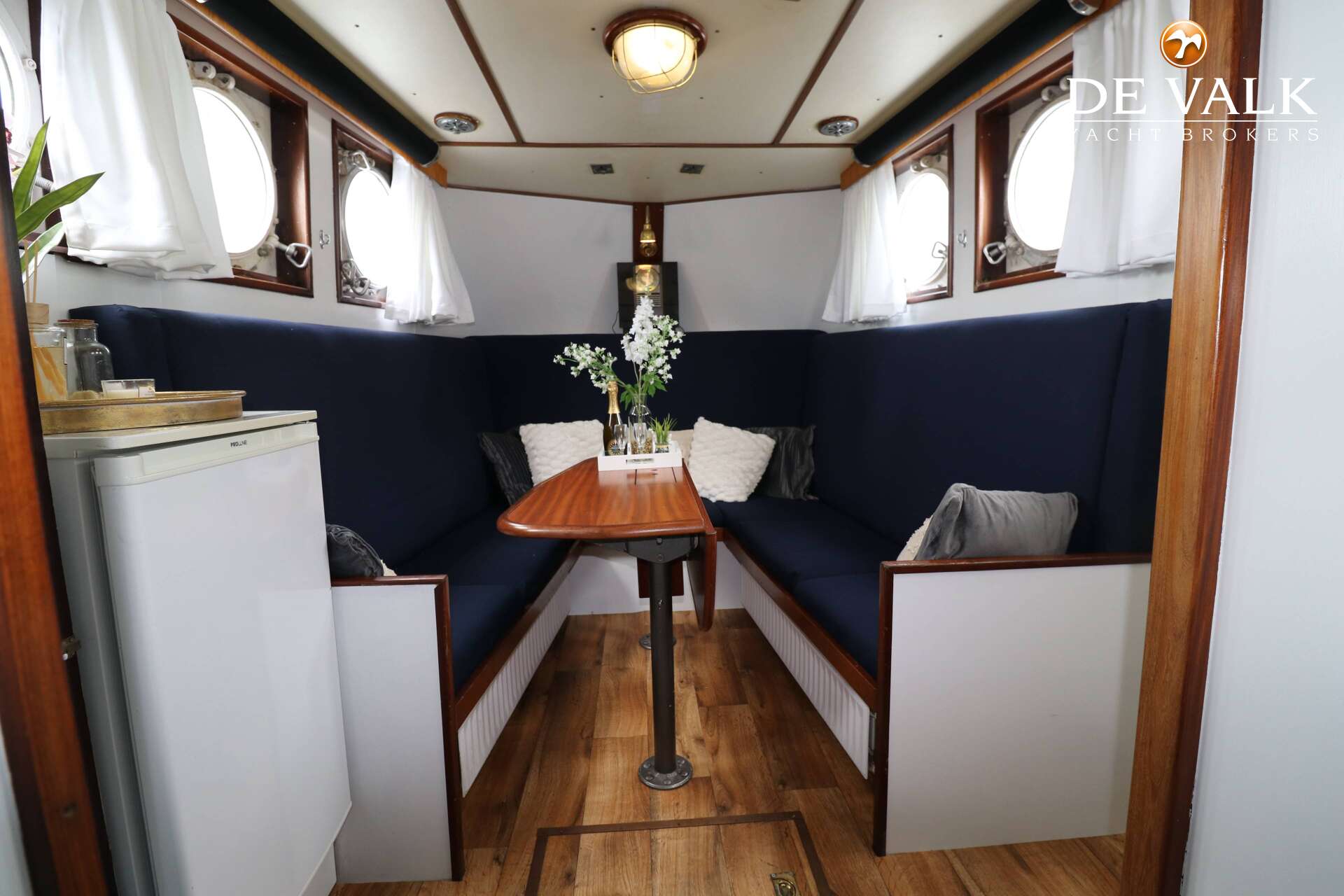

- Layout | Wheelhouse with helmsposition, navigation desk and dinette. Saloon in the front with V-shaped settee and table. The sette can be convirt into four single berths. Galley and bathroom. Owners cabin in midship with double berth.
- Floor woodprint
- Heating central heating | Interdomo central heating system
- Chart table yes
- Dinette yes
- Dinette to convert into berth | Four beds

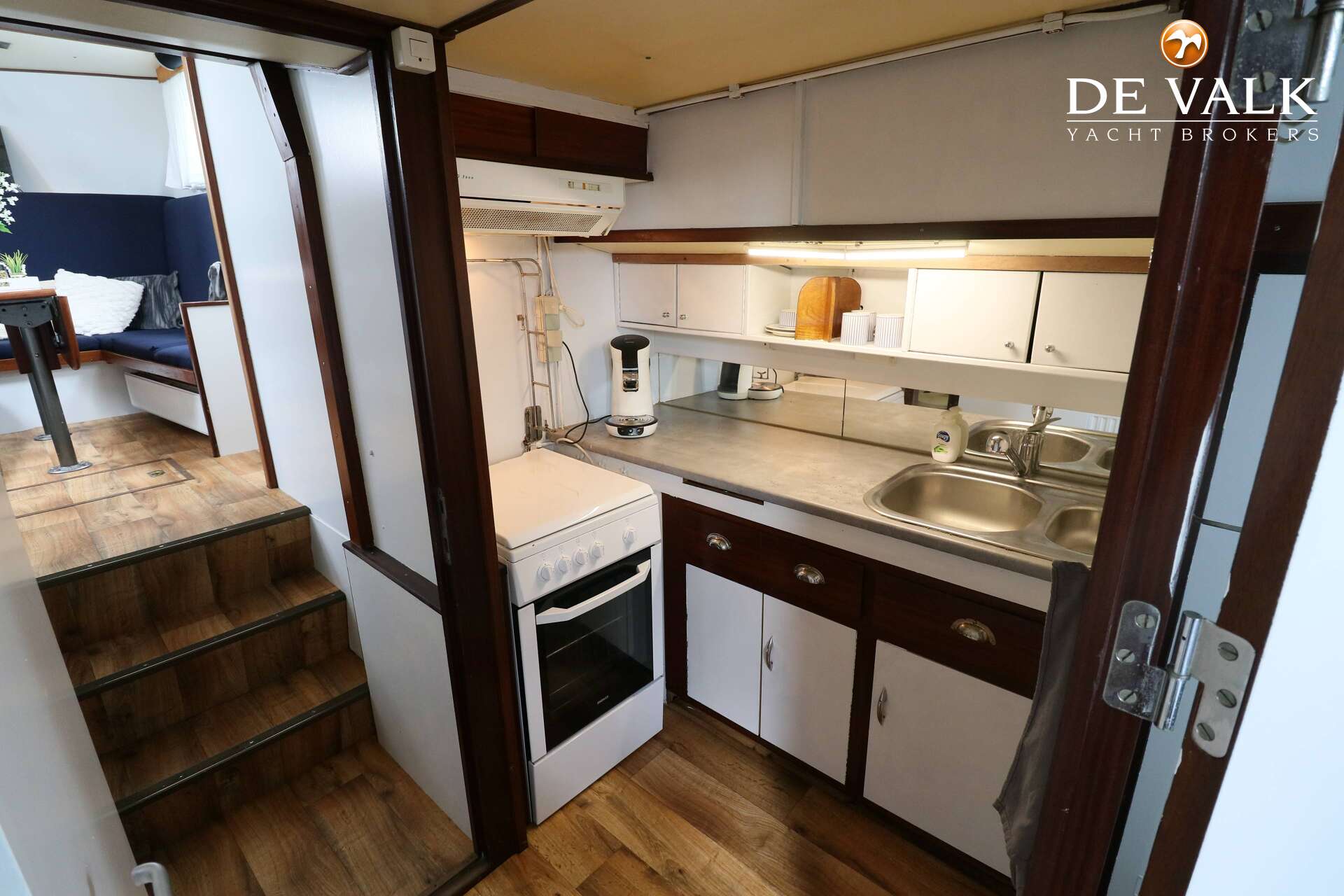

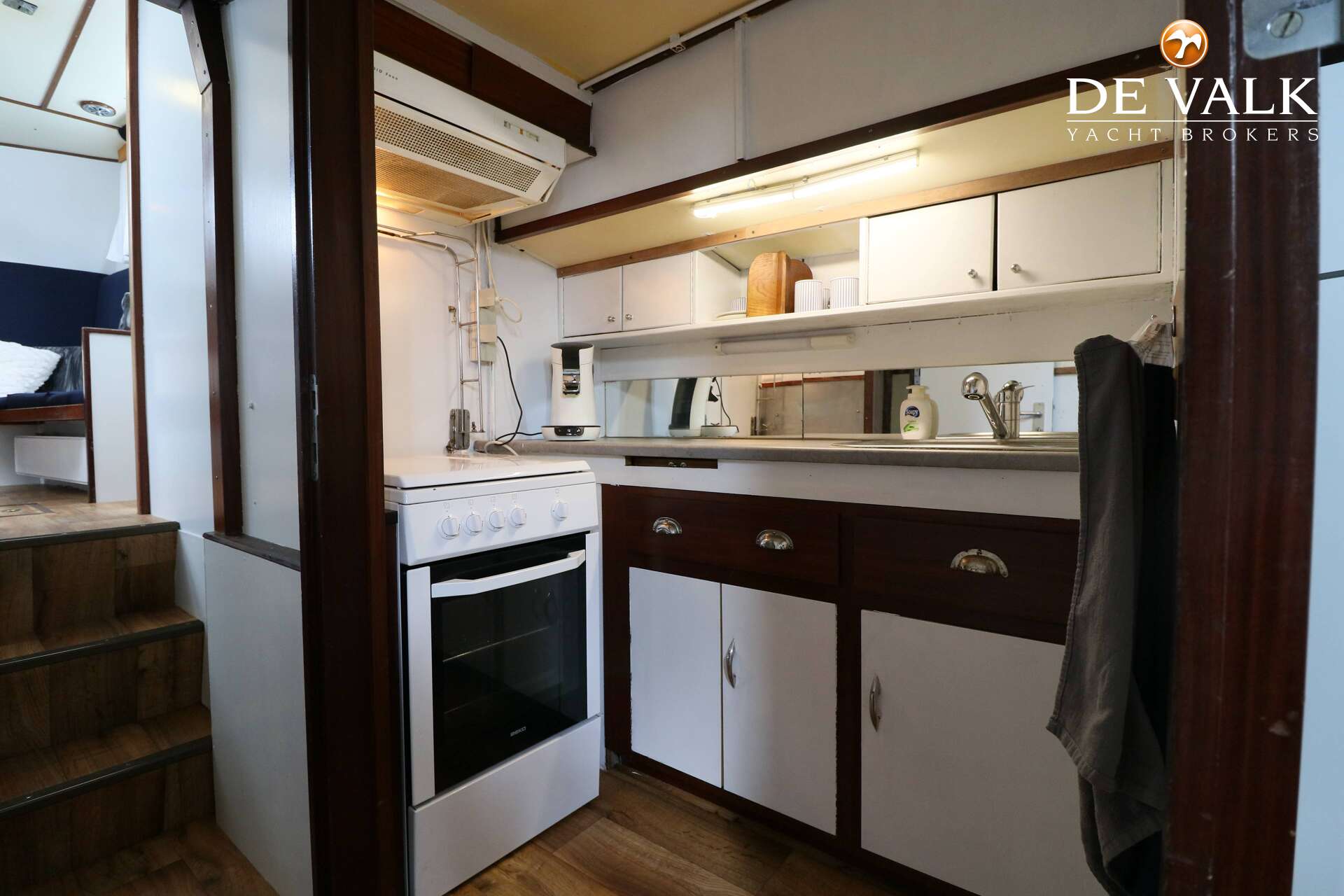

- Galley yes
- Countertop yes
- Sink stainless steel | Double stainless steel sink
- Cooker calor gas | Beko 4 burner
- Oven | Beko
- Extractor | Studio 3000
- Fridge | Proline fridge with freezing compartment
- Hot water system on central heating
- Water pressure system electrical

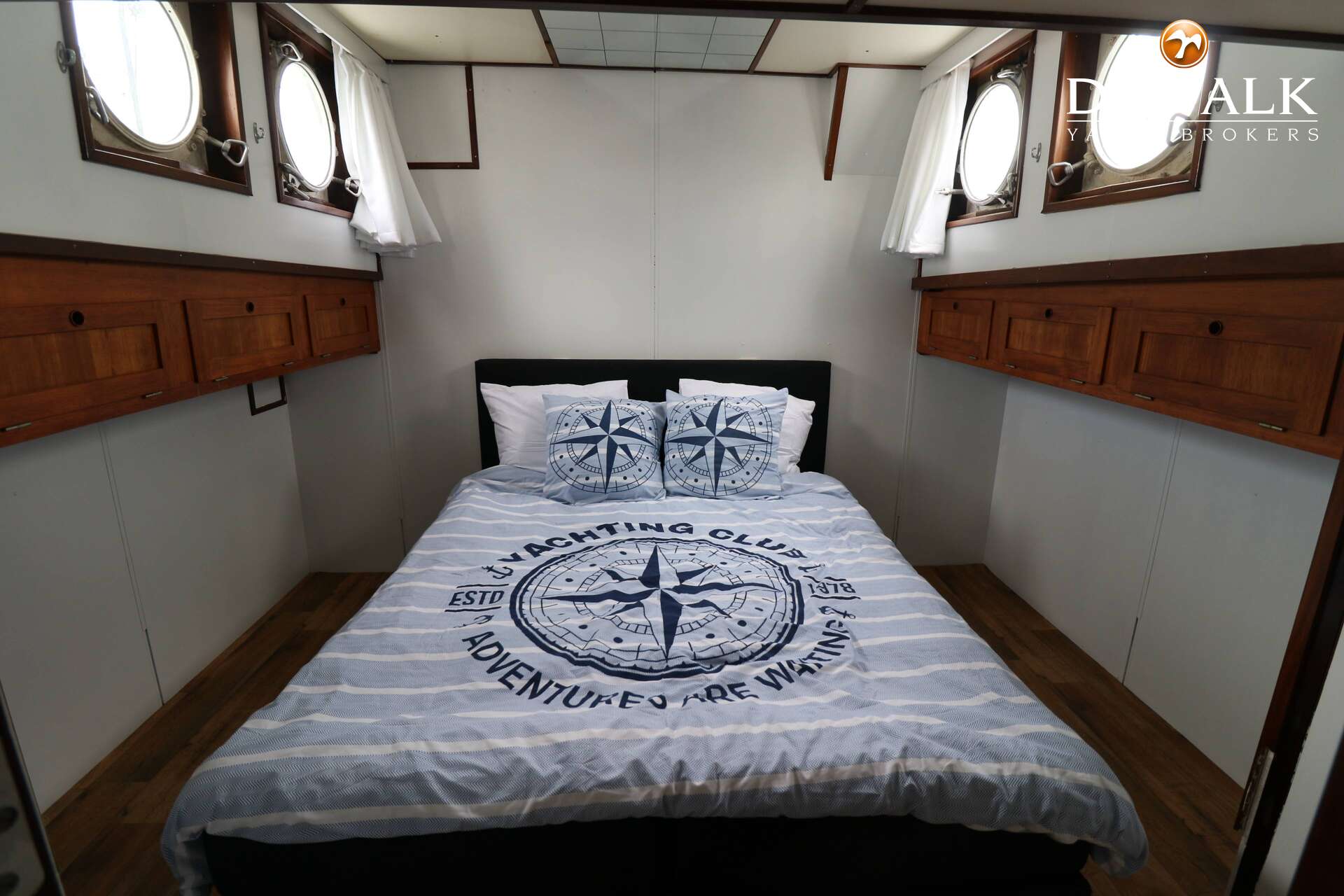

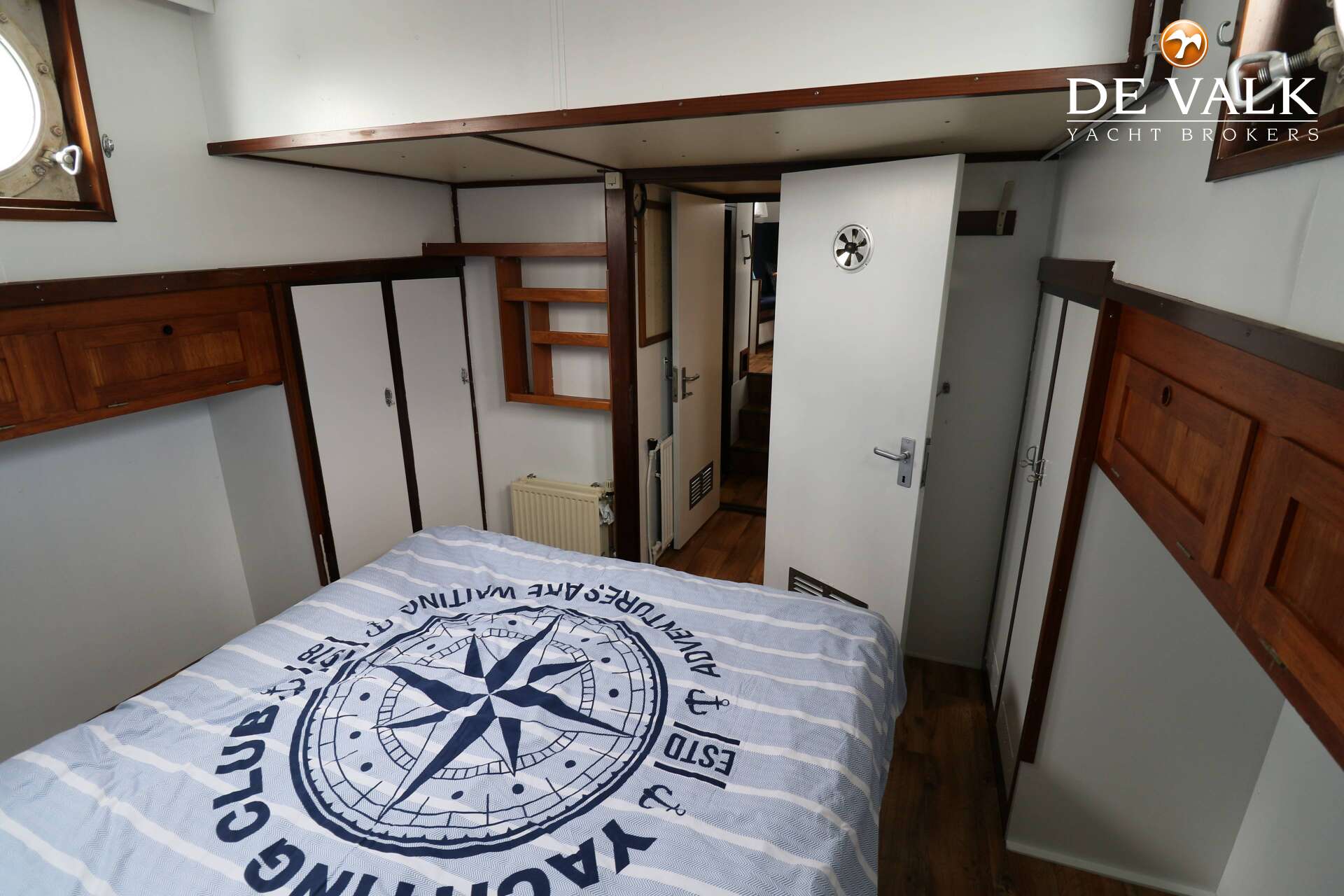

- Owners cabin French bed | Midship
- Wardrobe hanging and shelves

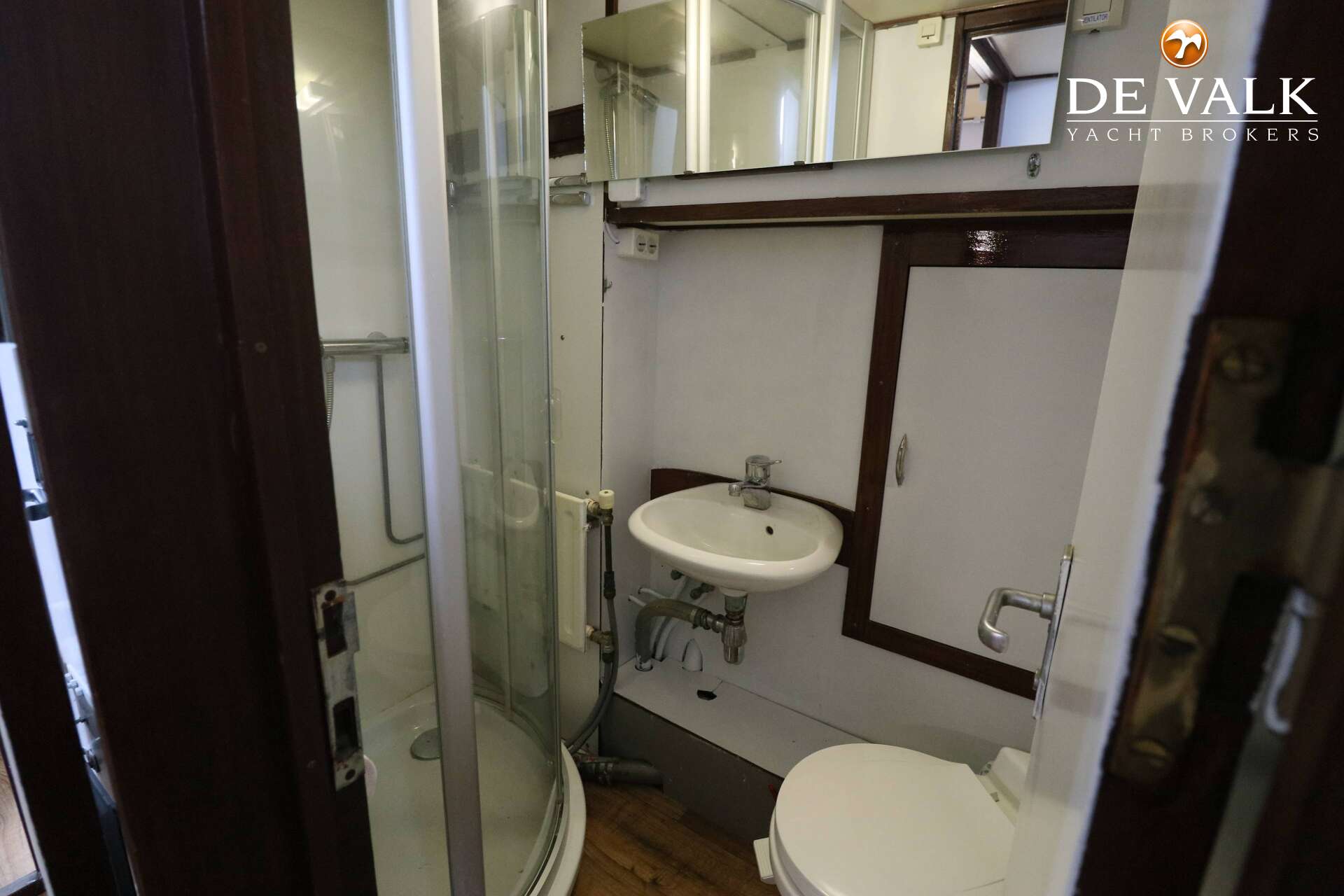

- Bathroom separate
- Toilet | Vacuflush
- Toilet system vacuum
- Wash basin yes

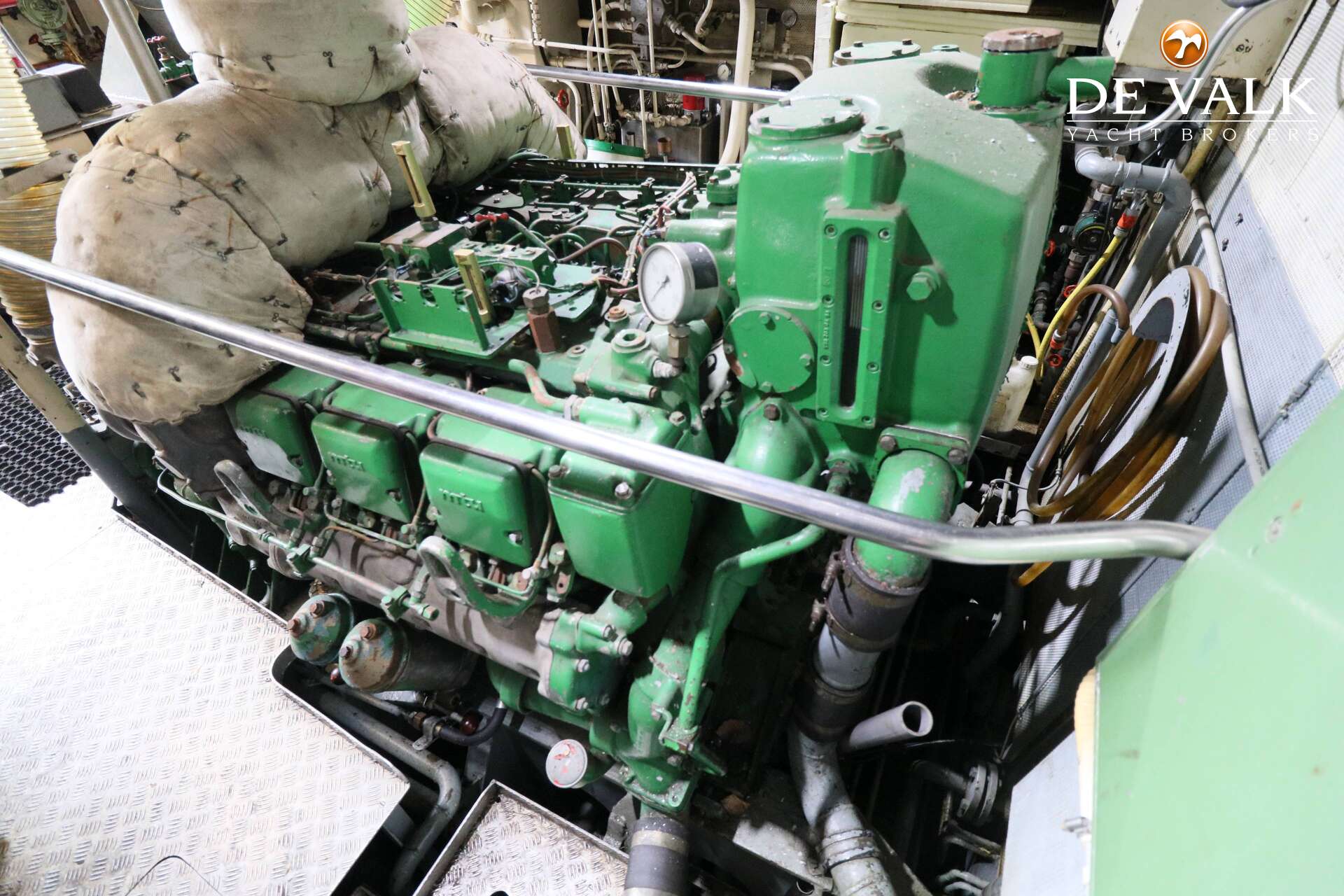

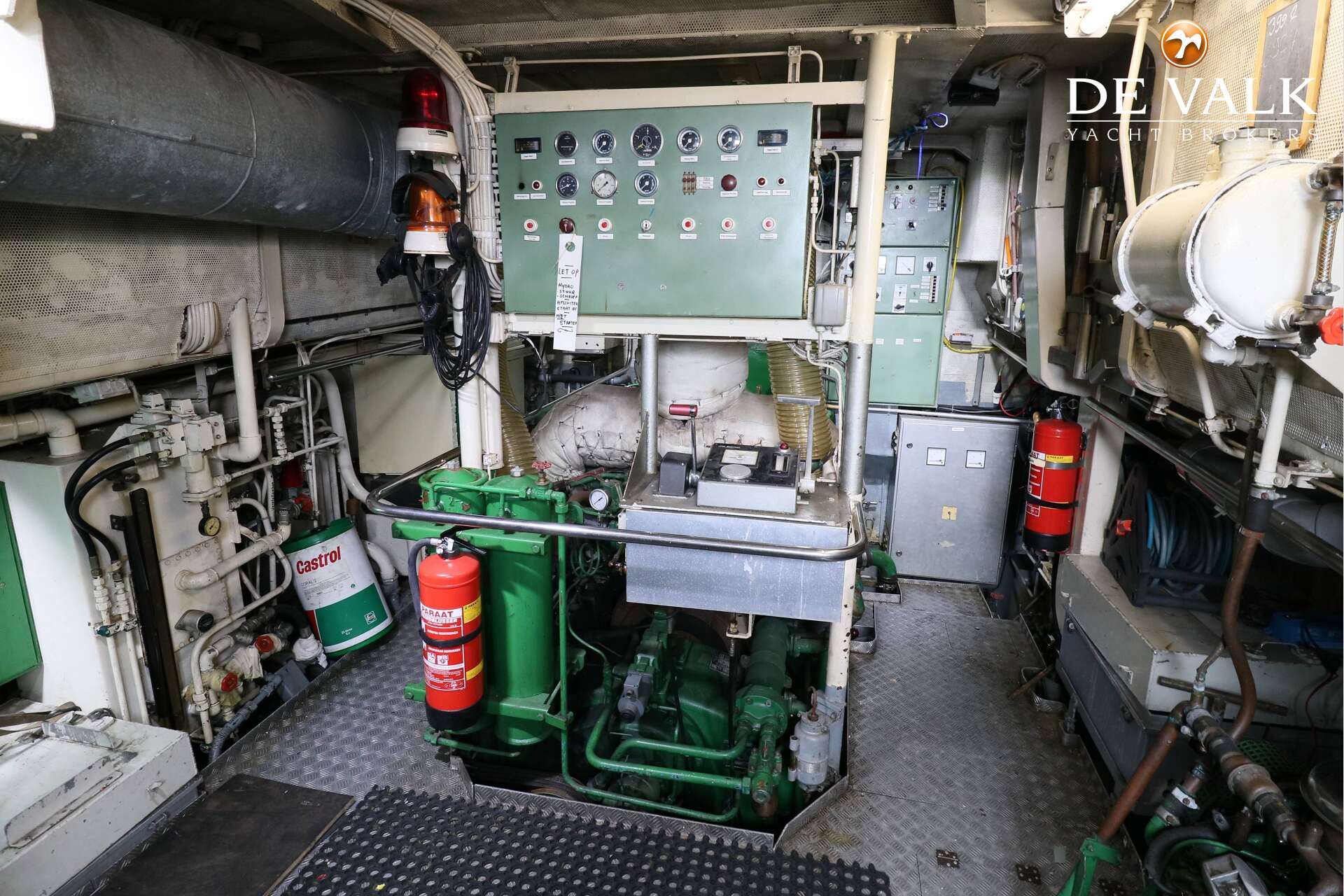

- No of engines 1
- Make MTU
- Type 6V396
- HP 540
- kW 397.44
- Fuel diesel
- Engine hours 4112
- Engine cooling system closed keelcooling
- Drive shaft
- Engine controls bowden cable | JW Berg
- Exhaust dry
- Propeller type reversible | Variable pitch propeller
- Propeller shaft material yes
- Shaft lubrication oilbath
- Manual bilge pump yes
- Electric bilge pump yes

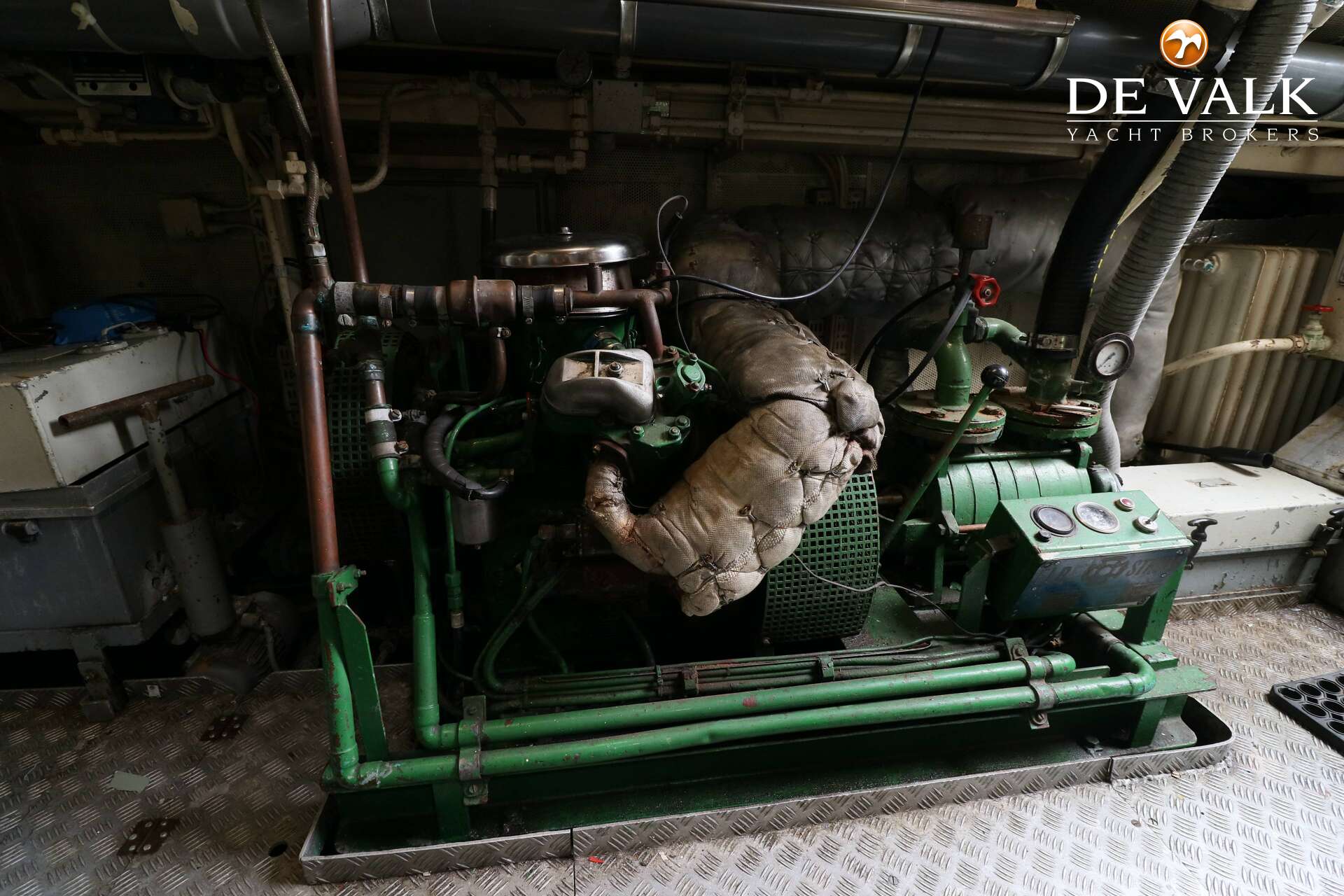

- Generator | 6GF-LDE aircooled diesel, Power generator
- Running hours generator | Approx. 49 hours
- Generator 2 | Elbe strom type: S30-125A-1600, 125a
- Batteries yes
- Battery charger | Victron Skylla-TG 24/80
- Inverter | Victron Phoenix 24/3000
- Shorepower with cable
- Compass | W. Ludolp liquid compass
- VHF | Shipmat 8315
- Autopilot | Raymarine ST6000+
- Rudder angle indicator | In the screen of the autopilot and separate Wagner instrument
- Radar | Swiss radar, typ: JFS932
- Plotter/GPS | Raymarine C70
- Searchlight yes
- Loudhailer yes
- Storm blinds | Steel plates to protect the windows in port
- Boarding ladder yes
- Anchor yes
- Anchor chain | Galvanized chain
- Anchor 2 | Anchor with rope

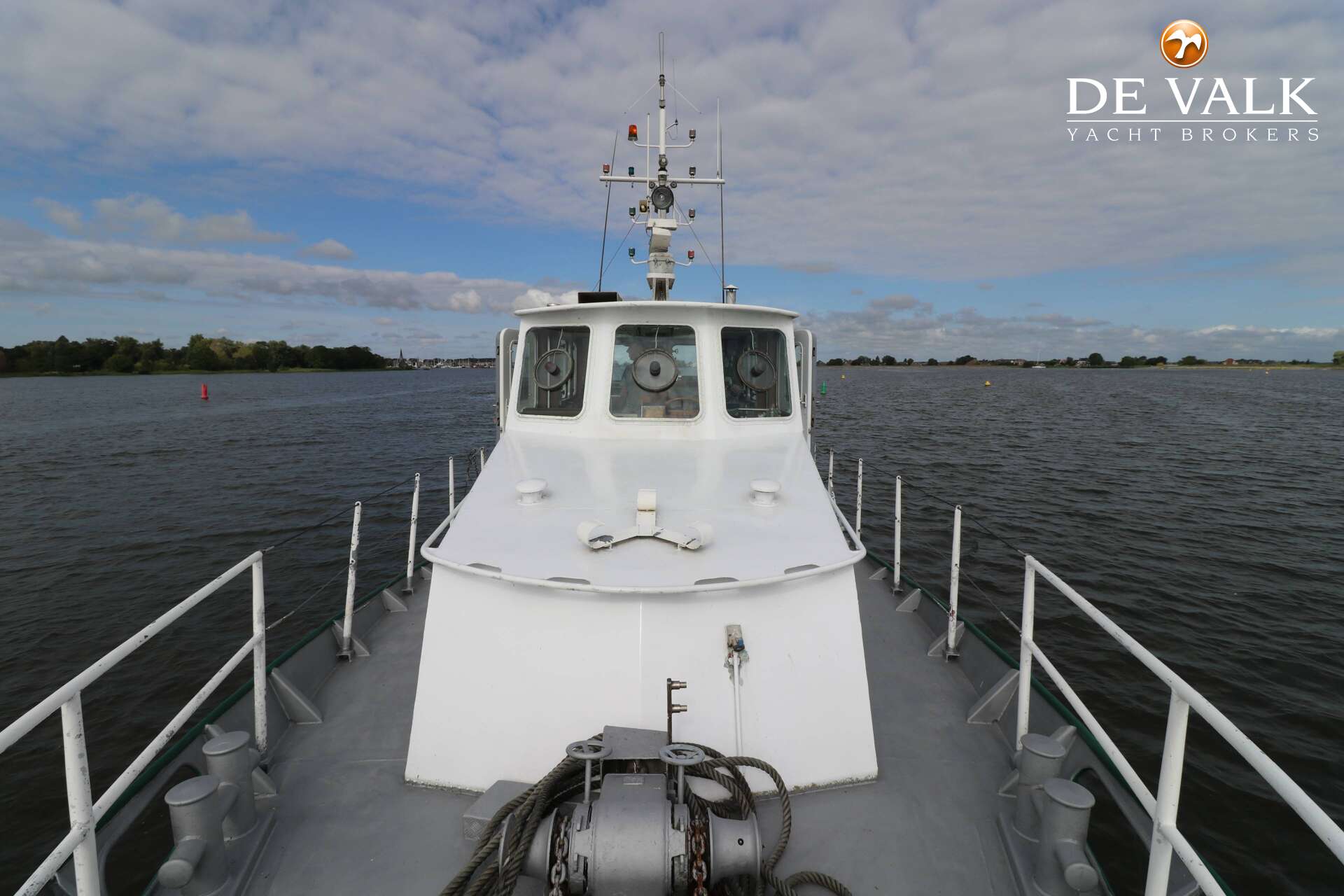

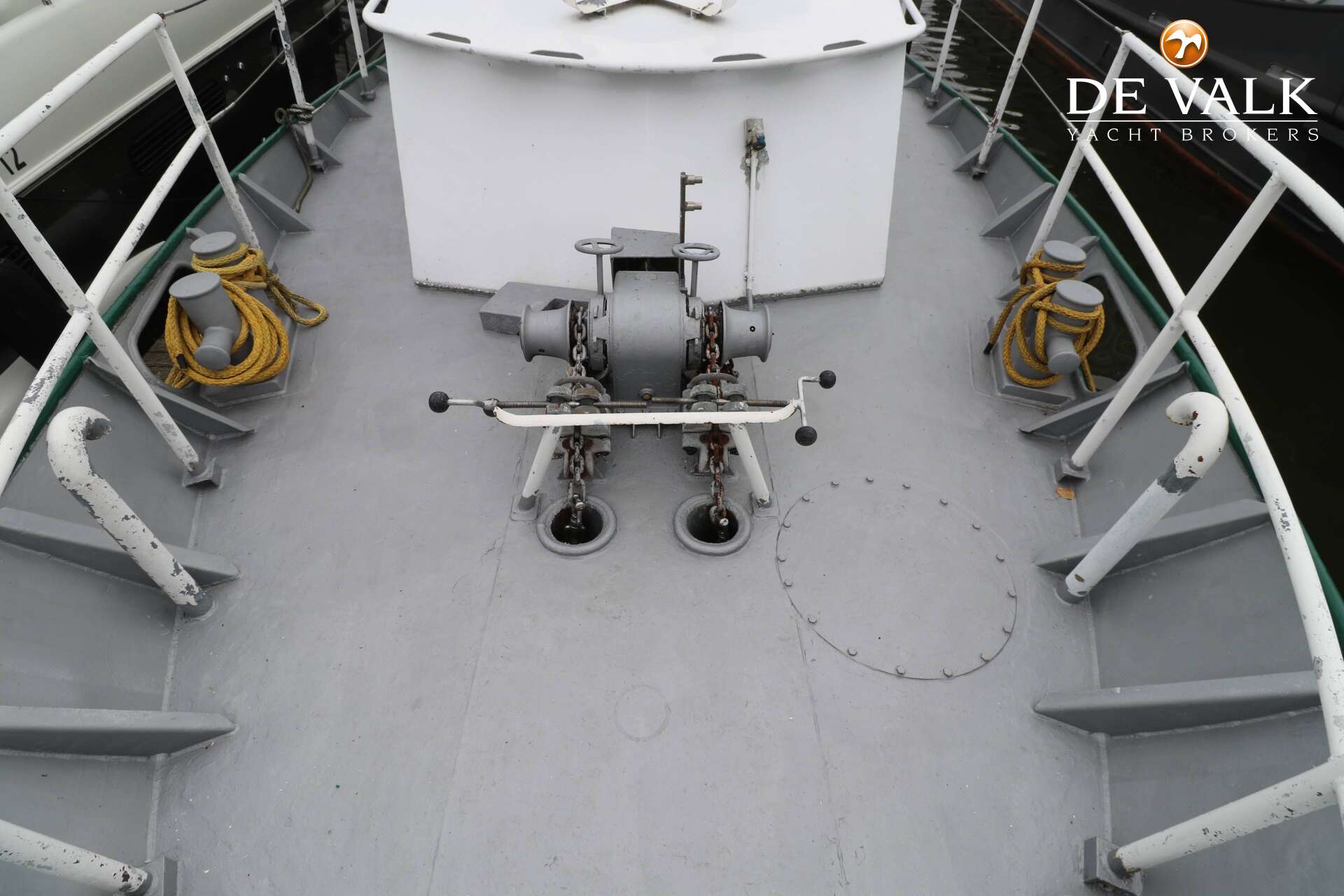

- Windlass | Christian Steen Machinenfabrik, typ: MA1

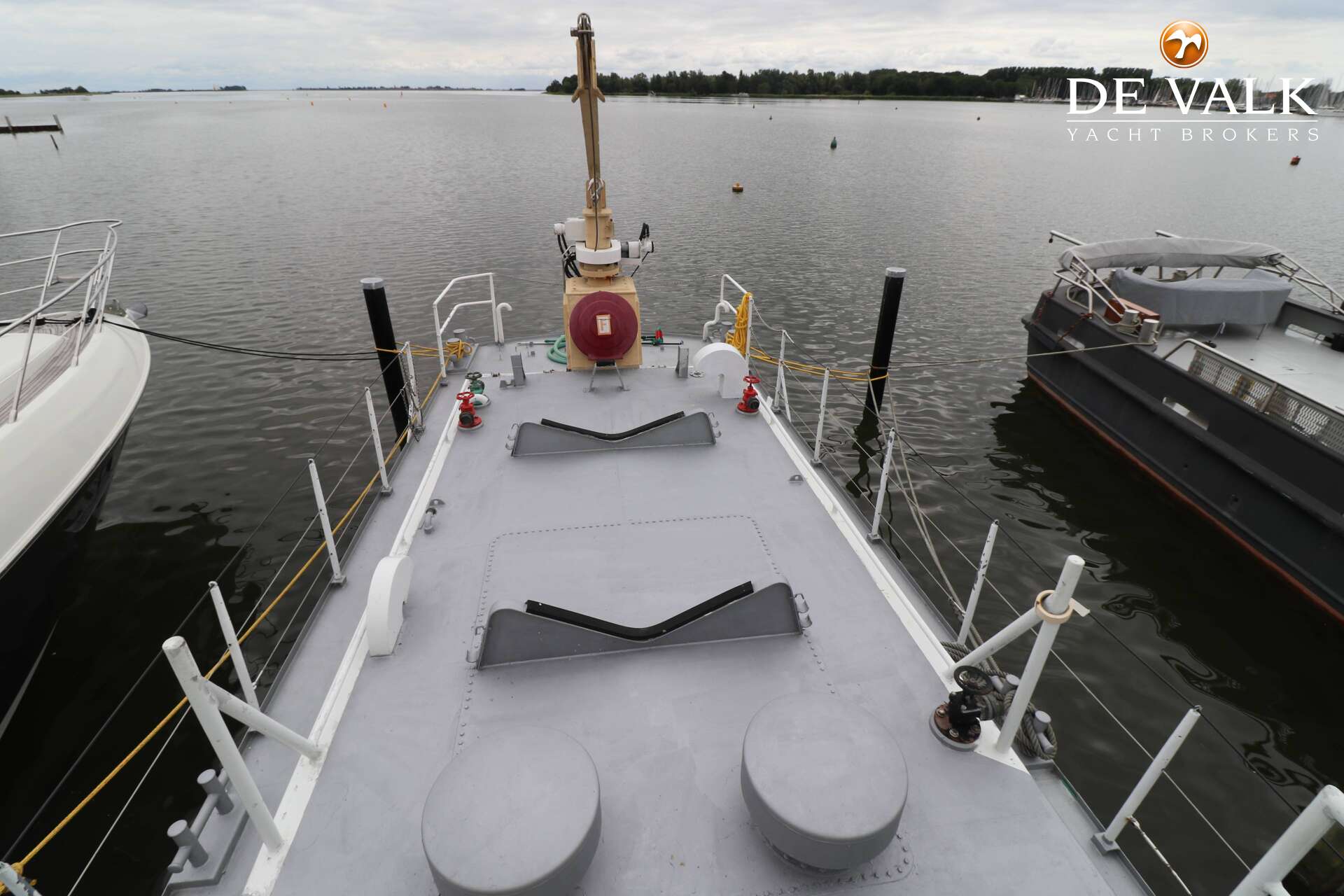

- Deck crane Wiese verladetechnik, typ: 4492.101, davit 500KP
- Sea railing wire
- Grab rail (superstructure) aluminium
- Railing side opening gates yes
- Clearview window | 3x Speich
- Horn yes
- Fenders yes
- Mooring lines yes

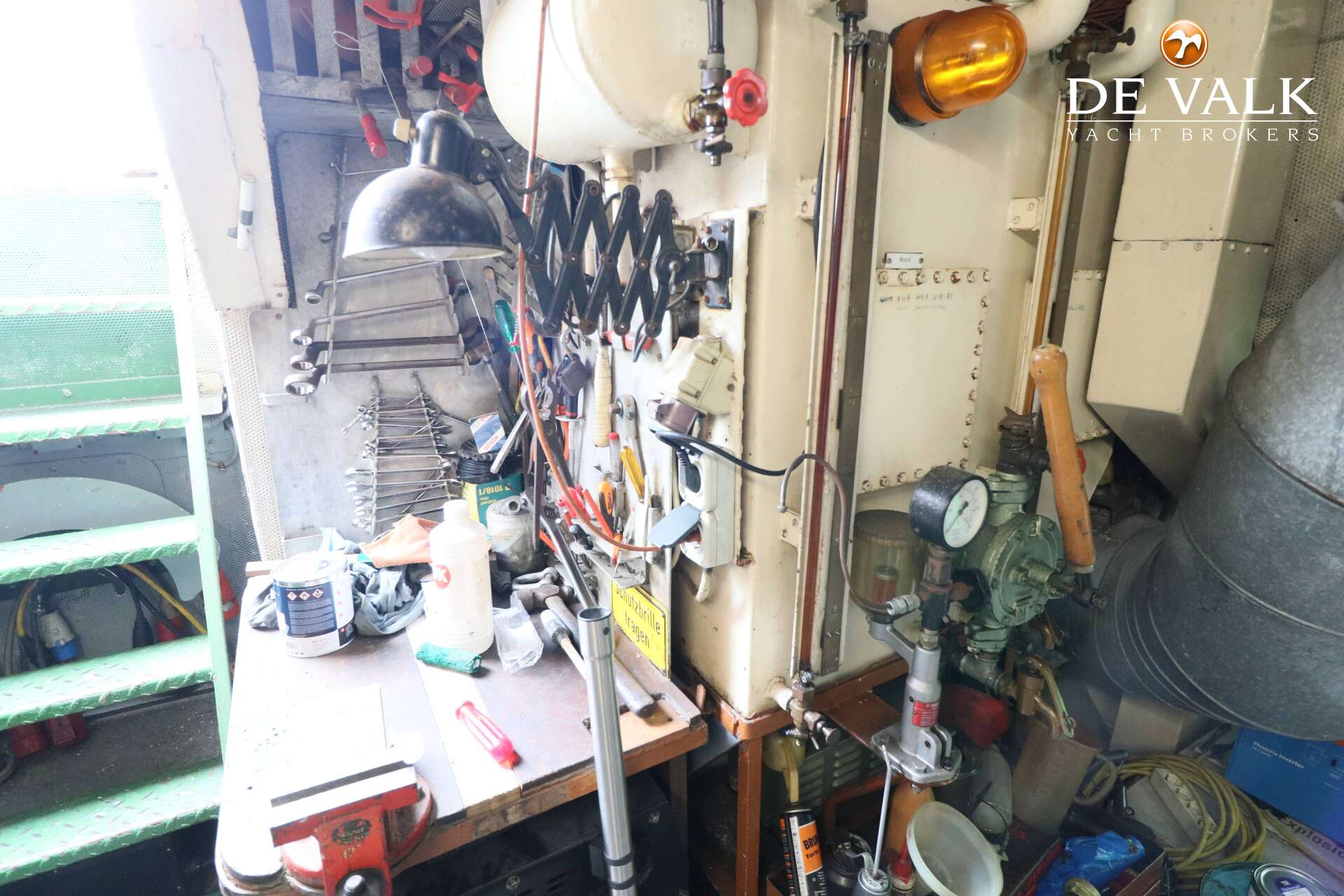

- Tools yes
- Radio-cd player | Supertech
- Surround Sound System Bang & Olafsen Beosystem 2500
- Clock - barometer | VDO clock

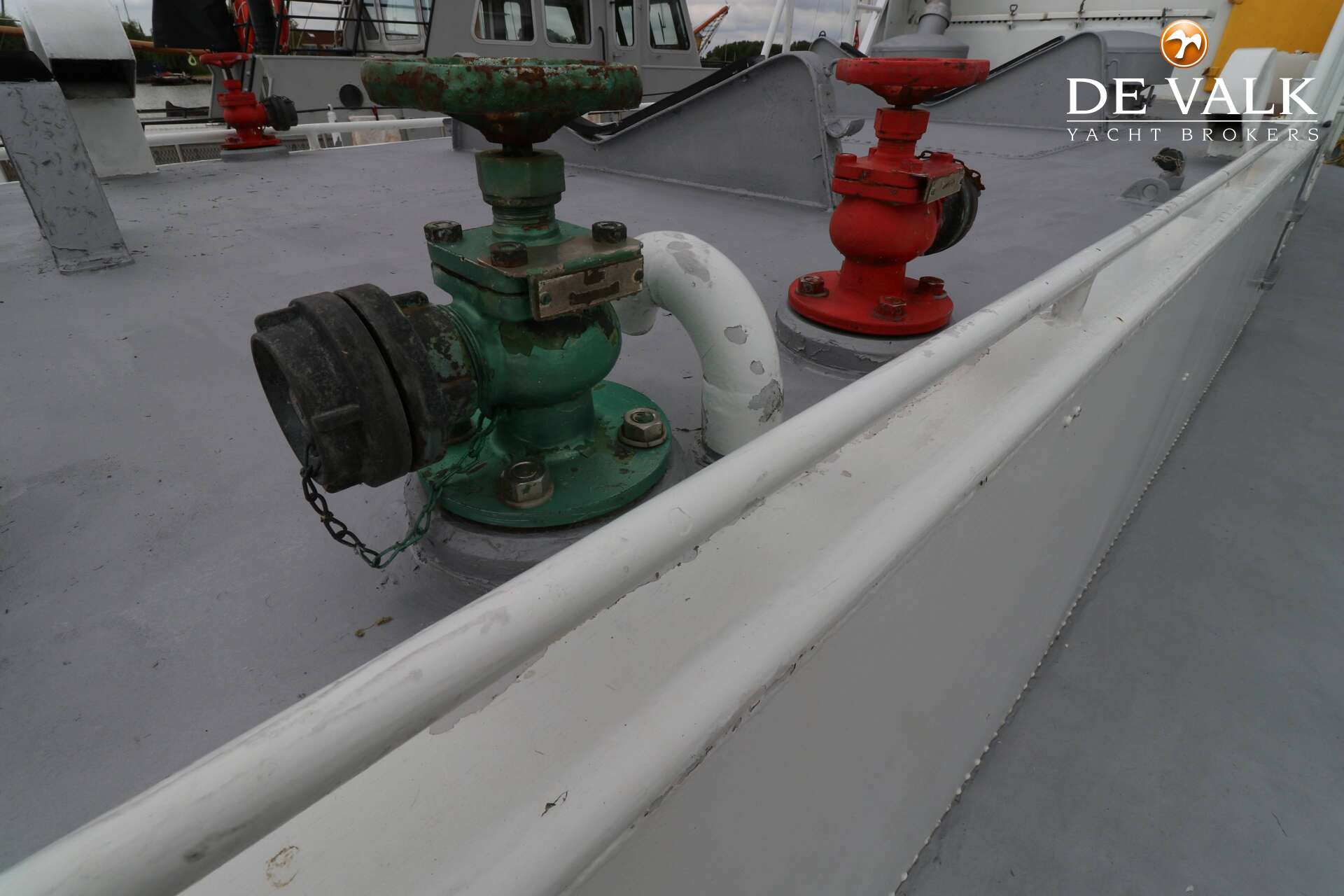

- Fire extinguisher | Large type of waterpump connected to one of the generators. Possible to operate as fireboat.
Important disclaimer:These particulars are given in good faith as supplied but cannot be guaranteed and cannot be used for contracts.
Frequently asked questions: Customs Patrol Vessel 20 Meter
No, this yacht has been sold.
This asking price is private.
The yacht is located in The Netherlands, at sales office.
No, this yacht has been sold.
