This PANORAMER 40 is sold. you may also like:
(52)
PANORAMER 40
- Dimensions
- 12.95 x 3.86 x 1,85 / 1.85 (m)
- Material
- Aluminium
- Built
- 2002
- Engine(s)
- 1x Volvo MD22L diesel
- HP/ KW
- 1x 50.00(hp), 36.80(kw)
- Lying
- contact Portugal
- Sales office
- De Valk Portugal
- Status
- Under Offer
Broker's comments

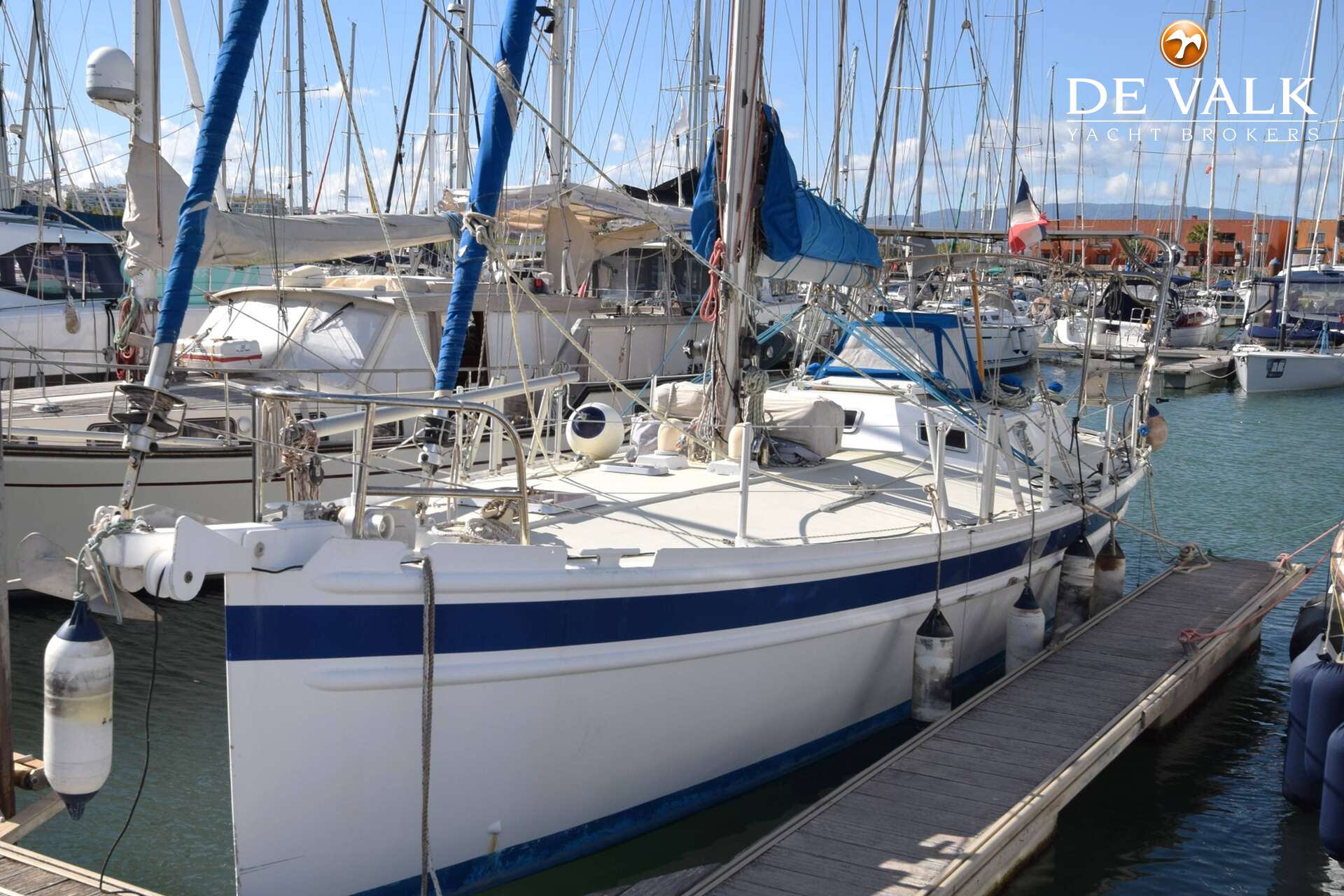

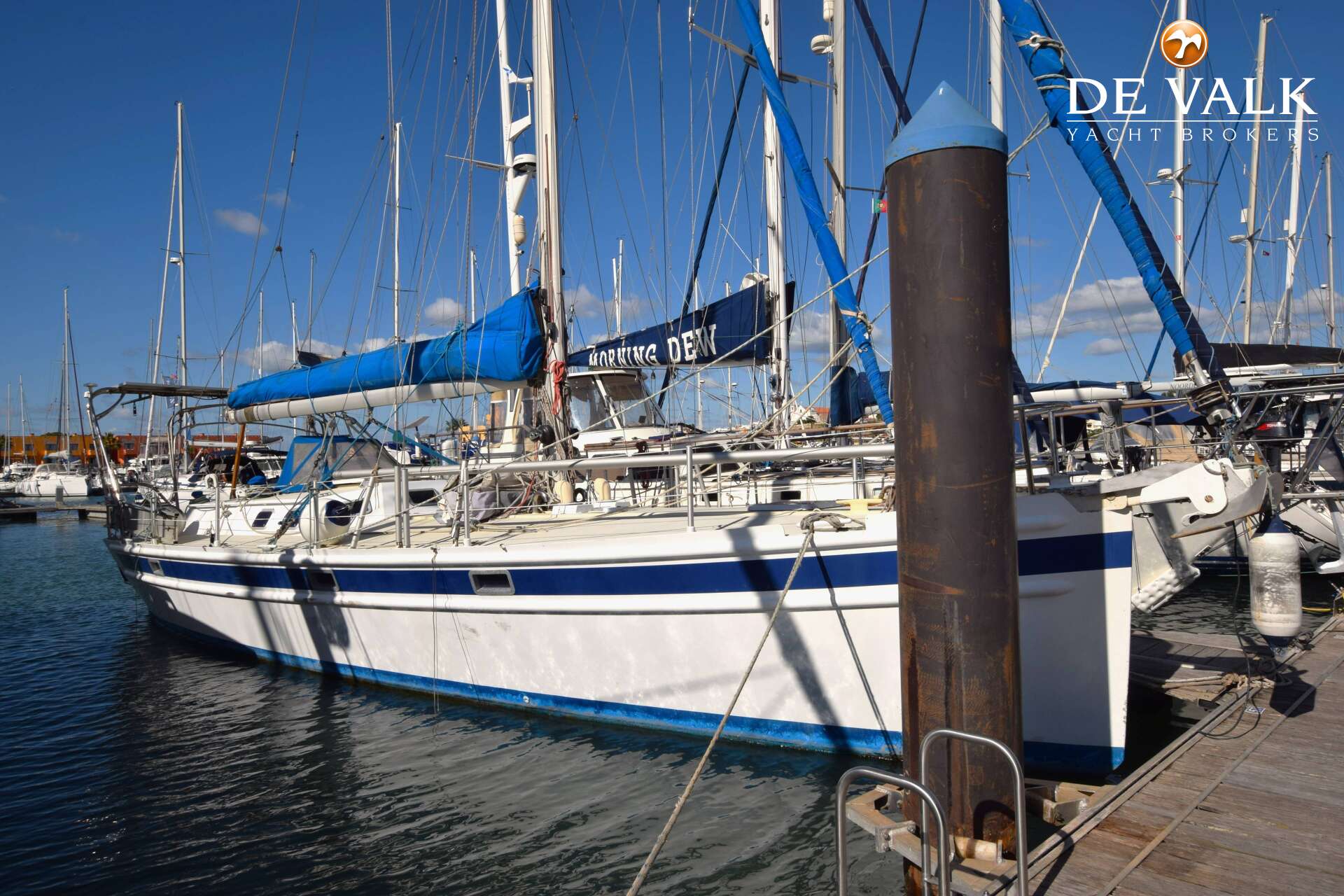

The Panoramer 40 is a highly robust, ocean-going sloop, designed by J.P. Brouns and typically constructed in aluminum by the renowned French shipyard META Yachts. Purpose-built for serious blue-water cruising, long-distance expeditions, and high-latitude sailing. It prioritizes safety, structural integrity, and exceptional directional stability over pure racing speed. Equipped with a watermaker, solar panels and autopilot steering for full autonomy.
Photos (52)
Download brochure
Share this yacht
Specifications: Panoramer 40
General
- Model PANORAMER 40
- Type sailing yacht
- LOA (m) 12,95
- LWL (m) 11,62
- Beam (m) 3,86
- Draft (m) 1,85
- Draft min (m) 1,85
- Air draft (m) 17,10
- Headroom (m) 2,10
- Year built 2002
- Builder META Chantier Naval
- Country France
- Designer J.P. Brouns
- Displacement (t) 8,1
- Ballast (tonnes) lead 3,2
- Gross tonnage 18
- Net tonnage 11,9
- CE norm A
- Hull material aluminium
- Hull colour off-white
- Hull thickness (mm) strongall 5086 10-12mm

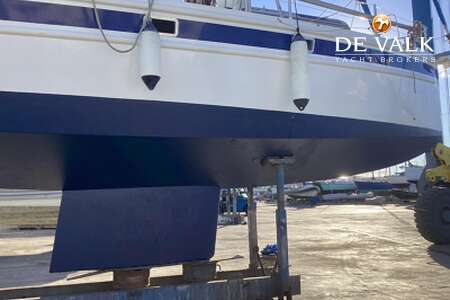

- Hull shape hard chine
- Keel type fin keel
- Superstructure material aluminium
- Rubbing strake yes

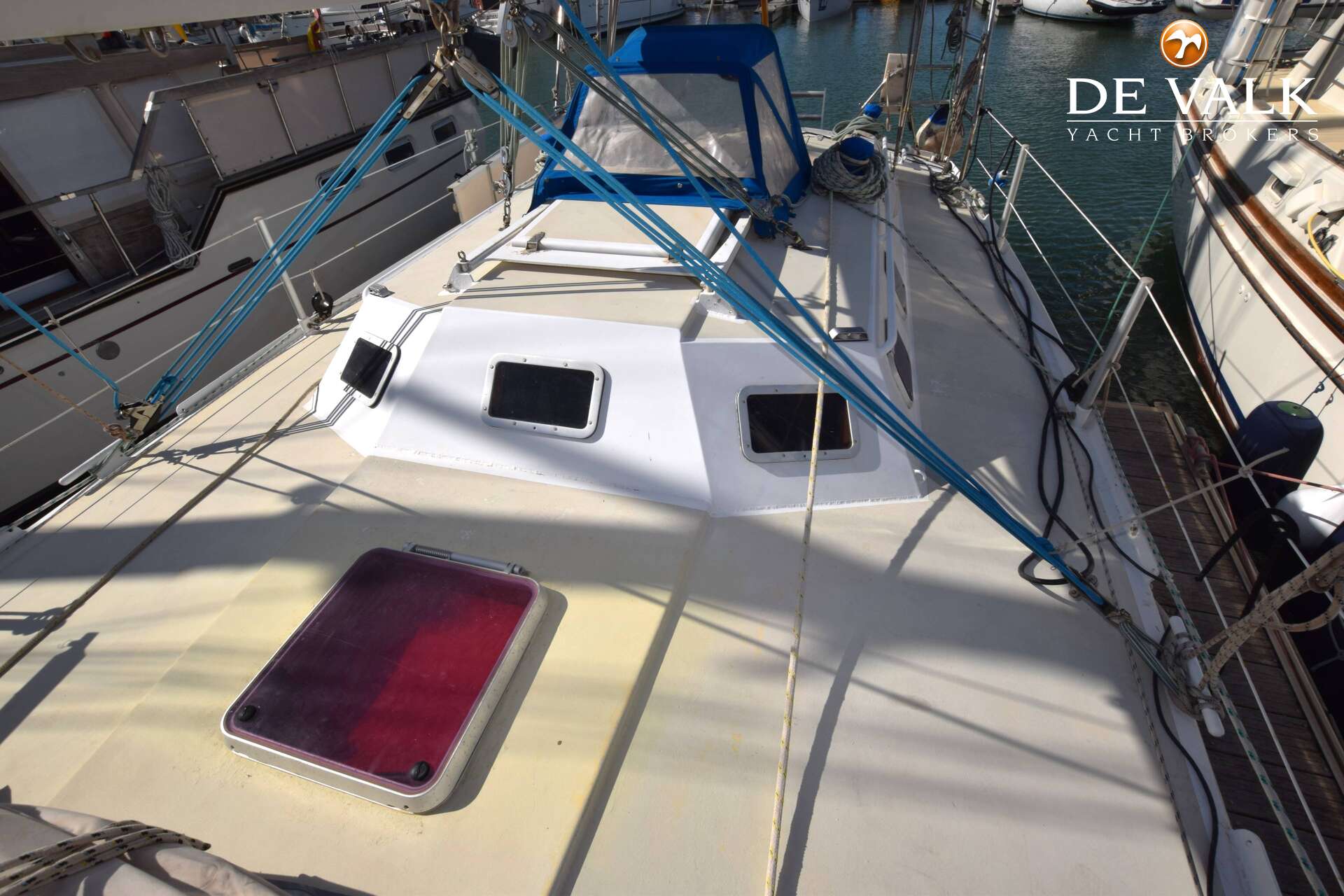

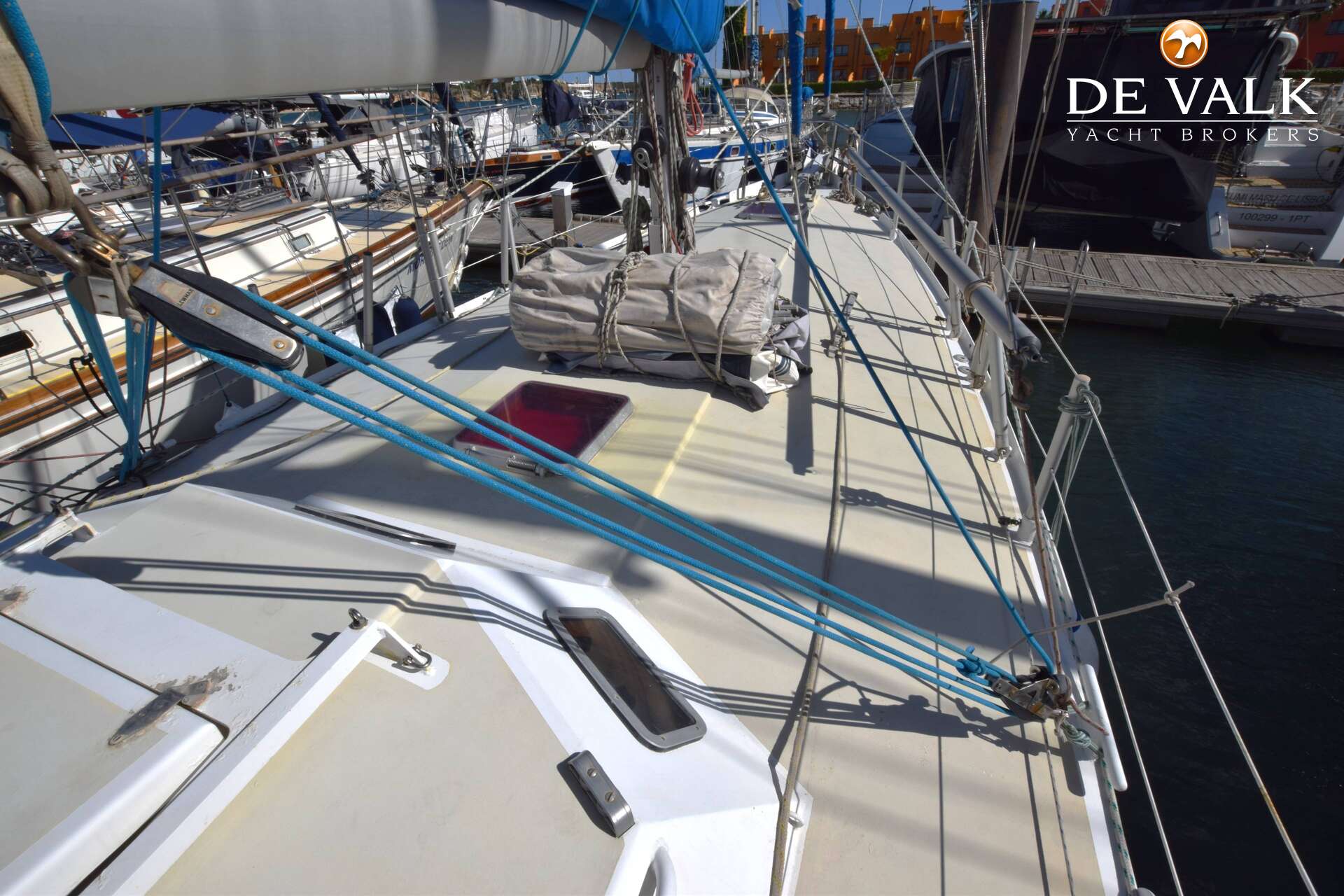

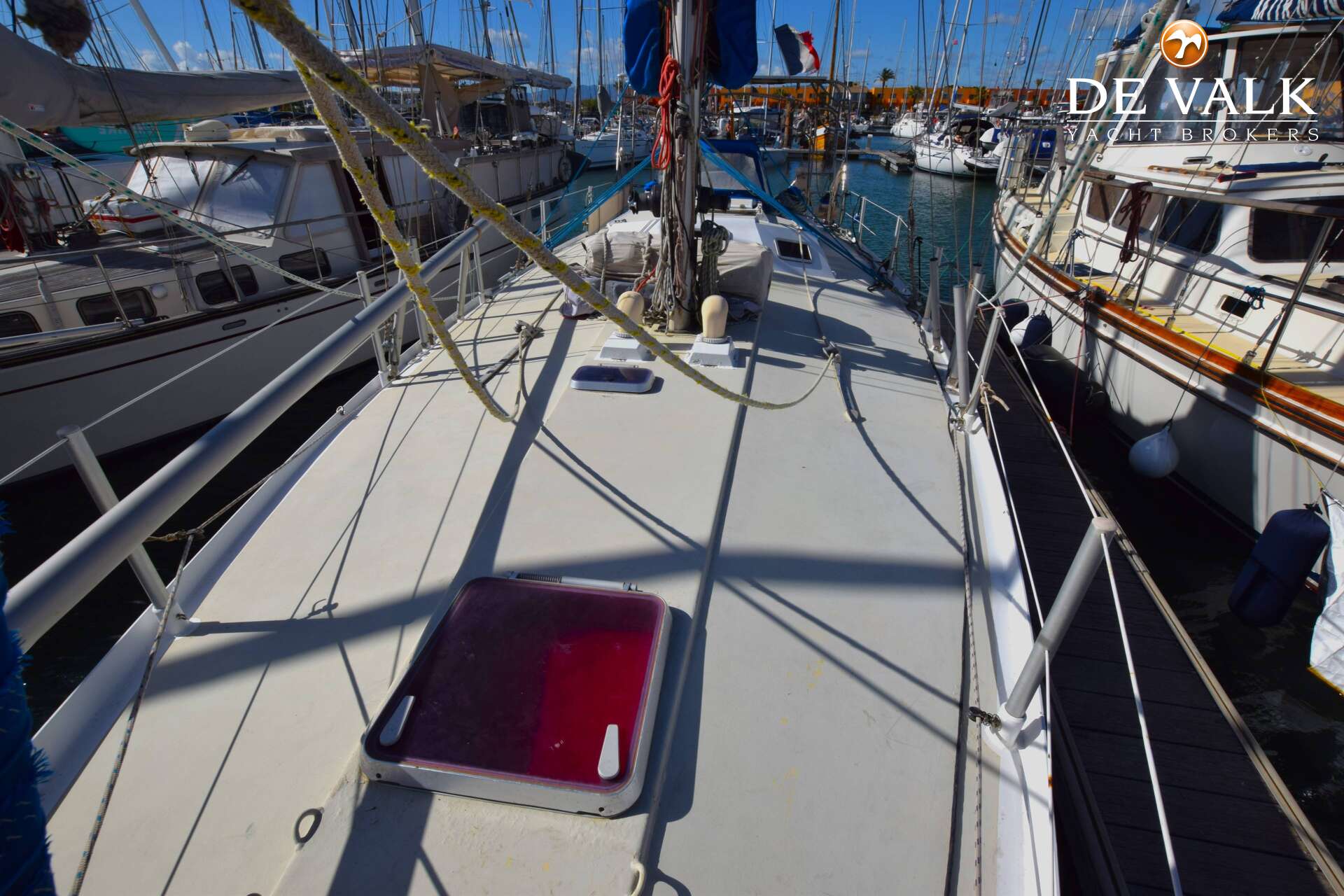

- Deck material aluminium
- Deck finish non-skid paint
- Superstructure deck finish non-skid paint
- Cockpit deck finish non-skid paint
- Antifouling (year) 2023 will be renewed 2026
- Window frame aluminium
- Window material double glazing
- Deckhatch 2
- Portholes aluminium 6
- Insulation foam
- Radar arch Aft with solar panels
- Fuel tank (litre) aluminium 250L
- Level indicator (fuel tank) yes
- Fuel daytank (litre) 6x 20L jerrycans
- Freshwater tank (litre) polyethylene 2x150L
- Outside helm position mechanical Tiller
- Tiller yes

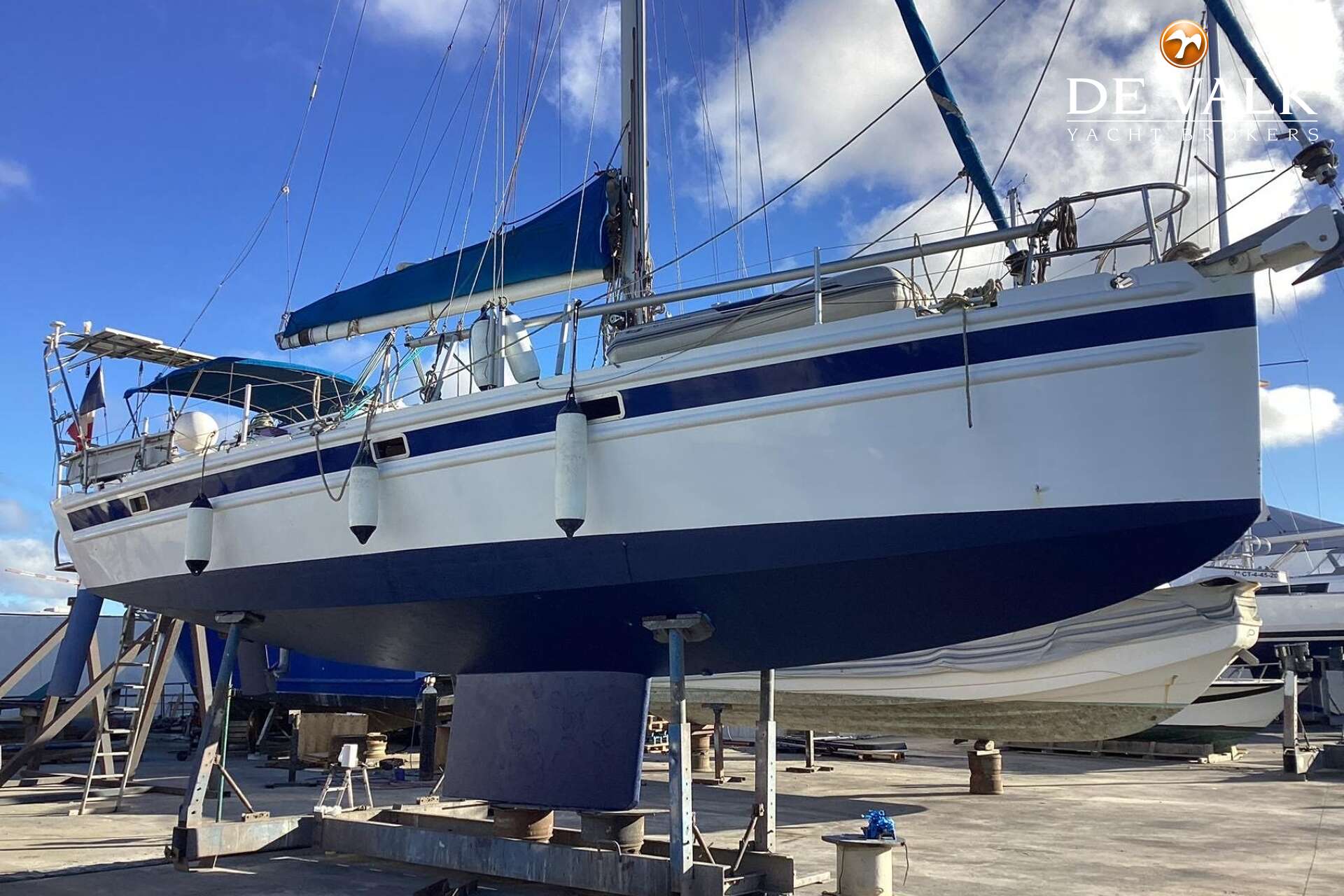

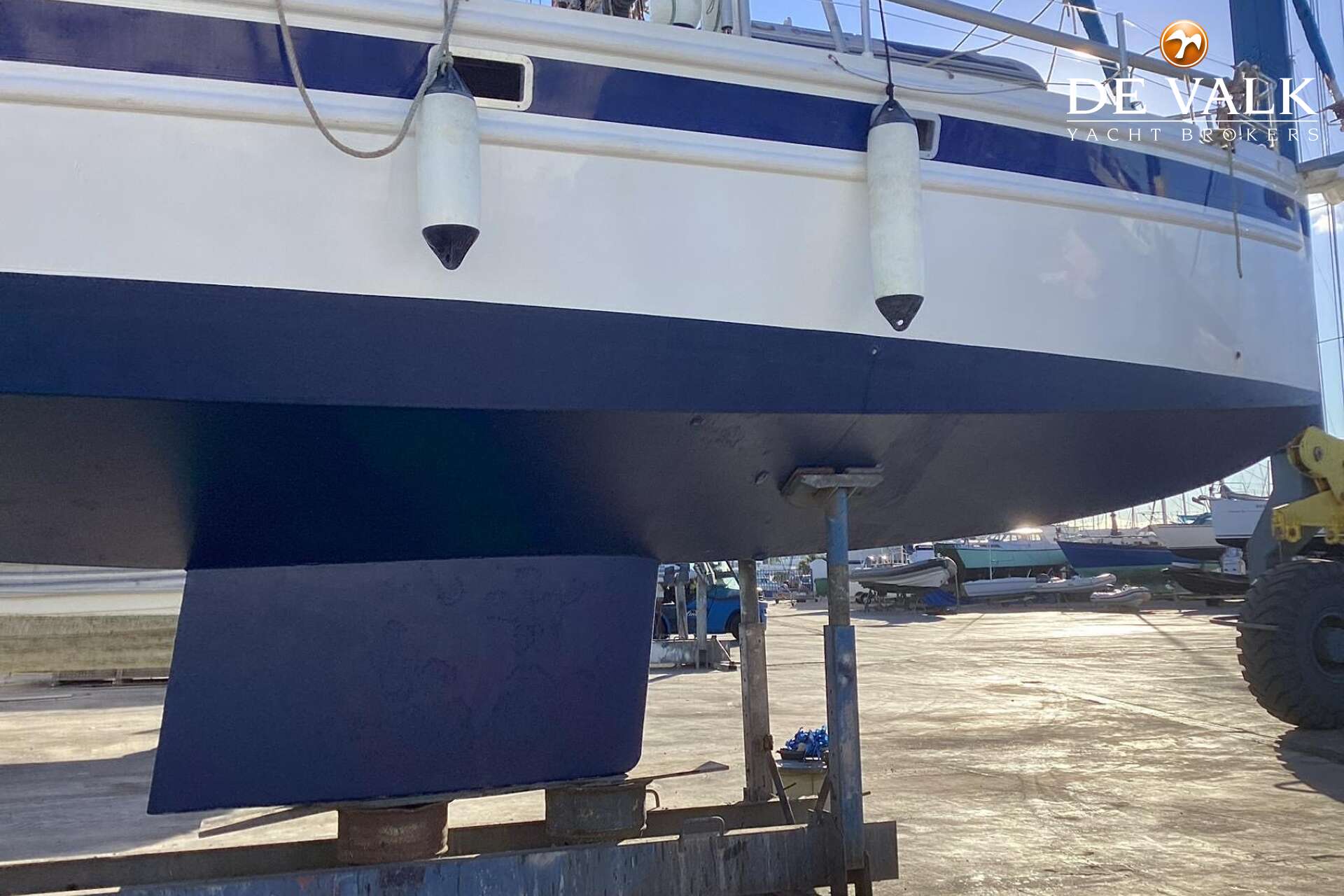

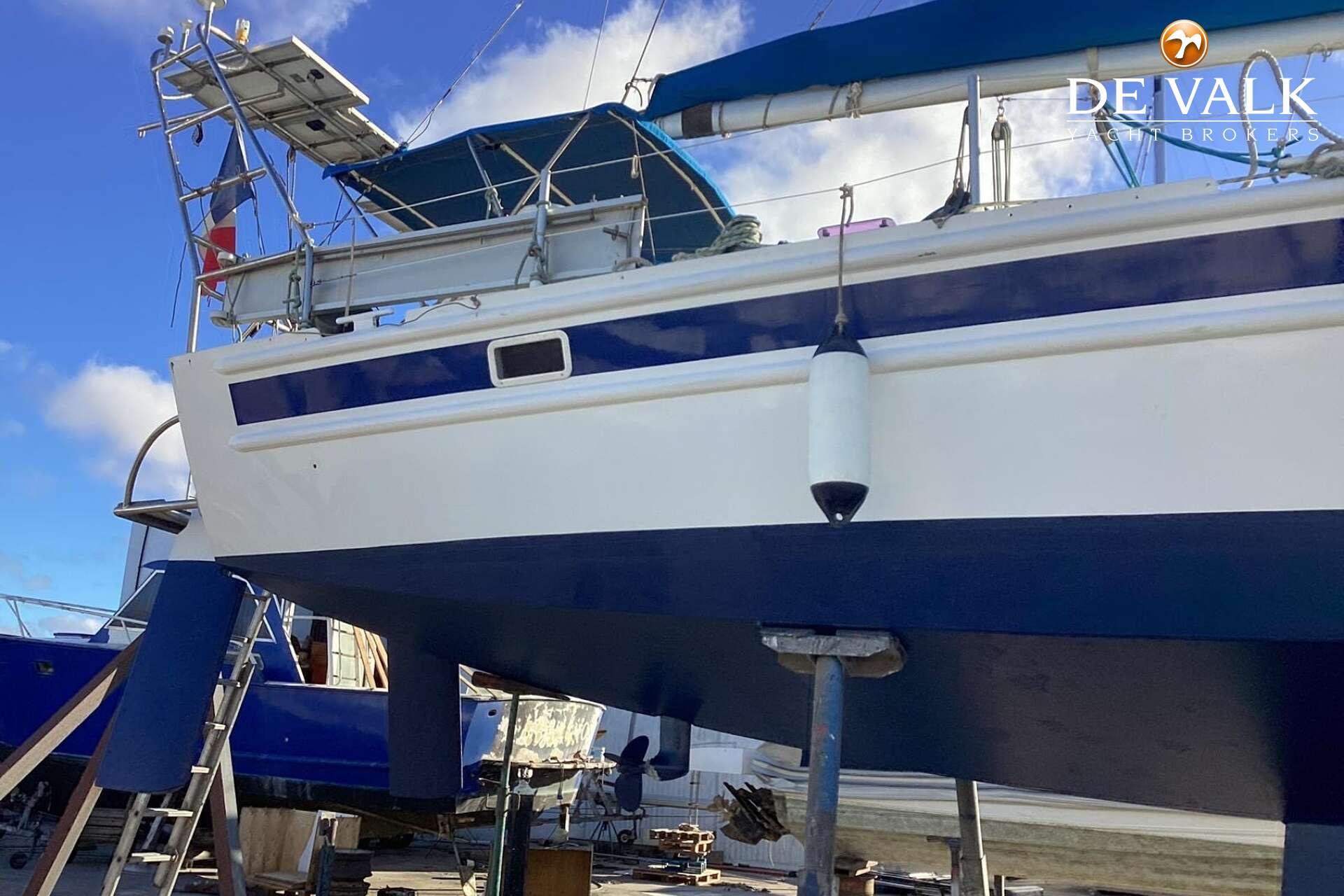

- More info on hull 10-12mm strongall 5086 aluminium hull with twin rudders, built for long distance sailing
- More info on paintwork New anti fouling summer 2026
- Cabins 2
- Berths 6
- Interior mahogany

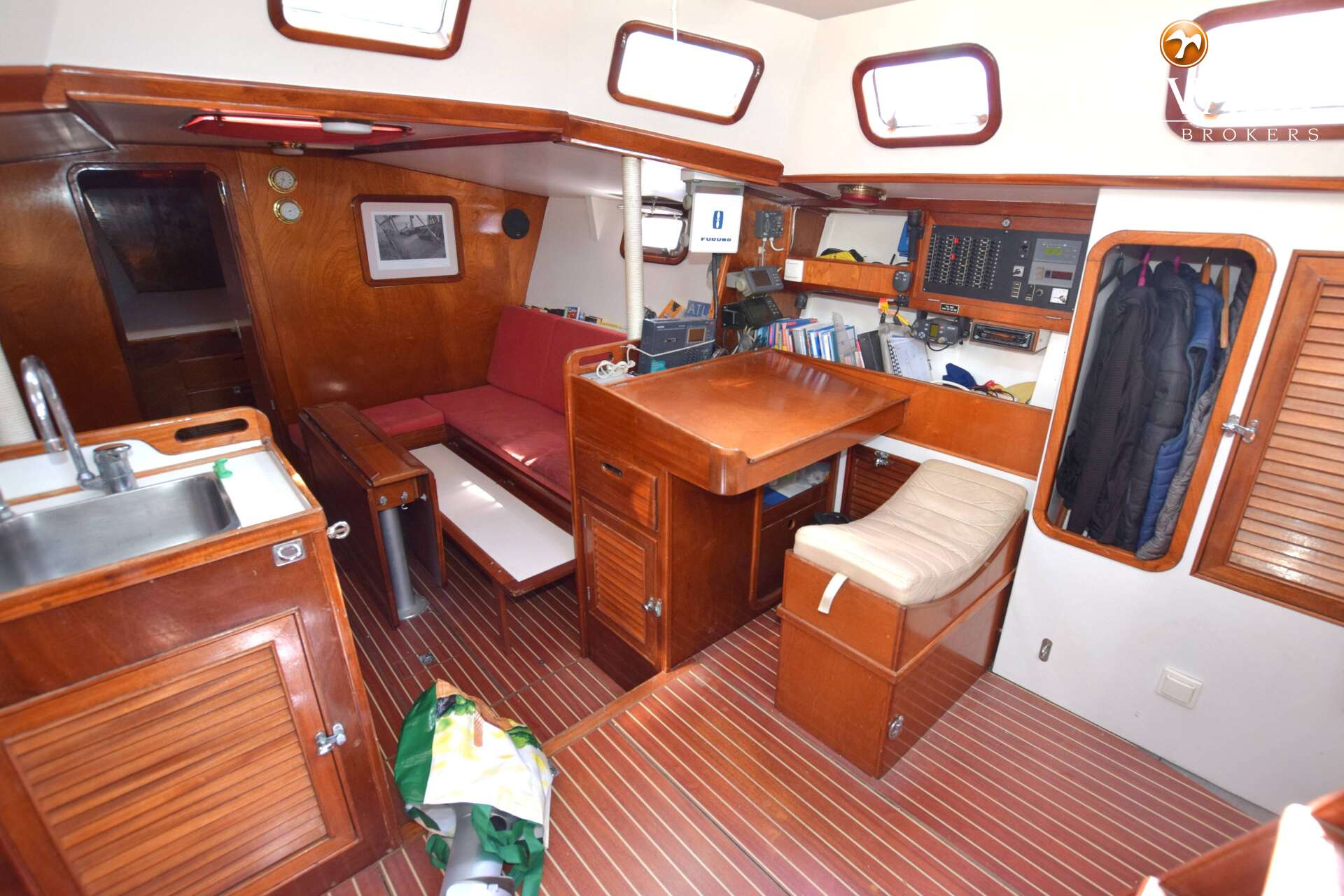

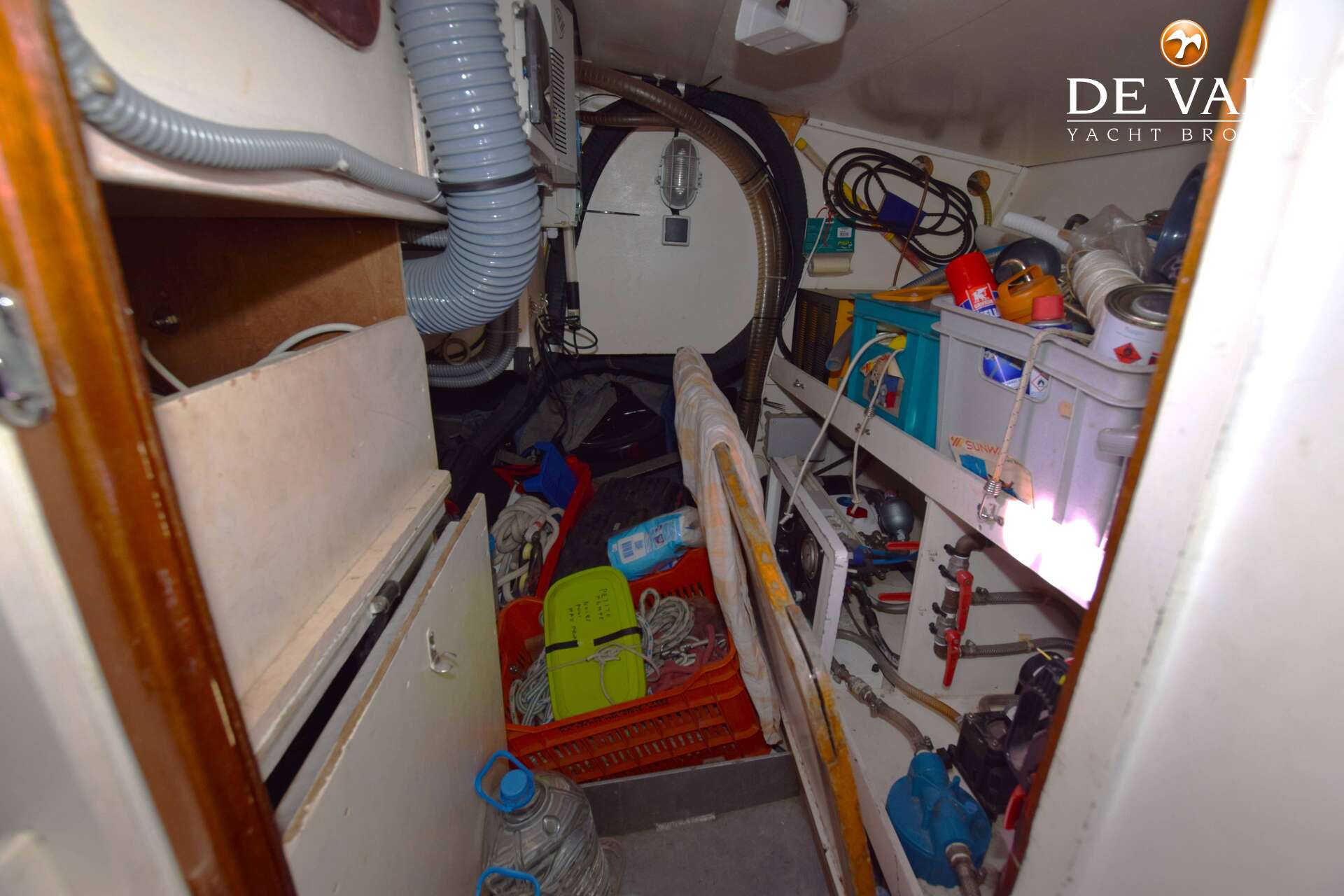

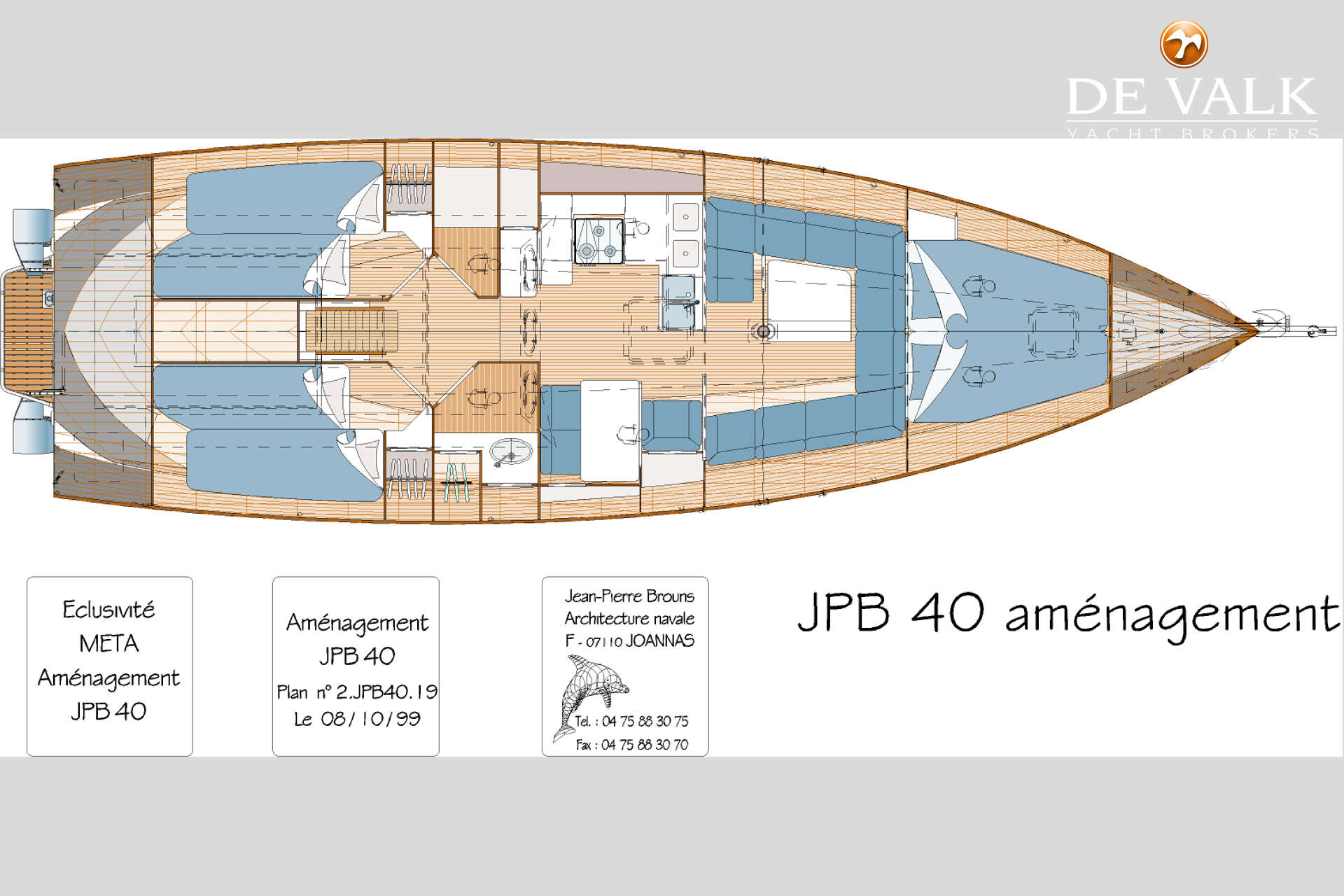

- Layout Double cabin in bow with separate shared bathroom, saloon with galley and chart table, aft double cabin on SB, and a workshop on PS.
- Floor teak and holly

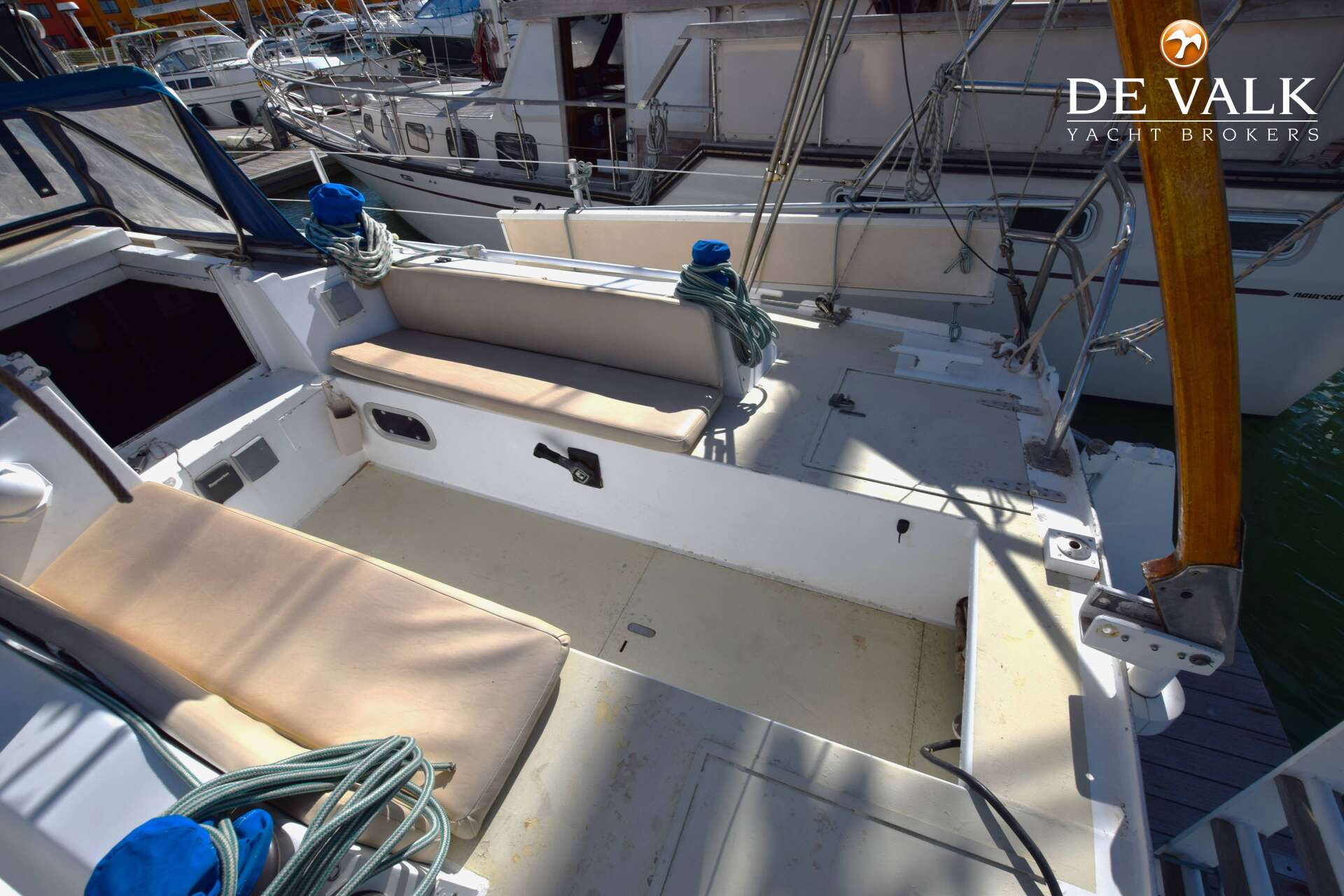

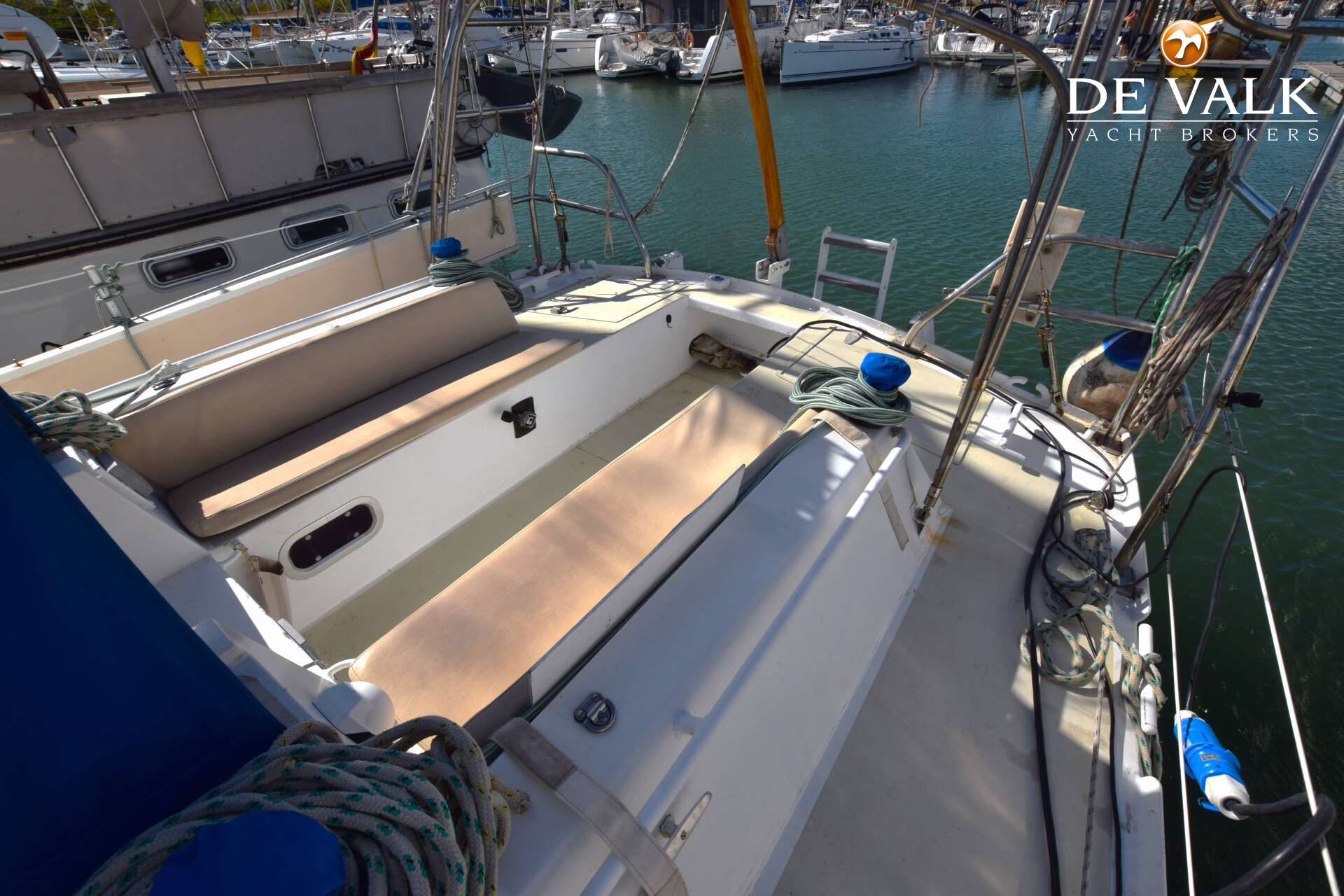

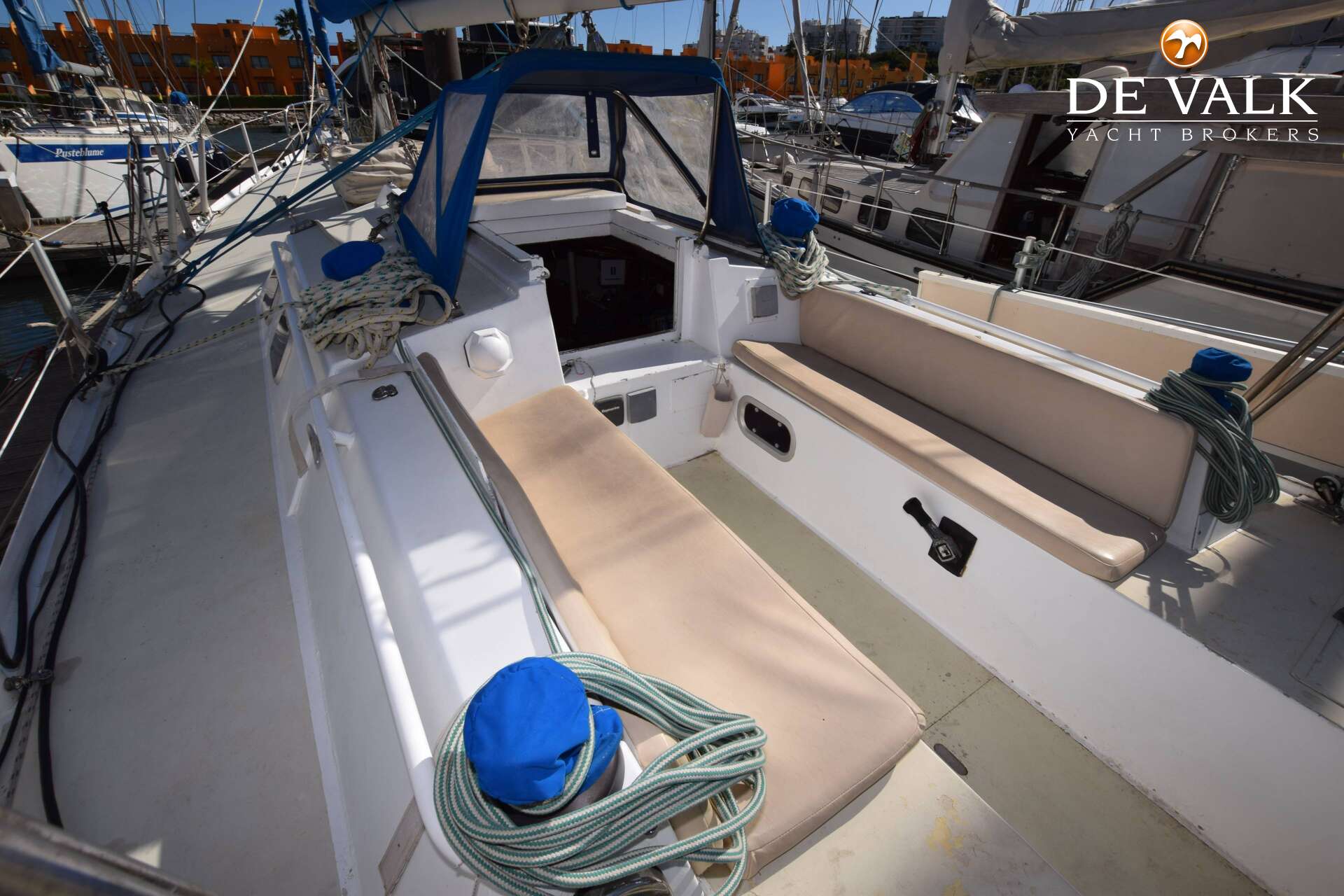

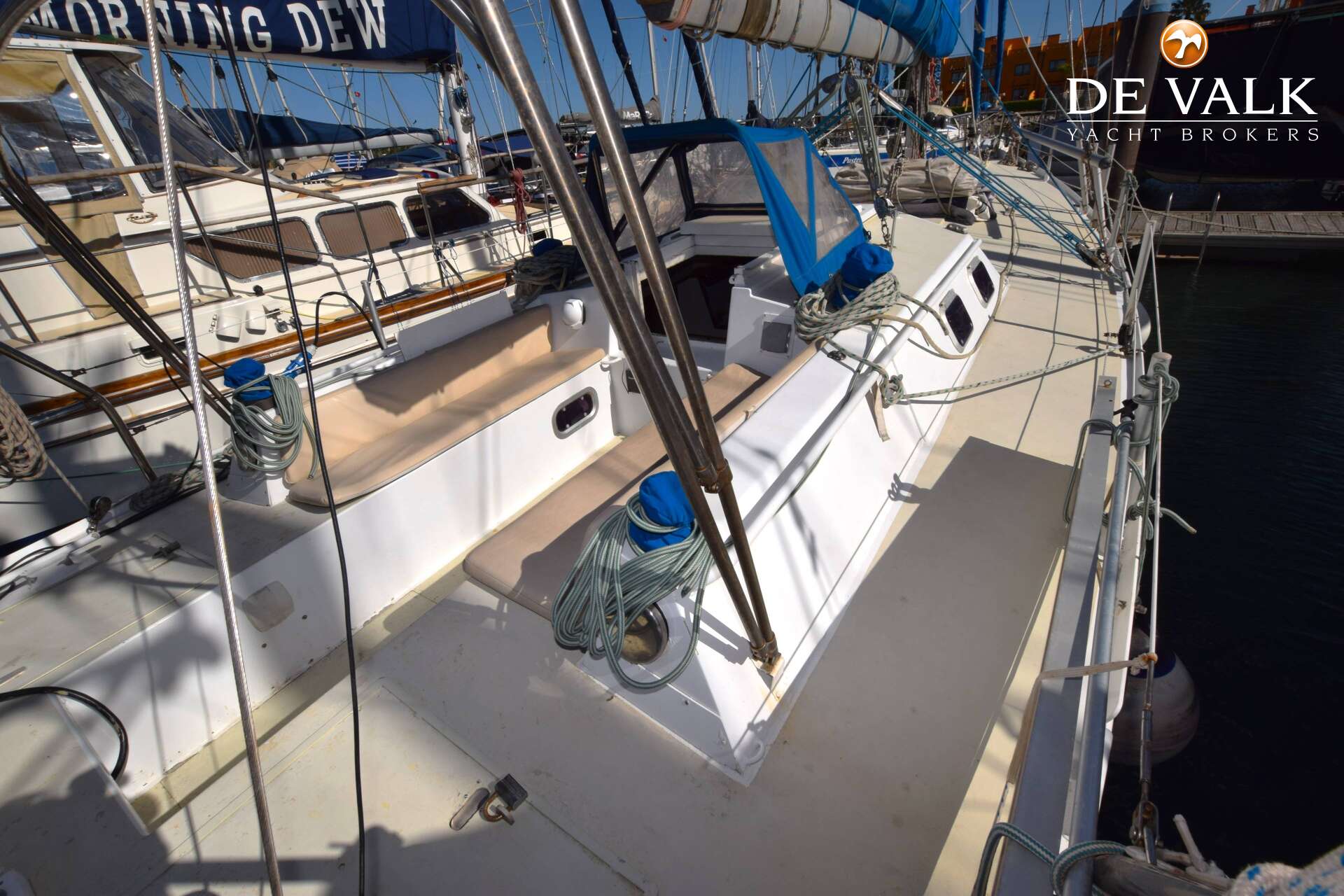

- Open cockpit yes

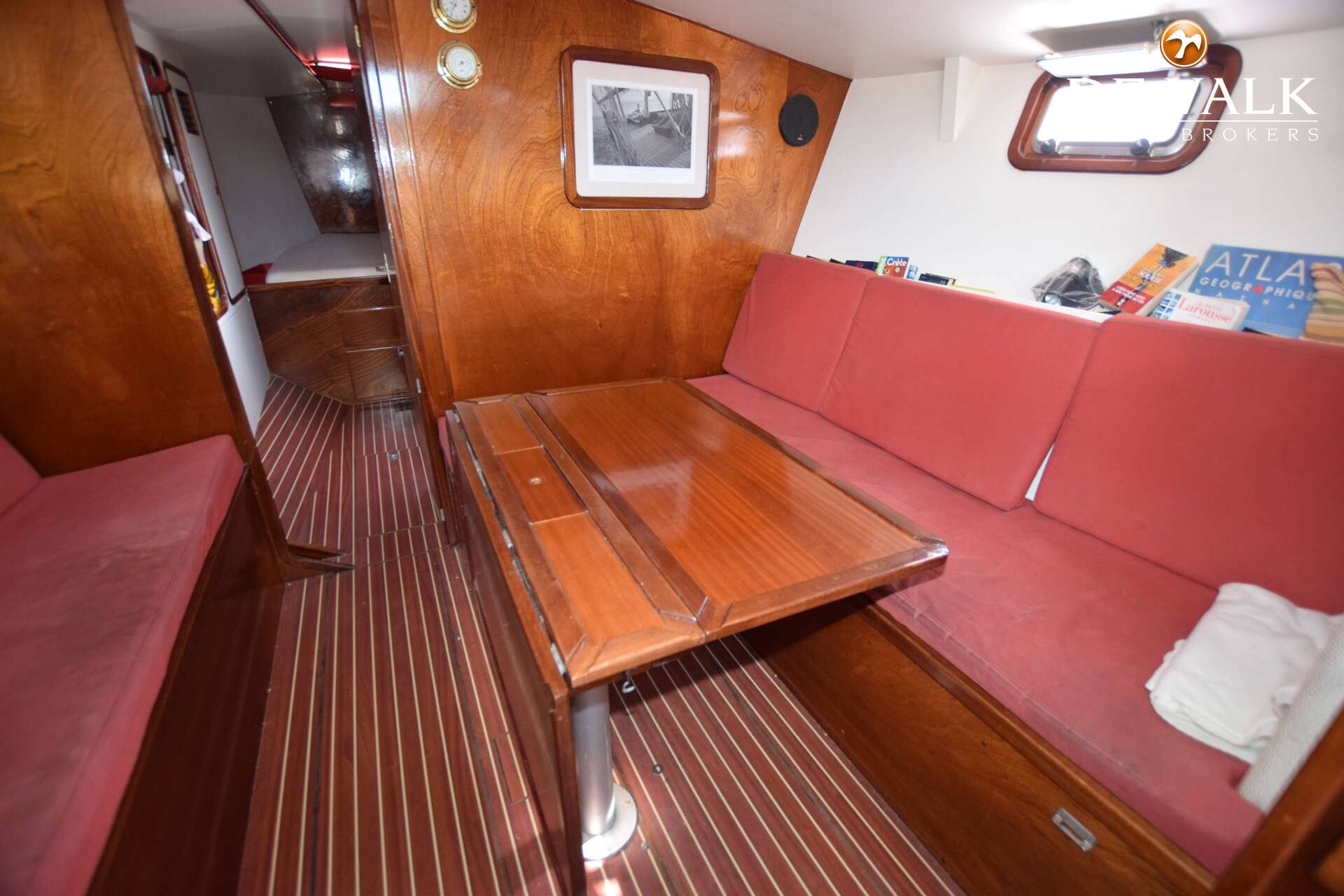

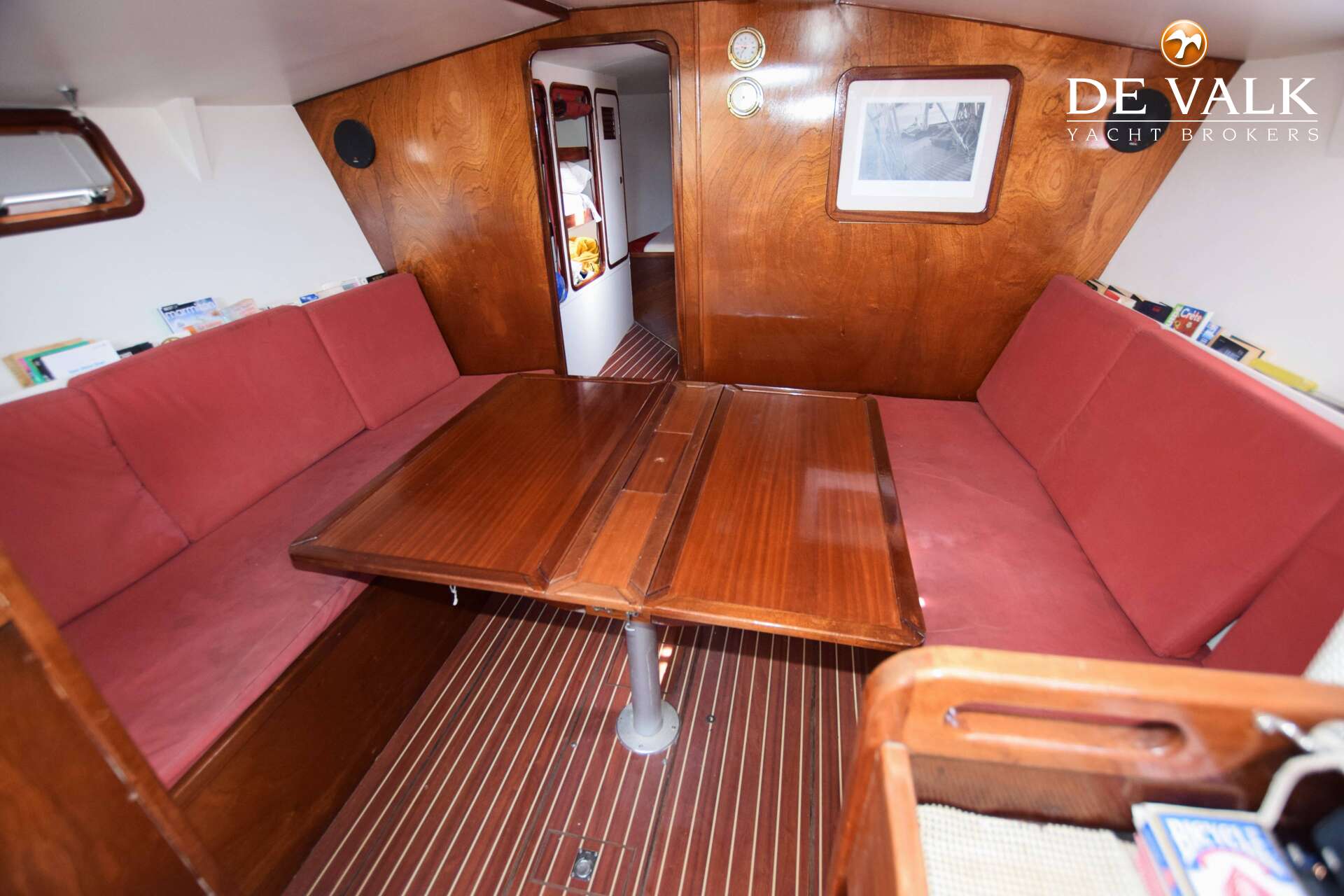

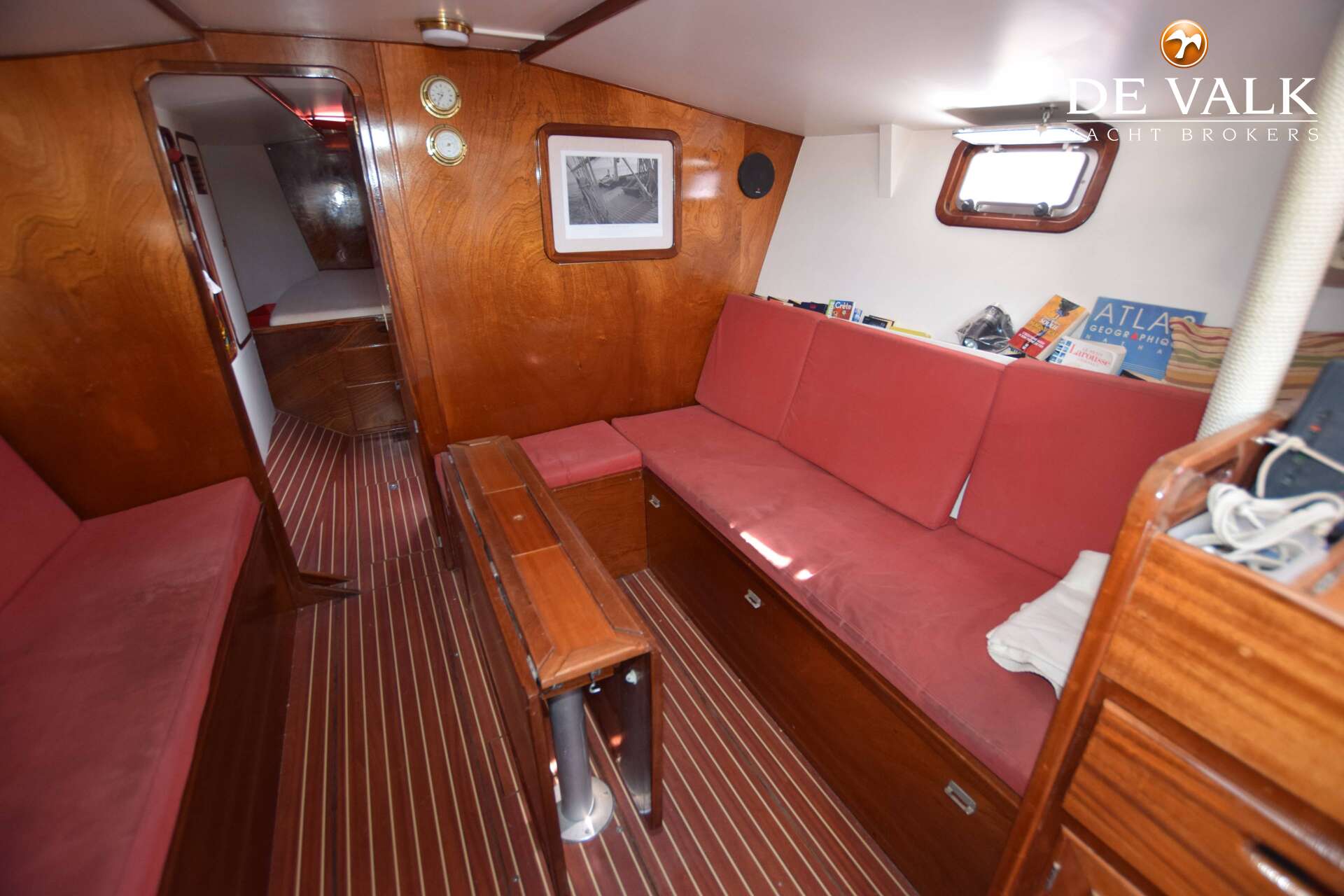

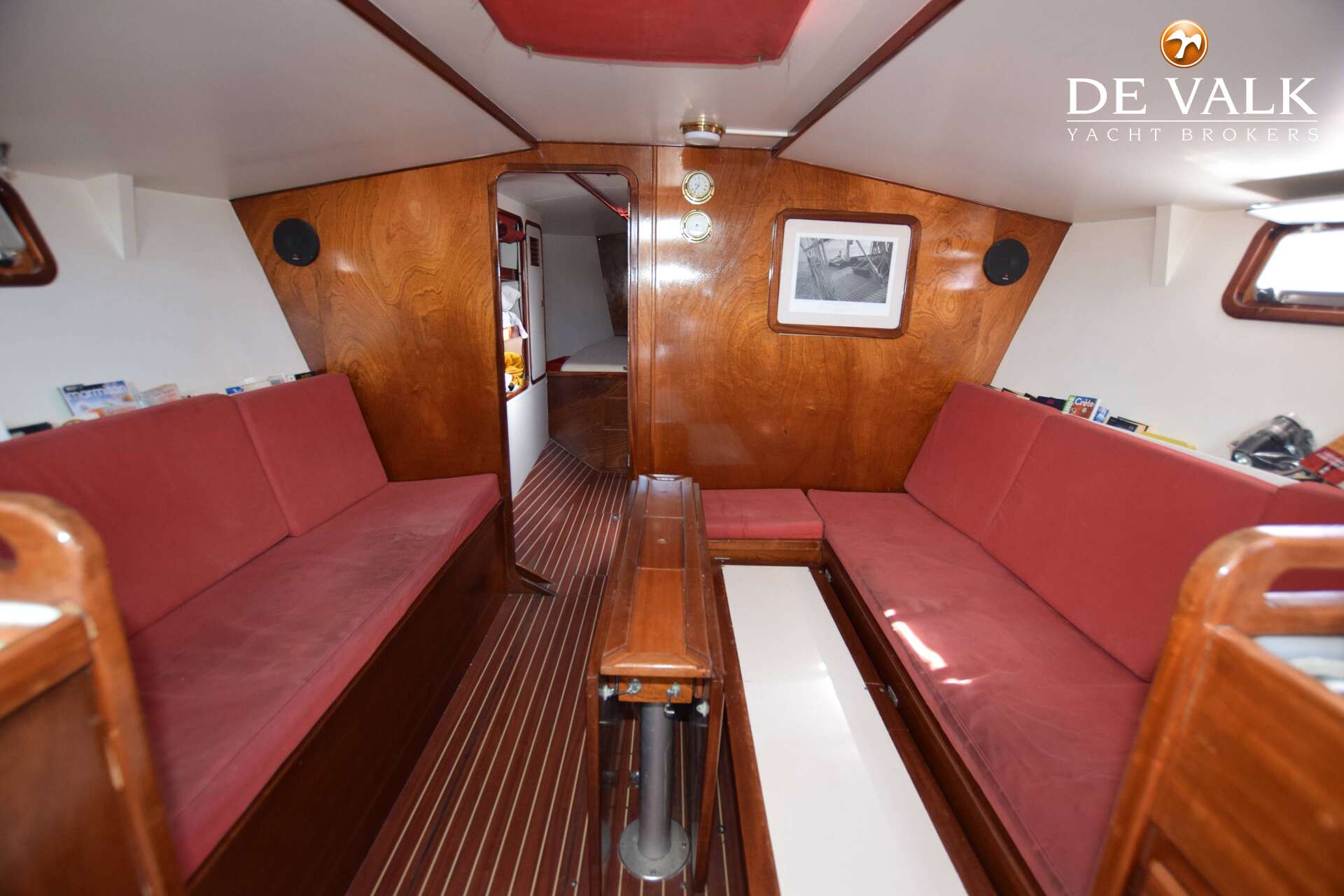

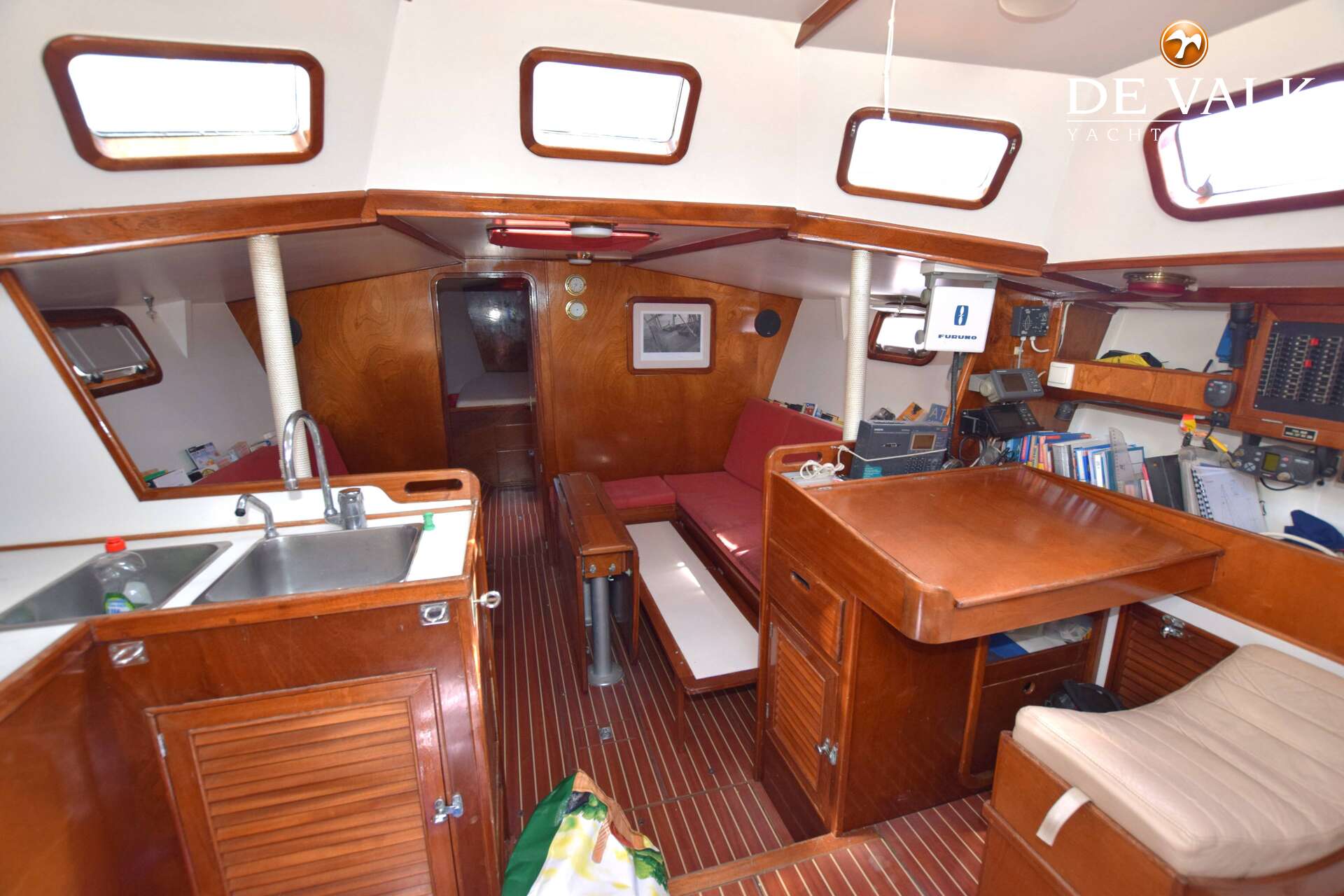

- Saloon yes
- Headroom saloon (m) 2,1m
- Heating central hot water
- Navigation center yes

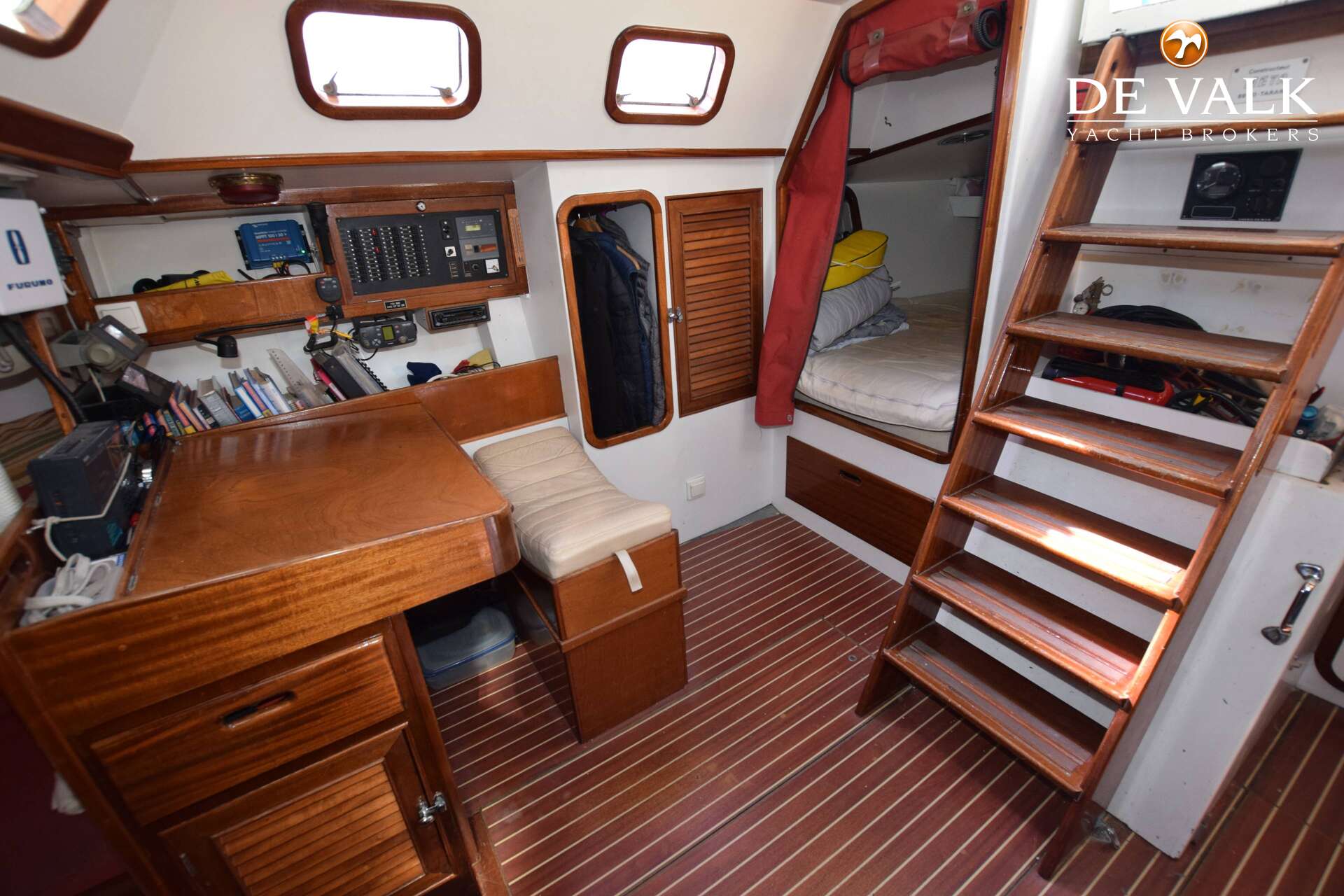

- Chart table yes
- Aft Cabin Double
- Dinette yes
- Dinette to convert into berth yes
- Convertible berth 2x in saloon

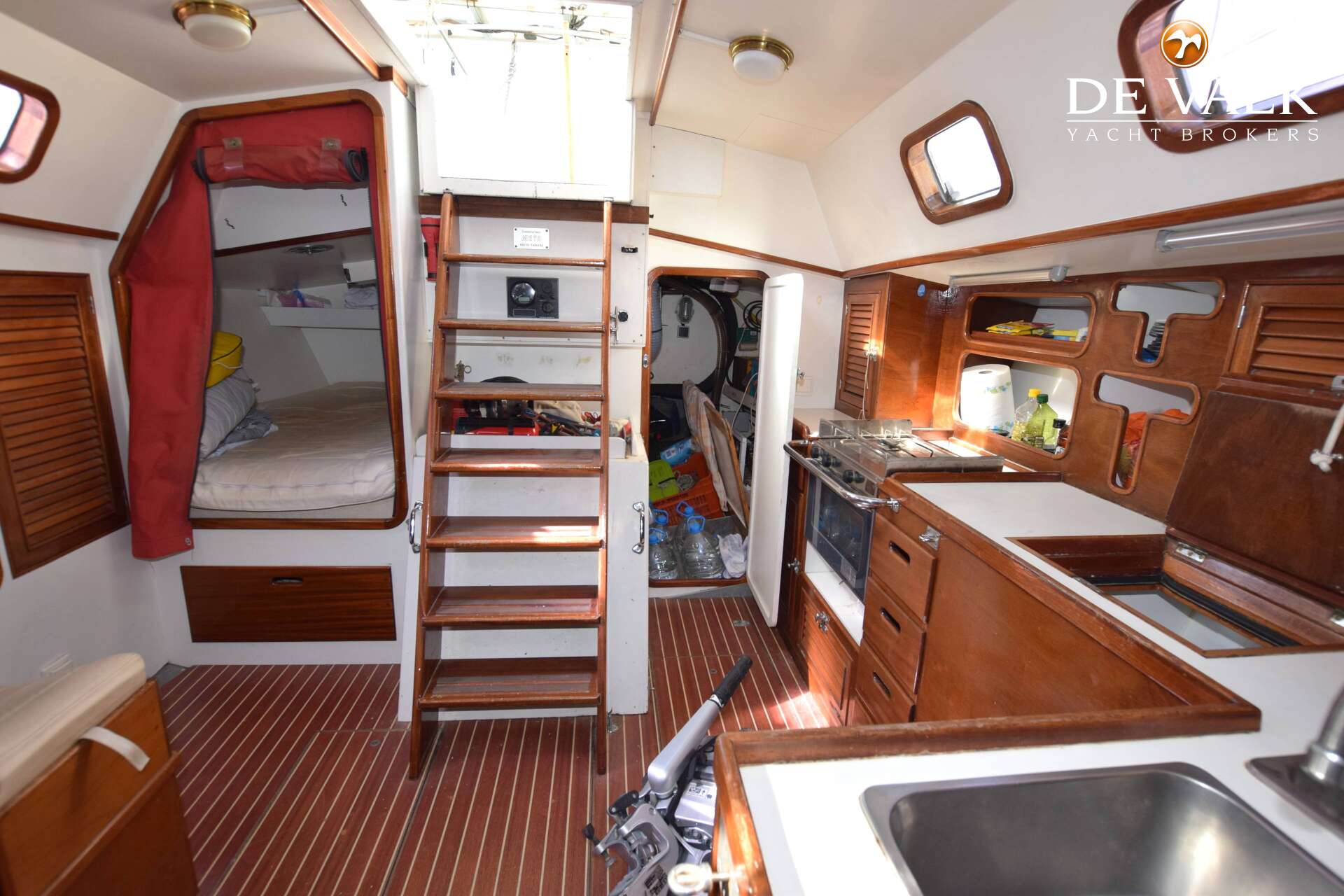

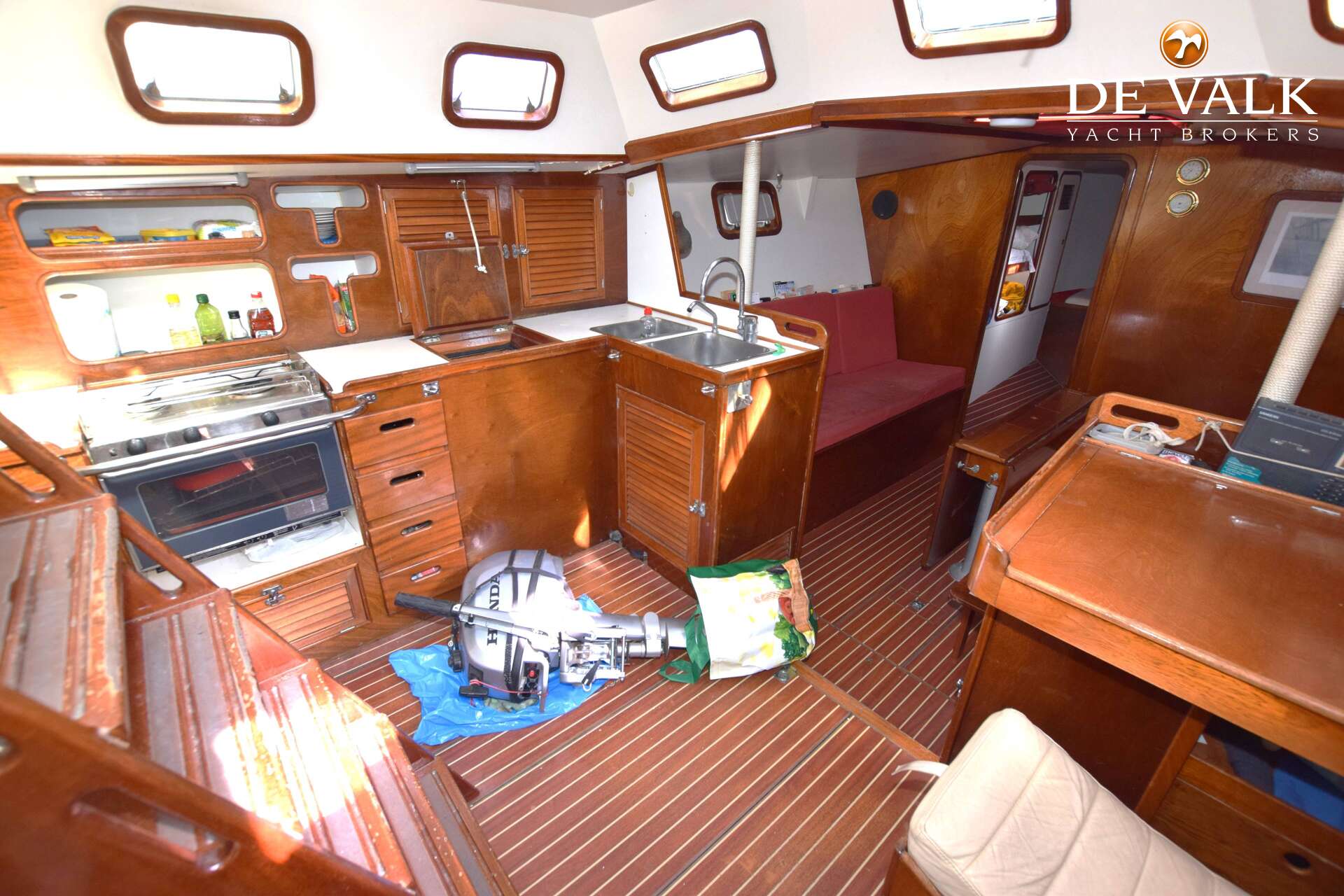

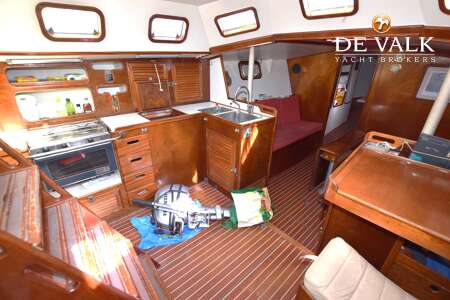

- Galley yes
- Countertop wood
- Sink stainless steel
- Cooker calor gas
- Oven yes
- Fridge yes
- Hot water system 220V
- Water pressure system electrical
- Manual and/or foot pump yes
- Kettle yes
- Hot water tap yes
- Crockery yes

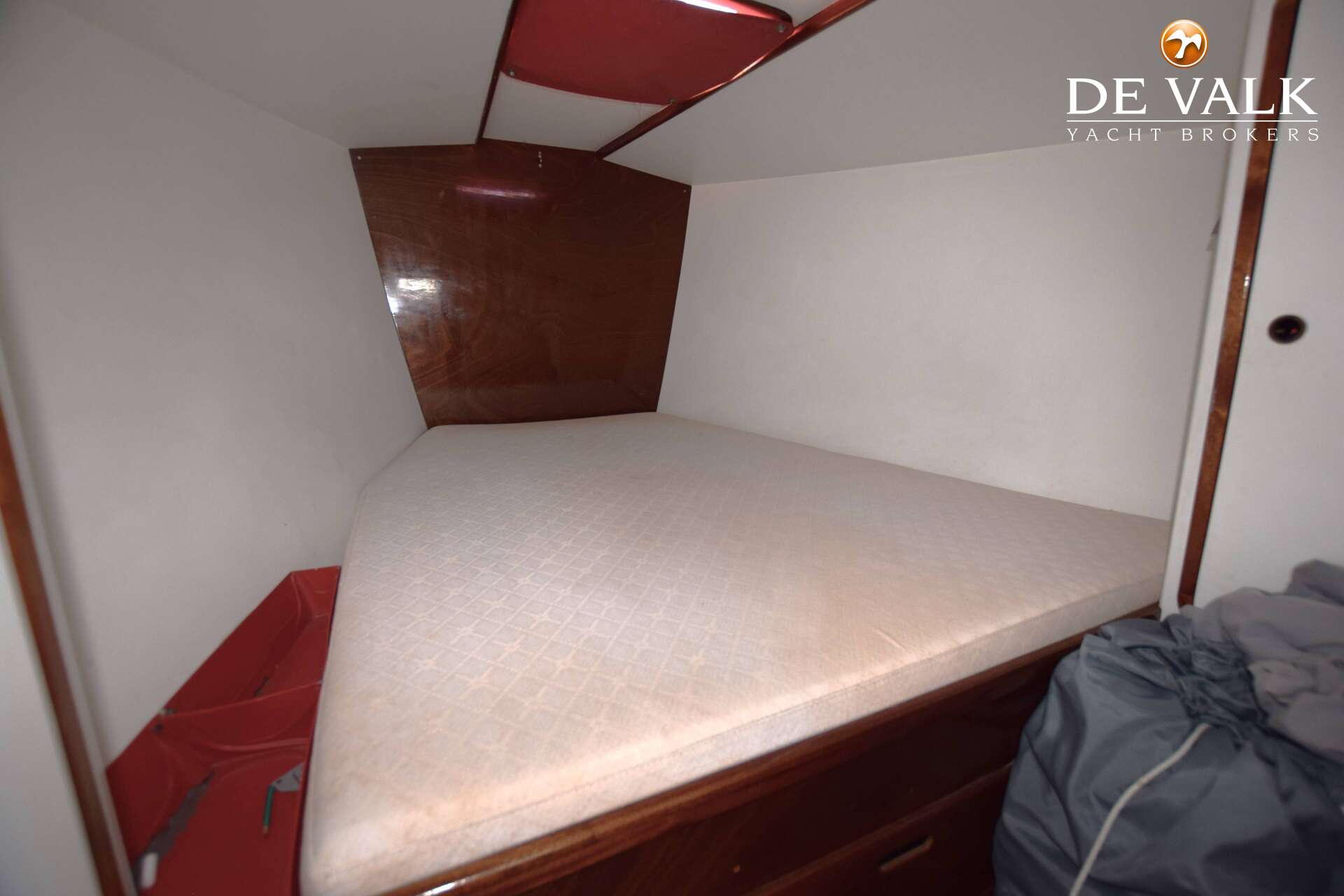

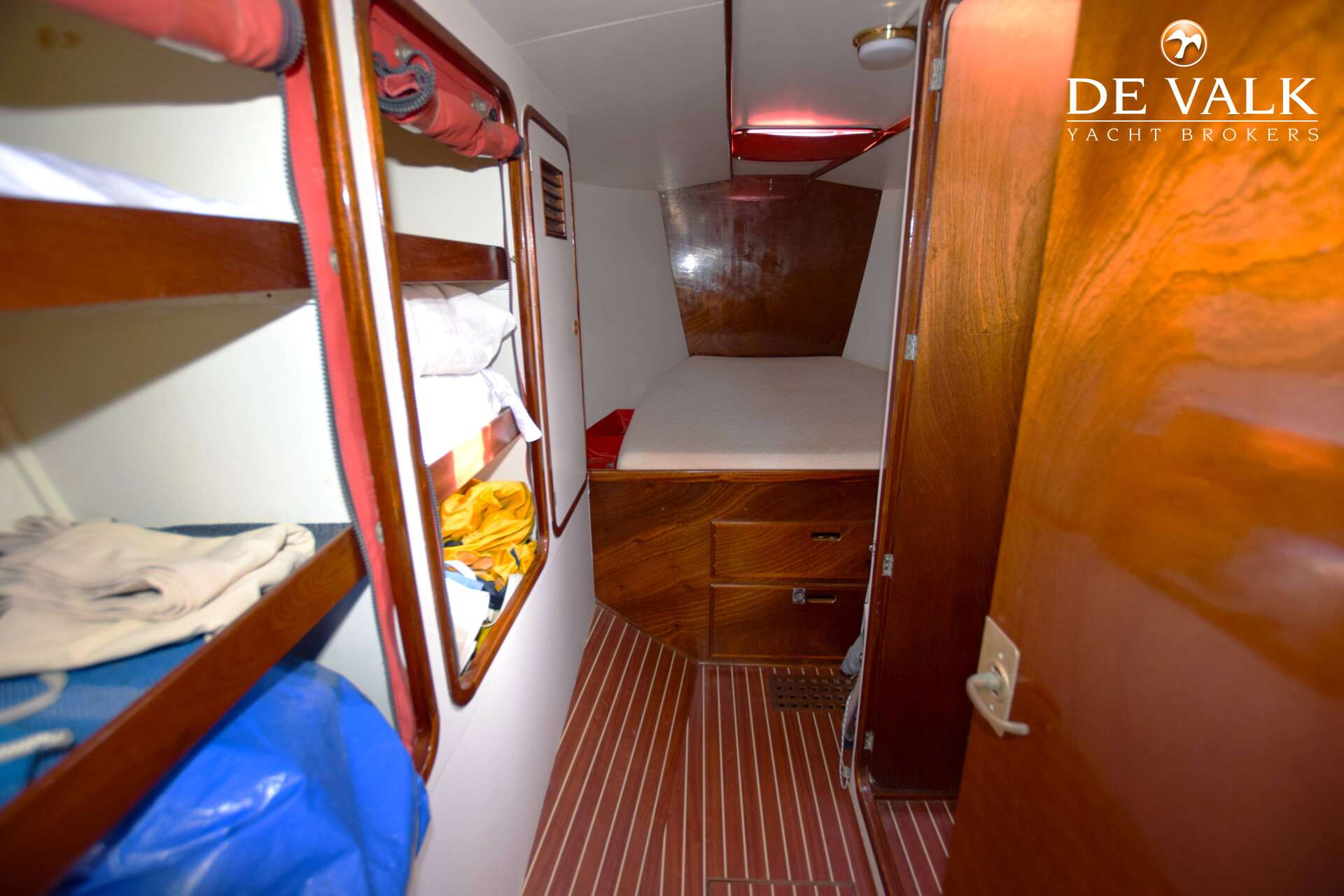

- Owners cabin v-bed In bow
- Bed length (m) 2m
- Wardrobe hanging/drawers/shelves

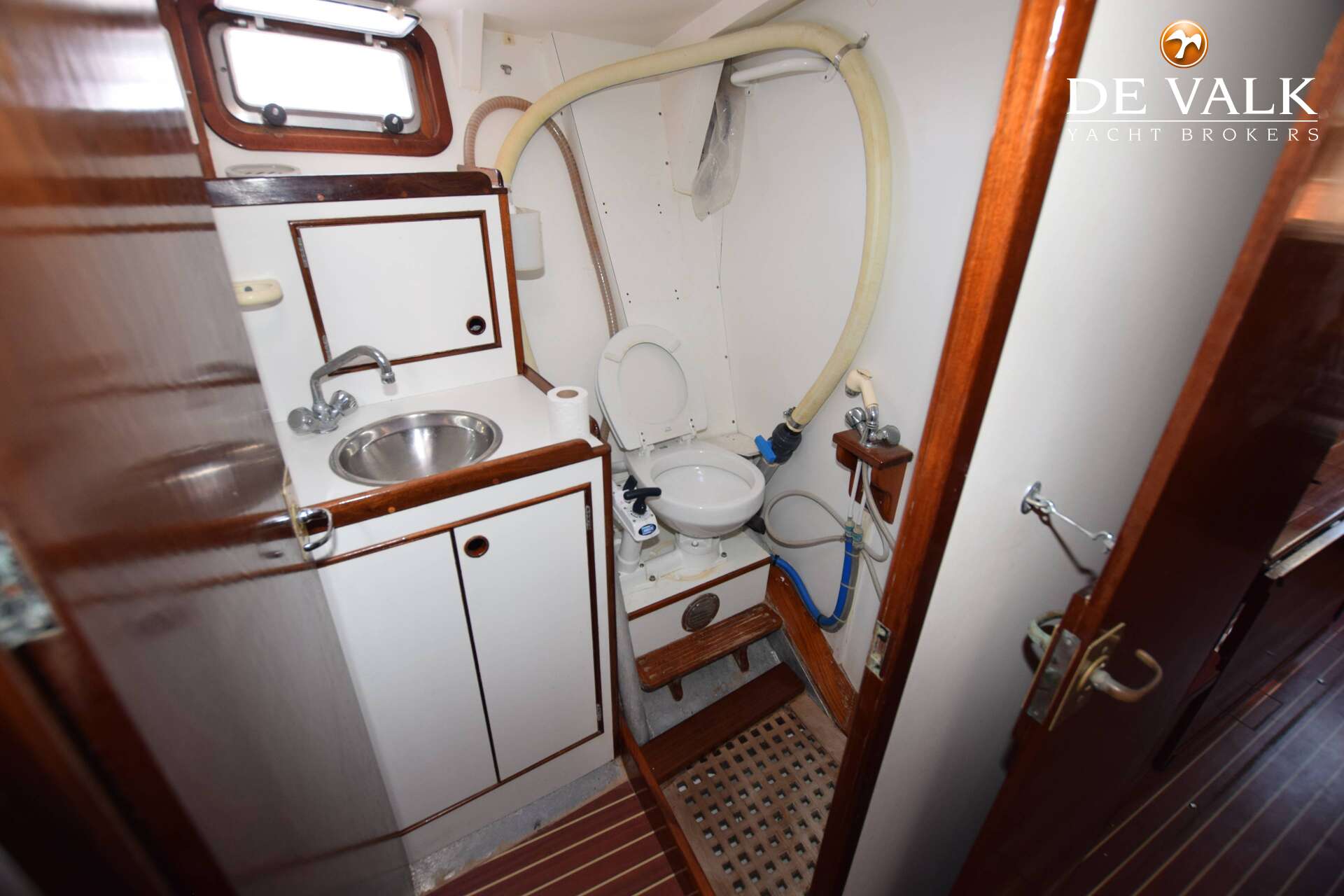

- Bathroom shared

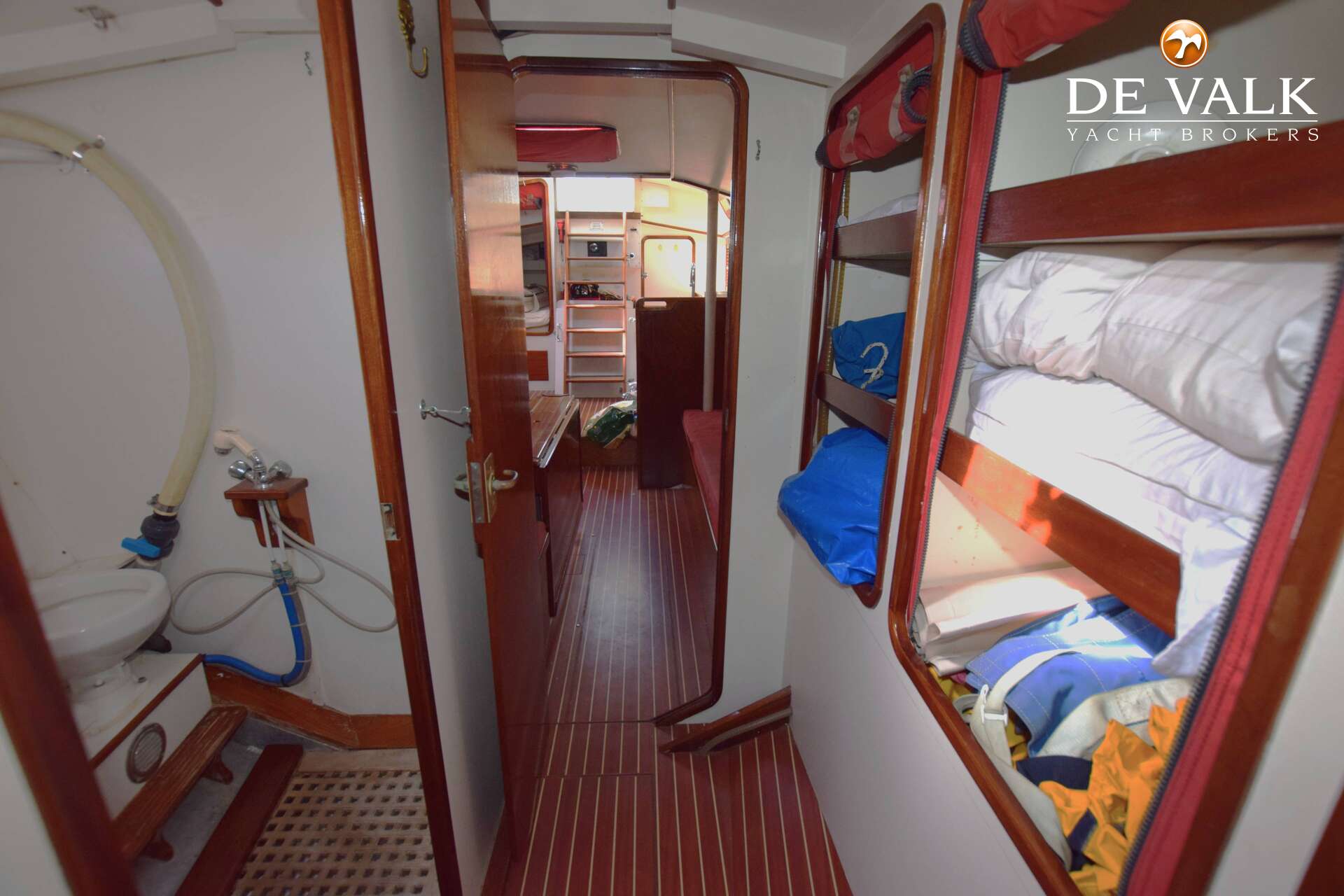

- Toilet shared In bathroom
- Toilet system manual
- Wash basin in the bathroom
- Shower shared

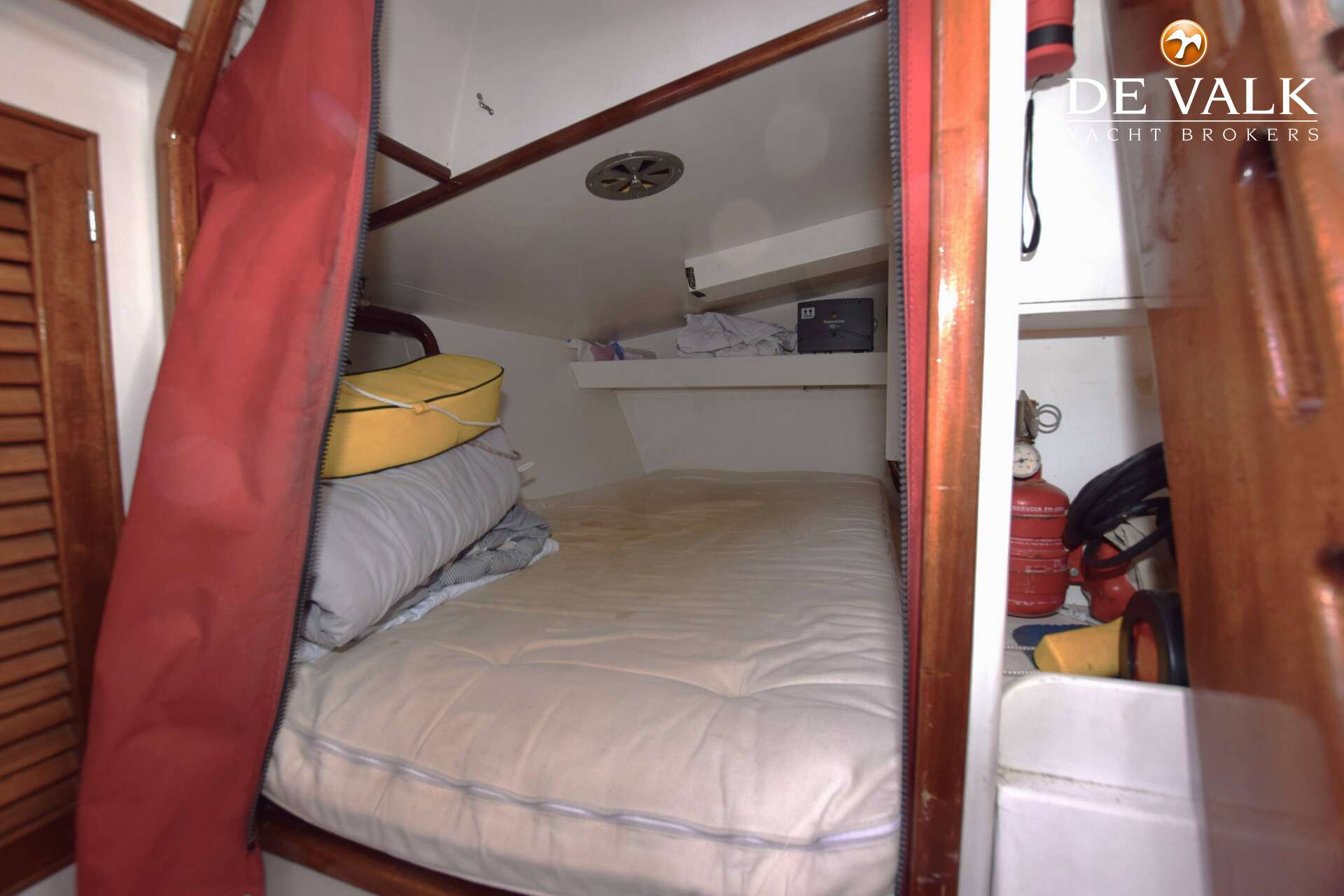

- Guest cabin 1 double bed Aft
- Bed length (m) 2m
- Wardrobe drawers and shelves
- Bathroom shared
- Toilet shared
- Toilet system manual
- Wash basin in the bathroom
- Shower shared

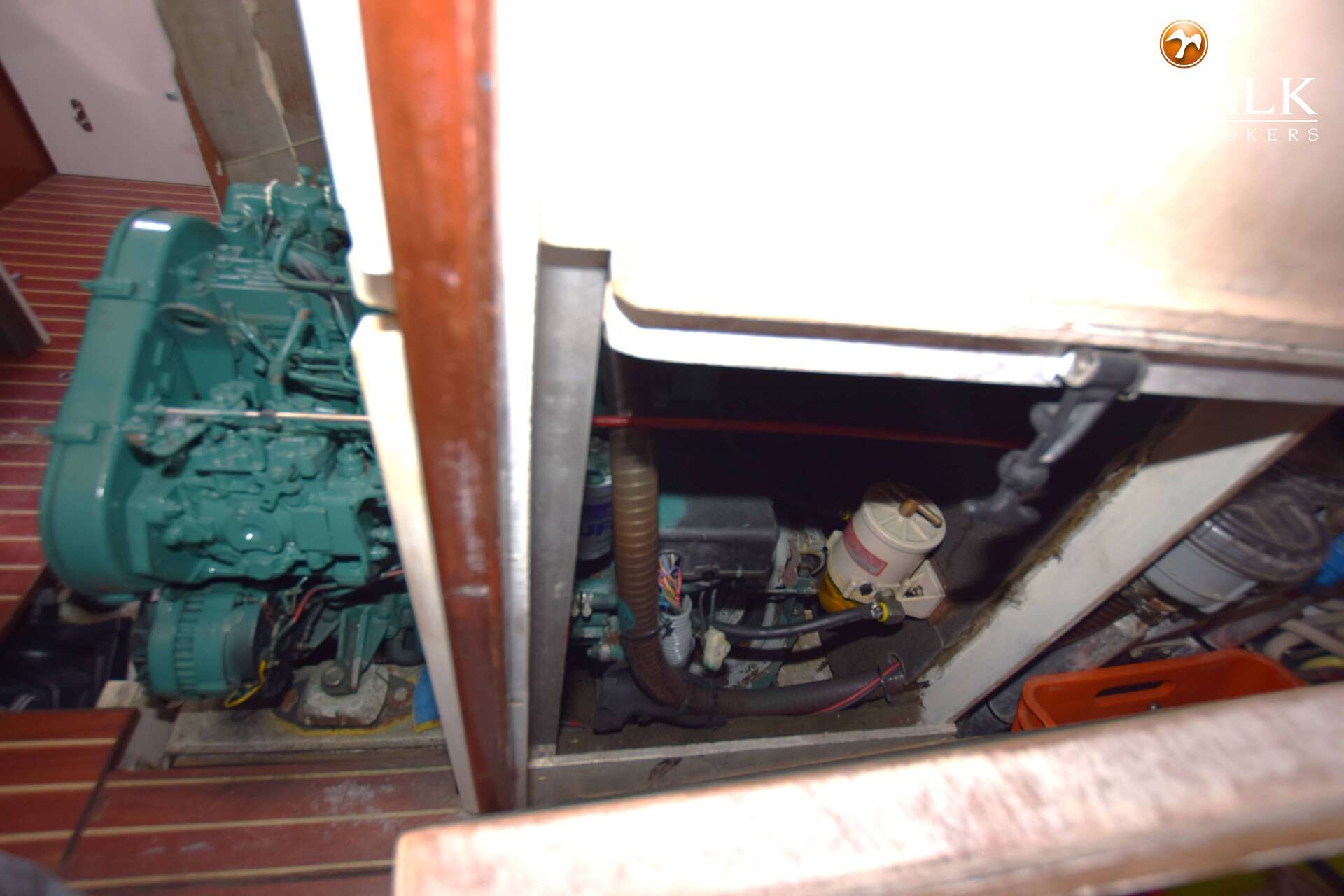

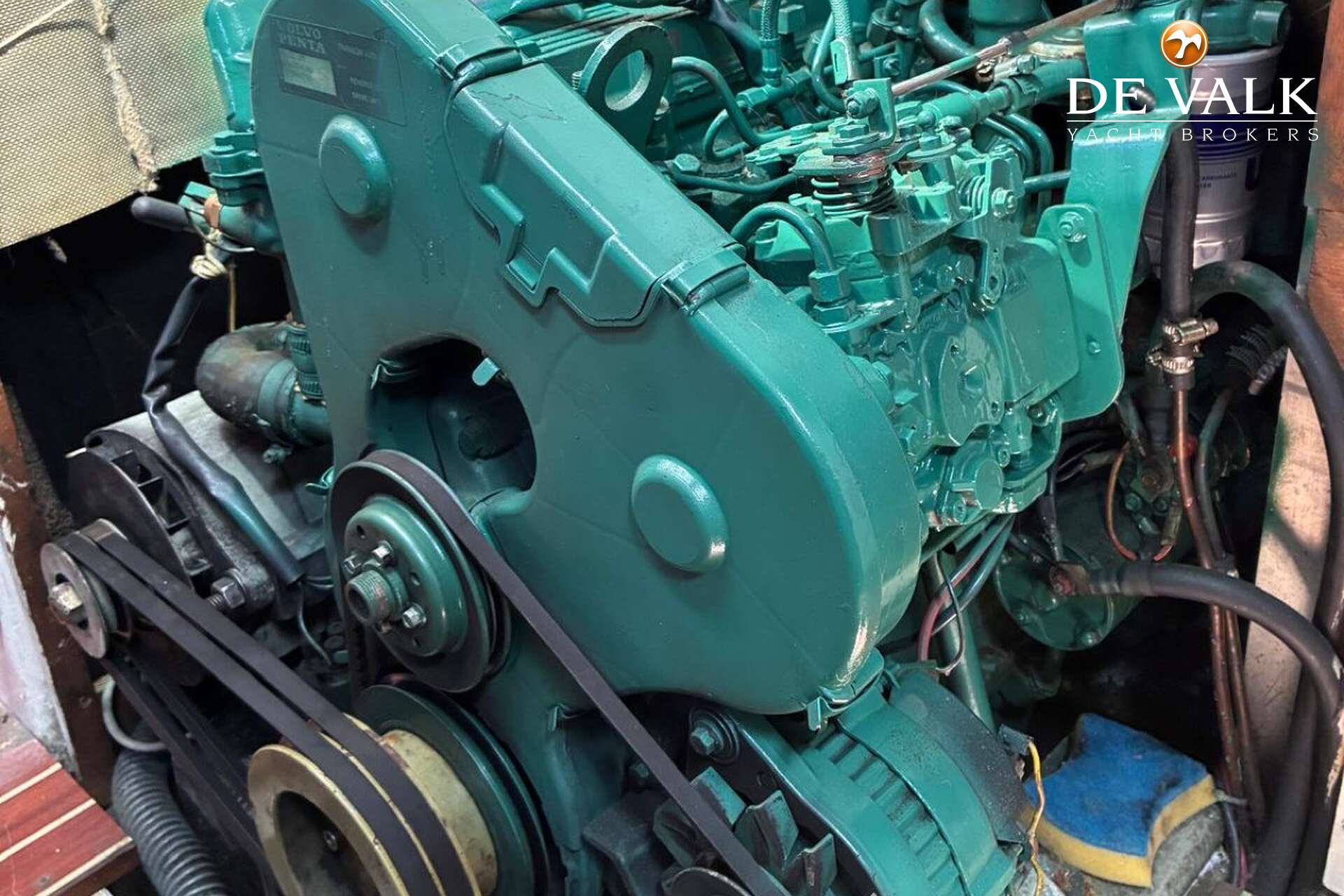

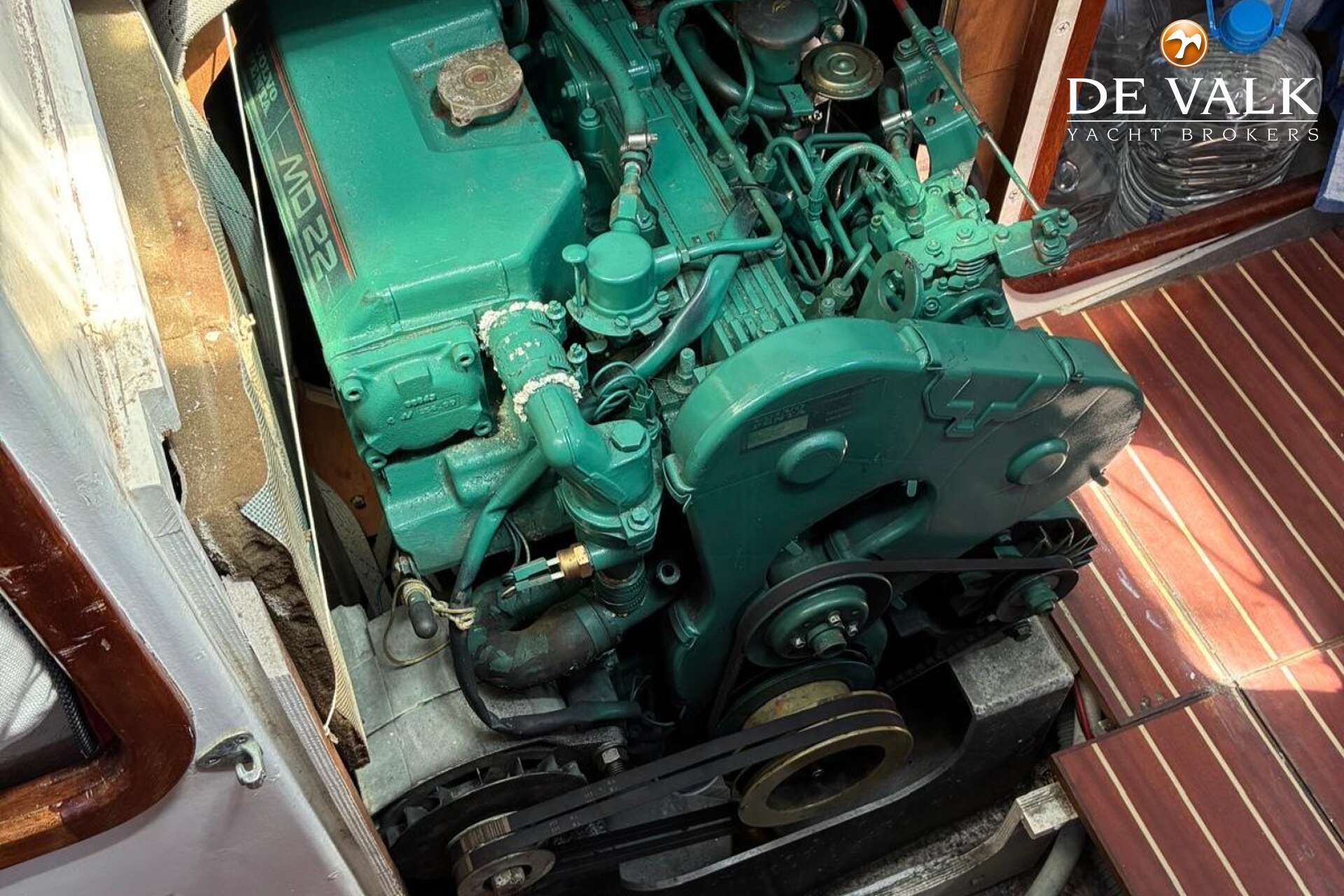

- No of engines 1
- Make Volvo
- Type MD22L
- HP 50
- kW 36.80
- Fuel diesel
- Year installed 2002
- Maximum speed (kn) 8
- Cruising speed (kn) 6
- Consumption (l/hr) 3
- Range (nm) 350
- Engine cooling system freshwater heat exchanger
- Drive sail-drive
- Engine controls bowden cable
- Gearbox mechanical
- Gearbox mechanical
- Propeller type fixed
- Propeller blades 3
- Propeller shaft material stainless steel
- Shaft lubrication water
- Manual bilge pump yes
- Electric bilge pump yes
- Electrical installation 12/24/220
- Start battery 1x95Ah
- Service battery 4x 95Ah
- Battery monitor yes
- Battery charger ENAG
- Solar panel 4x95Ah
- Shorepower with cable
- Insulation transformer Philippi 110/220V
- Watermaker Dessalinator D60
- Compass yes
- Depth sounder/log yes
- Windset yes
- VHF yes
- Autopilot yes
- GPS yes
- Plotter/GPS Furuno GP39-GPS
- Radar/GPS Mer Veille detector
- Navtex Furuno NX 300
- Radio receiver yes

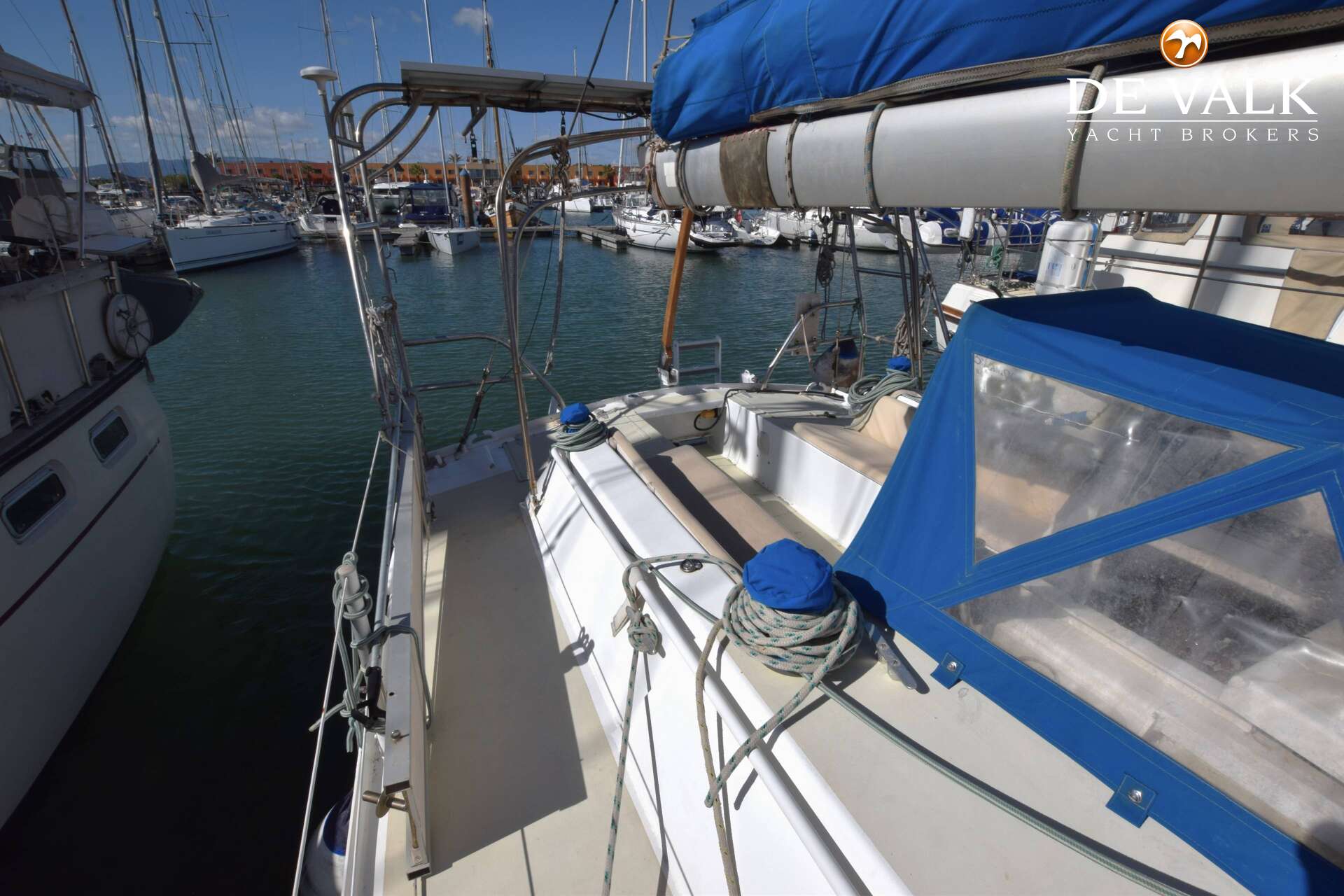

- Sprayhood yes
- Bimini yes

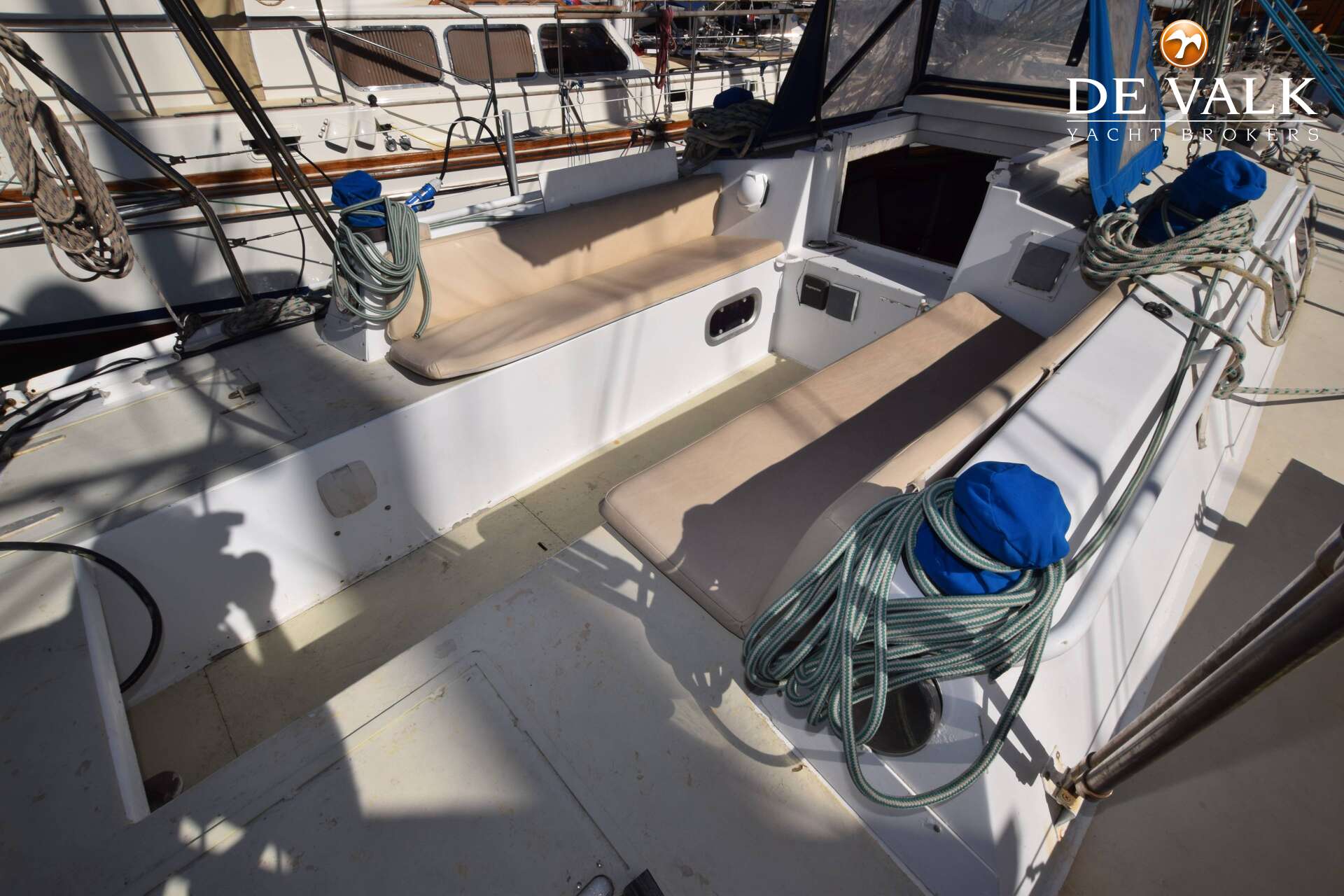

- Cockpit cushions yes

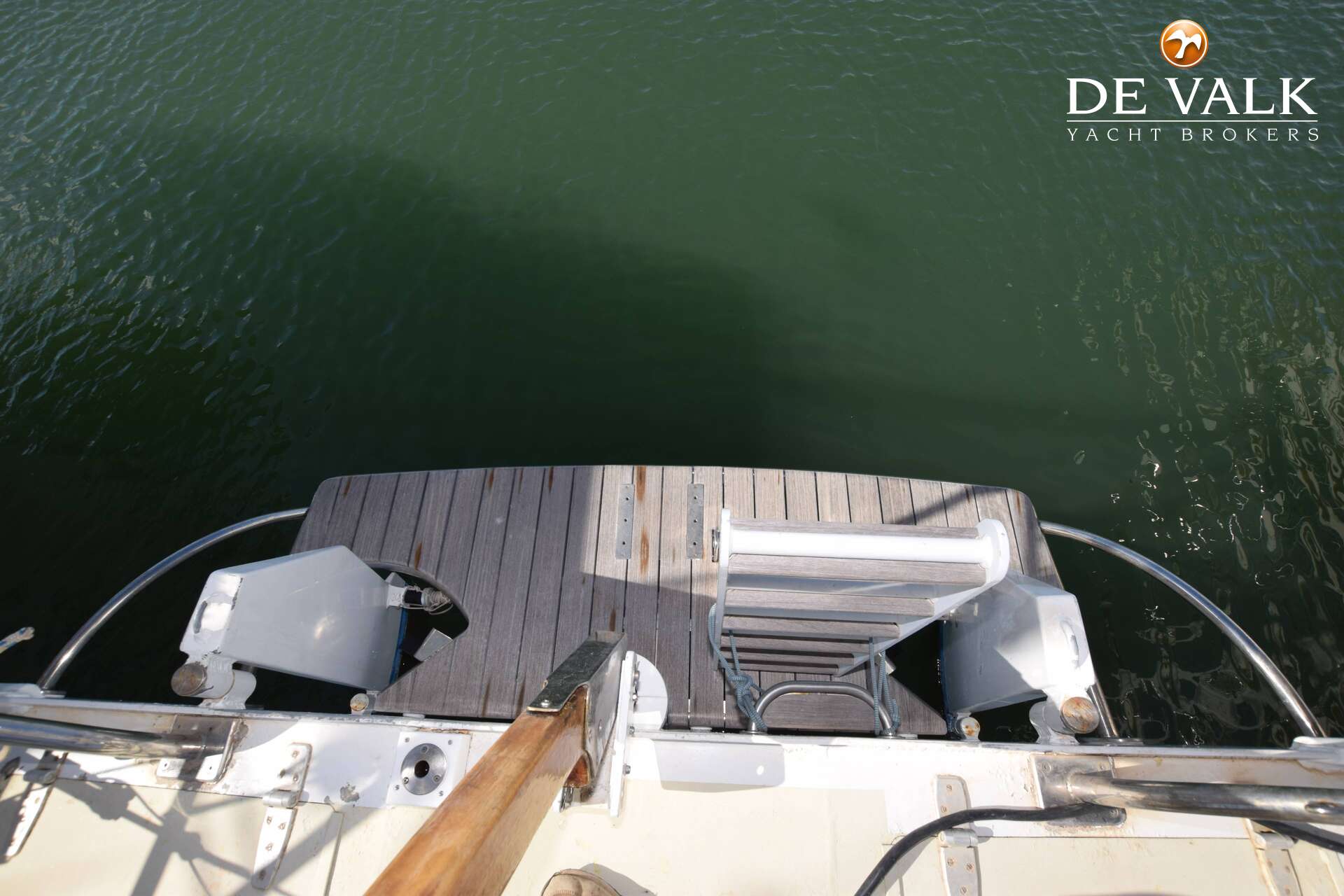

- Bathing platform Teak
- Boarding ladder stainless steel

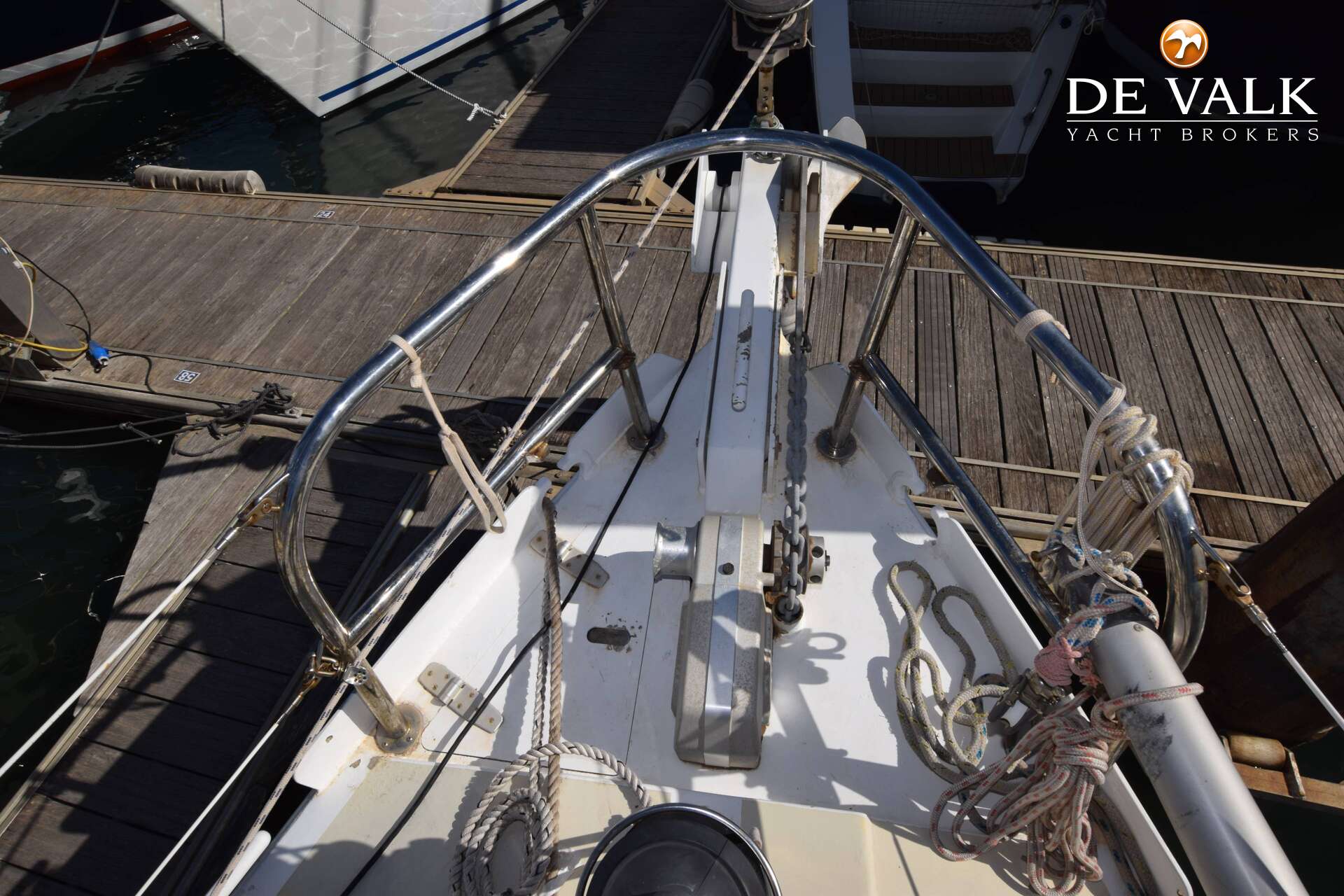

- Anchor Delta 25KG
- Anchor chain 50m 12mm galvanised steel
- Anchor 2 yes
- Other ground tackle yes
- Windlass electrical 24V
- Dinghy inflatable
- Outboard Honda
- Davits stainless steel
- Davits controls manual
- Sea railing stainless steel
- Grab rail (superstructure) stainless steel
- Life raft container New 2026
- Lifejackets yes
- Safety harness yes
- Lifebuoy yes
- Safety lines on deck yes
- Horn yes
- Fenders yes
- Mooring lines yes
- Spare parts yes
- Tools yes
- Radio-cd player yes
- Speakers in salon yes
- Clock - barometer yes
- Fire extinguisher yes
- Rigging sloop-cutter
- Standing rigging wire Original 2002
- Material mast aluminium
- Spreaders 2x2
- Keel stepped mast yes
- Mainsail 39,5m2
- Mainsail cover Lazy bag
- Fully battened mainsail yes
- Main staysail yes
- Jib 16,8m2
- Genoa 58m2
- Genoa furler yes
- Genoa cover UV strip
- Staysail yes
- Reefing System slabreefing
- Backstay adjuster tackle
- Boomvang tackle
- Primary sheet winch 2x Lewmar 54ST
- Secondary sheet winch 2x Harken 40 ST

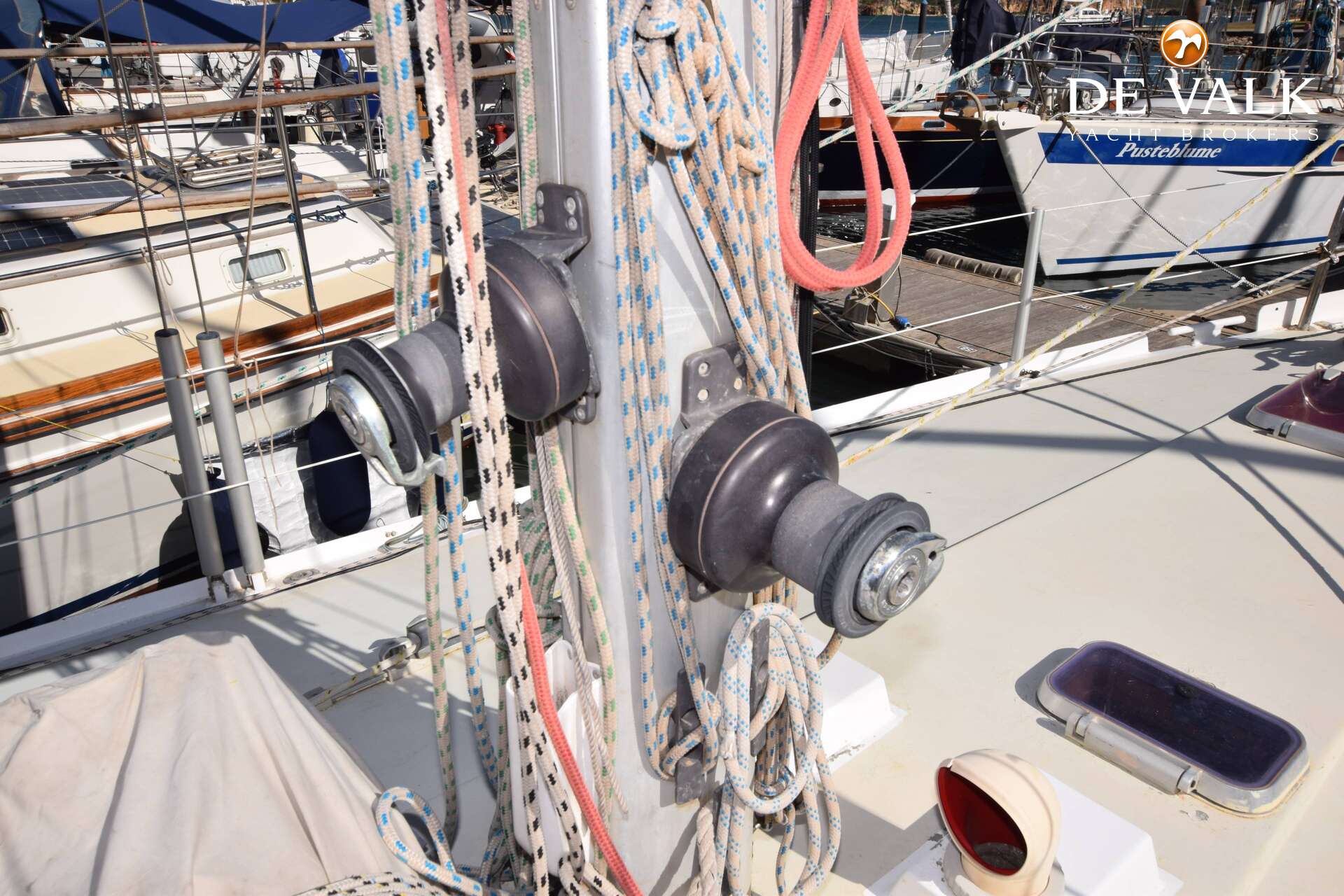

- Halyard winches 3 on mast Harken 32/40/44
- Reefing winch Harken on mast
- Multifunctional winches yes
- Winchcovers yes
Important disclaimer:These particulars are given in good faith as supplied but cannot be guaranteed and cannot be used for contracts.
