Broker's comments

New,never used Aluminum yacht "Atoa" is a rare yacht on the market, she was purpose-designed and built as cruising yacht for family life aboard and cruising worldwide. The main concept of this self-sufficient yacht for comfortable cruising with high average speed (motorsailing). Not for sale while in EU waters

DUTCH CUSTOM BUILT SY

Dimensions   22,30 x 5,40 x 1,60 (m)
Material   aluminium
Built   2008
Engine(s)   1 x Perkins Sabre M185c Diesel
HP/Kw   185 (hp), 135,98 (kw)
Lying   contact Hindeloopen
Sales information   De Valk Hindeloopen
Status   sold


General - DUTCH CUSTOM BUILT SY

Model   DUTCH CUSTOM BUILT SY
Type   sailing yacht
LOA (m)   22,30
LWL (m)   17,32
Beam (m)   5,40
Draft (m)   1,60
Air draft (m)   22,00
Headroom (m)   2,00
Year built   2008
Builder   Dutch Yacht Builders BV
Country   The Netherlands
Designer   Heyman Yacht
Displacement (t)   40
Ballast (tonnes)   11
CE norm   A
Hull material   aluminium
Hull colour   green
Hull shape   roundbilged
Keel type   long keel
Superstructure material   aluminum
Deck material   aluminum
Cockpit deck finish   teak-imitation
Antifouling (year)   new
Dorades   yes
Window frame   aluminum
Window material   tempered glass
Fuel tank (litre)   aluminum  4200
Level indicator (fuel tank)   yes
Fuel daytank (litre)   aluminum  80
Level indicator (daytank)   yes
Freshwater tank (litre)   aluminum  1650
Level indicator (freshwater)   yes
Blackwater tank (litre)   aluminum  600
Blackwater tank extraction   deck extraction + pump
Wheel steering   hydraulic
Inside helm position   Joystick power steering
Outside helm position   hydraulic
Emergency tiller   yes

Accommodation

Cabins   3
Berths   8
Interior   teak  Classic
Floor   teak
Pilot house   yes
Saloon   yes
Heating   central heating  Kabola B-17
Chart table   yes
Galley   yes
Countertop   corian
Sink   stainless steel
Cooker   electric
Oven   Force 10
Extractor   Miele
Microwave   Siemens
Fridge   1 frontloaded Isotherm Cruise 100 + 1 top loaded Isotherm BI75
Freezer   1 top loploaded fridge/freezer Isotherm BI 53.
Hot water system   220V + engine
Water pressure system   electrical
Dishwasher   Miele
Coffee maker   yes
Owners cabin   double bed
Bed length (m)   2,00
Wardrobe   hanging and drawers
Bathroom   en suite
Toilet   en suite
Wash basin   in the bathroom
Shower   en suite
Guest cabin 1   double bed
Wardrobe   hanging and drawers
Bathroom   en suite
Toilet   en suite
Wash basin   in the bathroom
Shower   en suite
Guest cabin 2   bunk bed
Bed length (m)   2,00
Wardrobe   hanging and drawers
Bathroom   en suite
Toilet   en suite
Wash basin   in the bathroom
Washing machine   Miele W3033 in separate locker

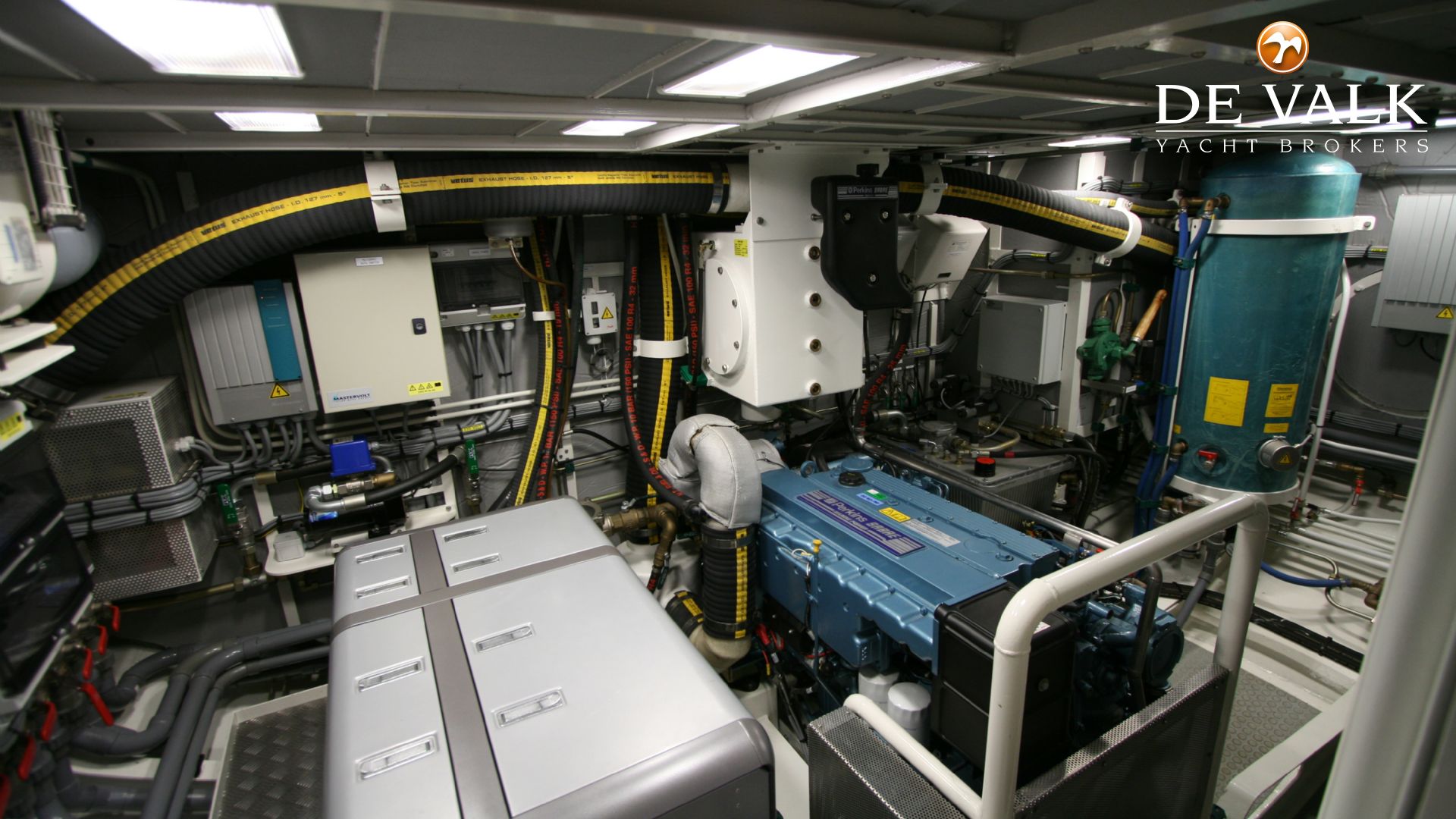

Machinery

No of engines   1
Make   Perkins Sabre
Type   M185c
HP   185,00
kW   135,98
Fuel   diesel
Year installed   2008
Maximum speed (kn)   9
Cruising speed (kn)   7
Engine cooling system   freshwater heat exchanger
Drive   shaft
Engine controls   electrical
Gearbox   hydraulic  Twin disk MG5050 gearbox (ratio 2, 04:1)
Bowthruster   hydraulic  Max power bow thruster type 225HYD
Propeller type   fixed
Propeller blades   3
Propeller shaft material   stainless steel
Shaft lubrication   water
Electric bilge pump   yes
Bilge alarm   yes
Generator   separator  Mastervolt diesel generator 12kW
Batteries   Mastervolt 2 volt gel cells MVSV series batteries
Start battery   yes
Service battery   yes
Battery monitor   yes
Battery charger   Mastervolt
Inverter   yes
Battery charger/inverter   yes
Shorepower   with cable

Navigation

Compass   Plastimo contest on steering pedestal
Electric compass   yes
Depth sounder   Raymarine ST2 90
Windset   Raymarine ST2 90
Repeater   Raymarine ST2 90
VHF   Icom ic-M505. Icom remote controle microfoon VHF.
VHF handheld   icom VHF Marine IC- M801E
Autopilot   ST8002 autopilot inside and outside
Rudder angle indicator   Raymarine ST2 90
Radar   yes
GPS   yes
Plotter   yes
Radar/plotter   Outside Raymarine E 80
Radar/GPS/plotter   inside Raymarine E 120
Navtex   Furuno navtex NX-300
Personal computer   Raymarine remote
Transmitter   yes
EPIRB   yes

Equipment

Fixed windscreen   yes
Sprayhood   yes
Cockpit cover   yes
Bimini   yes
Cockpit table   yes
Bathing platform   Folding aft platform for boarding and loading cargo, water level
Boarding ladder   yes
Transom door   yes
Deck shower   yes
Anchor   CQR Plough
Anchor chain   yes
Anchor 2   CQR Plough
Anchor chain   yes
Windlass   electrical
Deck wash   yes
Sea railing   stainless steel
Grab rail (superstructure)   stainless steel
Railing side opening gates   yes
Life raft   container
Wiper   yes
Horn   electric
Fenders   yes
Mooring lines   yes
TV   Navigationtable: Flat screen connected to E120 with control unit
Radio-cd player   Pioneer
Speakers in salon   yes
Speakers in cabin   yes
Clock - barometer   yes
Fire extinguisher   yes
Extinguisher in engine room   yes

Rigging

Rigging   ketch
Material mast   aluminum
Mainsail   yes
Mainsail cover   yes
Fully battened mainsail   160 m2
Mizzen   yes
Mizzen sailcover   yes
Jib   furling jib
Genoa   yes
Gennaker   150-250 m2
Reefing System   quick-one-line-reefing
Backstay adjuster   hydraulic
Boomvang   hydraulic
Primary sheet winch   1 x Andersen 58st 2 Speed and one 46st 2speed electric winches.
Secondary sheet winch   2 Andersen 28st manual winches
Genoa sheetwinches   2 Andersen 58St Electric
Multifunctional winches   halyard/sheet winches
Winchcovers   yes

Disclaimer

These particulars are given in good faith as supplied but cannot be guaranteed and cannot be used for contracts.
