The BRONSVEEN 70 FT CENTERBOARD shown below has been sold:

e-mail the broker

Tell a friend

Broker's comments

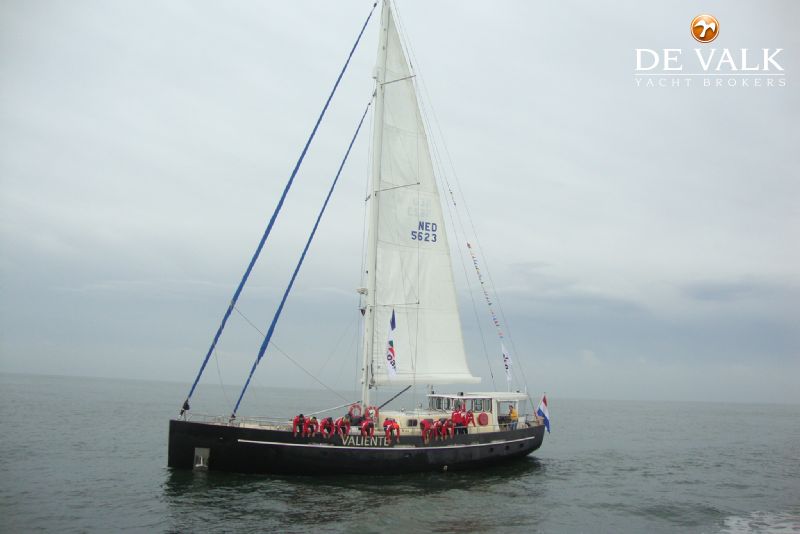

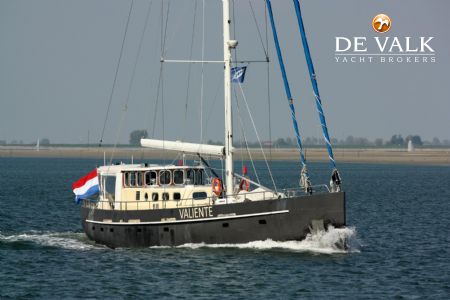

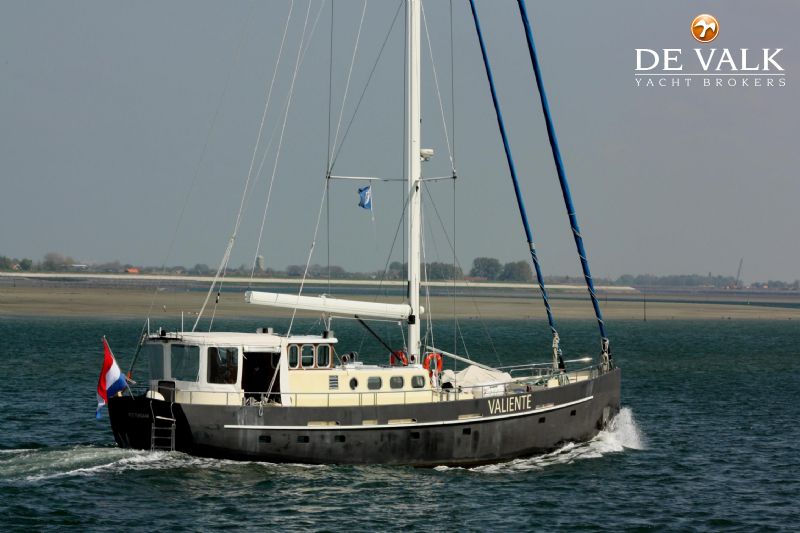

VALIENTE is the dream of a very experienced yacht owner brought into reality by Navyk Design & Engineering and the Bronsveen / Heerlien yard, very strong built, proven seaworthy gives you the opportunity to make safe, comfortable trips as a professional charter. Guests will enjoy their stay under all circumstances in 5 luxurious cabins and a spacious deck saloon with a very good view over the horizon. . With her sophisticated rigging and hydraulic systems, 7 tons shallow draft centerboard keel, engine, gen's and bow prop all kind of waters are accessible.

BRONSVEEN 70 FT CENTERBOARD

Dimensions   21,00 x 5,85 x 3,80 / 1,80 (m)
Material   steel
Built   2010
Engine(s)   1 x Perkins Sabre M 185C diesel
HP/Kw   185,03 (hp), 136 (kw)
Lying   at sales office
Sales office   De Valk Sint Annaland
Status   sold
Vat   not paid


General - BRONSVEEN 70 FT CENTERBOARD

Model   BRONSVEEN 70 FT CENTERBOARD
Type   sailing yacht
LOA (m)   21,00
LWL (m)   19,00
Beam (m)   5,85
Draft (m)   1,80
Draft min (m)   3,80
Air draft (m)   26,32
Headroom (m)   2,00
Year built   2010
Builder   Jachtwerf Bronsveen/Heerlien
Country   The Netherlands
Designer   NAVYK Design and Engeneering
Displacement (t)   54
Ballast (tonnes)   lead  8 ton
Gross tonnage   55
Net tonnage   16
CE norm   A

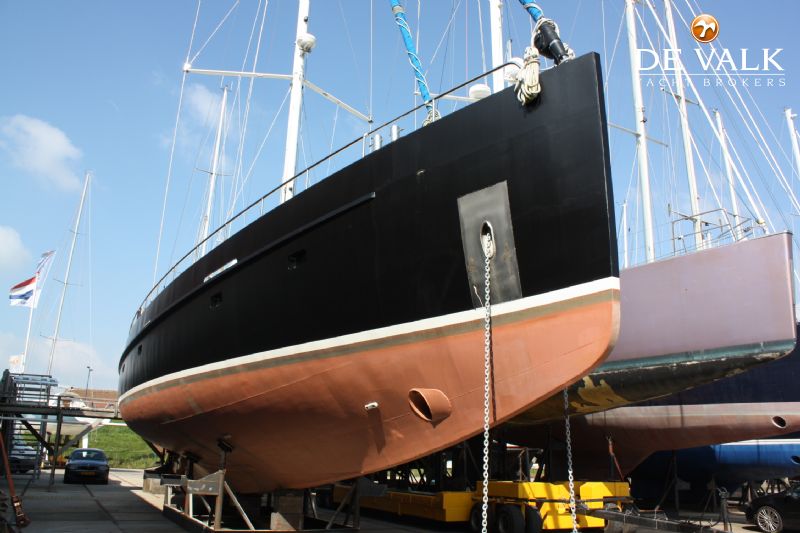

Hull material   steel
Hull colour   black
Hull thickness (mm)   5 / 6 / 8 /
Hull shape   round-bilged

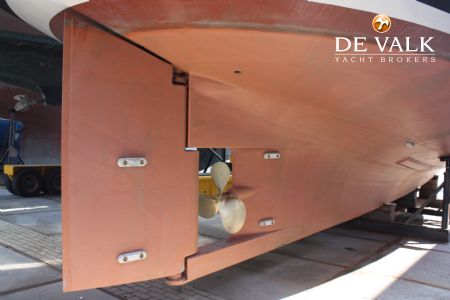

Keel type   centreboard  Hydraulic & seperate electro hydraulic driven between 1,80-3,80
Superstructure material   steel
Superstructure (mm)   4/5/6
Deck plate thickness (mm)   5
Rubbing strake   steel

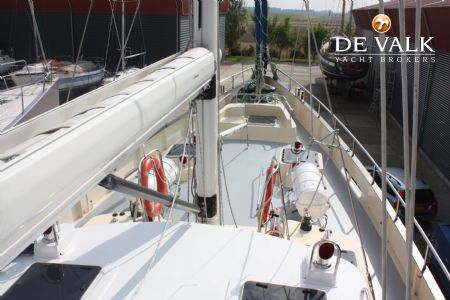

Deck material   steel
Deck finish   anti-slip paint
Superstructure deck finish   paint
Cockpit deck finish   anti-slip paint
Antifouling (year)   2014-7
Dorades   Stainless steel
Window frame   aluminium
Window material   double glazing

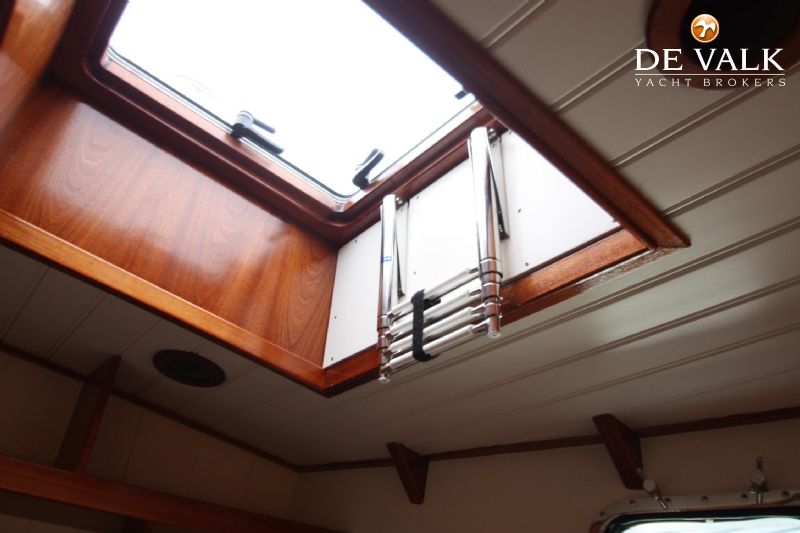

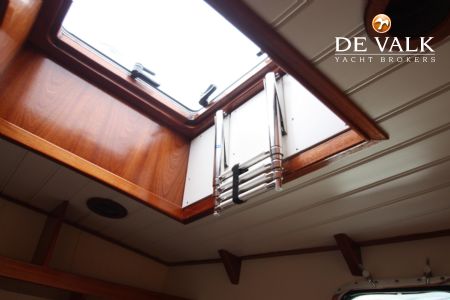

Deckhatch   yes
Portholes   stainless steel
Insulation   foam
Fuel tank (litre)   steel  3610 together in 3 tanks
Level indicator (fuel tank)   yes
Fuel daytank (litre)   steel  200
Level indicator (daytank)   yes
Freshwater tank (litre)   steel  2200 in 2 tanks
Level indicator (freshwater)   yes
Blackwater tank (litre)   steel  1400
Level indicator (blackwater)   yes
Blackwater tank extraction   deck extraction + pump

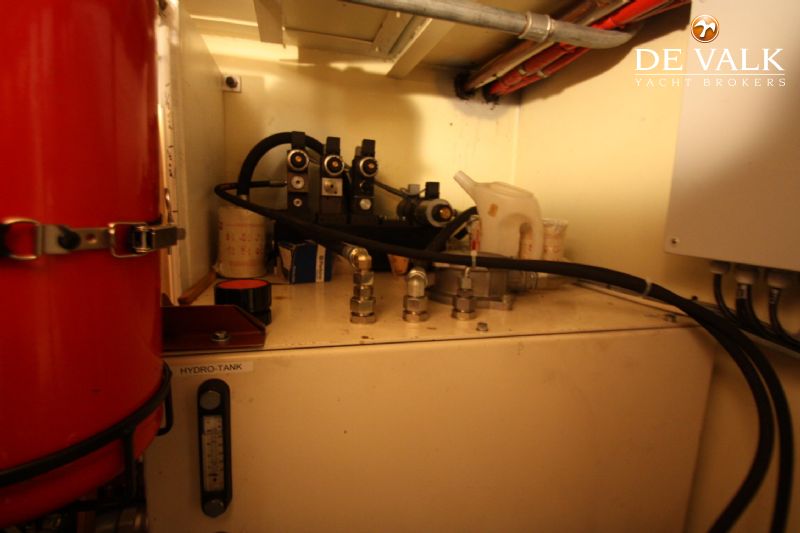

Wheel steering   hydraulic

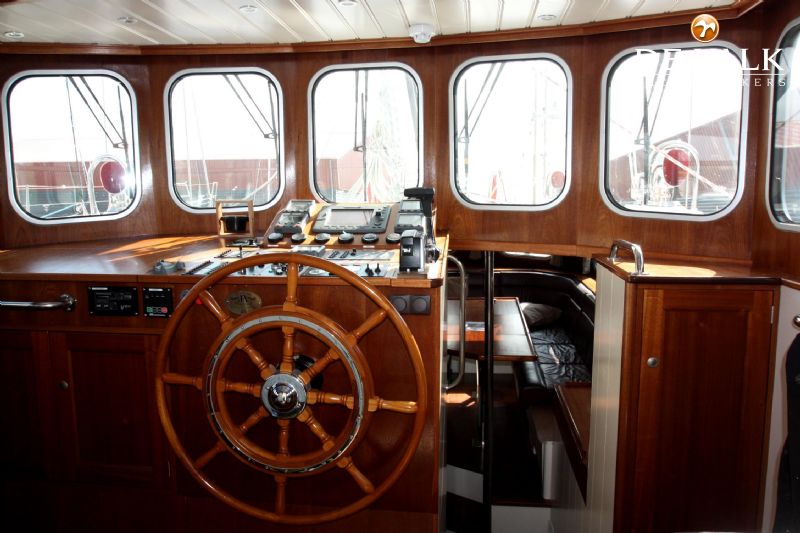

Inside helm position   wheel
Outside helm position   mechanical
Emergency tiller   yes
More info on hull   Several watertight compartments and doors
More info on paintwork   Hull, deck and superstructure painted 9/2014
Extra info   Extensive safety gear, MCA Code of Safety for Small Commercial Vessels prepared, Stability Information booklet available. Vessel is accepted as a comercial vessel by Dutch Tax authorities

Accommodation

Cabins   6
Berths   12
Crew cabin   1x
Crew berths   2
Interior   mahogany

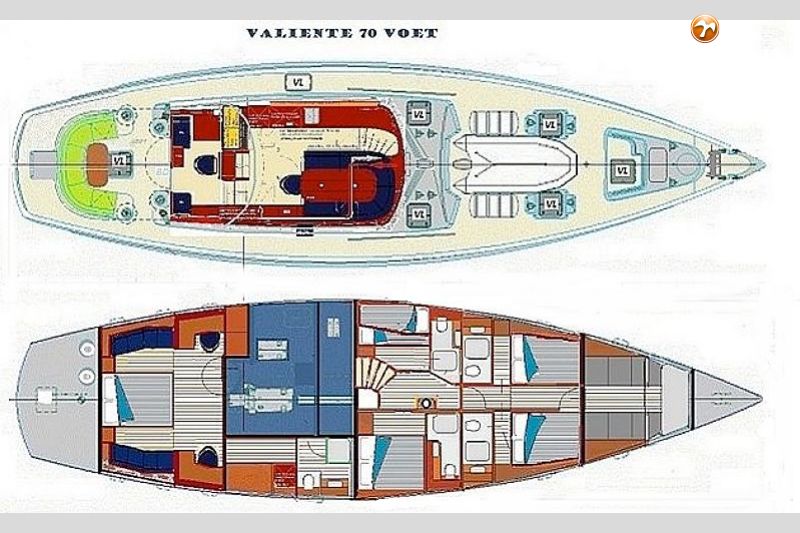

Layout   1x owner stateroom, 4x guest cabin, 1x crew cabin, 5x head & shower
Floor   parquet  Teak +
Aft deck   yes

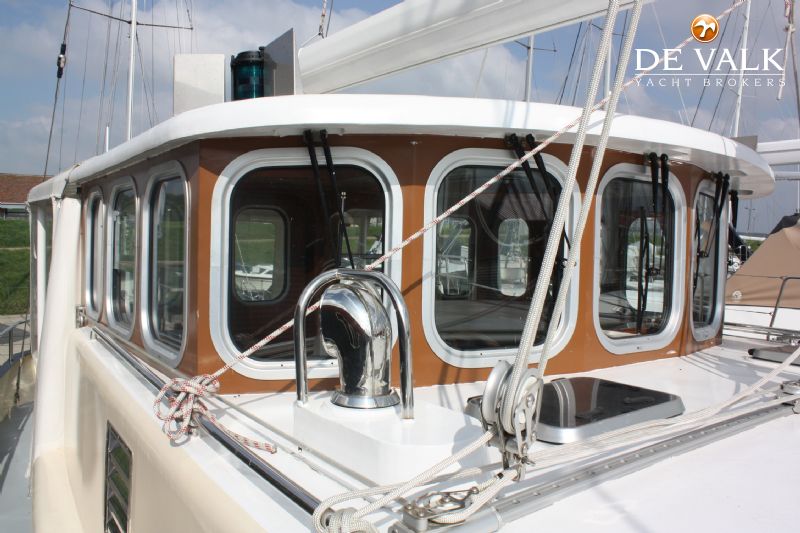

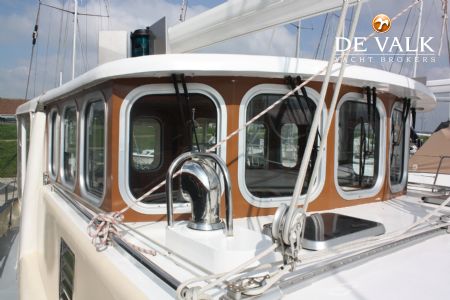

Pilot house   1,98

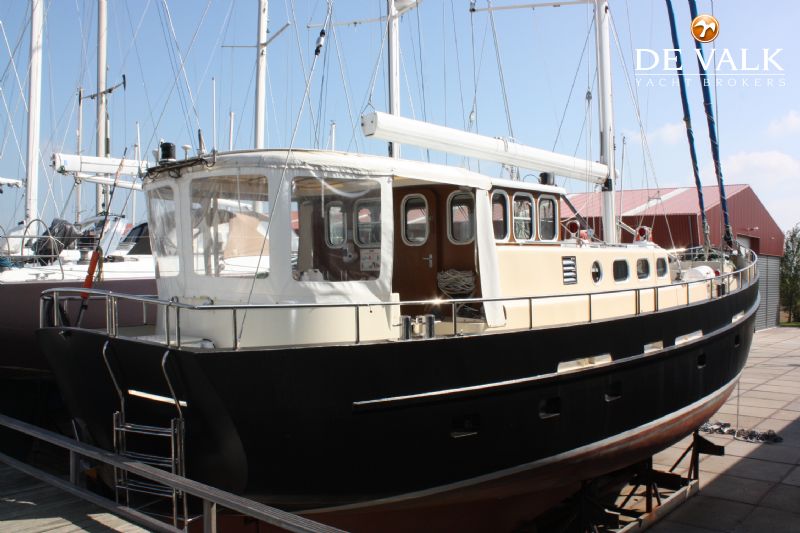

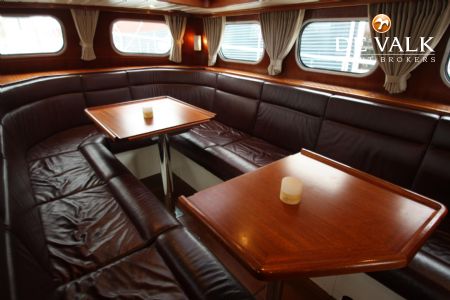

Deck saloon   yes
Pilot house/deck saloon   yes

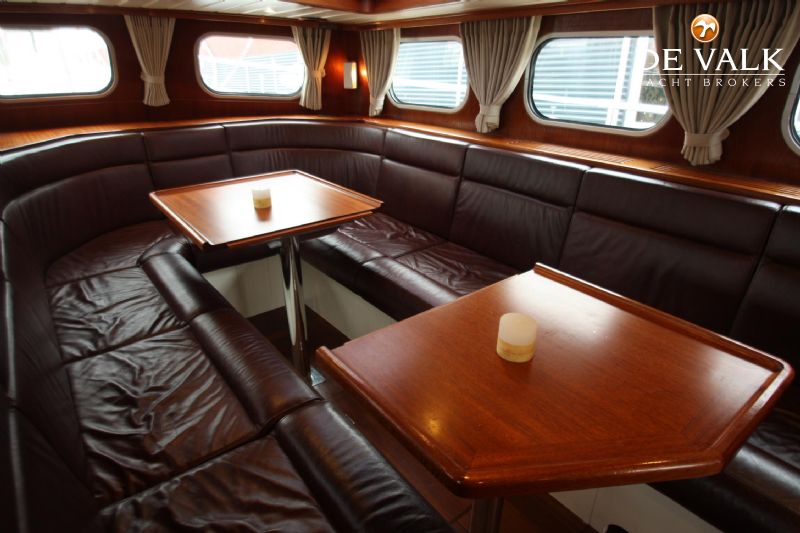

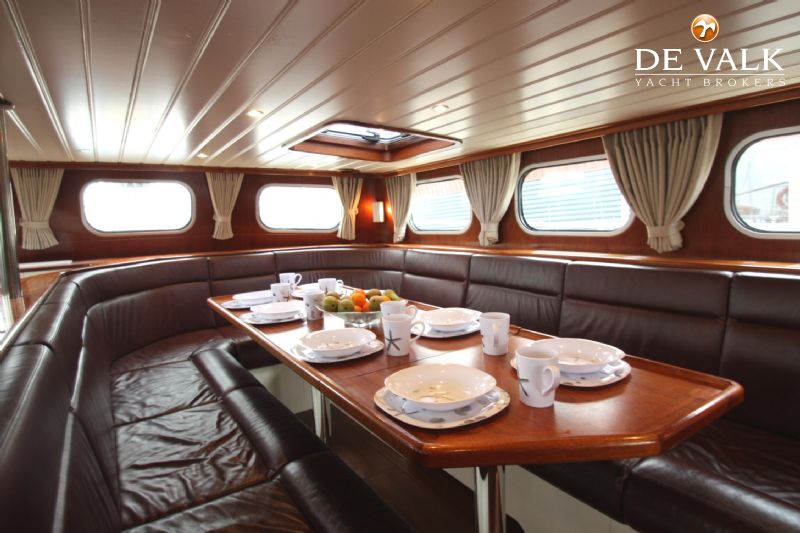

Saloon   yes
Headroom saloon (m)   1,99
Heating   central heating  Maritime Booster met 14 radiators
Air-conditioning   reverse cycle airco
Navigation center   yes
Chart table   yes
Aft Cabin   yes
Dining room   yes
Dinette   yes

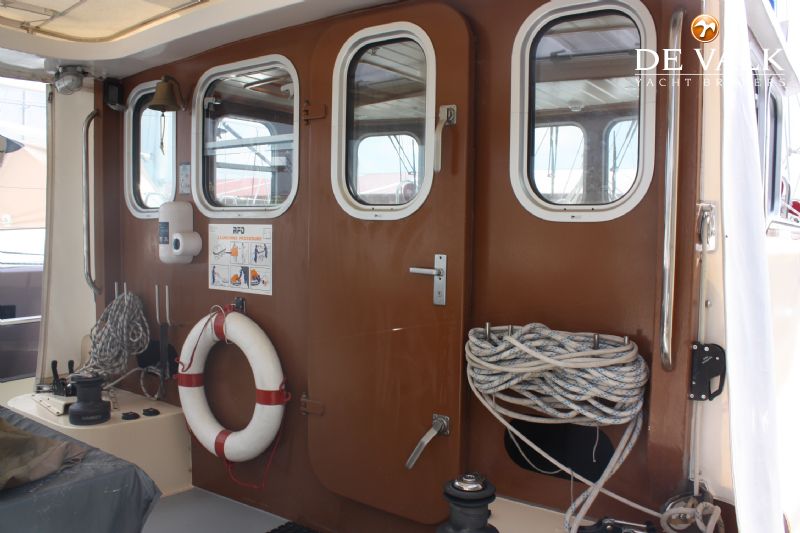

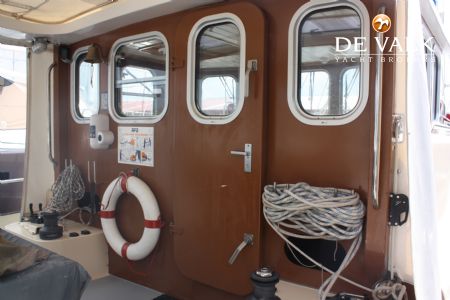

Opening door to cockpit   Watertight door

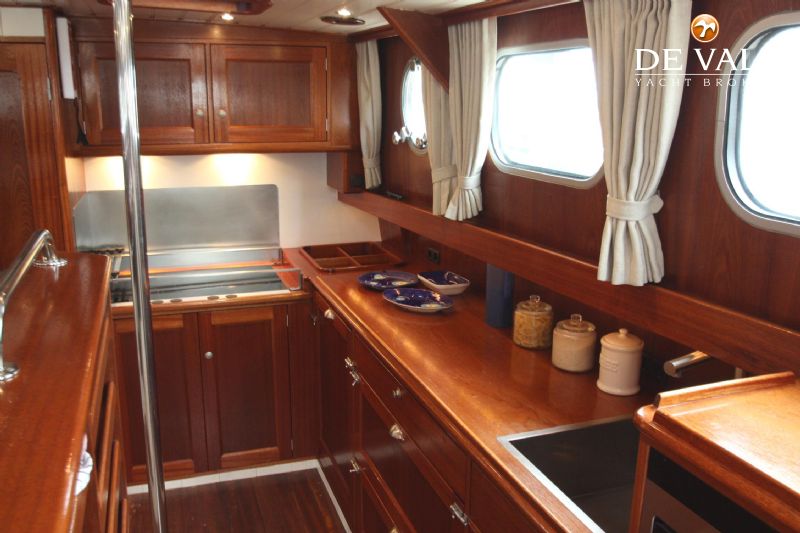

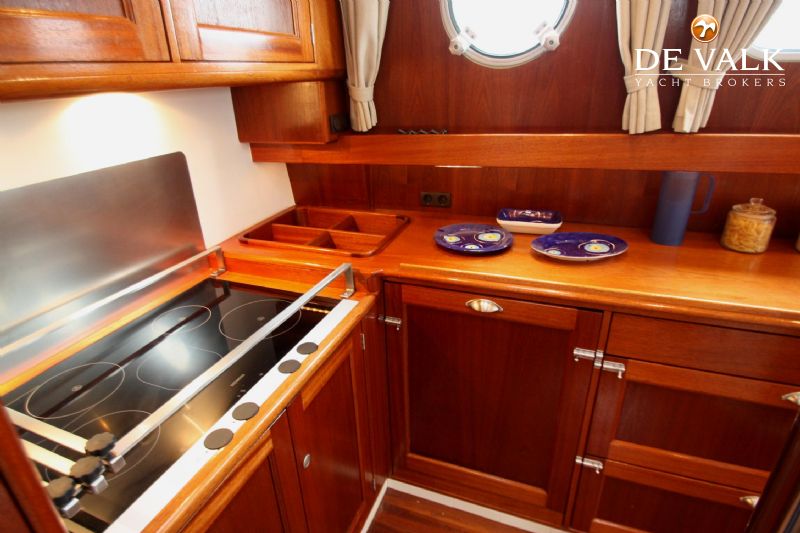

Galley   yes
Countertop   wood
Sink   stainless steel
Cooker   ceramic

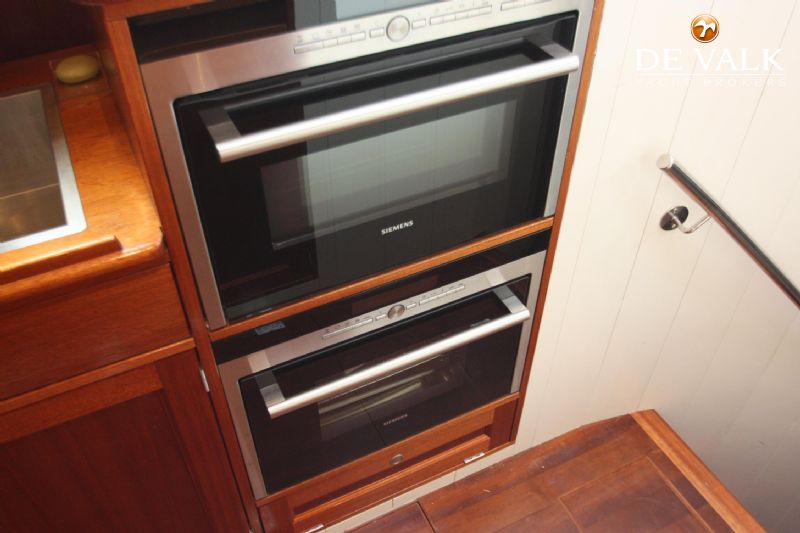

Oven   1x Combi oven / magnetron and 1x Steam oven all by SIEMENS
Microwave   Combi oven

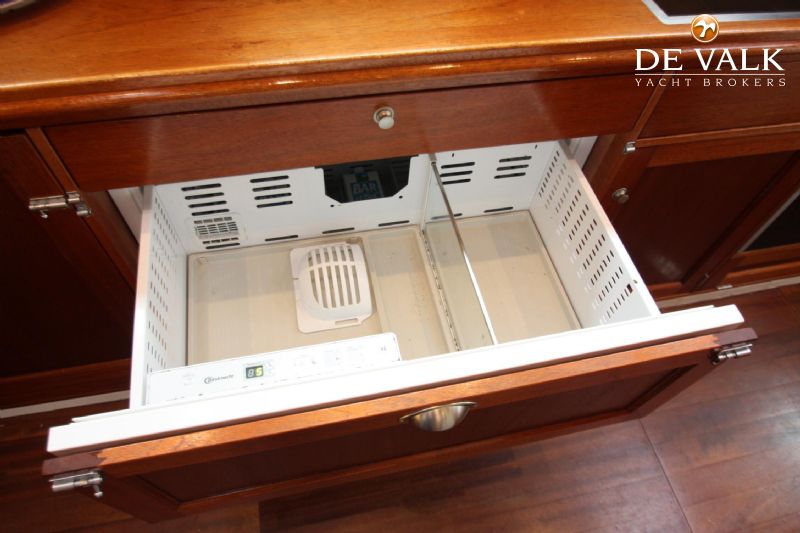

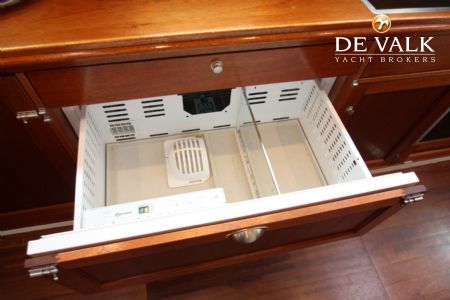

Fridge   2x Bauknecht Cooling drawer fridge
Freezer   Siemens
Hot water system   2 boilers each 80 ltrs
Water pressure system   electrical
Dishwasher   Siemens
Kettle   via closed in boiler

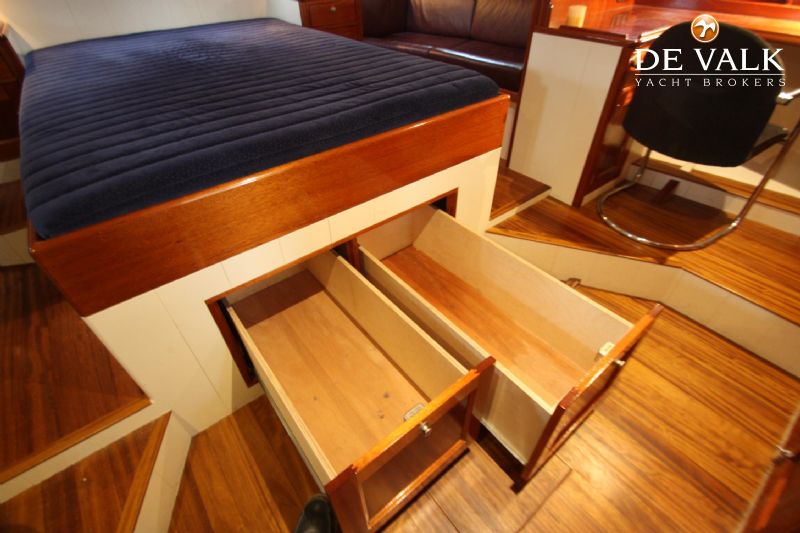

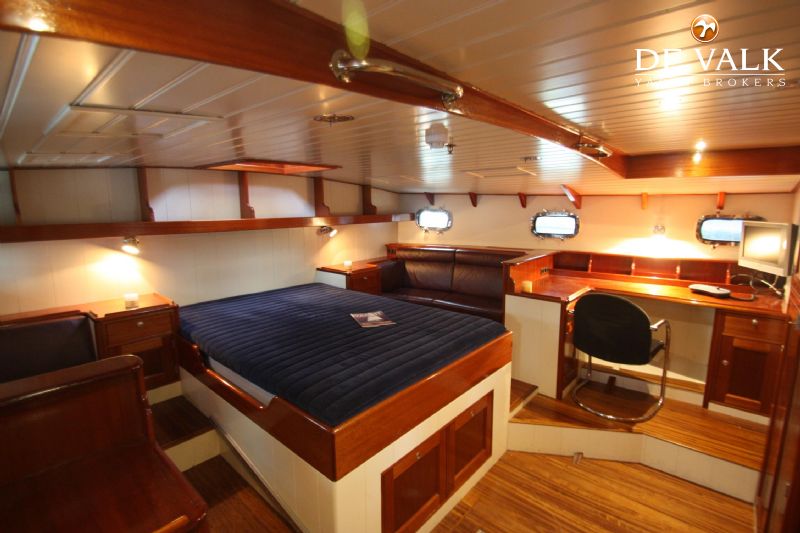

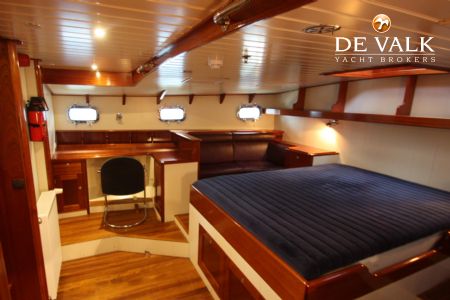

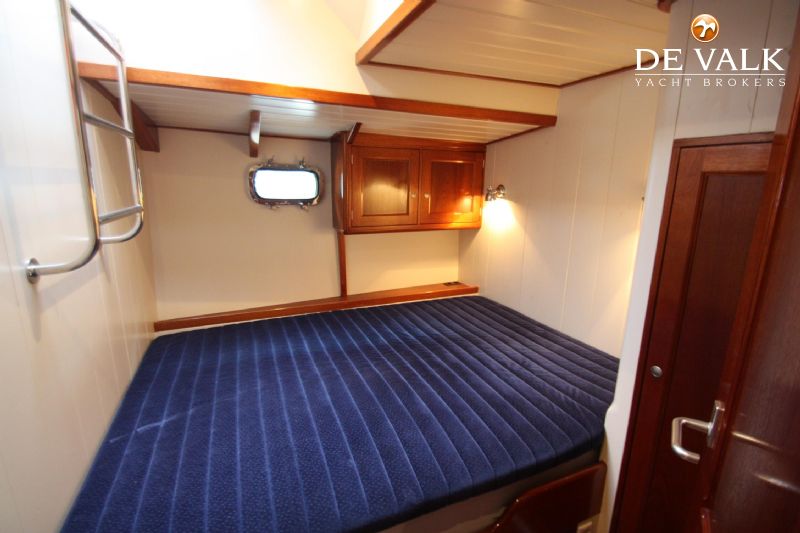

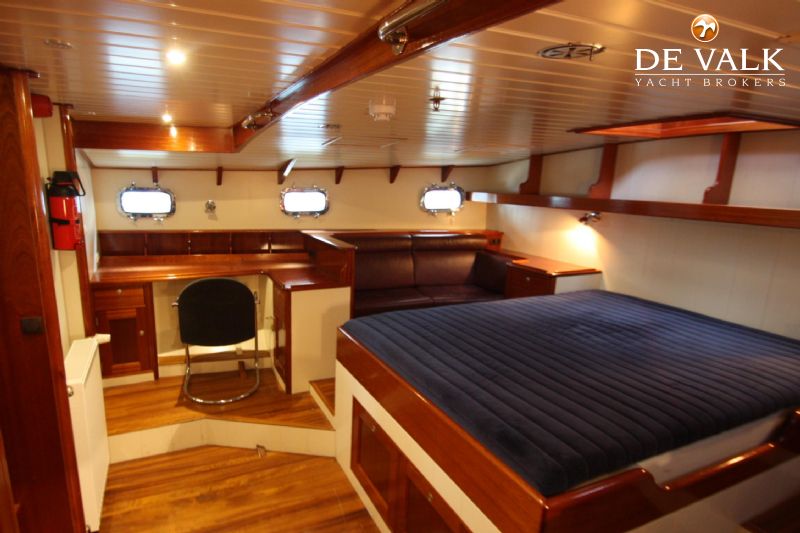

Owners cabin   French bed  Headroom 1,97
Bed length (m)   2,02 x 1,45
Wardrobe   hanging and drawers  Walk in

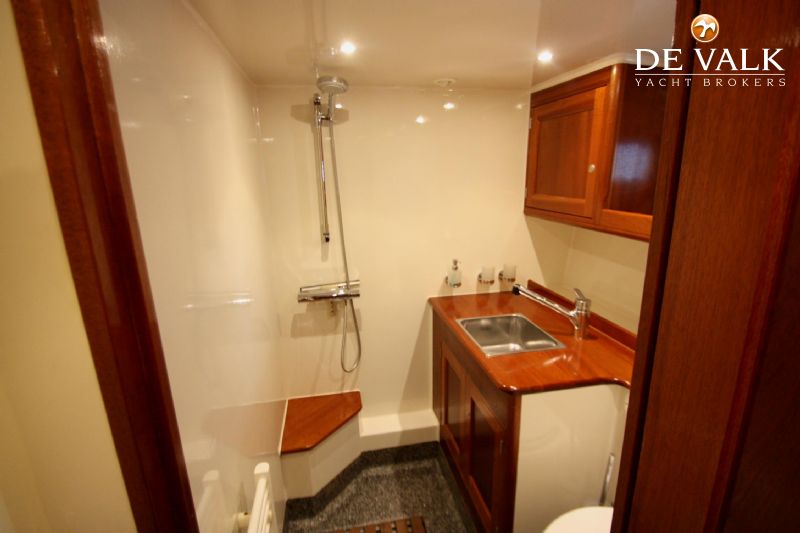

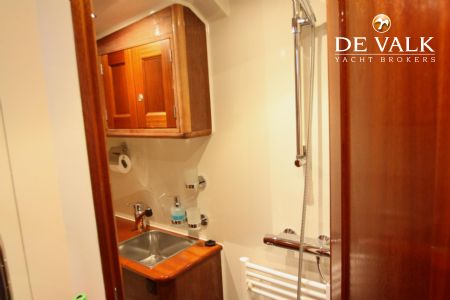

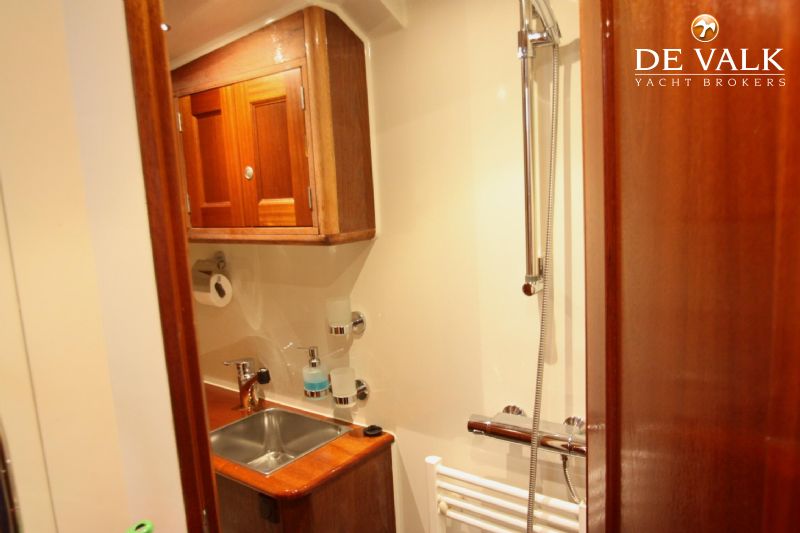

Bathroom   en suite
Toilet   en suite
Toilet system   electric
Wash basin   in the bathroom

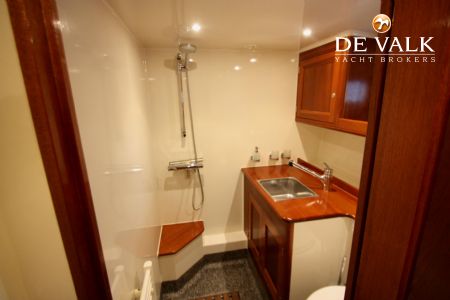

Shower   en suite

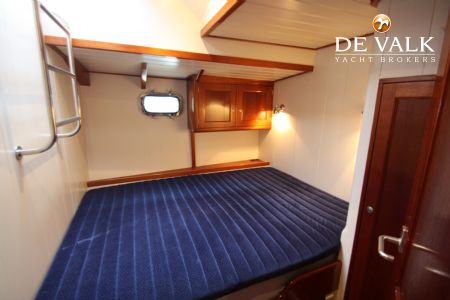

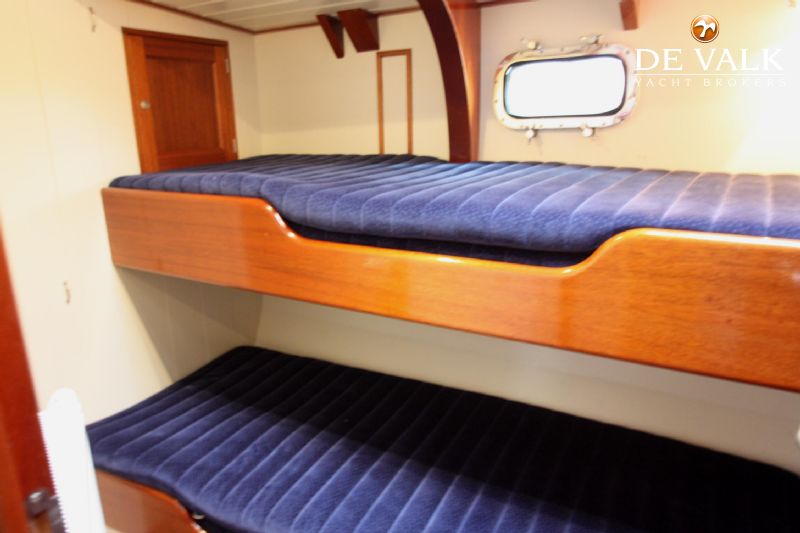

Guest cabin 1   bunk bed  Headroom 2,05/2,30
Bed length (m)   2x 1,98 x 0,85
Wardrobe   hanging and drawers
Bathroom   en suite
Toilet   en suite
Toilet system   electric
Wash basin   in the bathroom
Shower   en suite
Guest cabin 2   double bed  Headroom 2,00
Bed length (m)   2,00 x 1,45
Wardrobe   hanging and drawers
Bathroom   en suite
Toilet   en suite
Toilet system   electric
Wash basin   in the bathroom
Shower   en suite
Guest cabin 3   double bed  Headroom 2,05
Bed length (m)   2,00 x 1,50
Wardrobe   hanging and drawers
Toilet   en suite
Toilet system   electric
Wash basin   in the bathroom
Shower   en suite
Guest cabin 4   double bed  Headroom 2,05
Bed length (m)   2,00 x 1,40
Wardrobe   hanging and drawers
Toilet   en suite
Toilet system   electric
Wash basin   in the bathroom
Shower   en suite
Crew cabin(s)   2 single berth  2x 1,90 x 0,80
Extra info   Headroom 1,97 / 2,30
Washing machine   MIELE W 664
Dryer   MIELE T 8703
Extra info   Lott off stowage space 2x desk and benches 2x seperate desk & bench

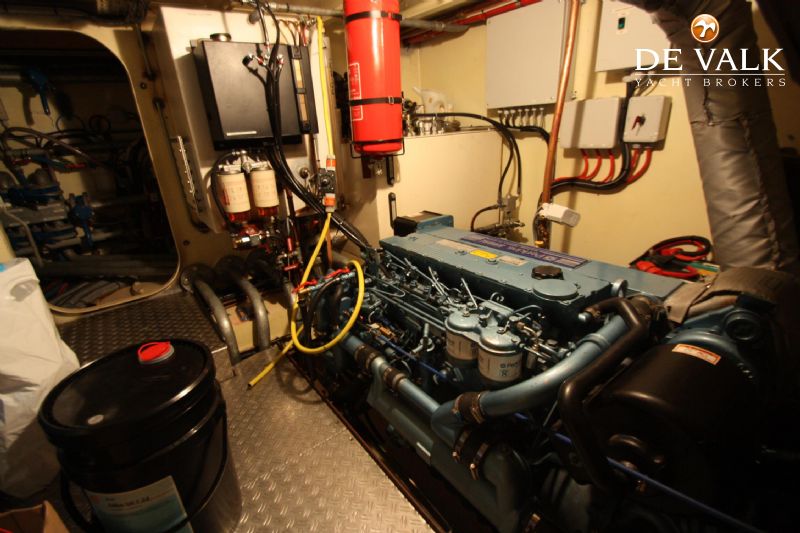

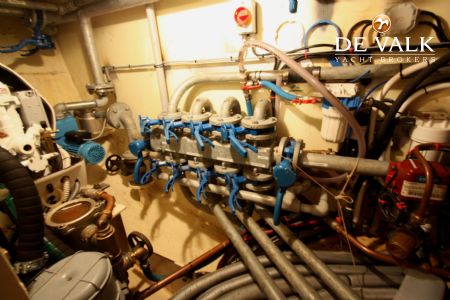

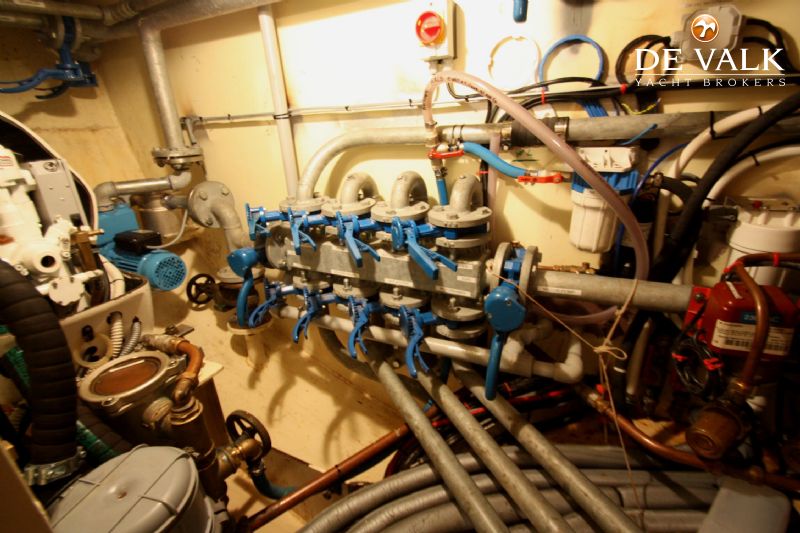

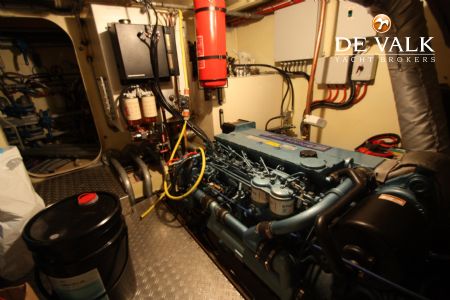

Machinery

No of engines   1

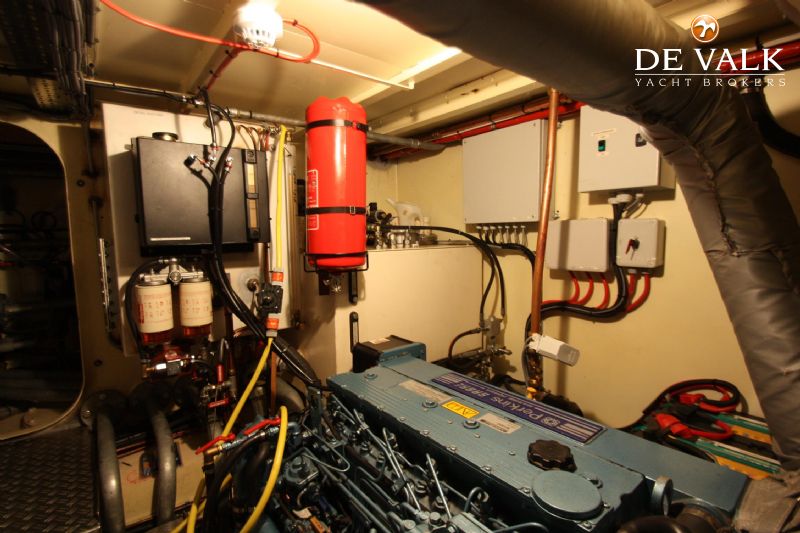

Make   Perkins
Type   Sabre M 185C
HP   185,03
kW   136,00
Fuel   diesel
Year installed   2010
Maximum speed (kn)   12
Cruising speed (kn)   10
Consumption (l/hr)   8
Range (nm)   2500
Engine hours   475
Engine cooling system   closed keelcooling
Drive   shaft
Engine controls   bowden cable
Gearbox   hydraulic
Bowthruster   hydraulic

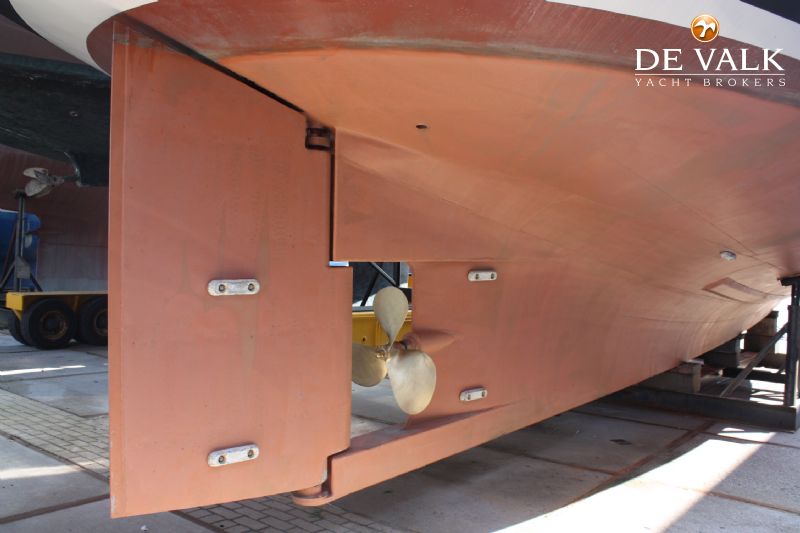

Propeller type   fixed
Propeller blades   3
Propeller shaft material   stainless steel
Shaft lubrication   grease
Electric bilge pump   Bilgepump 24V & Bilgepump on Engine for all locked compartments
Bilge alarm   yes
Electrical installation   12/24/220/380
Generator   dry exhaust  Perkins 19KW
Running hours generator   750
Generator 2   wet exhaust  Farymann 7KW
Running hours generator 2   250
Batteries   12/24V
Start battery   2x
Service battery   4x
Generator battery   2x12V
Battery monitor   Victron
Battery charger   Victron Skylla-TG 24/80
Inverter   Victron Phoenix 24/5000
Shorepower   with cable  220V or 380V
Insulation transformer   Victron 3600W 230-115V 115-230V
Watermaker   Schenker 100 ltr/hour. needs recurrent inspection

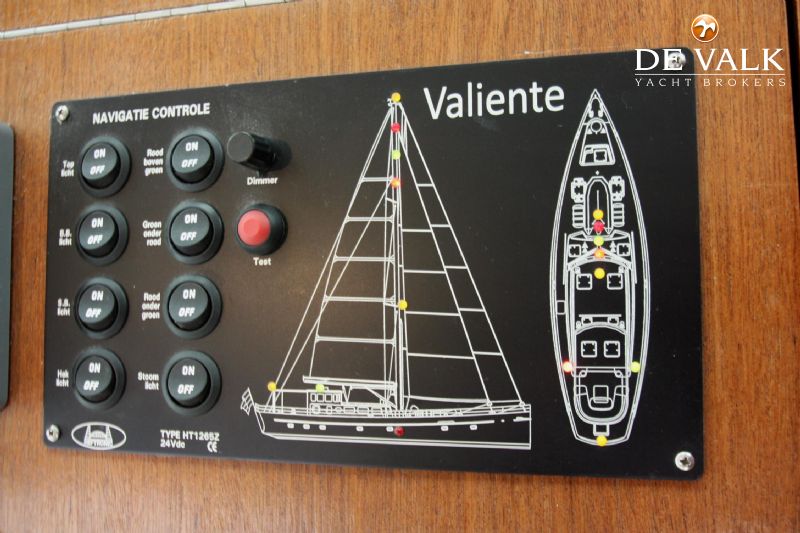

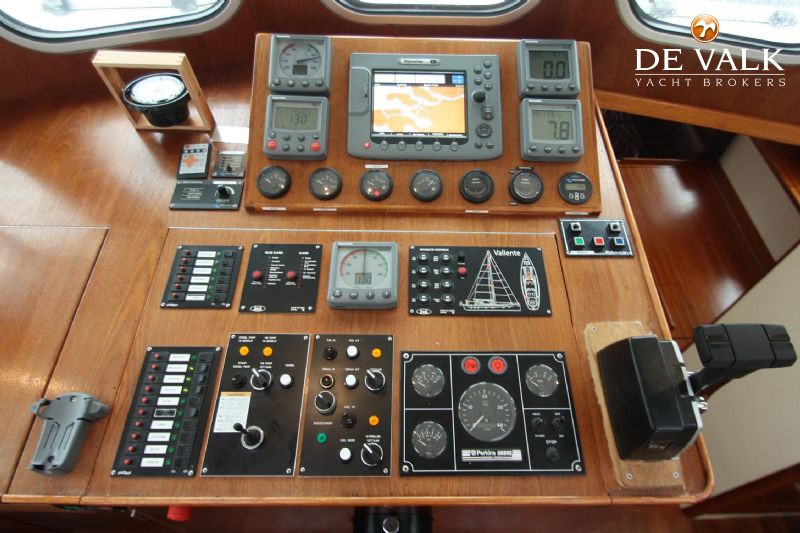

Navigation

Compass   spare compass, not usable as steering compass
Electric compass   Raymarine ST 60+
Depth sounder   Raymarine ST 60+
Log   Raymarine ST 60+
Windset   Raymarine ST 60+
Repeater   yes
VHF   Raymarine 240 E
Autopilot   Raymarine
Rudder angle indicator   yes
Radar/GPS/plotter   Raymarine E-80
Weather receiver   yes
Navtex   yes
PC connection   yes
Electronis chart(s)   Navionics
AIS receiver   yes
AIS transponder   yes
EPIRB   yes
Extra info   Raytheon Full function rermote keyboard

Equipment

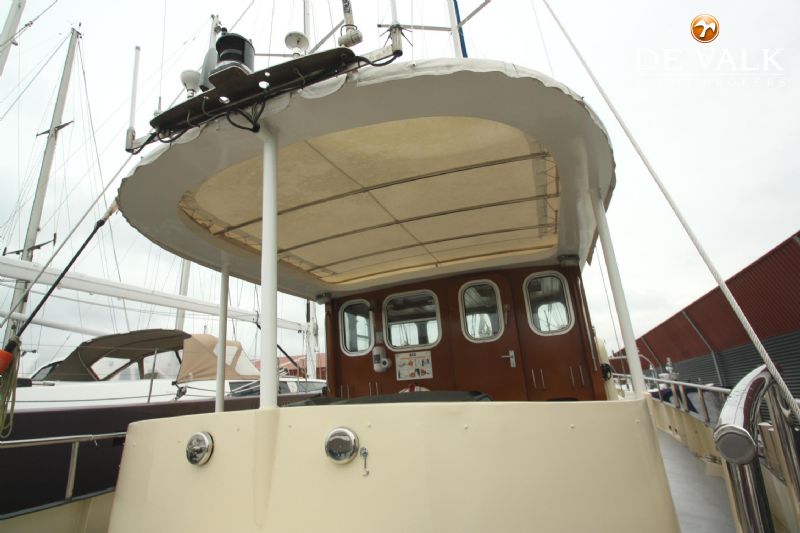

Bimini   yes
Cockpit table   yes
Cockpit chairs   yes
Boarding ladder   stainless steel
Transom door   yes
Gangway   yes
Deck shower   yes

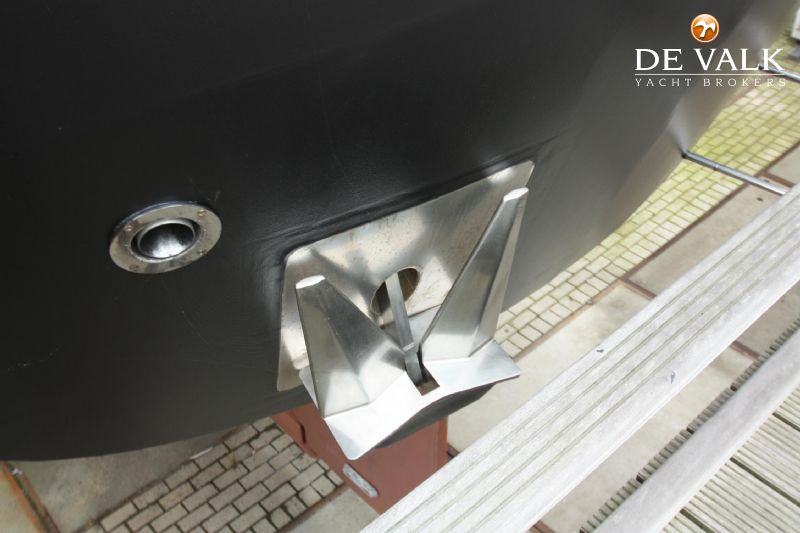

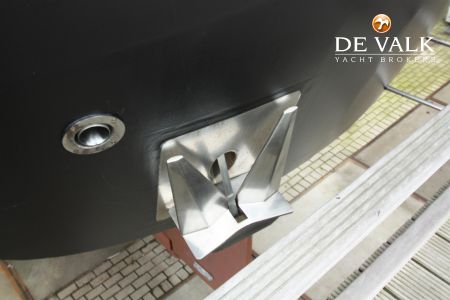

Anchor   Pool  On the bow
Anchor chain   100m 13mm
Anchor 2   Pool  On the bow
Anchor chain   100m 13mm
Other ground tackle   Pool  On the stern 10m chain + rope

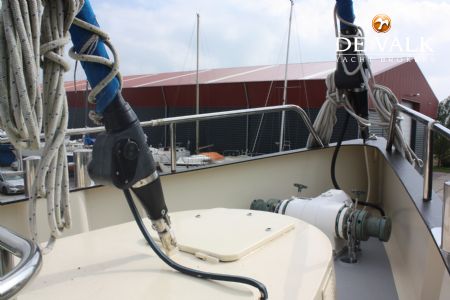

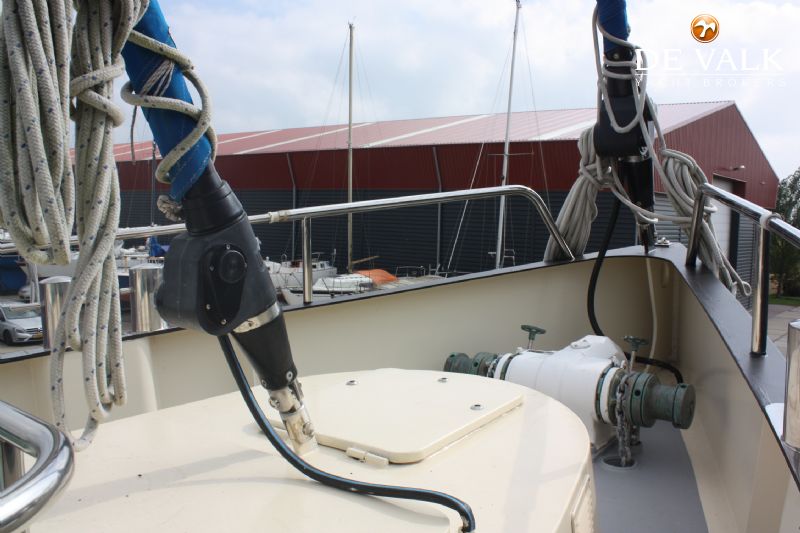

Windlass   hydraulic  DATA DZC 1001/2H
Windlass aft   electrical  Primary genoa winch
Deck wash   yes
Dinghy   rigid inflatable
Outboard   yes
Davits   aluminum  Spi-pole on mast
Davits controls   electrical  40 STE Multi function winches
Deck crane   electric  with Spi pole
Sea railing   stainless steel
Grab rail (superstructure)   stainless steel
Railing side opening gates   2x
Pushpit   yes
Pulpit   yes

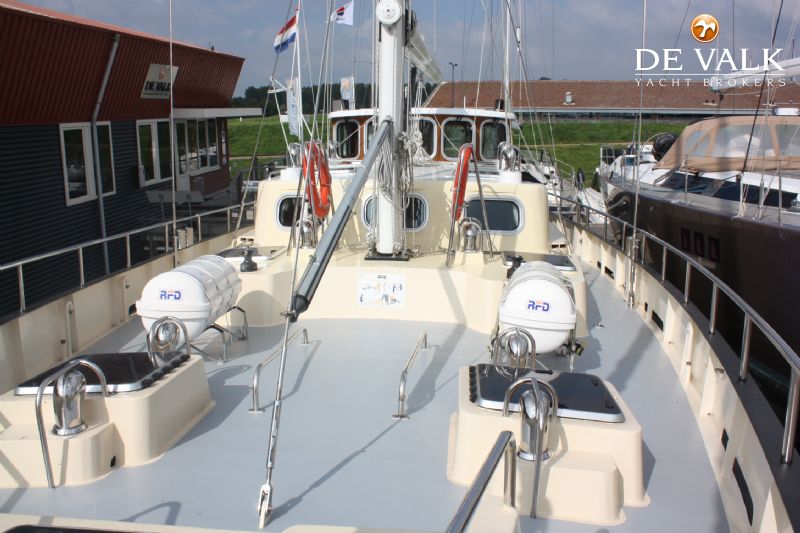

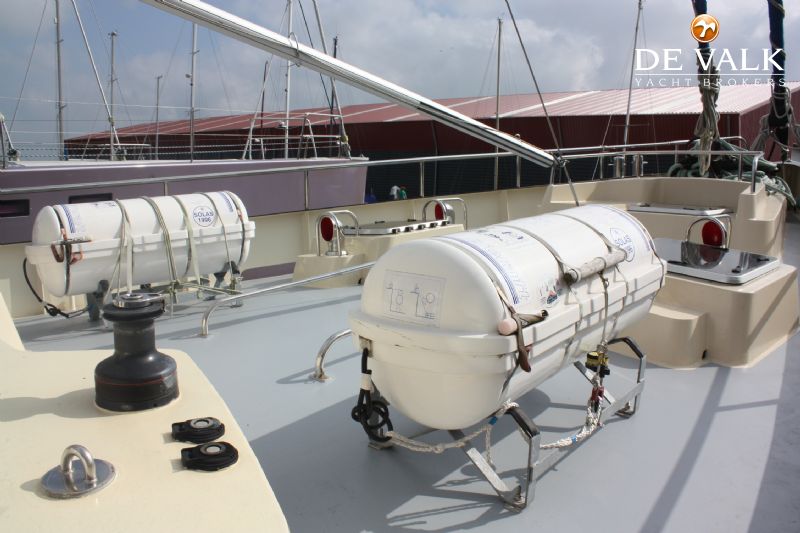

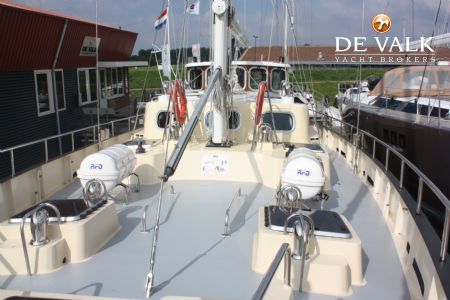

Life raft   container  2x RDF
Lifejackets   14
Lifebuoy   3
Danbuoy   yes
Safety lines on deck   yes
Wiper   yes
Horn   electric
Radar reflector   yes
Fenders   yes
Mooring lines   yes
TV   yes
iPod connection   yes
Clock - barometer   2x Clock (1x GMT & 1x BT)
Fire extinguisher   11x, including Water Sprinkler system all over.
Latest extinguisher survey   2013
Extinguisher in engine room   3
Auto extinguisher system   3x

Rigging

Rigging   cutter
Standing rigging   wire

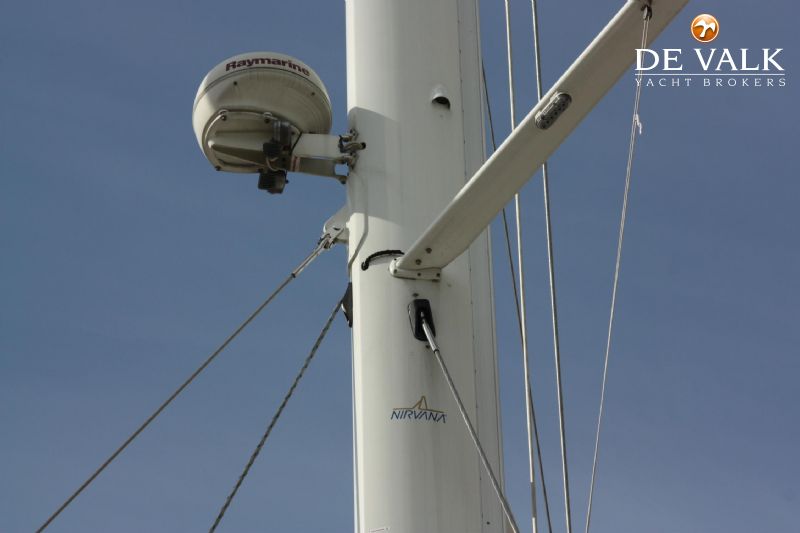

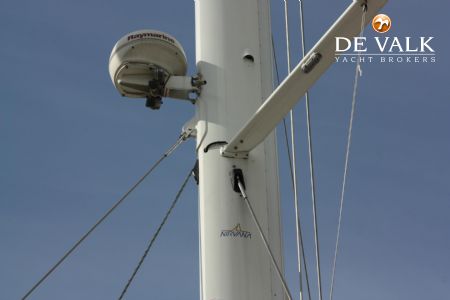

Brand mast   Nirvana
Material mast   aluminium coated
Spreaders   2 sets
Mainsail   96m2
Mainsail cover   In the boom
Fully battened mainsail   yes

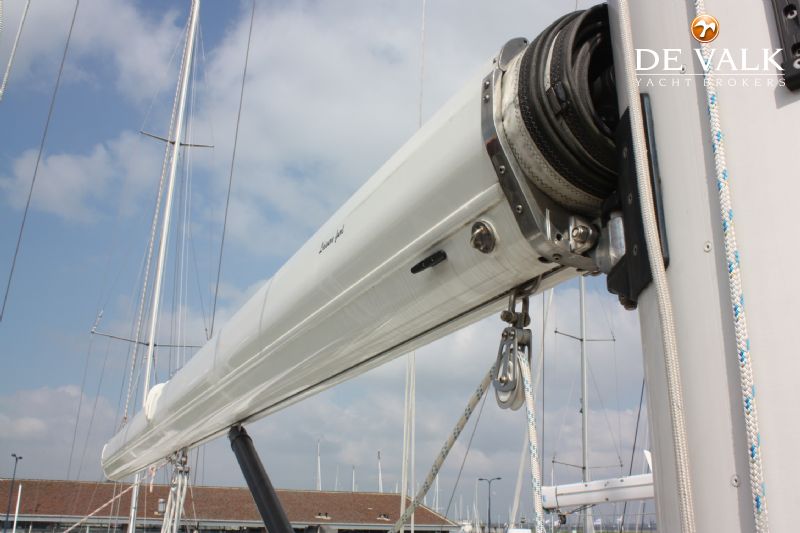

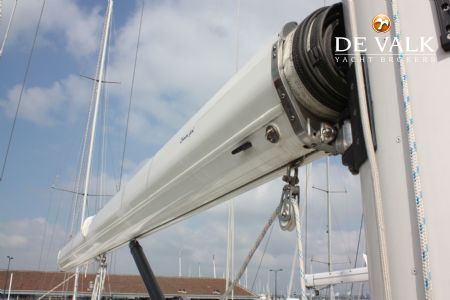

Furling boom   Leisure Furl
Fisherman staysail   yes
Jib   yes
Genoa   107m2
Genoa furler   electric  Admiral
Staysail furler   electric  Admiral
Trysail   yes
Stormjib   yes
Reefing System   main in-boom furling  Leisure Furl
Boomvang   hydraulic  Bamar, remote controlled

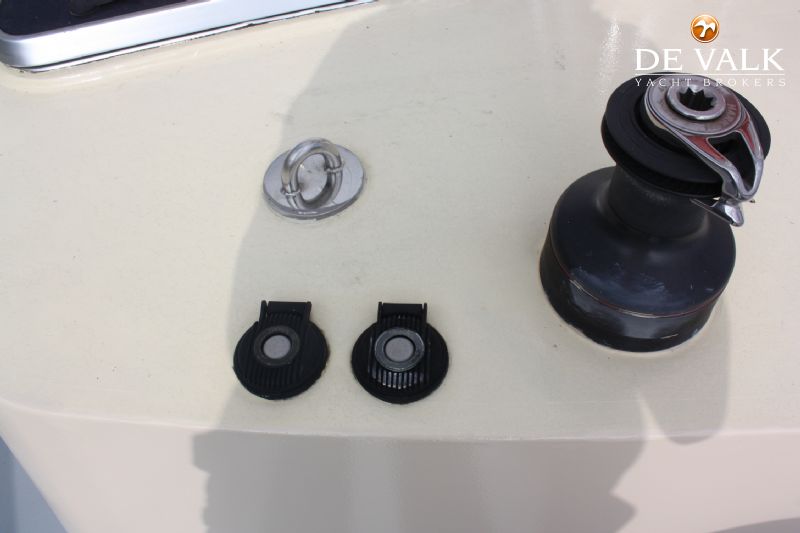

Primary sheet winch   2 x Andersen 68 STE.
Halyard winches   2 x Harken 46 STE.
Multifunctional winches   2 x Harken 40 STE.
Spi-pole   aluminium
Isolated backstay   yes
Extra info   Antal / Spinlock / OH Danmark stainless steel sailing hardware

Disclaimer

These particulars are given in good faith as supplied but cannot be guaranteed and cannot be used for contracts.
