Broker's comments

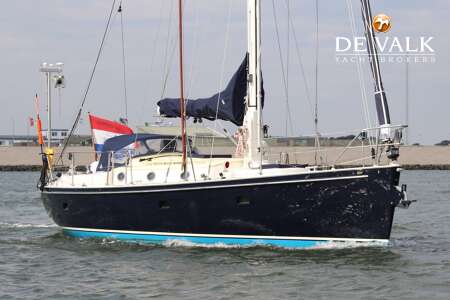

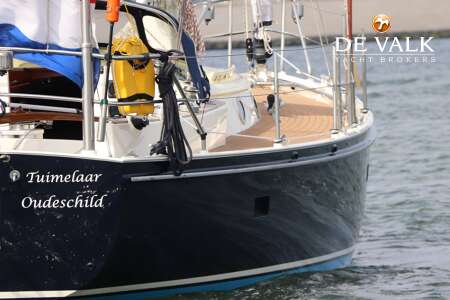

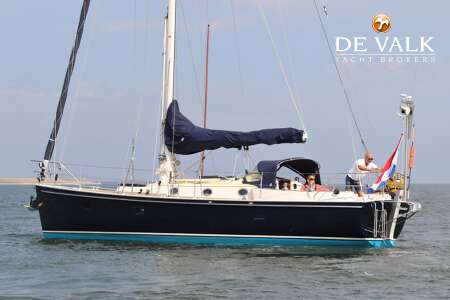

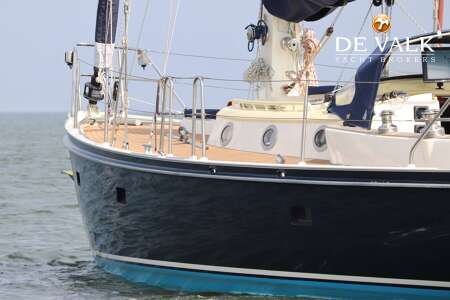

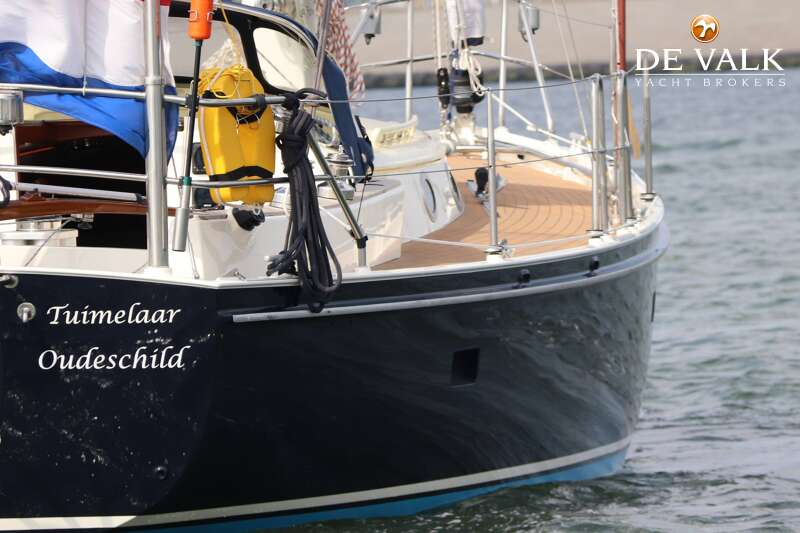

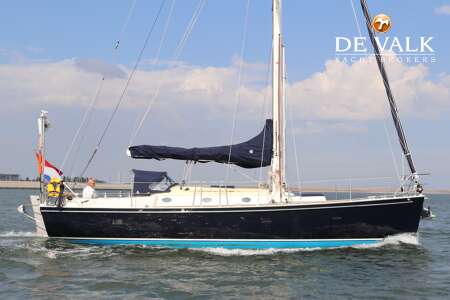

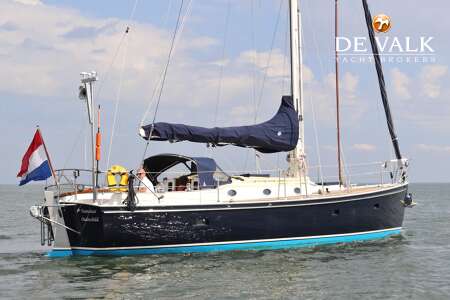

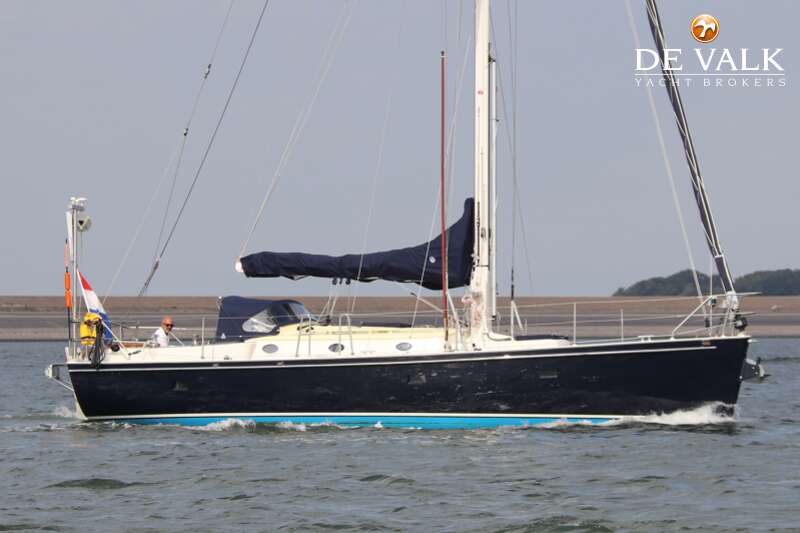

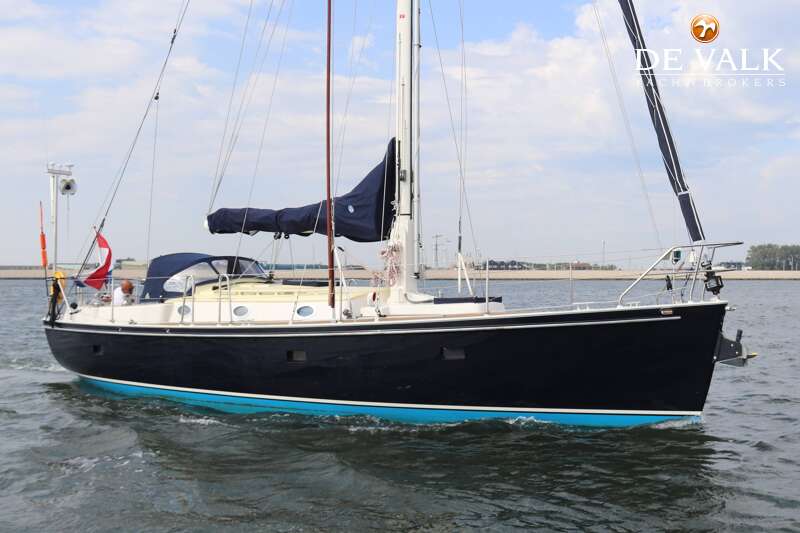

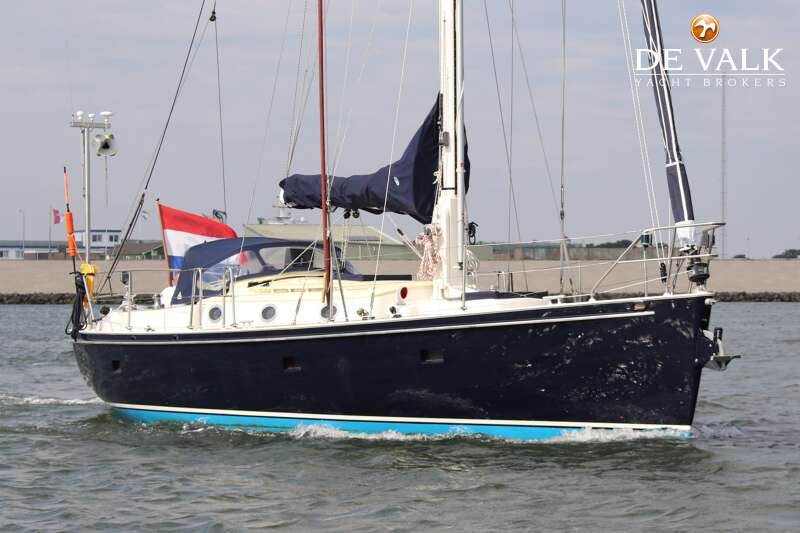

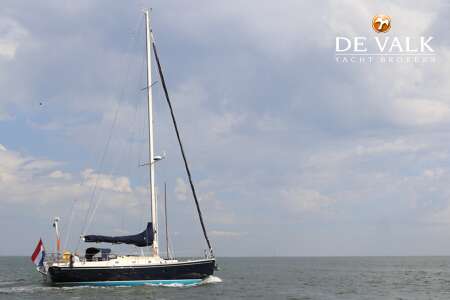

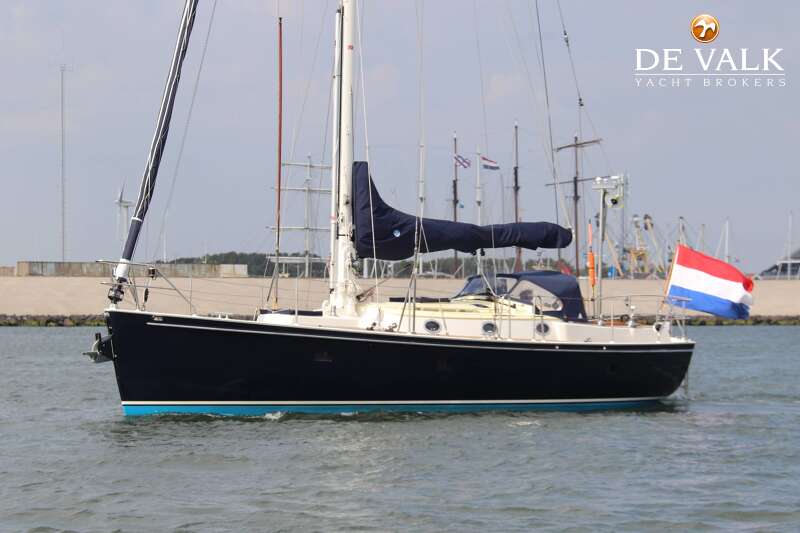

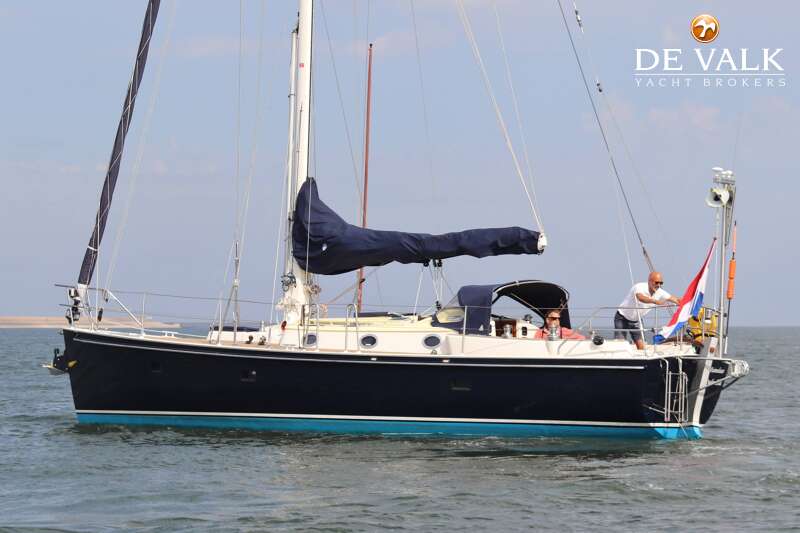

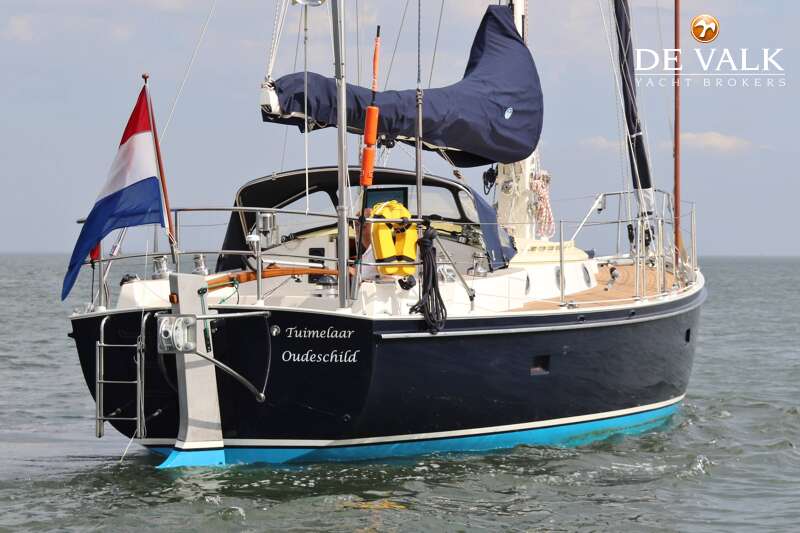

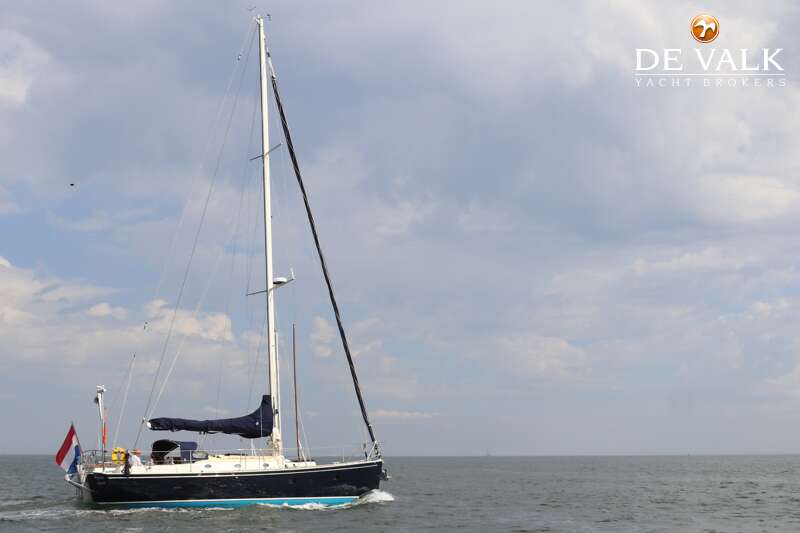

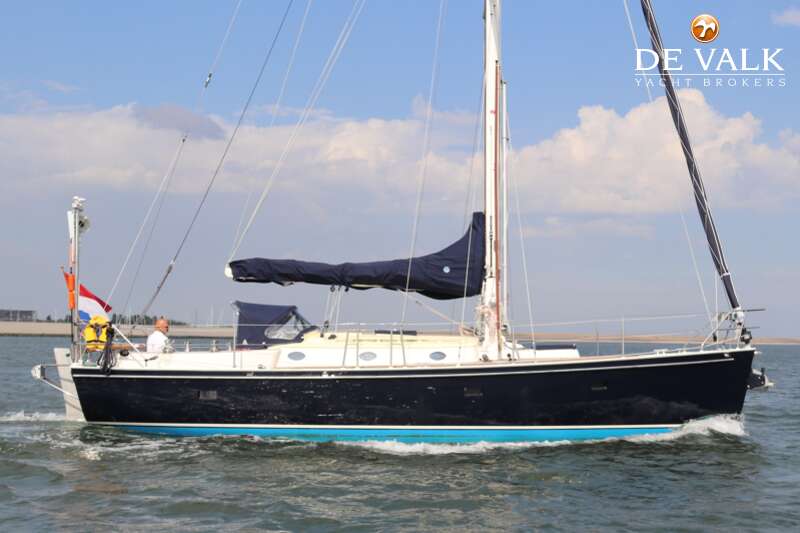

Dick Zaal 37 Lapwing, an aluminium (Sealium) center-boarder designed and equipped to sail all the seas of the world safely and in comfort. The fully retractable centreboard and swing-up rudder blade create a lot more cruising area than conventional fixed keel sailing yachts. Her owner has spared no expense in building and maintaining the yacht and she is therefore in top technical condition with, among other things, “up-to-date navigation”. This Dick Zaal 37 Lapwing only sailed a little during 3 seasons, is new and ready for departure, taking on any adventure with the new owner!

Henk Sijbranda
Yacht Broker

DICK ZAAL 37 LAPWING

Dimensions   11,15 x 3,60 x 2,50 / 0,70 (m)
Material   aluminium
Built   2010
Engine(s)   1 x Volvo Penta D2-40 diesel
HP/Kw   40 (hp), 29,44 (kw)
Lying   at sales office
Sales information   De Valk Hindeloopen
Status   for sale
Vat   paid
Asking price   € 485.000

General - DICK ZAAL 37 LAPWING

Model   DICK ZAAL 37 LAPWING
Type   sailing yacht
LOA (m)   11,15
LWL (m)   10,36
Beam (m)   3,60
Draft (m)   0,70
Draft min (m)   2,50
Air draft min (m)   18,50
Headroom (m)   2,04
Year built   2010
Launched   2011
Builder   Koopmans Kasko's
Country   The Netherlands

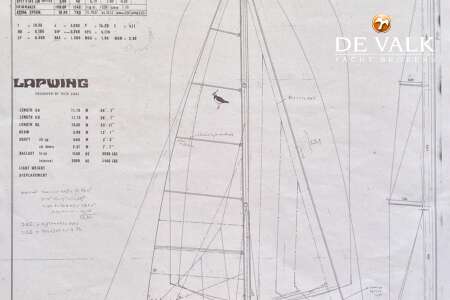

Designer   Dick Zaal
Displacement (t)   9
Ballast (tonnes)   lead in aluminum  3,5
Hull material   aluminium
Hull colour   Midnight Blue | Awlgrip
Hull thickness (mm)   10 - 8 - 6 mm
Hull shape   round-bilged
Keel type   centreboard
Superstructure material   aluminium
Superstructure (mm)   5 mm
Deck plate thickness (mm)   6 mm
Rubbing strake   aluminum

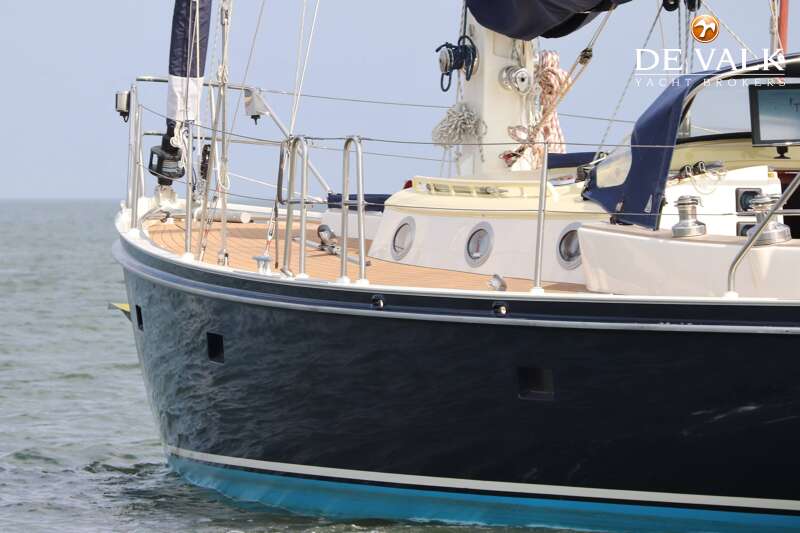

Deck material   aluminium

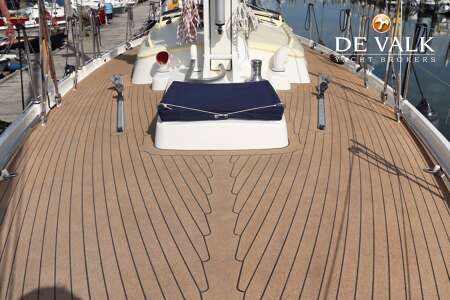

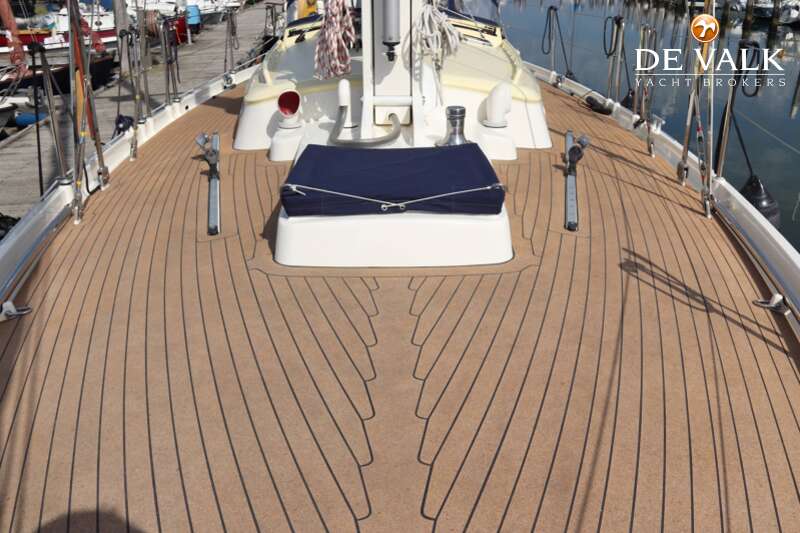

Deck finish   cork
Superstructure deck finish   non-skid paint  | colours: Ivory and Fighting Lady Yellow | Awlgrip

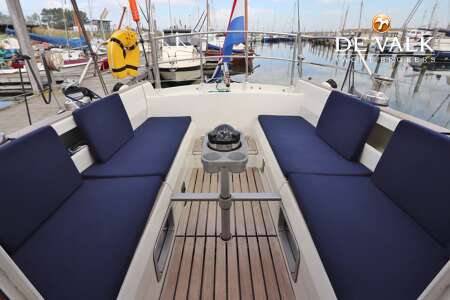

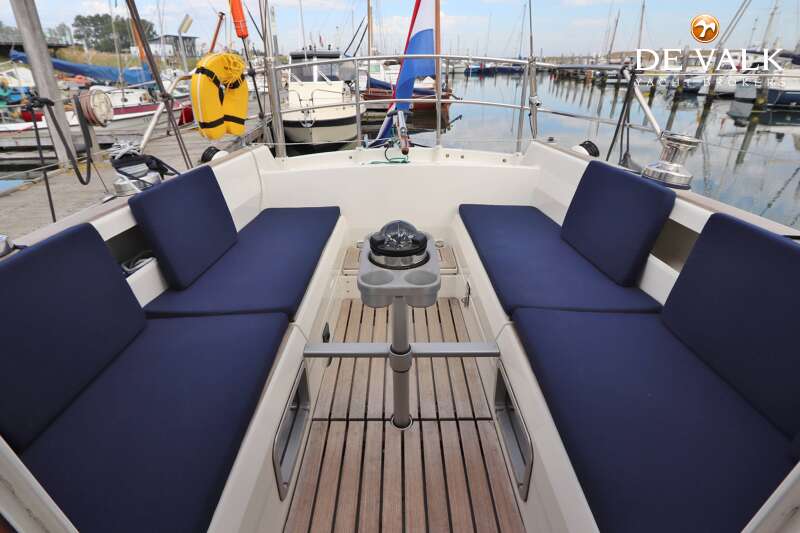

Cockpit deck finish   teak
Antifouling (year)   2022 | self polishing | International
Dorades   2x + one in anchor locker
Window frame   aluminium
Window material   tempered glass
Deckhatch   5x Goiot
Portholes   6x with 10mm Lexaan
Insulation   Cellular dense polyurethane foam Cel dichte polyurethaan schuim
Radar arch   stainless steel mast on stern (no radar)
Fuel tank (litre)   aluminium  315 ltr.
Level indicator (fuel tank)   Tank tender
Freshwater tank (litre)   aluminium  with Epoxy coating | 2x 315 ltr.
Level indicator (freshwater)   Tank tender
Blackwater tank (litre)   aluminium  100 ltr. | Above waterline
Blackwater tank extraction   deck extraction + uw line
Tiller   yes
Emergency tiller   yes
More info on paintwork   Awlgrip (painted by Klaver)
Extra info   Interior by Rob Fritz Jachtbetimmering

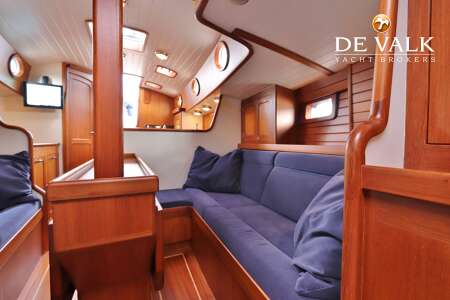

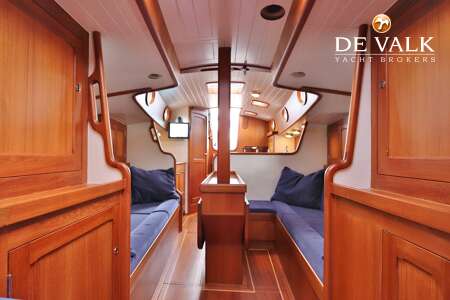

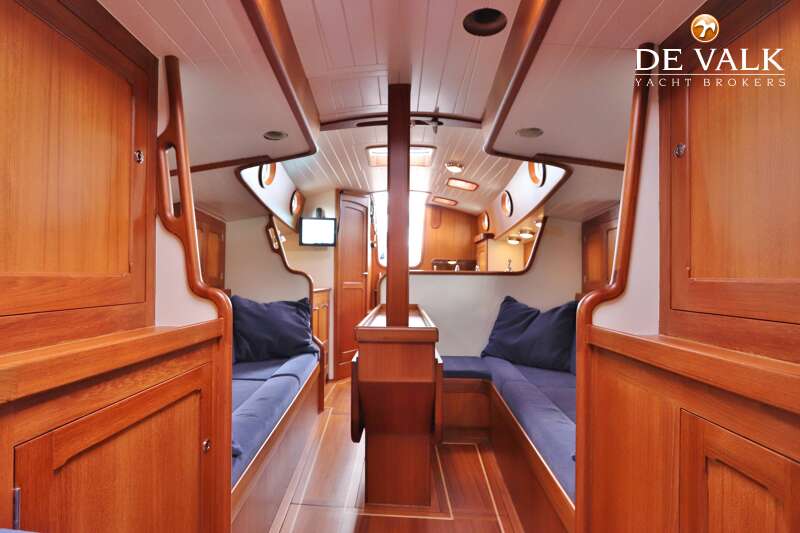

Accommodation

Berths   6
Interior   teak
Layout   1 room with enclosed toilet/shower room
Floor   teak

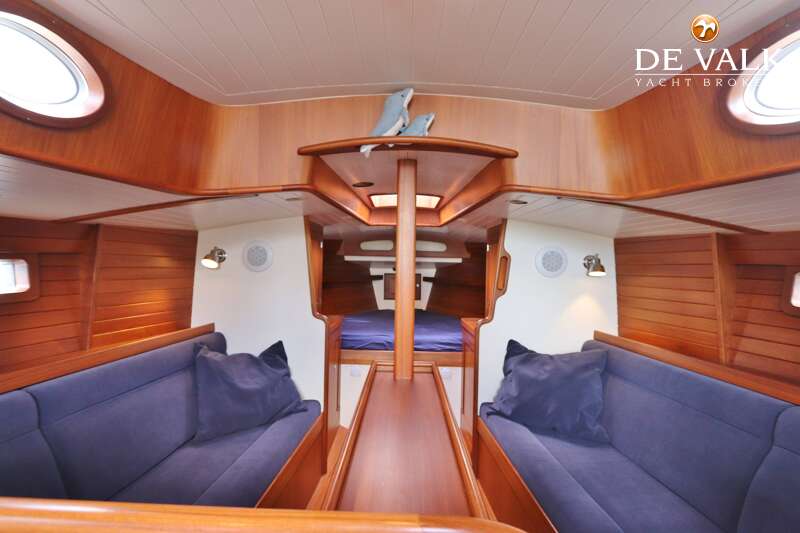

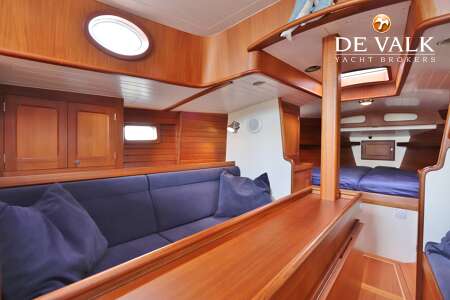

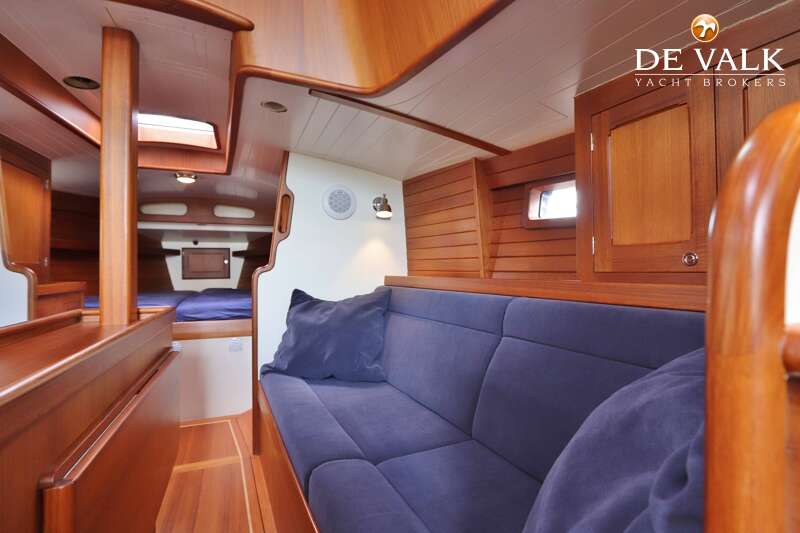

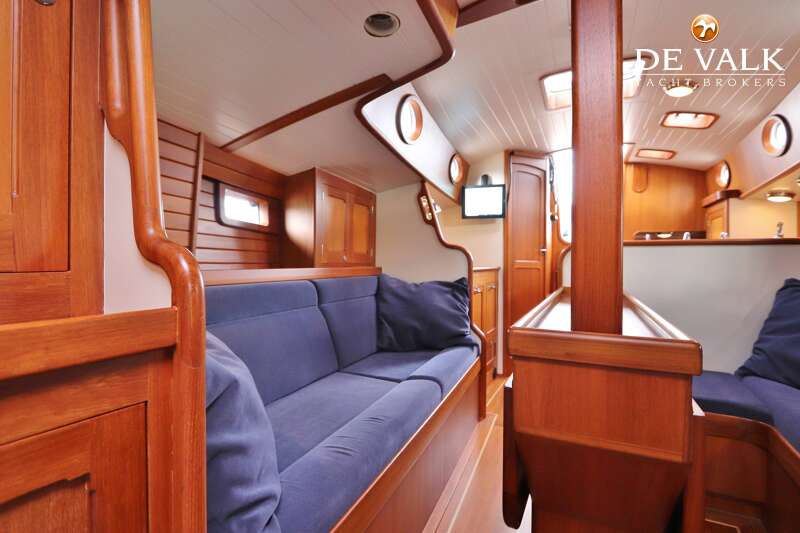

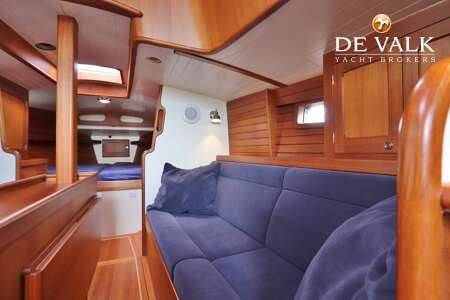

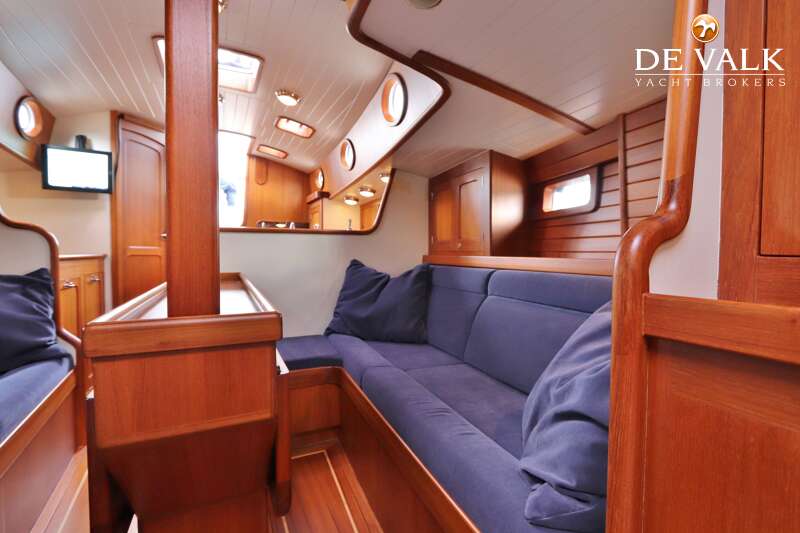

Saloon   yes
Headroom saloon (m)   2.04 mtr.
Heating   diesel ducted hot air  | Webasto 3900 Airtop/Evo

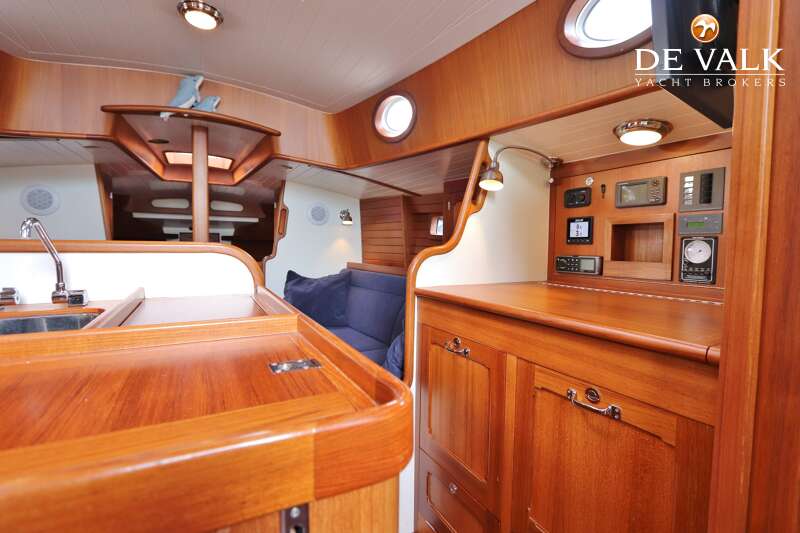

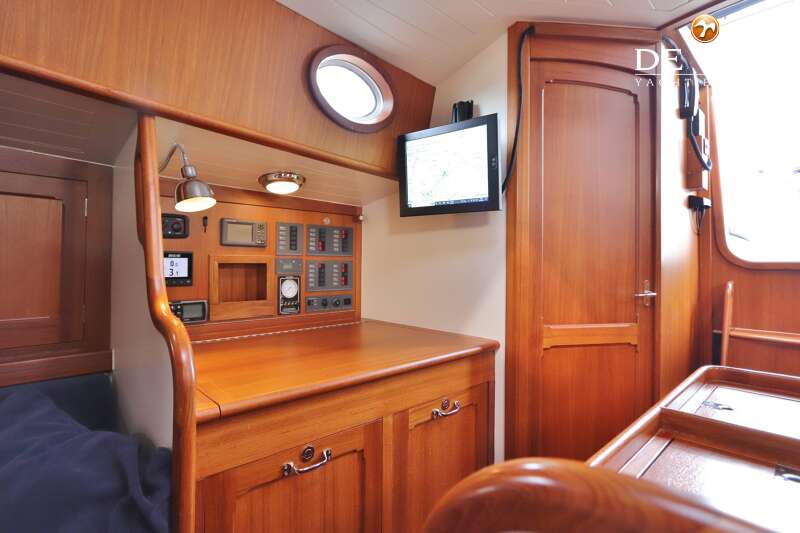

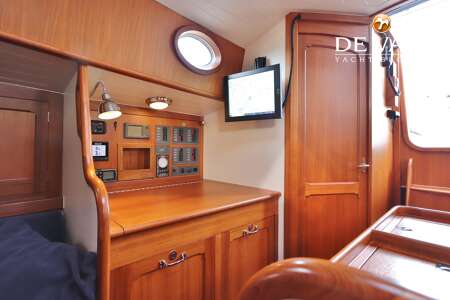

Navigation center   yes
Chart table   yes
Convertible berth   2

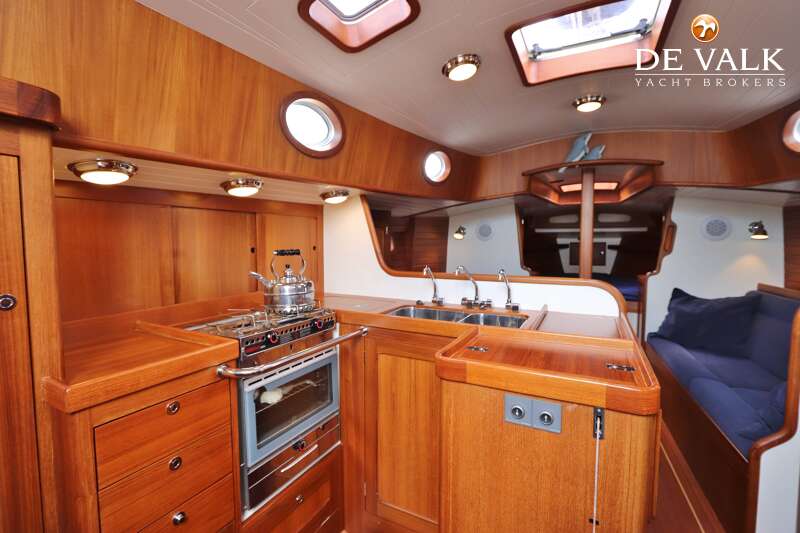

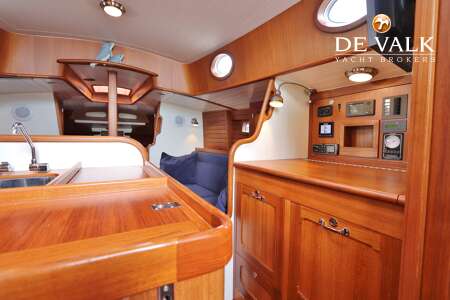

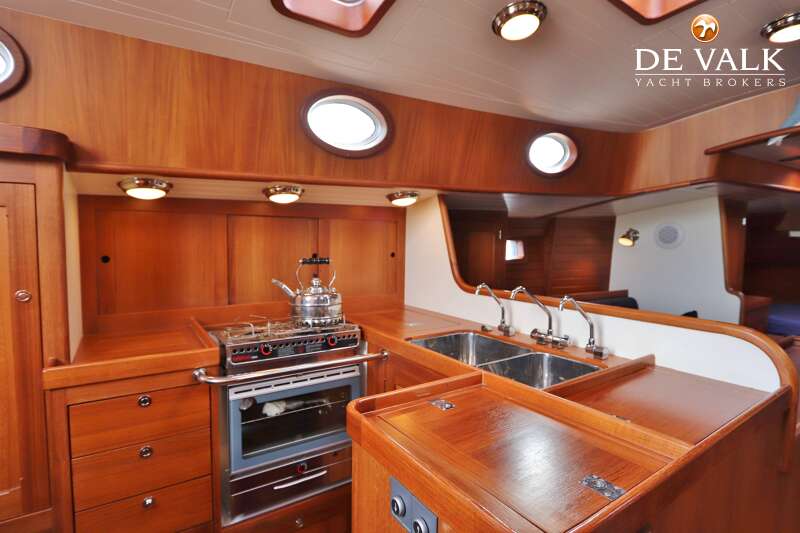

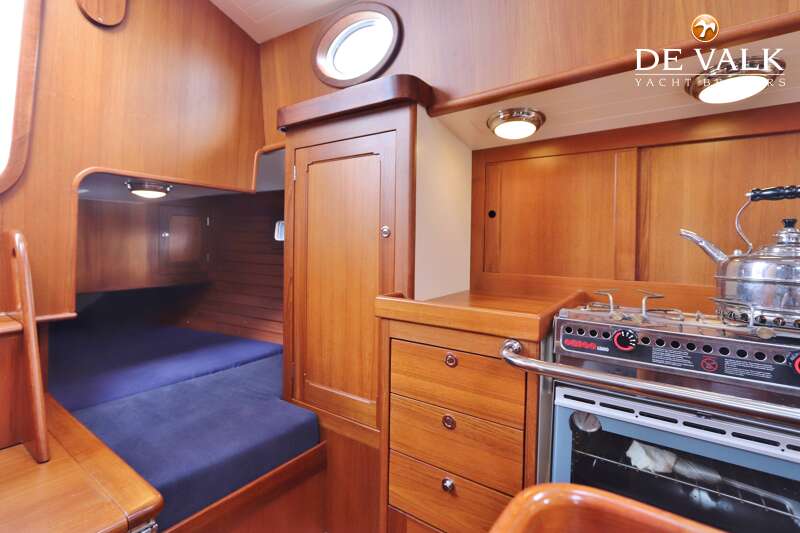

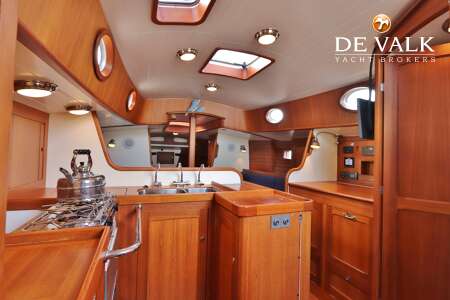

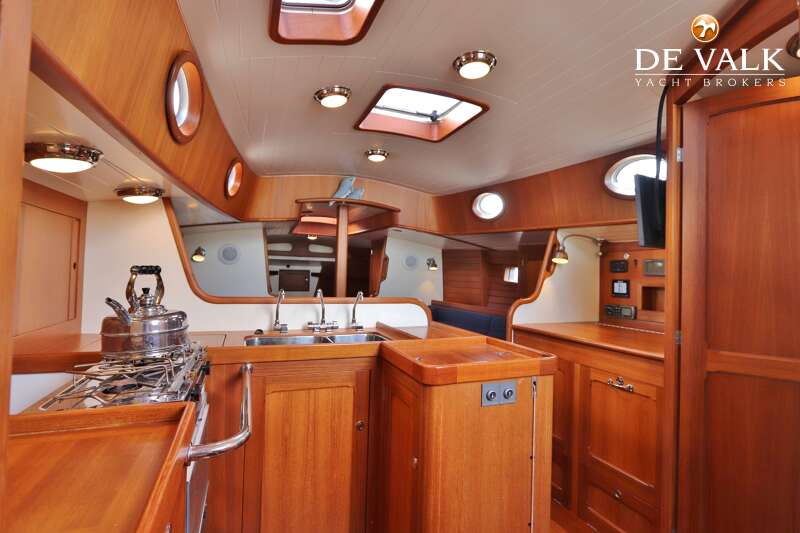

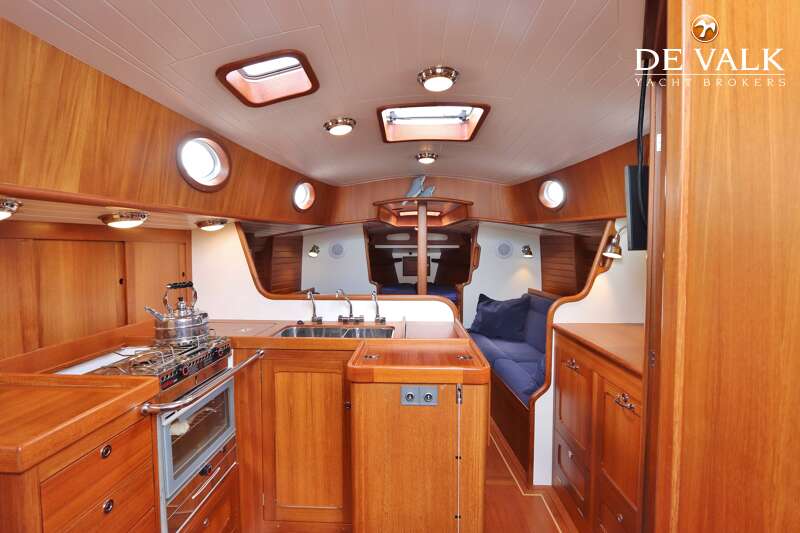

Galley   yes
Countertop   Teak
Sink   stainless steel  | double
Cooker   methylated spirit  | Origo 6000 | 2 burner
Oven   in cooker
Fridge   Vacuum gel insulation by Glacier Bay with stainless steel cooling element
Hot water system   220V + engine
Water pressure system   electrical  and manual
Manual and/or foot pump   yes

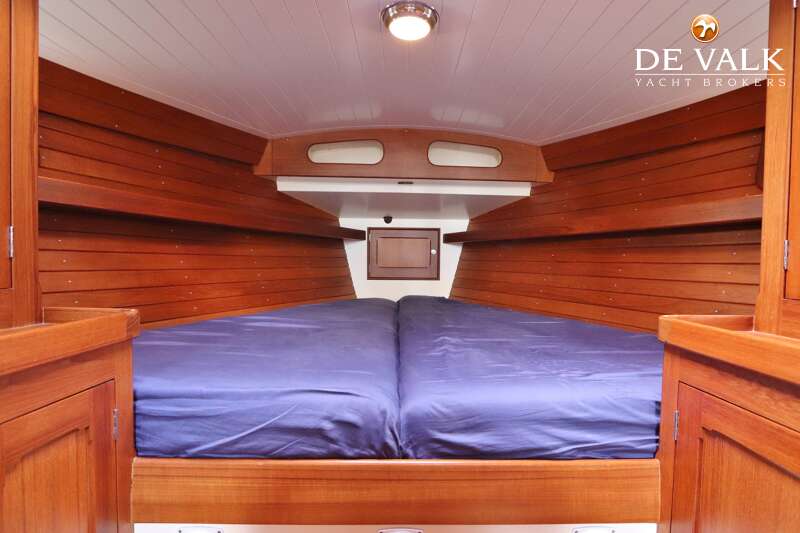

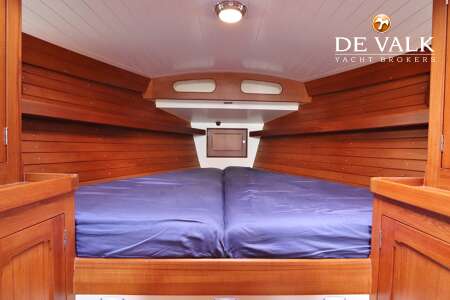

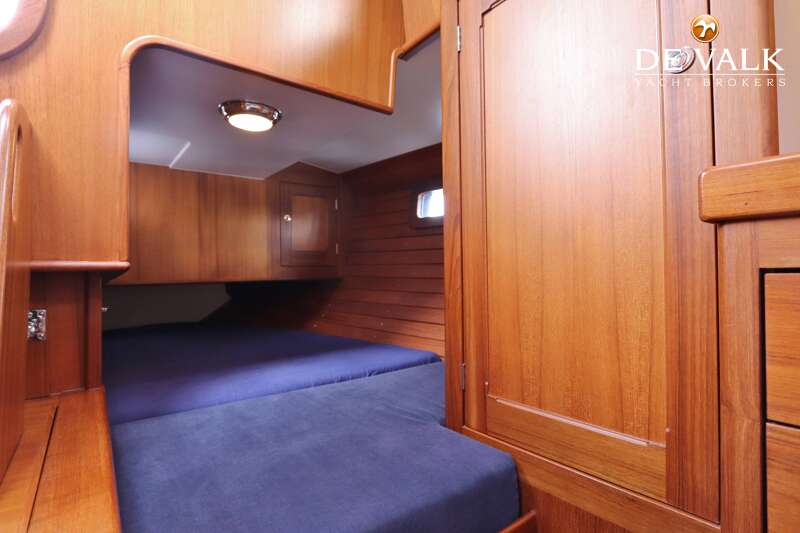

Bed length (m)   Forward bed | 2,15 mtr.
Wardrobe   hanging and shelves
Bed length (m)   aft bed | 2.20 mtr.

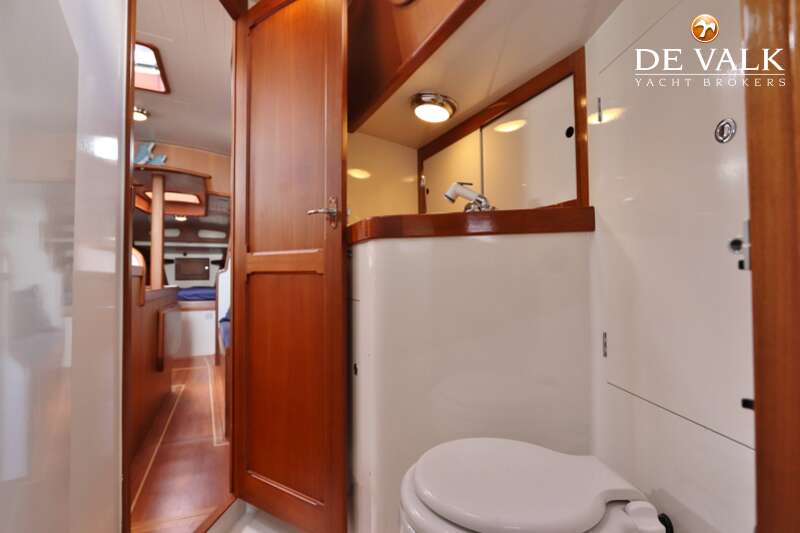

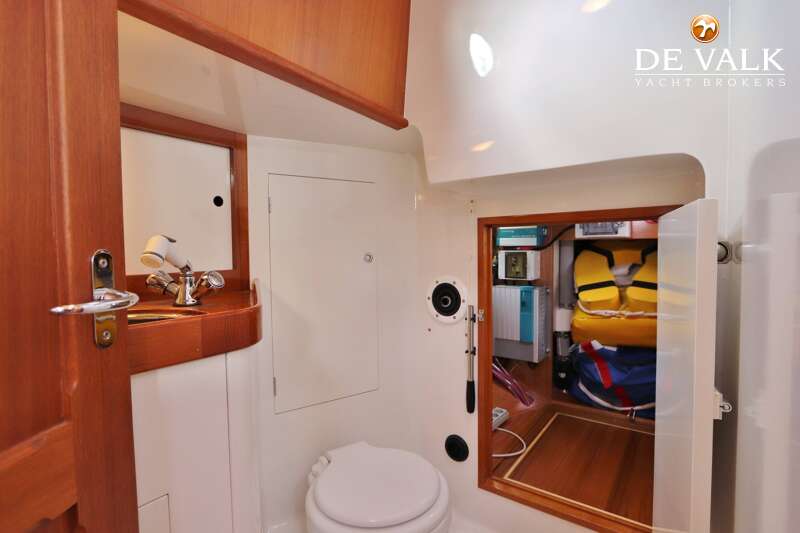

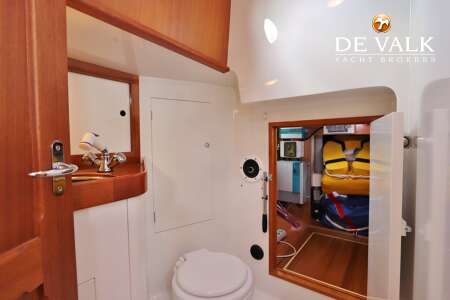

Bathroom   shared
Toilet   yes
Toilet system   vacuum
Wash basin   yes
Shower   yes

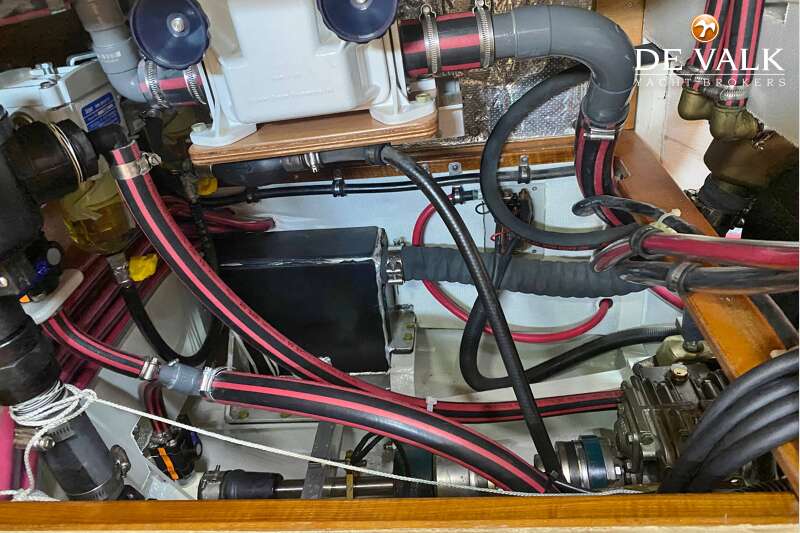

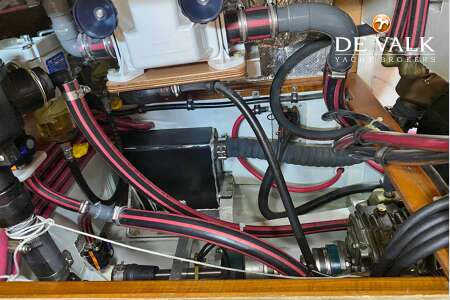

Machinery

No of engines   1
Make   Volvo Penta
Type   D2-40
HP   40
kW   29.44
Fuel   diesel
Year installed   2010
Maximum speed (kn)   8,5
Cruising speed (kn)   7,5
Consumption (l/hr)   3
Range (nm)   1100
Engine hours   103,7
Engine cooling system   freshwater heat exchanger
Drive   shaft
Shaft seal   Volvo seal
Engine controls   bowden cable  | spinlock removable handle
Gearbox   mechanical
Bowthruster   Max Power CT80 with wireless remote control
Exhaust   watercooled
Thrust bearing   AquaDrive
Propeller type   feathering  | MaxProp
Propeller blades   3
Propeller shaft material   stainless steel
Shaft lubrication   water
Manual bilge pump   2x
Electric bilge pump   2x

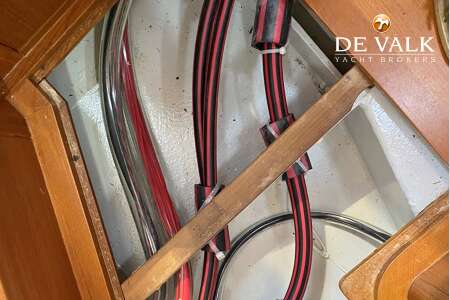

Electrical installation   12 / 220 V
Start battery   Optima Redtop 50Ah | new
Service battery   2x Victron Gel 165Ah | new
Bowthruster battery   2x Optima redtop 50Ah | new
Windlass battery   Wing ESL 100-12 | also for the operation of the centreboard | new
Battery monitor   Mastervolt BTM III
Battery charger   2x Mastervolt 50A + 1x Mastervolt 5A
Inverter   Mastervolt AC Master 12/350
Diode battery combiners   Mastervolt
Shorepower   with cable
Insulation transformer   High-frequency Mastervolt Mass GI 3.5

Navigation

Compass   Suunto
Electric compass   Simrad Compass RFC35

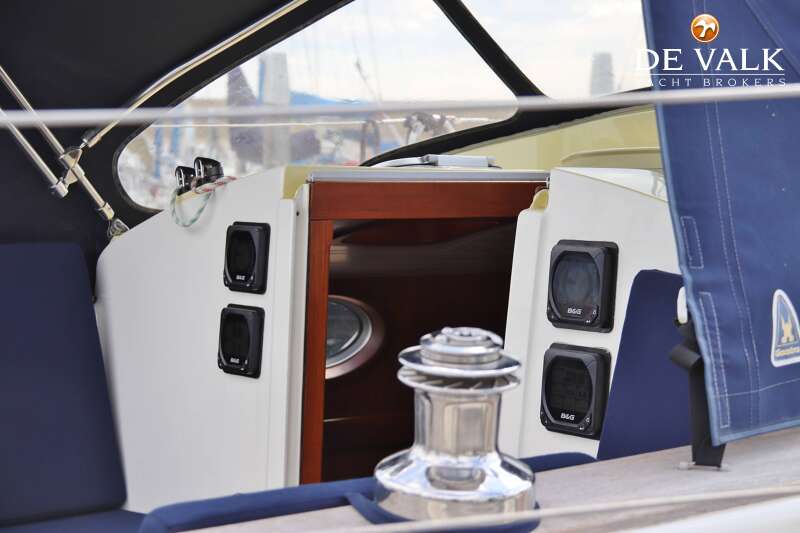

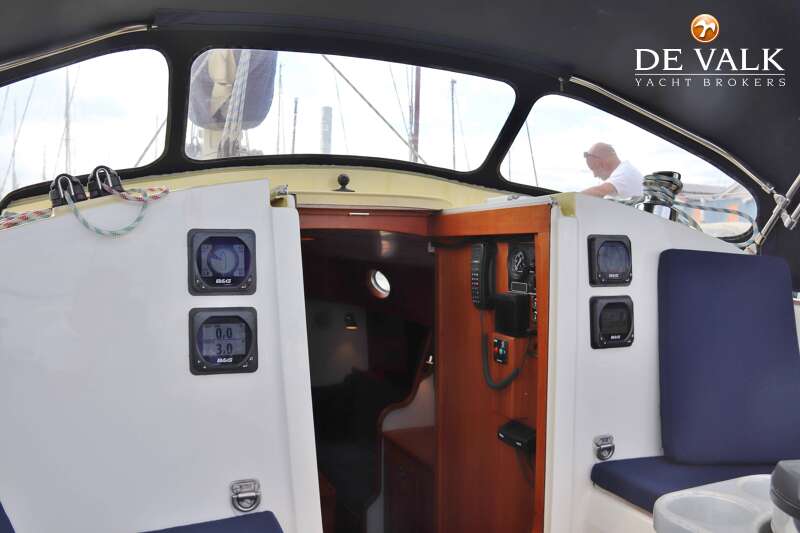

Multi control display   B&G Triton II | at navigation center
Depth sounder   Data from: 4x B&G Triton I
Log   Data from: 4x B&G Triton I
Windset   Data from: 4x B&G Triton I
VHF   Simrad RS82
VHF handheld   Icom
Autopilot   Simrad tiller pilot WP32
Wind vane steering install.   WindPilot Pacific
Radar   Furuno drs4w wifi
GPS   ZG100 antenna
Radar/GPS/plotter   Faytech ip65 15 inch touch screen sunreadable 1000 nits display
Navtex   Furuno NX-300
Personal computer   on-board computer with WinGps voyager
Wifi antenna   Modum
Electronis chart(s)   Stentec
AIS transponder   EasyTRX2S intergrated spliter + GPS antenna
Navigation lights   LED

Equipment

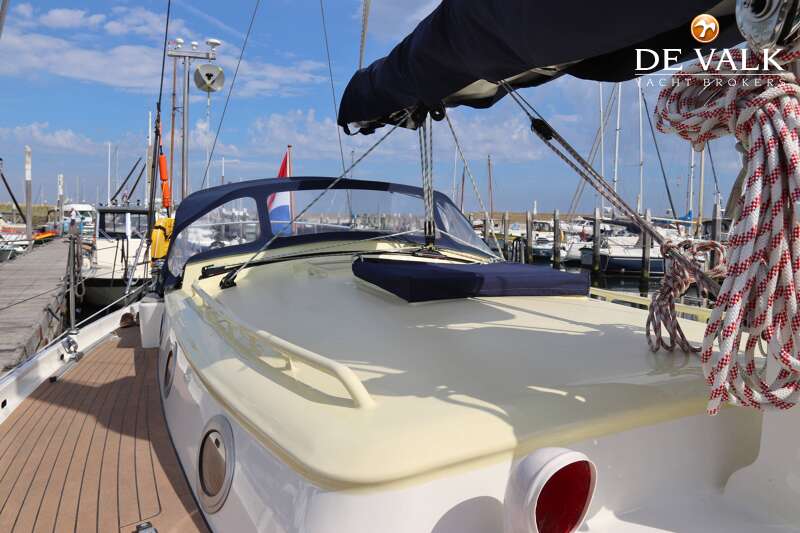

Sprayhood with grab rail   yes
Cockpit cover   yes
Bimini   yes
Winter cover   yes
Cockpit cushions   yes
Cockpit table   yes
Boarding ladder   stainless steel
Bow ladder   yes
Deck shower   yes
Anchor   Spade | Steel | 15kg
Anchor chain   60 mtr. | 10mm
Anchor 2   Spade | Aluminium | 9kg
Anchor chain   Line + lead fore-end | 40 mtr.
Windlass   electrical  | Goiot 312.10 | 1000W
Capstan   yes
Outboard support   yes
Deck crane   On stainless steel mast
Sea railing   wire  | stainless steel
Grab rail (superstructure)   aluminium
Railing side opening gates   yes
Pushpit   yes | 30mm
Pulpit   yes | 30mm
Life raft   valise (or bag)  | Viking RescYou Pro 6
Life raft (pers)   6
Last life raft survey   2016 ( must be checked )
Lifebuoy   2x
Danbuoy   yes
Safety lines on deck   Wichard
Radar reflector   Trem Navy Star
Fenders   yes
Mooring lines   yes
Spare parts   yes
Radio   Fusion MS-AV600 with dvd player
Speakers in salon   Bose
Fire extinguisher   yes
Extinguisher in engine room   Mabo Flamark

Rigging

Rigging   sloop
Standing rigging   wire  with Gibb tensioners
Brand mast   Hallspars
Material mast   aluminium coated
Spreaders   2 pair
Mast lowering system   yes
Mainsail   North sails | 36,4 m2
Mainsail cover   yes
Battcars   yes
Fully battened mainsail   yes
Jib II   North Sails | with Kevlar torsion free furler system | 17.4 m²
High aspect   North sails | on furler | with cover | 30.11 m²
Gennaker   North Sails | 70 m²
Stormjib   Orange | 9.2 m²
Reefing System   slabreefing  | 3 x
Backstay adjuster   mechanical
Boomvang   tackle
Primary sheet winch   2x Andersen RVS ST 46
Secondary sheet winch   2x Andersen RVS ST 40
Halyard winches   2x Andersen RVS ST 40 on mast
Reefing winch   1x Andersen RVS ST 28 on mast
Multifunctional winches   1x Andersen RVS ST 28
Spi-pole   aluminium  | Hallspars
Isolated backstay   yes
