Broker's comments

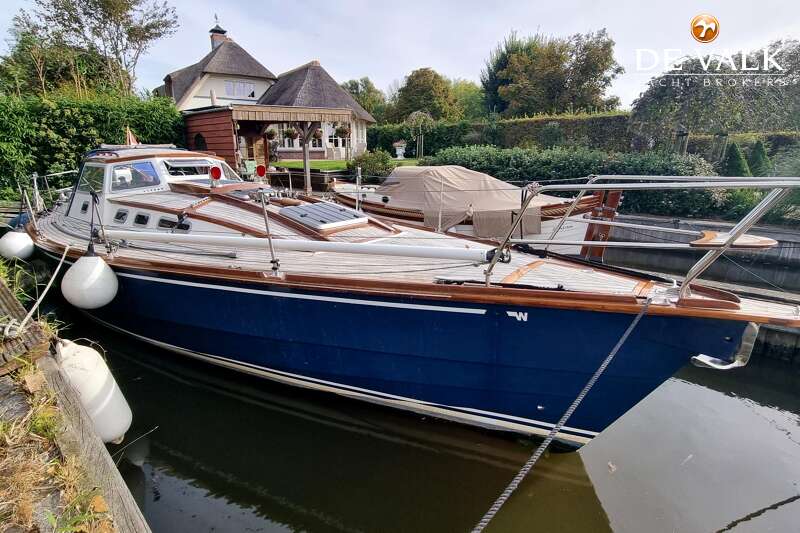

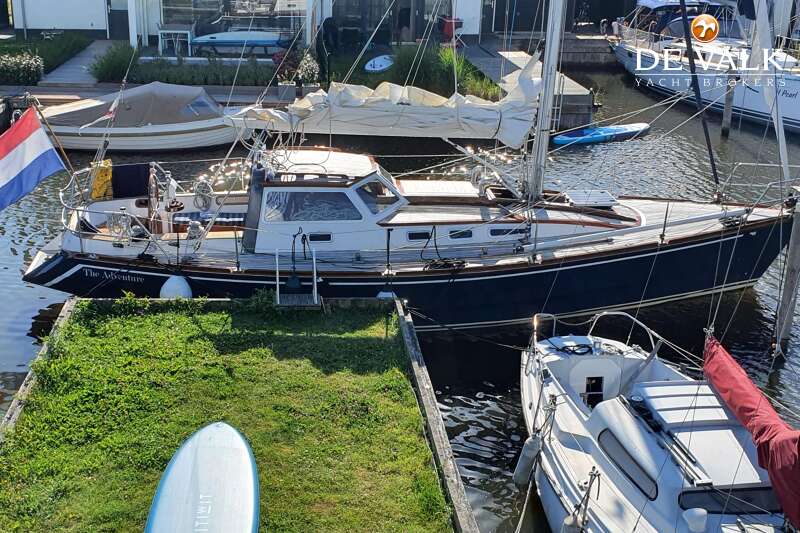

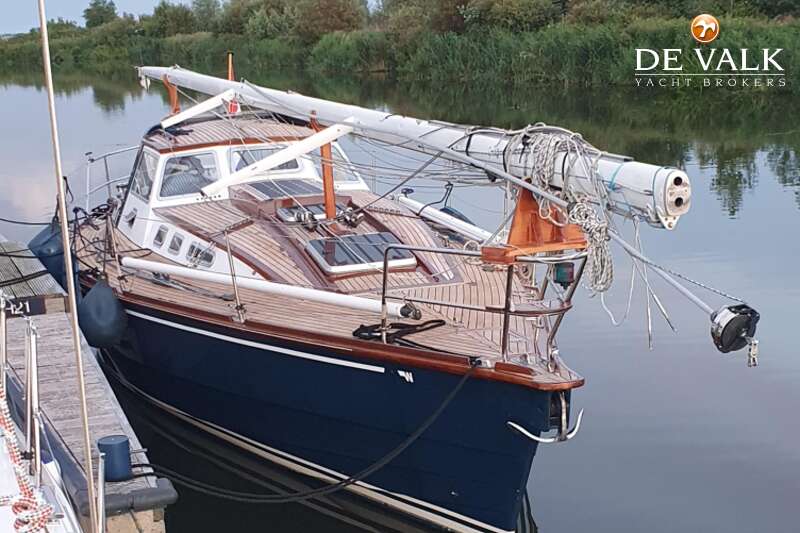

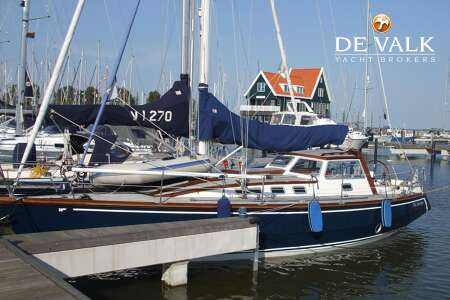

Still with her first owner from new, this very special Custom Waarschip 1076 is now up for sale. Based upon an already very well design in the series of Waarschip sailing yachts, "Adventure" has many special features; improved mahogany/marineply/epoxy construction, lengthened hull, bathing platform, fixed doghouse, improved lead keel, taller rigg and added performance. But what really makes her special is the bespoke built interior with lovely woodwork finishing, detailing and practical solutions. Must be seen to be appreciated. Very much a yacht for singlehanded sailing as well.

WAARSCHIP 1076 CUSTOM

Dimensions   12,00 x 3,80 x 1,70 (m)
Material   wood epoxy
Built   1997
Engine(s)   1 x Volvo Penta MD2030 diesel
HP/Kw   29 (hp), 21,34 (kw)
Lying   The Netherlands
Sales information   De Valk Thuishaven
Status   sold


General - WAARSCHIP 1076 CUSTOM

Model   WAARSCHIP 1076 CUSTOM
Type   sailing yacht
LOA (m)   12,00
Beam (m)   3,80
Draft (m)   1,70
Air draft (m)   17,00
Headroom (m)   1,95
Year built   1997
Launched   1998
Builder   Waarschip / Owner
Country   The Netherlands
Designer   Klaas Kremer
Displacement (t)   6,4
Ballast (tonnes)   lead  2,4
Hull material   wood epoxy
Hull colour   blue

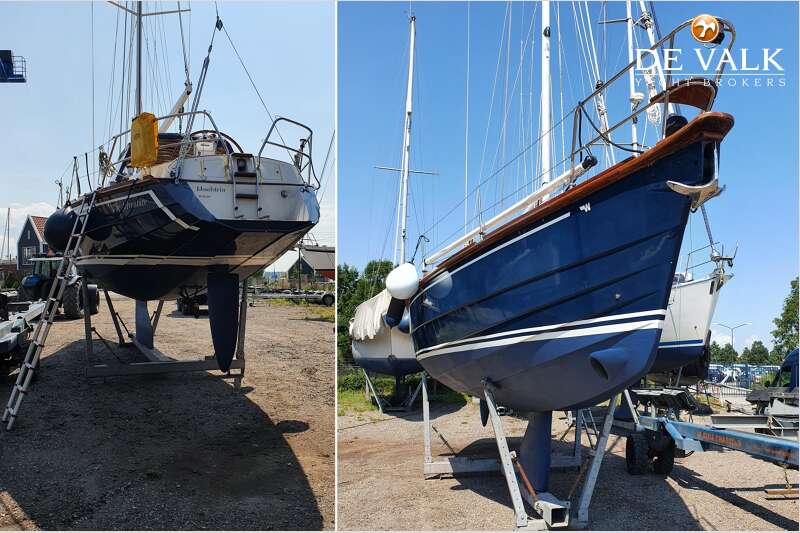

Hull shape   round-bilged
Keel type   bulb keel
Superstructure material   mahogany
Rubbing strake   stainless steel

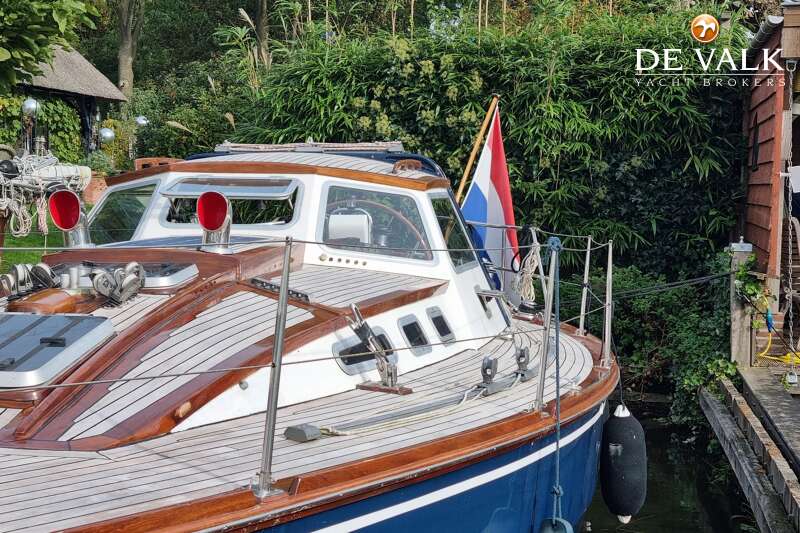

Deck material   wood epoxy

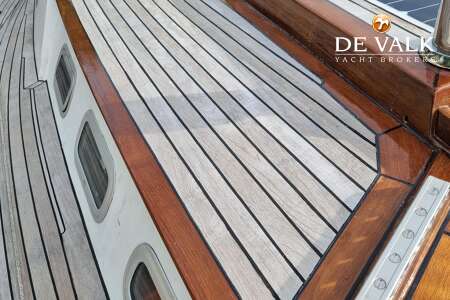

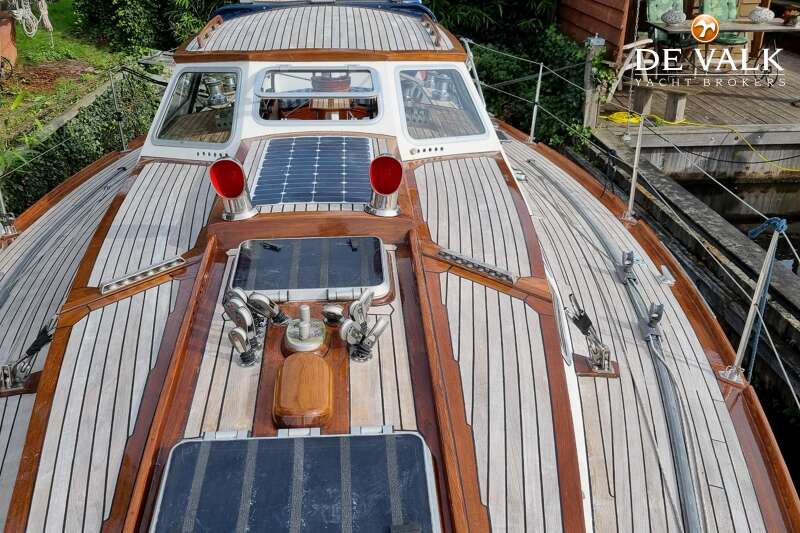

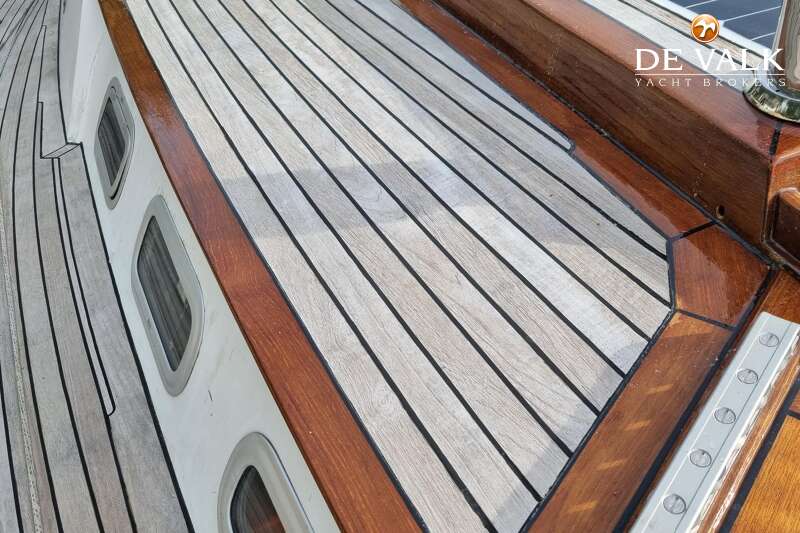

Deck finish   teak
Superstructure deck finish   teak
Cockpit deck finish   teak

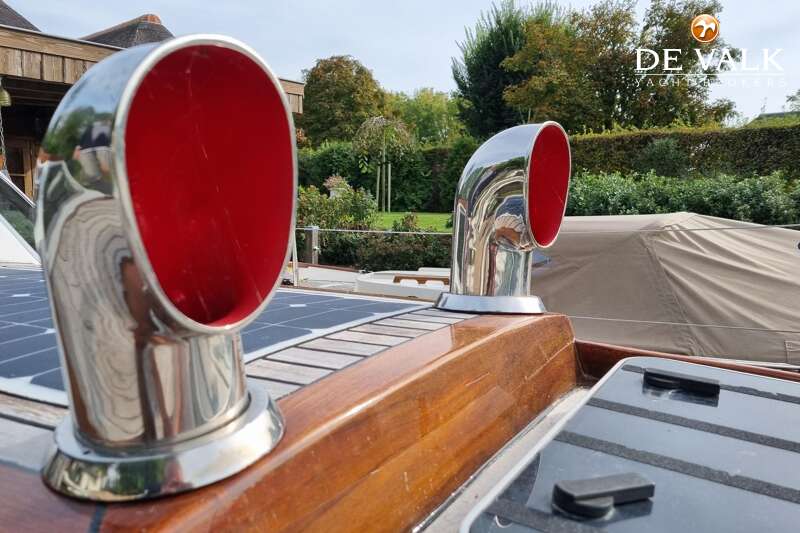

Dorades   stainless steel  2 x
Window frame   aluminium  Gebo
Deckhatch   2 x
Portholes   Gebo
Insulation   foam plates  3cm
Fuel tank (litre)   stainless steel  100
Level indicator (fuel tank)   yes
Freshwater tank (litre)   epoxy  350 (in 3 tanks)
Level indicator (freshwater)   yes
Blackwater tank (litre)   epoxy  150
Blackwater tank extraction   deck extraction + pump

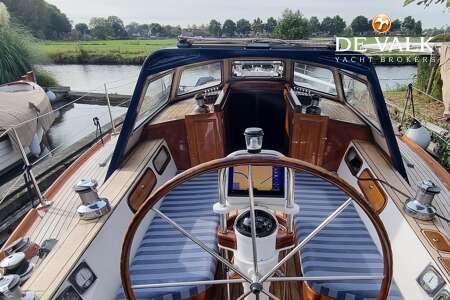

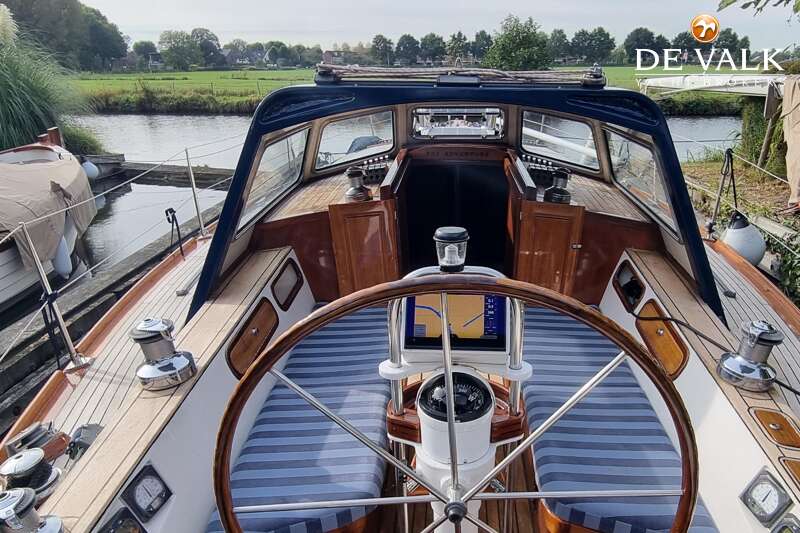

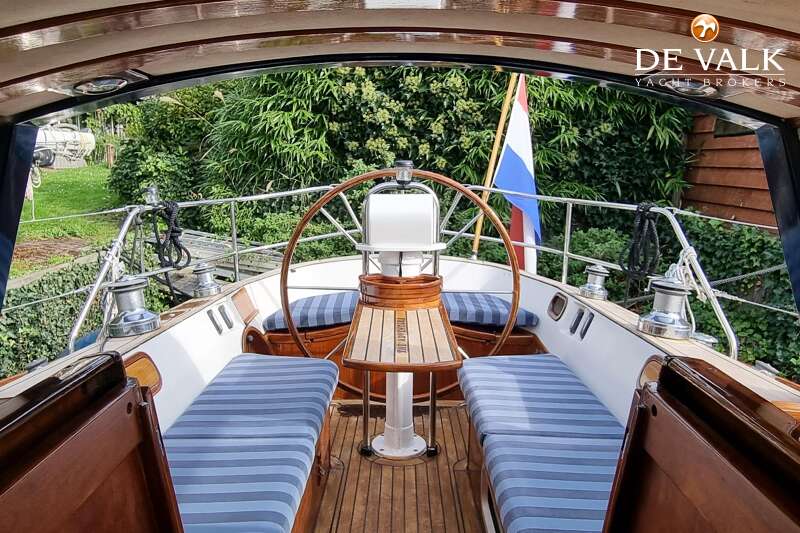

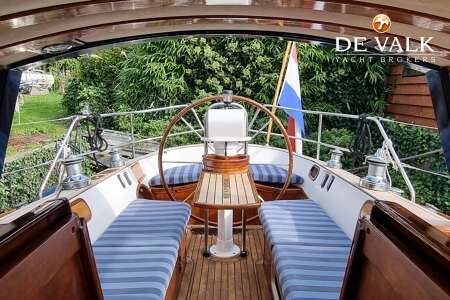

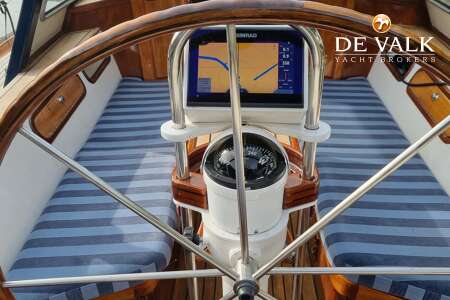

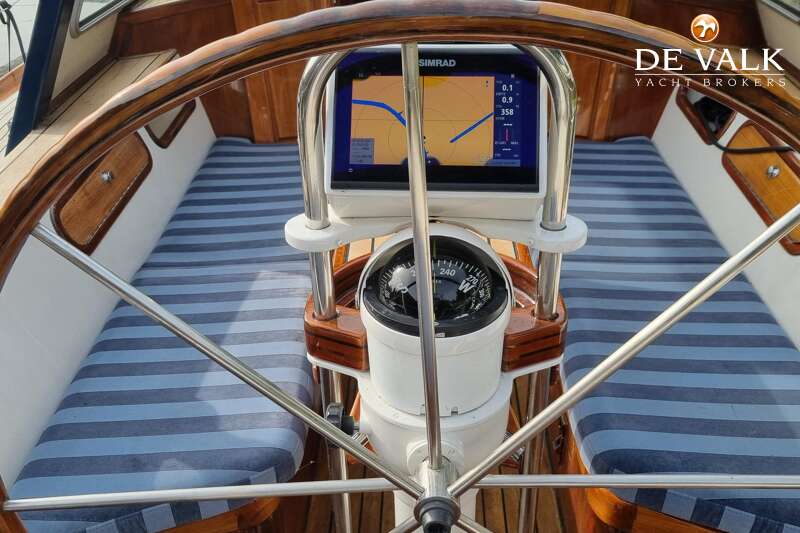

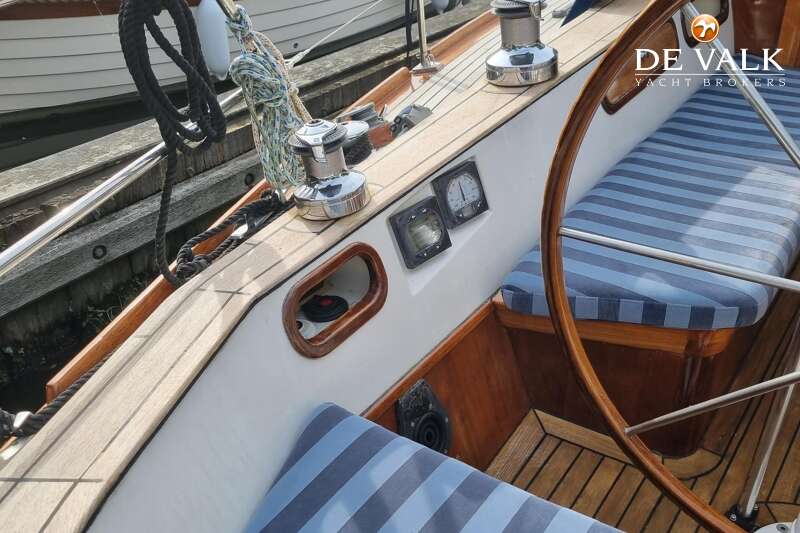

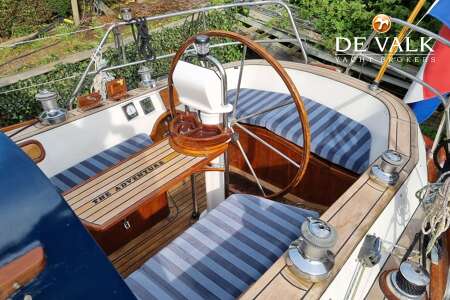

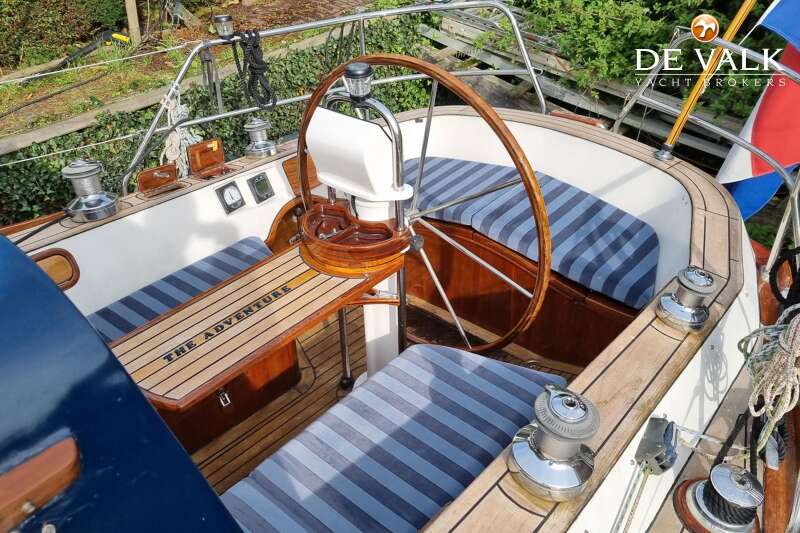

Wheel steering   rack & pinion  Whitlock with woodtrim
Emergency tiller   yes
More info on hull   Hull in mahogany, fixed with stainless screws and epoxy. Decks in marineply/epoxy. Leadkeel with Bankirai fillet with stainless bolts mounted on layers of Multiforce Ocume wood/epoxy. Practically everything is bonded with epoxy. Better than standard versions.
More info on paintwork   Complete 2-comp system (12 layers Epifanes)

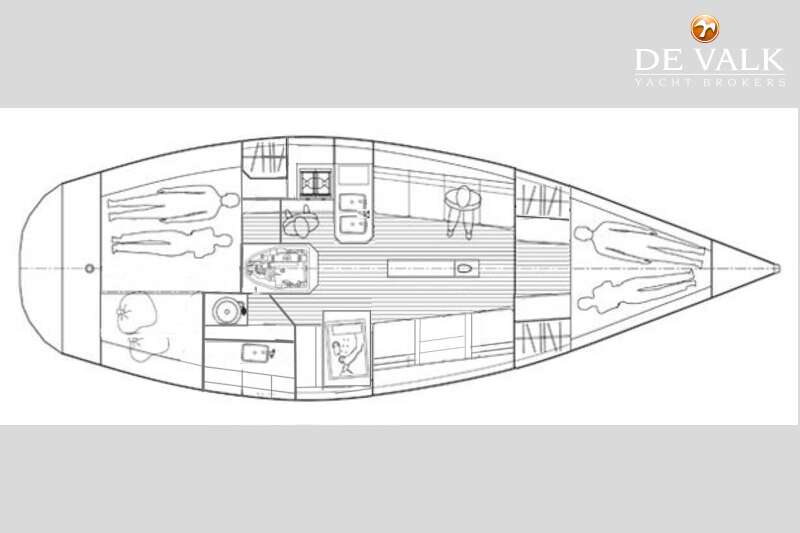

Accommodation

Cabins   2
Berths   4

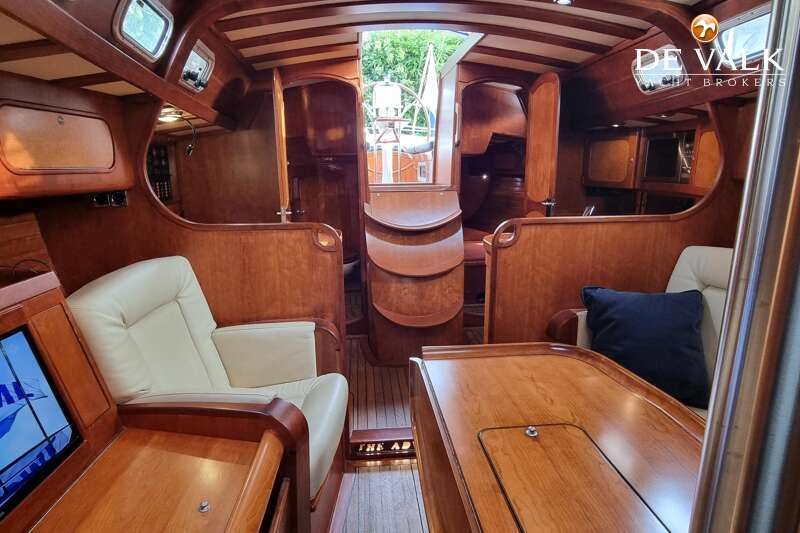

Interior   Handcrafted Cherrry with excellent details
Floor   teak

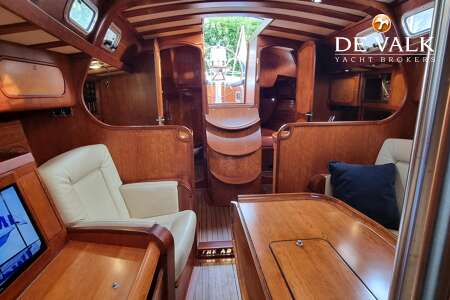

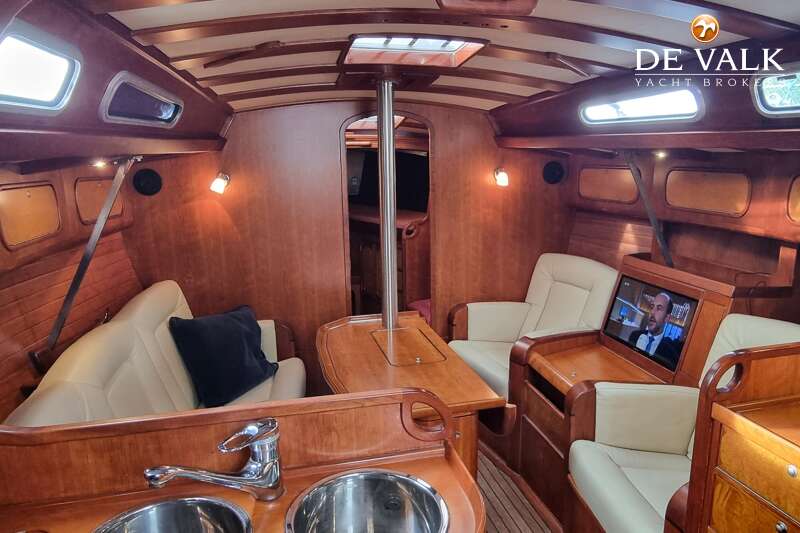

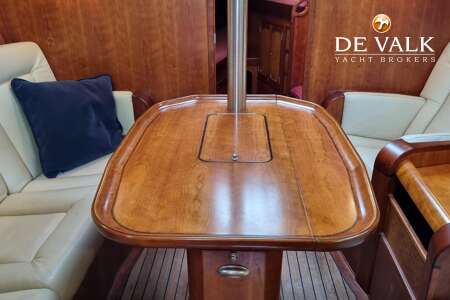

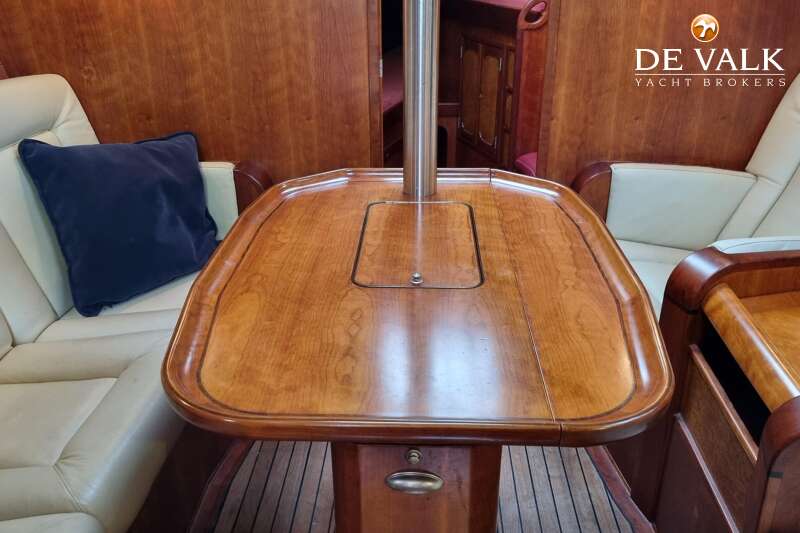

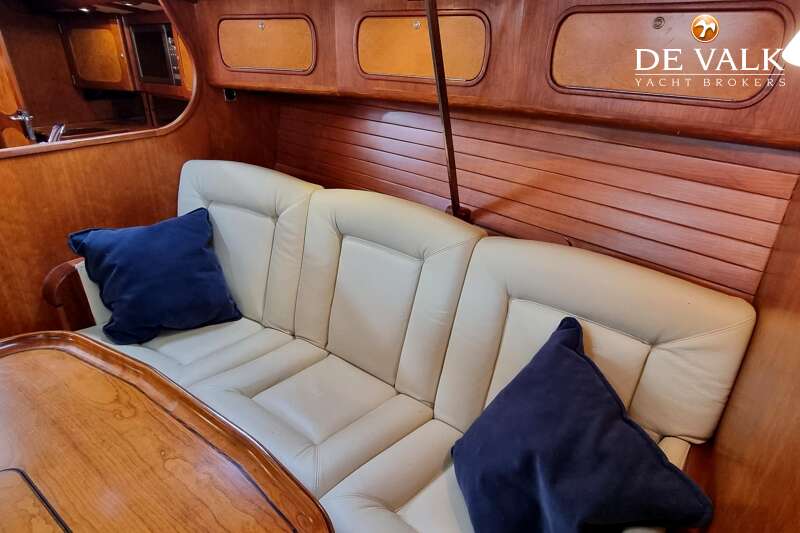

Saloon   yes
Headroom saloon (m)   1,95 - 2,04
Heating   diesel ducted hot air  Webasto 3500

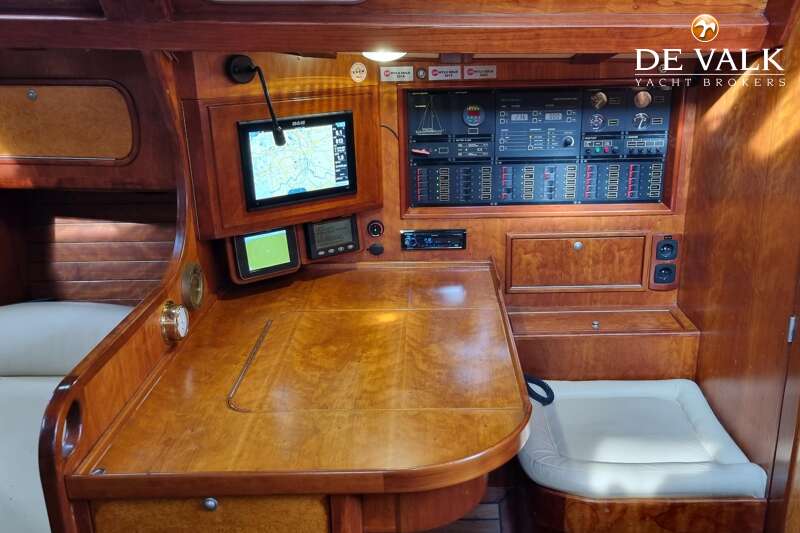

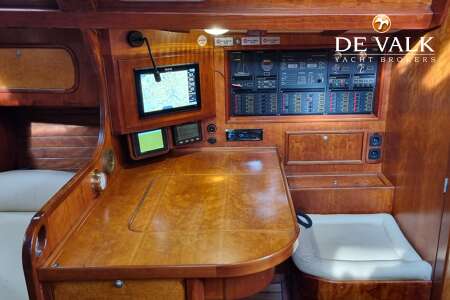

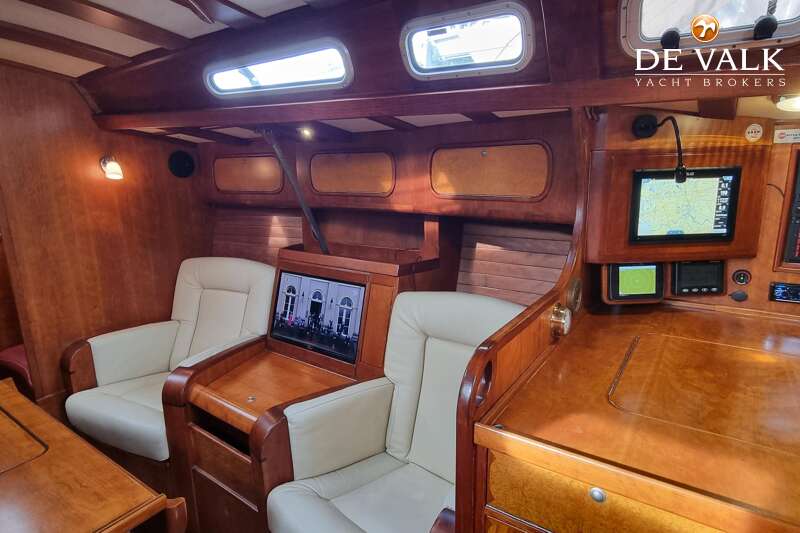

Chart table   yes
Aft Cabin   yes

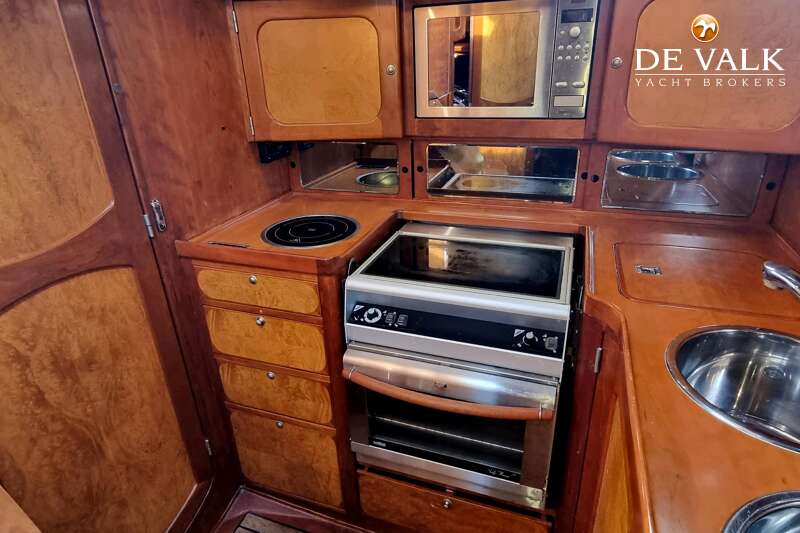

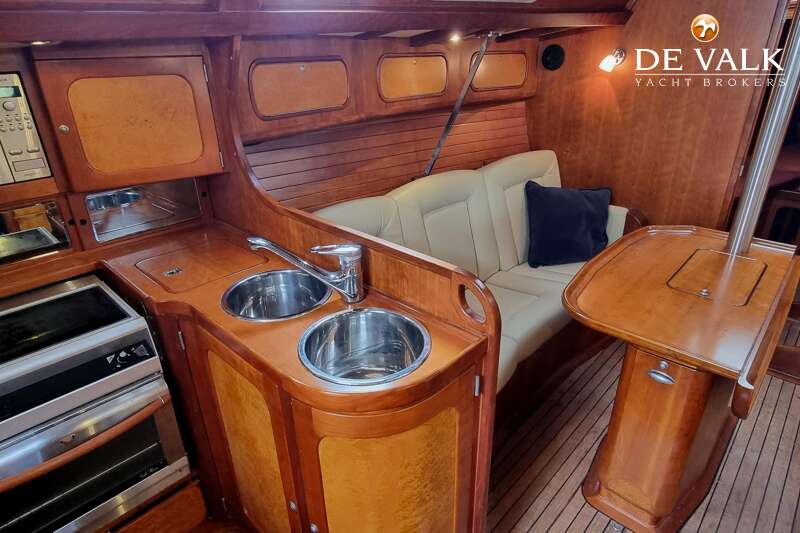

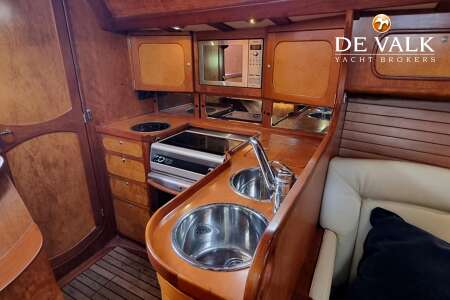

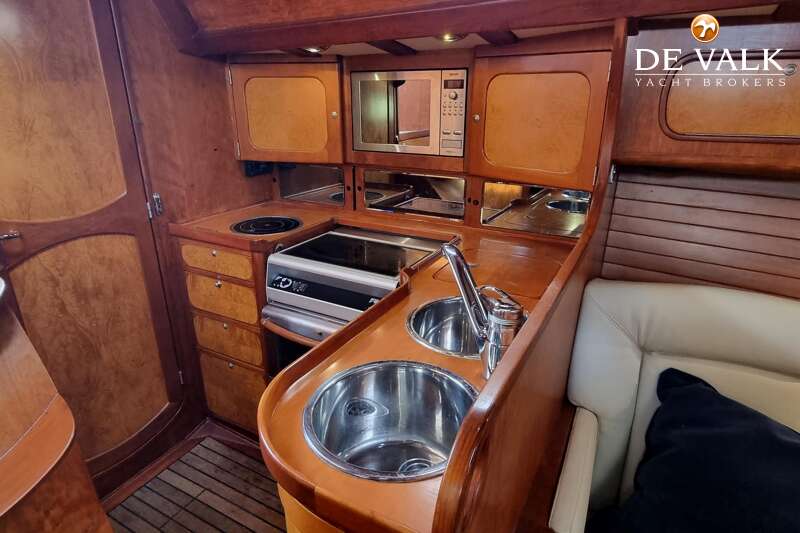

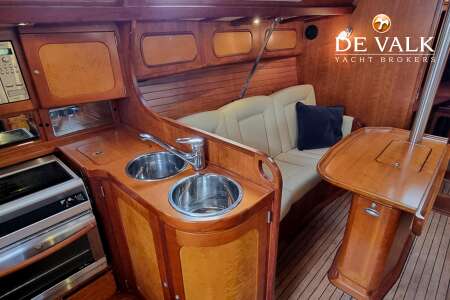

Galley   yes
Countertop   wood

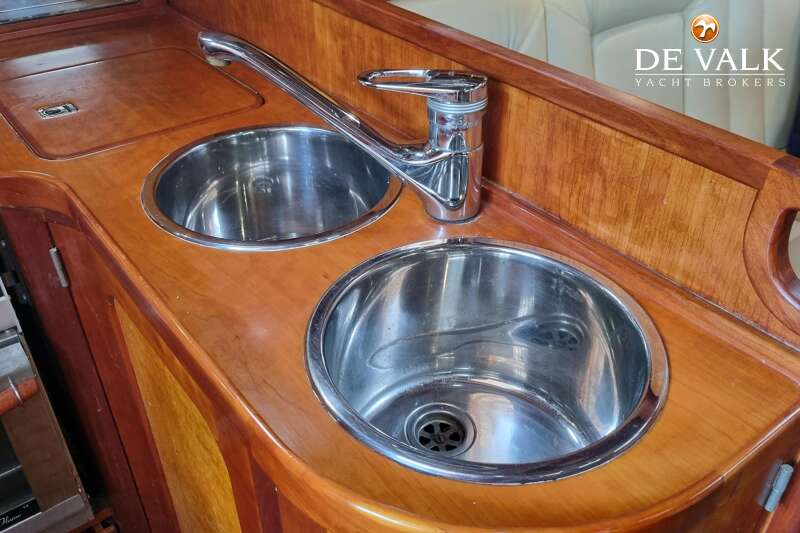

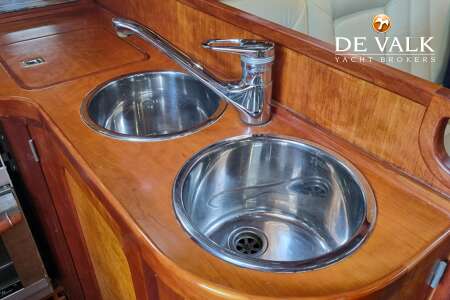

Sink   stainless steel  2 x

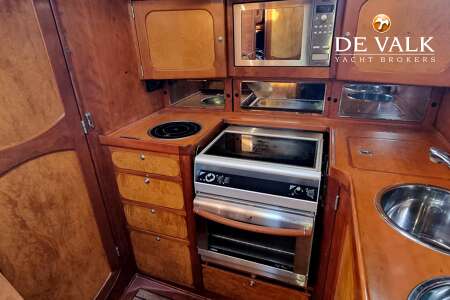

Cooker   Wallas 2 burner (diesel) + induction cooker (220v)
Oven   Wallas (diesel)
Microwave   Bosch (220v)
Fridge   Isotherm with holdingplate (12v)
Hot water system   220V + engine  20 ltr boyler
Water pressure system   electrical

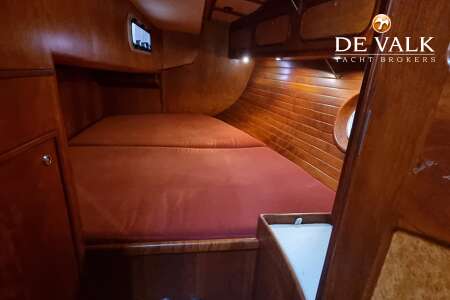

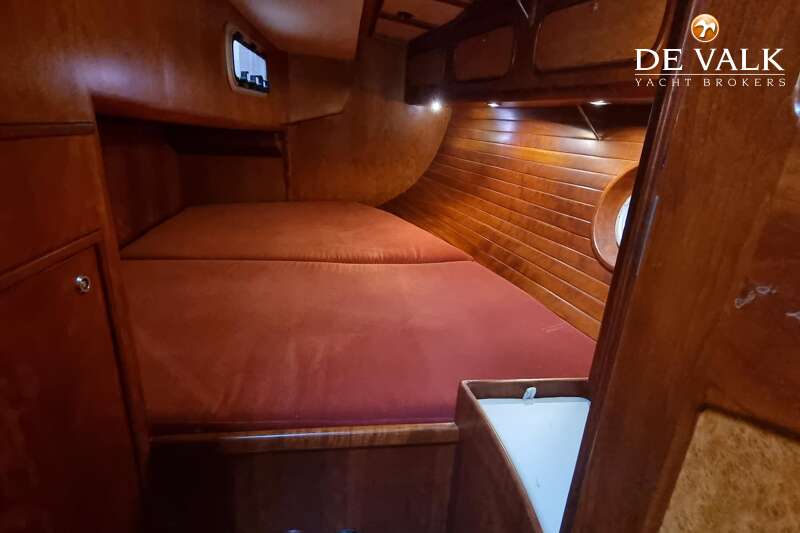

Owners cabin   double bed
Bed length (m)   coldfoarm matress (2017)  2,00 x 1,60 mtr
Wardrobe   hanging and shelves

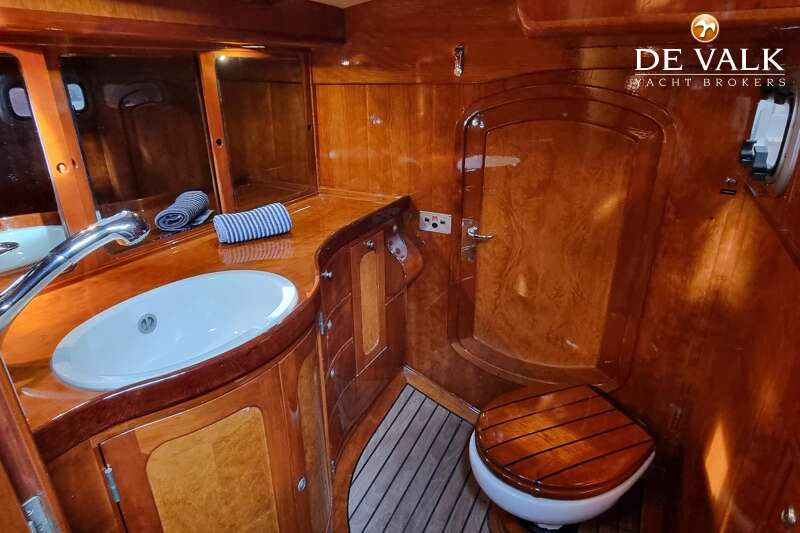

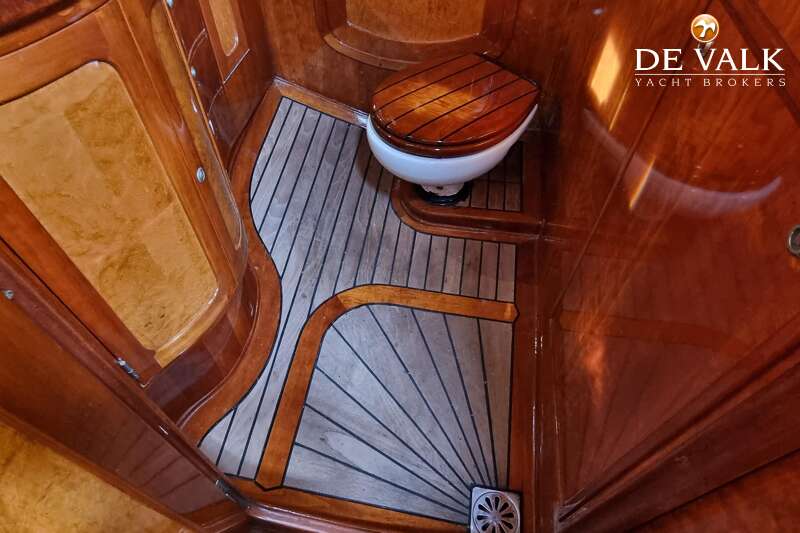

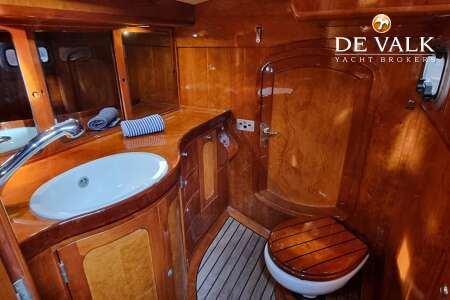

Bathroom   shared

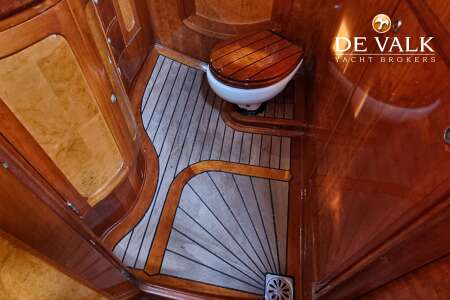

Toilet   shared
Toilet system   electric  RM69
Wash basin   in the bathroom
Shower   shared

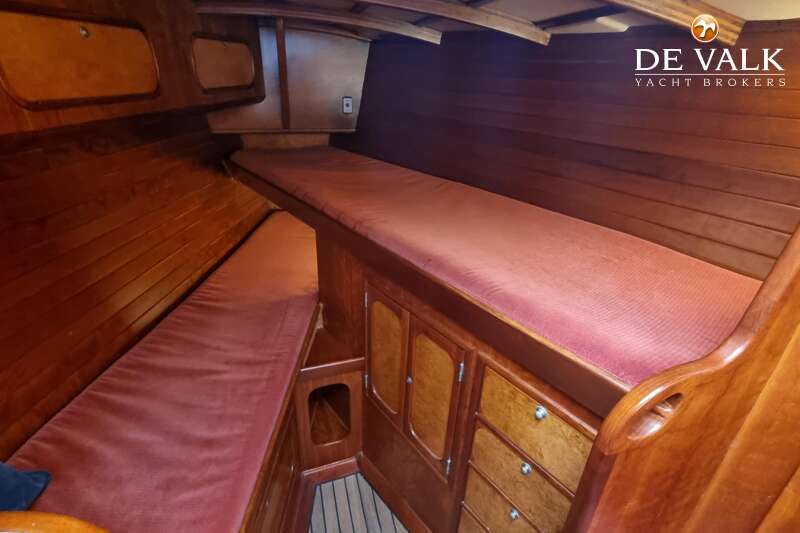

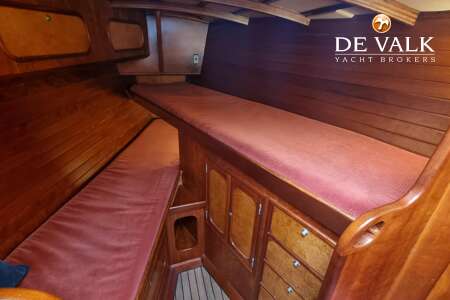

Guest cabin 1   twin single
Bed length (m)   2,00 x 0,60 mtr
Wardrobe   hanging/drawers/shelves

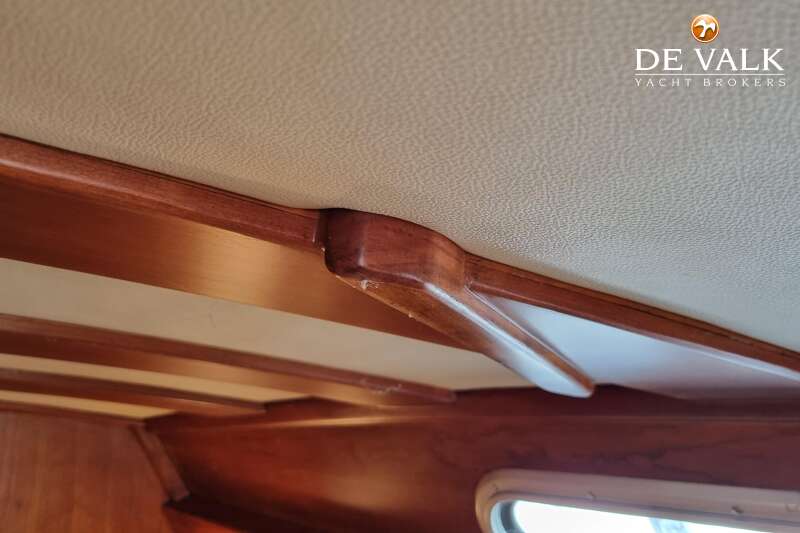

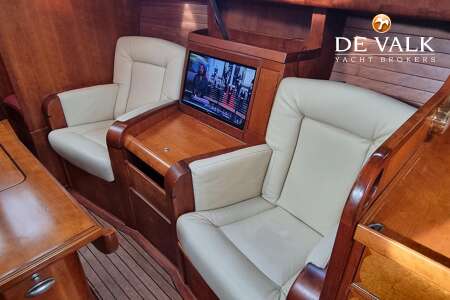

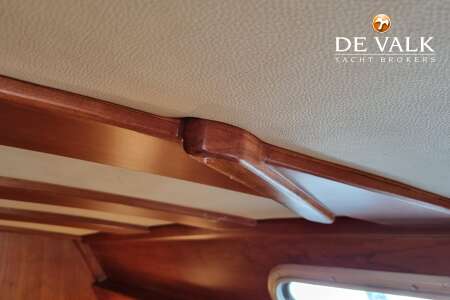

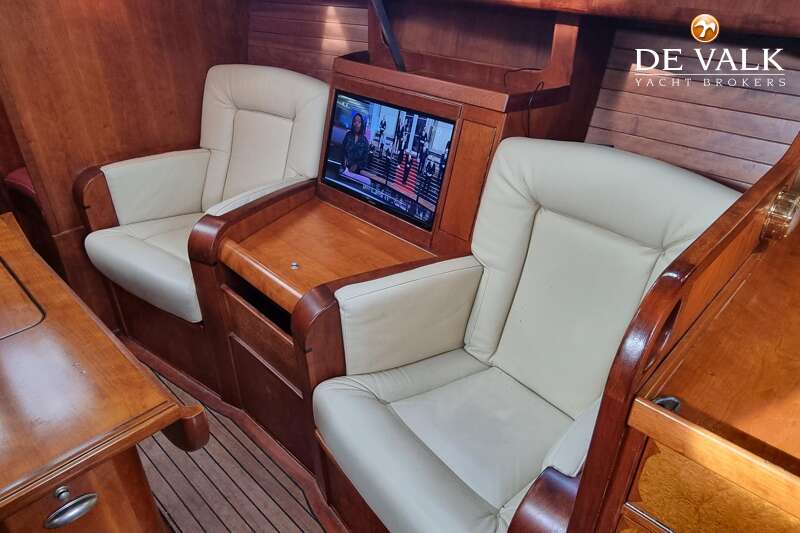

Extra info   Leather upholstery and ceiling trim. An overall finely handcrafted wooden interior with practical details. The owner is a professional cabinet maker.

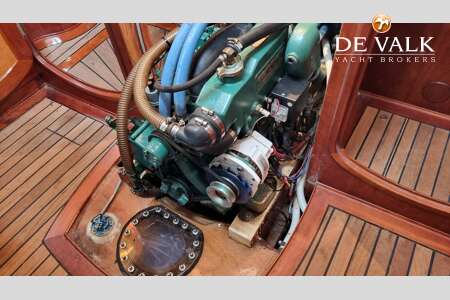

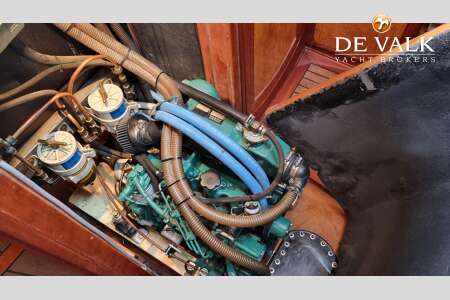

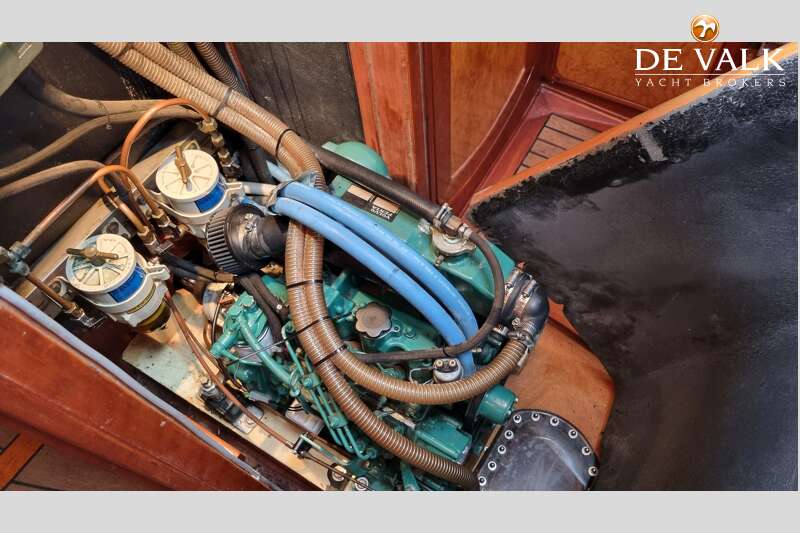

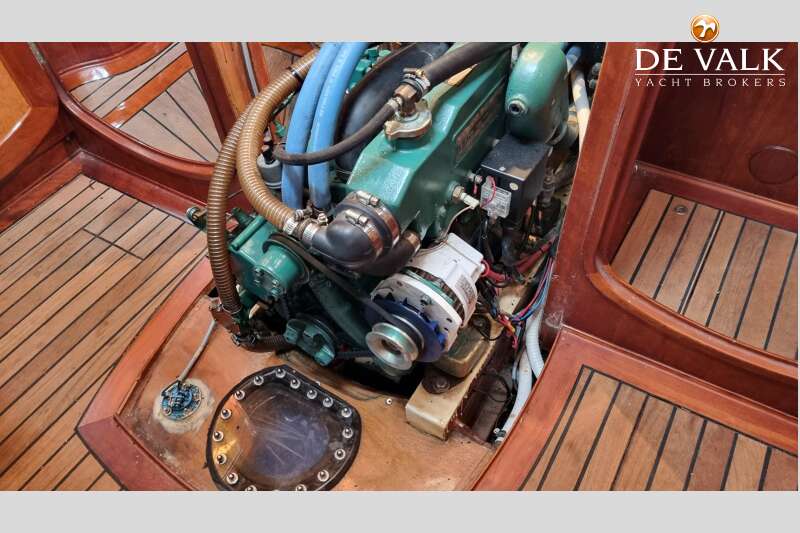

Machinery

No of engines   1
Make   Volvo Penta
Type   MD2030
HP   29
kW   21.34
Fuel   diesel
Year installed   1997
Maximum speed (kn)   7,5
Cruising speed (kn)   6,5
Consumption (l/hr)   3
Engine cooling system   freshwater heat exchanger
Drive   shaft
Shaft seal   Volvo Penta
Engine controls   bowden cable
Gearbox   mechanical  Volvo Penta MS2
Bowthruster   electric  Vetus
Exhaust   watercooled
Propeller type   feathering  Maxprop
Propeller blades   3
Propeller shaft material   stainless steel
Shaft lubrication   water
Manual bilge pump   1 x
Electric bilge pump   2 x

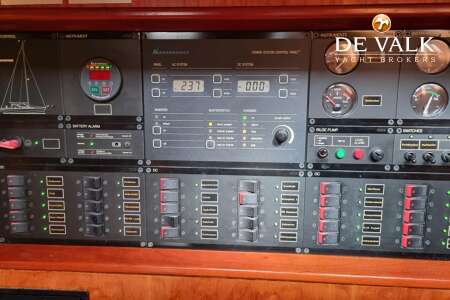

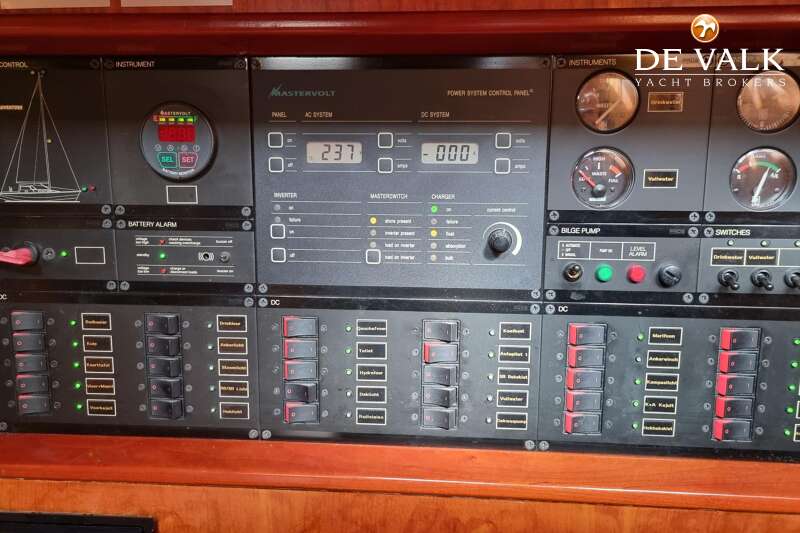

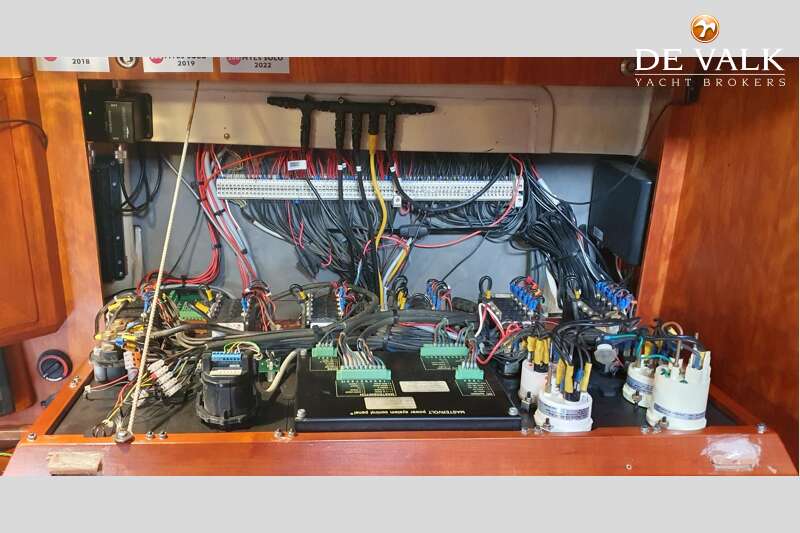

Electrical installation   12/220v
Start battery   1 x
Service battery   2 x
Bowthruster battery   1 x Optima
Battery monitor   on the switchpanel
Battery charger   Mastervolt 12v/60amp
Inverter   Mastervolt Sine 12-220v/2000watt
Solar panel   1 x
Shorepower   with cable
Extra info   Twin fuel filter system with change-over valves. Extra large Mastervolt 12v alternator.

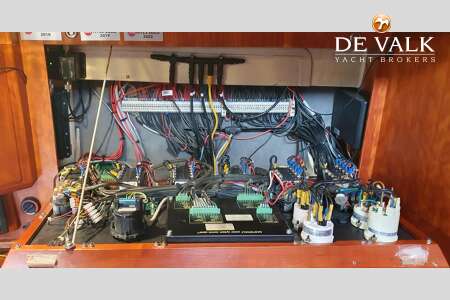

Extra info   Engine and electrical installations were done professionaly.
Extra info   Utillity compressor installed.

Navigation

Compass   C. Plath
Electric compass   via autopilot
Depth sounder/log   Simrad IS15
Windset   Simrad IS15
Repeater   yes
VHF   Shipmate RS8300 + extra cockpit set
Autopilot   Robertson AP20
GPS   2 x
Plotter   Brookes & Gatehouse V12 + Simrad in cockpit
Navtex   Weatherman
Electronis chart(s)   2 x
AIS transponder   Vesper Marine Class B
Navigation lights   yes
Searchlight   yes

Equipment

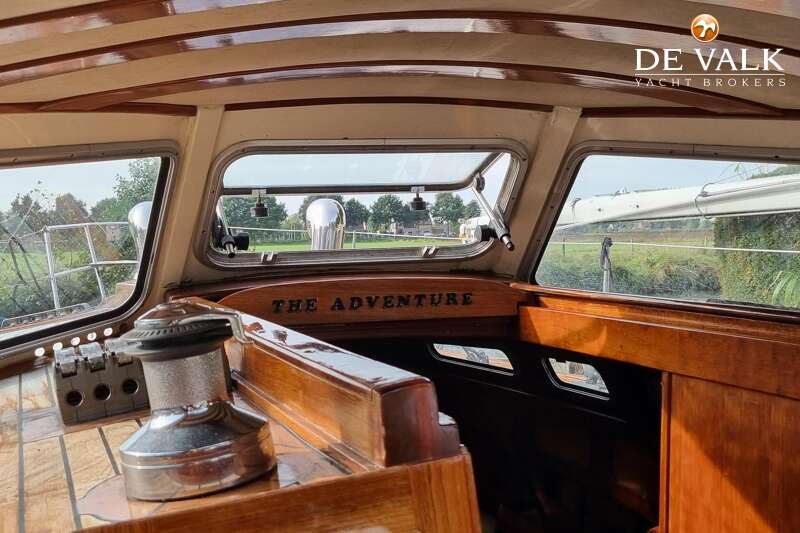

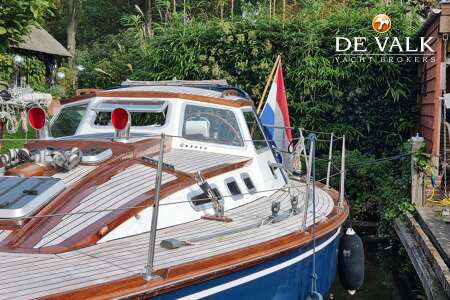

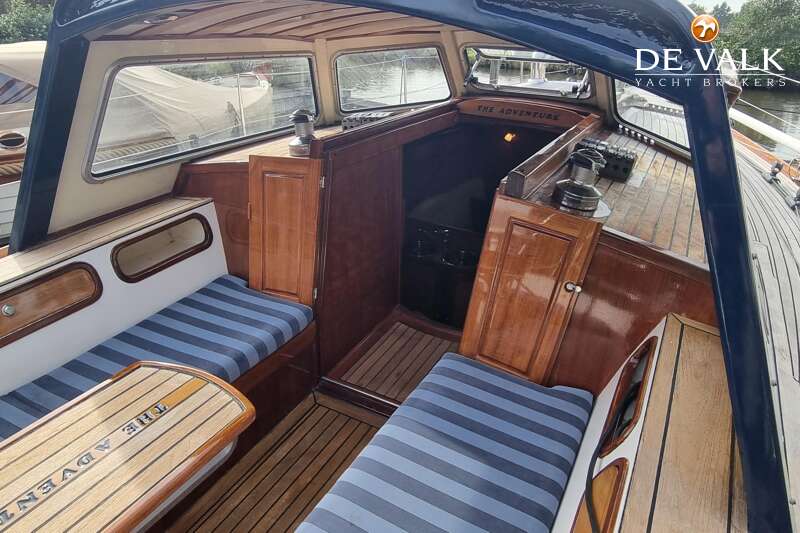

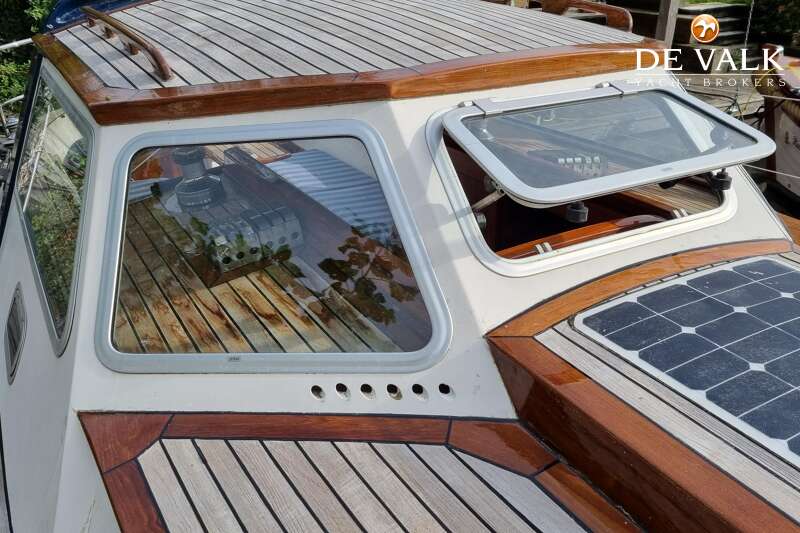

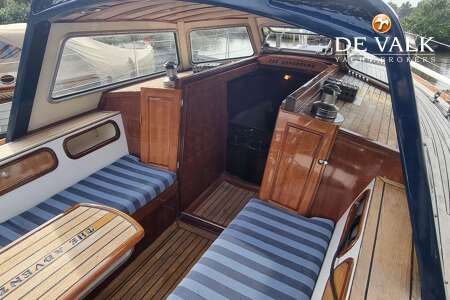

Fixed hardtop   Wood/epoxy with Gebo windows (1 opens)
Cockpit cover   (sloped)
Winter cover   with mast down and propped up on deck
Window cover   yes

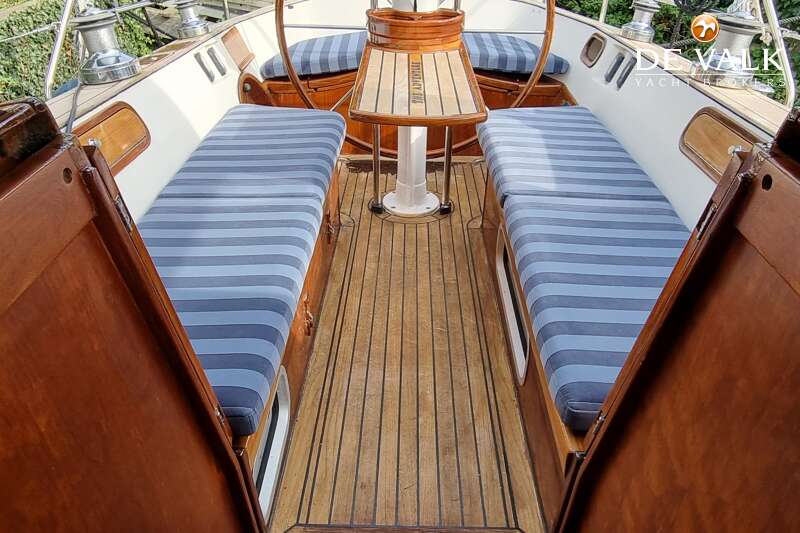

Cockpit cushions   yes
Cockpit table   yes
Bathing platform   yes
Boarding ladder   yes
Deck shower   hot + cold water

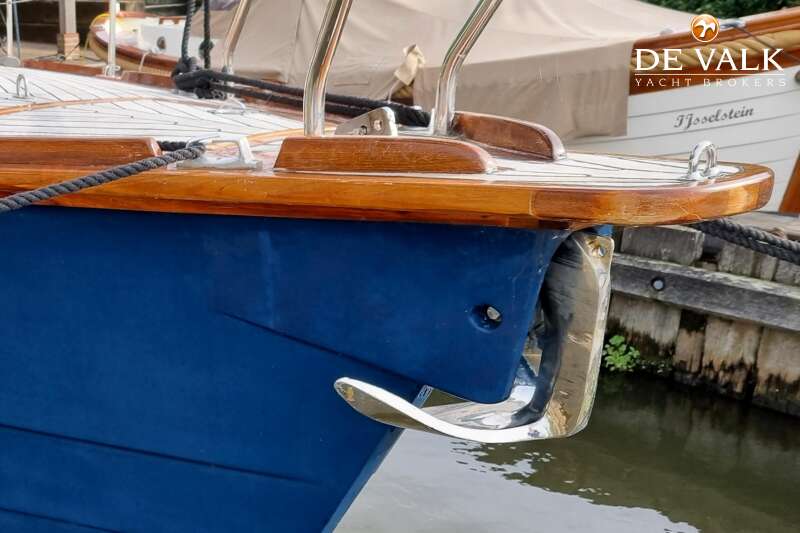

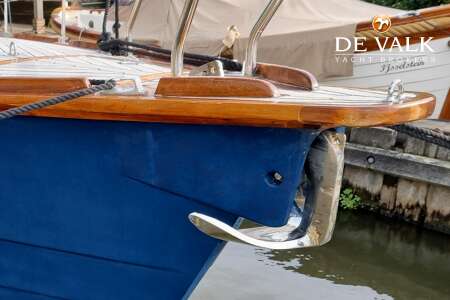

Anchor   Bruce (stainless steel)
Anchor chain   20 mtrs (stainless steel)
Windlass   electrical  Quick (12v)
Capstan   Quick (12v)
Deck wash   yes
Sea railing   yes
Grab rail (superstructure)   teak
Pushpit   yes
Pulpit   yes
Lifebuoy   yes
Safety lines on deck   yes
Fenders   yes
Mooring lines   yes

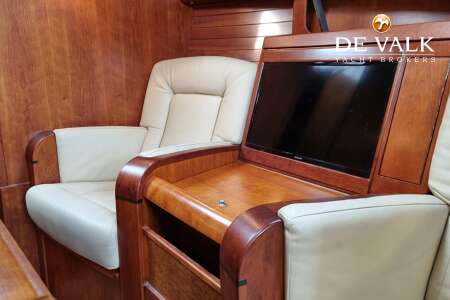

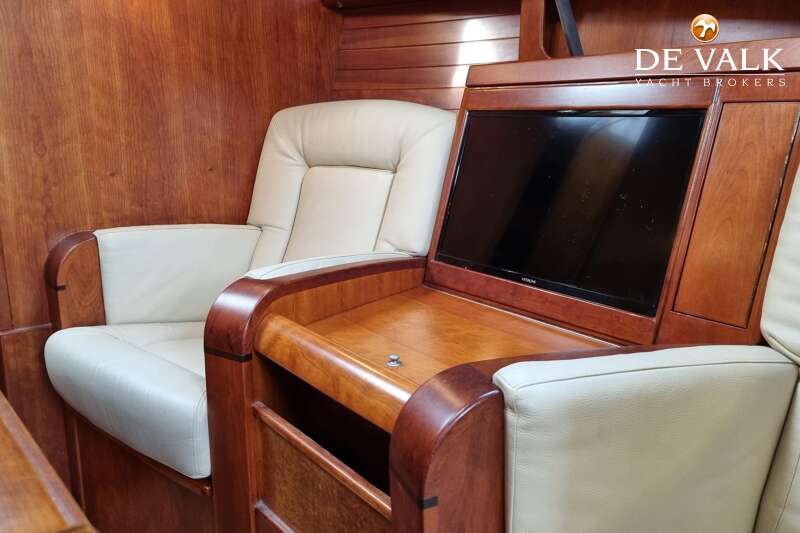

TV   yes
Radio-cd player   yes
Speakers in salon   yes
Fire extinguisher   (need to be replaced)
Extra info   safe

Rigging

Rigging   Fractional-cutter
Standing rigging   (2000)
Brand mast   Proctor (2000)
Material mast   aluminium coated
Spreaders   2 x
Mainsail cover   + Lazy Jacks
Battcars   Frederiksen with bearing track
Fully battened mainsail   Heineke Sails 35m2 (2000)
Jib   Heineke Sails 18m2 (2000)
High aspect   Heineke Sails 24 m2 (2000)
Genoa I   Heineke Sails 35m2 (2000)
Genoa II   Heineke Sails 29m2 (2000)
Genoa furler   Furlex
Genoa cover   yes
Cutter furler   Furlex
A-symetric spi   Heineke Sails 83m2 (2000 with rocon)
Booster   Heineke Sails twin (Bolle Jan)
Staysail   Heineke Sails (2000)
Reefing System   slabreefing
Backstay adjuster   tackle
Boomvang   mechanical  Proctor

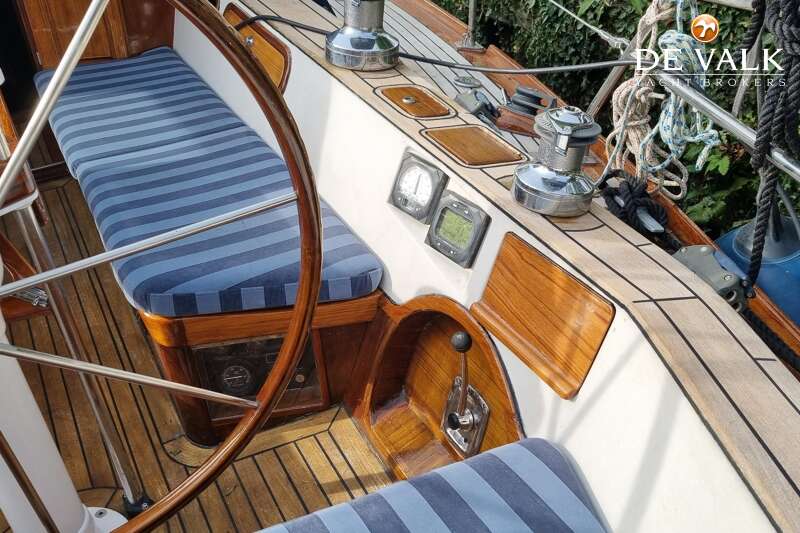

Primary sheet winch   2 x Lewmar 48ST
Secondary sheet winch   2 x Lewmar 30ST
Halyard winches   2 x Lewmar 40ST
Multifunctional winches   1 x Quick "extra hand" (electric)
Spi-pole   aluminium
Extra info   All halyards/sheets lead aft into the cockpit. Mainsail has 3 reefingpoints (2 of them in use). Currently the mast is taken of for the winter period.

Disclaimer

These particulars are given in good faith as supplied but cannot be guaranteed and cannot be used for contracts.
