GULFSTAR 60 MKII
- Dimensions
- 18.44 x 4.88 x 2.00 (m)
- Material
- GRP
- Built
- 1986
- Engine(s)
- 1x Yanmar 4LHA-HTP diesel
- HP/ KW
- 1x 160.00(hp), 117.76(kw)
- Lying
- elsewhere / Not at sales office
- Sales office
- De Valk Sint Annaland
- Status
- For Sale
- VAT
- Paid
- Asking price
- € 229.500
Broker's comments
The Gulfstar MKII is a fast, seaworthy yacht with hydraulic furling sails, electric winches, comfortable and spacious interior with 4 cabins & 3 heads. The engine, generator, Watermaker, Raymarine instruments & upholstery renewed in 2008. The complete rig, hydraulic furlers, sails, 220 V system, freshwater piping, Camara system, radar & sun awning over entire deck been renewed in 2014. Since 2023 the deck & superstructure were painted, windows & portholes overhauled & new compressors (fridge & freezer) installed. Contact De Valk Sint Annaland to make an appointment for a visit in Harlingen.
Specifications: GULFSTAR 60 MKII
General
- Model GULFSTAR 60 MKII
- Type sailing yacht
- LOA (m) 18,44
- LWL (m) 14,73
- Beam (m) 4,88
- Draft (m) 2,00
- Air draft (m) 24,00
- Headroom (m) 2,00
- Year built 1986
- Builder Gulfstar Yachts
- Country U.S.A.
- Designer R. C. Lazzarra
- Displacement (t) 27,25
- Ballast (tonnes) lead 7,7
- CE norm A
- Hull material GRP
- Hull colour white Oyster White - painted in 2010
- Hull shape S-bilged
- Keel type long keel
- Superstructure material GRP
- Rubbing strake stainless steel Strip on a teak rubbing strake
- Deck material GRP

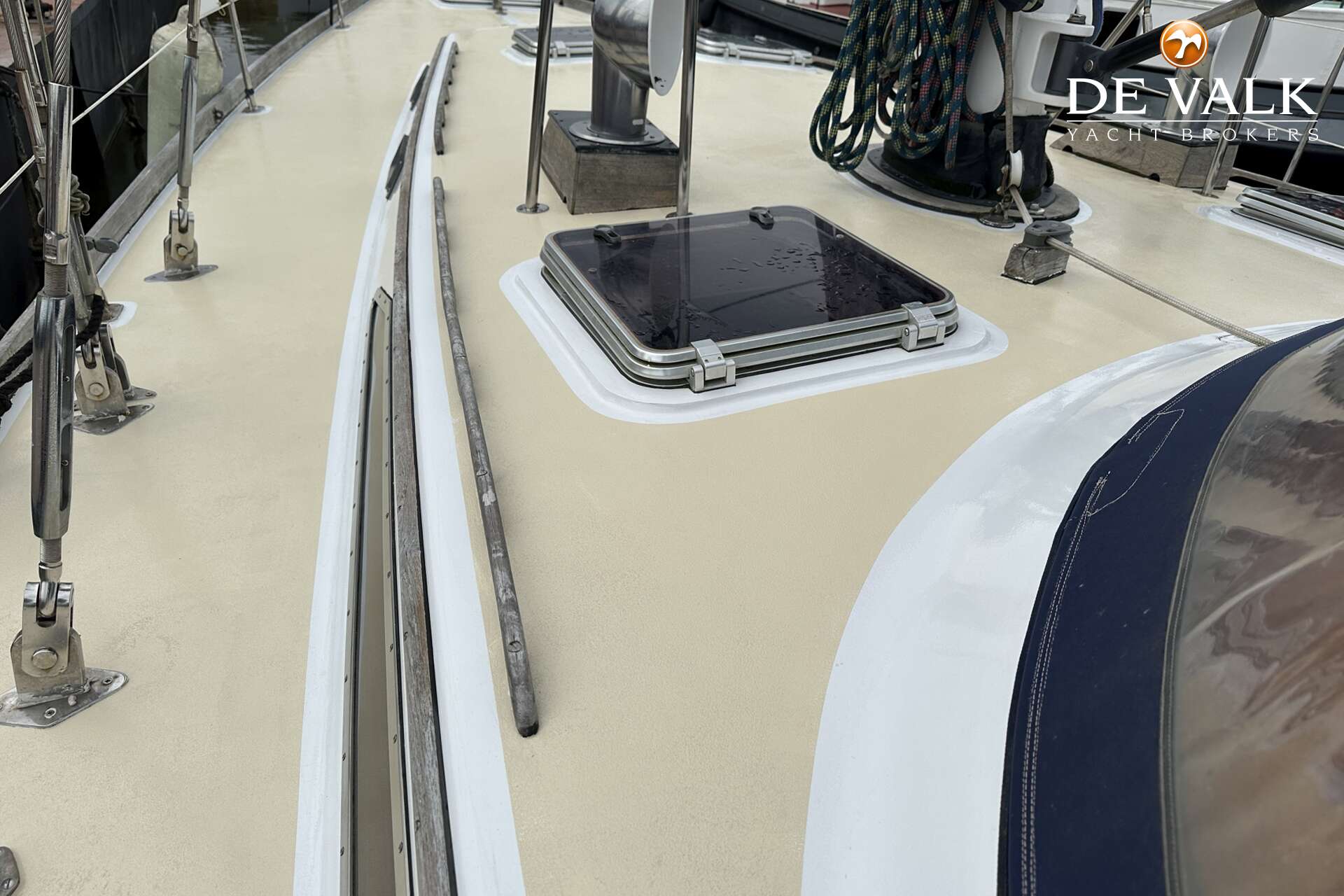

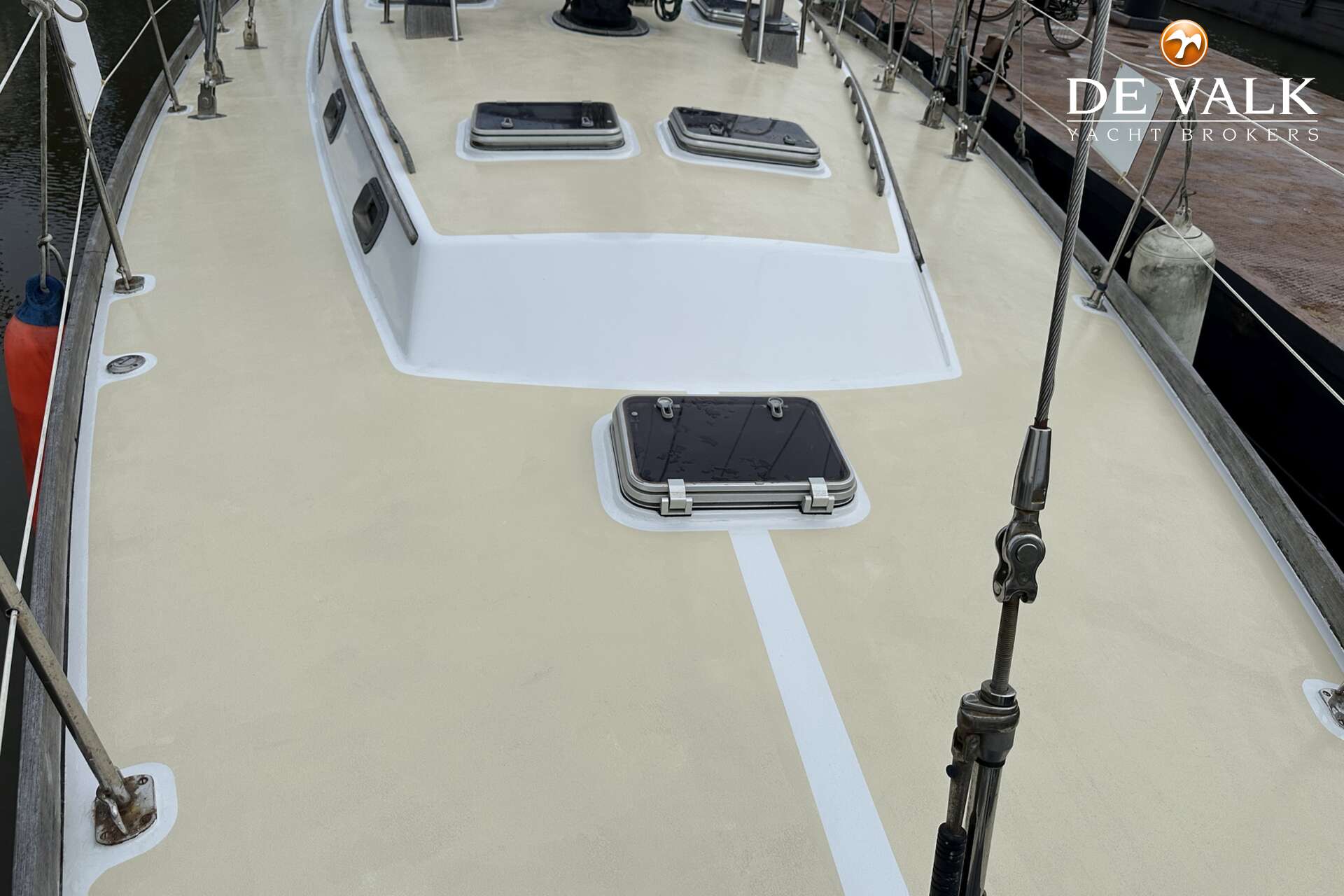

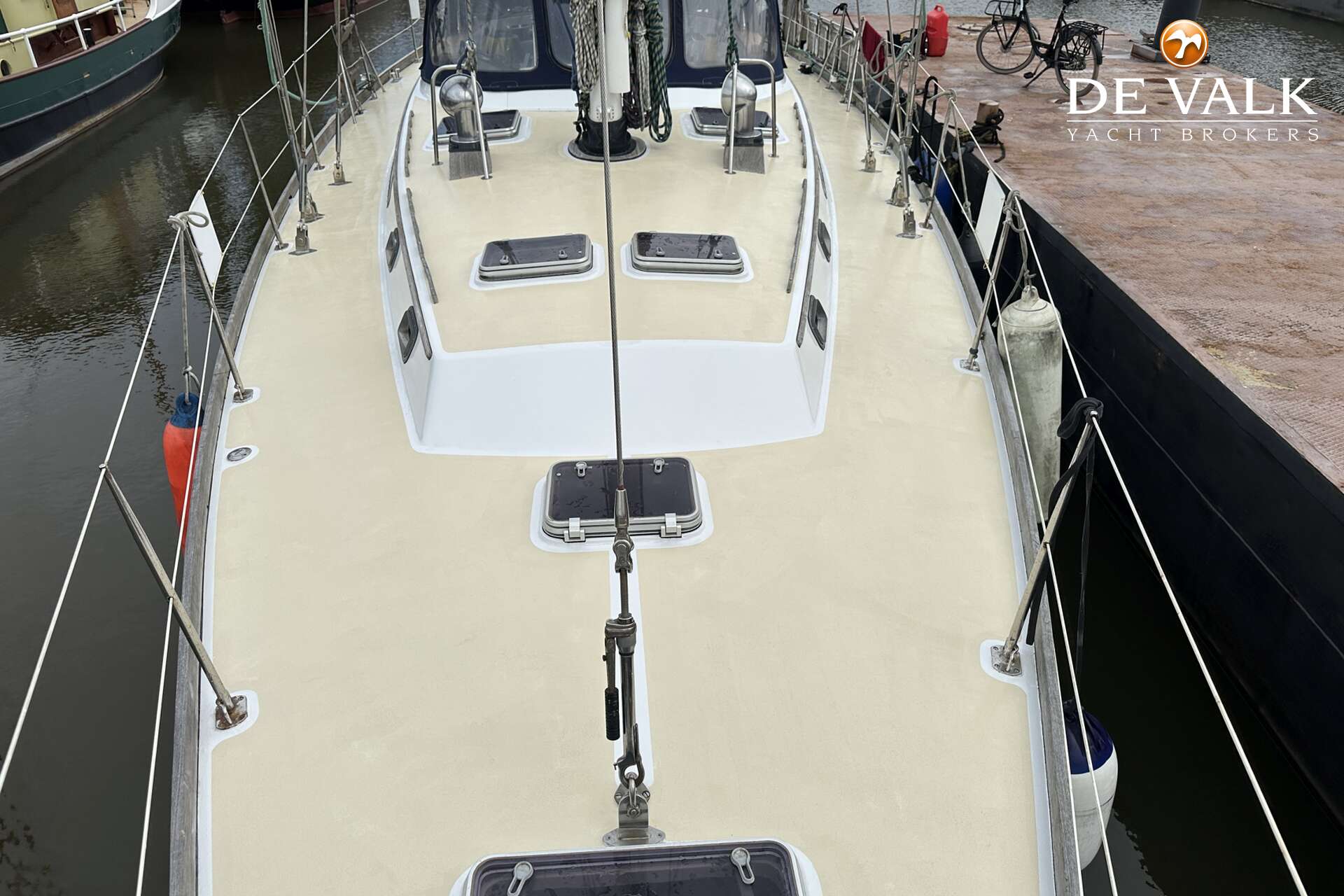

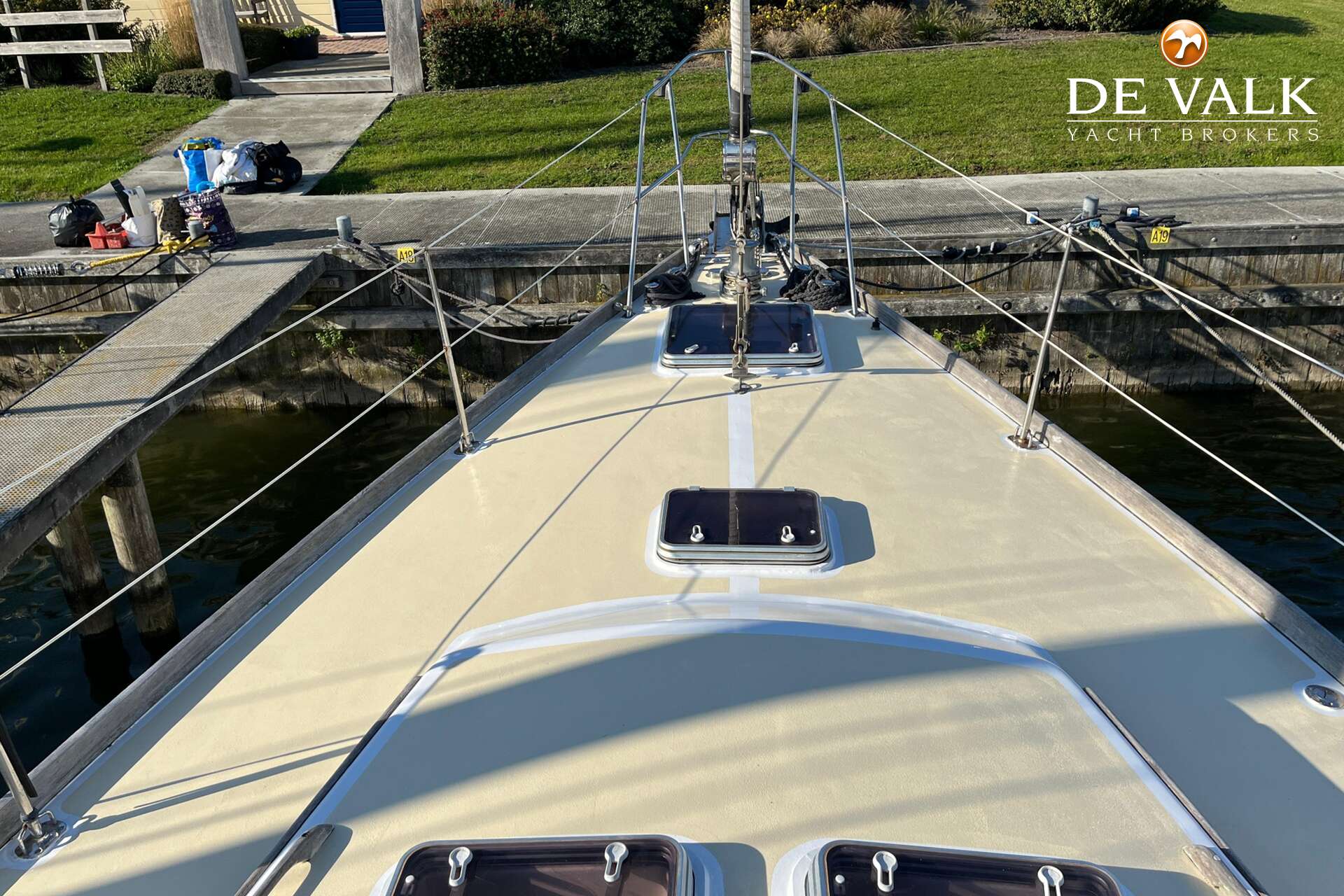

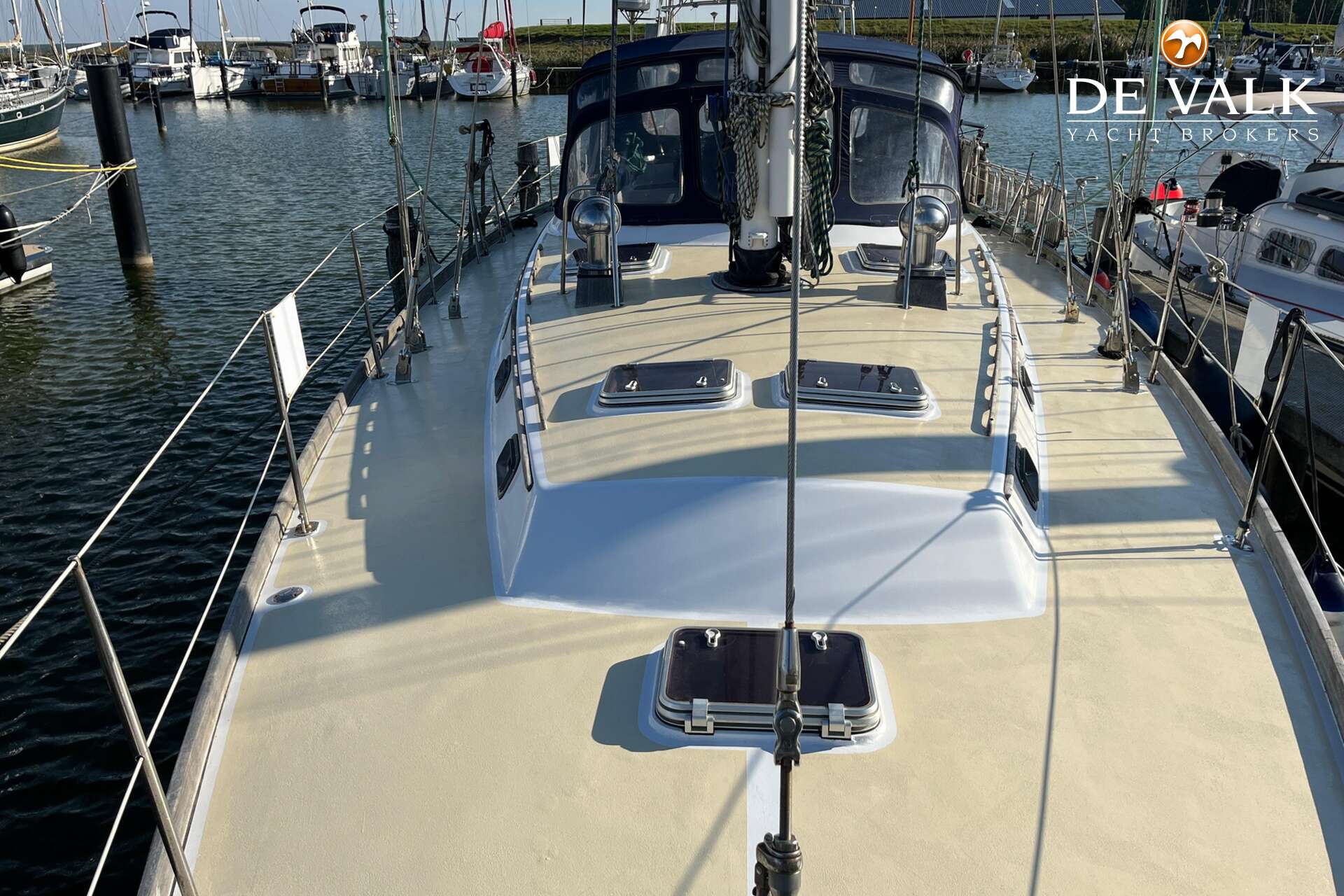

- Deck finish non-skid paint In 2023 painted in Perfection Oyster White

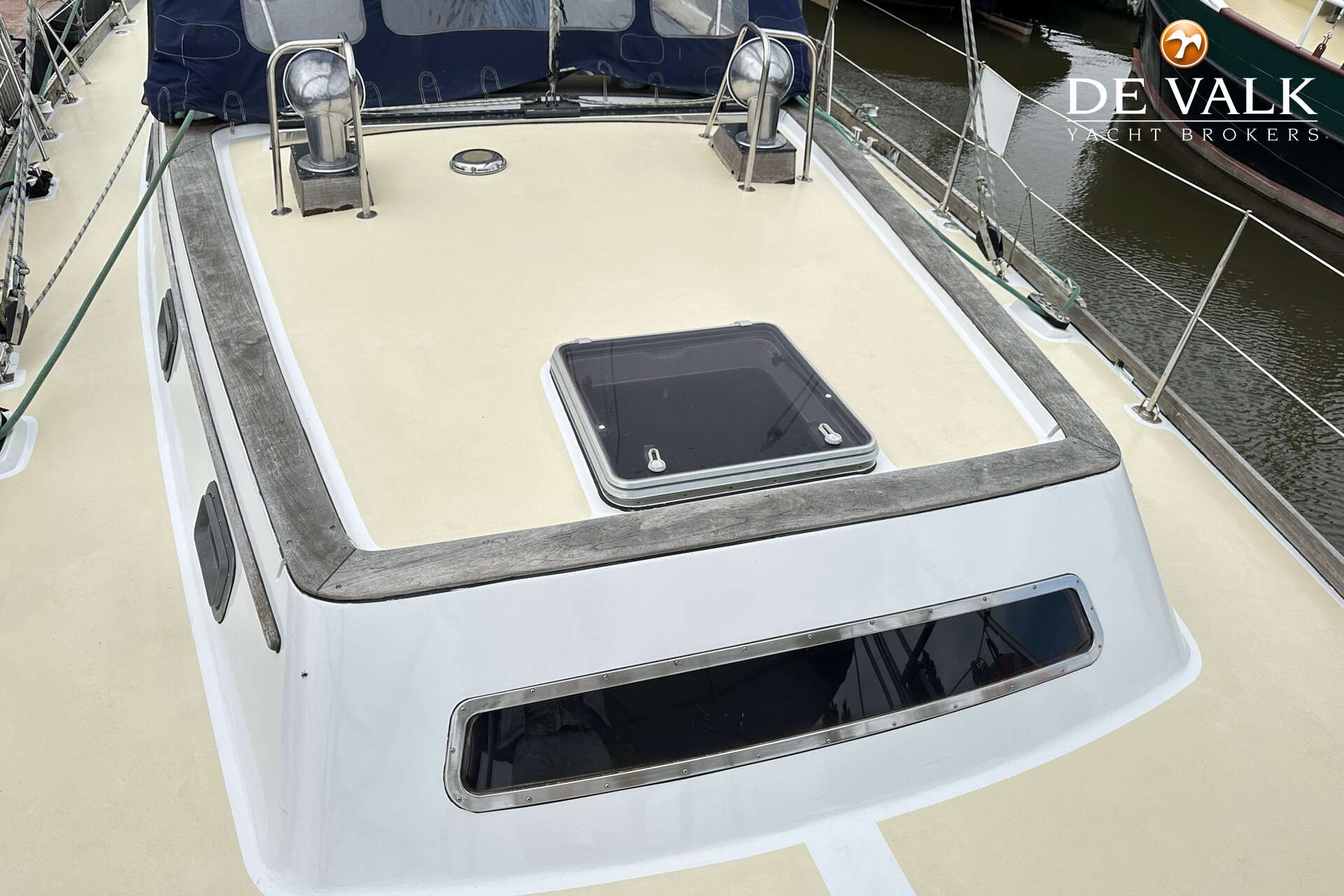

- Superstructure deck finish non-skid paint In 2023 painted in Perfection Oyster White
- Cockpit deck finish synthetic teak Applied in 2014
- Antifouling (year) 2023

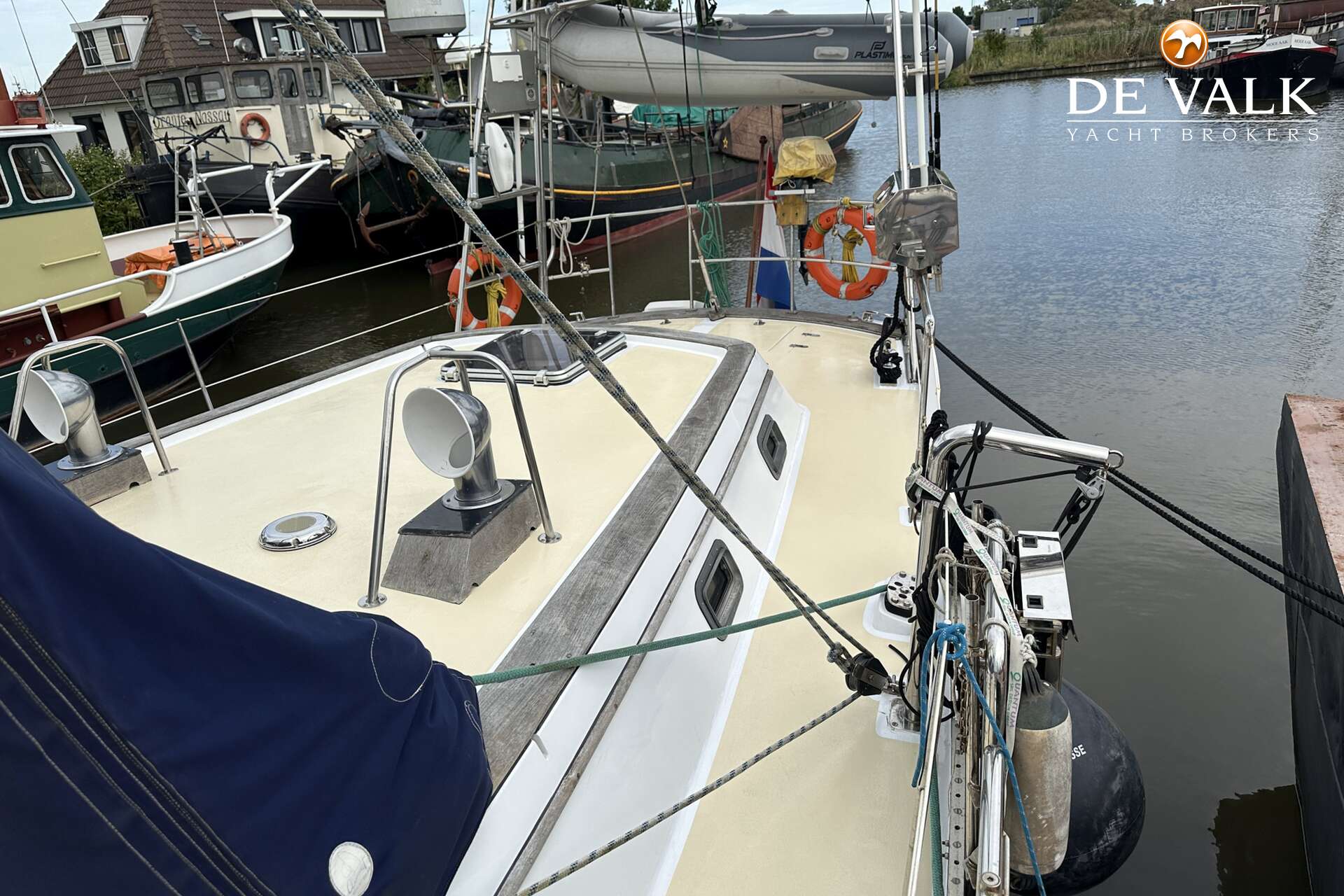

- Dorades Stainless steel
- Window frame stainless steel Dismounted & overhauled & rubbers renewed in 2023
- Window material perspex (Renewed in 2023) With rollo's (2014)
- Deckhatch Vetus - with rollo's (2014)
- Portholes aluminium Dismounted & overhauled & rubbers renewed in 2023
- Insulation Balsa wood; deck, superstructure, hull till just under waterline

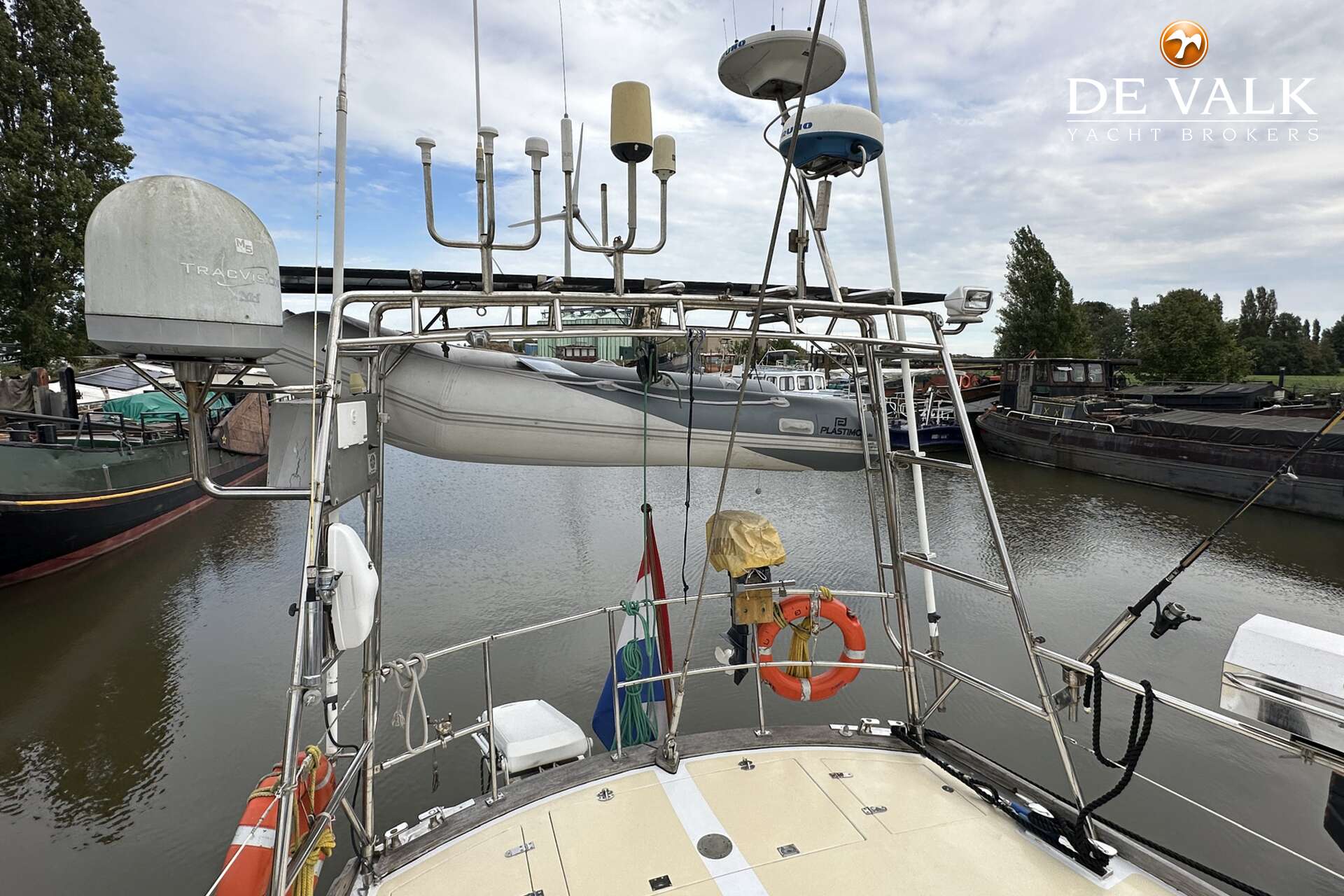

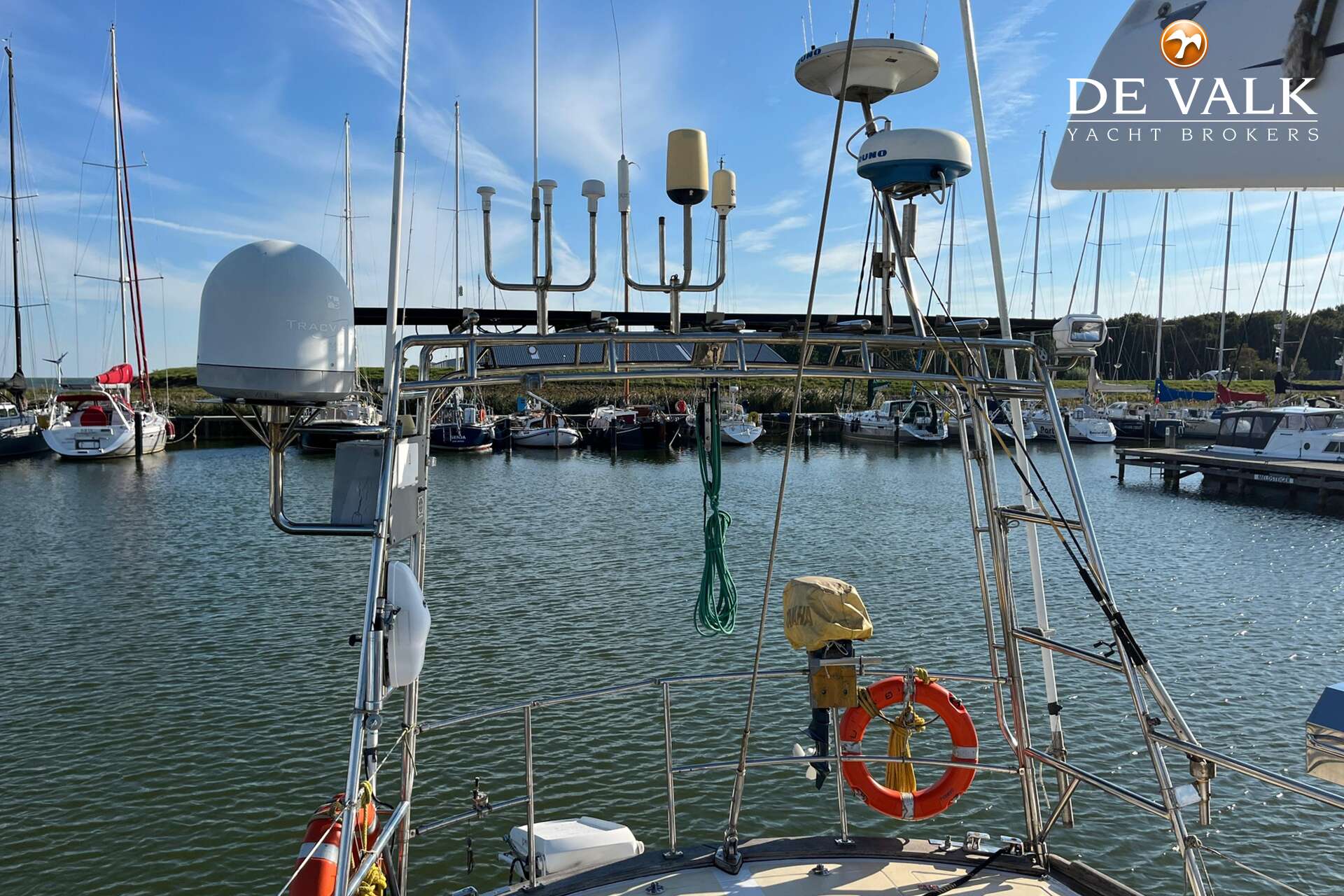

- Radar arch non collapsible Stainless steel
- Fuel tank (litre) stainless steel 1400
- Level indicator (fuel tank) VDO
- Freshwater tank (litre) GRP 1500
- Level indicator (freshwater) VDO
- Blackwater tank (litre) stainless steel 3 x
- Blackwater tank extraction deck extraction + uw line 3 x
- Wheel steering mechanical Leather covered stainless steel steering wheel
- Outside helm position yes
- Emergency tiller yes
- More info on hull Full length strings and floors stiffen the very solid hull
- More info on paintwork In 2023 the deck and the superstructure have been treaded with 9 layers of epoxy primer, one layer of International 3 components primer Perfect Pro. Afterwards the deck, the superstructure and the cockpit have been painted twice in High Gloss Perfection Pro Artic White.
- Extra info All old layers of antifouling have been removed from the underwater hull in 2017 and then an epoxy system was applied (not due to osmosis).
- Extra info The Balsa wood sandwich construction of the deck and superstructure have an increased moisture content. This has been locally repaired, but still requires further attention.
- Extra info The deck space is terrific with outward deck mounted chainplates. 6 x Stainless steel mooring cleat and fairlead. Very large storage in the bow. The cockpit is modern with long seats easy to lie down on.
- Cabins 4
- Berths 8
- Crew cabin Starboardside from companionway is walkthrough to captains cabin
- Crew berths 1 x
- Interior teak With white pannels
- Floor teak and holly
- Saloon U-shaped dinette opposite a L-shaped settee with Off White leather upholstery (2010).
- Headroom saloon (m) 2,00
- Heating diesel ducted hot air Planar (2022) with blowing points in aft cabin, saloon & galley
- Air-conditioning reverse cycle airco 2 x Webasto, with openings in all cabins & saloon (no chiller)
- Chart table Starboardside from companionway - Headroom : 2,00 m
- Aft Cabin Very spacious - Headroom : 2,00 m
- Dinette Teak
- Opening door to cockpit yes
- Galley On portside along the walkthrough - Headroom : 1,80 - 2,05 m
- Countertop Duropal Painted White Perfection Pro (2 compenents) in 2024
- Sink stainless steel 2 x
- Cooker ceramic Aristron 2 burner - Half-Cardanic
- Extractor Dometic
- Microwave/oven combi Bosch Innowave (2018)
- Fridge Top loader with a water cooled (pump renewed in 2024) Superfrigomat 5F compressor.
- Freezer Top loader with a water cooled (pump renewed in 2024) Frigoboat compressor.
- Hot water system 220V + engine 60 L Boiler (2008)
- Water pressure system electrical Cempump water pressure pump & all water piping renewed in 2014
- Ice maker Not functioning
- Owners cabin French bed In aft cabin - Headroom : 2,00 m
- Bed length (m) 2,00 x 1,50
- Wardrobe hanging/drawers/shelves
- Bathroom en suite Headroom : 1,90 m
- Toilet en suite In the bathroom
- Toilet system vacuum Electric
- Wash basin in the bathroom
- Shower en suite Seperate cabin in the bathroom - Headroom : 2,00 m
- Extra info Mattresses renewed in 2018 with Lee-Cloths
- Guest cabin 1 bunk bed In front on starboard side - Headroom : 2,00 m
- Bed length (m) 2,00 x 0,85 & 2,00 x 0,80
- Wardrobe hanging and shelves
- Bathroom shared In the bow - Headroom : 1,88 m
- Toilet shared In the bathroom
- Toilet system vacuum Electric
- Wash basin in the bathroom Stainless steel
- Shower shared Seperate cabin in the bathroom - Headroom : 1,88 m
- Extra info Mattresses renewed in 2018, with Lee-Cloths
- Guest cabin 2 bunk bed In front on port side - Headroom : 2,00 m
- Bed length (m) 2,00 x 0,85 & 2,00 x 0,80
- Wardrobe hanging and shelves
- Extra info Mattresses renewed in 2018, with Lee-Cloths
- Crew cabin(s) 1 x Crew (Captain - 1 peron) Cabin - Amidships on Starboard Side - Bed : 2,00 x 0,80 m - Headroom : 1,95 m.
- Bathroom (crew) Between galley and crew cabin - Headroom : 1,95 m
- Toilet (crew) In the bathroom
- Toilet system vacuum Electric
- Wash basin in the bathroom
- Shower (crew) In the bathroom (with curtain) - Headroom : 1,95 m
- Extra info Mattress renewed in 2018, with a Lee-Cloth underneath
- Washing machine/dryer combi Zanussi TurboDry 1000 (HydroSystem - Xtra Capacity)
- Extra info During the refit in 2014 the following has been done : Isolation, leather on the ceiling plates and all lighting fixtures renewed. Ber Ozono water filter system installed in 2008.
- Extra info The superstructure has been painted in white epoxy on the inside (2023). 3 x Reading light in the saloon. This is some of Gulfstar’s finest workmanship. They used a patented process to camber teak edges. Every corner is nicely radiused, and you could put up the quality of the interior against any other manufacturer in the world.
- No of engines 1
- Make Yanmar
- Type 4LHA-HTP
- HP 160
- kW 117.76
- Fuel diesel
- Year installed 2008
- Maximum speed (kn) 9
- Cruising speed (kn) 8
- Consumption (l/hr) 5,5
- Engine hours 2030
- Engine cooling system freshwater heat exchanger
- Drive shaft
- Shaft seal yes
- Engine controls electrical (2008)
- Gearbox hydraulic (2008)
- Bowthruster electric Vetus
- Exhaust watercooled (2008)
- Thrust bearing Aquadrive (2008)
- Propeller type folding Gori (2008)
- Propeller blades 3
- Propeller shaft material stainless steel
- Shaft lubrication water (2022)
- Manual bilge pump (2008)
- Electric bilge pump Blau Naval Marine Pump (2008) max 6,6m3/hour
- Bilge alarm (2008)
- Electrical installation 12 & 24 & 110 & 220 Volt (entire 220V system renewed in 2014)
- Generator wet exhaust Vetus (2008)
- Running hours generator 340
- Start battery 1 x AGM Deep Cycle (2022)
- Service battery 4 x 200 Ah Gel battery (2010) & 4 x 200 Ah AGM (2024)
- Navigation Battery yes
- Bowthruster battery 2 x 200 Ah AGM Deep Cycle (2023)
- Battery monitor Victron BMV 501 Battery Monitor
- Battery charger 1 x Victron Centaur 200 A & & 1 x Vetus 80 A (engine battery) & 1 x Victron (bowtruster batteries) & 1 x Victron Skylla TG 24V 50 A.
- Inverter 1 x Victron Phoenix 3.000 W
- Solar panel 800 Watt Burger Meyer (double reflection - 2023) with Victron Solar MPTT 100/50 (2023).
- Diode battery combiners (2008)
- Shorepower with cable Electric rolling up
- Watermaker Aqua Whisper Sea Recovery System 250L/H (2008). To be serviced
- Extra info The engine room access is through the portside walkthrough. She has the nice little Gulfstar door with a circular porthole. Inside their is plenty of room for sitting down and crawling around.
- Extra info The engine has been serviced annually and had a large service in 2022. Propeller shaft bearing renewed in 2022. Separ fuel filter with water seperator. Racor fuel filters. In 2008 the engineroom was completely empied and everything was renewed & new installed, including new sound isolation.
- Extra info WaterCounter Water Management System WC1 (2011).
- Compass Whitlock
- Electric compass Furuno THD Satellite Compass SC-50 (3 Boxes - 2009)
- Multi control display Raymarine ST60+ Graphic (2009)
- Depth sounder/log Raymarine ST60+ Tridata (2009)
- Windset Raymarine ST60+ WInd (2009)
- Repeater Raymarine ST60+ (2009)
- VHF 1x Raymarine (2009), 1x Skanti 1000 P DSC (2009), 1x Sailor C4951WP (2009).
- VHF handheld 1 x Simrad TC 50 GMDSS (2008)
- Autopilot Raymarine ST6002 (2009) & 2nd display at chart table
- Rudder angle indicator Raymarine ST60+ Rudder (2009)
- Radar Furuno Navnet Radar Antenna mounted on mast (2014) and 1x Furuno Marine Radar 1715 on a half cardanic bracket on the arch on the stern
- GPS Furuno GPS Navigator (2009) & Raymarine (2009)
- Navtex JRC NCR-333 Navtex Receiver
- Personal computer Emergency computer for emergency power
- PC connection yes
- Wifi antenna D-Link
- Electronis chart(s) 2014
- AIS transceiver Furuno Universal AIS FA-150
- Radio receiver JRC NCT-196N DSC NBDP Modem (2009)
- Transmitter JRC JSB-196 GM Radiotelephone (2009)
- EPIRB MacMurdo Smartfind E5/G5 - 406 Mhz - Class 2
- Personal MOB transmitter 2 x & 1 x MacMurdo S4 Rescue Sart Transponder (need new battery)
- Camera Axis P12 Network Camera Series (2014) : On the bow, on the stern, 2 x in the mast on spreader (with very good zoom), in the saloon/chart table, at the bow thruster, in the engine room, under water at the propeller & propellershaft and at the propellershaft (inside). At this moment, the camara's are not in use and all cable-ends are disconnected from the computer unit of the camara system.
- Navigation lights LED
- Searchlight On the arch on the stern
- Loudhailer Sailor SC4150 Iridium & Standard Horizon Loud Hailer VLH-3000
- Extra info Tsunamis Navigator & Dell Screen at navigation table
- Extra info Sextant

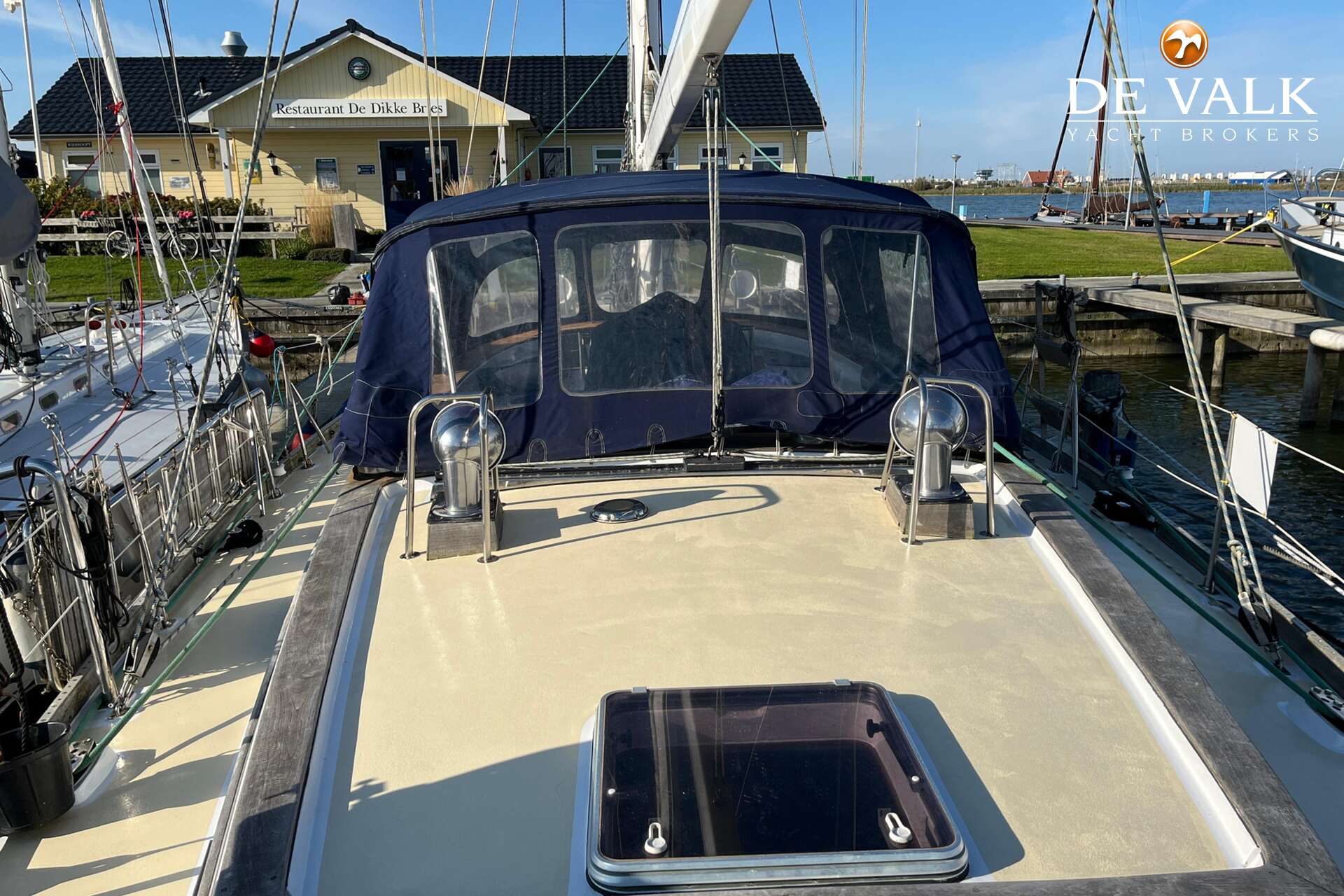

- Sprayhood Blue
- Cockpit cover Blue
- Bimini Cockpit cover can be used as a bimini (panels around removed)
- Sun awning Over the complete boat (2014, as new, only used a few times)
- Cockpit cushions Blue with a extra & new spare set of covers
- Cockpit table Teak (foldable and mounted on front of pedestal)
- Boarding ladder stainless steel With teak - Hanging on port side
- Gangway Hydraulic Besenzoni (in GRP with 2 stentions)
- Deck shower On the aft deck
- Anchor Bruce 30 Kg
- Anchor chain 120 m 12 mm (2014)
- Windlass electrical Controlled on the bow and in the cockpit
- Capstan On the windlass
- Deck wash 2 x (functioning unknown)
- Outboard support yes
- Davits stainless steel Foldable bracket
- Davits controls manual
- Deck crane manual On the stern
- Sea railing wire Doubble wired
- Grab rail (superstructure) teak
- Railing side opening gates On both sides
- Pushpit Stainless steel
- Pulpit Stainless steel
- Lifejackets 2 x
- Safety harness 2 x
- Lifebuoy 2 x Orange round buoy
- Safety lines on deck (2022, but never used - new)
- Rope cutter (2021)
- Horn air pressure 2 x
- Radar reflector (2014)
- Fenders yes
- Mooring lines yes
- Spare parts yes
- TV Samsung Smart TV (2016)
- TracVision ball TracVision
- Radio-cd player 1 x JVC & 1 x Alpine
- Surround Sound System (2022)
- Sub-woofer (2022)
- Cockpit speakers (2008)
- Speakers in salon Pioneer (2008)
- Speakers in cabin 2 x Pioneer in every cabin
- Clock - barometer In every cabin is a clock
- Fire extinguisher yes
- Latest extinguisher survey Need to be checked / renewed
- Extinguisher in engine room Need to be checked / renewed
- Extra info LED underwater lighting (New in 2023)
- Extra info Blue LED lighting behind the name on the transom
- Extra info Stainless steel Magma BBQ (with all accessories) on aft port side pulpit.
- Rigging sloop-cutter
- Standing rigging Dyform (2014)
- Brand mast Formula Masts (2014)
- Material mast aluminium coated Coated Cloud White Alexseal (2014)
- Spreaders 2 x Set - White coated (2014)
- Keel stepped mast yes
- Mainsail Climent Furling Laminated Furling Mainsail (2014 - adequate)
- Stoway mast Hydraulic (2014)
- Cutterstay Removable, with a tentioner (2014)
- Jib 1x Climent Cutter Jib ( 2014 - un-used) & 1x Citter Jib(old)
- Genoa Climent Furling Laminated Genoa (moderate condition)
- Genoa furler Harken - Hydraulic (2014)
- Gennaker Climent (2014) with loose Facnor Furler (2014 - never used, new)
- Reefing System main in-mast furling Hydraulic (2014)
- Boomvang hydraulic Navtec (2014)
- Primary sheet winch 1 x Barient 27 ST (mainsail sheet)
- Secondary sheet winch 2 x Barient 28 ST
- Genoa sheetwinches 2 x Barient 36 ST electric
- Halyard winches 2 x Barient 25
- Spi-pole carbon Cloud White Alexseal coated (2014), the end head is missing
- Extra info After renewing of rigging (2014), yacht wasn't used till 2022
Important disclaimer:These particulars are given in good faith as supplied but cannot be guaranteed and cannot be used for contracts.
Instead of the GULFSTAR 60 MKII, you may also like:
With offices across Europe we are never far away.
Where to find us
