GULFSTAR 60 MKII

Afmetingen
18.44 x 4.88 x 2.00 (m)

Materiaal
Polyester

Bouwjaar
1986

Motor(en)
1x Yanmar 4LHA-HTP diesel

PK/ KW
1x 160.00(pk), 117.76(kw)

Ligplaats
elders / niet bij verkoopkantoor

Kantoor
De Valk Sint Annaland

Status
Te Koop

BTW
Betaald

Vraagprijs
€ 229.500

Van de makelaar

De Gulfstar MKII is een snel, zeewaardig jacht met hydraulische rolzeilen, elektr. lieren, comfortabel & ruim interieur (4 hutten & 3 heads). Motor, generator, Watermaker, Raymarine instrumenten & stoffering vernieuwd in 2008. De complete tuigage, hydraulische rolzeilen, 220 V systeem, waterleidingen, camerasysteem, radar en zonntent over gehele dek vernieuwd in 2014. Sinds 2023 zijn dek & opbouw geschilderd, ramen & patrijspoorten gereviseerd en compressoren (koelkast & vriezer) geïnstalleerd. Neem contact op met De Valk Sint Annaland voor een bezichtigingsafspraak aan boord in Harlingen.

De Valk Sint Annaland

Jan-Ward van Dantzig

+31 (0)166 601 000

e-mail de makelaar

Vul a.u.b. uw naam in.

Vul a.u.b. een geldig e-mailadres in.

Vul a.u.b. uw bericht in.

Graag de reCAPTCHA voltooien.

stuur een kopie naar mijn e-mail

kantoor gegevens

Foto's (195)

Video

360° virtuele tour

Download brochure

Deel deze boot

Specificaties: GULFSTAR 60 MKII

Algemeen

Model GULFSTAR 60 MKII
Type zeiljacht
Lengte (m) 18,44
Lengte waterlijn (m) 14,73
Breedte (m) 4,88
Diepgang (m) 2,00
Doorvaarthoogte (m) 24,00
Stahoogte (m) 2,00
Bouwjaar 1986
Gebouwd door Gulfstar Yachts
Land Verenigde Staten
Ontwerper R. C. Lazzarra
Waterverplaatsing (t) 27,25
Ballast (ton) lood 7,7
CE norm A
Romp materiaal polyester
Romp kleur wit Oyster White - painted in 2010
Rompvorm S-spant
Kiel type doorlopende kiel
Materiaal opbouw polyester
Stootlijst roestvast staal Strip on a teak rubbing strake
Dek materiaal polyester
Afwerking dek anti-slip verf In 2023 painted in Perfection Oyster White
Afwerking opbouw anti-slip verf In 2023 painted in Perfection Oyster White

Afwerking kuip kunststof teak Applied in 2014
Antifouling (jaar) 2023
Dorades Stainless steel
Raamlijsten roestvast staal Dismounted & overhauled & rubbers renewed in 2023
Raammateriaal perspex (Renewed in 2023) With rollo's (2014)
Dekluik Vetus - with rollo's (2014)
Patrijspoorten aluminium Dismounted & overhauled & rubbers renewed in 2023
Isolatie Balsa wood; deck, superstructure, hull till just under waterline
Radarbeugel niet neerklapbaar Stainless steel
Brandstoftank (liter) roestvast staal 1400
Inhoudsmeter (brandstoftank) VDO
Drinkwatertank (liter) polyester 1500
Inhoudsmeter (drinkwatertank) VDO
Vuilwatertank (liter) roestvast staal 3 x
Vuilwatertank afvoer dekafzuigpunt + ow lijn 3 x
Stuurwiel mechanisch Leather covered stainless steel steering wheel
Buiten stuurstand ja
Noodhelmstok ja
Extra info romp Full length strings and floors stiffen the very solid hull
Extra info verfsysteem In 2023 the deck and the superstructure have been treaded with 9 layers of epoxy primer, one layer of International 3 components primer Perfect Pro. Afterwards the deck, the superstructure and the cockpit have been painted twice in High Gloss Perfection Pro Artic White.
Extra info All old layers of antifouling have been removed from the underwater hull in 2017 and then an epoxy system was applied (not due to osmosis).
Extra info The Balsa wood sandwich construction of the deck and superstructure have an increased moisture content. This has been locally repaired, but still requires further attention.
Extra info The deck space is terrific with outward deck mounted chainplates. 6 x Stainless steel mooring cleat and fairlead. Very large storage in the bow. The cockpit is modern with long seats easy to lie down on.

Hutten 4
Slaapplaatsen 8
Bemanningshut Starboardside from companionway is walkthrough to captains cabin
Bemanning slaapplaatsen 1 x
Interieur teak With white pannels
Vloer teak en holly
Salon U-shaped dinette opposite a L-shaped settee with Off White leather upholstery (2010).
Stahoogte salon (m) 2,00
Verwarming diesel hete lucht Planar (2022) with blowing points in aft cabin, saloon & galley
Airco airco omkeerbaar 2 x Webasto, with openings in all cabins & saloon (no chiller)
Kaartentafel Starboardside from companionway - Headroom : 2,00 m
Achterkajuit Very spacious - Headroom : 2,00 m
Dinette Teak
Openslaande deur naar kuip ja
Keuken On portside along the walkthrough - Headroom : 1,80 - 2,05 m
Aanrechtblad Duropal Painted White Perfection Pro (2 compenents) in 2024
Spoelbak roestvast staal 2 x
Kooktoestel keramisch Aristron 2 burner - Half-Cardanic
Afzuigkap Dometic
Combi magnetron/oven Bosch Innowave (2018)
Koelkast Top loader with a water cooled (pump renewed in 2024) Superfrigomat 5F compressor.
Vriezer Top loader with a water cooled (pump renewed in 2024) Frigoboat compressor.
Warmwatersysteem 220V + motor 60 L Boiler (2008)
Waterdruksysteem elektrisch Cempump water pressure pump & all water piping renewed in 2014
IJsblokjesmachine Not functioning
Eigenaarshut frans bed In aft cabin - Headroom : 2,00 m
Lengte bed (m) 2,00 x 1,50
Kledingkast hangend/lades/legplanken

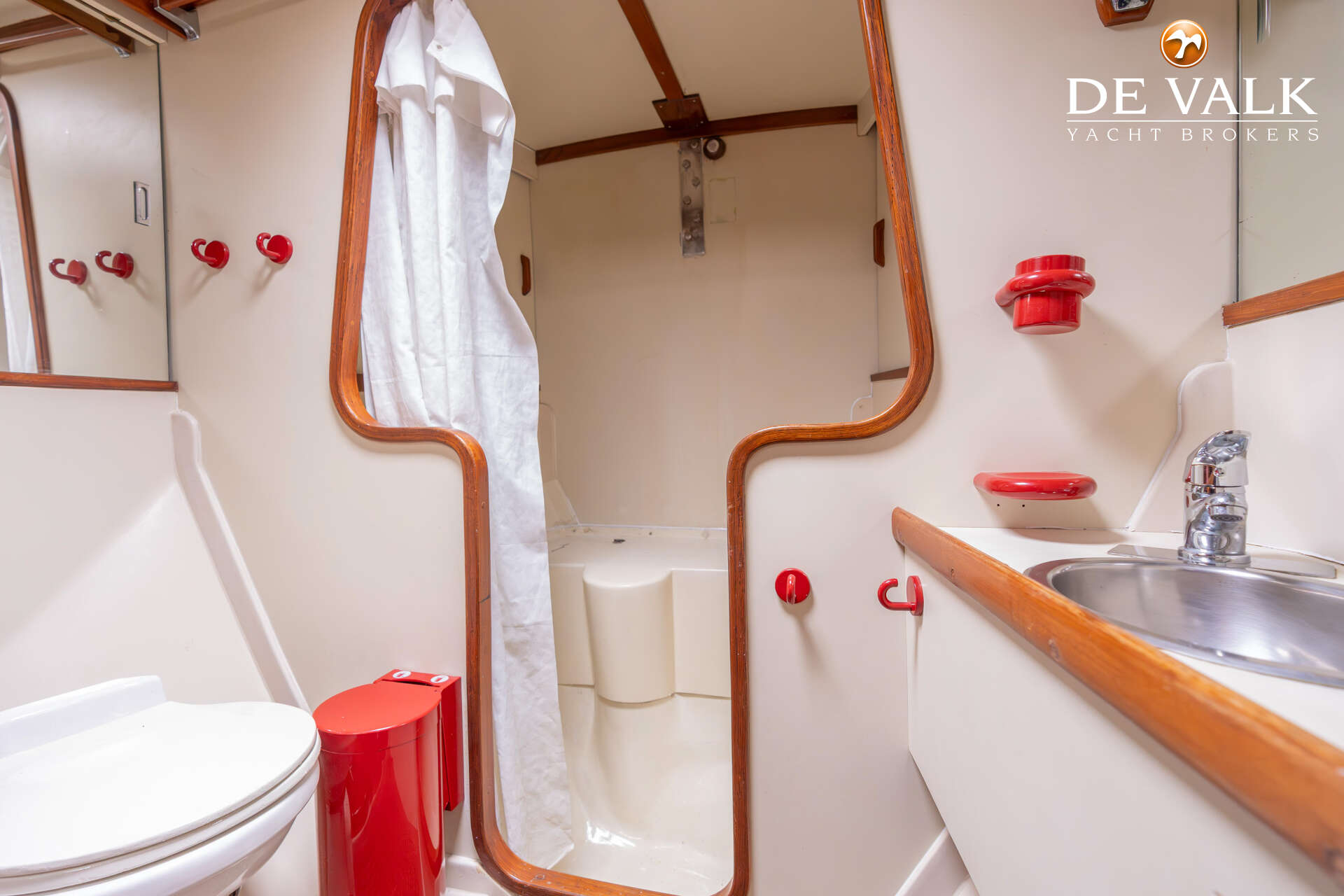

Badkamer en suite Headroom : 1,90 m

Toilet en suite In the bathroom
Toilet Systeem vacuum Electric
Wasbak in de badkamer
Douche en suite Seperate cabin in the bathroom - Headroom : 2,00 m
Extra info Mattresses renewed in 2018 with Lee-Cloths
Gastenhut 1 stapelbed In front on starboard side - Headroom : 2,00 m
Lengte bed (m) 2,00 x 0,85 & 2,00 x 0,80
Kledingkast hangend en legplanken
Badkamer gedeeld In the bow - Headroom : 1,88 m
Toilet gedeeld In the bathroom
Toilet systeem vacuum Electric
Wasbak in de badkamer Stainless steel
Douche gedeeld Seperate cabin in the bathroom - Headroom : 1,88 m
Extra info Mattresses renewed in 2018, with Lee-Cloths
Gastenhut 2 stapelbed In front on port side - Headroom : 2,00 m
Lengte bed (m) 2,00 x 0,85 & 2,00 x 0,80
Kleerkast hangend en legplanken
Extra info Mattresses renewed in 2018, with Lee-Cloths
Bemanningshut(ten) 1 x Crew (Captain - 1 peron) Cabin - Amidships on Starboard Side - Bed : 2,00 x 0,80 m - Headroom : 1,95 m.
Badkamer (bemanning) Between galley and crew cabin - Headroom : 1,95 m
Toilet (bemanning) In the bathroom
Toilet systeem vacuum Electric
Wasbak in de badkamer
Douche (bemanning) In the bathroom (with curtain) - Headroom : 1,95 m
Extra info Mattress renewed in 2018, with a Lee-Cloth underneath
Was/droog combinatie Zanussi TurboDry 1000 (HydroSystem - Xtra Capacity)
Extra info During the refit in 2014 the following has been done : Isolation, leather on the ceiling plates and all lighting fixtures renewed. Ber Ozono water filter system installed in 2008.
Extra info The superstructure has been painted in white epoxy on the inside (2023). 3 x Reading light in the saloon. This is some of Gulfstar’s finest workmanship. They used a patented process to camber teak edges. Every corner is nicely radiused, and you could put up the quality of the interior against any other manufacturer in the world.

Aantal motoren 1
Merk Yanmar
Type 4LHA-HTP
Pk 160
kW 117.76
Brandstof diesel
Geinstalleerd in jaar 2008
Maximale snelheid (kn) 9
Kruissnelheid (kn) 8
Verbruik (ltr/uur) 5,5
Motoruren 2030
Koelsysteem motor indirecte warmtewisselaar
Aandrijving schroefas
Schroefas afdichting ja
Motorbediening elektrisch (2008)
Keerkoppeling hydraulisch (2008)
Boegschroef elektrisch Vetus
Uitlaatsysteem watergekoeld (2008)
Stuwdruklager Aquadrive (2008)
Type schroef klap Gori (2008)
Schroefbladen 3
Materiaal schroefas roestvast staal

Smering schroefas water (2022)
Handlenspomp (2008)
Elektrische lenspomp Blau Naval Marine Pump (2008) max 6,6m3/hour
Bilge alarm (2008)
Elektrische installatie 12 & 24 & 110 & 220 Volt (entire 220V system renewed in 2014)
Generator natte uitlaat Vetus (2008)
Draaiuren generator 340
Startaccu 1 x AGM Deep Cycle (2022)
Lichtaccu 4 x 200 Ah Gel battery (2010) & 4 x 200 Ah AGM (2024)
Navigatie accu ja
Boegschroefaccu 2 x 200 Ah AGM Deep Cycle (2023)
Accu monitor Victron BMV 501 Battery Monitor
Acculader 1 x Victron Centaur 200 A & & 1 x Vetus 80 A (engine battery) & 1 x Victron (bowtruster batteries) & 1 x Victron Skylla TG 24V 50 A.
Omvormer 1 x Victron Phoenix 3.000 W
Zonnecellen 800 Watt Burger Meyer (double reflection - 2023) with Victron Solar MPTT 100/50 (2023).
Diodebrug (2008)
Walstroom met kabel Electric rolling up
Watermaker Aqua Whisper Sea Recovery System 250L/H (2008). To be serviced
Extra info The engine room access is through the portside walkthrough. She has the nice little Gulfstar door with a circular porthole. Inside their is plenty of room for sitting down and crawling around.
Extra info The engine has been serviced annually and had a large service in 2022. Propeller shaft bearing renewed in 2022. Separ fuel filter with water seperator. Racor fuel filters. In 2008 the engineroom was completely empied and everything was renewed & new installed, including new sound isolation.
Extra info WaterCounter Water Management System WC1 (2011).

Kompas Whitlock
Electrisch kompas Furuno THD Satellite Compass SC-50 (3 Boxes - 2009)
Multi control dispaly Raymarine ST60+ Graphic (2009)
Dieptemeter/log Raymarine ST60+ Tridata (2009)
Windmeetset Raymarine ST60+ WInd (2009)
Repeaters Raymarine ST60+ (2009)
Marifoon 1x Raymarine (2009), 1x Skanti 1000 P DSC (2009), 1x Sailor C4951WP (2009).
Handmarifoon 1 x Simrad TC 50 GMDSS (2008)
Autopiloot Raymarine ST6002 (2009) & 2nd display at chart table
Roerstand aanwijzer Raymarine ST60+ Rudder (2009)
Radar Furuno Navnet Radar Antenna mounted on mast (2014) and 1x Furuno Marine Radar 1715 on a half cardanic bracket on the arch on the stern
GPS Furuno GPS Navigator (2009) & Raymarine (2009)
Navtex JRC NCR-333 Navtex Receiver
PC computer Emergency computer for emergency power

PC aansluiting ja
Wifi antenne D-Link
Elektronische kaart(en) 2014
AIS transceiver Furuno Universal AIS FA-150
Radio ontvanger JRC NCT-196N DSC NBDP Modem (2009)
Zendinstallatie JRC JSB-196 GM Radiotelephone (2009)
Epirb MacMurdo Smartfind E5/G5 - 406 Mhz - Class 2
"MOB" zender 2 x & 1 x MacMurdo S4 Rescue Sart Transponder (need new battery)
Camera Axis P12 Network Camera Series (2014) : On the bow, on the stern, 2 x in the mast on spreader (with very good zoom), in the saloon/chart table, at the bow thruster, in the engine room, under water at the propeller & propellershaft and at the propellershaft (inside). At this moment, the camara's are not in use and all cable-ends are disconnected from the computer unit of the camara system.
Navigatieverlichting LED
Zoeklicht On the arch on the stern
Praai installatie Sailor SC4150 Iridium & Standard Horizon Loud Hailer VLH-3000
Extra info Tsunamis Navigator & Dell Screen at navigation table

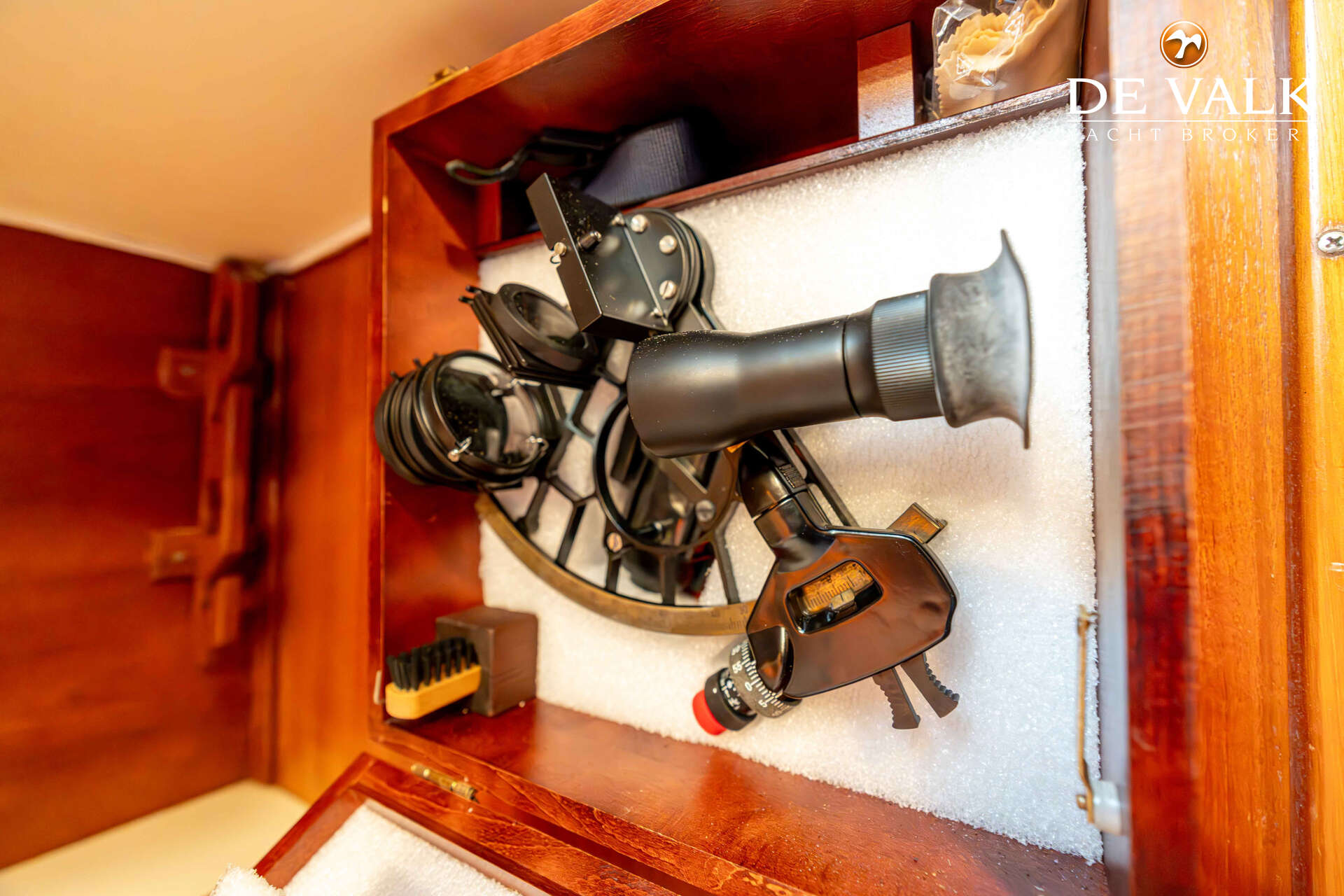

Extra info Sextant

Buiskap Blue
Kuiptent Blue
Bimini Cockpit cover can be used as a bimini (panels around removed)
Zonnetent Over the complete boat (2014, as new, only used a few times)
Kuipkussens Blue with a extra & new spare set of covers
Kuiptafel Teak (foldable and mounted on front of pedestal)
Zwemtrap roestvast staal With teak - Hanging on port side
Loopplank Hydraulic Besenzoni (in GRP with 2 stentions)
Dekdouche On the aft deck
Anker Bruce 30 Kg
Ankerketting 120 m 12 mm (2014)
Ankerlier elektrisch Controlled on the bow and in the cockpit
Kaapstander On the windlass
Dekwasinstallatie 2 x (functioning unknown)
Buitenboordmotorsteun ja
Davits roestvast staal Foldable bracket
Davits bediening handmatig
Dekkraan handbediend On the stern
Zeereling draad Doubble wired
Handgreep (opbouw) teak
Zij-instap in reling On both sides
Hekstoel Stainless steel
Preekstoel Stainless steel
Zwemvesten 2 x

Veiligheidsharnas 2 x
Reddingsboei 2 x Orange round buoy
Veiligheidslijnen op dek (2022, but never used - new)
Trossensnijder (2021)
Hoorn luchtdruk 2 x
Radar reflektor (2014)
Stootkussens ja
Landvasten ja
Reserve onderdelen ja
TV Samsung Smart TV (2016)
TracVision ball TracVision
Radio-cd speler 1 x JVC & 1 x Alpine
Surround Sound System (2022)
Subwoofer (2022)
Kuipspeakers (2008)
Speakers in salon Pioneer (2008)
Speakers in hut 2 x Pioneer in every cabin
Klok - barometer In every cabin is a clock
Brandblusser ja
Brandblusser laatst gekeurd Need to be checked / renewed
Brandblusser in motorkamer Need to be checked / renewed
Extra info LED underwater lighting (New in 2023)
Extra info Blue LED lighting behind the name on the transom
Extra info Stainless steel Magma BBQ (with all accessories) on aft port side pulpit.

Tuigage sloep-kotter
Staand want Dyform (2014)
Merk mast Formula Masts (2014)
Materiaal mast aluminium gespoten Coated Cloud White Alexseal (2014)
Zalingen 2 x Set - White coated (2014)
Doorgestoken mast ja
Grootzeil Climent Furling Laminated Furling Mainsail (2014 - adequate)
Rolgrootzeil Hydraulic (2014)
Kotterstag Removable, with a tentioner (2014)
Fok 1x Climent Cutter Jib ( 2014 - un-used) & 1x Citter Jib(old)
Genua Climent Furling Laminated Genoa (moderate condition)

Genua rolreefsysteem Harken - Hydraulic (2014)
Gennaker Climent (2014) with loose Facnor Furler (2014 - never used, new)
Reefinstallatie rolgrootzeil in de mast Hydraulic (2014)
Giekneerhouder hydraulisch Navtec (2014)
Primaire schootlieren 1 x Barient 27 ST (mainsail sheet)
Secondaire schootlieren 2 x Barient 28 ST
Genua schootlieren 2 x Barient 36 ST electric
Vallieren 2 x Barient 25
Spinnakerboom carbon Cloud White Alexseal coated (2014), the end head is missing
Extra info After renewing of rigging (2014), yacht wasn't used till 2022
